Product Overview
Description

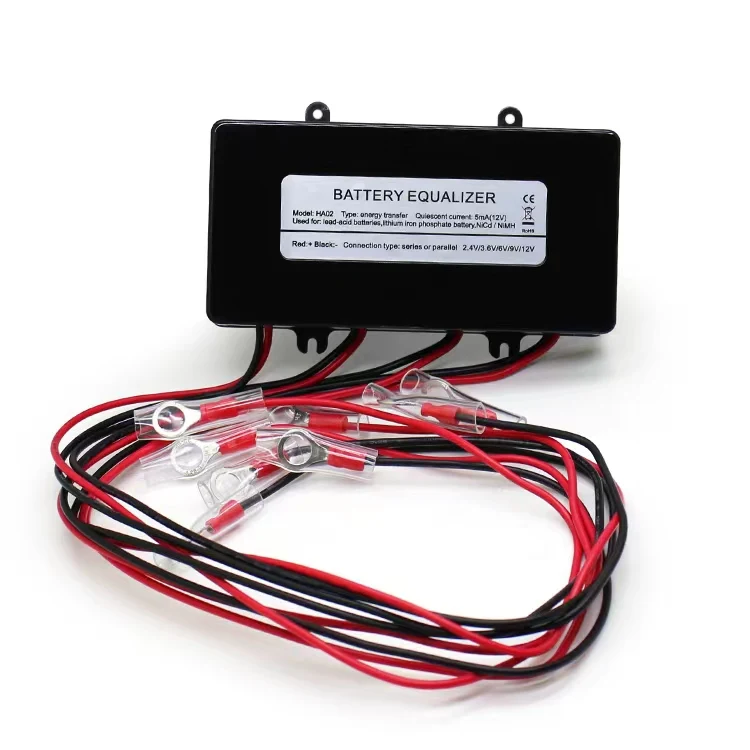

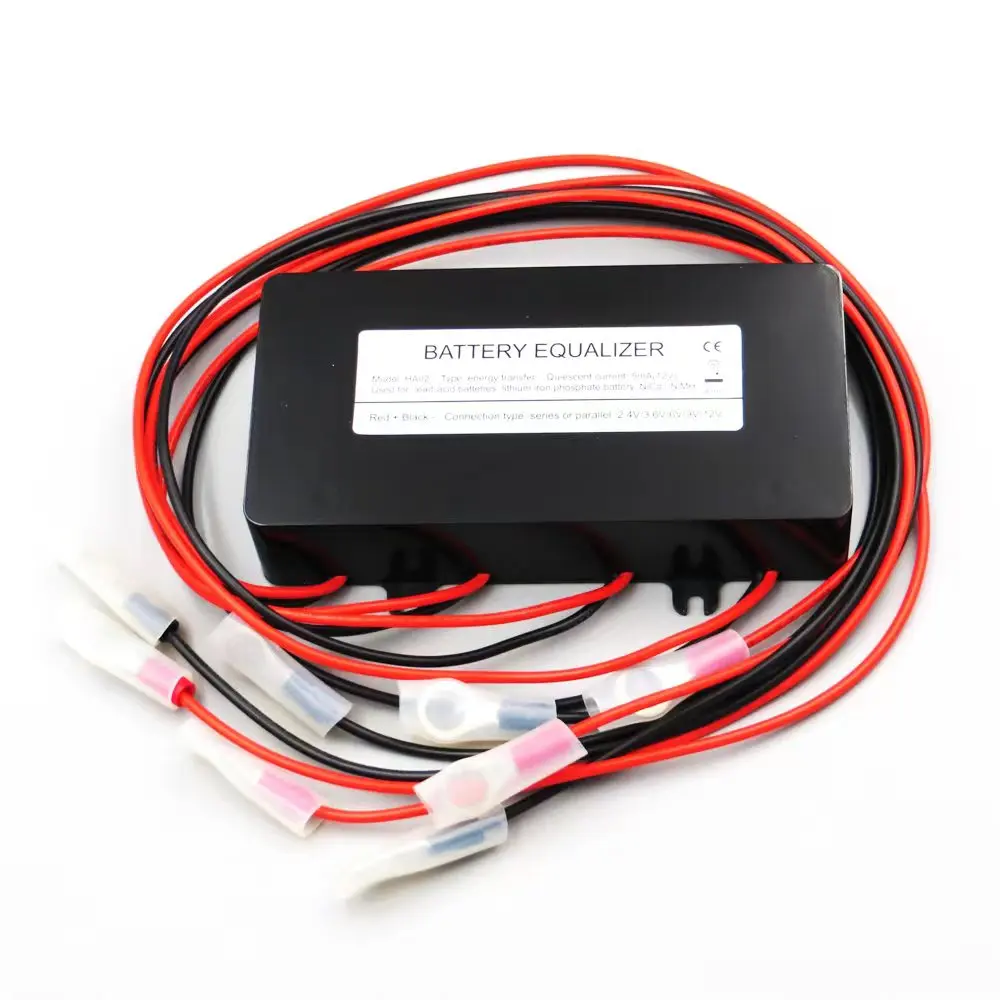

Lithium Batteries LifePO4 BMS Battery Voltage Battery Equalizer Balancer

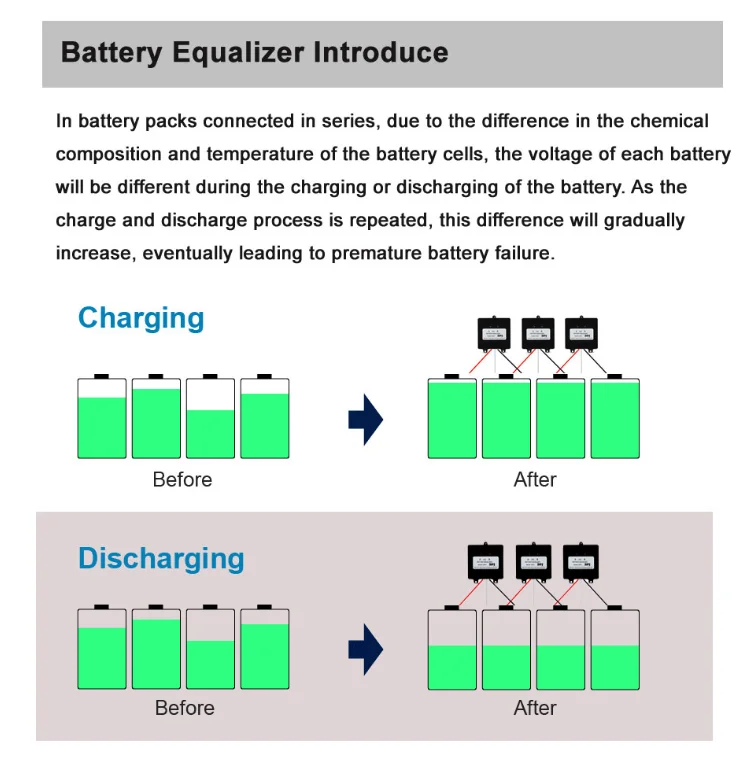

HA02 battery equalizer is used for the batteries which are connected in series to keep the voltage of batteries are equal when the batteries are charging or discharging.When the batteries work in series connection, the batteries voltage maybe will be not same due to the difference of each cell chemical composition and temperature.
And each battery's self discharge rate also different.So even the batteries not work, their voltage of series batteries will be also different.
These differences will cause battery lost balance, this means maybe one battery is overloaded and the other is insufficiently charged.
The voltage difference wil be increased with the battery repeated charge-discharge process.This wil result in premature failure of the batteries

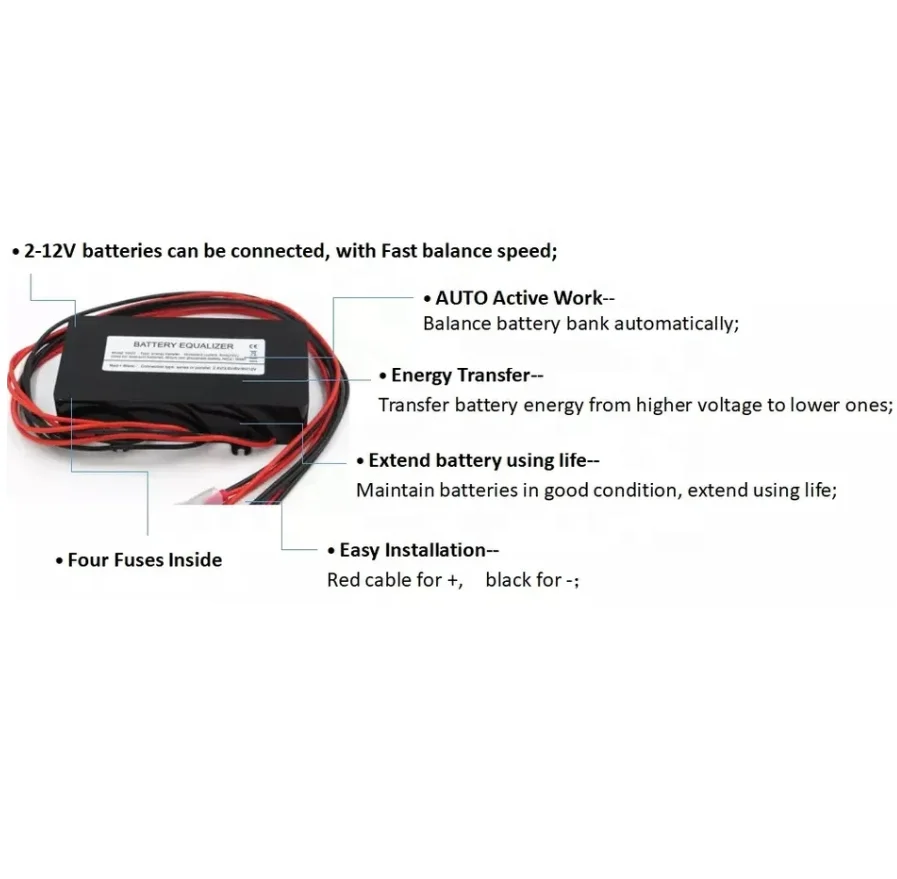

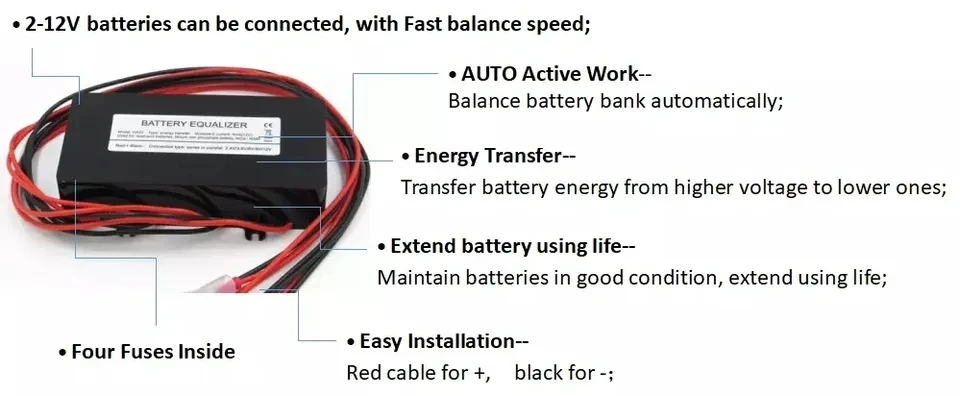

HA02 battery equalizer is energy transfer type equalizer, it can compensate for batteries with two sides.The equalizer starts to work when there are 10mV between two batteries.
The current will flow from a higher voltage to low voltage, eventually reach equilibrium.It can connect with battery system with 24 hours, to keep the system energy balance automatically, no need manual maintenance.
Installation:
Connect it as the following order:
1.Red cable connect positive/+pole.Black cable connect negative/-pole

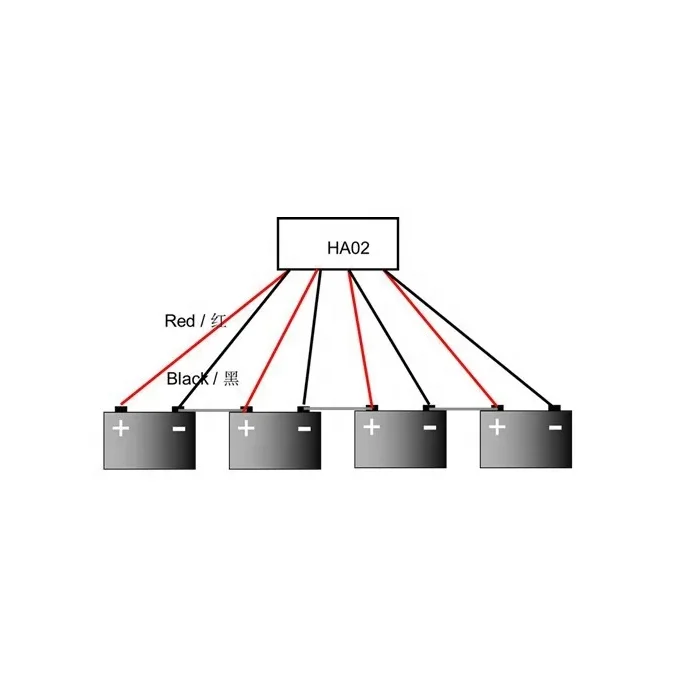

2.Connect the batteries as the pictures.
3.You can connect all+pole frst ly, and then-pole to avoid short circuits
Note:1.If there are extra cables, please leave the tubes of the terminals on it to avoid short circuits.2.Please avoid any of the 8 terminals touching eachother.

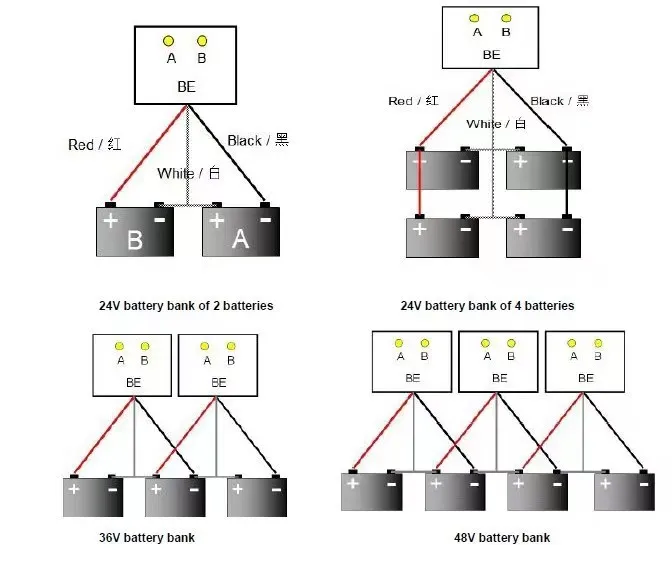

Battery equalizer can be used for 24V, 36V, 48V and any other N*12V battery system.
1 piece for 24V system;
2 pieces for 36V system;
3 pieces for 48V system;
Installation:
Please connect the battery equalizer to battery as follows:
1.Redcable:BattertBpositive/+pole
2.Blackcable:BatteryAnegative/-pole
3.White cable:Battery B negative pole or Battery A positive pole
(The pole which connected Battery A and Battery Bin series
