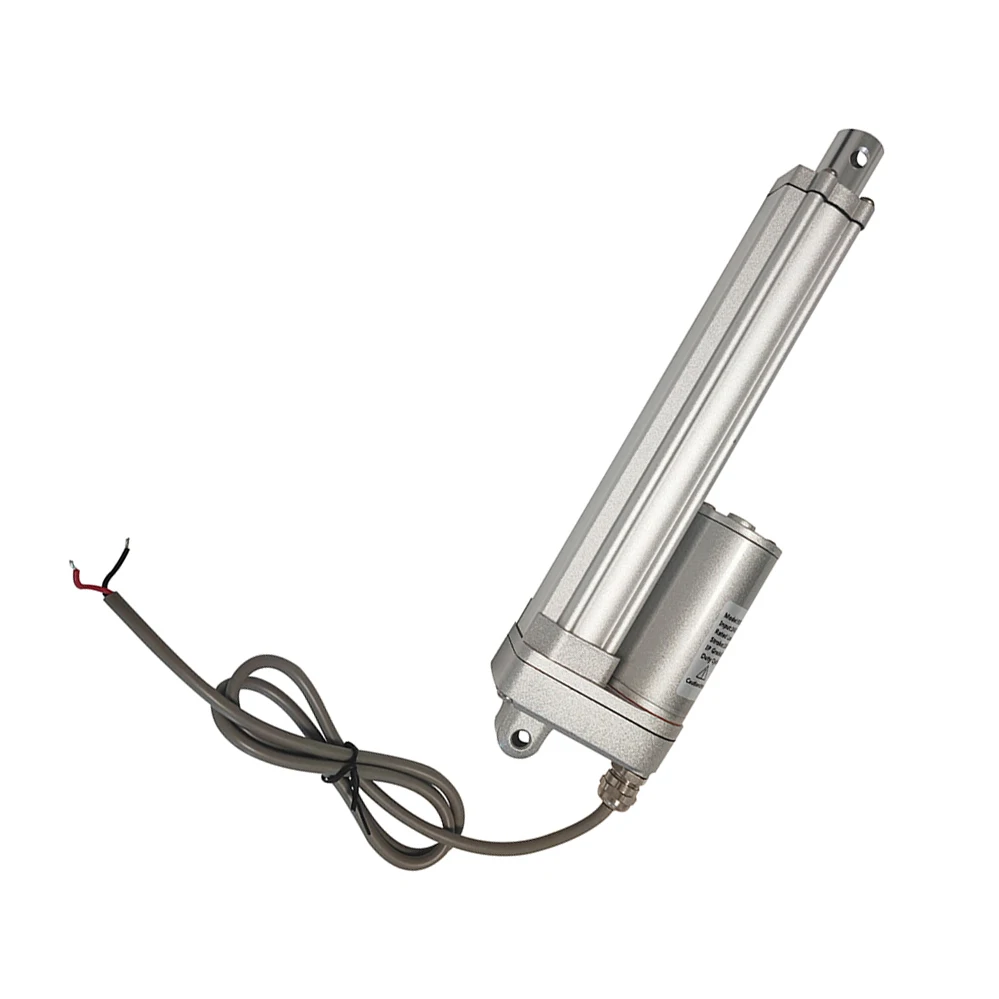

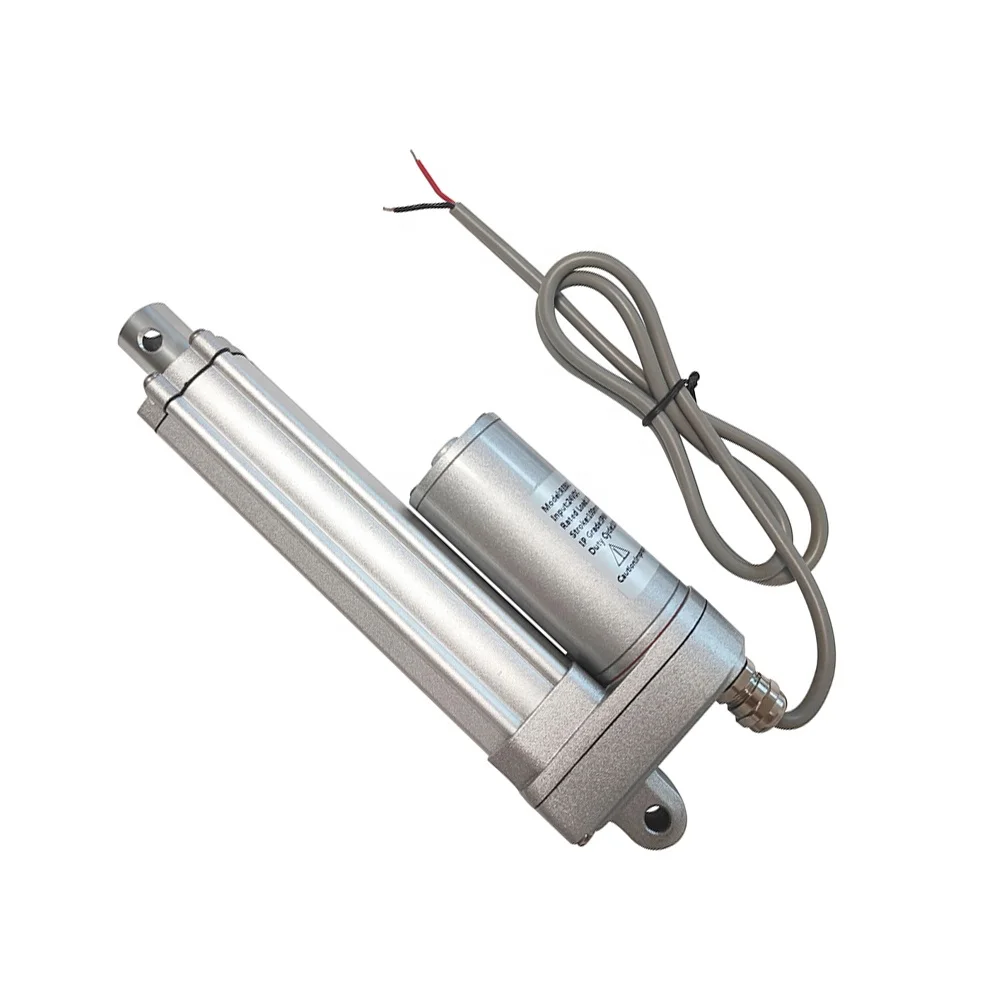

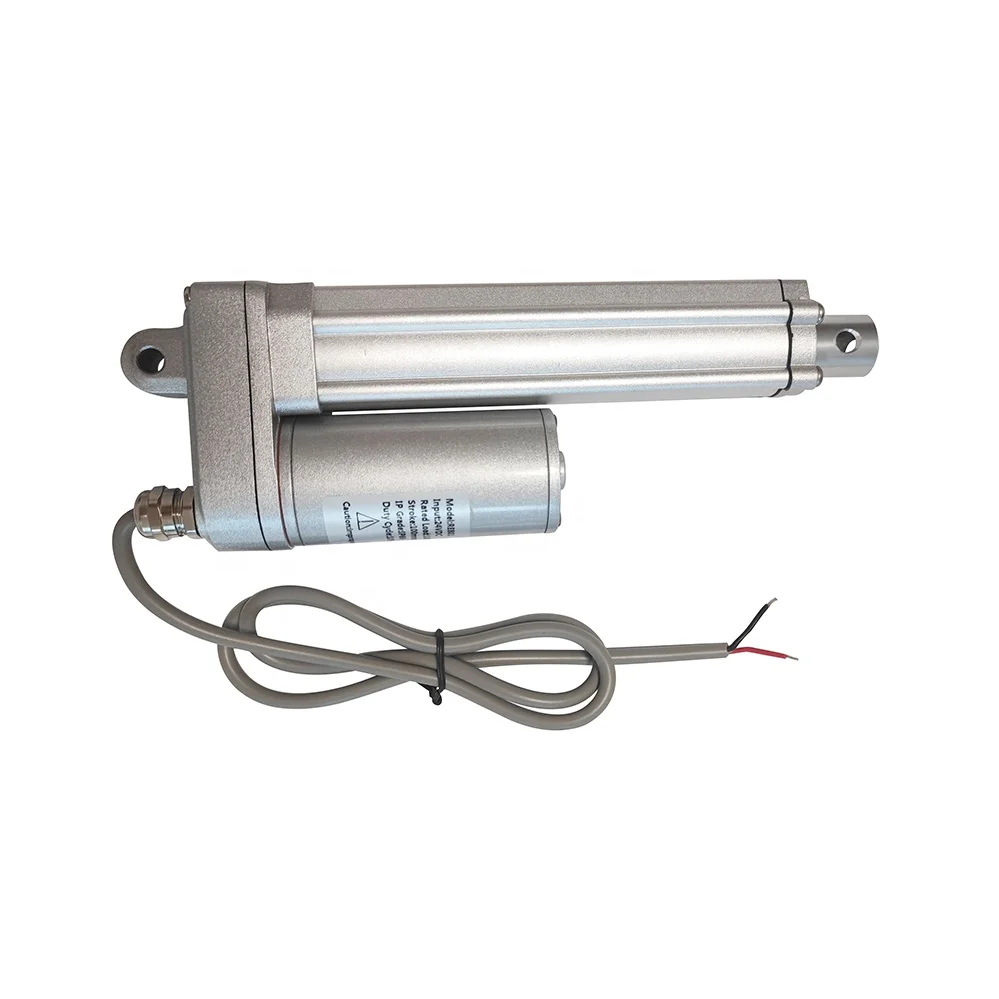

PMDC motor hall feedback solenoid waterproof mini linear motor 12V/24V IP65

Product Overview

Description

PMDC motor hall feedback solenoid waterproof mini linear motor 12V/24V IP65



Description

Remore’s model RE801 is widely used in different industries, making both work and private life easier for a lot of people. This model is ideal for industrial equipment, sweeper, aid setting, ventilation and farming solutions and so on.



Specification



Model No.	RE801
Voltage	12V/24V/36V/48V
Stroke	30-600mm Customized
Max. Load	1200N
Speed	5~80mm/s
Protection Class	IP65
Potentiometer	Optional
Hall Sensor	Optional
Duty Cycle	10% with full load
Limit Switch	Built-in
Operation Temperature	-40~65℃
Transmission Parameter	Table 1
Certificate	CE

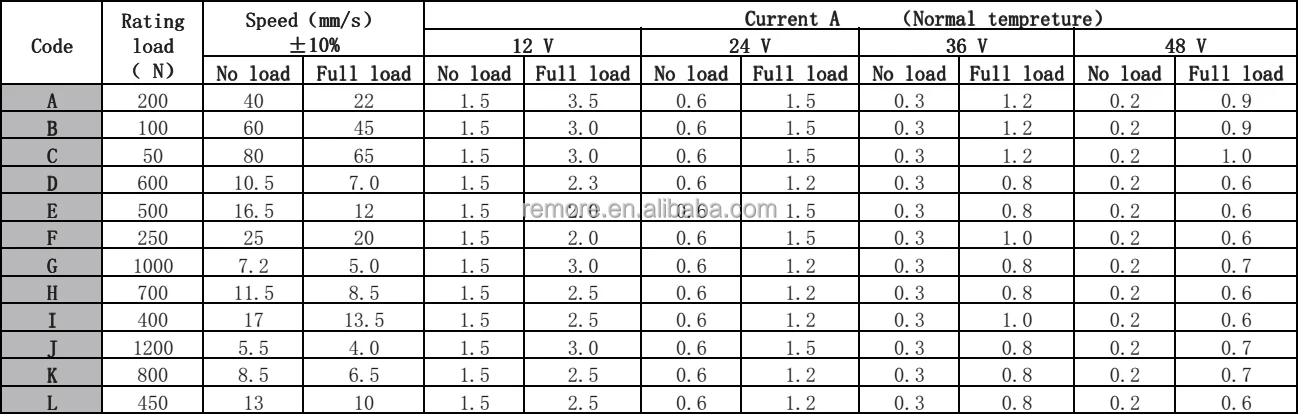

          Table 1   Transmission Parameter



Drawing and Dimension

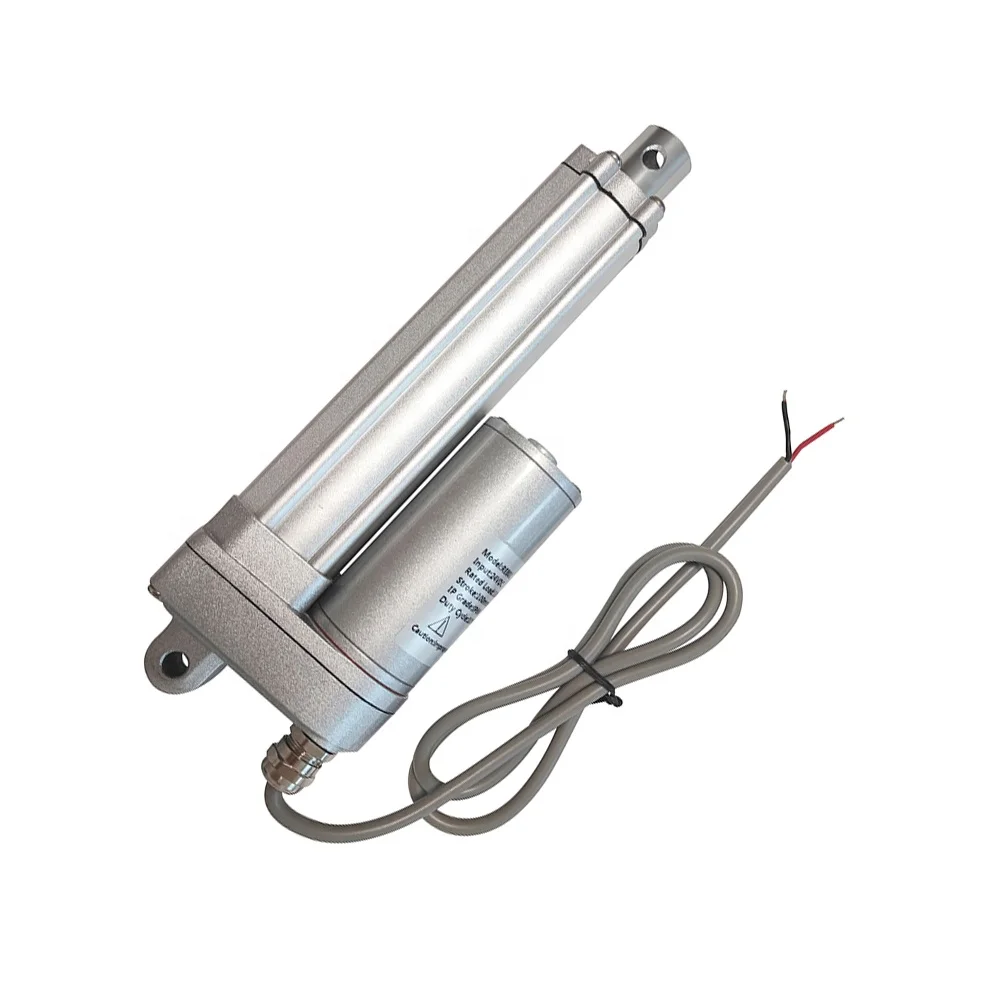

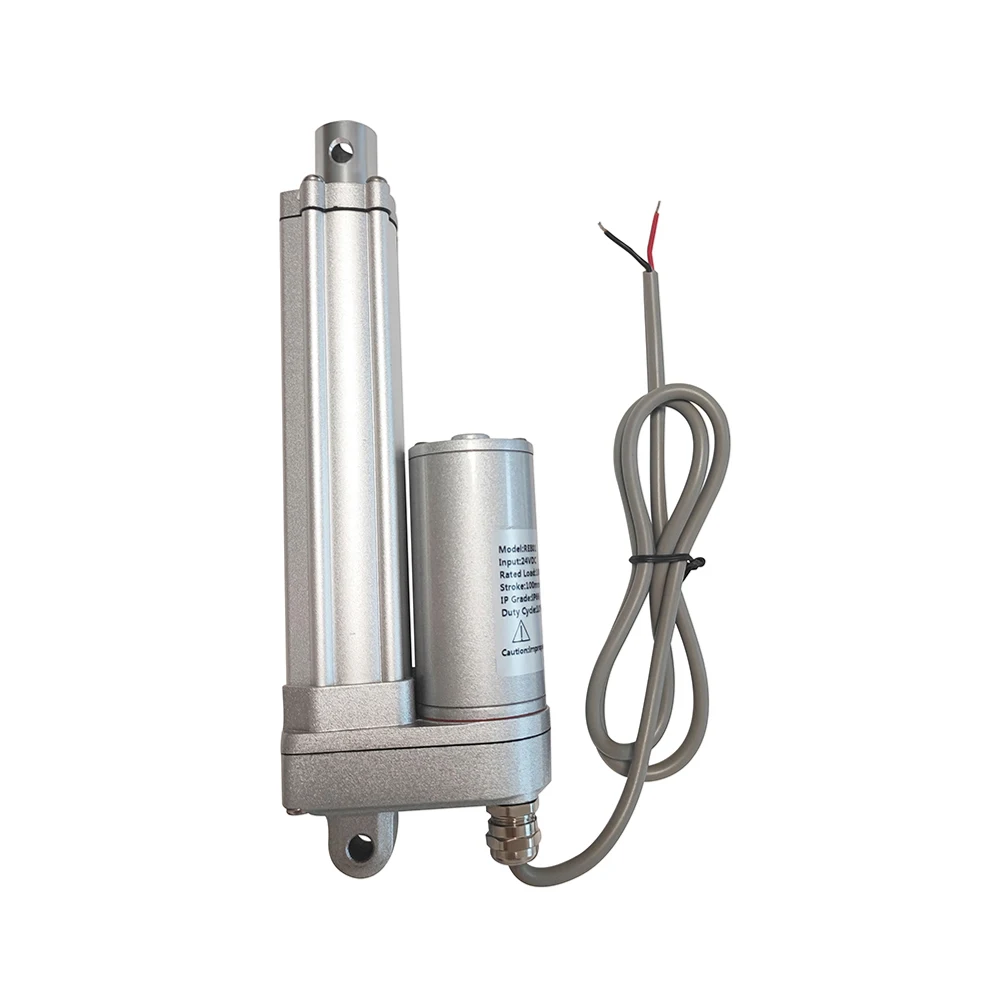

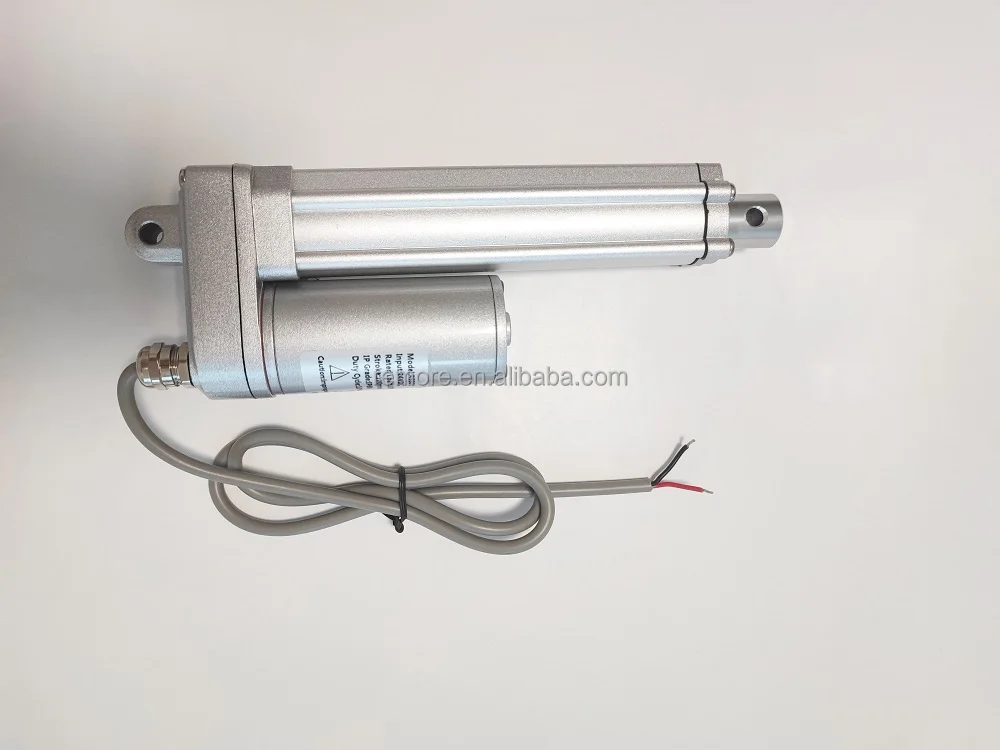

Product Shows

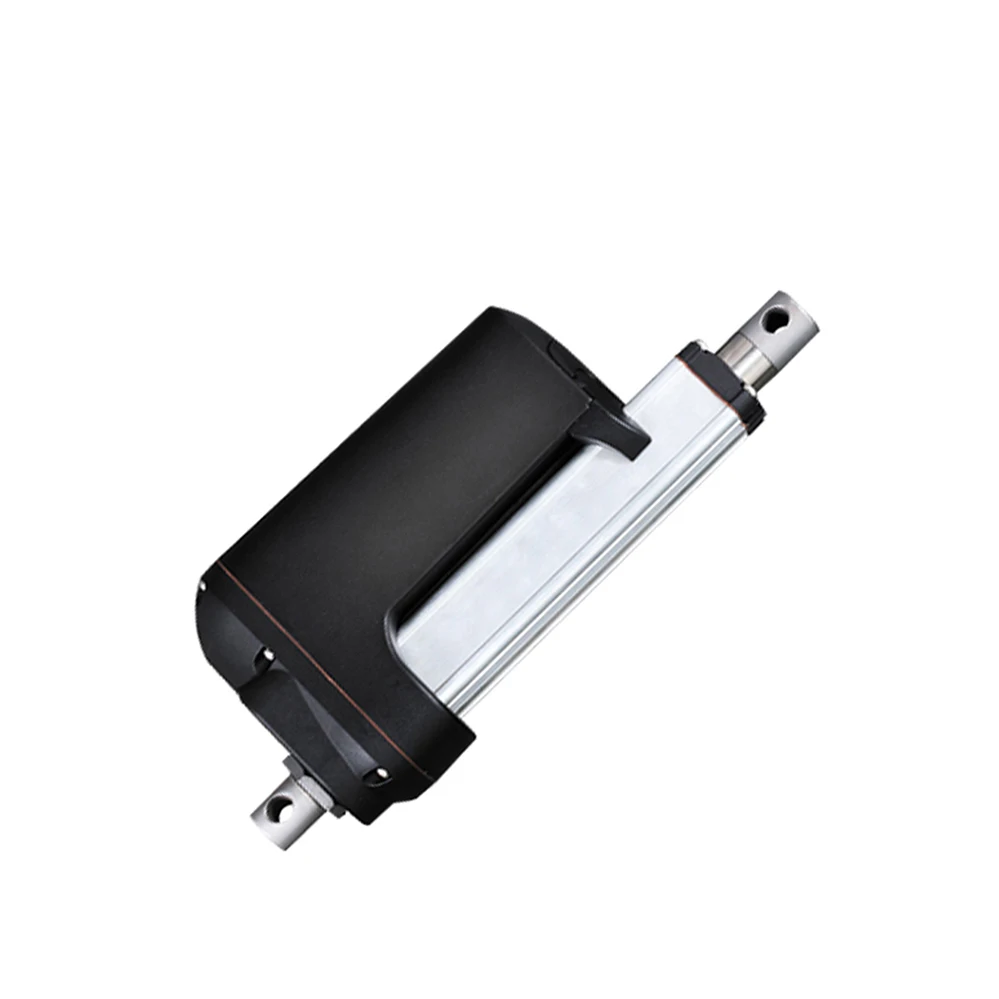

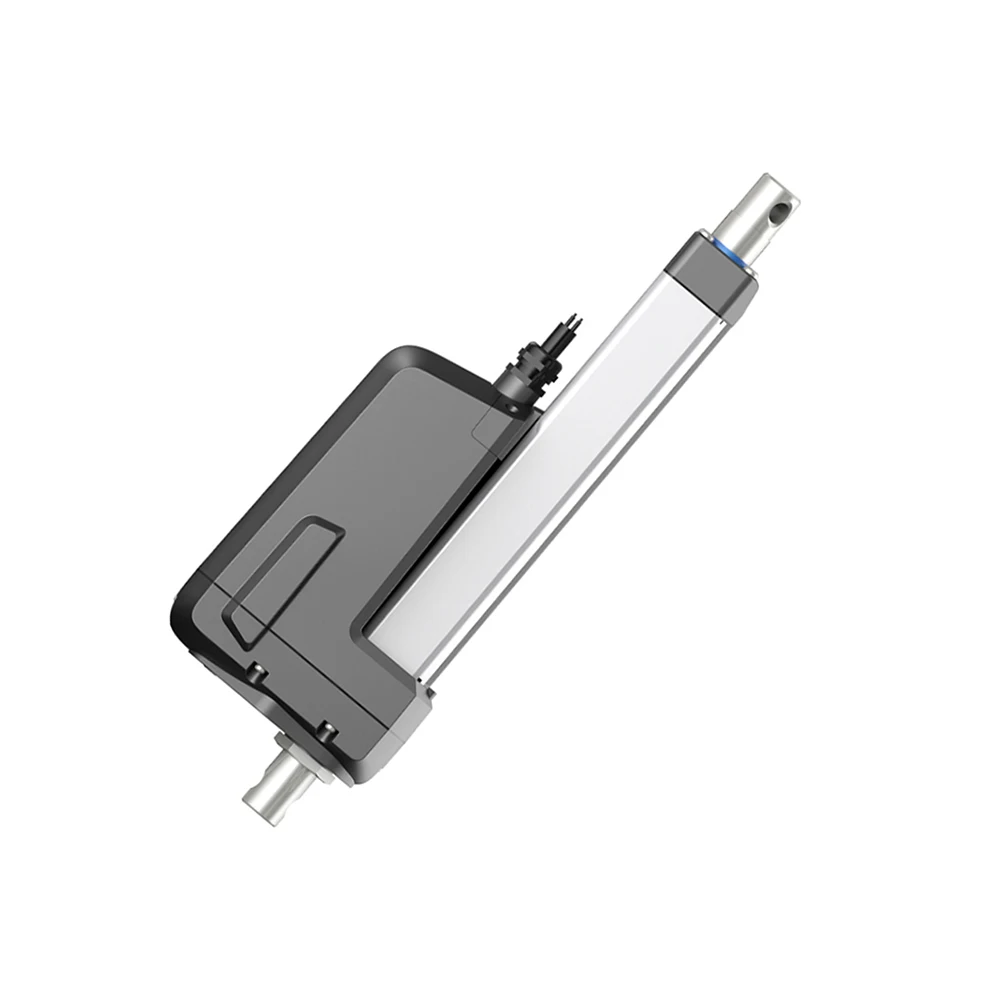

 You May Also Like

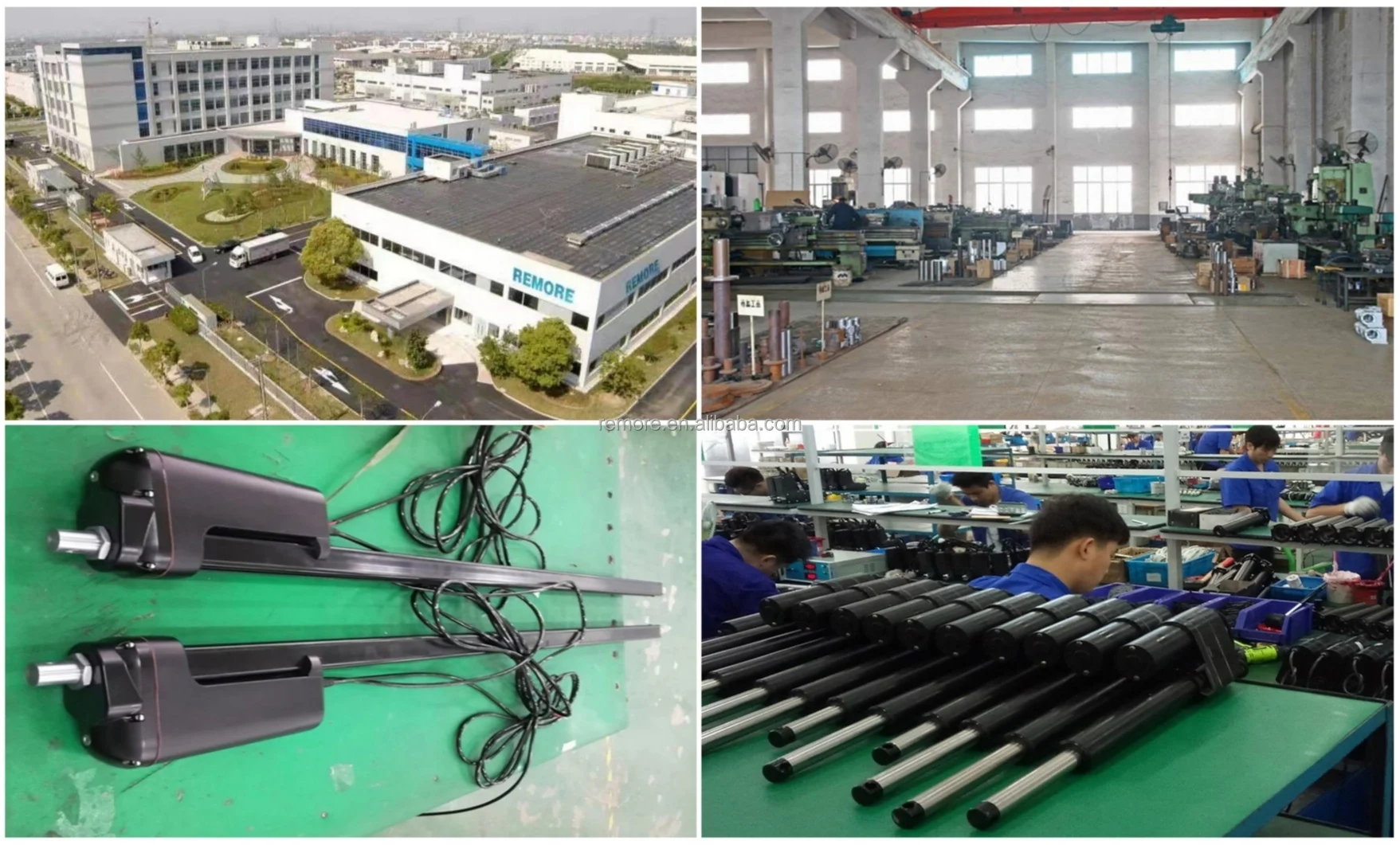

Our Company

Welcome to Remore!

     We specialize in manufacturing linear actuator, control box and handset. Our products are widely used in sofa, bed lifting, TV lifting, hospitable bed, window opener, door opener, industrial equipment, agricultural machinery, sanitation sweeper, special vehicles and solar tracking. We are dedicated to producing products with high quality and reasonable price, meanwhile, our staff are always available to meet your requirements and ensure full customer satisfaction. In one word, we are your ideal cooperator. Choose us, you will choose success!
