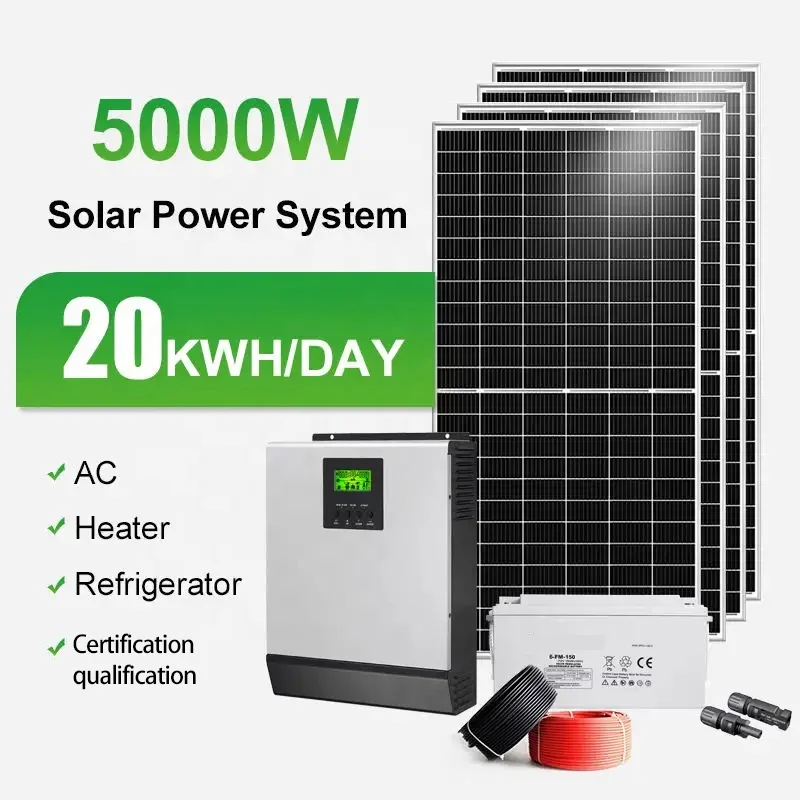

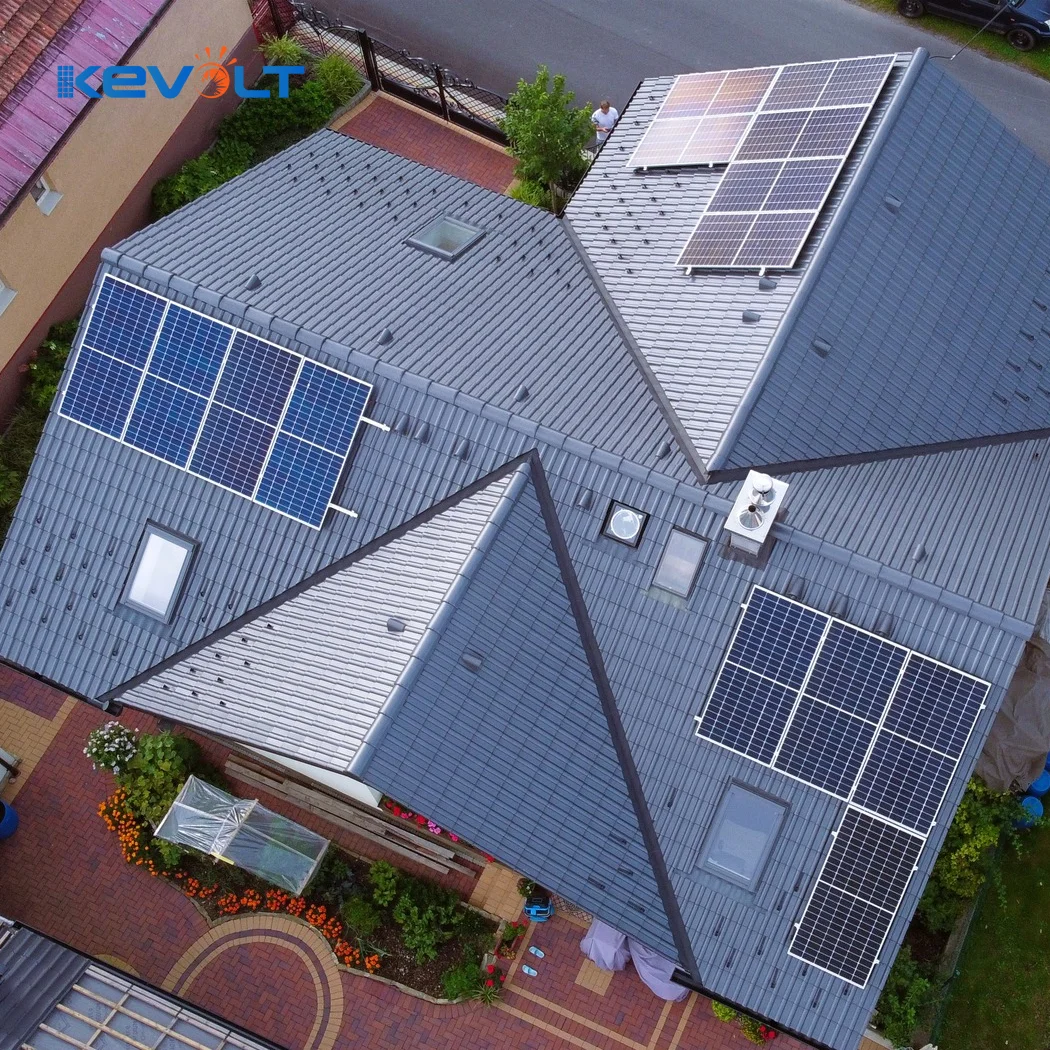

Off Grid Solar Energy System 5KW 10KW Hybrid Solar Power System Home Solar Panel Complete Kit
- Category: >>>
- Supplier: Jiangxi Green System Manufacture And Trade Co. Ltd.
Share on (10000012993804):
Product Overview
Description
Configuration Details
⭐Solar Panels
✅Brand Name: KEVOLT.
✅Peak Power: 550W.
✅Peak Voltage: 40.90V.
✅Peak Current: 13.45A.
✅±Tolerance: -0~+3%.
✅Materials: Monocrystalline Silicon.
✅Batteries Number: 144.
✅Warranty: 15 Years.
✅Warranty: 15 Years.

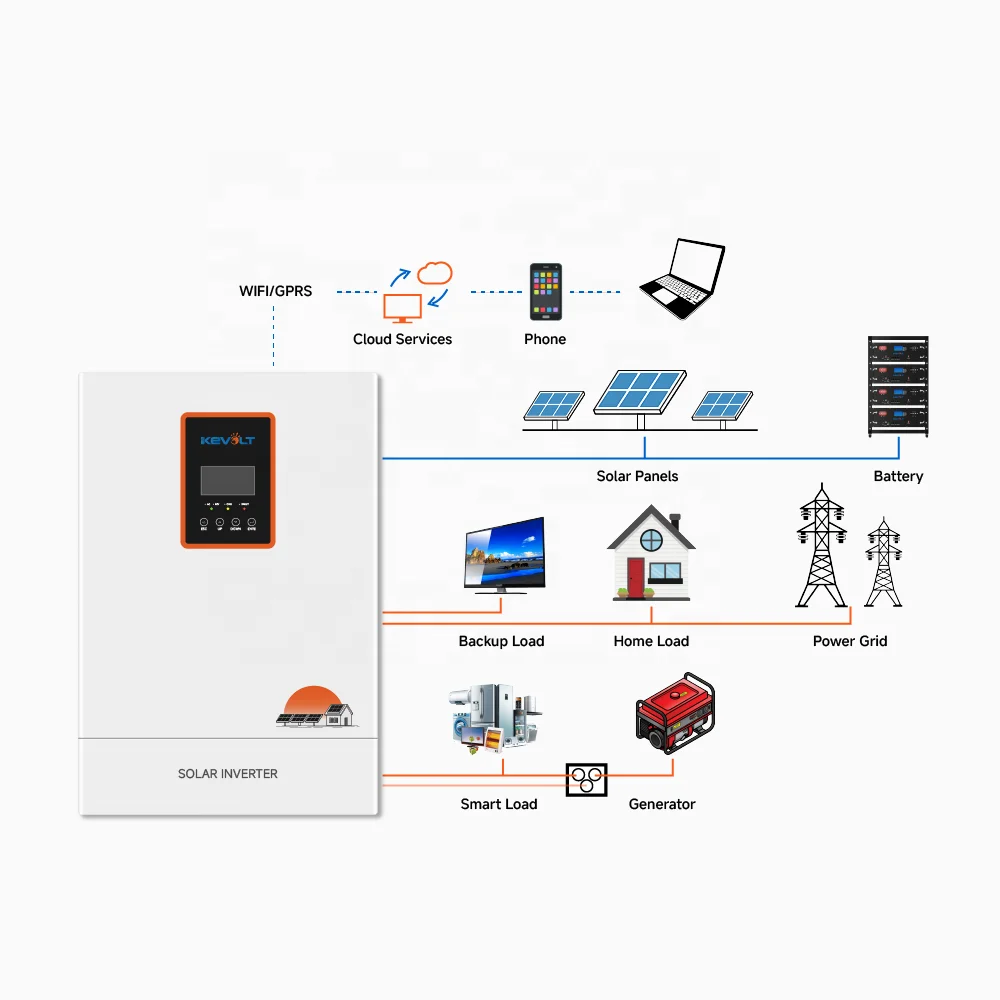

⭐Solar Inverter
✅Brand Name: KEVOLT.
✅Model: KV-5.5/6.2K-H/OP.
✅Rated Power: 5.5/6.2kW.
✅Input Voltage: 220/230/240V.
✅Output Voltage: 208/220/230/240V.
✅Output Type: 1/3 Phase.
✅System Type: Hybrid/Off Grid.
✅Warranty: 5 Years.
✅Warranty: 5 Years.

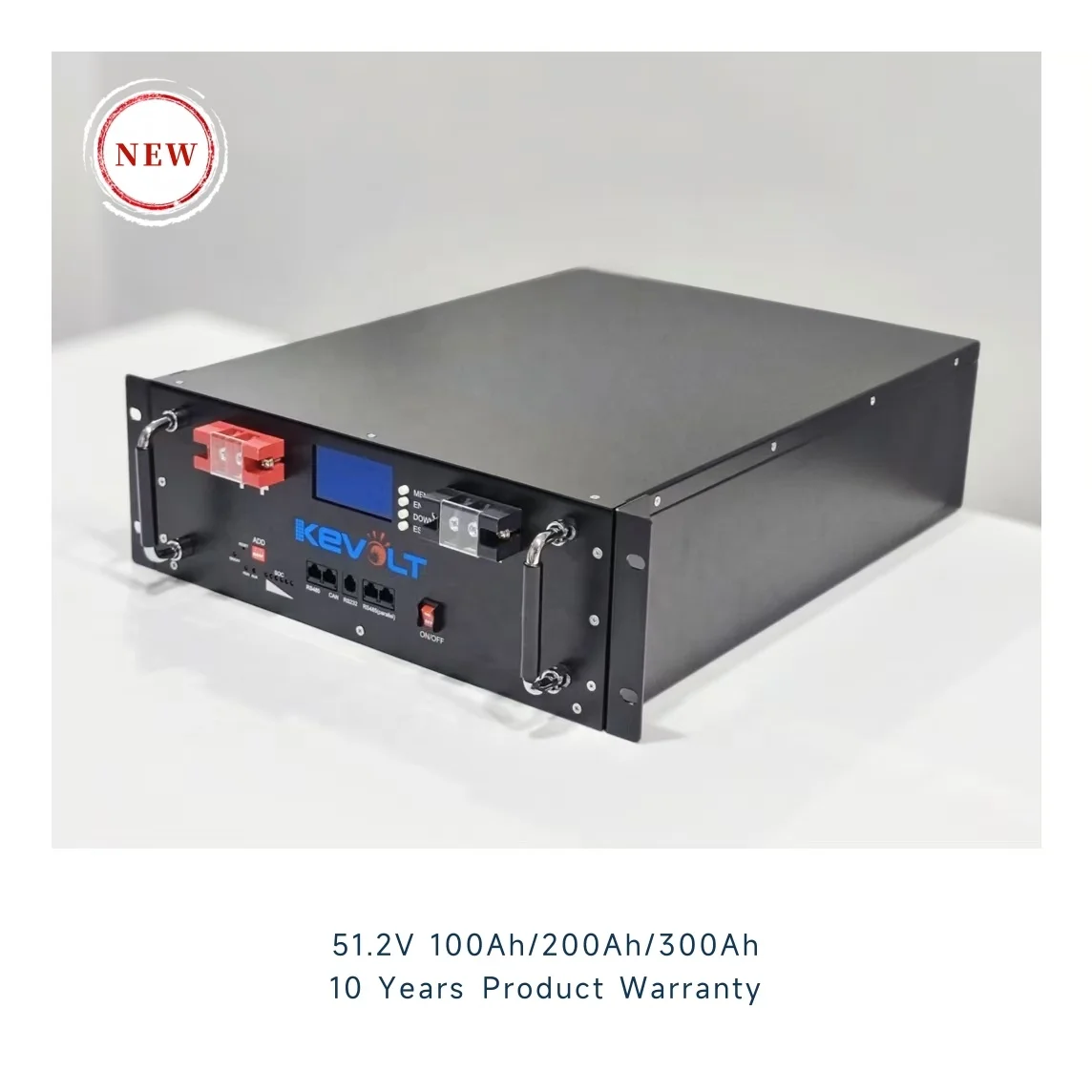

⭐Solar Battery
✅Brand Name: KEVOLT.
✅Certification: CE, FCC, MSDS, UN38.3.
✅Battery Materials: Level A LiFePO4.
✅Capacity: 100/200/300Ah.
✅Rated Voltage: 51.2V.
✅Cycle Life: 8000 Cycles.
✅OEM/ODM: Yes.
✅Warranty: 10 Years.
✅OEM/ODM: Yes.
✅Warranty: 10 Years.

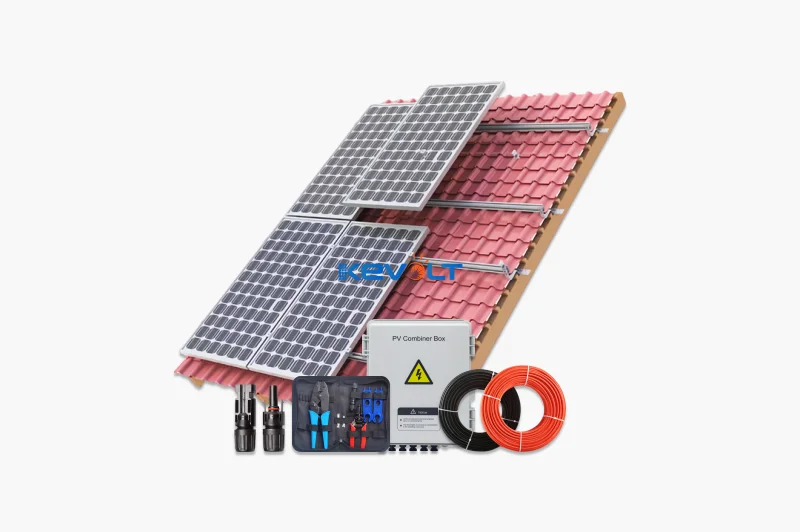

⭐Installation System
✅Installation Mode: Roof Mounting/ Ground Mounting/ Carport Mounting.
✅Support Material: Aluminium Alloy.
✅Tools Bag: Selectable.
✅MC4 Connector: 30A, 1000VDC.
✅MC4 Connector: 30A, 1000VDC.
✅PV Combiner Box: 8 Inputs, 1 Outputs.
✅PV Cable: 4mm².
✅Breakers Switches: Selectable.
5kW Solar System Configuration List | ||||||
Item | Model | Description | Quantity | |||
1 | Solar Panel | 550W | 9 PCS | |||
2 | Solar Inverter | 5kW | 1 PCS | |||
3 | Solar Battery | LiFePO4 51.2V 100Ah | 1 PCS | |||
4 | Other | Combiner Box, MC4, Cable | 1 Set | |||
10kW Solar System Configuration List | ||||||
Item | Model | Description | Quantity | |||
1 | Solar Panel | 550W | 18 PCS | |||
2 | Solar Inverter | 5kW | 2 PCS | |||
3 | Solar Battery | LiFePO4 51.2V 100Ah | 2 PCS | |||
4 | Other | Combiner Box, MC4, Cable | 1 Set | |||
15kW Solar System Configuration List | ||||||
Item | Model | Description | Quantity | |||
1 | Solar Panel | 550W | 27 PCS | |||
2 | Solar Inverter | 5kW | 3 PCS | |||
3 | Solar Battery | LiFePO4 51.2V 100Ah | 3 PCS | |||
4 | Other | Combiner Box, MC4, Cable | 1 Set | |||
20kW Solar System Configuration List | ||||||
Item | Model | Description | Quantity | |||
1 | Solar Panel | 550W | 36 PCS | |||
2 | Solar Inverter | 5kW | 4 PCS | |||
3 | Solar Battery | LiFePO4 51.2V 100Ah | 4 PCS | |||
4 | Other | Combiner Box, MC4, Cable | 1 Set | |||

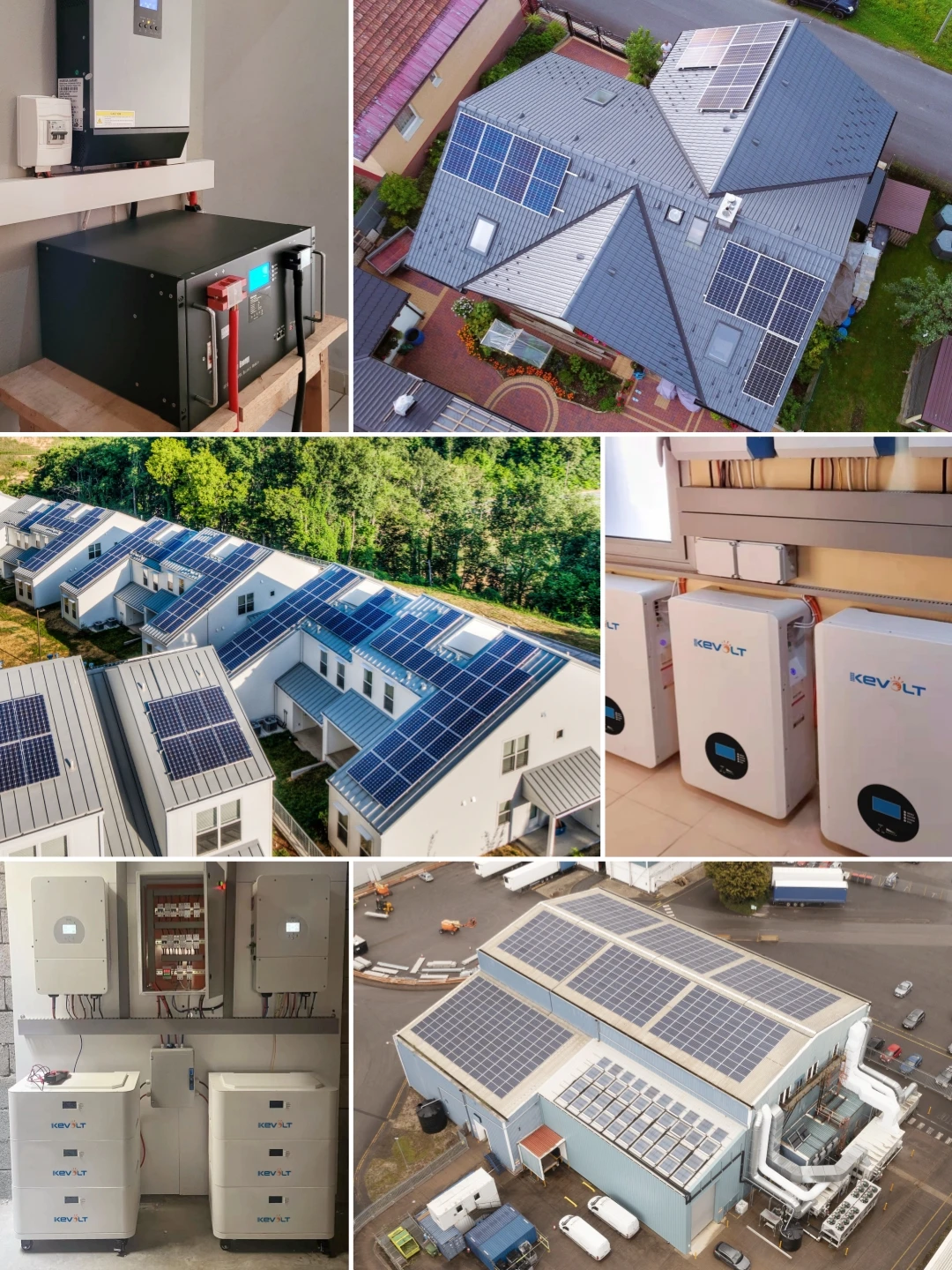

Packing & Installation
Solar System Customization
Solar Panels
Solar Inverter
Solar Battery
Collecting Box
Installation System
PV Cable
