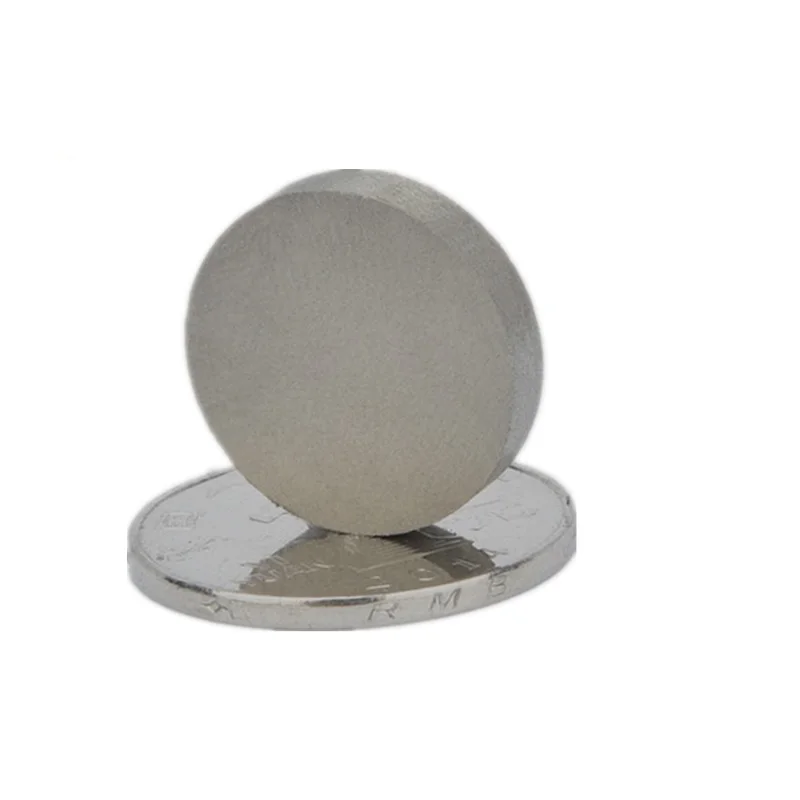

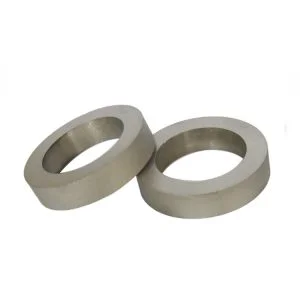

Over 15 Years Factory Custom Samarium Cobalt Arc Magnet Disc Curved Block Ring Rectangle Smco Magnet
- Category: >>>
- Supplier: Shanghai Taixiong Magnetic Industrial Co. Ltd.
Share on (10000013196235):
Product Overview
Description
Product Description
China Magnetic Material Manufacture NdFeB Smco AlNiCo Permanent Magnets
SmCo Magnet(Samarium Cobalt magnet) has superior resistance to high temperature(max temp reaches 350 degree centigrade).When working at above 180 degree centigrade, its maximum energy product BH and temperature stability are superior than NdFeB magnet. Excellent resistance to corrosion, no coating is needed for the surface protecting.
Product Name | Powerful permanent smco magnet for industry |
Material | Samarium, cobalt and other rare earth materials (Smco 2:17, Smco 1:5) |

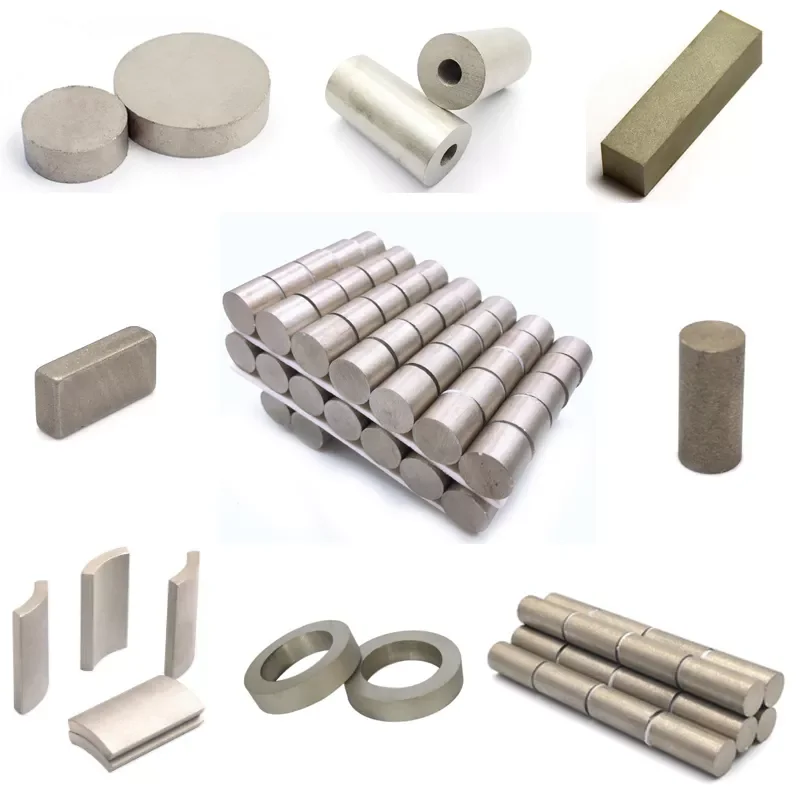

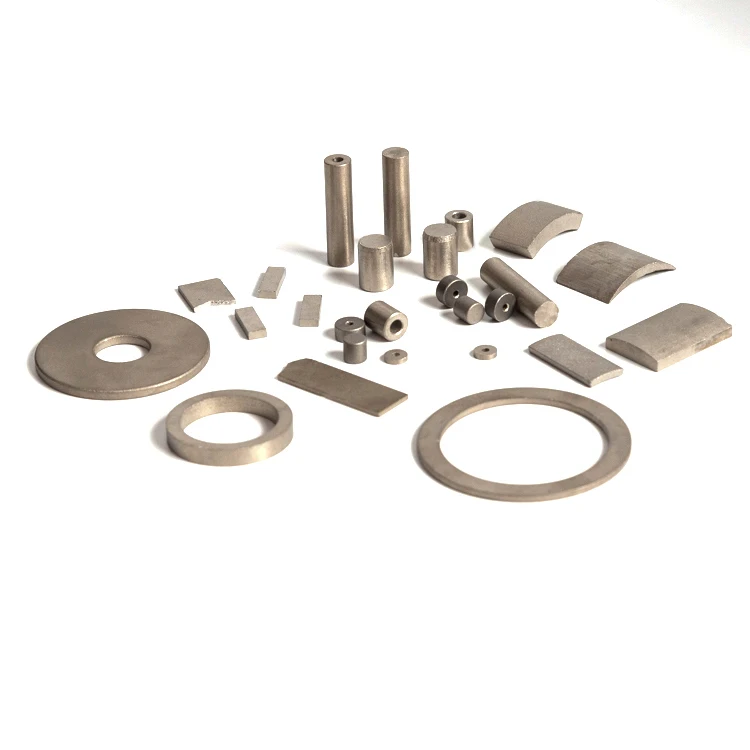

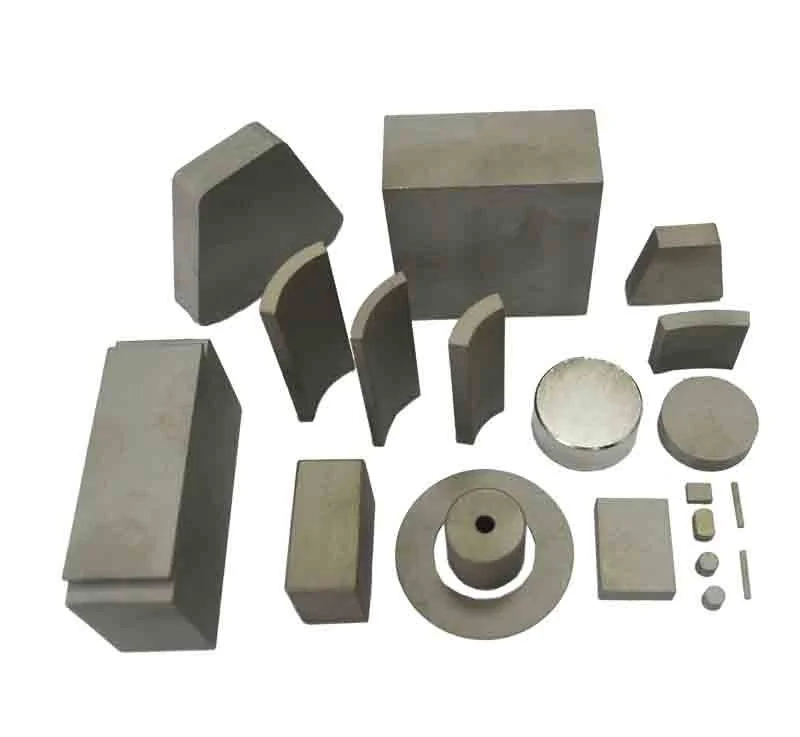

Various shapes on offer | block, round, ring, arc - even highly complex forms. Virtually any shape of block smco motor magnet sm1co5 and sm2co17, powerful permanent smco magnet for industry can be made to your requirements! |
Coating | No coating, Nickel, Zinc and more. |
Constitution | 35% Sm, 60% Co and 5% Fe & Cu |
Magnetiztion | > Thickness Magnetized > Axially Magnetized > Diametrally Magnetized > Multi-poles magnetized > Radial Magnetized > Customzied specific requirements magnetized |
Tolerance | Routine ±0.1mm and strict ±0.05mm |
Certifaication | ISO 9001 quality system |
Note | The smco magnets we sell are extremely strong.They must be handled with care to avoid personal injury or damage to the magnets. |
SmCo5 Magnets
(BH)max values of regular SmCo5 magnet are between 14 and 24MGOe. SmCo5 is made of only Samarium and Cobalt and exhibit better corrosion resistance and machinability.
Sm2Co17 Magnets
(BH)max values of conventional Sm2Co17 magnet are between 22 and 32MGOe which much higher than the former SmCo5 series. Besides two basic elements Samarium and Cobalt, different grade of Sm2Co17 varies in the content of Iron (Fe), Copper (Cu), Zirconium (Zr).
Magnetization Direction
Common direction of magnetization showed in picture bellow:

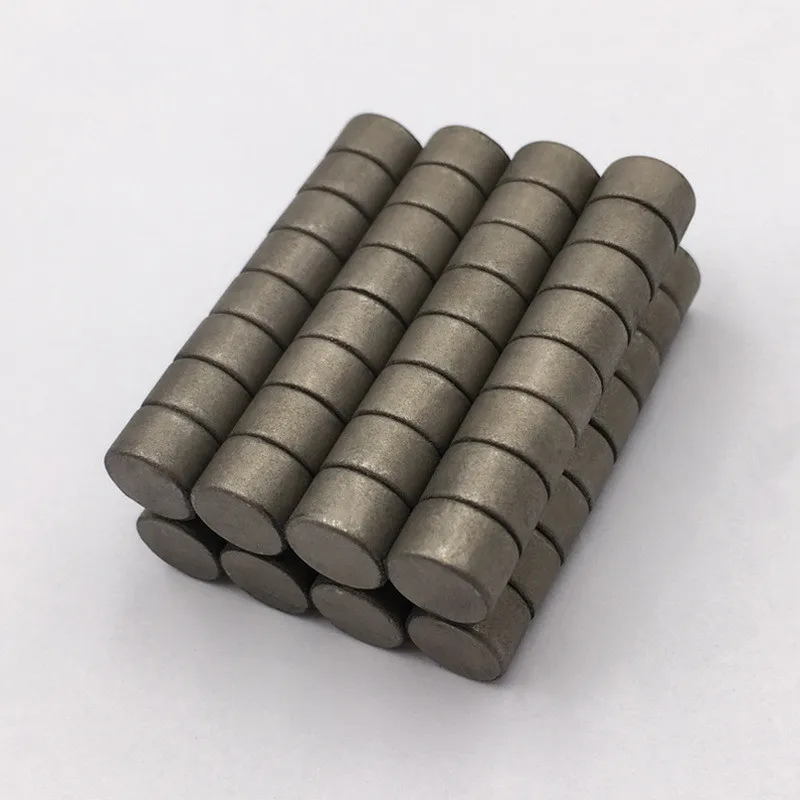

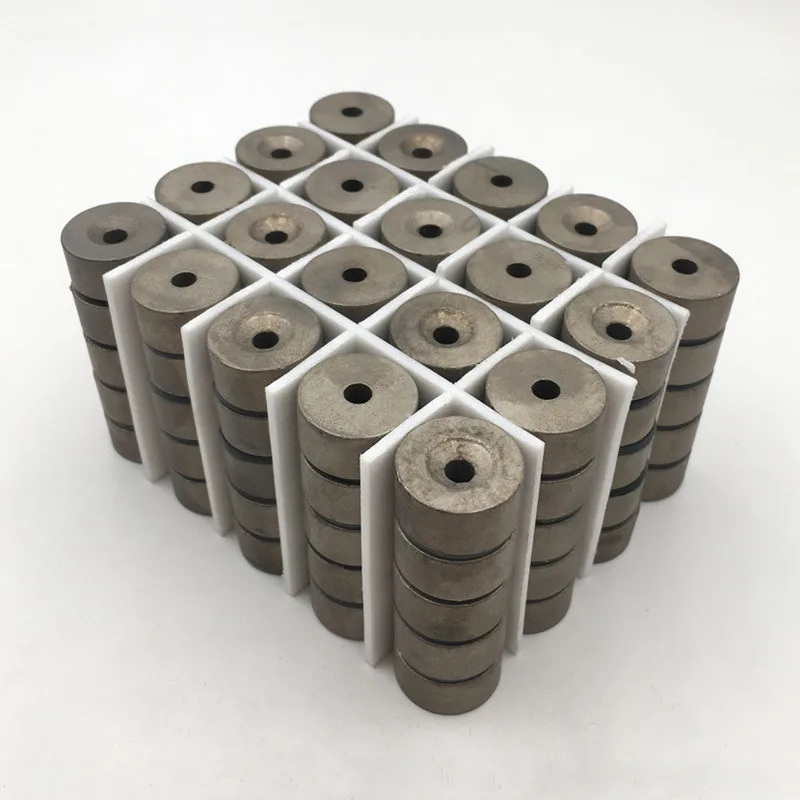

1> Disc, cylinder and Ring shape magnet can be magnetized Axially or Diametrically.2> Rectangle shape magnets can be magnetized through Thickness, Length or Width.
3> Arc shape magnets can be magnetized Diametrically, through Width or Thickness.
Special direction of magnetization can be customized as required.
Application
Smco 's high magnetic force and working temperature :
Compared to traditional motor, rare-earth magnet coreless motor with high efficiency, light weight, small size, good speed control, reliability, etc., can be widely used in wind power, electric vehicles, industrial motors, and other fields. In the low-carbon energy saving background, samarium cobalt market is very large. Currently in Japan and Europe and other countries use about 98% of the air-conditioning inverter air conditioner. inverter air conditioner has a comfortable, energy-saving features, will become a trend in the future.
Compared to traditional motor, rare-earth magnet coreless motor with high efficiency, light weight, small size, good speed control, reliability, etc., can be widely used in wind power, electric vehicles, industrial motors, and other fields. In the low-carbon energy saving background, samarium cobalt market is very large. Currently in Japan and Europe and other countries use about 98% of the air-conditioning inverter air conditioner. inverter air conditioner has a comfortable, energy-saving features, will become a trend in the future.
More Products
We accept customized services: 1) Shape and Dimension Requirements, 2) Material and coating requirements, 3) Processing according to design drawings, 4)Requirements for Magnetization Direction, 5) Magnet Grade Requirements, 6) Surface treatment requirements (plating requirements).
Neodymium Magnet Block
Common range of diamension:
Maximum: B200x200x50
can be customized according to your request.
Direction of Magnetization:
Neodymium Magnet Block/Rectangle shape can be magnetized through Thickness, Length or Width.
Maximum extent of magnetization is 60mm.
Lead Time:
5-7 days for samples;
10-15 days for mass production.
Neodymium Magnet Disc
Common range of diamension:
Maximum: D200x50mm
can be customized according to your request.
can be customized according to your request.
Direction of Magnetization:
Neodymium Magnet Disc shape can be magnetized Axially or Diametrically.
Maximum extent of magnetization is 60mm.
Maximum extent of magnetization is 60mm.
Lead Time:
5-7 days for samples;
10-15 days for mass production.
10-15 days for mass production.
Neodymium Magnet Special Shape
Special size can be cusomized according to your requirements.
Neodymium Magnet Arc
Common range of daimension:Cusomized Size according to your requirements.
Direction of Magnetization:
Can be magnetized Diametrically, through Width or Thickness.
Maximum extent of magnetization is 60mm.
Lead time:
7-10 days for samples:
15-20 days for mass production.
Neodymium Magnet Ring
Common range of daimension:Cusomized Size according to your requirements.
Direction of Magnetization:
Axially or Diametrically.
Maximum extent of magnetization is 60mm.
Maximum extent of magnetization is 60mm.
Lead time:
7-10 days for samples:
15-20 days for mass production.
15-20 days for mass production.
Why Choose Us
1. FLOW CHART
From the raw material to finished product,
all the processes are completed in our factory,
and are under our strict control.
2. QUALITY CONTROL
1> Magnet will be inspected strictly during the production of every process.
2> Every magnet will have a certificate before delivery.
3> Magnetic Flux report and Demagnetization Curve can be offered according to request.
3> Magnetic Flux report and Demagnetization Curve can be offered according to request.
1> Cutting-Edge Technology
Self-Developed Key Equipment, Unique Manufacturing Process, Energetic R&D Team.
2> Full Scale Production
Capacity 200 tons, Specialized Factories.
3> The Integrated Industry Supply Chain.
4> Outstanding Product.
4> Outstanding Product.
1> High Performance
N54, N52M, N50H, 46SH, 42UH, 38eh, 33AH etc.
2> High Working Temperature
The AH series with 40kOe super-high coercive force
can replace SmCo magnets in most applications.
3> High Consistency
The Cpk of Remanence (Br) and Intrinsic Coercive Force (Hcj) are much higher than 1.67.
The Consistency of the surface magnetic field and magnetic flux can be controlled at +/-1%.
4> High Anti-Corrosion
The salt spray test and humidity heat test of the high
anti-corrosion coating Nickel+Copper+Epoxy is
typically more than 500 hours.
5> Low Weight Loss
PCT: 130°C, humidity 100%, vapor pressure 2.7 bar,
20 days, average low weight loss <2 mg/cm2.
N54 Demagnetization Curves
at Different Temperature
N52M Demagnetization Curves
at Different Temperature
N44SH Demagnetization Curves
at Different Temperature
N42UH Demagnetization Curves
at Different Temperature
N33AH Demagnetization Curves
at Different Temperature
N35EH Demagnetization Curves
at Different Temperature

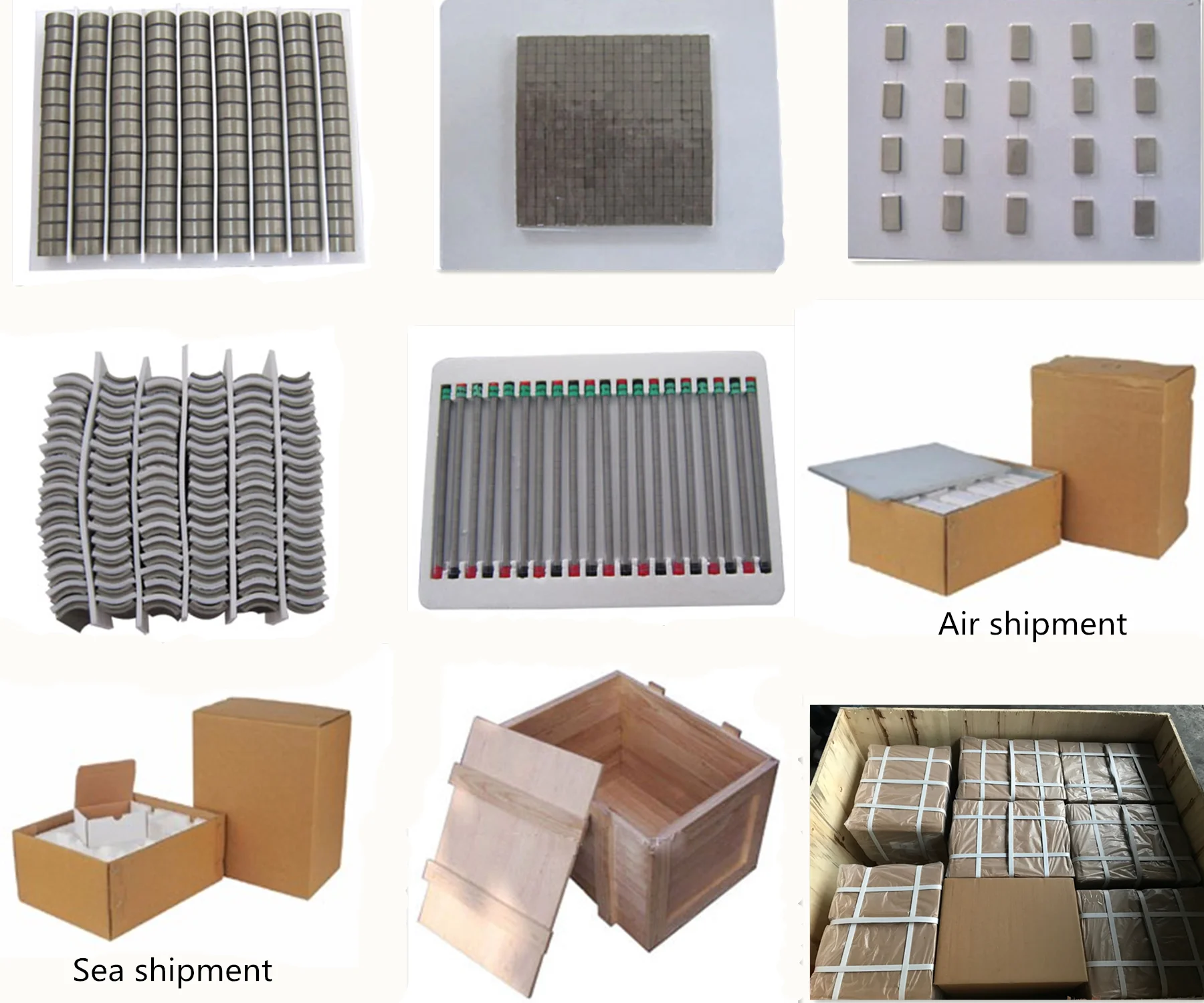

Packing & Delivery
Export standard foam-filled cartons supplied standard.
Tailored packaging offered per customer request.
Packages appropriate to both air and sea shipment available.
Tailored packaging offered per customer request.
Packages appropriate to both air and sea shipment available.
About Us
Shanghai Taixiong is a specialized supplier and manufacturer of permanent magnets and magnetic assemblies, magnetic motors, etc. Our products include NdFeB magnet, rubber magnet, SmCo magnet, alnico magnet, ferrite magnet, educational magnet, magnetic separator, pot magnet,magnetic lifter, lifting magnet, magnetic badge holder. With over 10 years' history, our factory has established and implemented a quality management system in conformity with ISO9001:2008 standard. All magnet materials and coatings meet the standards of SGS and RoHS. Our factory has passed ISO9000 and TS16949 certificates. Our factory makes high quality magnet to meet our customers' different requirements. Our products sell well in over 50 countries and regions all over the world such as America, the EU, the Middle East, Hong Kong, etc. Our factory has adopted the most advanced technology (thin strip alloy and hydrogen decrepitation).
FAQ
Q1. Can I have a sample order for Neodymium magnet?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 7-10days for order quantity more than
Q3. Do you have any MOQ limit for neodymium magnet order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for neodymium magnet?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on magnet product or package?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you test all your goods before delivery
A: we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 7-10days for order quantity more than
Q3. Do you have any MOQ limit for neodymium magnet order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for neodymium magnet?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on magnet product or package?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you test all your goods before delivery
A: we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
