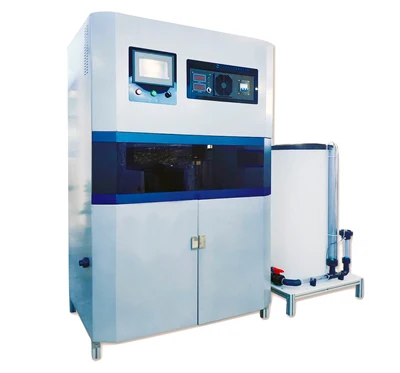

High Efficiency Chlorine Generation Unit brine electrolysis Sodium Hypochlorite Producer
- Category: >>>
- Supplier: Fujian Wiztech Intelligence Technology Co. Ltd.
Share on (10000013282173):
Product Overview
Description
Product Overview

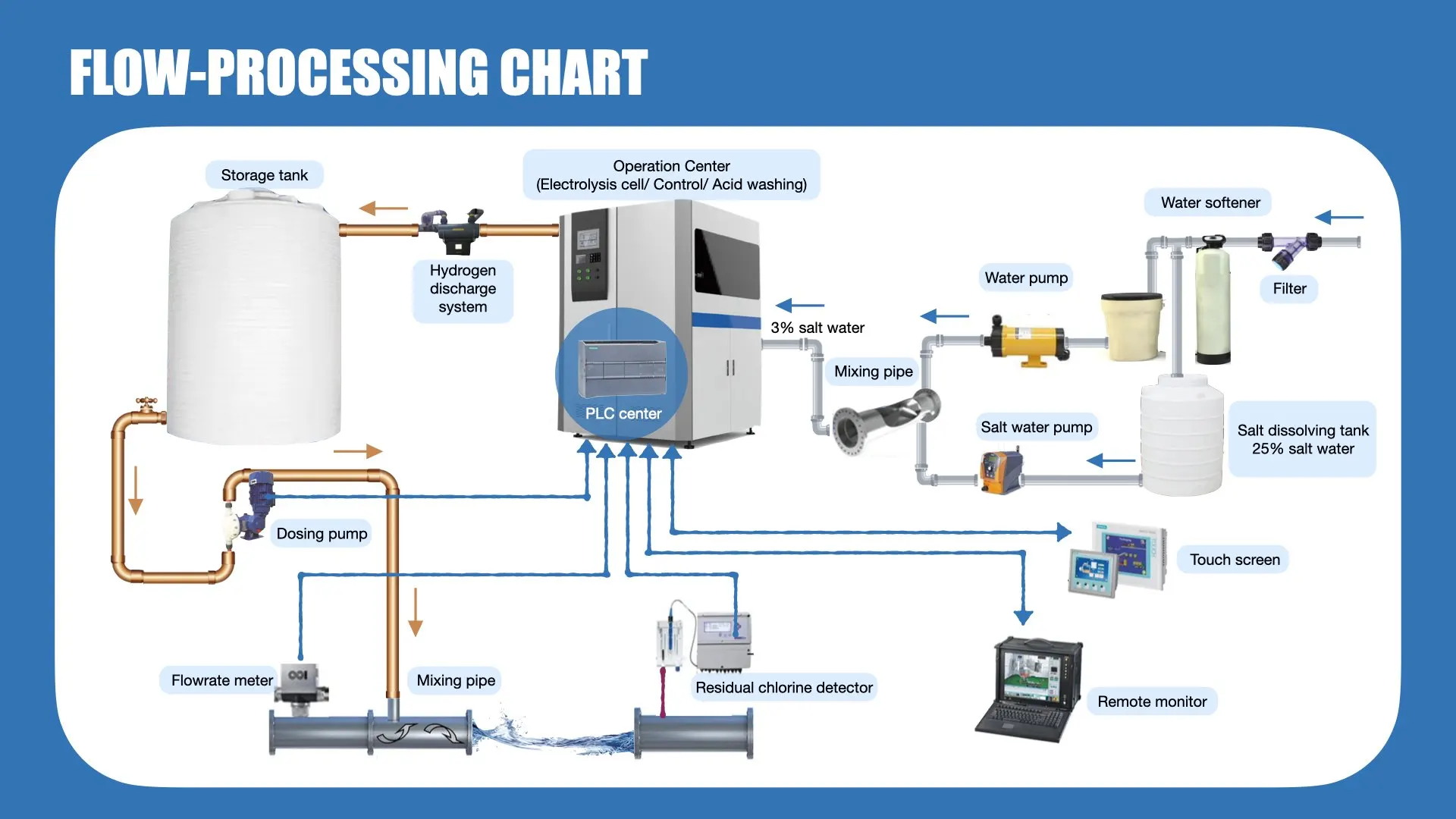

SODIUM HYPOCHLORITE GENERATOR
On-site Salt Electro-chlorination System
This machine uses salt and water to produce sodium hypochlorite liquid with a concentration of 6000~8000ppm, which effectively eliminates all viruses and bacteria in the water.

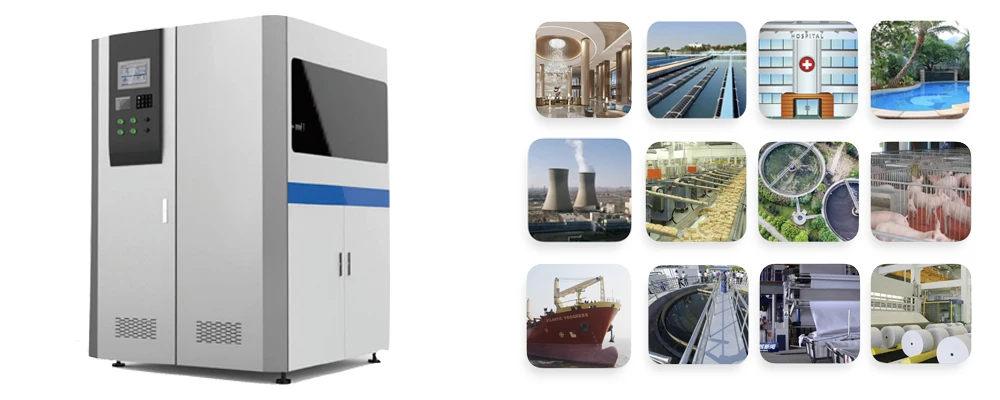

It is widely used in various settings, including drinking water plants, hotels, hospitals, swimming pools, food processing plants, and beverage plants.
FEATURES AT A GLANCE
FEATURES
√ Modular design, easy installation
√ Safety ( No risk during operation )
√ ECO system (salt and water)
√ Auto/manual mode （24-7 working）
√ Low maintainence

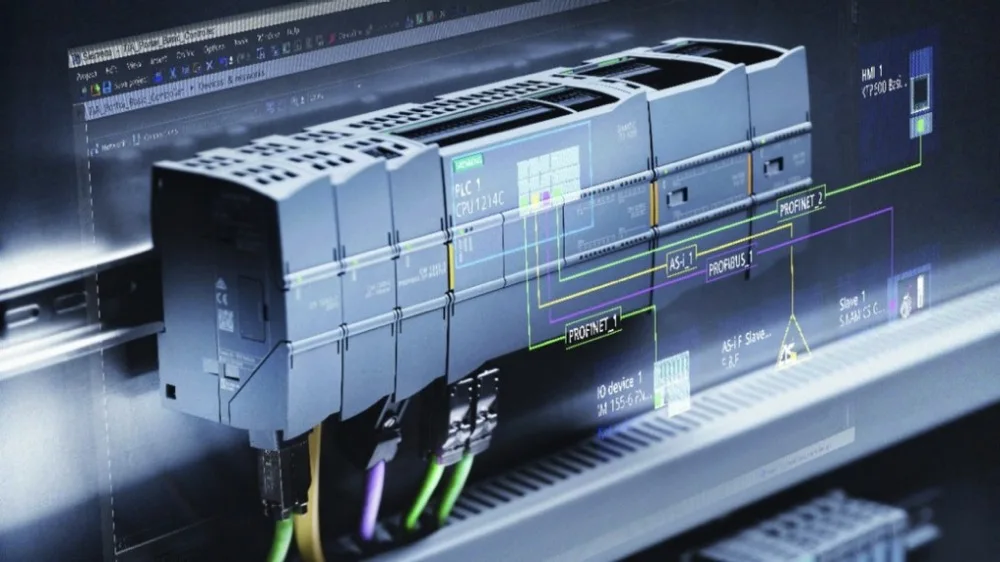

SIEMENS PLC CENTER
⎈ Smart operation CPU
⦿ Fully monitor procession
⌘ Programmable
⍟ Protection system
Siemens PLC serves as the central processing unit of our on-site chlorination system, providing reliable and precise control over every valve, pump, and current.
With its programmable capabilities, we can customize the chlorination system to meet your specific requirements, ensuring a smooth
and efficient operation.
With its programmable capabilities, we can customize the chlorination system to meet your specific requirements, ensuring a smooth
and efficient operation.
PRODUCT SPECIFICATIONS

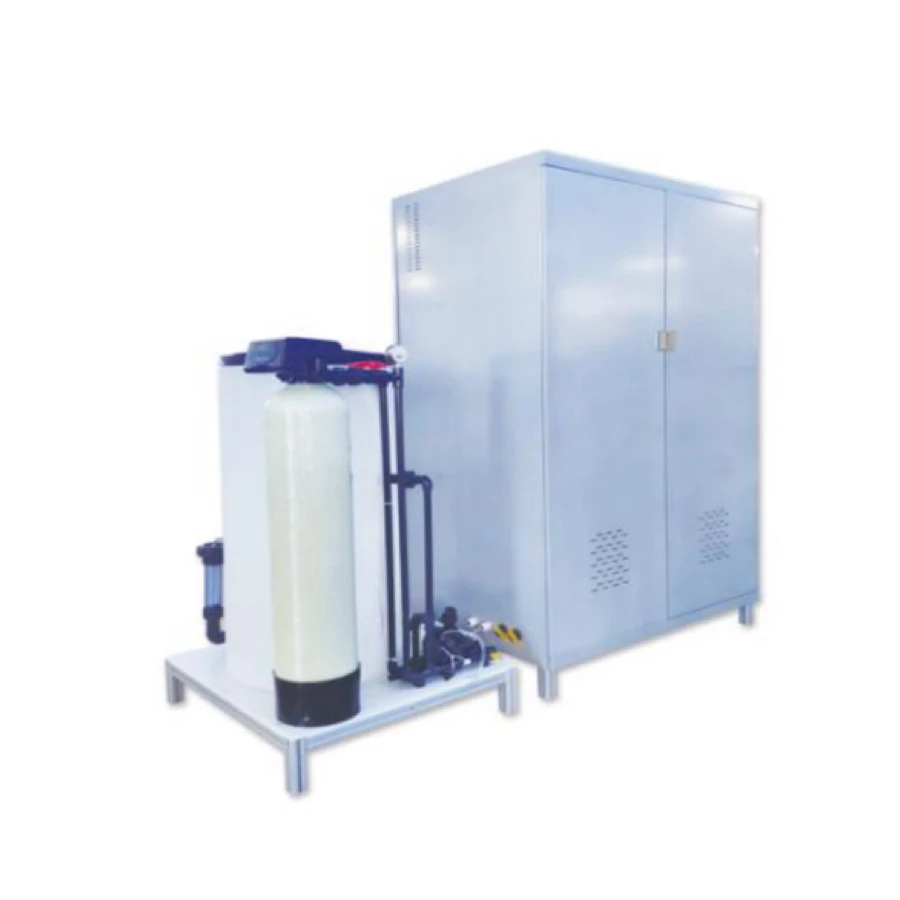

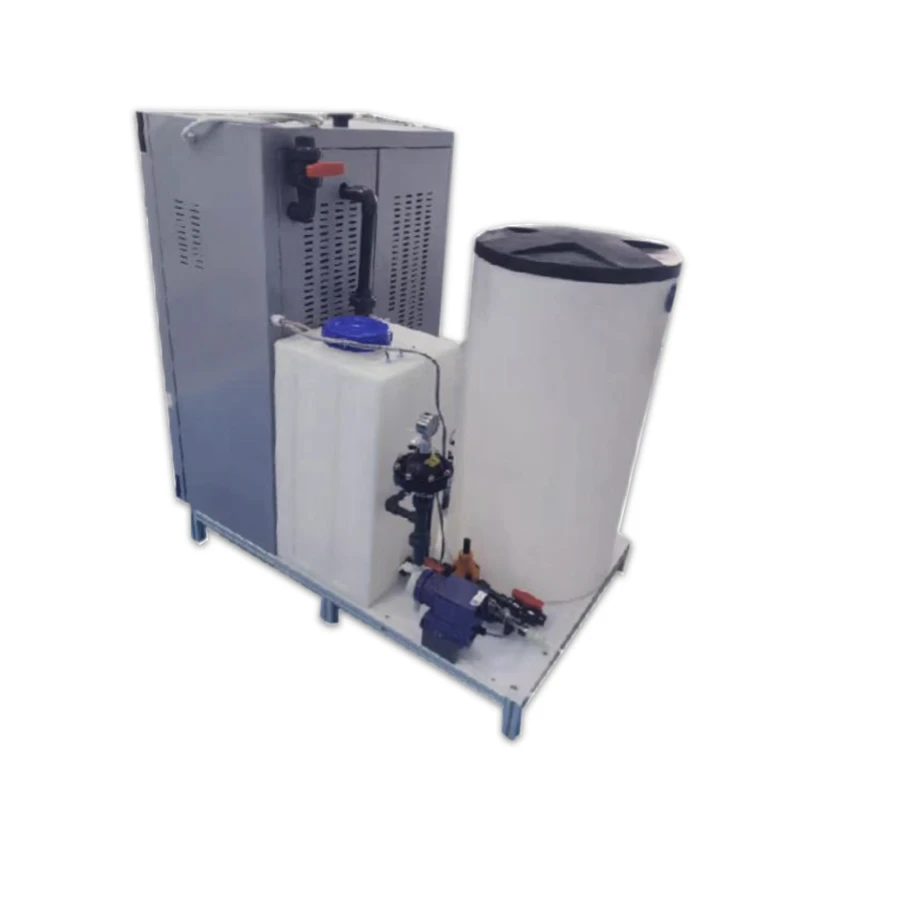

ALL-IN-ONE
Active chlorine production: 50g~100g/hour
Salt consumption: 175g~350g/hour
Electricity consumption: 0.2~0.4kw/hourWater disinfection: 16~33 tons/hour

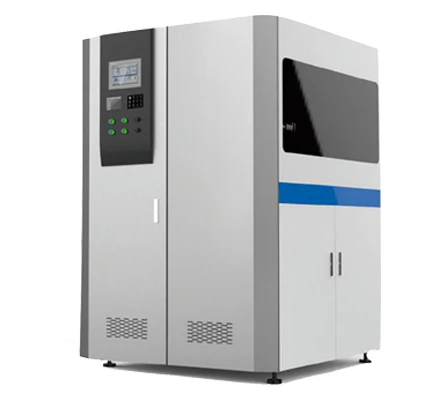

COMPACT
Active chlorine production: 100g~600g/hour
Salt consumption: 0.35~2.1kg/hour
Electricity consumption: 0.4~2.4kw/hour
Electricity consumption: 0.4~2.4kw/hour
Water disinfection: 33~200 tons/hour
MODULAR
Active chlorine production: 600~1500g/hour
Salt consumption: 2.1~5.3kg/hour
Electricity consumption: 2.4~6kw/hour
Electricity consumption: 2.4~6kw/hour
Water disinfection: 200~500 tons/hour

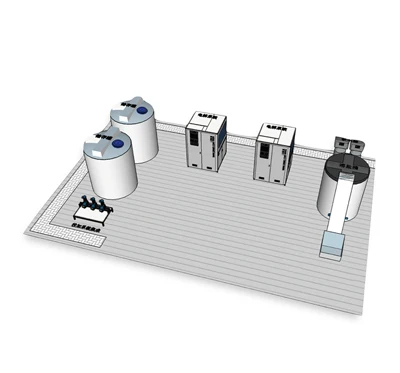

SKID MOUNTED PACKAGE
Active chlorine production: 2kg~50kg/hour
Salt consumption: 3.5kg for 1 kg chlorine
Electricity consumption: 4kw for 1 kg chlorine
Electricity consumption: 4kw for 1 kg chlorine
Water disinfection: >500 tons/hour
No | Module | Active Chlorine Production per Hour | Type | Salt Consumption per hour | Electricity Consumption per hour | Water disinfection capacity per hour (3ppm) |
1 | Wiz-50g-NaClO | 50g | All in one | 175g | 0.2kw | 17 tons/h |
2 | Wiz-100g-NaClO | 100g | All in one | 350g | 0.4kw | 33 tons/h |
3 | Wiz-200g-NaClO | 200g | Compact | 700g | 0.8kw | 67 tons/h |
4 | Wiz-300g-NaClO | 300g | Compact | 1.05kg | 1.2kw | 100 tons/h |
5 | Wiz-500g-NaClO | 500g | Compact | 1.75kg | 2kw | 167 tons/h |
6 | Wiz-600g-NaClO | 600g | Compact | 2.1kg | 2.4kw | 200 tons/h |
7 | Wiz-800g-NaClO | 800g | Modular | 2.8kg | 3.2kw | 267 tons/h |
8 | Wiz-1k-NaClO | 1kg | Modular | 3.5kg | 4kw | 333 tons/h |
9 | Wiz-1.5k-NaClO | 1.5kg | Modular | 5.25kg | 6kw | 500 tons/h |
10 | Wiz-2k-NaClO | 2kg | Skid mounted | 7kg | 8kw | 667 tons/h |
11 | Wiz-3k-NaClO | 3kg | Skid mounted | 10.5kg | 12kw | 1000 tons/h |
12 | Wiz-4k-NaClO | 4kg | Skid mounted | 14kg | 16kw | 1333 tons/h |
13 | Wiz-5k-NaClO | 5kg | Skid mounted | 17.5kg | 20kw | 1667 tons/h |
14 | Wiz-10k-NaClO | 10kg | Skid mounted | 35kg | 40kw | 3,333 tons/h |
15 | Wiz-15k-NaClO | 15kg | Skid mounted | 52.5kg | 60kw | 5,000 tons/h |
16 | Wiz-20K-NaClO | 20kg | Skid mounted | 70kg | 80kw | 6,667 tons/h |
17 | Wiz-25k-NaClO | 25kg | Skid mounted | 87.5kg | 100kw | 8,333 tons/h |
18 | Wiz-30k-NaClO | 30kg | Skid mounted | 105kg | 120kw | 10,000 tons/h |
19 | Wiz-35k-NaClO | 35kg | Skid mounted | 122.5kg | 140kw | 11,667 tons/h |
20 | Wiz-40K-NaClO | 40kg | Skid mounted | 140kg | 160kw | 13,333 tons/h |
21 | Wiz-50K-NaClO | 50kg | Skid mounted | 175kg | 200kw | 16,667 tons/h |
Successful Project
Water treatment plant
Water flow: 8,000 tons/ day
Dosing rate: 2.5ppm
Machine: Wiz-1kg-NaClO
Water treatment plant
Water flow: 166,000 tons/ day
Dosing rate: 3ppm
Machine: Wiz-25kg-NaClO X 2
Water flow: 166,000 tons/ day
Dosing rate: 3ppm
Machine: Wiz-25kg-NaClO X 2
( 1 work 1 standby )
Water treatment plant
Water flow: 150,000 tons/ day
Dosing rate: 2ppm
Machine: Wiz-15kg-NaClO X 2
( 1 work 1 standby )
Water flow: 150,000 tons/ day
Dosing rate: 2ppm
Machine: Wiz-15kg-NaClO X 2
( 1 work 1 standby )
