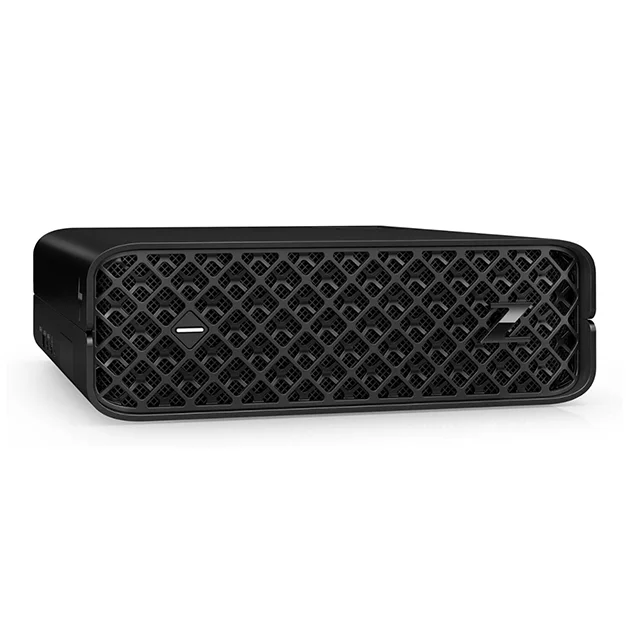

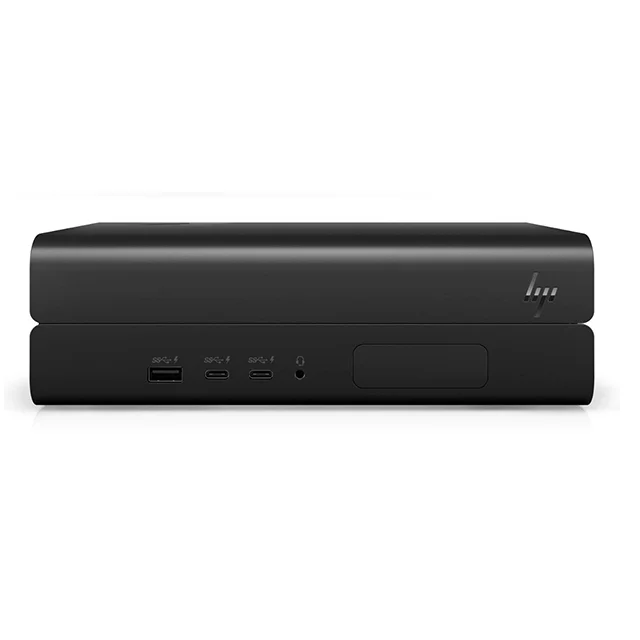

Original Workstation Z2 G9 Desktop PC computer i9 i7/8GB 512G SSD T1000 HP Z2 Mini G9
- Category: >>>
- Supplier: Shenzhen Keyue Times Technology Co. Limited
Share on (10000013307275):
Product Overview
Description
Precision 7920 Tower Workstation
Specification
Processor (CPU) One or two Intel Xeon processor Scalable family CPUs with up to 28 cores per processor
My Skype Whats App or Email: +86 18923725190 ; keyuetimes@gmail.com
and Intel Advanced Vector Extensions, Intel Trusted Execution Tech
Memory 8GB RAM, 16GB RAM, 32GB RAM, 64GB RAM, 128GB RAM, 256GB RAM, 38 4GB RAM,
Memory 8GB RAM, 16GB RAM, 32GB RAM, 64GB RAM, 128GB RAM, 256GB RAM, 38 4GB RAM,
768GB RAM
Drive Bays 4 x 3.5"/ 2.5" Drive Bays
RAID Controller Intel chipset SATA controller (6Gb/s) with 6 SATA ports
Network ControllerIntel i219 & i210 Gigabit Ethernet controllers with Intel Remote Wake UP,
Network ControllerIntel i219 & i210 Gigabit Ethernet controllers with Intel Remote Wake UP,
PXE and Jumbo frames support
Power Supply Single 1400W Power Supply
Dimensions 17.13 x 8.5 x 21.46 (Inches) 45 Lbs Max
Power Supply Single 1400W Power Supply
Dimensions 17.13 x 8.5 x 21.46 (Inches) 45 Lbs Max
We supply most of parts above , contact me for further information.
My Skype Whats App or Email: +86 18923725190 ; keyuetimes@gmail.com
Product Description
The Precision 7920 Tower is Dell's current dual-socket power house built around the Intel Xeon Scalable Processor family featuring up to 28 cores per processor. The 7920 Tower supports 768GB DDR4 2933MHz memory, 1.5TB DDR4 2666MHz memory and with certain processors is expandable up to 3TB. The Precision 7920 Tower supports the downloadable "Dell Precision Otpimizer" which will automatically tune your workstation to run popular ISV applications at the fastest speeds possible.

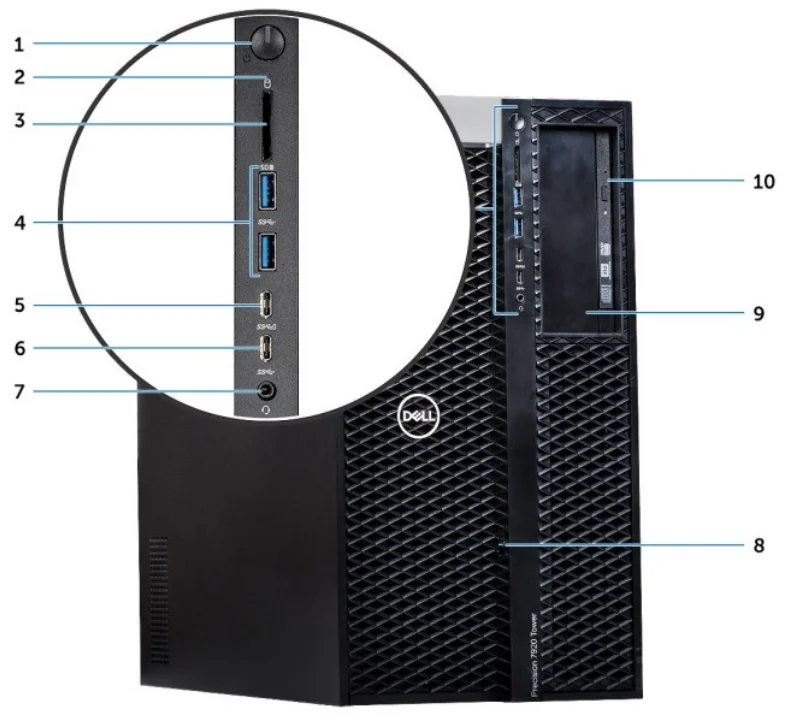

2 Drive Activity Light
3 SD Card Slot4 USB 3.2 Gen 1 Type A ports
5 USB 3.2 Gen 1 Type C port (DP/PowerDelivery)6 USB 3.2 Gen 1 Type C port
7 Universal Audio Jack
8 Front Bezel Release Latch
9 5.25” ODD Bay (optional)
10 Slimline Optical Bay

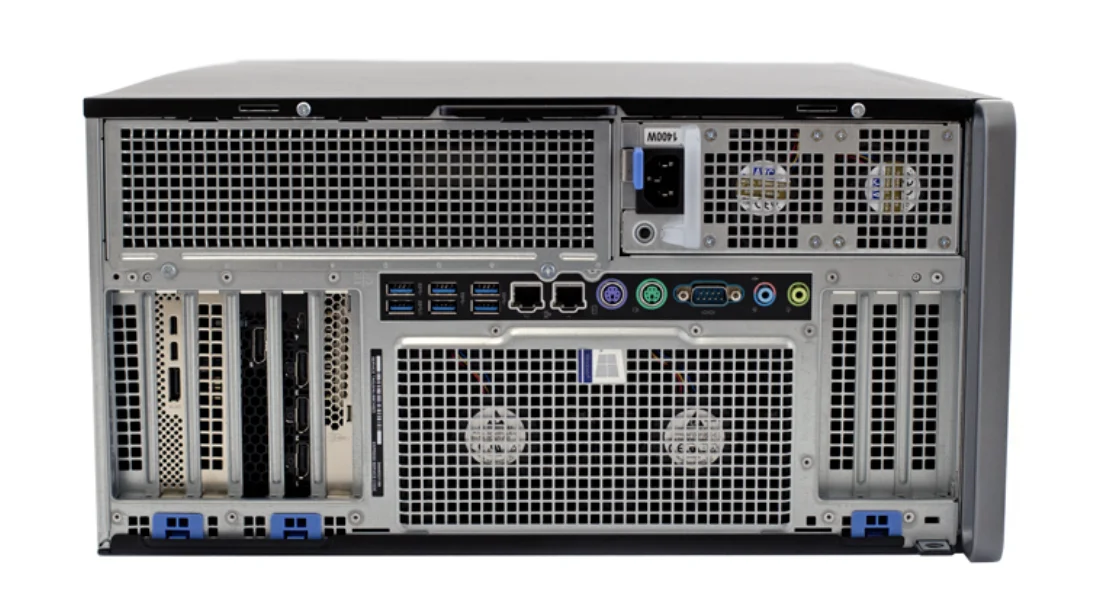

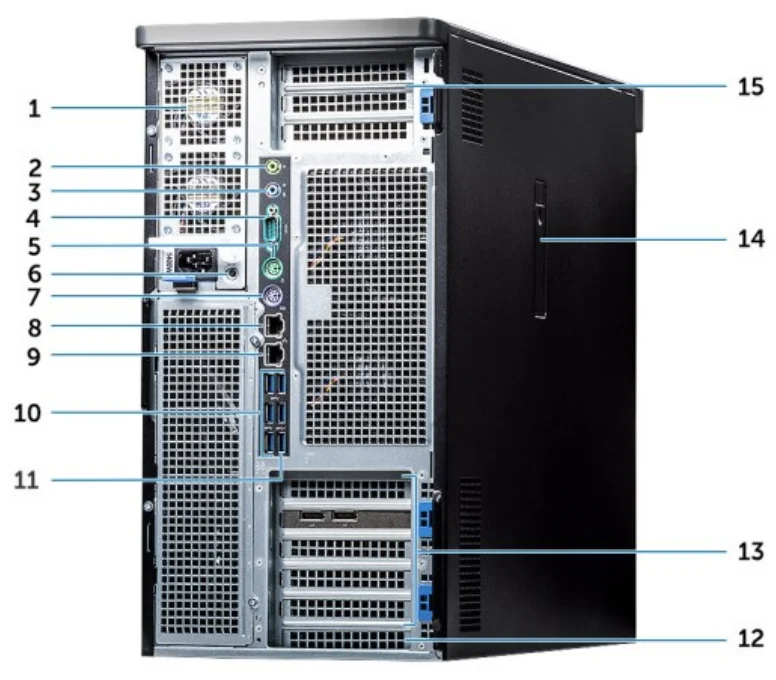

BACK VIEW
1 Power Supply
2 Line-Out Port
3 Microphone/Line-in Port4 Serial Port
5 PS/2 Mouse Port6 PSU BIST
7 PS/2 Keyboard Port8 Network Port (AMT Enabled—Optional)
9 Network Port
10 USB 3.2 Gen 1 Type A Ports
11 USB 3.2 Gen 1 Type A port
(DP/ PowerDelivery)
(DP/ PowerDelivery)
12 Mechanical Expansion Slot
13 PCIE Expansion Slots
14 Side Cover Release Latch
15 PCIE expansion slots (CPU1 required)

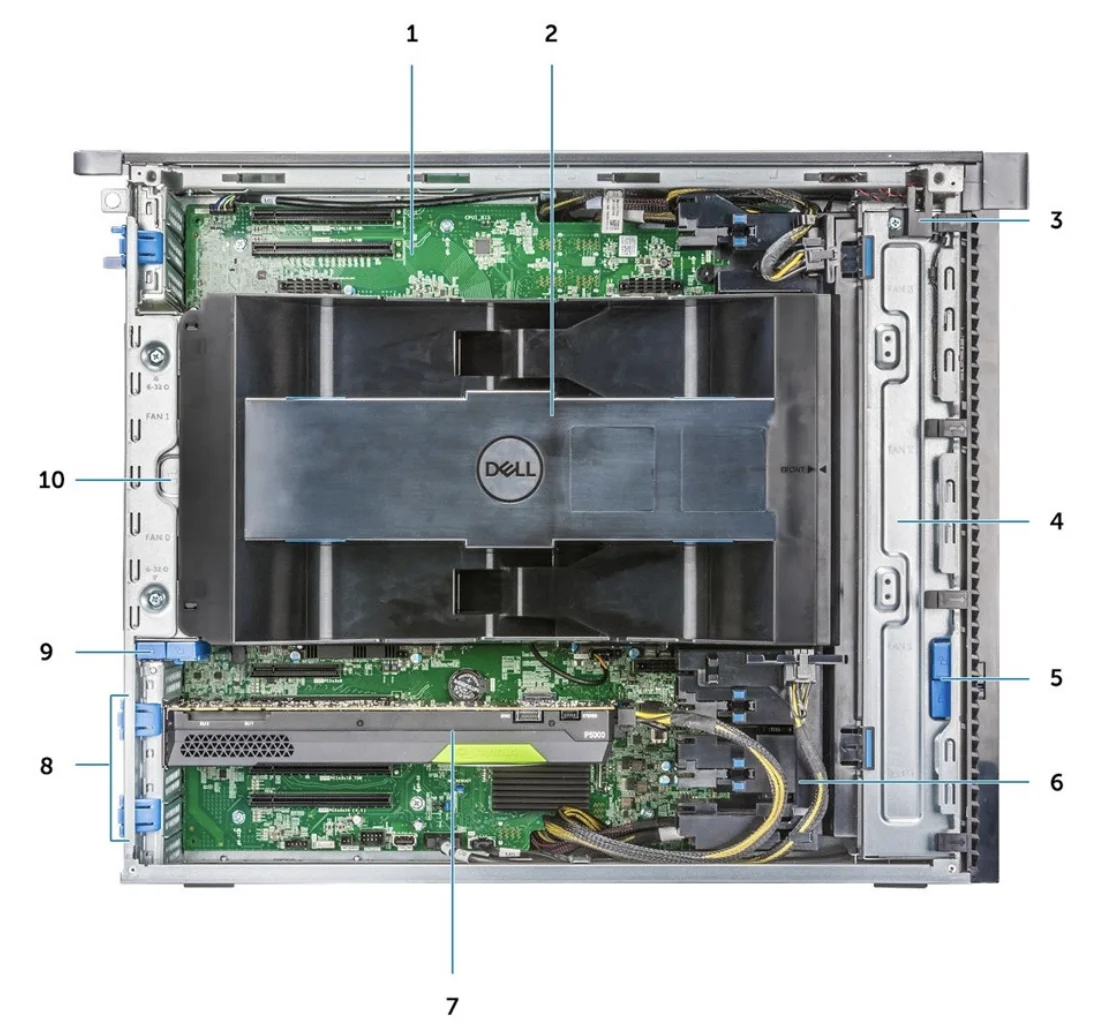

6 Auxiliary PCIe power cables
2 CPU and Memory Air shroud
7 Graphics card (GPU) with aux power connector
3 Intrusion switch
8 PCIe card release latches
4 Front system fan assembly
9 Rear HDD Bezel lock/unlock button
5 Front Bezel lock/unlock button
10 Rear Fans
MOTHERBOARD LAYOUT
1 PCIE Gen3 Slots (right to left below)
Slot 1—PCIE x8 Gen 3 (Open Ended)
Slot 2—PCIE x16 Gen3
Slot 3—PCIE x16 Gen 3 (wired as x1)
Slot 4—PCIE x16 Gen 3
Slot 5—PCIE x16 Gen 3 (wired as x4)
2 Rear Fan 0 Connector
3 DIMM Slots
(available only when optional CPU1 is installed)
4 CPU1 Socket
5 DIMM Slots
(available only when optional CPU1 is installed)
(available only when optional CPU1 is installed)
6 Rear Fan 1 Connector
8 Front Panel Audio connector 1
9 N/A
10 Piezo Speaker
11 CPU 0 Fan Connector
12 Power Control Connector
13 Power 2 Fan Connector
14 Intrusion Switch Connector
15 System Fan 3
16 Internal Speaker Connector
17 DIMM Slots (CPU0)
18 CPU0 Socket 7 PCIE x16 Gen 3 Slots (Slot 6 and 7)
19 System Fan 2
20 DIMM Slots (CPU0)
21 System Fan 1
15 System Fan 3
16 Internal Speaker Connector
17 DIMM Slots (CPU0)
18 CPU0 Socket 7 PCIE x16 Gen 3 Slots (Slot 6 and 7)
19 System Fan 2
20 DIMM Slots (CPU0)
21 System Fan 1
22 N/A
23 Power 1 Connector
24 CPU Fan 1 (Mid CPU Fan)
25 Coin Cell Battery
26 ODD Connector
27 Front Panel USB Connector
28 Internal USB Port (Type A)
29 2x5 USB 2.0 header for flex bay. (Requires optional splitter cable to support 2 x USB 2.0 Type A ports)
30 Power Remote (Teradici) header
31 Intel vROC® Key (optionally enables PCIe NVMe RAID)
28 Internal USB Port (Type A)
29 2x5 USB 2.0 header for flex bay. (Requires optional splitter cable to support 2 x USB 2.0 Type A ports)
30 Power Remote (Teradici) header
31 Intel vROC® Key (optionally enables PCIe NVMe RAID)
