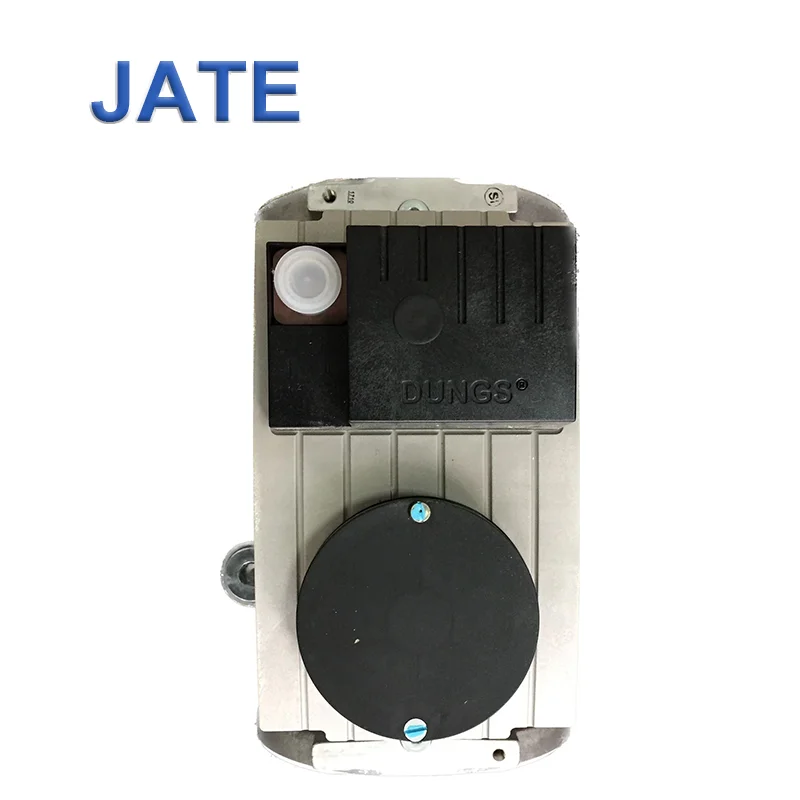

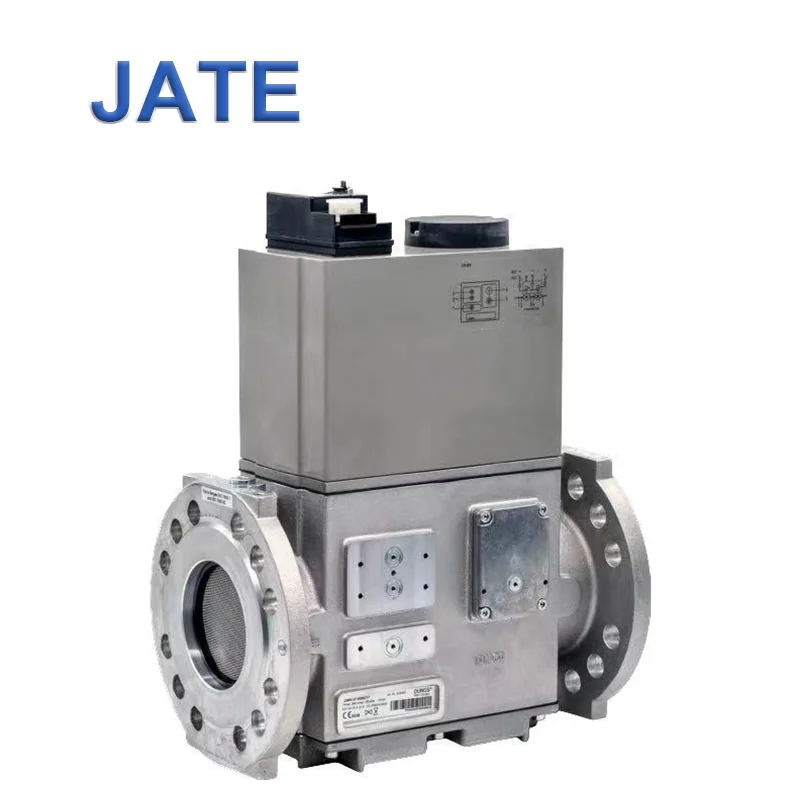

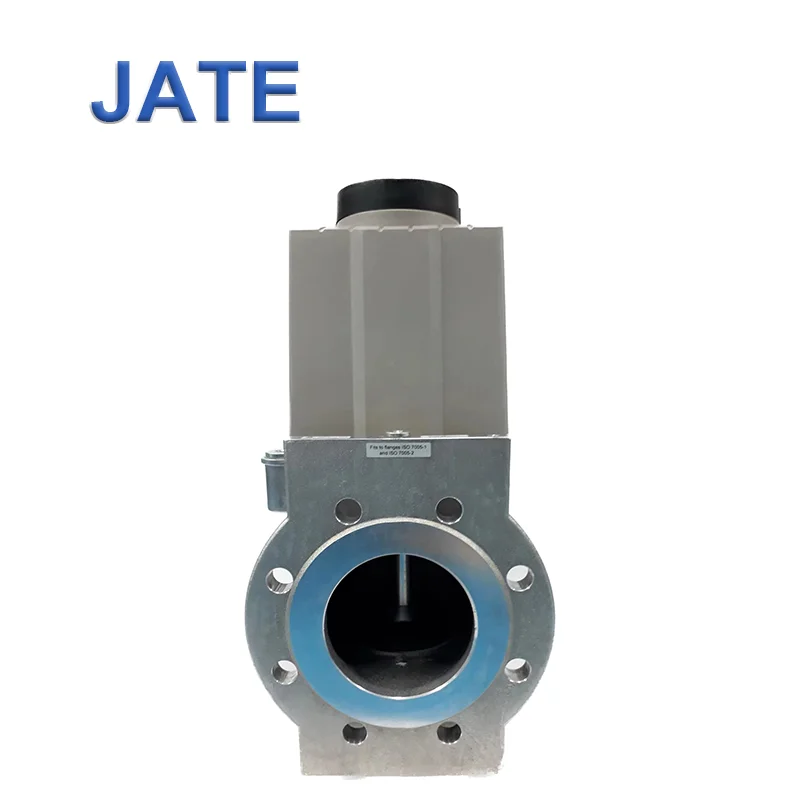

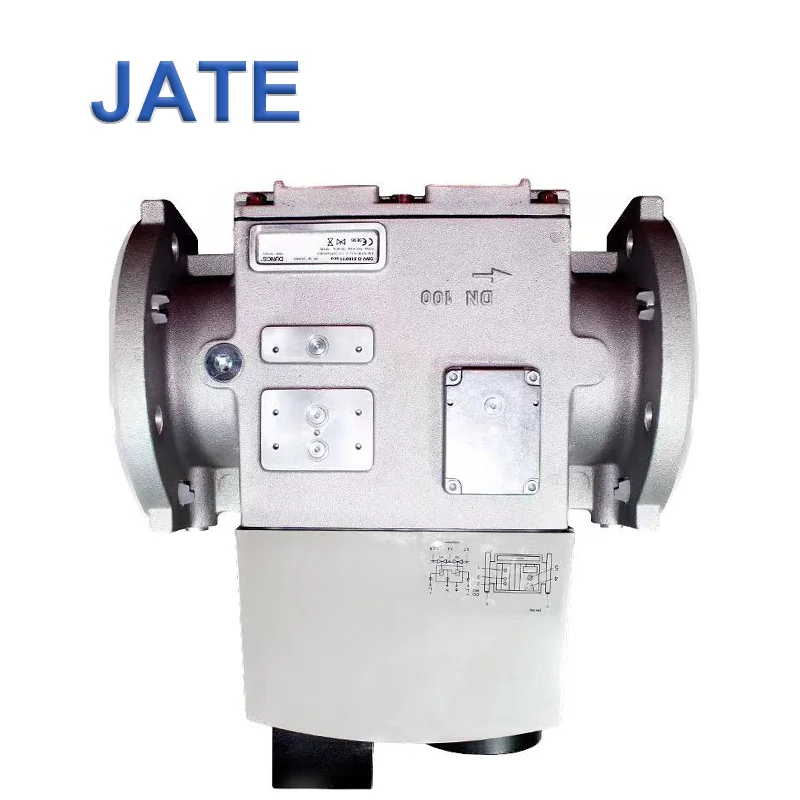

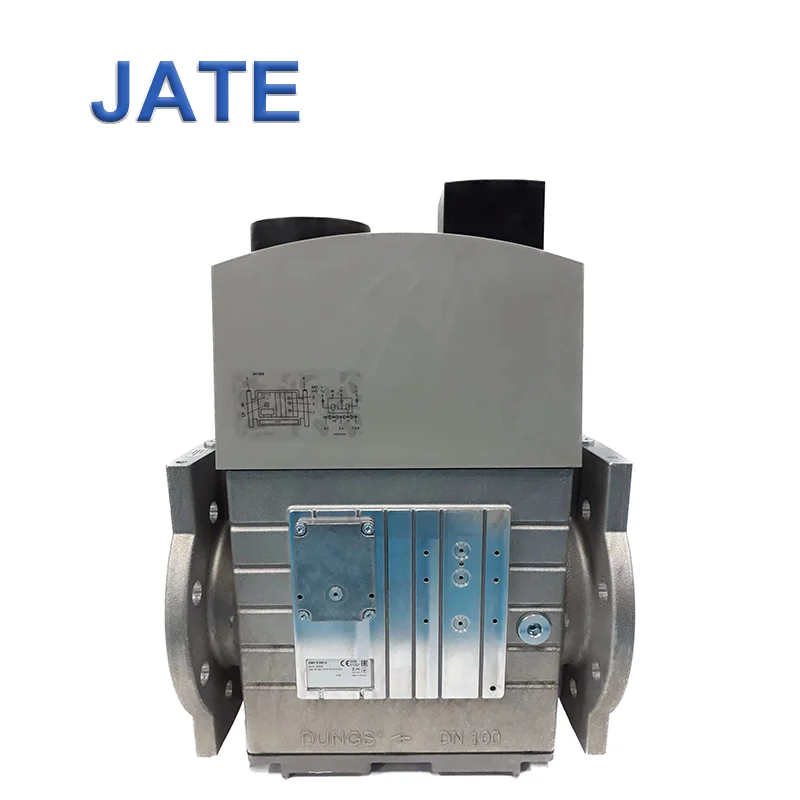

Dungs DMV5100/12 DN100 244300 250V Double High Pressure Gas Solenoid Control Valve Nominal Width For Burner
- Category: >>>
- Supplier: Shenzhen Jate Burners Co. Ltd.
Share on (10000013347142):
Product Overview
Description
Product Description
Dungs DMV5100/12 DN100 244300 250V Double High Pressure Gas Solenoid Control Valve Nominal Width For Burner
Technical description

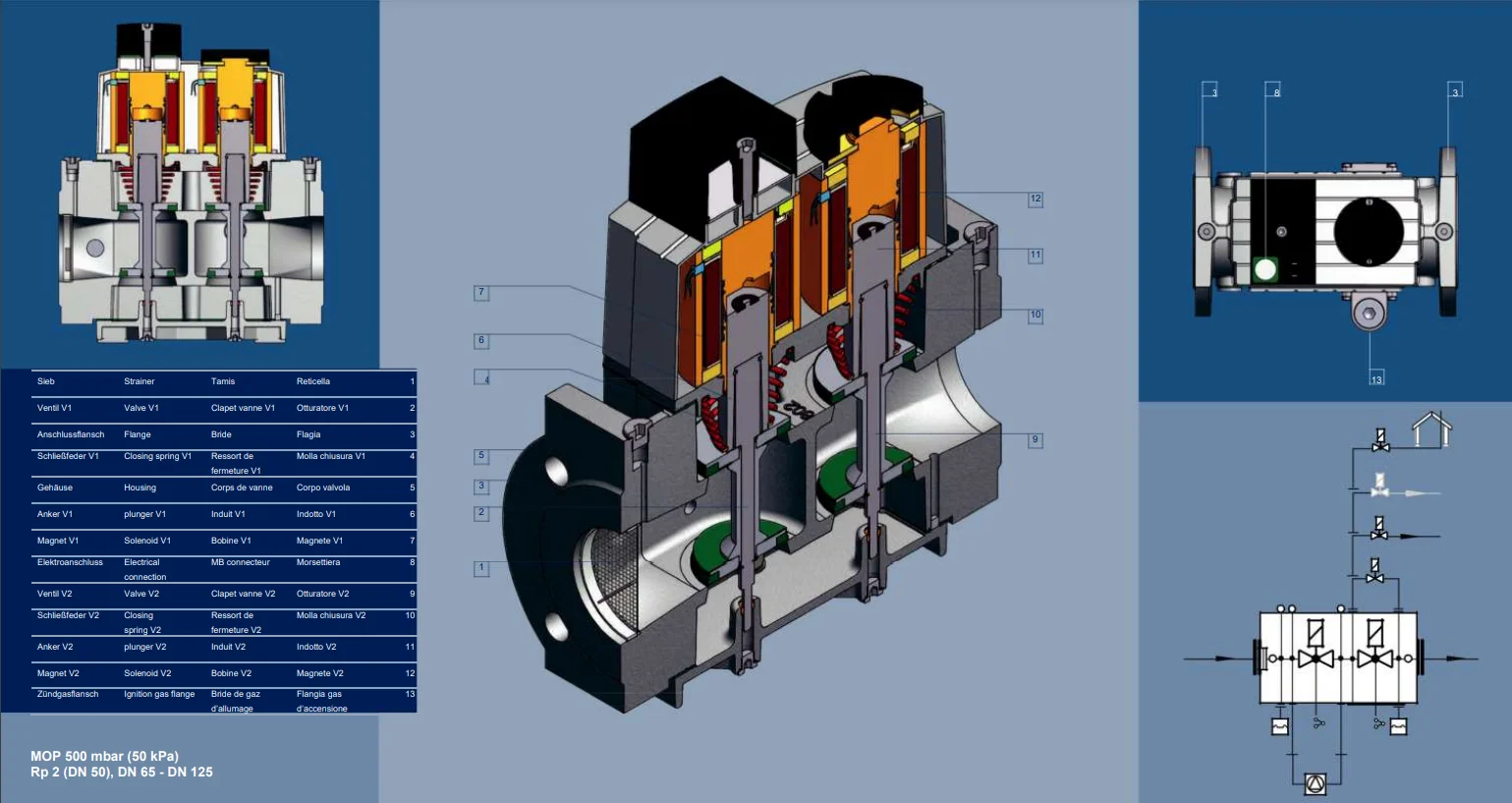

The DUNGS double solenoid valve DMV consists of two solenoid valves in one compact unit: - Automatic shut-off valves as per DIN EN 161 Class A Group 2. - Two A-valves in one housing - Double disc valves - High flow rates - Max. operating overpressure 0.5 bar (50 kPa) - Fast-closing - Fast-opening (DMV-D) or slowopening (DMV-DLE) with adjustable fast stroke for start gas rate - Adjustable main load (DMV-D, DMV-DLE) - DC solenoid - Closed position signal contact can be mounted - Small dimensions, low weight.
Application

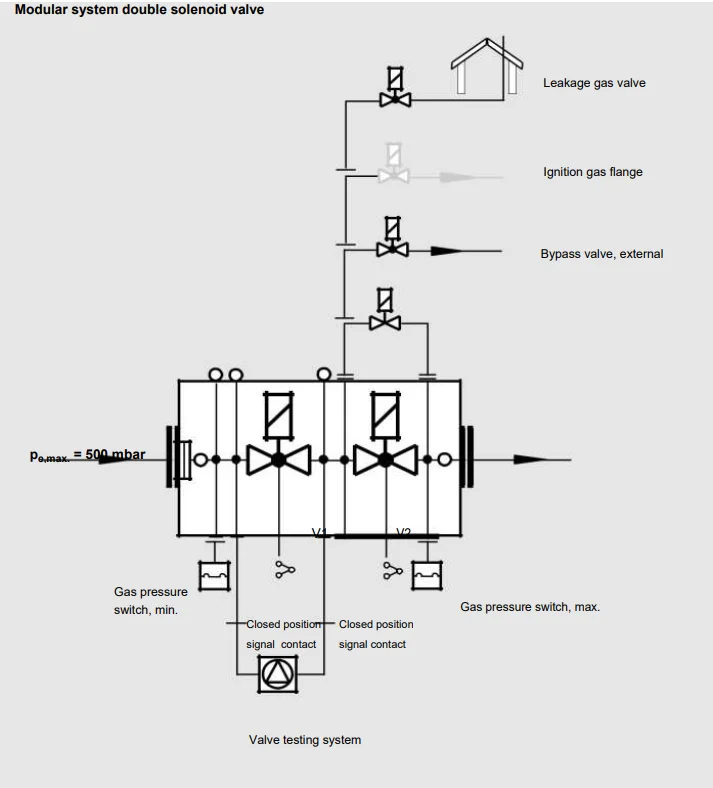

Application Double solenoid valves are used where two single valves were mounted previously. In connection with DUNGSgas regulators and additional components, a wide variety of regulating tasks can be performed. It does not contain any non-ferrous metals, suitable for gases of up to max. 0.1 vol.% H2 S, dry. Suitable for gases of families 1, 2, 3 and other neutral gaseous media.
Approvals
EU type test approval as per EU Gas Appliance Directive:
DMV-…D Rp 2 (DN 50) CE-0085 BO 0236
DMV-…DN 65-125 CE-0085 BO 0236 EU type test approval as per EU Pressure Equipment Directive:
DMV-…DN 65-125 CE0036 Approvals in other important gas-consum-ing countries

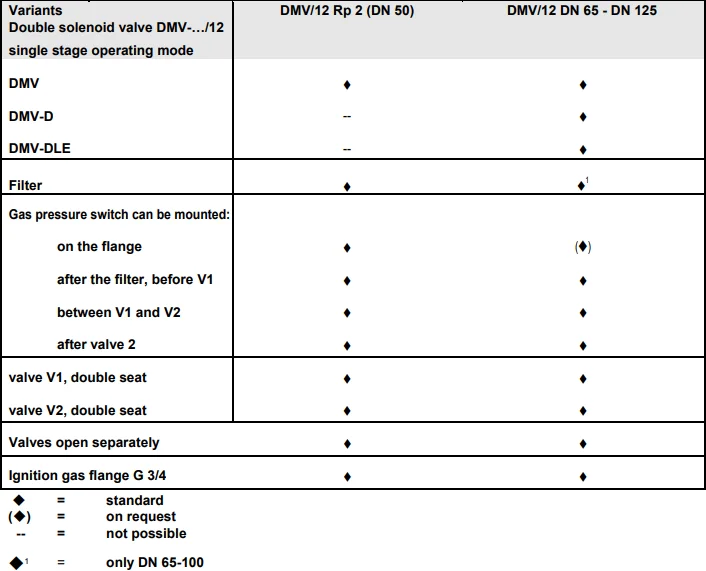

DMV/12
Two single stage solenoid valves, de-energised in absence of current, fast-opening, fast-closing.
DMV-D/12
Two single stage solenoid valves, de-energised in absence of current, fast-opening, fast-closing. Ma-nual limitation of gas flow is possible with main load adjustment (D) at valve 1 (V1).
DMV-DLE/12
Two single stage solenoid valves, de-energised in absence of current, slow-opening (L), fastclosing. Adjustment of opening time (E) with fast stroke range at valve 2 (V2). Manual limitation of gas flow is possible with main load adjustment (D) at valve 1 (V1).
Specification
item | value |
Warranty | 1.5 years |
Type | Kitchen Gas Shut-Off Valves, Emergency Shut-Off Valves, Truck Shut-Off Valves, AXIAL VALVES, Backwater Valves, Pressure Vacuum Breaker, Atmospheric Vacuum Breaker, Safety Relief Valves, Adjustable Relief Valves, Pressure Regulators, Boiler Feed Valves, VENT Valves, Mixing Valves, Temperature Regulating Valves, SOLENOID VALVES, Globe Valves, PLUG VALVES, Drain Valves, Air Valves & Vents, Faucet Valve, Flush Valves, REVERSING VALVE |
Customized support | OEM |
Place of Origin | Germany |
Brand Name | Dungs |
Model Number | DMV5100/12 |
Application | Gas Burner Accessories |
Power | Solenoid |
Media | Gas |
Port Size | DN 100 |
Structure | Plug |
Product name | Dungs DMV5100/12 DN100 GAS Solenoid Control Valves |
Model | DMV5100/12 |
Brand | Dungs |
Power Supply | 250 V AC,50 - 60 Hz, |
Max. operating pressure | 500 mbar (50 kPa) |
Ambient temperature | -15 °C to +60 °C |
Closing time | < 1 s |
Color | Grey And Sliver |
After Warranty Service | Video technical support |
Usage | Gas Burner Accessories |
Packing & Delivery
Carton Box Packing
