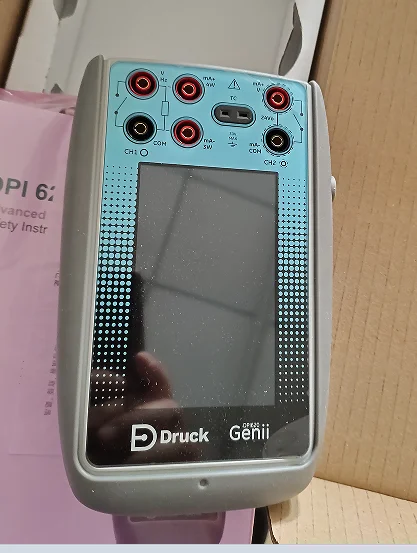

Druck DPI 620G Multifunction Calibrators with HART Brand new in stock
- Category: >>>
- Supplier: Shenzhen HOBOY Technology Co. Ltd.
Share on (10000013442872):
Product Overview
Description
Product Description
DPI 620G Genii Advanced Multifunction Calibrator with HART. Capabilities: electrical, frequency, temperature and pressure
* Multi-function capabilities: electrical, frequency, temperature and pressure
* Complete HART communicator included
* Optional Foundation Fieldbus communicator
* Modular re-rangeable and expandable concept
* Individual components can be used as stand-alone instruments
* Allows significant inventory reductions
* Simplifies training and improves operator safety
* Reduces cost of ownership
* Multi-function capabilities: electrical, frequency, temperature and pressure
* Complete HART communicator included
* Optional Foundation Fieldbus communicator
* Modular re-rangeable and expandable concept
* Individual components can be used as stand-alone instruments
* Allows significant inventory reductions
* Simplifies training and improves operator safety
* Reduces cost of ownership
Advanced Modular Calibrator and HART ® / Foundation Fieldbus ™ Communicator
Combines an advanced multi-function calibrator and HART /Foundation Fieldbus communicator with world-class pressure measurement and generation.
Combines an advanced multi-function calibrator and HART /Foundation Fieldbus communicator with world-class pressure measurement and generation.
* Complete HART communicator included
* Optional Foundation Fieldbus communicator
* Modular re-rangeable and expandable concept
* Individual components can be used as stand-alone instruments
* Optional Foundation Fieldbus communicator
* Modular re-rangeable and expandable concept
* Individual components can be used as stand-alone instruments

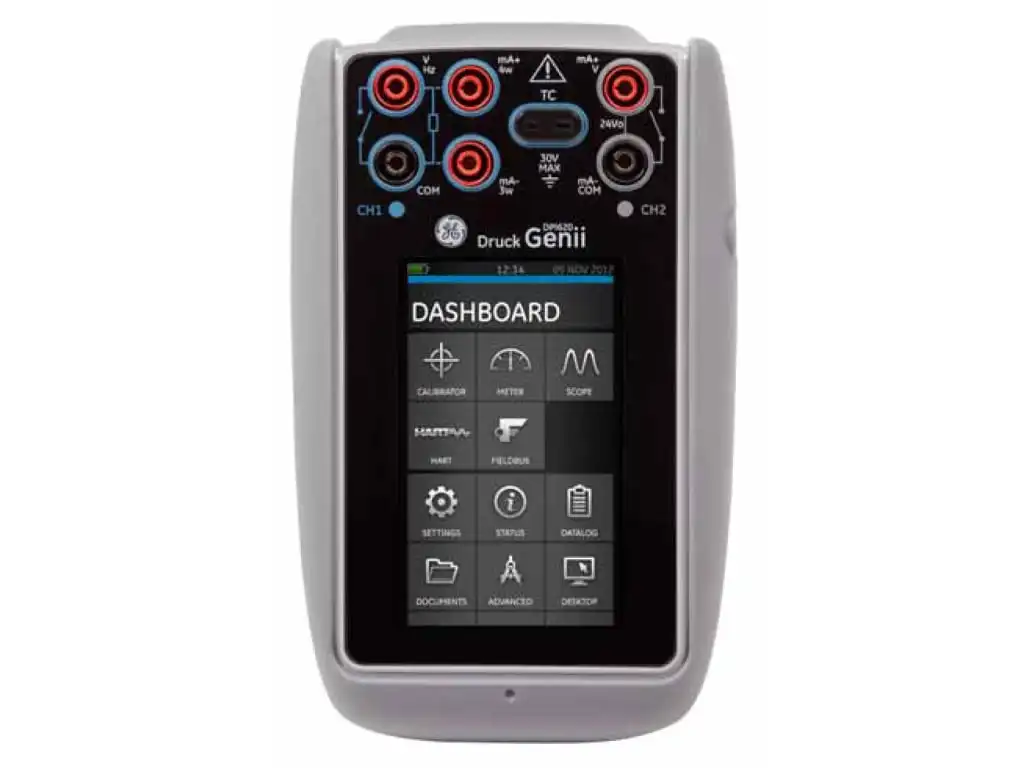

Powerful productivity in your hands, the modular DPI 620 Genii delivers a range of calibration tasks, in one compact hand-held system. Unique among calibrators, the DPI 620 Genii is driven by a touch and swipe interface, making it faster and simpler to access every function in this world-class multifunction calibrator. Intuitive command menus allow you to fully load supporting documentation for every device, so your engineers always have the latest information at their fingertips and are up and running in minutes.
Specification
GE Druck DPI 620G General Specification | ||
Processor and memory | 800 MHz ARM Cortex - A8 Processor 512 MB 800 MHz SDRAM 4GB Internal flash memory 8GB Removable microSD card - provided as standard (Accepts cards up to 32 GB). | |
Display | Size: 110 mm (4.3 in) diagonal; 480 x 800 pixels LCD: Colour display with touch-screen Protected by 2mm toughened glass, impact tested in accordance with BS EN 61010-1:2010 (0.5kg object from 1 meter). | |
File Viewers | A Windows ® desktop is available for managing files, running third party applications and viewing simple images, Word documents, Excel spreadsheets, PDF files and PowerPoint files | |
Languages | English {Default}, Chinese, French, German, Italian, Portuguese, Russian, Spanish, Dutch, Japanese | |
Operating temperature | -10° to 50°C (14° to 122°F) | |
Storage temperature | -20° to 70°C (-4° to 158°F) | |
Ingress Protection | IP55 | |
Humidity | 0 to 90% RH Non condensing | |
Shock / Vibration | BS EN 61010-1:2010; MIL-PRF-28800F for Class II equipment, 1 m Drop Tested | |
EMC | Electromagnetic compatibility: BS EN 61326-1:2006 | |
Electrical safety | Electrical – BS EN 61010-1: 2010 | |
Pressure safety | Pressure Equipment Directive - Class: Sound Engineering Practice (SEP) | |
Approved | CE Marked | |
Size (L: W: H) | DPI 620 Genii only: 183 x114 x 42 mm (7.2 x 4.5 x 1.7 in) | |
Weight | DPI 620 Genii only: ≈ 575 g (1.3 lb) – battery included. | |
Lithium-Polymer battery (GE Part number : IO620-Battery); Capacity: 5040 mAh (minimum), 5280 mAh (typical); Nominal voltage: 3.7 V. Charge temperature: 0° to 40°C (32° to 104°F) Discharge temperature: -20° to 60°C (-4° to 140°F). Note: For best battery performance, keep the temperature less than 60°C (140°F). Charge/discharge cycles: > 500 > 70% capacity. | ||
Duration | Measure functions (CH1): ≈ 12 hours continuous. Dual Function, mA measure (CH2): ≈ 7 hours (24 V Source at 12 mA) | |
Connectivity | USB Type A, USB Type Mini B | |
