CNC 3 axis end milling machine for aluminum window profile making machine
- Category: >>>
- Supplier: Shandong Care Machinery Technology Co. Ltd.
Share on (10000013663549):
Product Overview
Description

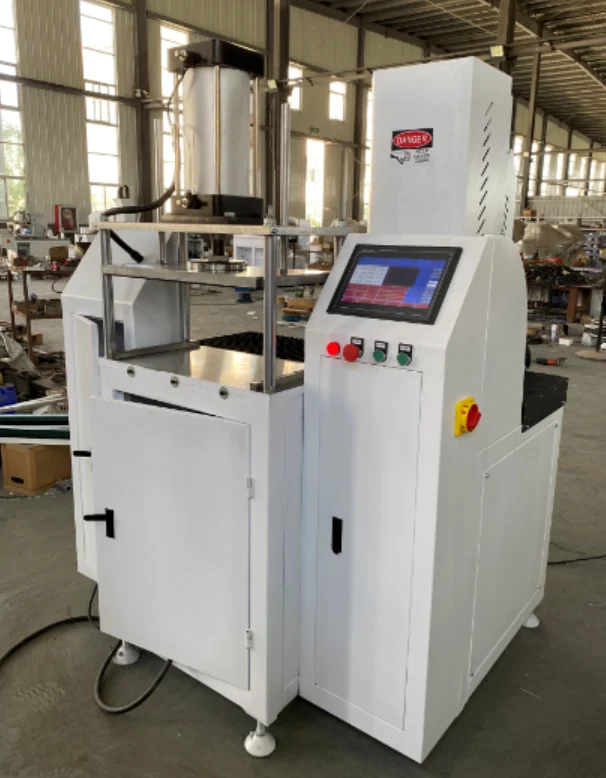

CNC 3 AXIS End milling machine aluminum window door making
Video display
Products Description

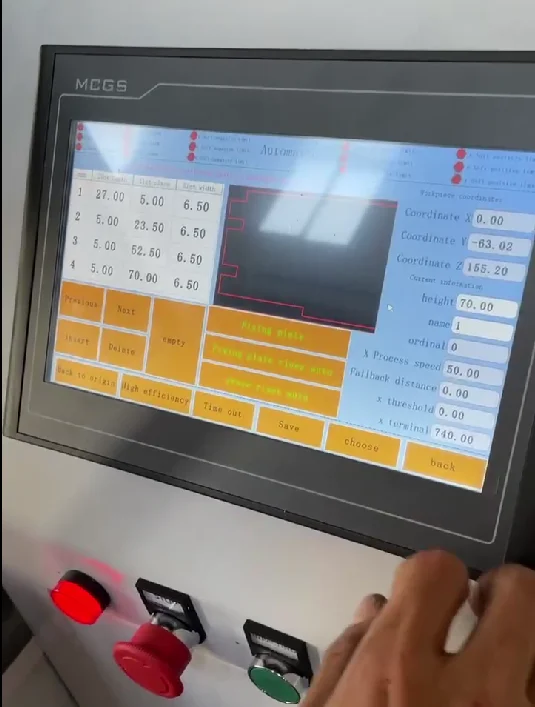

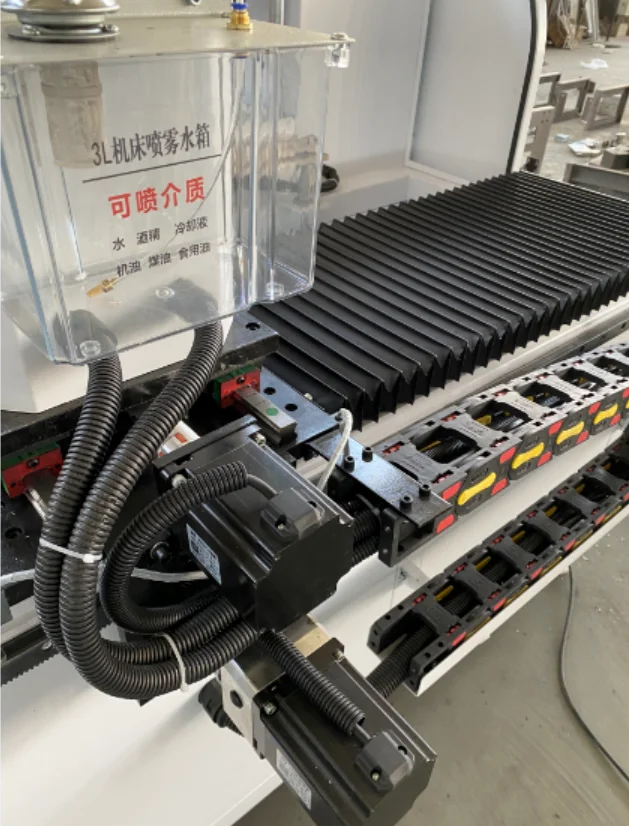

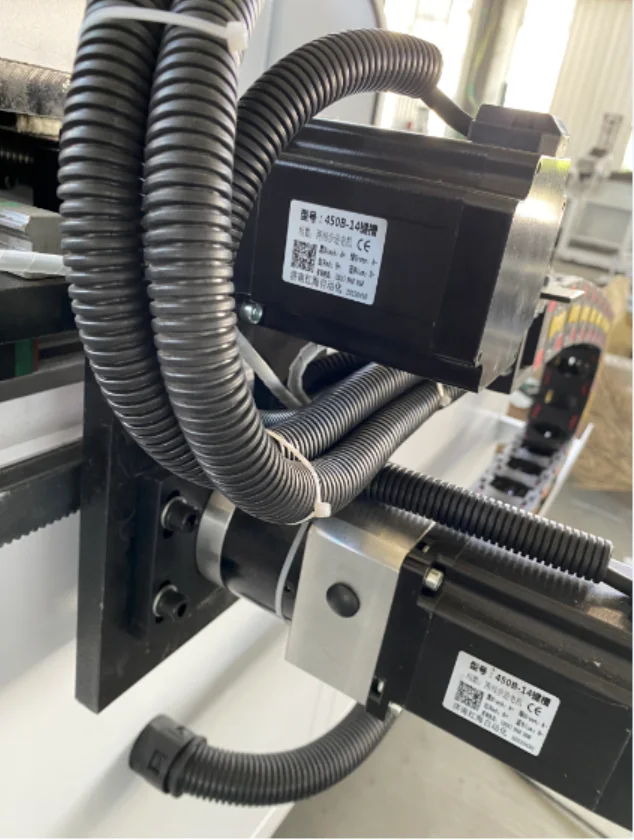

CNC face milling comes standard with 10 inch full touch screen 3.0 kW spindle motor stepper motor with ball screw transmission error plus or minus 5 screws PLC control is stable and efficient It is also equipped with an automatic oil filling system. z-axis) 0-165 high depth (y-axis) 0-45 x-axis stroke (0-700) feeding position width 500 additionally equipped with external feeding rack 600 long
Equipment Features:
1
It is used for processing the end face of aluminum door and window profiles to adapt to the cooperation of different end face profiles.
2
Large worktable and large tool travel stroke can process 6 to 10 profiles at a time, with high production efficiency.
3

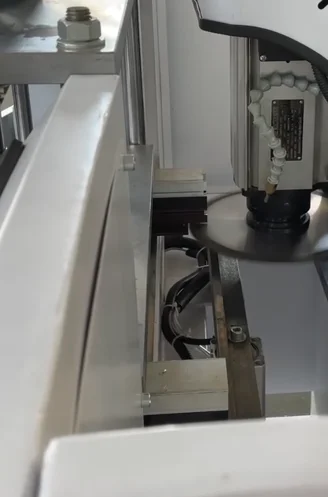

Larger tool diameter increases the machining range.
4
Thickened profile pressure plate to prevent profile deformation.
Product Paramenters
Power supply | 380V50HZ | Milling cutter diameter | 250mm |
Power | 3KW | Maximum tenon | 150mm |
Speed | 2800r/m | Dimensions | 1750×1450×1450mm |
Working pressure | 0.6—0.8Mpa | Weight | 350kg |
