PIP8048WP T 8000w 230v 48v mppsolar off grid inverter Daul 150A MPPT solar charger pure sine wave IP65 Twin AC output WiFi BMS
PIP8048WP-T 8000w 230v 48v mppsolar off grid inverter Daul 150A MPPT solar charger pure sine wave IP65 Twin AC output WiFi BMS
PIP8048WP-T 8000w 230v 48v mppsolar off grid inverter Daul 150A MPPT solar charger pure sine wave IP65 Twin AC output WiFi BMS
PIP8048WP-T 8000w 230v 48v mppsolar off grid inverter Daul 150A MPPT solar charger pure sine wave IP65 Twin AC output WiFi BMS
PIP8048WP-T 8000w 230v 48v mppsolar off grid inverter Daul 150A MPPT solar charger pure sine wave IP65 Twin AC output WiFi BMS
PIP8048WP-T 8000w 230v 48v mppsolar off grid inverter Daul 150A MPPT solar charger pure sine wave IP65 Twin AC output WiFi BMS

PIP8048WP T 8000w 230v 48v mppsolar off grid inverter Daul 150A MPPT solar charger pure sine wave IP65 Twin AC output WiFi BMS

Share on (10000013672058):


Price:

Quantity:


Product Overview

Description


















SPECIAL FEATURES




  • 220v-240v European type single phase (3-phase when parallel over 3 units)

  • MPPT charger 150A

  • Max 8KW PV array support

  • Max PV input 500 VDC (Voc) of Each MPPT

  • Parallel capable up to 6 units**

  • built-in wifi transmitter and parallel kit

  • BMS COMMUNICATION (Pylontech / Soltaro / WECO BMS systems are supported)

  • batteryless support  (single unit mode only)**

  • IP65 weatherproof enclosure (with IP65 design fans)

  • Timer feature for AC output and charging



MAIN FEATURES




  • 220v-240v European type, suitable for EU type, US/PR needs extra step-down transformer.

  • Max 8KW output, pure sine wave

  • 48V system voltage

  • Max solar charging 150A MPPT

  • Max utility charging 120A

  • Built-in genset starter dry contact

  • Extensive programmable functions

  • Adjustable bulk/float/low cut-off setting

  • Large LCD touchscreen

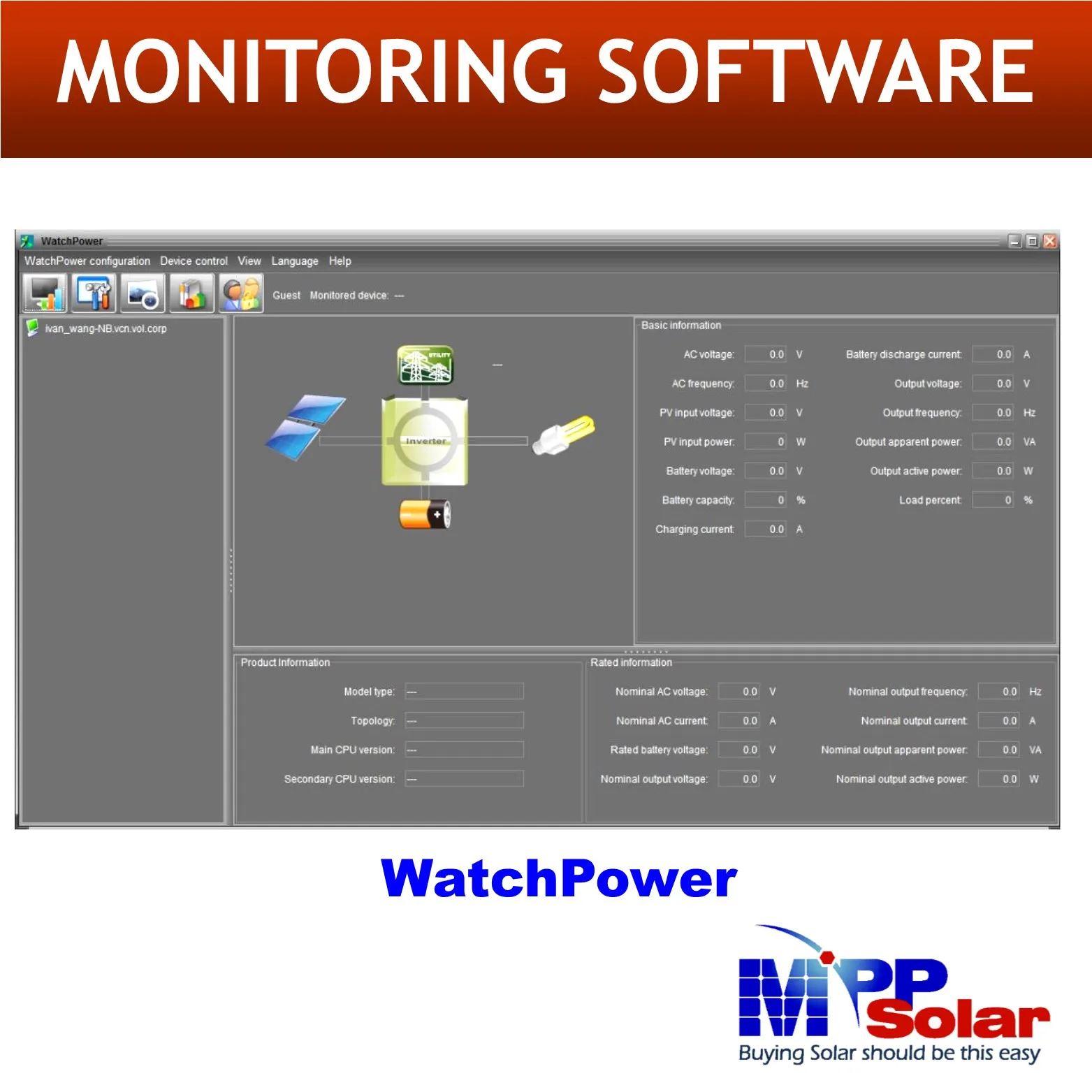

  • FREE monitoring software









IP65 WP Installation Guidance



  • Do NOT install units on sites where there is direct exposure to sunlight, rain, snow, >95% humidity, near antenna or at altitude >2km above sea level.














Using Generator as AC-Input



  • Generator power is recommended to be 50% larger than the inverter rating to reduce chances of overload.

  • Inverter-generator is recommended due to its cleaner output than conventional generators.  Unsuitable generator output may be rejected by the inverter.

  • When using generator as AC input – grid injection must be DISABLED.
