Welcome to Our Factory GVS
GVS Group since 1999, KNX manufacturer since 2008

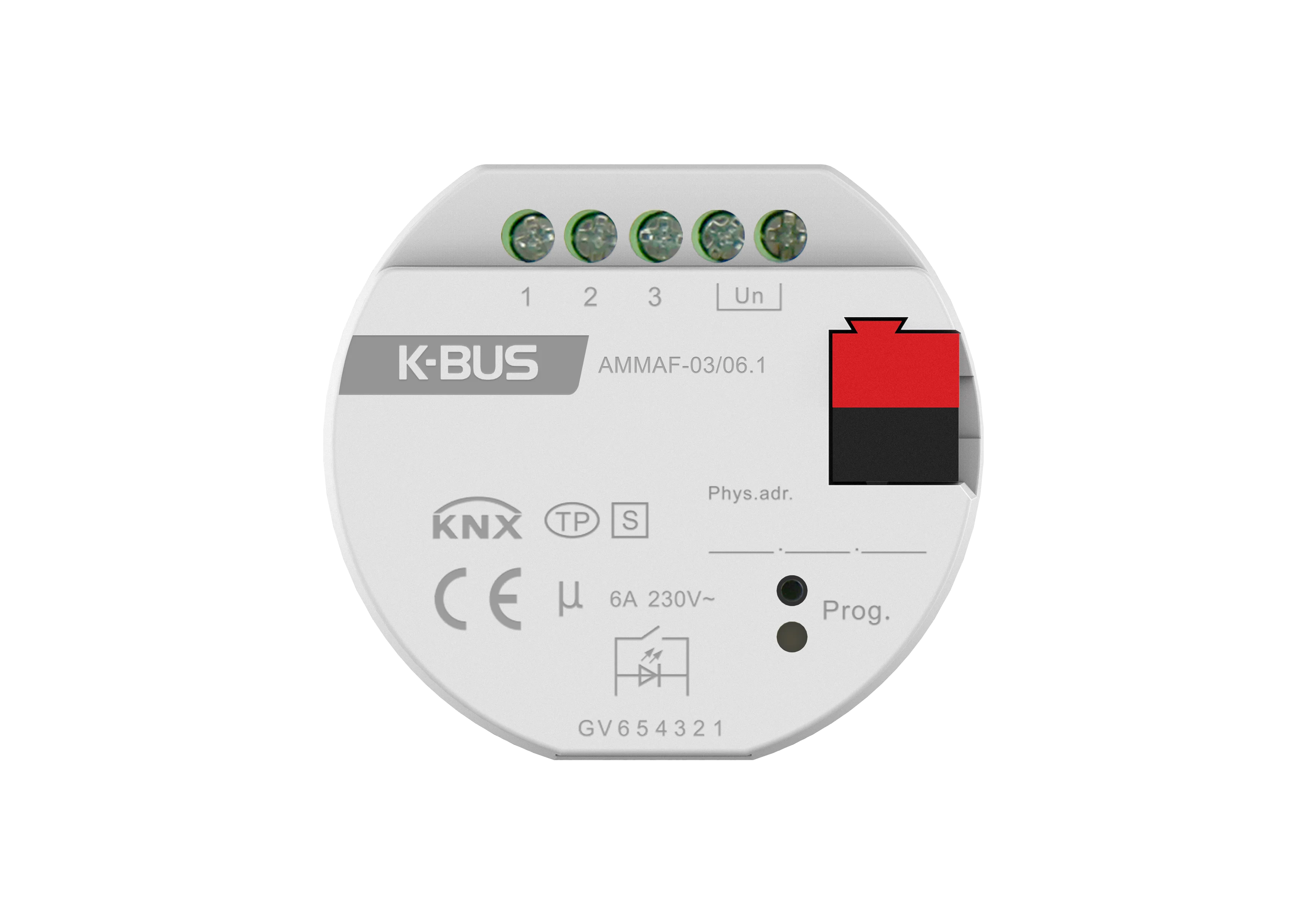

GVS KNX Factory Direct Multifunctional Actuator KNX Multi-function Actuator Mini 3-Fold 6A Switching Blind Control AMMAF-03/06

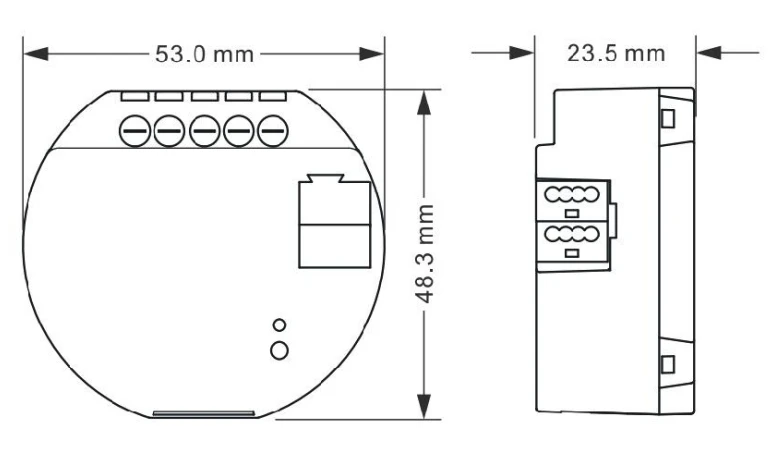

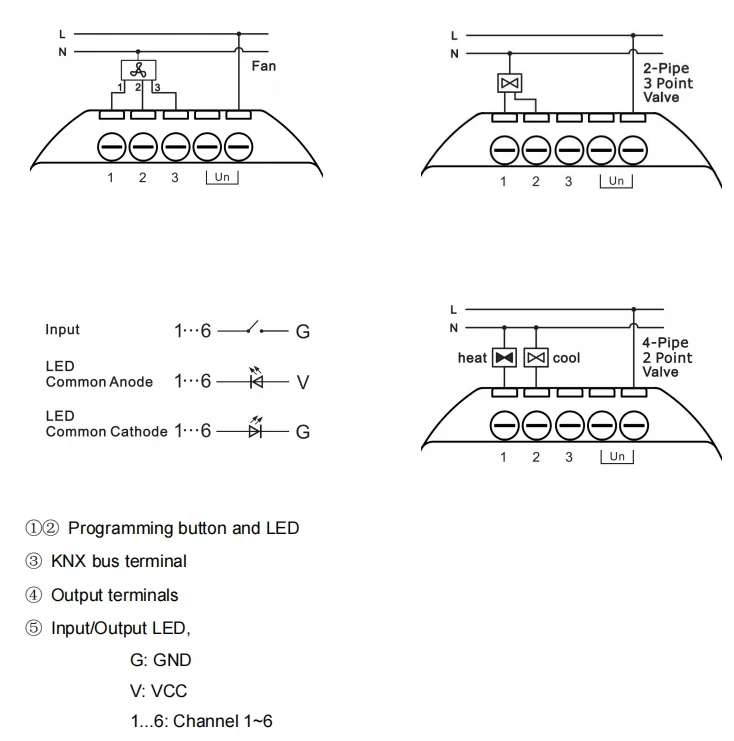

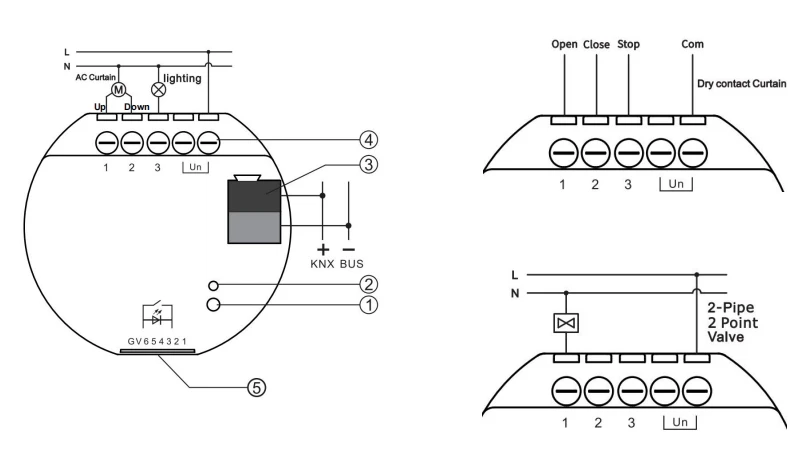

The Multifunctional Actuator, 3-Fold, 6A, Flush Mounted (Referred to as Multifunctional actuator) is a module that integrates multiple relay output functions, including switch output, curtain output, fan output or valve output, in addition to dry contact input and LED output indication functions. The corresponding output function can be configured according to actual application requirements. This module is compact and small in design, Flush mounted, and can be installed in a conventional 80 mm or 86mm wiring box. The output adopts screw terminal to realize electrical connection, and the bus connection is directly connected via KNX terminal. The additional power supply is not required except KNX bus.
The module offers the following functions:

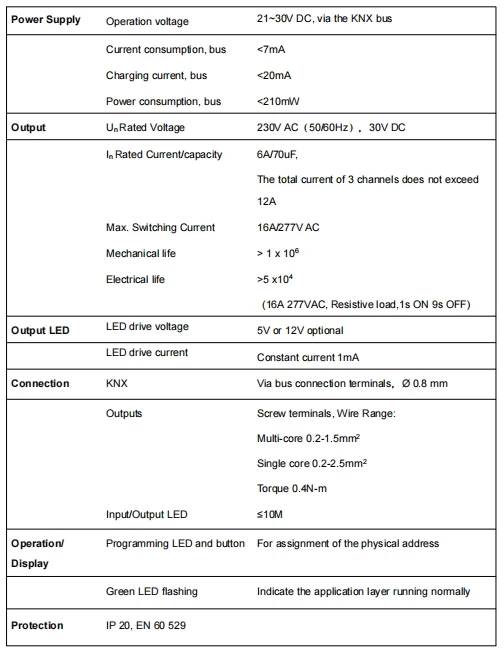

6A/channel
un rated voltage 250V AC, 50-60Hz, total current of 3 channels less than 12A.
Main KNX functions including swicth, status response, scene control (8 folds), time switching, preset, logic operation, shutter, valve, heating, fan control, 6-fold dry contact in/output, LED indicator.

GVS, Professional manufacturer since 1999, specilizing in KNX/EIB Smart Home/Office/Hotel/Building Solution and KNX Products.
KNX
In order to transfer control data to all building management components, a system is required that does away with the problems of isolated devices by ensuring that all components communicate via one common language: in short, a system such as the manufacturer and application domains independent KNX Bus. This standard is based upon more than 20 years of experience in the market, amongst others with predecessor systems to KNX: EIB, EHS and BatiBUS. Via the KNX medium to which all bus devices are connected (twisted pair, radio frequency, power line or IP/Ethernet), they are able to exchange information.
Bus devices can either be sensors or actuators needed for the control of building management equipment such as: lighting, blinds / shutters, security systems, energy management, heating, ventilation and air-conditioning systems, signaling and monitoring systems, interfaces to service and building control systems, remote control, metering, audio / video control, white goods, etc.
All these functions can be controlled, monitored and signaled via a uniform system without the need for extra control centers.

GVS & KNX

GVS is one of the best vendors specialized in R&D and producing home and building automation products, which includes TouchScreen/push Panels, brightness/motion Sensors, dimmer/switch/shutter Actuators, Power Supply, KNX to IP/RS232/RS485 Protocol Converters, KNX/DALI Gateway, Inputs, IR Transmitters, Softwares, other Modules etc.
GVS History
In 2020: Free assisstance to over 30 clients worldwide during Covid-19. Survived and thrived with a 20% annual net growth. STAR Market Program launched.
In 2019: Smart Healthcare business unitfounded; meanwhile, a smart wifi thermostat business line Vine was created to explore the NA consumer electronics market.
In 2018: GVS became the first native company who chaired KNX CHINA
In 2017: GVS became a public company by entering NEEQ (the new OTC), stock number: 870976
In 2015: GVS became the FIRST native council member of KNX China
In 2013: Initiator and Chairman of the drafting team for IEE1888.4 Green Home & Building Automation
In 2011: First KNX Training Center in China was established by GVS
In 2008: GVS Became the first Chinese KNX Member in China
In 2005: won the “Informatisation Application Model in the Electronics Industry”
In 2004: Global sales of Video Door Phone Display Module ranked No.1
In 2001: National sales of Display Module ranked No.1
In 1999: GVS was established.
1.Q: How about your delivery time?
A:0~7 business days for sample , lead time will be based on your order quantity
2.Q : Can I get some samples for test before I place an order?
A: Sure, samples will be offered as you requested.
3.Q:How about the quality control in your company?
A :we always attach great importance to quality control to make sure our customers finally get what they want.
4.Q: In which way will you ship my items if I place an order ?
A: By ocean, air or express, you can choose the best one that fit for your order.
5. Q: Could you offer me the safest terms of payment?
A: You can pay us via T/T or Alibaba.
GVS KNX Factory Direct Multifunctional Actuator KNX Multi-function Actuator Mini 3-Fold 6A Switching Blind Control AMMAF-03/06
Our Main Products:
KNX home and building automation products, including Touch Screen/push Panels, brightness/motion Sensors, dimmer/switch/shutter Actuators, Power Supply, KNX to IP/RS232/RS485 Protocol Converters, KNX/DALI Gateway, Inputs, IR Transmitters, Softwares, other Modules etc.
