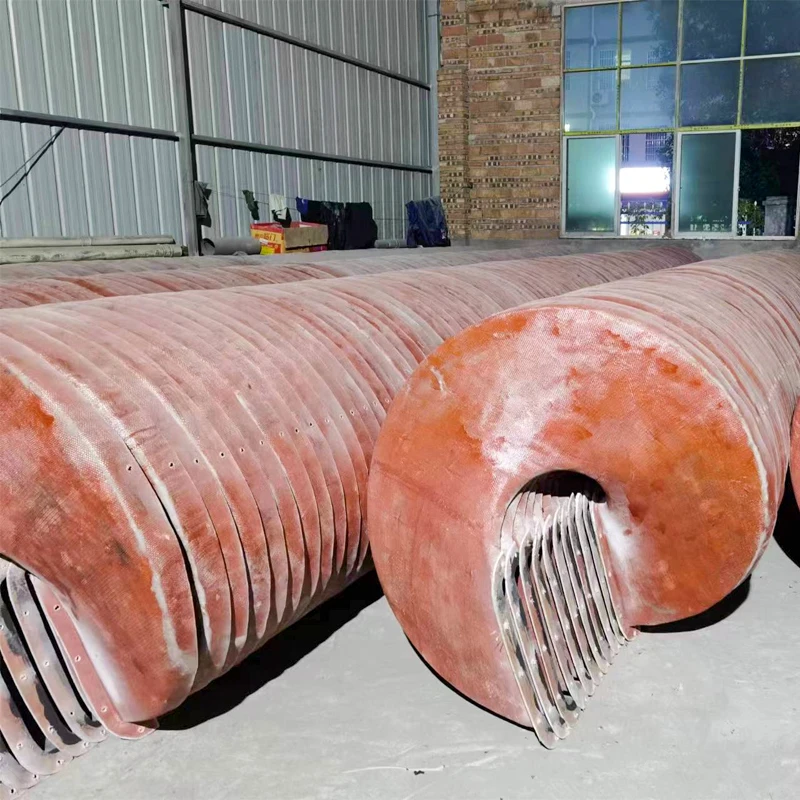

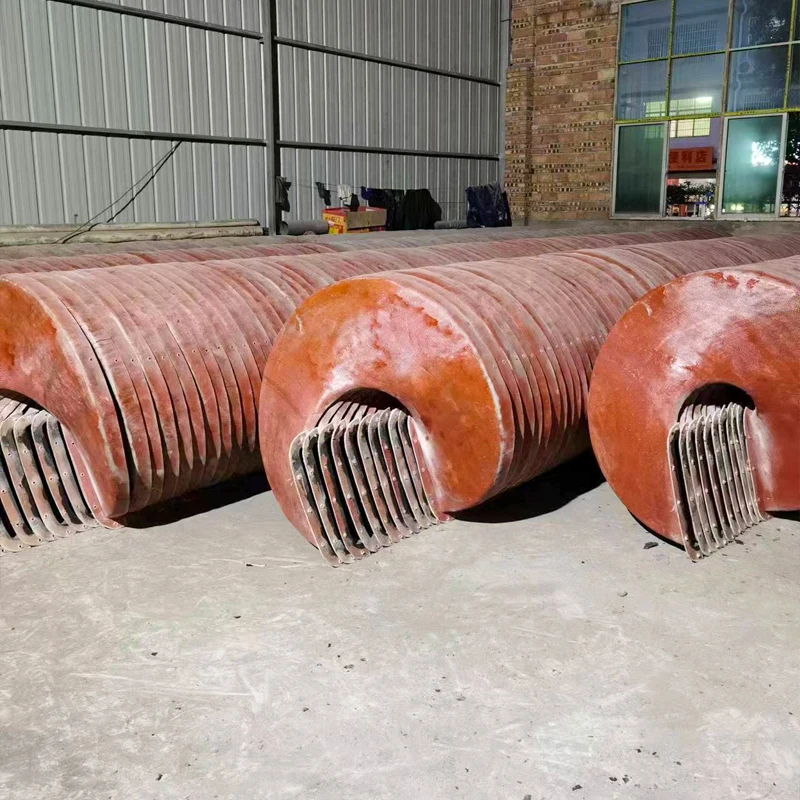

Gravity Gold Spiral Chute, Spiral Separator,Mineral Processing Concentrator
- Category: >>>
- Supplier: Jiangxi Weida Mineral Processing Equipment Co. Ltd.
Share on (10000014084638):
Product Overview
Description
Product introduction
Gravity Spiral Chute concentrator separator is our company’s concentrating experienced scientific product, which is the best concentrating equipment, especially for concentrating sand ore in beach, riverside, seashore and stream. Also has been used in to enrichment the particle size 0.3-4mm fine grain like iron, tin, chromite, ilmenite, tungsten, zinc, tantalum-niobium, gold, coal, monazite, rutile, zircon and other low-grade ores. The non-metallic minerals which have a big enough specific gravity difference.
The product is made of the fiberglass lined with wear-resistant resin and cover emery; the advantages are light, moisture proof,anti-rust, wear proof, anti corrosion and no noise, properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new highly effective equipment.

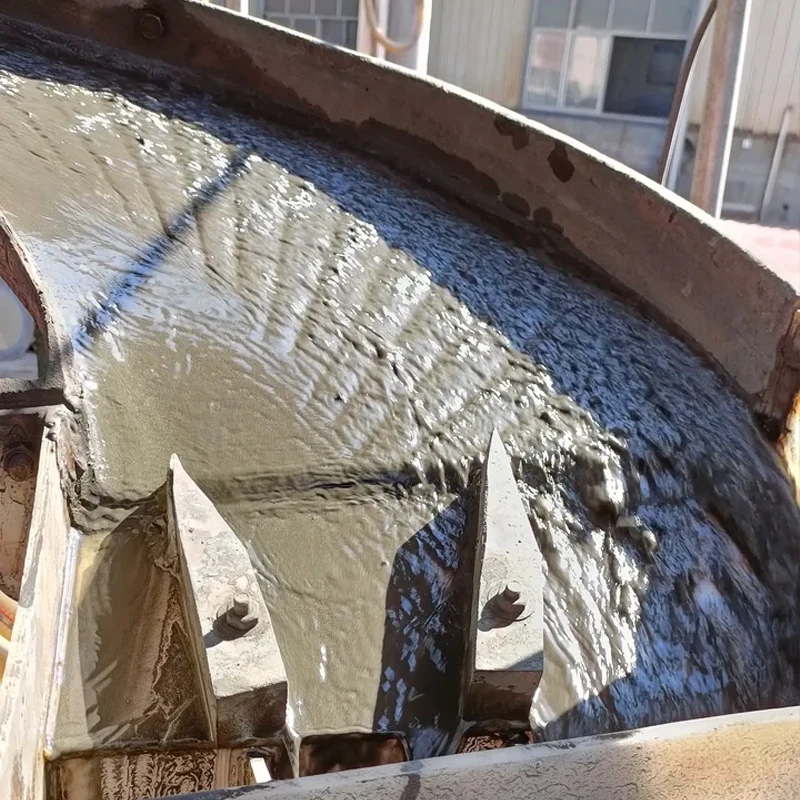

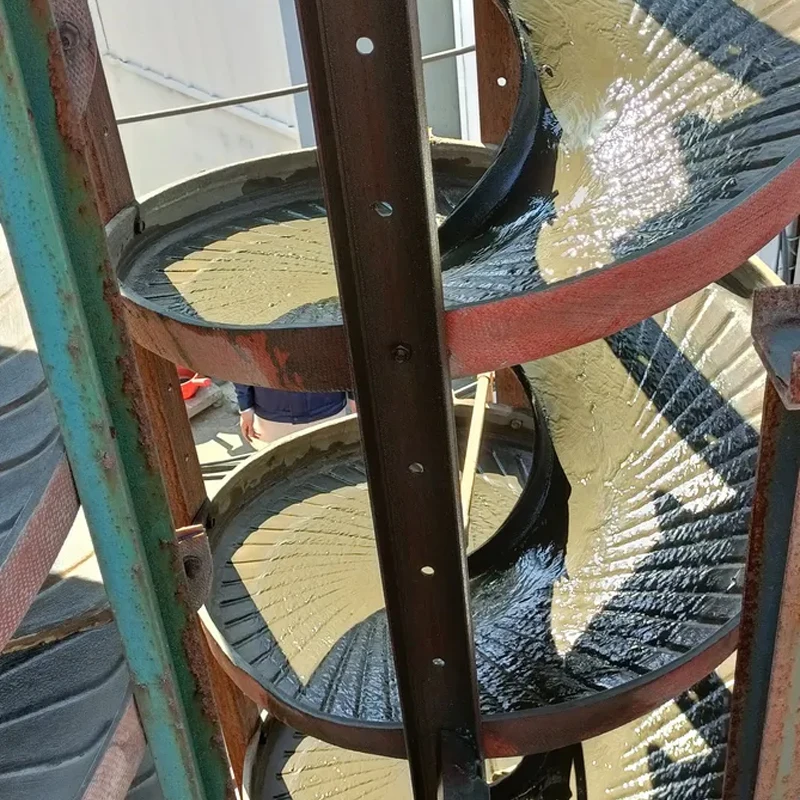

Gravity Spiral Chute concentrator separator is working under the the force of water flow, gravity, inertial centrifuge and friction. Slurry is pumped to the top of the spiral , and it enters a feed distributor that evenly distributes the feed to each Spiral Chute. The design and shape of the spiral make it work, when combined with gravitational acceleration. As the slurry travels the spiraling path down the spiral, mineral grains settle and start sorting according to size, density and to a lesser extend shape. Low density particles are carried with the bulk of the water towards the outside of the spiral , while particles with the greatest density migrate towards the inside of the spiral.
Features of Price for Gravity Spiral chute concentrator separator:
1. Reasonable structure and small area occupation
2. High recovery, high efficiency, and precise separation
3. Non-required power
4. Light in weight, anti corrosion, rust and wear resistant
5. Simple installation and Minimal maintenance requirements
6. Low operating cost and long working life
7. Reliable running with minimal operator attention
8. Strong adaptability to fluctuation of feeding amount, density, size and grade
9. The surface of emery forms strong friction the concentration effect surpass plastic surface
2. High recovery, high efficiency, and precise separation
3. Non-required power
4. Light in weight, anti corrosion, rust and wear resistant
5. Simple installation and Minimal maintenance requirements
6. Low operating cost and long working life
7. Reliable running with minimal operator attention
8. Strong adaptability to fluctuation of feeding amount, density, size and grade
9. The surface of emery forms strong friction the concentration effect surpass plastic surface
333

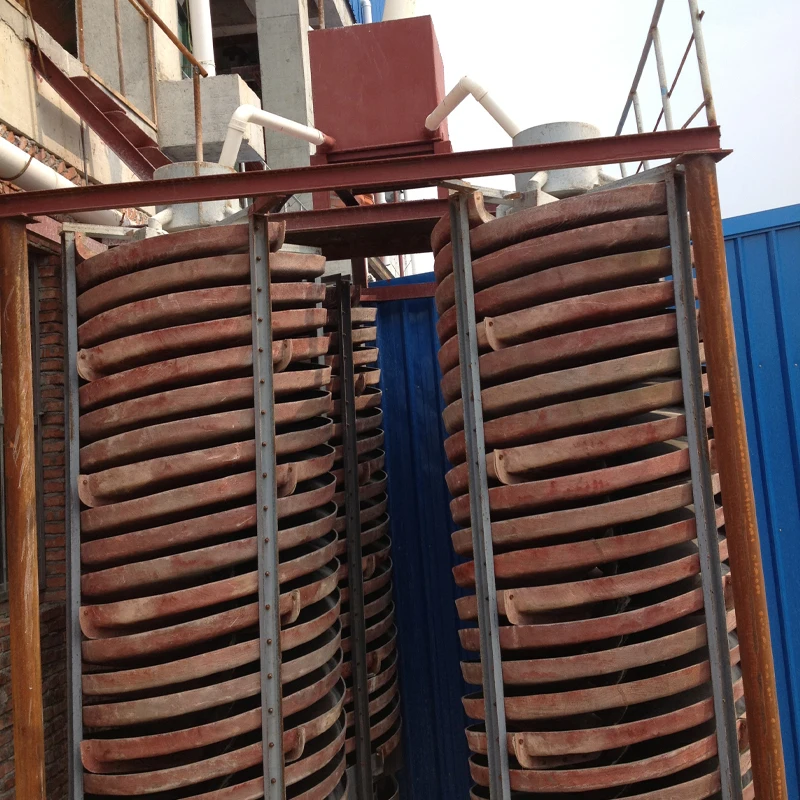

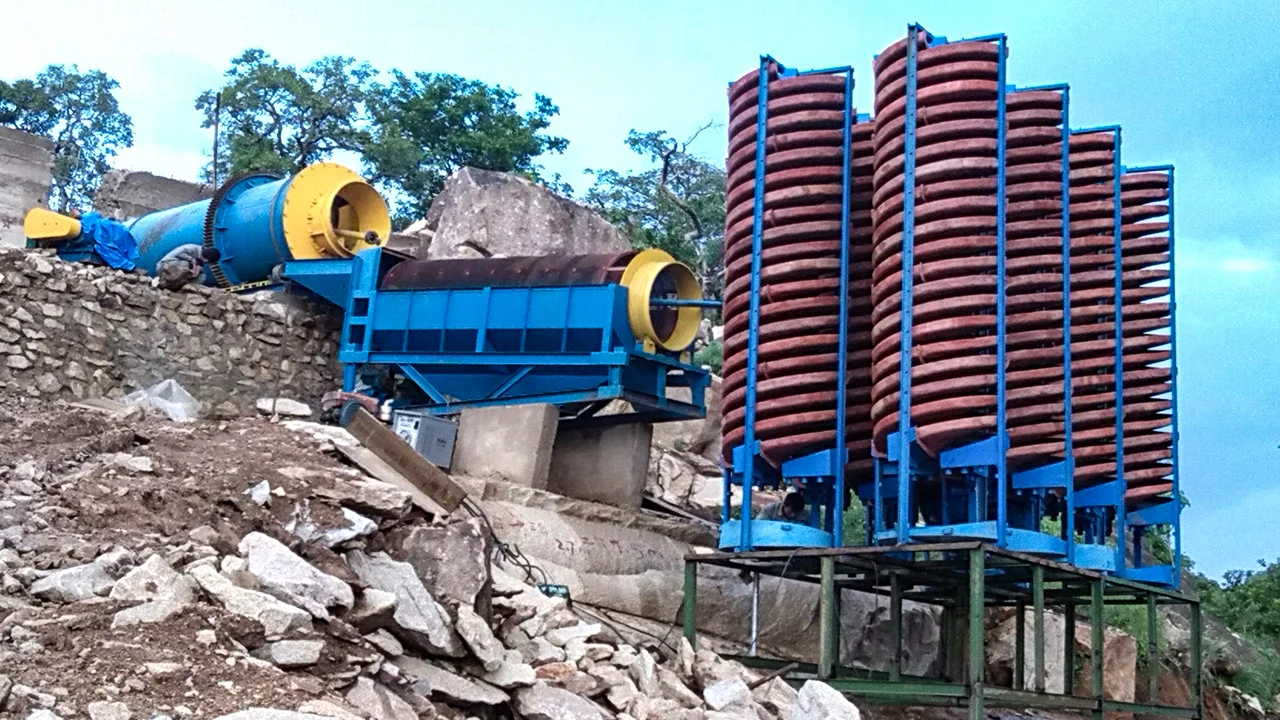

Customers cases
Product Information
Model | 5LL-2000 | 5LL-1500 | 5LL-1200 | 5LL-900 | 5LL-600 | 5LL-400 | ||
Outside Dia. (mm) | 2000 | 1500 | 1200 | 900 | 600 | 400 | ||
Pitch (mm) | 1200 | 800,680,540 | 720,540,360 | 660,540,400 | 450,360,270 | 240,180 | ||
Lateral slope | 9° | 9° | 9° | 9° | 9° | 9° | ||
External size | Length (mm) | 2300 | 1560 | 1360 | 1060 | 700 | 460 | |
Width (mm) | 2300 | 1560 | 1360 | 1060 | 700 | 460 | ||
Height (mm) | 6500 | 5230 | 5230 | 4000 | 2600 | 1500 | ||
Starts/Turns per column | 4-2 | 4-2 | 4-2 | 4-2 | 2 | 2 | ||
Feeding size (mm) | 4-0.04 | 0.8-0.037 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 | ||
Feeding density (%) | 20-45 | 30-60 | 25-55 | 25-55 | 25-55 | 25-55 | ||
Capacity (t/h) | 12-10 | 8-6 | 4-6 | 2-3 | 0.8-1.2 | 0.15-0.2 | ||
Weight (KG) | 1100 | 800 | 600 | 400 | 150 | 50 | ||

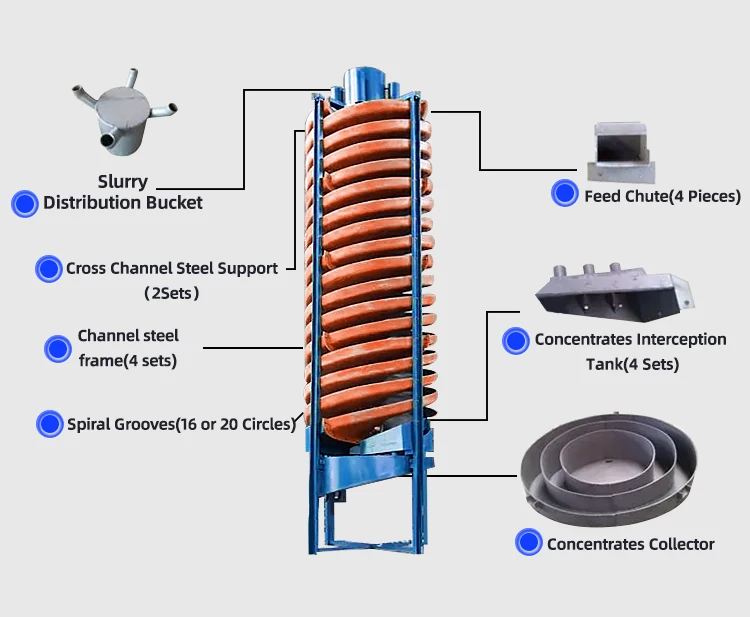

Product Stucture
Worm tips

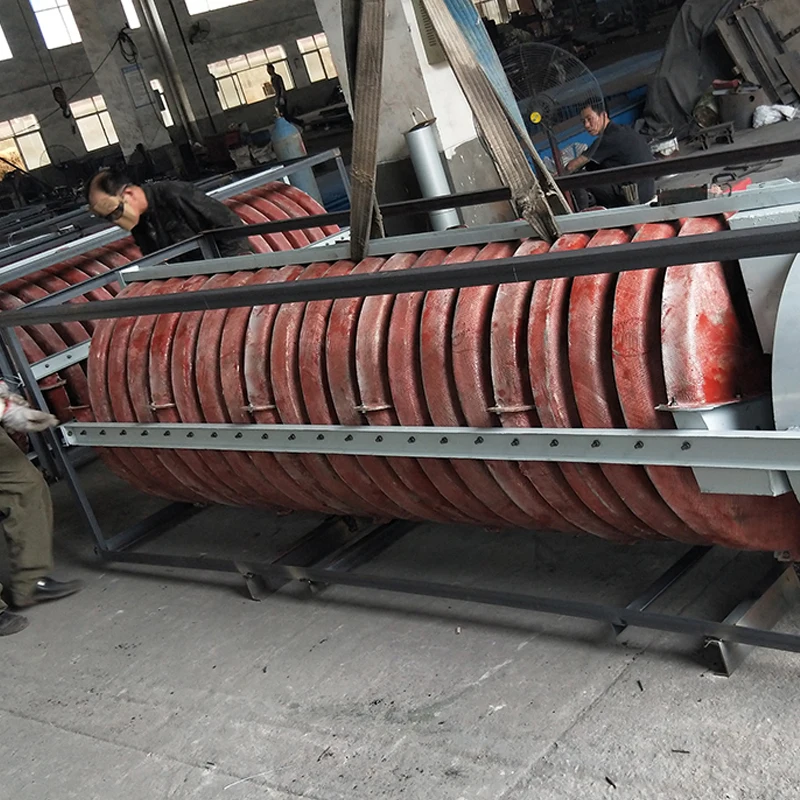

Spiral chute need special package in international transportation, we need to make a iron frame package(normally, cost of package is not included in quotation.). You can talk with our sales to decide the package and quotation. International logistic company had set up great relationship with us, thus transportation is guaranteed.
Spiral chute need special package in international transportation, we need to make a iron frame package(normally, cost of package is not included in quotation.). You can talk with our sales to decide the package and quotation. International logistic company had set up great relationship with us, thus transportation is guaranteed.
AVAILABLE FROM STOCK
Packing & Delivery

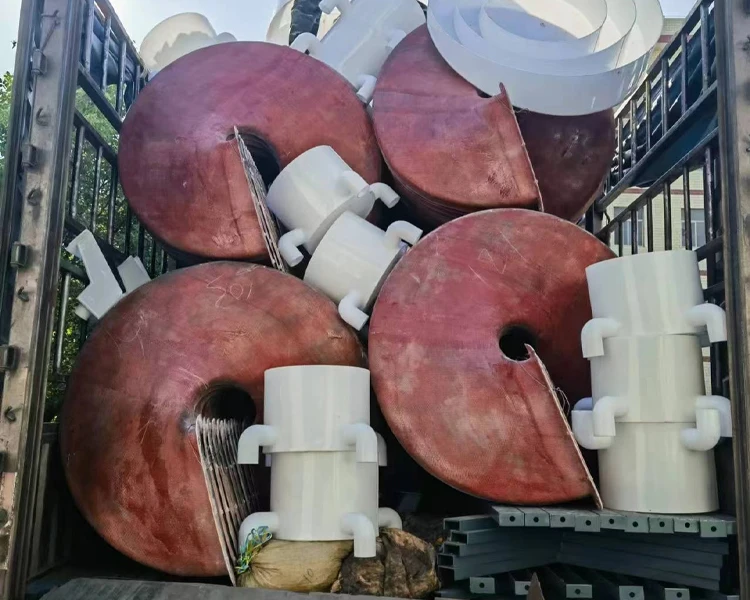

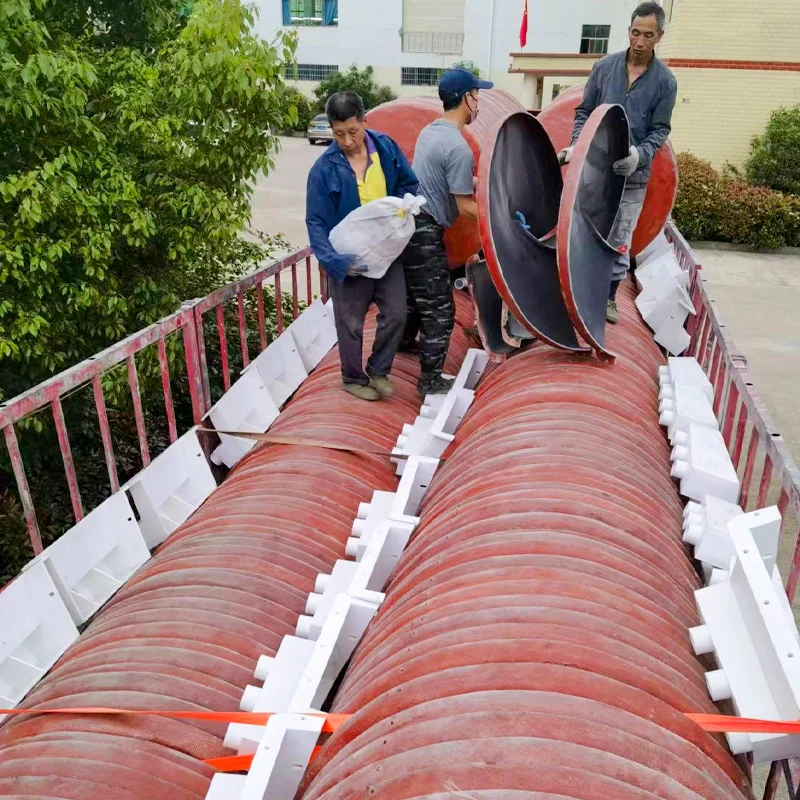

Packing : For Mineral Spiral Chute Separator.
If One 20ft container, can put 8 sets common type Model 5LL-1200 Spiral chute separator. 4-5 sets 5LL-1500.if one 40 HQ can loading in 20 sets Model 5LL-1200 Spiral chute Separator and 8-10 sets 5LL-1500.
Delivery : Within 15 days after recieved 30% advance payment.
Payment terms : Pay T/T 30% in advance, the balance 70% should be paid before the products delivery out of Factory.
If One 20ft container, can put 8 sets common type Model 5LL-1200 Spiral chute separator. 4-5 sets 5LL-1500.if one 40 HQ can loading in 20 sets Model 5LL-1200 Spiral chute Separator and 8-10 sets 5LL-1500.
Delivery : Within 15 days after recieved 30% advance payment.
Payment terms : Pay T/T 30% in advance, the balance 70% should be paid before the products delivery out of Factory.
Contact Us
COMPANNY INFORMATION
Jiangxi Weida Mining Machinery Co., Ltd. is a large professional company producing non-ferrous metal and non-metallic separation and treatment equipment. The company covers an area of 25,000 square meters, with fixed assets of 60 million yuan, modern processing workshop 18,000 square meters, more than 40 large processing equipment, mainly producing processing and mineral processing equipment, including ore feeding, crushing, screening, grinding, classification, mixing, flotation, cyanidation and other varieties.
AVAILABLE FROM STOCK
CASE PRESENTATION

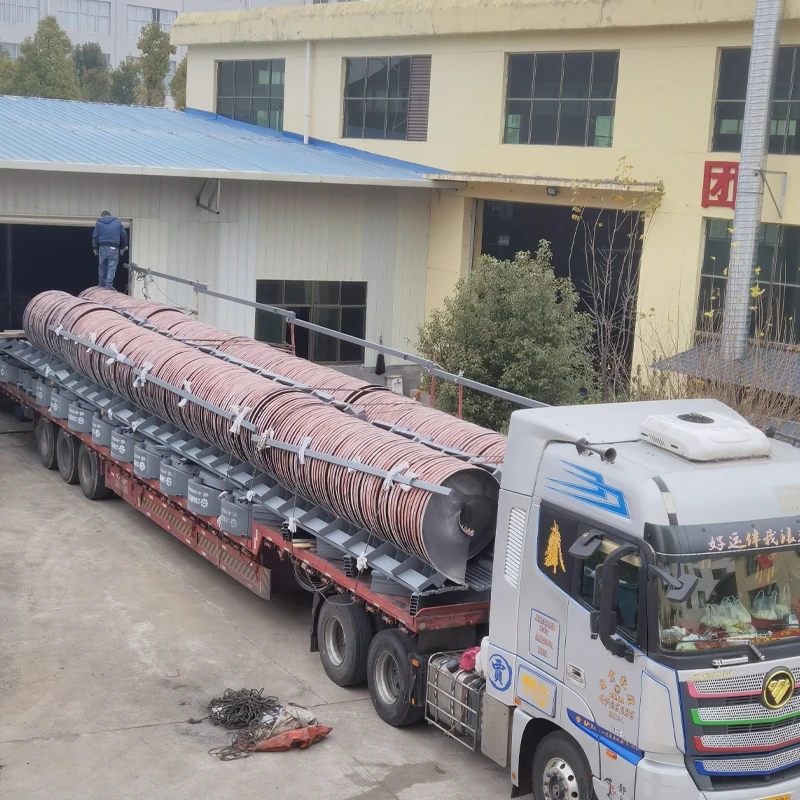

DELIVERY SITE
Q1. Are you factory or trade company?
A1. We are manufacturer, we also supply trade service.
Q2. What about your price?
A2. We always supply the products with low price, because we believe this is the way to build long-term business and earn good reputation.Our price is 3%-5% lower than the average market price.
Q3. What payment terms do you accept?
A3. Welcome clients to place orders by Alibaba Trade Assurance! Other payment ways such as T/T, L/C, D/P, etc can be negotiated.
Q4. How about your delivery time?
A4: Generally, it will take 15-20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5: what will you do if the machine is broken down?
A5: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q6: How do you make our business long-term and good relationship?
A6: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q2. What about your price?
A2. We always supply the products with low price, because we believe this is the way to build long-term business and earn good reputation.Our price is 3%-5% lower than the average market price.
Q3. What payment terms do you accept?
A3. Welcome clients to place orders by Alibaba Trade Assurance! Other payment ways such as T/T, L/C, D/P, etc can be negotiated.
Q4. How about your delivery time?
A4: Generally, it will take 15-20 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5: what will you do if the machine is broken down?
A5: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q6: How do you make our business long-term and good relationship?
A6: 1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
