Product Overview
Description
Single Axis Solar Tracking Control System Slewing Drive Solar Tracker System
Products Description
Structure | ||
System type | Single post tracking system | |
Maximum capacity per set | 4.8kWp ( Estimated with 600W PV-Modules ) | |
PV-Modules quantity per set | 8PCS | |
Tracking type | Single axis tracking with tilt angle | |
Tilt angle | 25°- 40°( S-N )( according to project ) | |
Tracking range | ±45°( E-W ) | |
Tracking accuracy | ±0.5° | |
Structural materials | HDG steel, Al-Mg-Zn Coating Steel | |
Foundation | Concrete foundation | |
Electrical | ||
Solar tracking method | Astronomical algorithm + closed-loop control ( AI ) | |
Control system | MCU | |

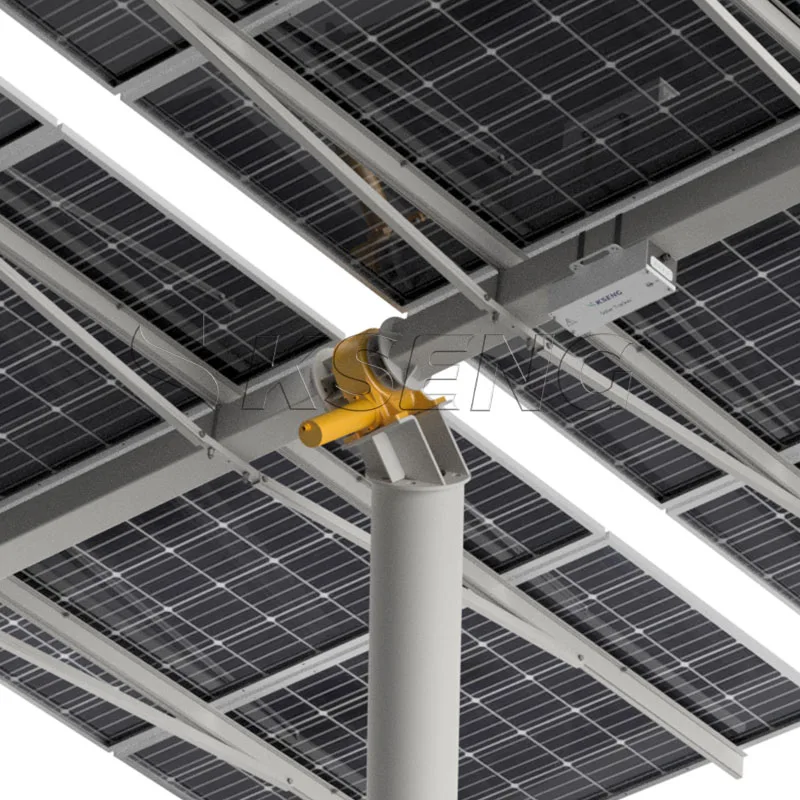

Drive method | Slew drive | |
Motor type | 24V DC Motor | |
Power supply | AC-powered or self-powered ( with 8 PV modules ) | |
Manual operation | Yes | |
Environment | ||
Wind load | Customized according to local condition | |
Operating temperature | -30℃ to +60℃ | |
Environmental pollution level | C5 | |
Other | ||
Special tools | Equipped with debugging tools | |
Load design standard | GB, ASCE,BS EN,AS ( according to project ) | |
Protection function | ||
Maximum operating wind speed | ≥18m/s ( Windy area ) | |
Night stow mode | Yes | |
Overheat prevention | Yes | |
Overload prevention | Yes | |
System fault self-diagnosis | Yes | |
System fault self-diagnosis | 4-5min | |
