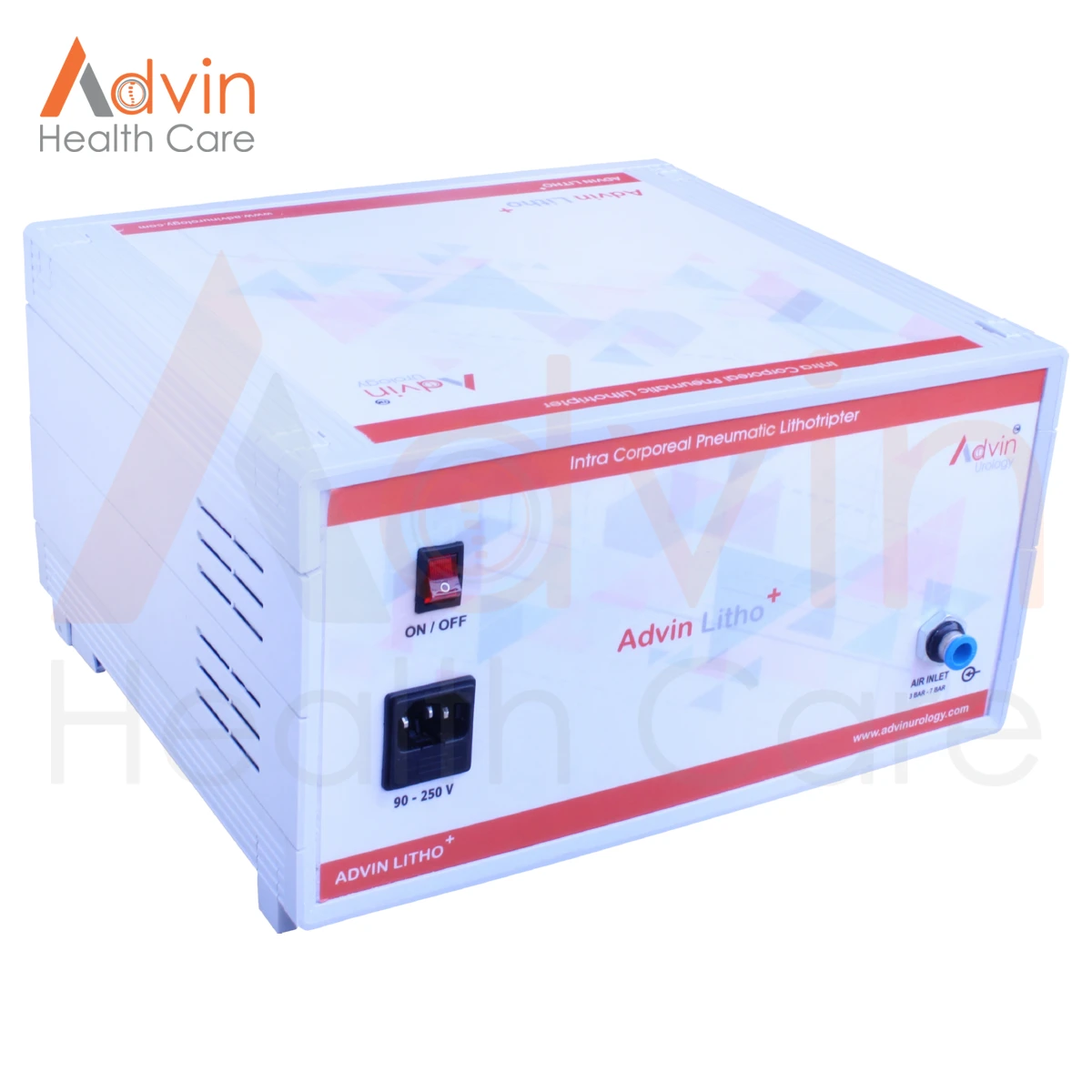

Lithotripter Pneumatic like urology lithotripter and lithotripter system Advin Litho Advanced Machine

Share on (10000014185110):


Price:$1,650.00 - $1,800.00

Quantity:


Product Overview

Description



Product Description


Urology Lithotripter Pneumatic:





Advin Lithotripter Digital is the intracorporeal Pneumatic lithotripter having a superior technology. It is a most reliable device, found to be very safe and the user’s friendly for fragmenting stones in the kidney, ureter and urinary bladder..





It was Known as Intracorporeal Lithotripter, Intracorporeal Pneumatic Lithotripter, Pneumatic Lithotripter Machine, Digital Pneumatic Lithotripter, and Stone Breaker Pneumatic Lithotripter.



Intra Corporeal Pneumatic Lithotripter coverts Kinetic impact energy to a mechanical strain which is passed through the probe to the calculus. Lithotripter Hand Piece converts Kinetic Energy to Mechanical Strain and it is passing through the probe. When energy is transmitted from the LITHOCLAST probe to the calculus, the result is the disintegration of the calculus..

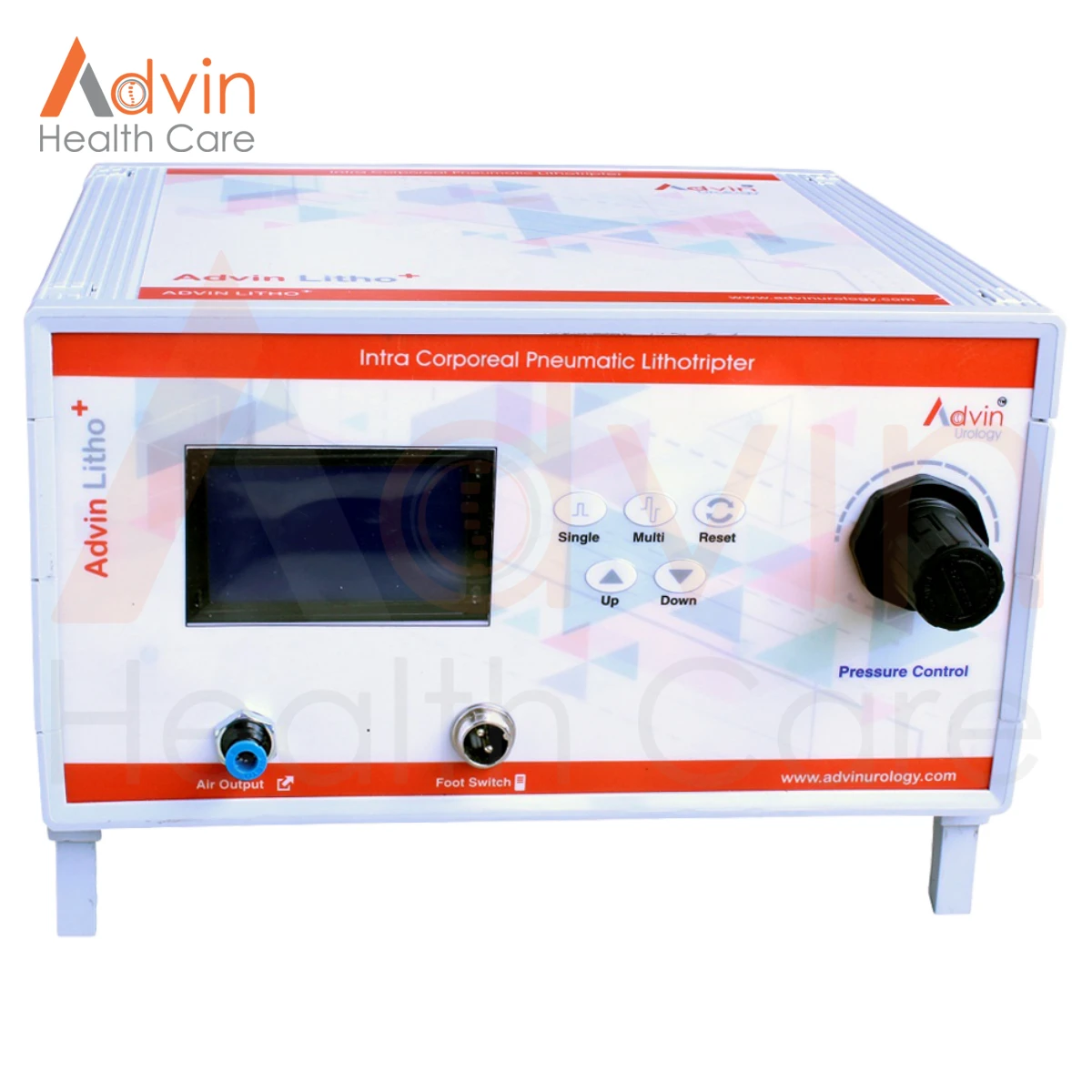

The digitally controlled microprocessor in Advin Lithotripter Digital gives accurate Single-pulse and continuous pulse. In continuous pulse mode, we can adjust pulse per second by touch switch and result revealed in the digital display.



Advin Lithotripter Digital is compatible with Air Compressor and Oxygen Cylinder which is available in Hospitals. Advin Lithotripter controls input pressure and gives required output to the handpiece so it is also called as “Digitally Controlled Pressure Flow Device”



Advin Lithotripter Digital is matching with international quality standards and most accurate devices. It is designed with superior technology and a user’s friendliness. Advin Lithotripter is also called as Ballistic Lithotripter, Lithoclast, Intracorporeal Pneumatic Lithotripter, endoscopic lithotripsy, Ureteroscopic pneumatic lithotripsy, lithotripter machine, and Pneumatic Lithotripter.





It is also known as lithotripter pneumatic, urology lithotripter, lithotripter machine.





Advanced Features:



  • A most effective method for the removal of large calculi

  • Faster stone removal compare to other stone removal procedure

  • No heat generation on the tip of the probe so no damage to the mucosa

  • Tissue remains unchanged

  • Highly precise electro-pneumatic device

  • Users Friendly, Easy to operate, No Maintenance Cost

  • The rigid probe provides rapid and safe fragmentation of the large and hard calculi

  • Used in Kidneys, Ureter and bladder stone Fragmentation

  • Very Efficient Fragmentation of Stone.

  • Decrease risk of Thermal Injury compare to other Lithotripsy Procedure





Technical Specification:












































Control Unit Size

Size: L 19.7 cm X W 23.9 cm X H 12.7 cm


Weight: 1.9 Kg


Hand Piece

Length: 18.5 Cm


Weight:   0.15 Kg


Supply Voltage (Compatible With)

220 – 240 AC Volts, Frequency 50 Hz


110 – 130 AC Volts, Frequency 60 Hz


Power Consumptions30 – 40 Watts
Input GasCompressed Dry Air /Oxygen
In Let Pressure Minimum ( To Control Unit)4 Kg / cm2 by oxygen regulator
In Let Pressure Maximum ( To Control Unit)6 Kg / cm2 by oxygen regulator
Out Let Pressure Indication0 – 5 Kg / cm2 by Digital Display
Freq. of Impact

Single Pulse


Multiple Pulse – 1 pulse/second to 12 pulse/second
