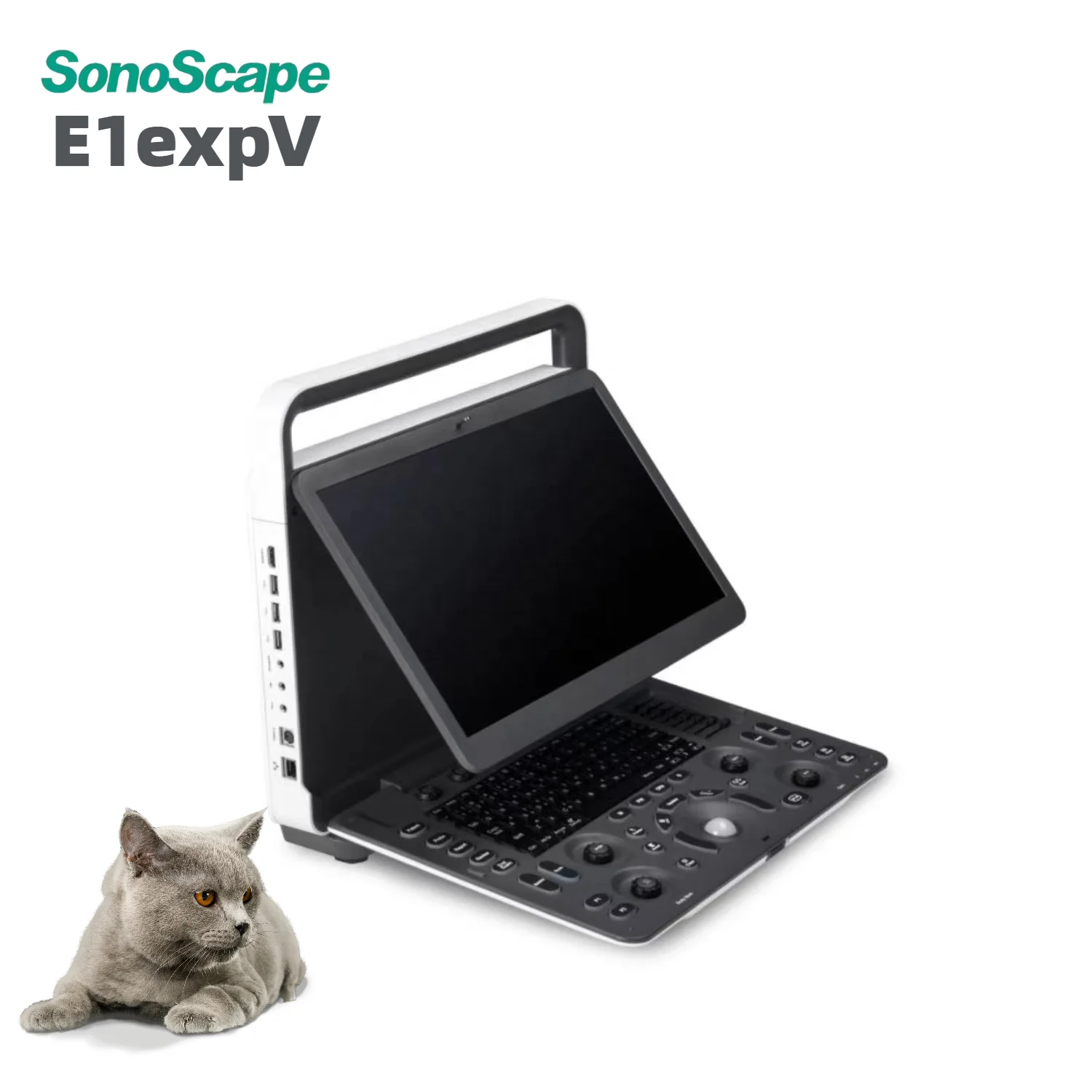

SonoScape ecocardiografo portatil veterinary ultrasound machine E1expVet for veterinary bovine equineul trasound machine for hor
- Category: >>>
- Supplier: Shenzhen Medmi Technology Co. Ltd
Share on (10000014201857):
Product Overview
Description
Product Profile

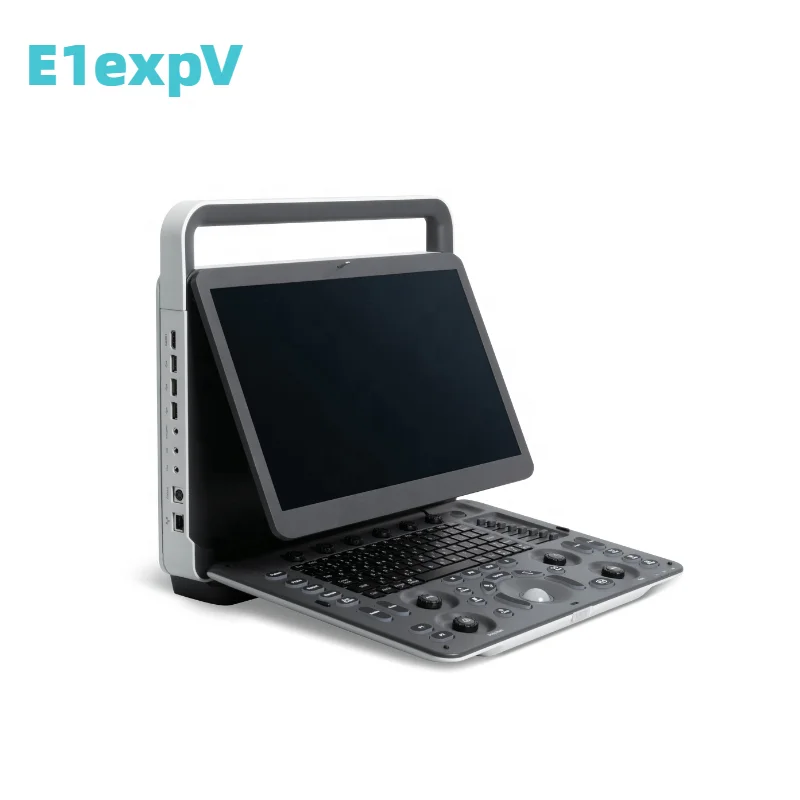

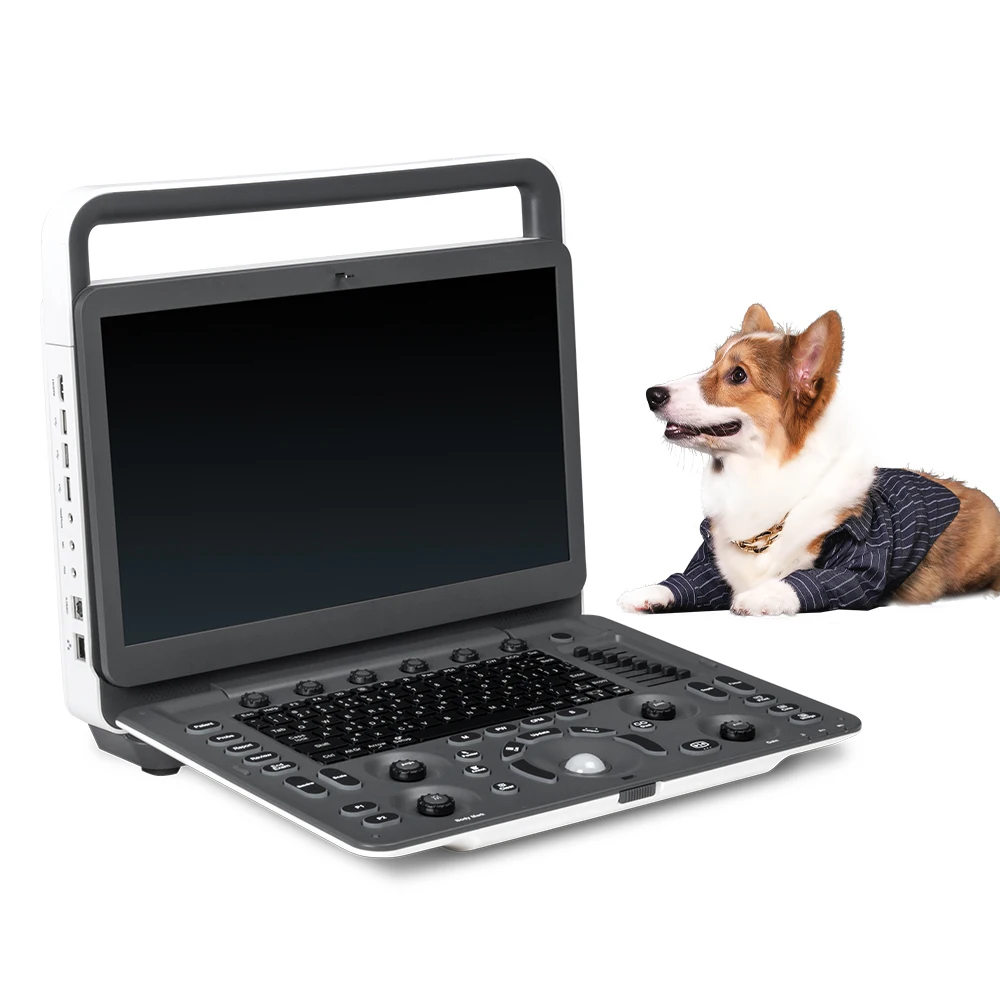

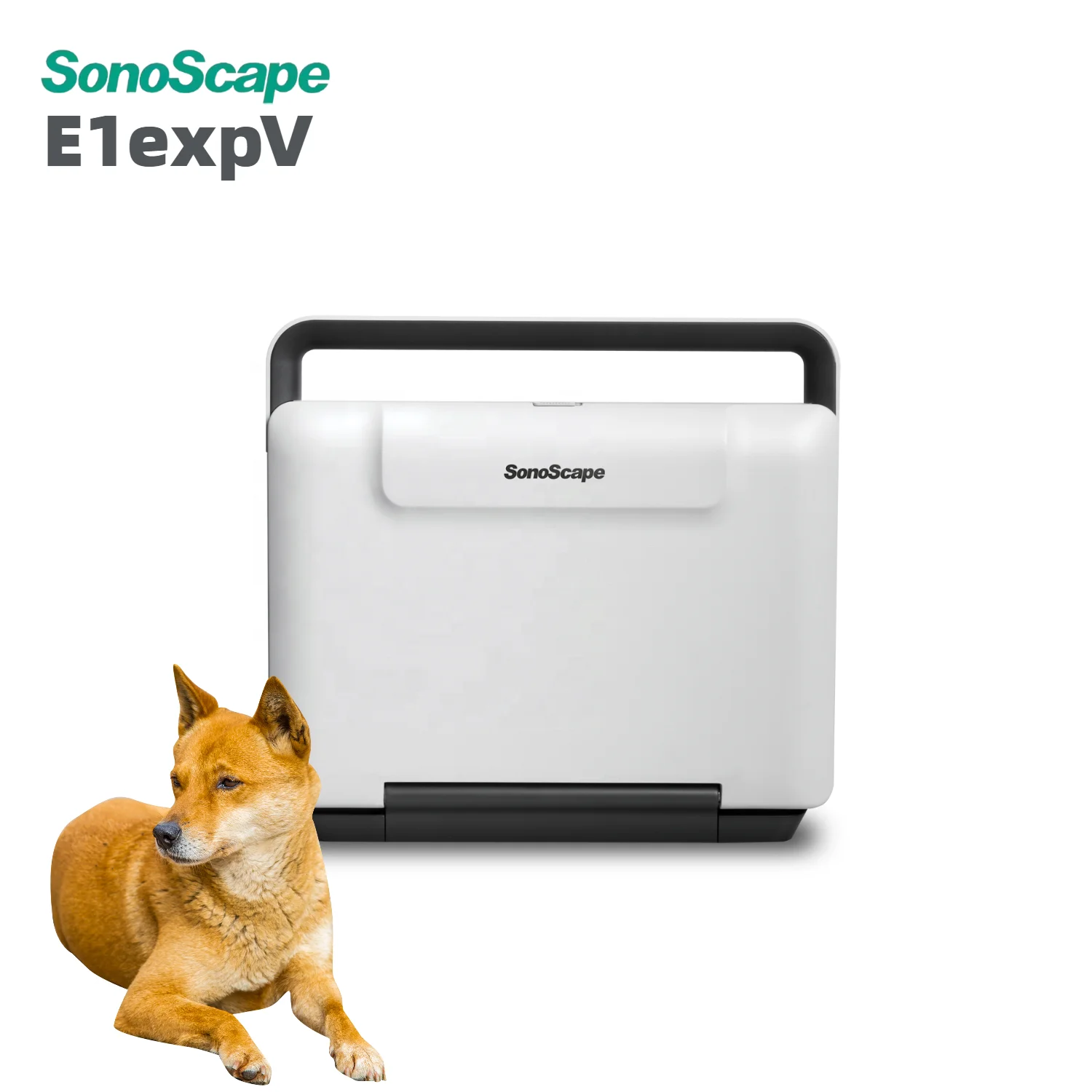

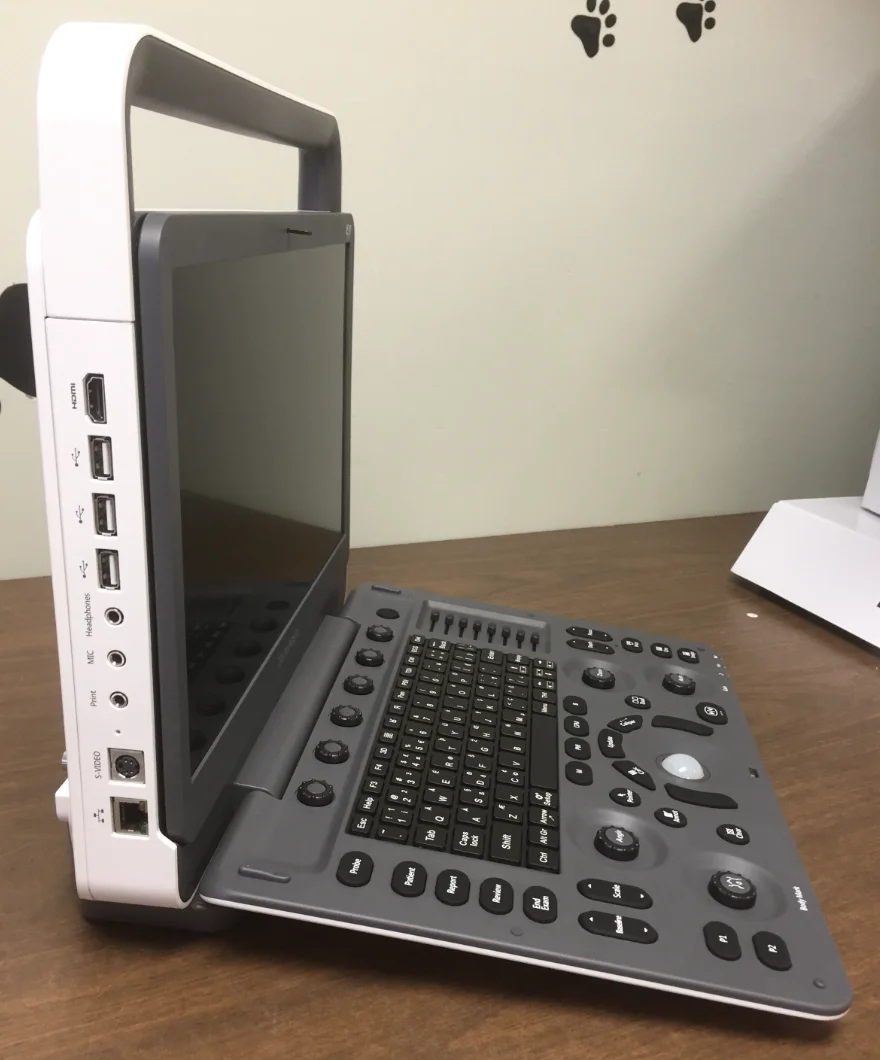

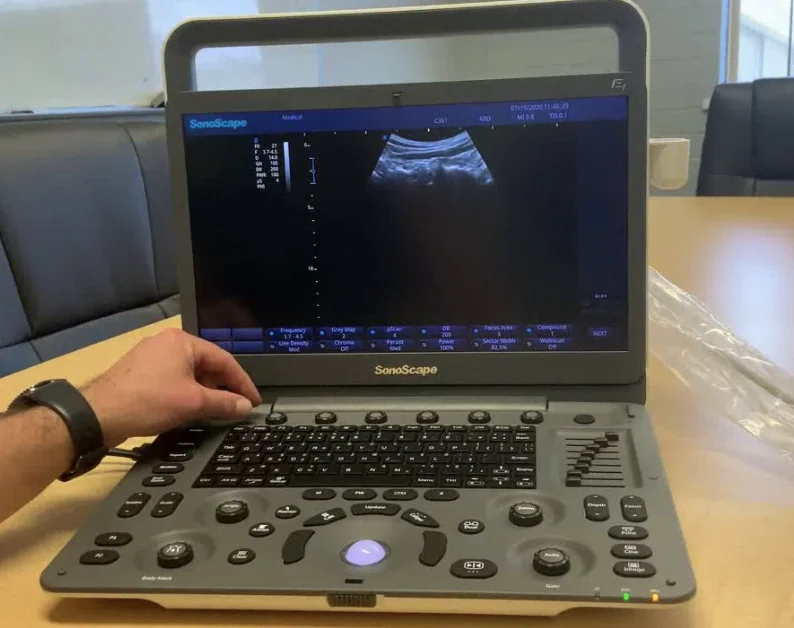

Product Name: SonoScape mobile portable veterinary ultrasound machine E1expVet for veterinary bovine equine

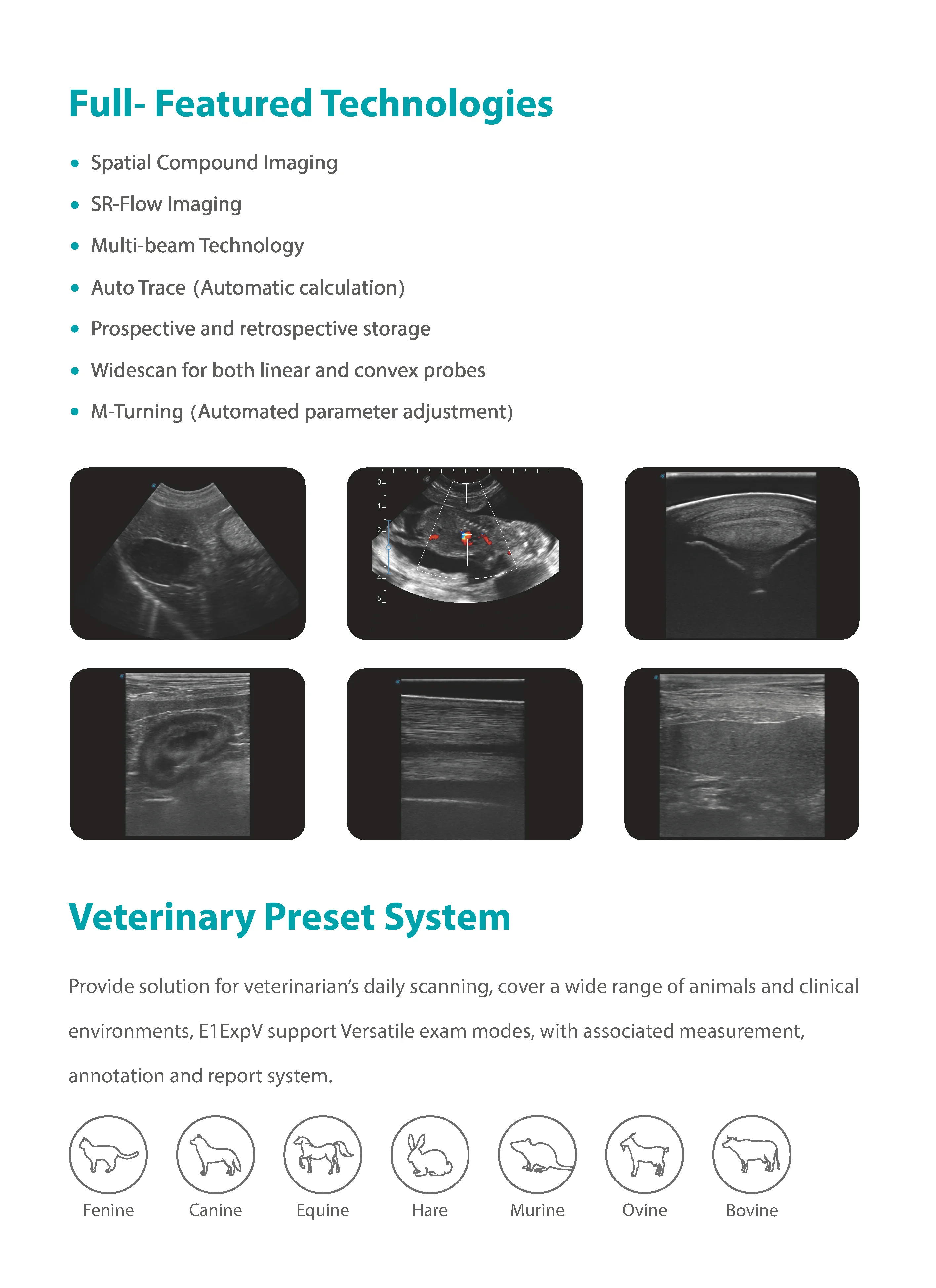

Product Features & Technology
E1expV Portable Color Doppler Ultrasound System | |||
Standard Hardware Includes: | E1Exp V Main Unit | ||
15.6" Medical High Resolution Monitor | |||
Two Transducer Ports | |||
USB 2.0 / Hard Disk 500 G | |||
Power Adaptor | |||
Standard Battery | |||
Standard Software Includes: | Preset for Pet | ||
Preset for Horse Race | |||
Preset for Animal Husbandry | |||
Preset for Lab | |||
B ( 2B & 4B ) Mode | |||
M Mode | |||
Color Doppler Flow Imaging | |||
Power Doppler Imaging / Directional Power Doppler Imaging | |||
Pulse Wave Doppler Imaging | |||
μ-Scan ( 2D Speckle Reduction Technology ) | |||
Tissue Harmonic Imaging | |||
Pure Inversion Harmonic Imaging | |||
Dynamic Multi-beam Technology | |||
Spatial Compound Imaging | |||
Tissue Specific Imaging | |||
TGC ( Time Gain Compensation ) | |||
Simultaneous Mode ( Duplex ) | |||
Simultaneous Mode ( Triplex ) | |||
B / C Dual Live | |||
2D Steer | |||
Widescan: Linear Extended | |||
Widescan: Convex Extended | |||
TEI Index | |||
Auto Trace | |||
Auto IMT | |||
Biopsy Guide | |||
Zoom ( Pan-Zoom / HD-Zoom ) | |||
Scr-Zoom ( One-Key Full Screen Display ) | |||
One-Key Optimization ( Auto Optimization for 2D / Color / M / PW / CW ) | |||
Show Gallery | |||
DICOM 3.0: Store / C-Store / Worklist / MPPS / Print / SR / Q&R | |||

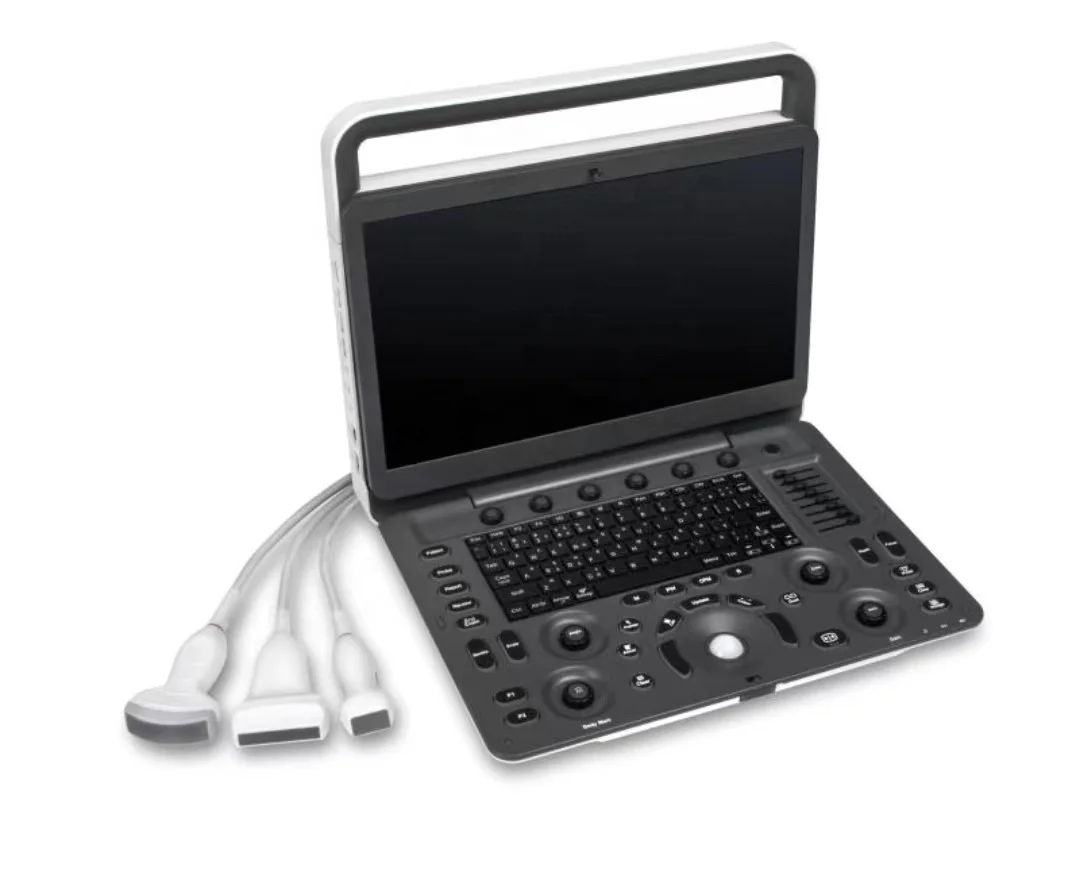

Transducers: | Linear Array L741 | ||
Linear Array 10I2 | |||
Linear Array L746 | |||
Convex Array C361 | |||
Micro-convex Array C613 | |||
Convex Array C322V | |||
Endocavity Linear Array L741V | |||
Endocavity Linear Array L761V | |||
Optional Accessories: | B/W Thermal Printer: SONY UP-X898MD | ||
Color Laser Jet Printer: HP M254nw | |||
B/W Thermal Printer Paper ( 1 Roll ) | |||
Color Thermal Printer Paper: UPC-21S (1 Box) | |||
Color Thermal Printer Paper: UPC-21L (1 Box) | |||
Standard Capacity Battery | |||
Large Capacity Battery ( Not Support Trolley at the Same Time ) | |||
Hard Drive Disk 1TB | |||
Solid State Disk 250GB | |||
ECG Lead Wire | |||
Trolley ( Not Support Large Capacity Battery at the Same Time ) | |||
Backpack | |||
Round Interface Footswitch | |||
USB Interface Footswitch | |||
Keyboard Cover | |||
External DVD / VCD | |||
Barcode Scanner | |||
Bluetooth Controller | |||

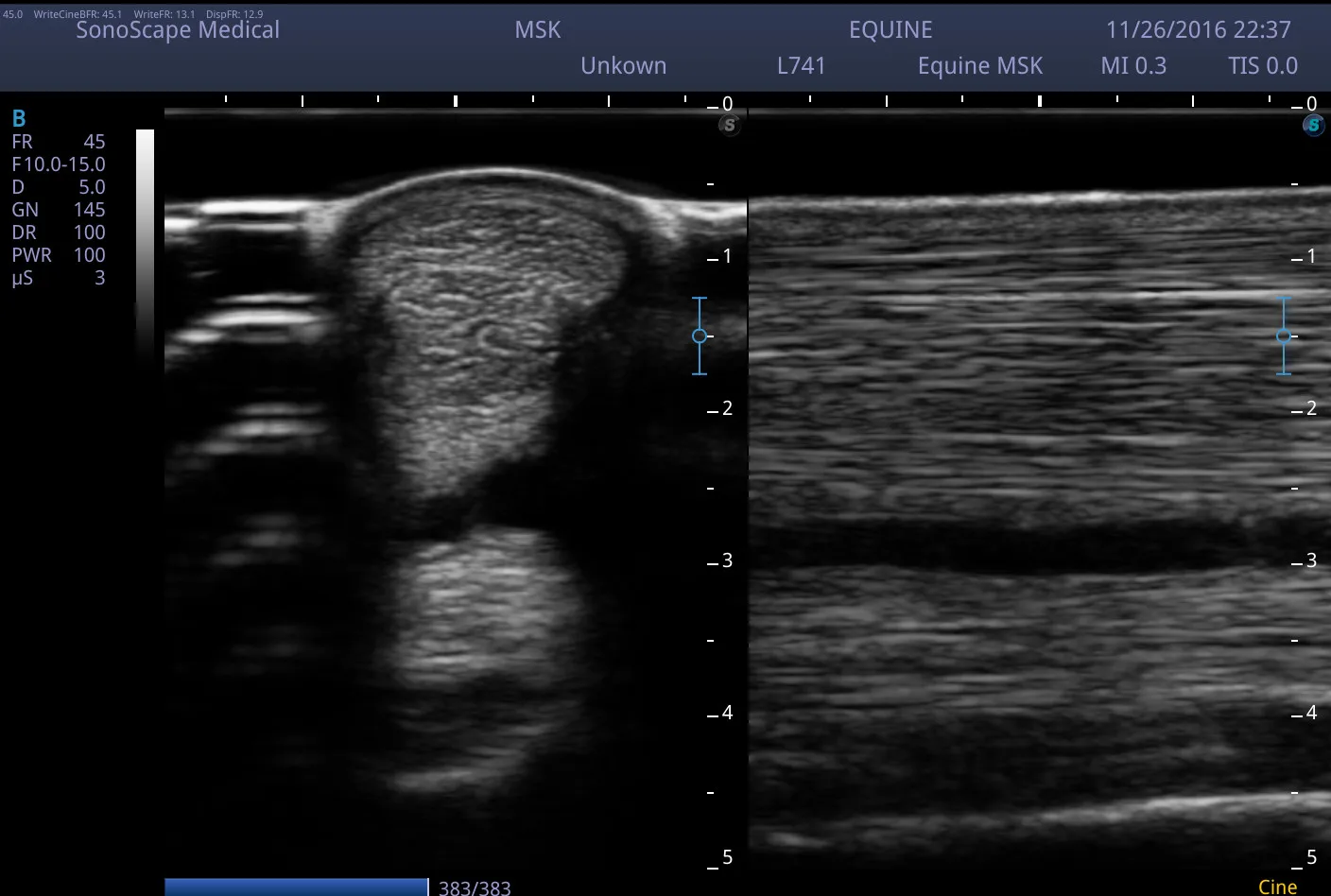

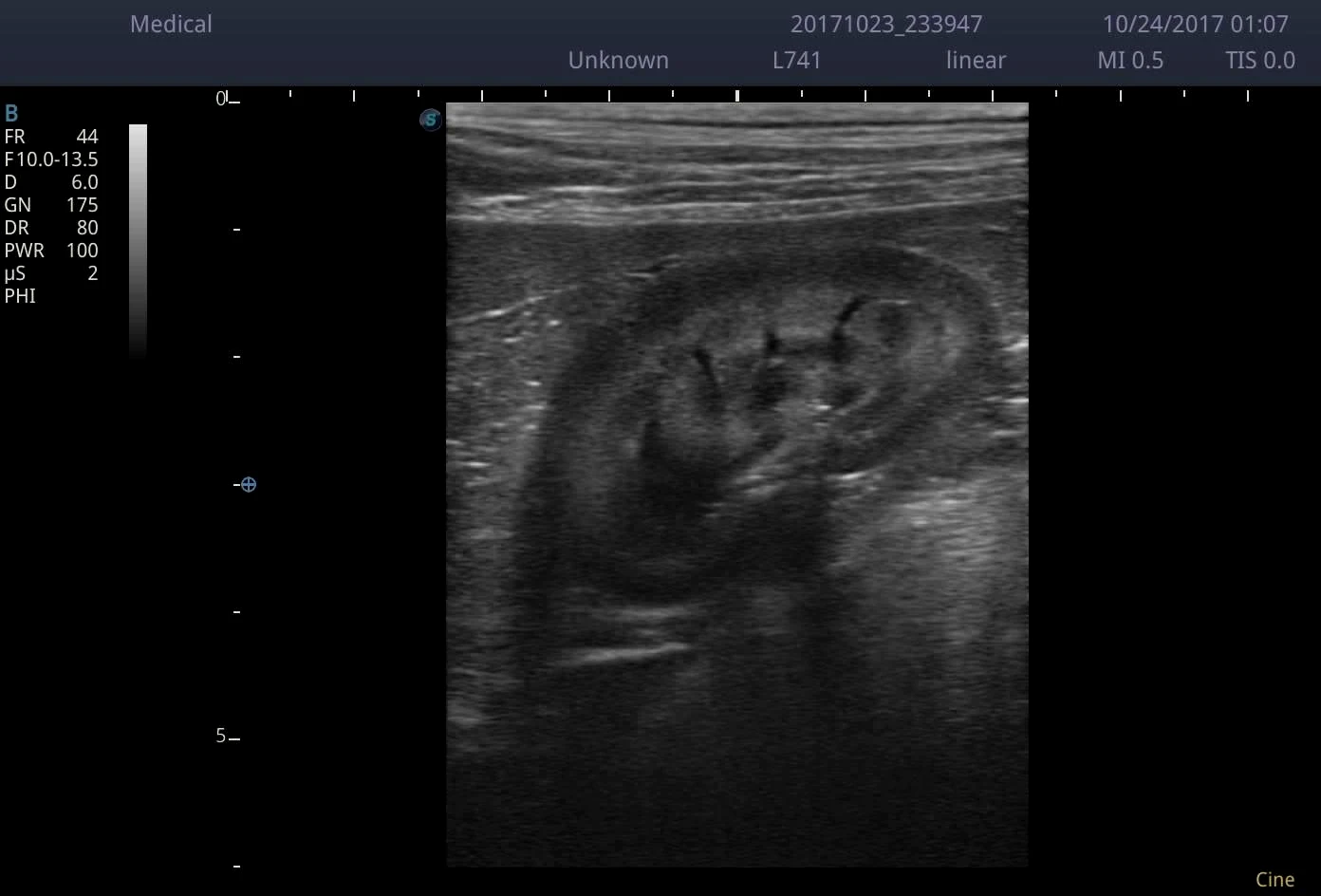

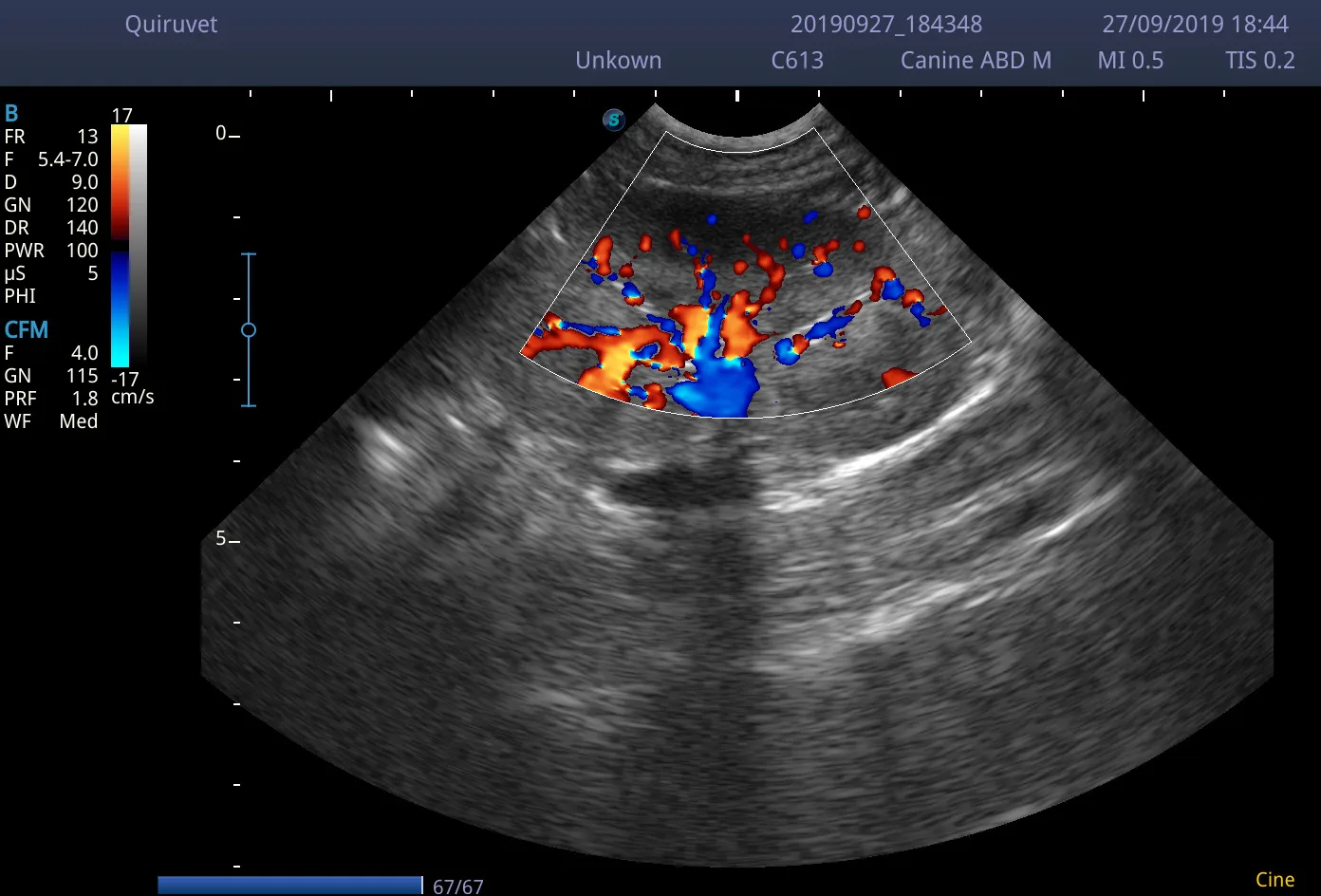

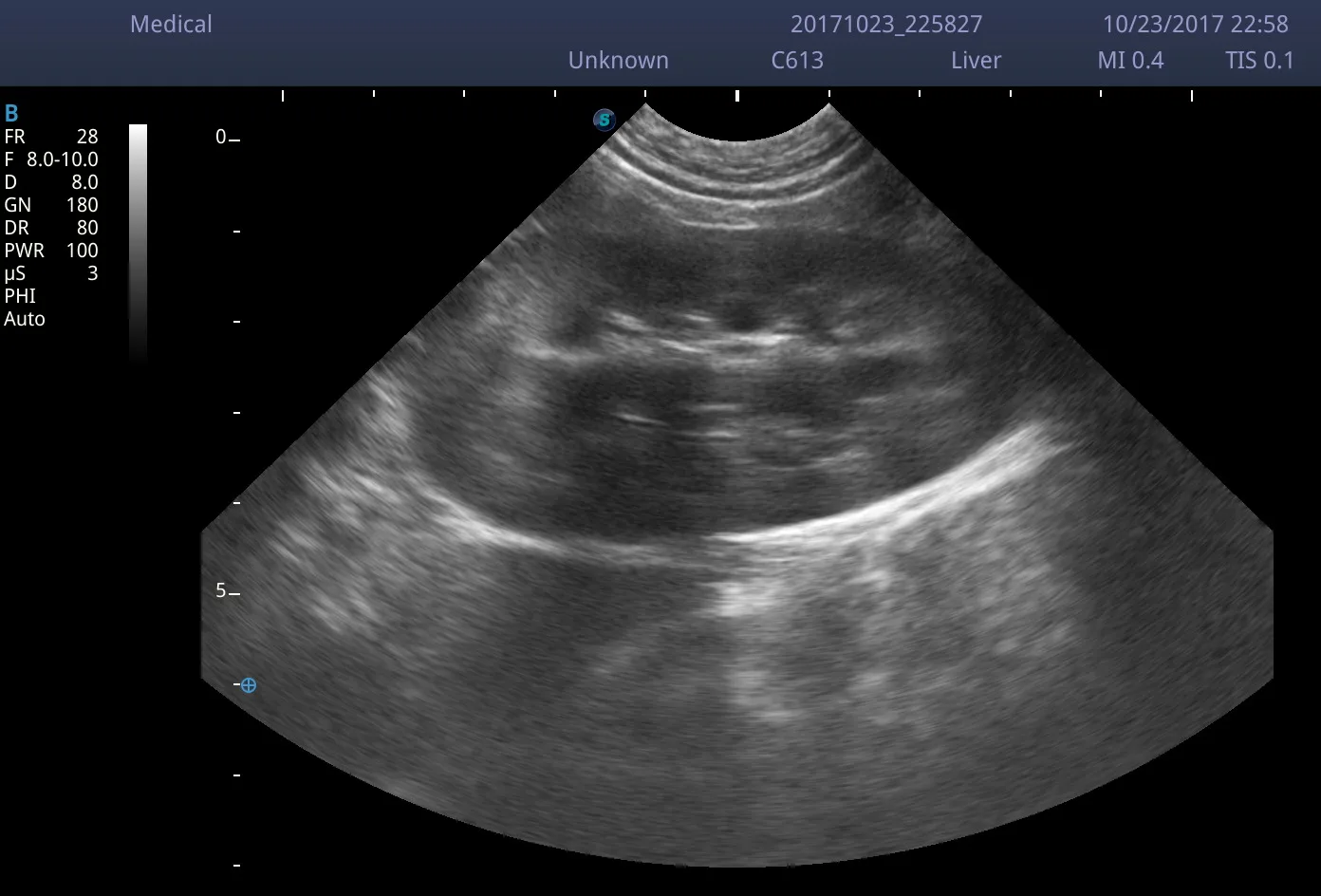

Clinical Image
Packing & Delivery
Packing Metheod | Paper Box/Carton |
Packing Dimension | 65*53*44cm |
Weight (G.W) | 17.5kg |
Delivery Leadtime | Within 20 days after receiving paymemt |
Standard Accessories | Main unit, User Manual, Power Cable, Battery, Transducers. |
FAQ
How long will it take for the dlivery?
- It depends on your order details, please contact our team for more information about that.
In a normal situation, we are commited to deliver the products within 20 days after receiving full payment
- We provide 1 year warranty for the main unit & accessories.
How shall we have the technical support?
- We have more than 10 years experience in medical product and services. We are responsible to offer online technical support to your team directly. If the spare parts or software are needed in the service case, we could deliver the solutions according to the warranty term on time. By the way, we have an 24/7 online response to your question as needed.
Do you have MSDS or test report for liquid and battery delivery?
- Yes, please consult to our service support for needed documents.
