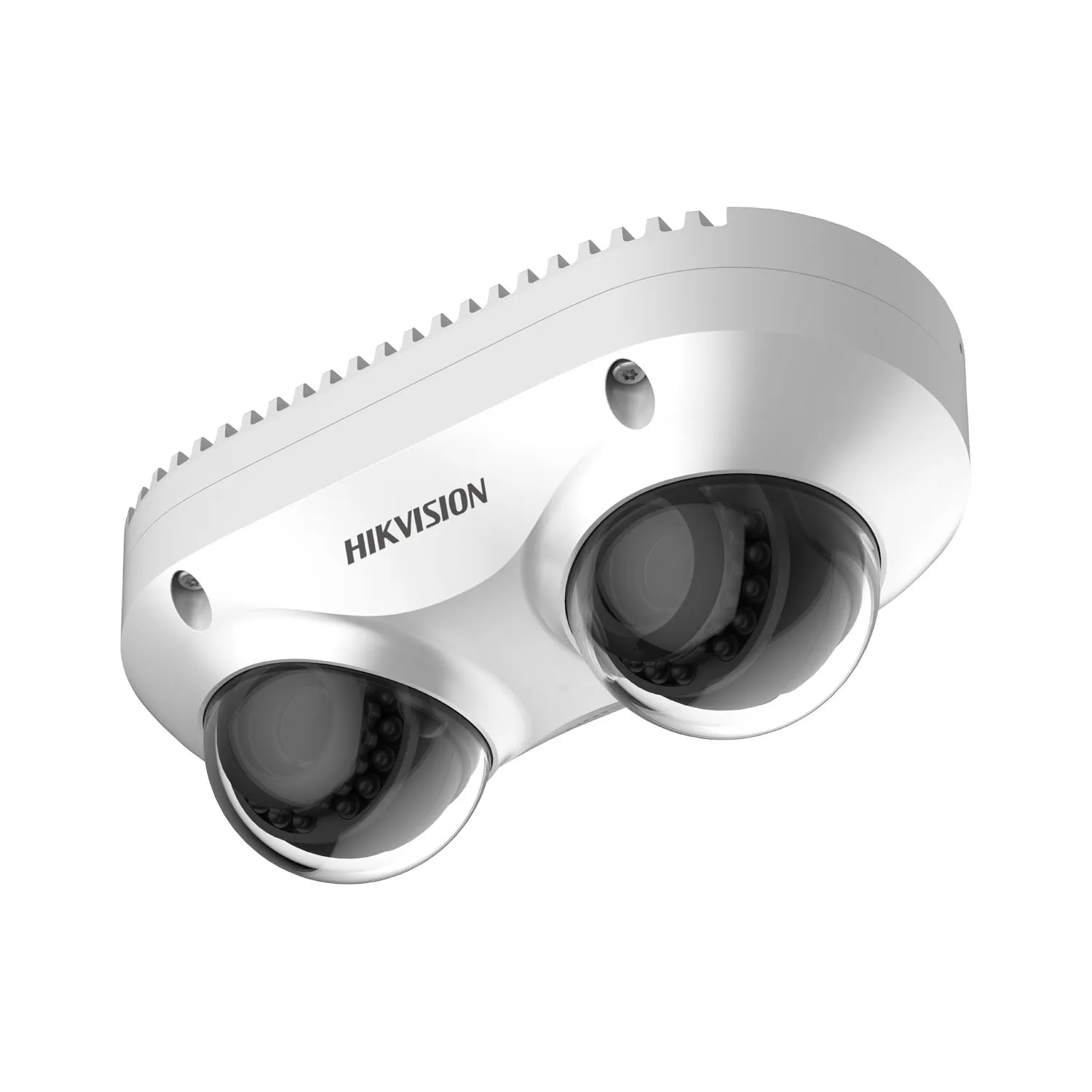

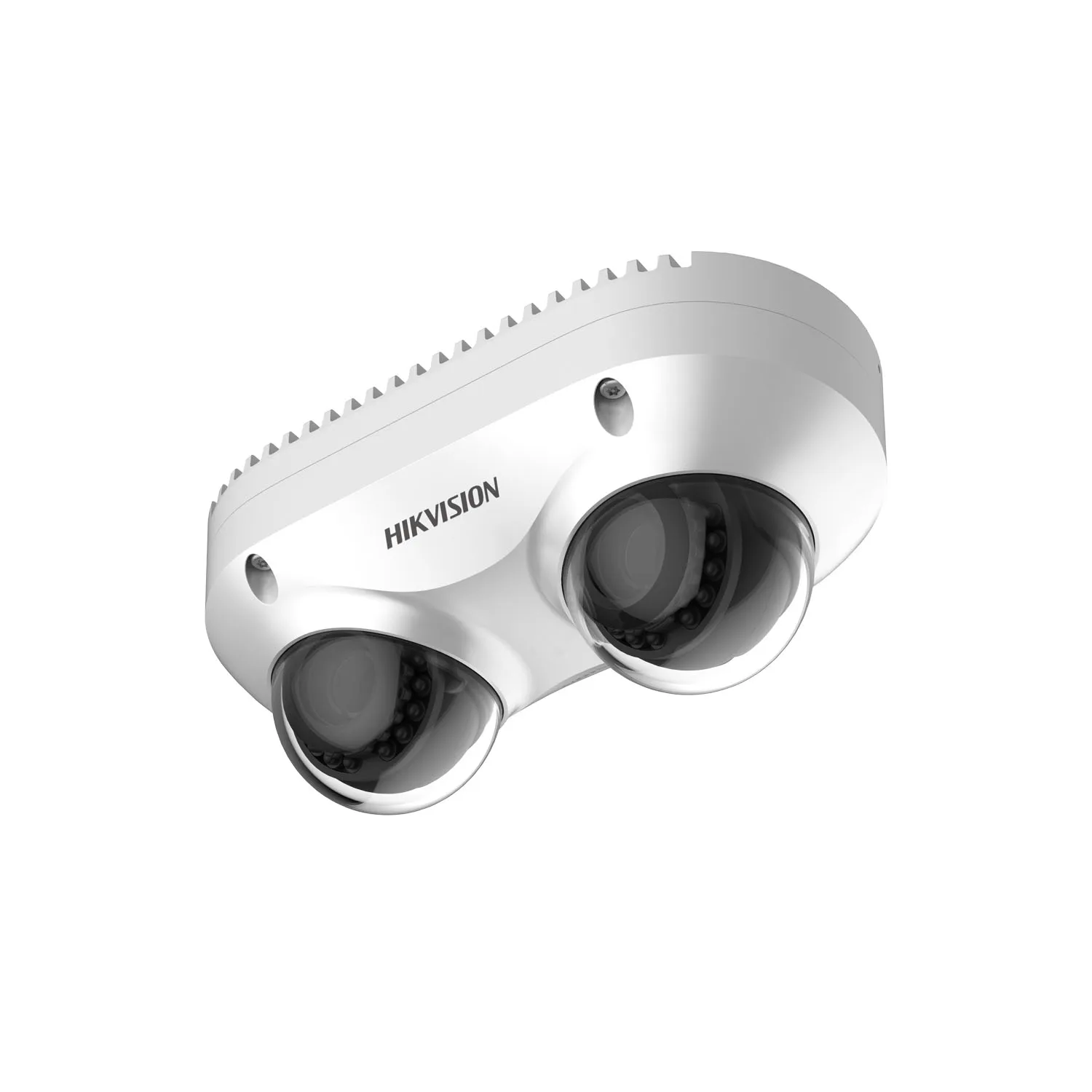

Hik OEM 8MP PanoVu Network Camera Motion Detection IP67 & IK10 Outdoor POE IP CCTV Camera Built in Mic & Memory Card Slot

Share on (10000014236394):


Price:

Quantity:


Product Overview

Description



Product Description


★High quality imaging with 4 MP resolution
★3D DNR technology delivers clean and sharp images
★Supports 2-channel WDR to realize clear imaging against strong back light
★Efficient H.265 compression technology
★Water and dust resistant (IP67) and vandal resistant (IK10)
★Built-in microphone for real-time audio security
★Easy installation with Power over Ethernet (PoE) technology





Specification



ANNKE C800 Bullet 8MP 4K Ultra HD PoE ONVIF PoE IP Security Camera with H.265+ Coding Outdoor Indoor IP67 Weatherproof Audio
Recording Supports 256 GB TF Card Remote Access
Image sensor
1.3" Progressive Scan CMOS
Max. Resolution
2688 × 1520
Min. Illumination
Color: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Shutter Time
1 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: -90° to 90°,tilt: 0 to 60° (2.8 mm),0 to 70° (4/6 mm),rotate: 0° to 355°
Focal Length & FOV
2.8 mm, horizontal FOV 98.2°, vertical FOV 54.2°, diagonal FOV 114.6°
4 mm, horizontal FOV 78.8°, vertical FOV 40.5°, diagonal FOV 93.9°
6 mm, horizontal FOV 49.1°, vertical FOV 26.3°, diagonal FOV 57.2°
Lens Mount
M12
Aperture
F1.6
DORI
2.8 mm: D: 61.1 m, O: 24.2 m, R: 12.2 m, I: 6.1 m
4 mm: D: 85.4 m, O: 33.9 m, R: 17.1 m, I: 8.5 m
6 mm: D: 128.0 m, O: 50.8 m, R: 25.6 m, I: 12.8 m
Supplement Light Type
IR
Supplement Light Range
Up to 10 m
Smart Supplement Light
Yes
IR Wavelength
850 nm
Main Stream
50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 24 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 24 fps (704 × 480, 640 × 480)
Third Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 24 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Compression
Main stream: H.265/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR/VBR
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region Of Interest (ROI)
4 fixed regions for main stream
Audio Compression
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering
Yes
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour,
SSL/TLS, WebSocket, WebSockets
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP
address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface,
RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client

iVMS-4200,Hik-Connect
Web Browser
Plug-in required live view: IE 11,
Plug-in free live view: Safari 12+,
Local service: Chrome 57.0+, Firefox 52.0+,
Not recommended: Safari 11+, Edge
Wide Dynamic Range (WDR)
120 dB
Day/Night Switch
Day,Night,Auto,Schedule,Alarm Trigger
Image Enhancement
BLC, HLC, 3D DNR, Defog
Image Parameters Switch
Yes
Image Settings
Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
Picture Overlay
LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Privacy Mask
8 programmable polygon privacy masks
Audio
1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type:
non-equilibrium,
1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type:
non-equilibrium, mono sound
Alarm
1 input(s), 1 output(s) (max. 36 VDC, 30 mA)
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Basic Event
Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error,abnormal
reboot,alarm input and output,video quality diagnosis
Smart Event
scene change detection,audio exception detection,defocus detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture
Power
12 VDC ± 20%, 0.58 A, max. 7.0 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: 802.3af, Type 1, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9.0 W
Dimension
164.3 mm × 84.6 mm × 67.4 mm (6.5" × 3.3" × 2.7")
Package Dimension
227 mm × 172 mm × 125 mm (8.9" × 6.8" × 4.9")
Weight
Approx. 770 g (1.7 lb.)
With Package Weight
Approx. 1053 g (2.3 lb.)
Storage Conditions
-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch,
Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional
Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Heartbeat,mirror,flash log,password reset via email,password protection,one-key reset,anti-banding
