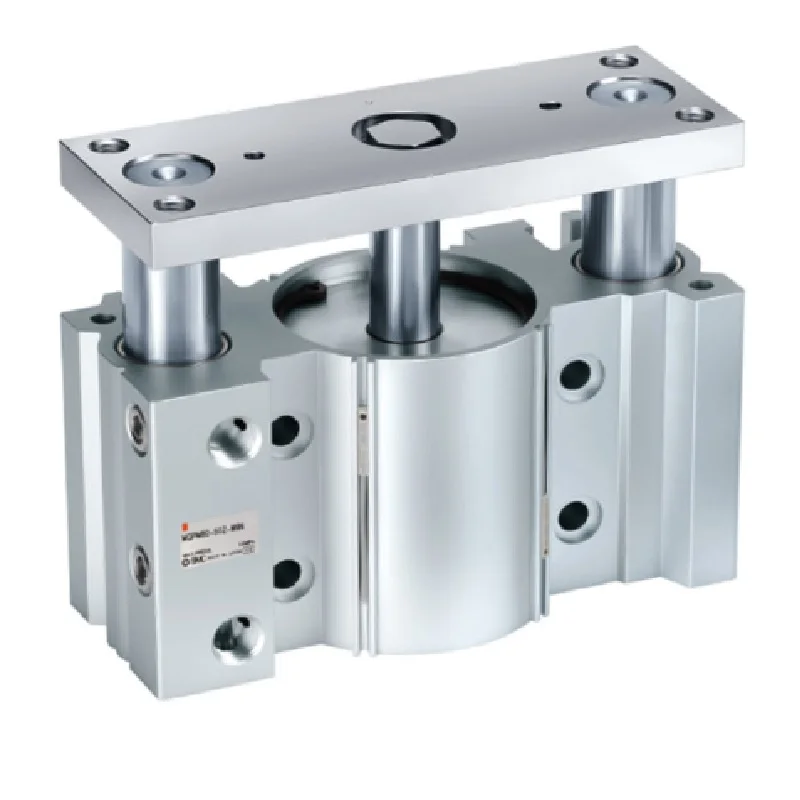

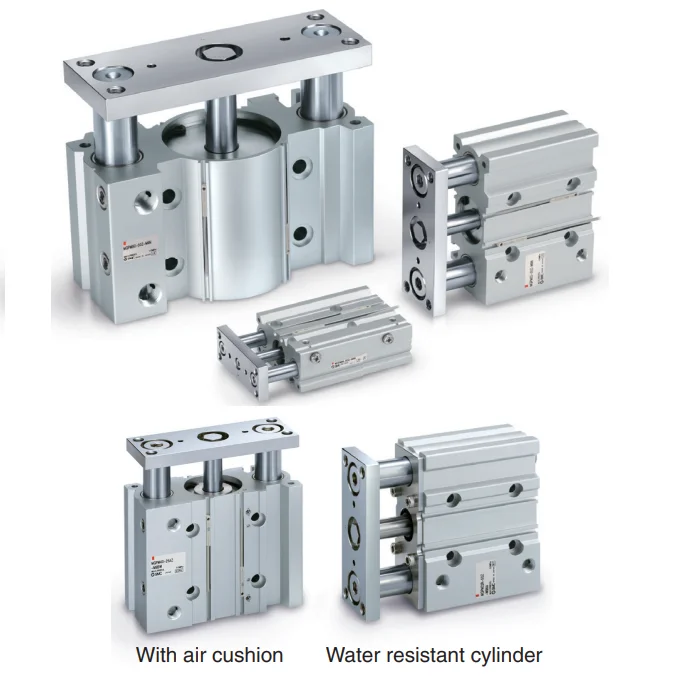

Made in Japan SMC Compact Guide Cylinder
MGP Series, slide bearing, stroke size 16~100mm


Product Description


>> What are the features of SMC Compact Guide Cylinder MGP Series?


1) Shortened guide rod.
2) Saves space.
3) By reducing the guide rod length by a maximum 22 mm, the machining required to create space between the bottom of the cylinder
body and the equipment is reduced.
4) Round auto switches and strong magnetic field resistant auto switches can be directly mounted without spacers.
5) 4 types of mounting are possible.
6) Piping from either direction.

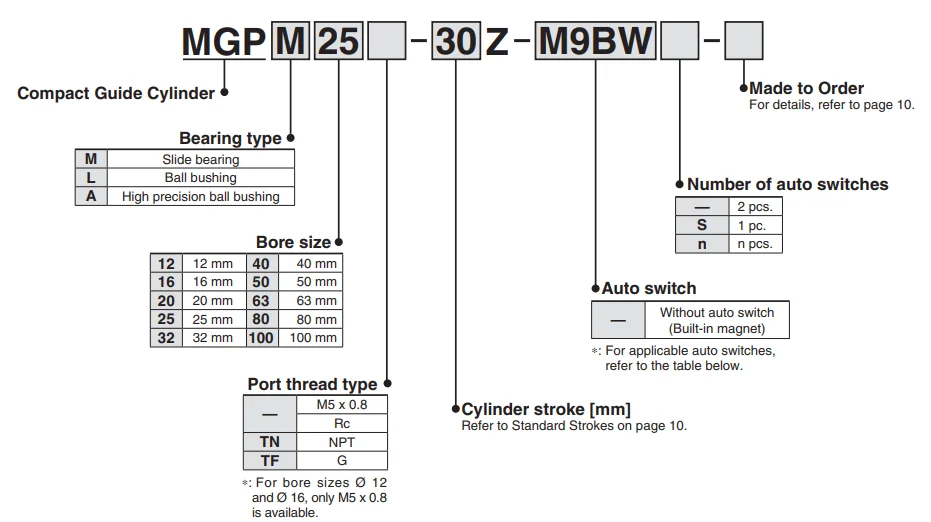

>> What are the modle name of SMC Compact Guide Cylinder slide bearing MGPM series?




>> What are the specification of SMC Compact Guide Cylinder slide bearing MGPM series?


Bore size [mm]
12, 16
20, 25,
32, 40, 50, 63
80, 100
Action
Double acting


Fluid
Air
Proof pressure
1.5 MPa
Maximum operating pressure
1.0 MPa
Minimum operating pressure
0.12 MPa
0.1 MPa
Ambient and fl uid temperature
−10 to 60 °C (No freezing)
Piston speed
50 to 500 mm/s
50 to 400 mm/s
Cushion
Rubber bumper on both ends
Lubrication
Not required (Non-lube)

Stroke length tolerance
+1.5 0 mm
Standard stroke [mm]
10, 20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250
20, 30, 40, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400
25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400


>> What is the weight of SMC Compact Guide Cylinder MGPM Series Slide Bearing bore size 12 to 100?



Bore size [mm]
Standard stroke [mm]
(kg)

10
20
25
30
40
50
75
100
12
0.22
0.25
-
0.29
0.33
0.36
0.46
0.55
16
0.32
0.37
-
0.42
0.46
0.51
0.66
0.78
20
-
0.59
-
0.67
0.74
0.82
1.06
1.24
25
-
0.84
-
0.94
1.04
1.14
1.5
1.75
32
-
-
1.41
-
-
1.77
2.22
2.57
40
-
-
1.64
-
-
2.04
2.52
2.92
50
-
-
2.79
-
-
3.38
4.13
4.71
63
-
-
3.48
-
-
4.15
4.99
5.67
80
-
-
5.41
-
-
6.26
7.41
8.26
100
-
-
9.12
-
-
10.3
12
13.2



Bore size [mm]
Standard stroke [mm]
(kg)
125
150
175
200
250
300
350
400
12
0.66
0.75
0.84
0.93
1.11
-
-
-
16
0.94
1.06
1.18
1.31
1.55
-
-
-
20
1.43
1.61
1.8
1.99
2.42
2.79
3.16
3.53
25
2.00
2.25
2.5
2.75
3.35
3.85
4.34
4.84
32
2.93
3.29
3.65
4.00
4.9
5.61
6.33
7.04
40
3.32
3.71
4.11
4.5
5.47
6.26
7.06
7.85
50
5.3
5.89
6.47
7.06
8.55
9.73
10.9
12.1
63
6.34
7.02
7.69
8.37
10.0
11.4
12.7
14.1
80
9.1
9.95
10.8
11.6
13.9
15.6
17.3
19.0
100
14.4
15.6
16.9
18.1
21.2
23.6
26.1
28.5

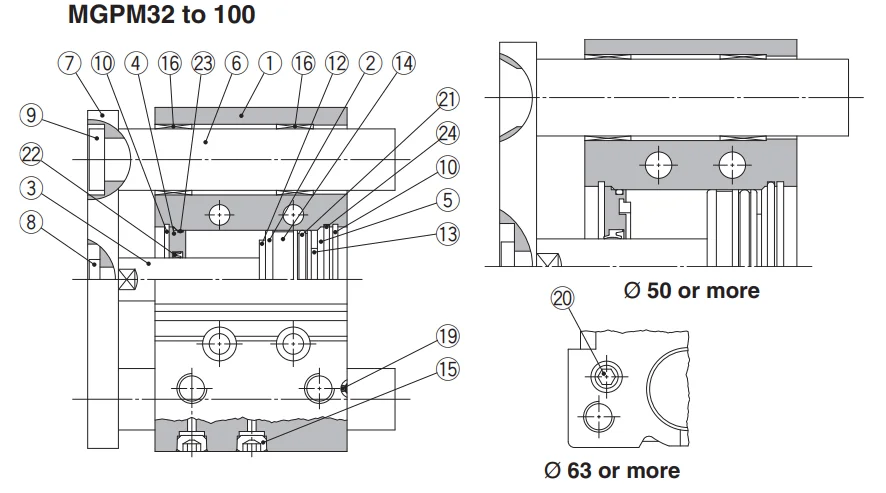

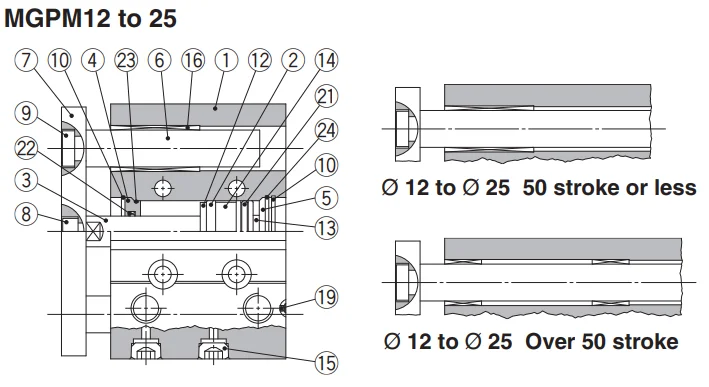

>> What is the internal structure of SMC Compact Guide Cylinder MGPM Series?






Components and material list
No.
Description
Material
Note
01
Body
Aluminum alloy
Hard anodised

02
Piston
Aluminum alloy


03
Piston rod
Stainless steel
Ø 12 to Ø 25

Carbon steel
Ø 32 to Ø 100
 Hard chrome plating
04
Collar
Aluminum alloy
Chromated

05
Head cover
Aluminum alloy
Ø 12 to Ø 63
Chromated
Ø 80, Ø 100
 Painted
06
Guide rod
Carbon steel
Hard chrome plating

07
Plate
Carbon steel
 Nickel plating

08
Plate mounting bolt
Carbon steel
 Nickel plating

09
Guide bolt
Carbon steel
 Nickel plating

10
Retaining ring
Carbon tool steel
Phosphate coated

11
Retaining ring
Carbon tool steel
Phosphate coated

12
Bumper A
Urethane


13
Bumper B
Urethane


14
Magnet
—


15
Plug

Carbon steel
Ø 12, Ø 16
Nickel plating
Hexagon socket head plug
Ø 20 to Ø 100

16
Slide bearing
Bearing alloy


17
Ball bushing



18
Spacer
Aluminium alloy


19
Steel ball
Carbon steel
 Ø 12 to Ø 50
Ø 12 to Ø 50
20
Plug
Carbon steel
Ø 63 to Ø 100
Nickel plating
21
Piston seal
NBR


22
Rod seal
NBR


23
Gasket A
NBR


24
Gasket B
NBR

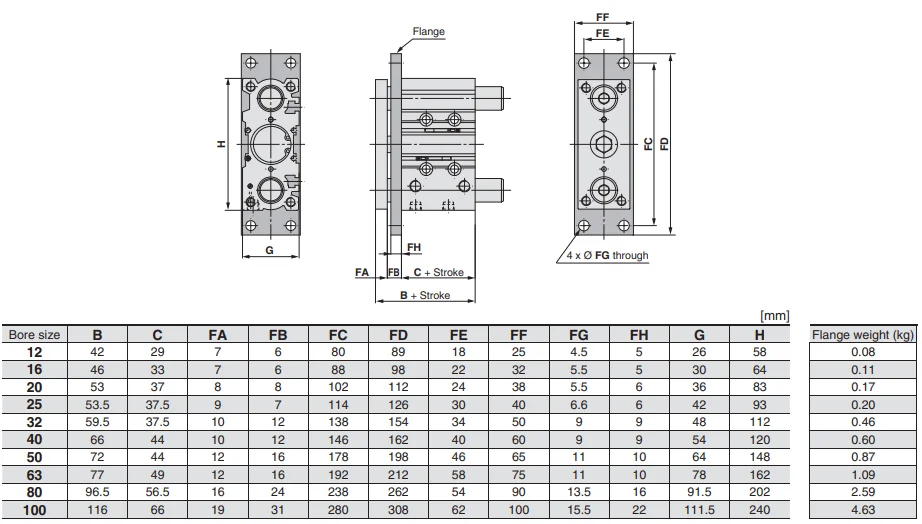

>> What is the dimension of SMC Compact Guide Cylinder MGPM Series?
