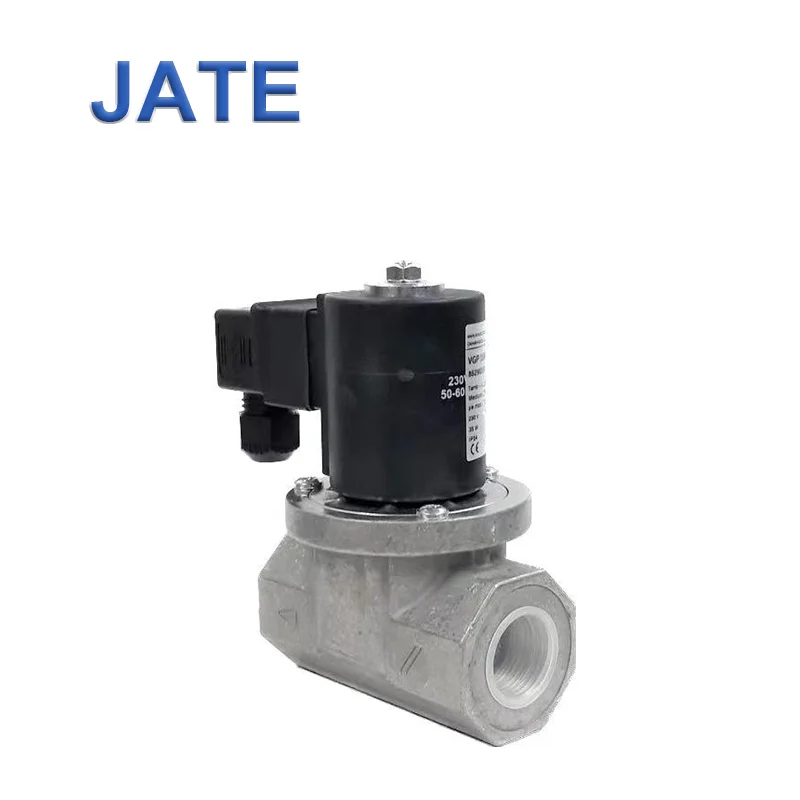

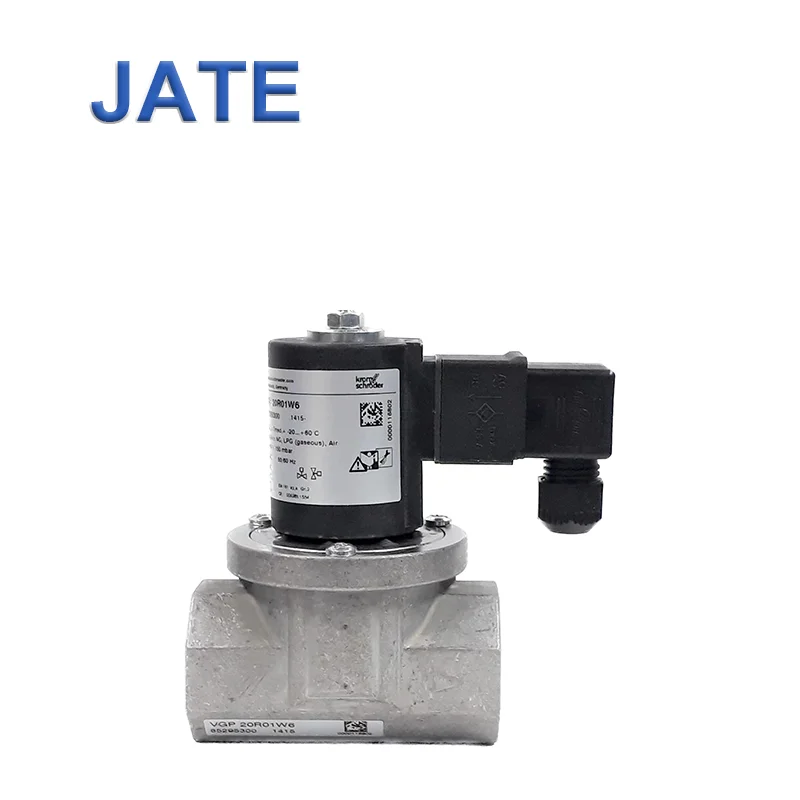

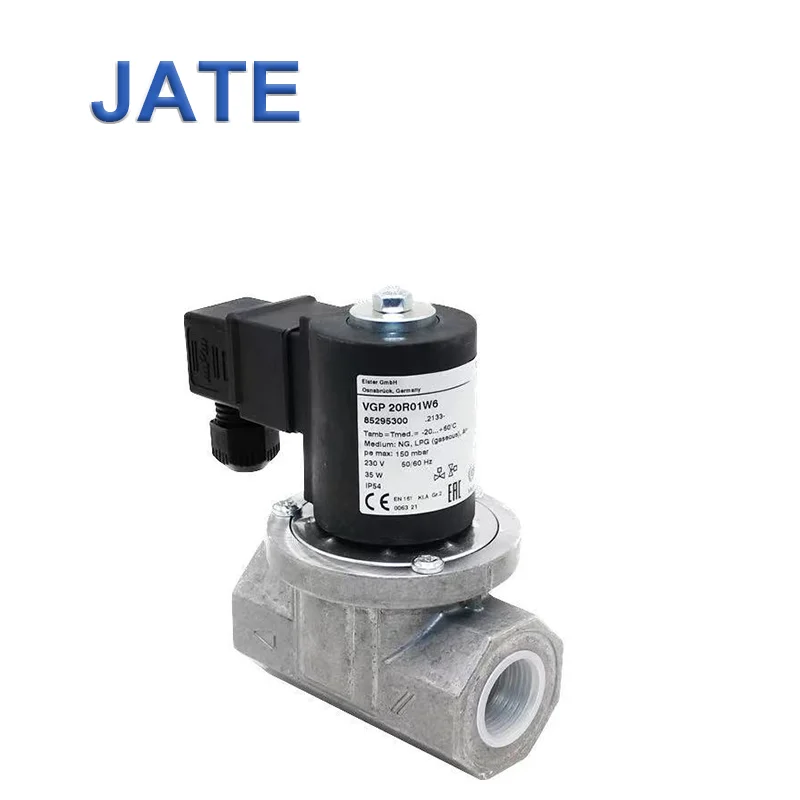

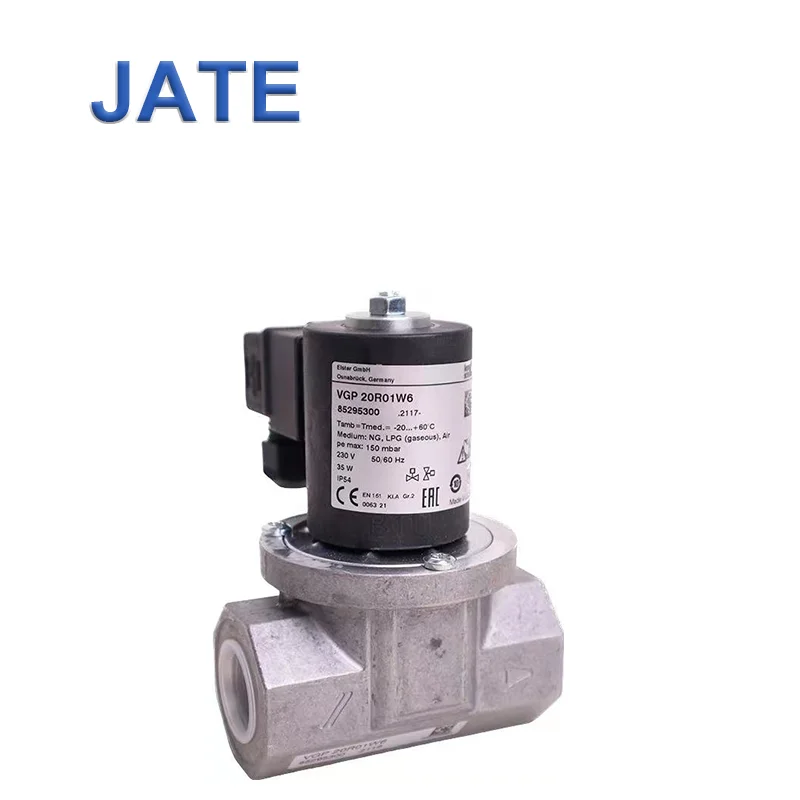

Kromschroder OR VGP 20R01W6 230V Micro Gas Solenoid Control Valves For Burners And Appliances
- Category: >>>
- Supplier: Shenzhen Jate Burners Co. Ltd.
Share on (10000014272515):
Product Overview
Description
Product Description
Kromschroder OR VGP20R01W6 230V Micro Gas Solenoid Control Valves For Burners And Appliances
Solenoid valves for gas VGP
Technical Information · GB 3 Edition 10.11l
• Safety valves for gas
•Compact design saves space
• Lowpower consumption
• Simplified equipment saves costs

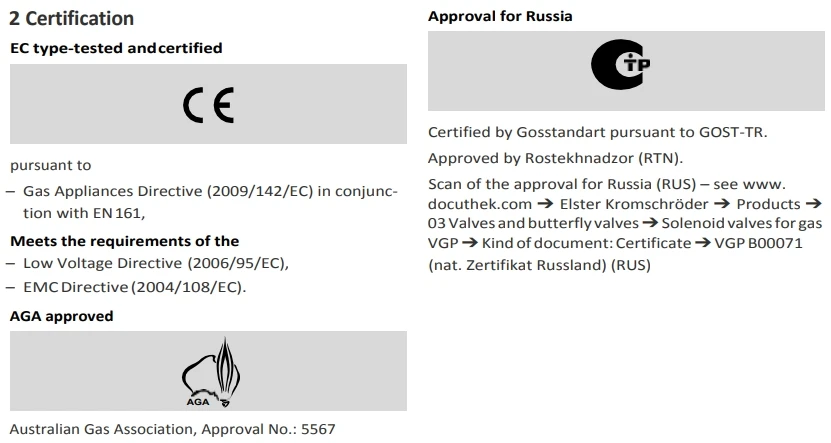

• EC type-tested andcertified
•AGA approved
• Certified by Gosstandart pursuant to GOST-TR

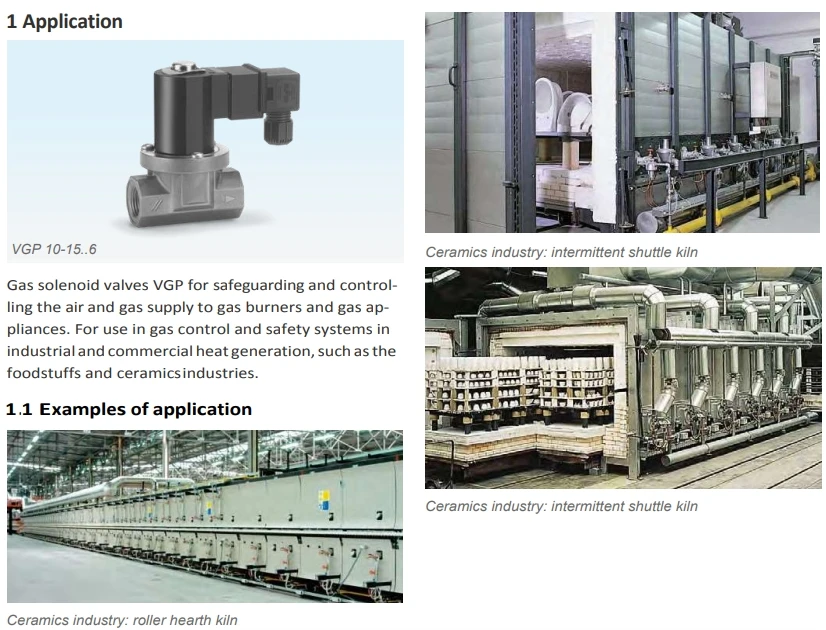

Application
Gas solenoid valves VGP for safeguarding and controlling the air and gas supply to gas burners and gas appliances. For use in gas
control and safety systems in industrial and commercial heat generation,such asthe foodstuffs and ceramicsindustries.
control and safety systems in industrial and commercial heat generation,such asthe foodstuffs and ceramicsindustries.

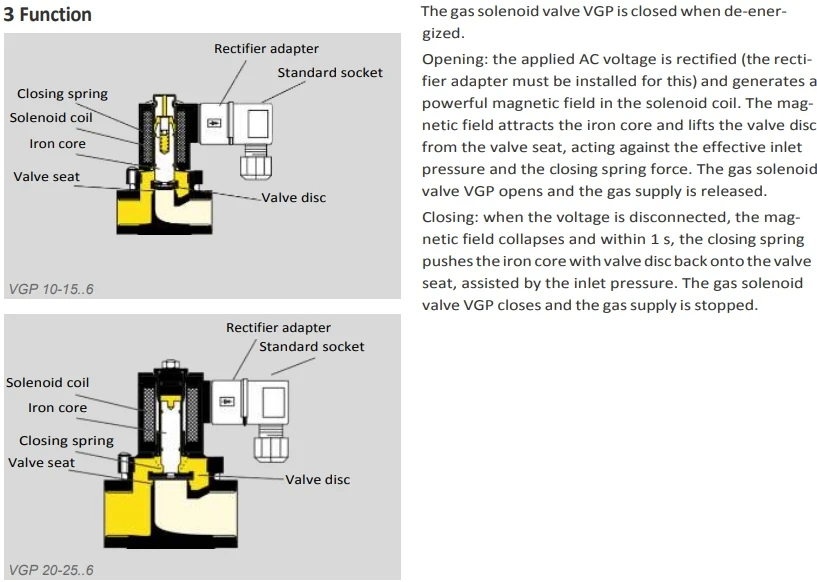

Function
The gas solenoid valve VGP is closed when de-energized.
Opening: the applied AC voltage is rectified (the rectifier adapter must be installed for this) and generates a powerful magnetic field in the solenoid coil. The magnetic field attracts the iron core and lifts the valve disc from the valve seat, acting against the effective inlet pressure and the closing spring force. The gas solenoid valve VGP opens and the gas supply is released. Closing: when the voltage is disconnected, the magnetic field collapses and within 1 s, the closing spring pushesthe iron corewith valve discbackonto the valve seat, assisted by the inlet pressure. The
gas solenoid valve VGP closes and the gassupply isstopped.
gas solenoid valve VGP closes and the gassupply isstopped.

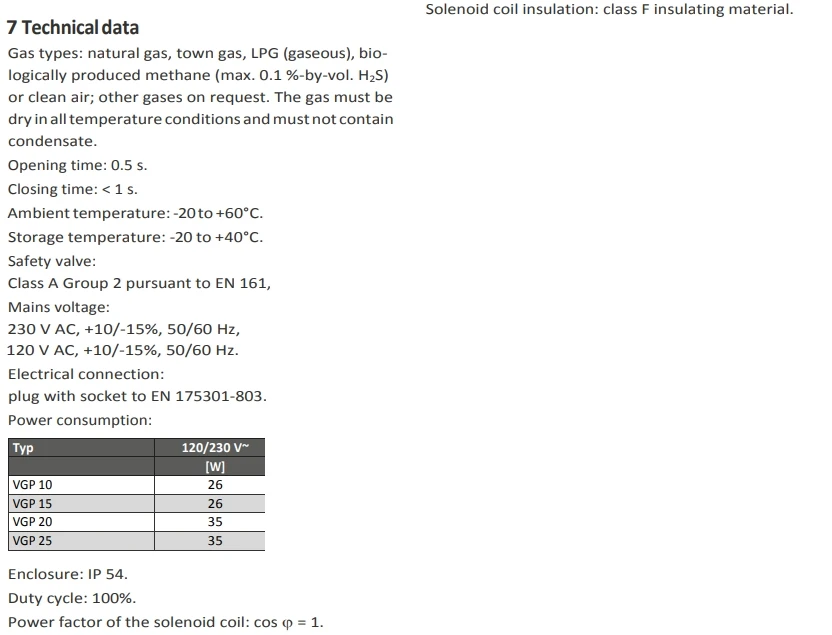

Specification
item | value |
Warranty | 1.5 years |
Type | Kitchen Gas Shut-Off Valves, Emergency Shut-Off Valves, Truck Shut-Off Valves, AXIAL VALVES, Backwater Valves, Pressure Vacuum Breaker, Atmospheric Vacuum Breaker, Safety Relief Valves, Adjustable Relief Valves, Pressure Regulators, Boiler Feed Valves, VENT Valves, Mixing Valves, Temperature Regulating Valves, SOLENOID VALVES, Globe Valves, PLUG VALVES, Drain Valves, Air Valves & Vents, Faucet Valve, Flush Valves, REVERSING VALVE |
Customized support | OEM |
Application | Gas Burner Accessories |
Power | Solenoid |
Media | Gas |
Port Size | 3/4 |
Opening time | 0.5 s. |

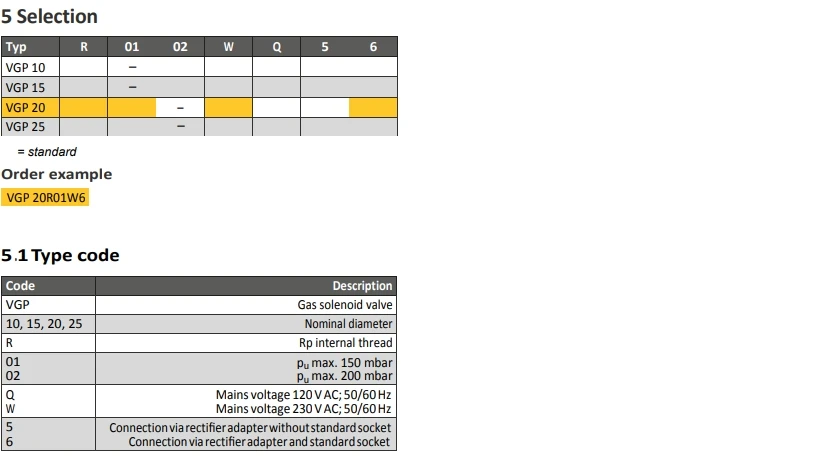

Model | VGP 20R01W6 |
Brand | Kromschroder |
Power Supply | 230 V AC, 50/60 Hz |
Max. operating pressure | 150mbar (15kPa) |
Closing time | < 1 s. |
Ambienttemperature | -20to +60°C. |
Usage | Gas Burner Accessories |
Packing & Delivery
Carton Box Packing
