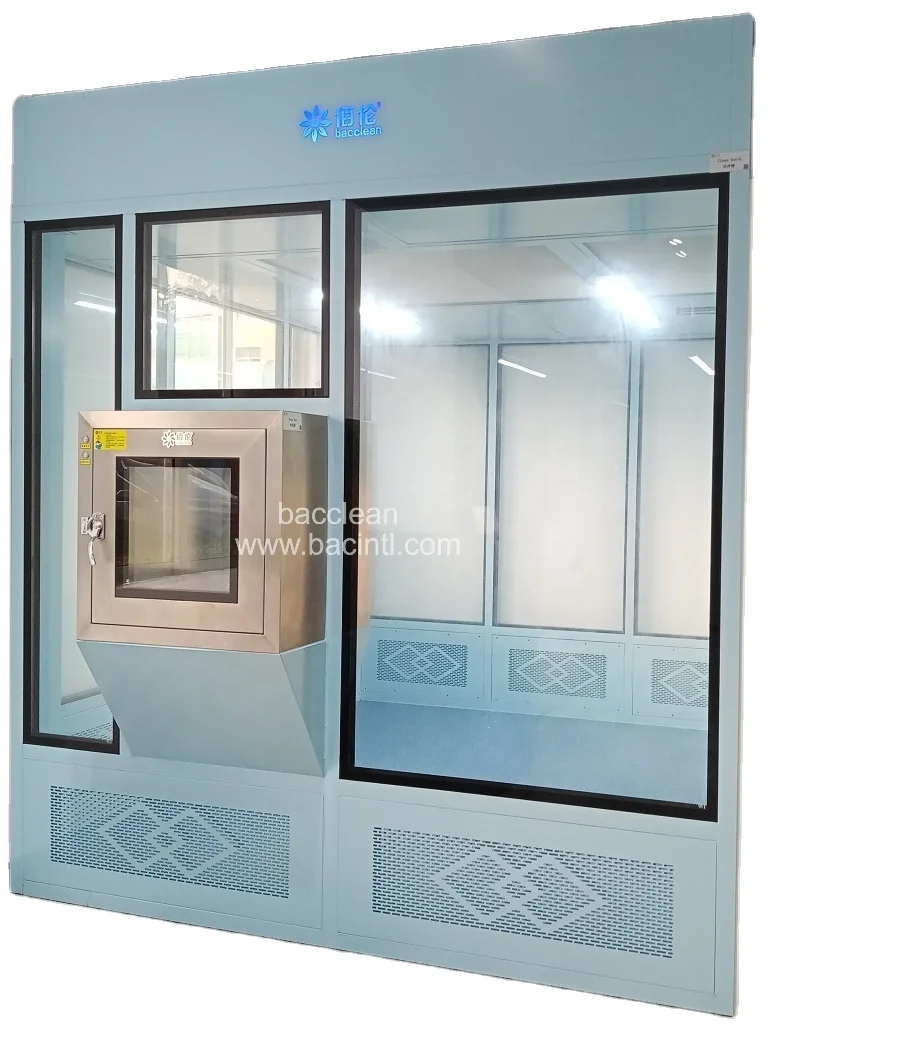

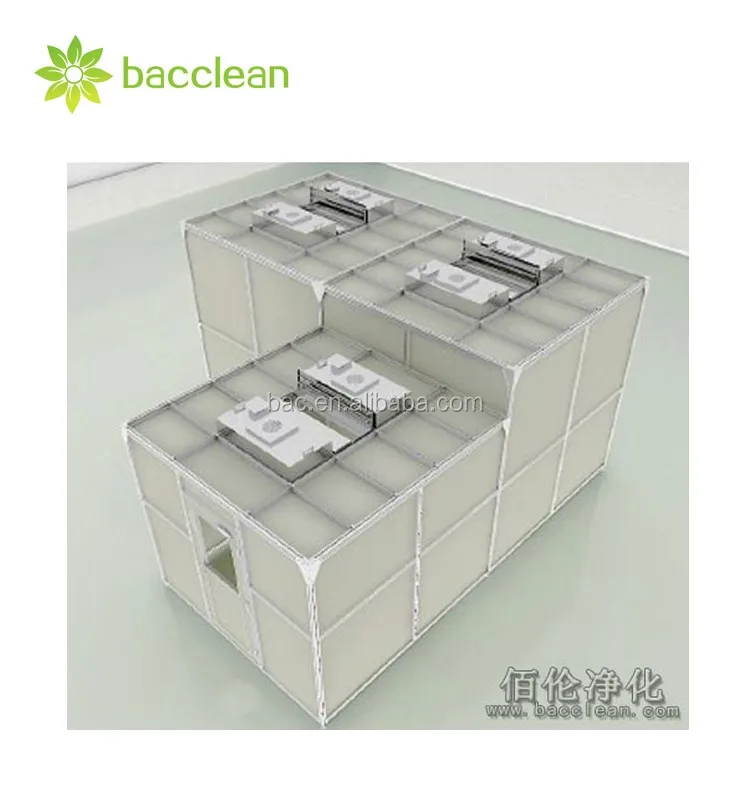

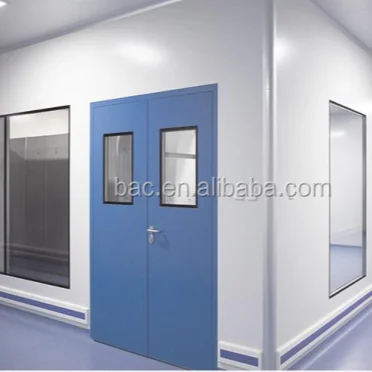

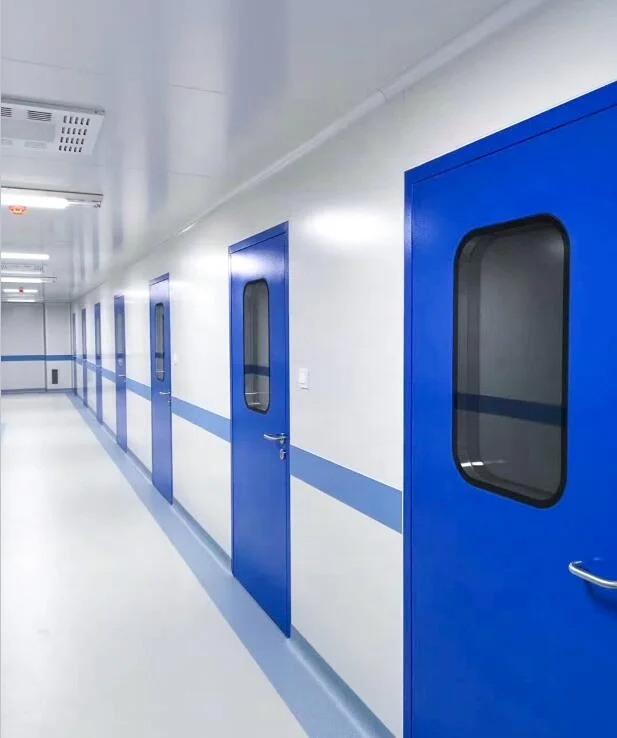

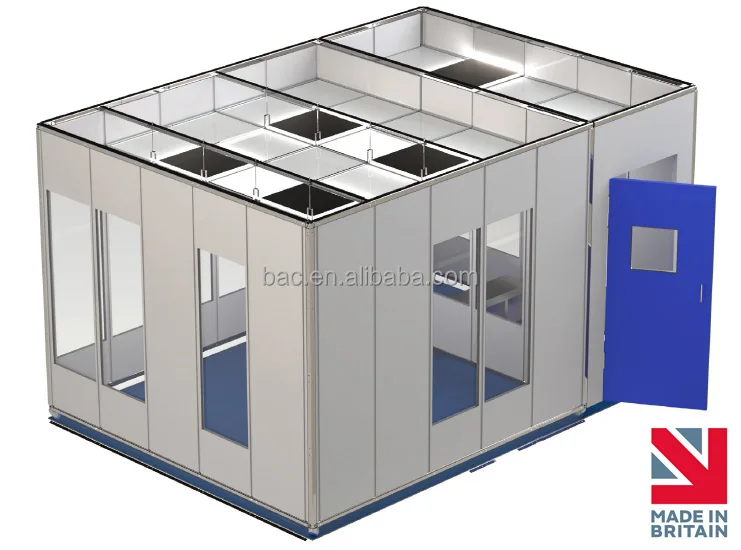

Laboratory Dedicated&hospital air cleaning equipment modular clean room
- Category: >>>
- Supplier: Guangzhou Bacclean Tech Co. Ltd.
Share on (10000014282350):
Product Overview
Description
Product Information
Clean Room Booth
Clean booth is a kind of clean room which can quickly improve the cleanliness of the equipment. It is widely used in optical, electronic assembly line work, laboratories, assembly area local area purify occasions.
item | value |
Material of the frame | Steel with powder coated / stainless steel |

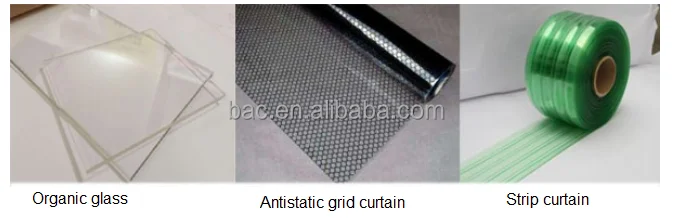

Material of the wall | Organic glass/ PVC curtain/Color Steel Plate |
Floor material | PVC material |
Changing room | Available |
Clean class | 100rank, 1000rank, 10000rank |
Power Supply | 220V or 110V |
Air flow | Vertical Laminar Flow |
FFU quantity | Depending on the cleanroom size |
Cleanliness level | Maximum allowable volumen of dust/m³ | Maximum allowable volume of microorganisms | ||||
>=0.5um | >=5um | Floating bacteria /m³ | Settlement bacteria/dish.30min | |||
100 | 3500 | 0 | 5 | 1 | ||
1000 | 350000 | 2000 | 100 | 3 | ||
10000 | 3500000 | 20000 | 500 | 10 | ||
300000 | 10500000 | 61800 | NA | 15 | ||
Product Display

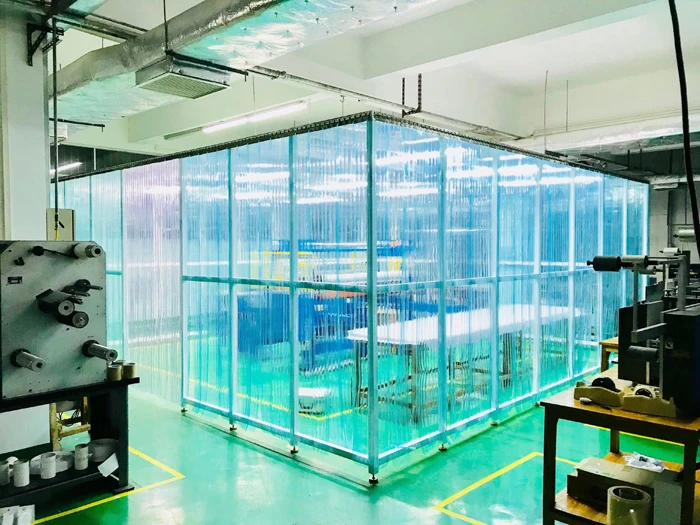

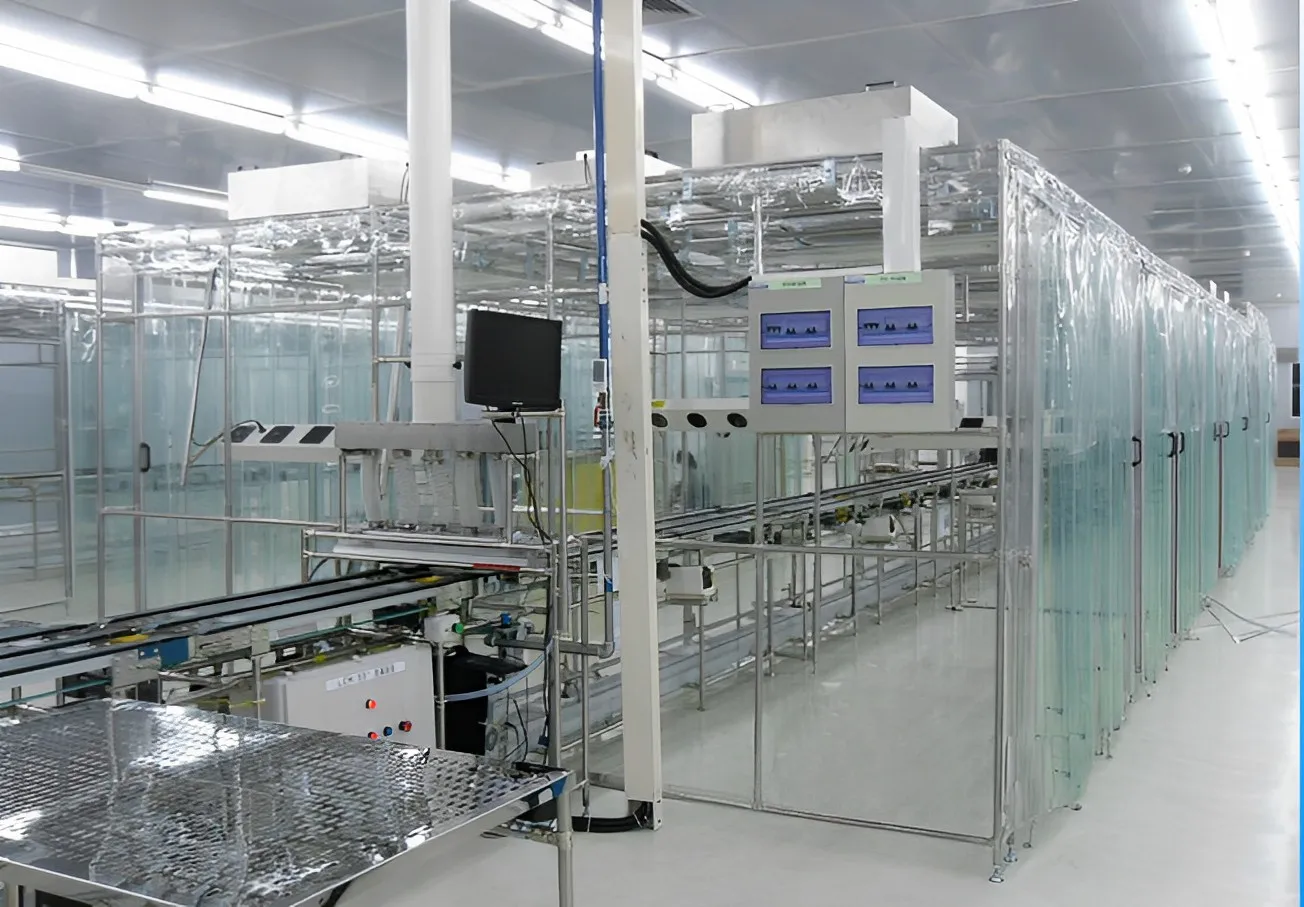

Clean room booth
The clean booth adopt FFU generating winds, with industrialize aluminum(stainless steel or painting steel) as it's frame and static-free sticker(or carbon glass). It is a good option to create a cleaner space within an existing normal room or a room with low-level of cleanliness.
The features of the Clean booth
Soft wall Cleanroom (Clean booth) allows you to build an economical cleanroom (clean booth) in nearly any office or production space in just a few days. All steel frame supports ceiling grid, flexible vinyl strip shields, fluorescent lighting and fan/filter units to meet cleanliness requirements from ISO 5 – 8(clean booth). Clean booth Shields are made of static-dissipative PVC or acrylic Sheet to control electro-static discharge.
1. It is economy compared to the traditional civil style clean room.
2. It is efficiency to maintain the clean class level of indoor
3. It is very convenience to install and disassemble.
4. It is flexibility.
2. It is efficiency to maintain the clean class level of indoor
3. It is very convenience to install and disassemble.
4. It is flexibility.
Application of clean shed
Softwall clean rooms offer a flexible and economical solution for lower level classifications and basic environmental control pertaining to GMP rooms, inspection rooms, manufacturing areas, and machinery enclosures
More about cleanroom booth
Unlike permanent, hard wall cleanroom systems, soft wall cleanrooms feature plastic, often translucent strips suspended from a ceiling or other high point of attachment. They can also be enclosed by tightly stretched fabric on a frame.Semiconductor fabrication, medical testing, biotechnology research, and other very sensitive processes can be conducted in soft wall cleanrooms. Many processes that don't require extreme levels of decontamination can be conducted within soft wall cleanrooms.these qualities can make soft wall cleanrooms more economical than hard wall alternatives, especially for smaller-scale operations that don't require constant access to a strictly controlled working environment.

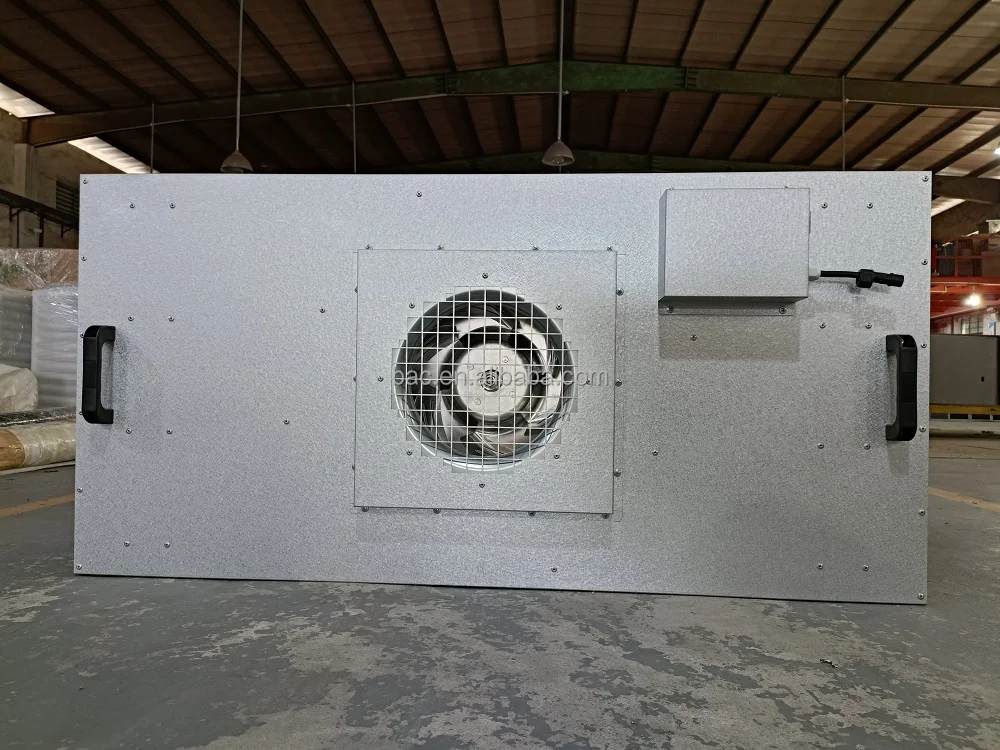

Fan filter unit for clean room
Fan filter unit together with HEPA filter, is controlled in group used in cleanroom
Application
These soft wall cleanrooms can be used in materials development, biotechnology research，semiconductor or other industries where cleanroom conditions are required.
