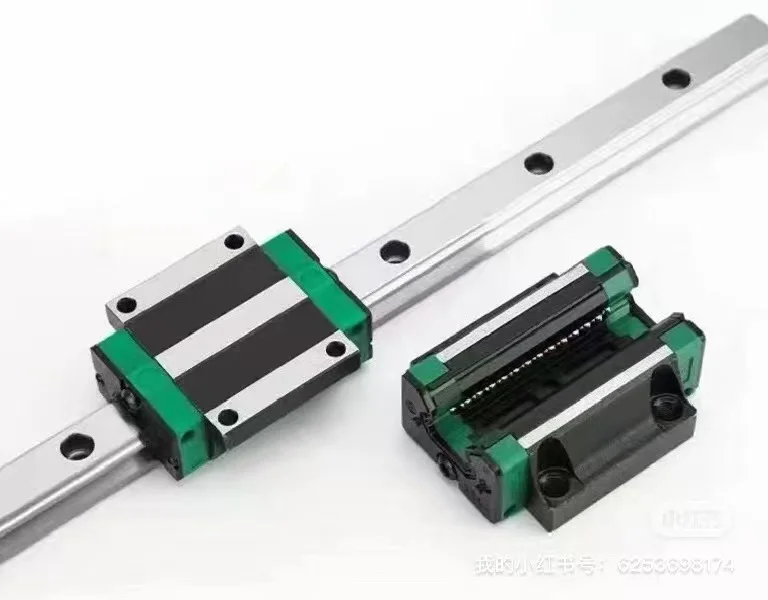

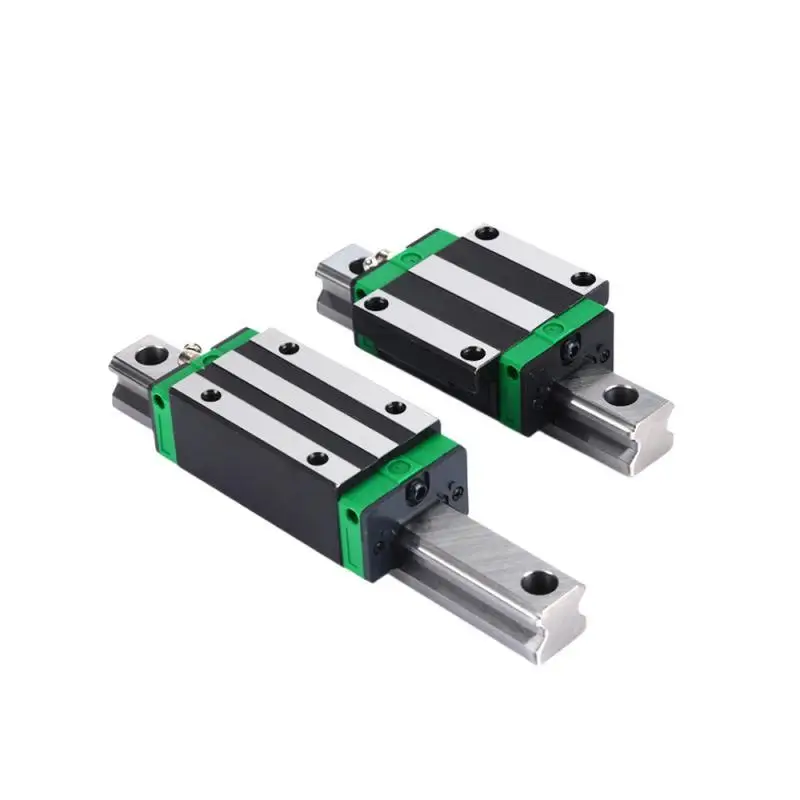

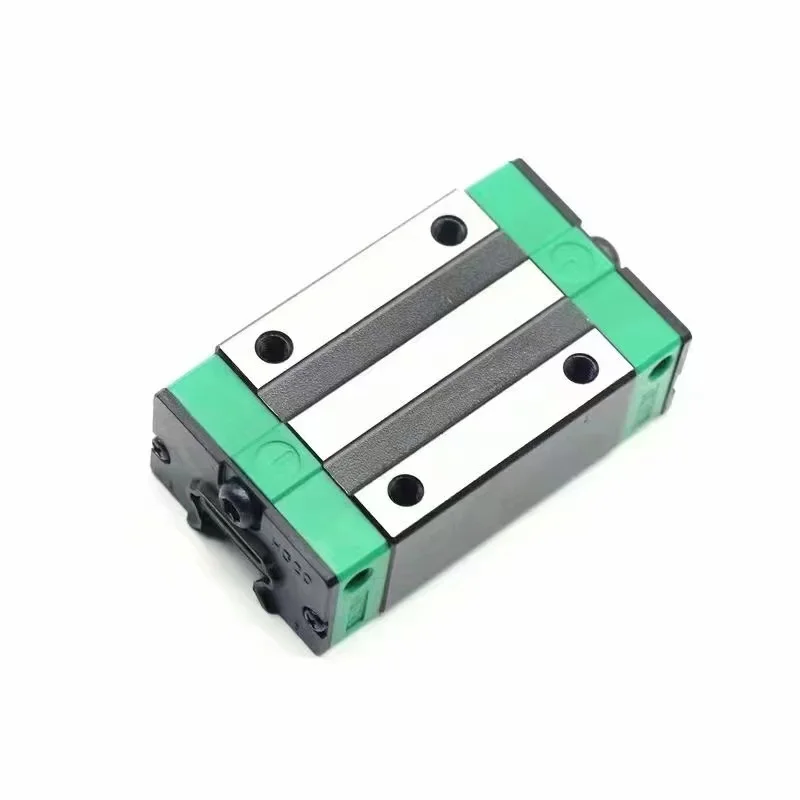

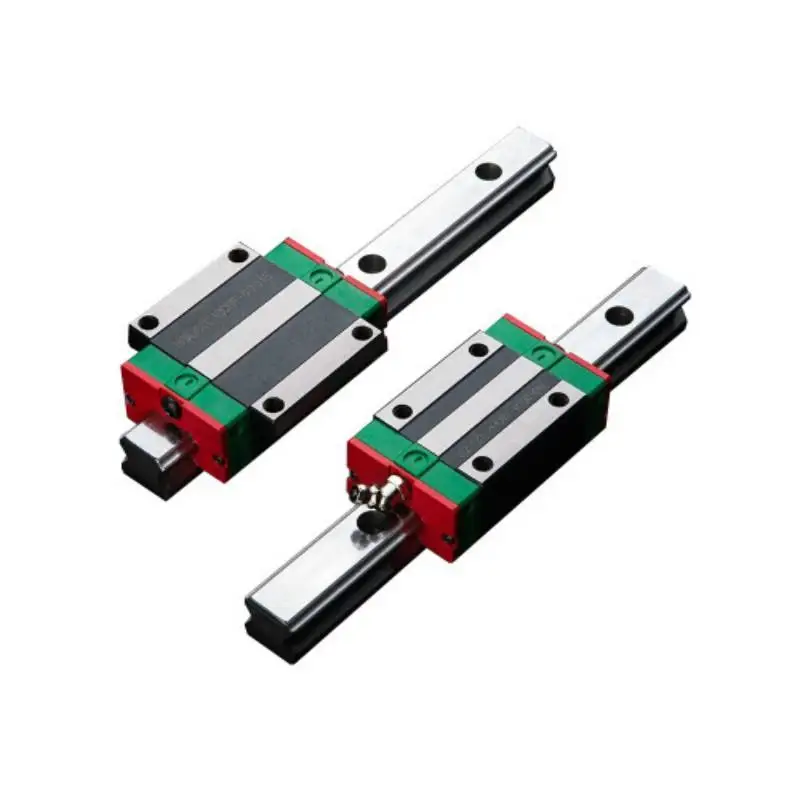

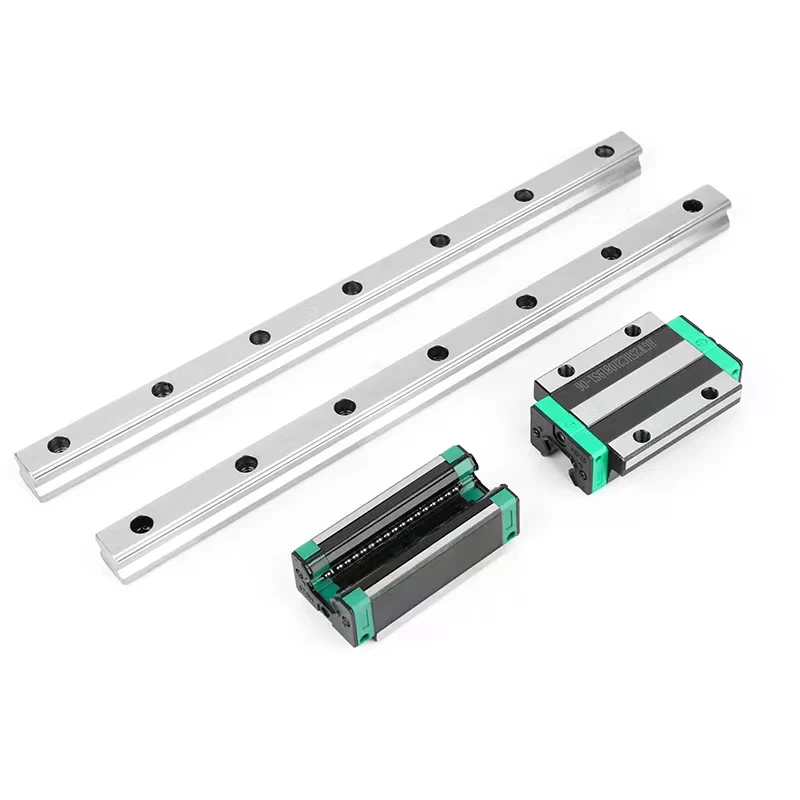

Bearing Drawer Slide Block Sliding Gate Ball Screw Linear Actuator For CNC Machine Linear Guide Rail RGR20 RGR25 RGR30 RGR35
- Category: >>>
- Supplier: Shandong Yaoshuo Bearing Manufacturing Co. Ltd.
Share on (10000014284424):
Product Overview
Description
Details Images
International exhibition
March.13.2023
China Yiwu Bearing Exhibition
May.26.2023
China Cixi International Bearing Expo
Certifications
ISO 9001:2015 Certificate of conformity
TEST REPORT Certificate of origin
Product Paramenters
Model Number | H | W | B | L | G | WR | Block Weight | Rail Weight |
(mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | (kg) | |
HGH15CA | 28 | 34 | 26 | 61.4 | 5.3 | 15 | 0.18 | 1.45 |
HGH20CA | 30 | 44 | 32 | 77.5 | 12 | 20 | 0.3 | 2.21 |
HGH25CA | 40 | 48 | 35 | 84 | 12 | 23 | 0.51 | 3.21 |
HGH30CA | 45 | 60 | 40 | 97.4 | 12 | 28 | 0.68 | 4.47 |
HGH35CA | 55 | 70 | 50 | 112.4 | 12 | 34 | 1.45 | 6.3 |
HGH45CA | 70 | 86 | 60 | 139.4 | 12.9 | 45 | 2.73 | 10.41 |
HGH55CA | 80 | 100 | 75 | 166.7 | 12.9 | 53 | 4.17 | 15.08 |
HGH65CA | 90 | 126 | 76 | 200.2 | 12.9 | 63 | 7 | 21.18 |
HGH20HA | 30 | 44 | 32 | 92.2 | 12 | 20 | 0.39 | 2.21 |
HGH25HA | 40 | 48 | 35 | 104.6 | 12 | 23 | 0.69 | 3.21 |
HGH30HA | 45 | 60 | 40 | 120.4 | 12 | 28 | 1.16 | 4.47 |
HGH35HA | 55 | 70 | 50 | 138.2 | 12 | 34 | 1.92 | 6.3 |
HGH45HA | 70 | 86 | 60 | 171.2 | 12.9 | 45 | 3.61 | 10.41 |
HGH55HA | 80 | 100 | 75 | 204.8 | 12.9 | 53 | 5.49 | 15.08 |
HGH65HA | 90 | 126 | 76 | 259.6 | 12.9 | 63 | 9.82 | 21.18 |
Our Advantages

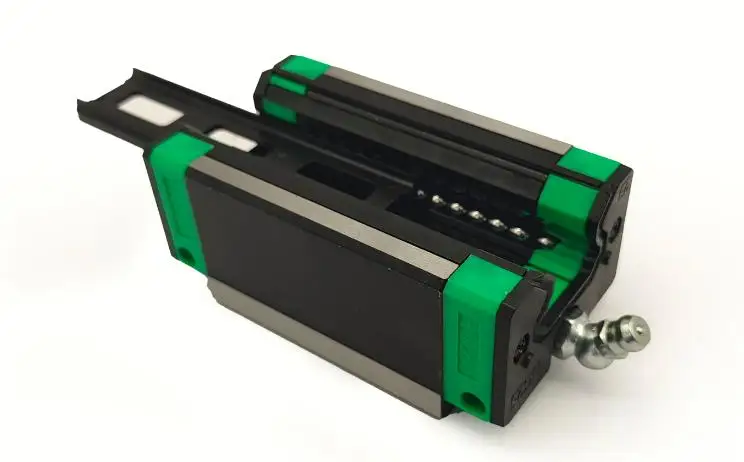

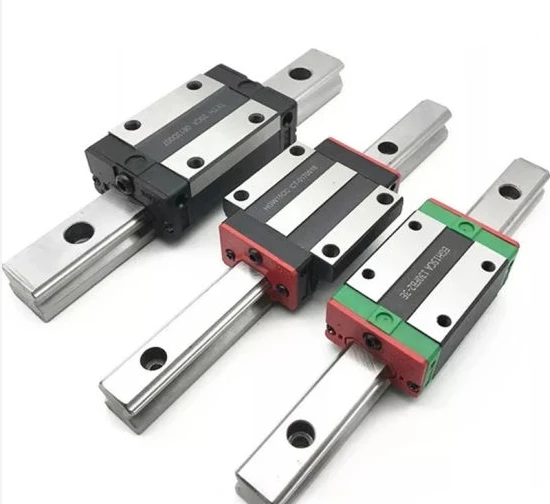

Linear rail slider bearing
Normal accuracy is interchangeable Maximum motion accuracy 0.004/1000
Can meet the fast delivery
Max. Single length 4m
Heavy load It’s widely used in CNC machines,automation and other fields
Company Profile

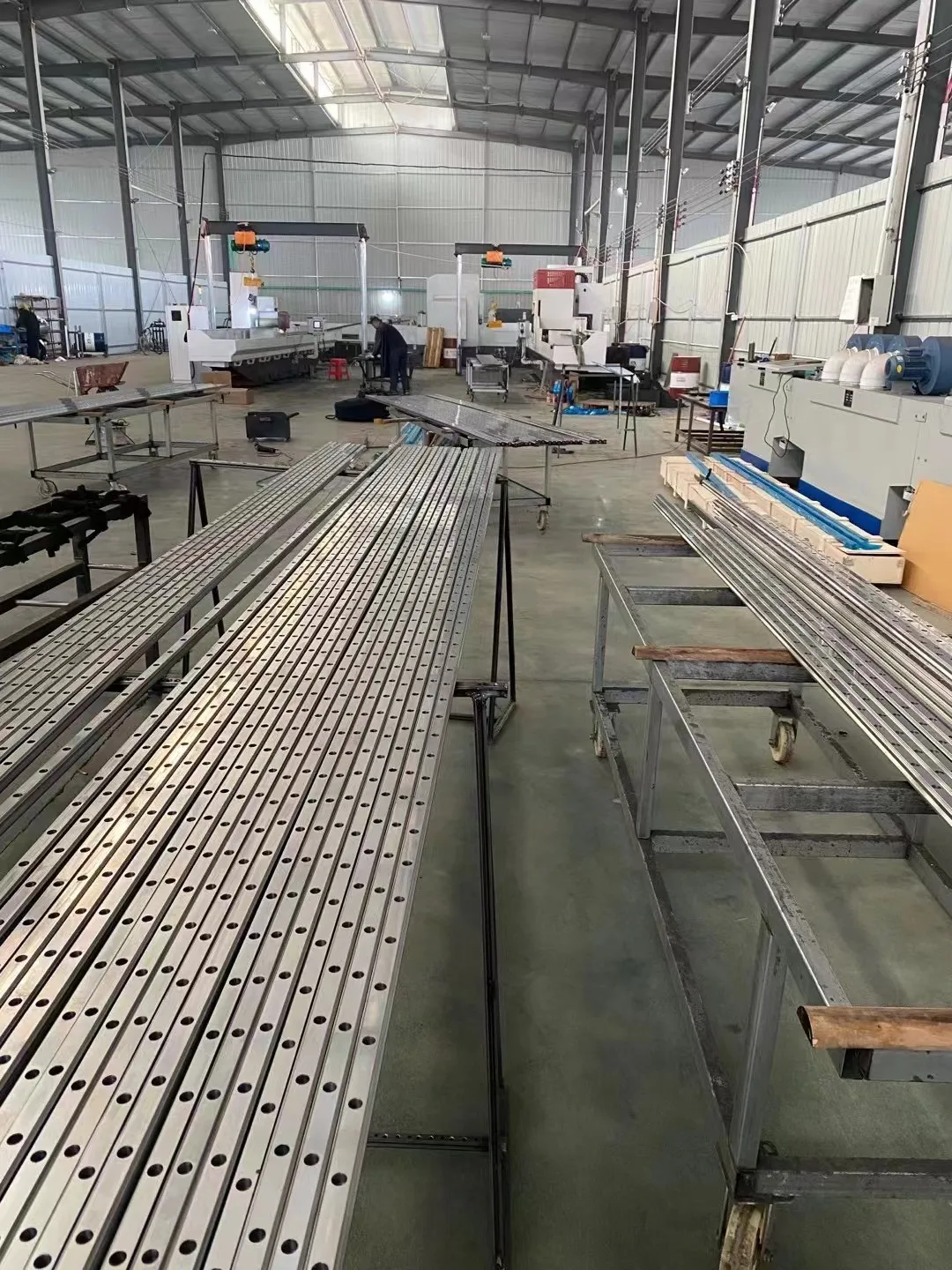

Professional Bearing Factory
Shandong Yaoshuo Bearing Manufacturing Co., Ltd. is a professional manufacturer of bearing with high bearing capacity, integrating research and development, design, production and sales.
We "take the customer as the center, to provide customers with market competitive bearings" for the development of principle, from the inception has insisted on independent technology, promoting innovation and development, with excellent product quality and excellent service for the enterprise to build the good reputation.The products are exported to Europe, Russia, United Arab Emirates, Singapore, Australia and other countries.
We "take the customer as the center, to provide customers with market competitive bearings" for the development of principle, from the inception has insisted on independent technology, promoting innovation and development, with excellent product quality and excellent service for the enterprise to build the good reputation.The products are exported to Europe, Russia, United Arab Emirates, Singapore, Australia and other countries.

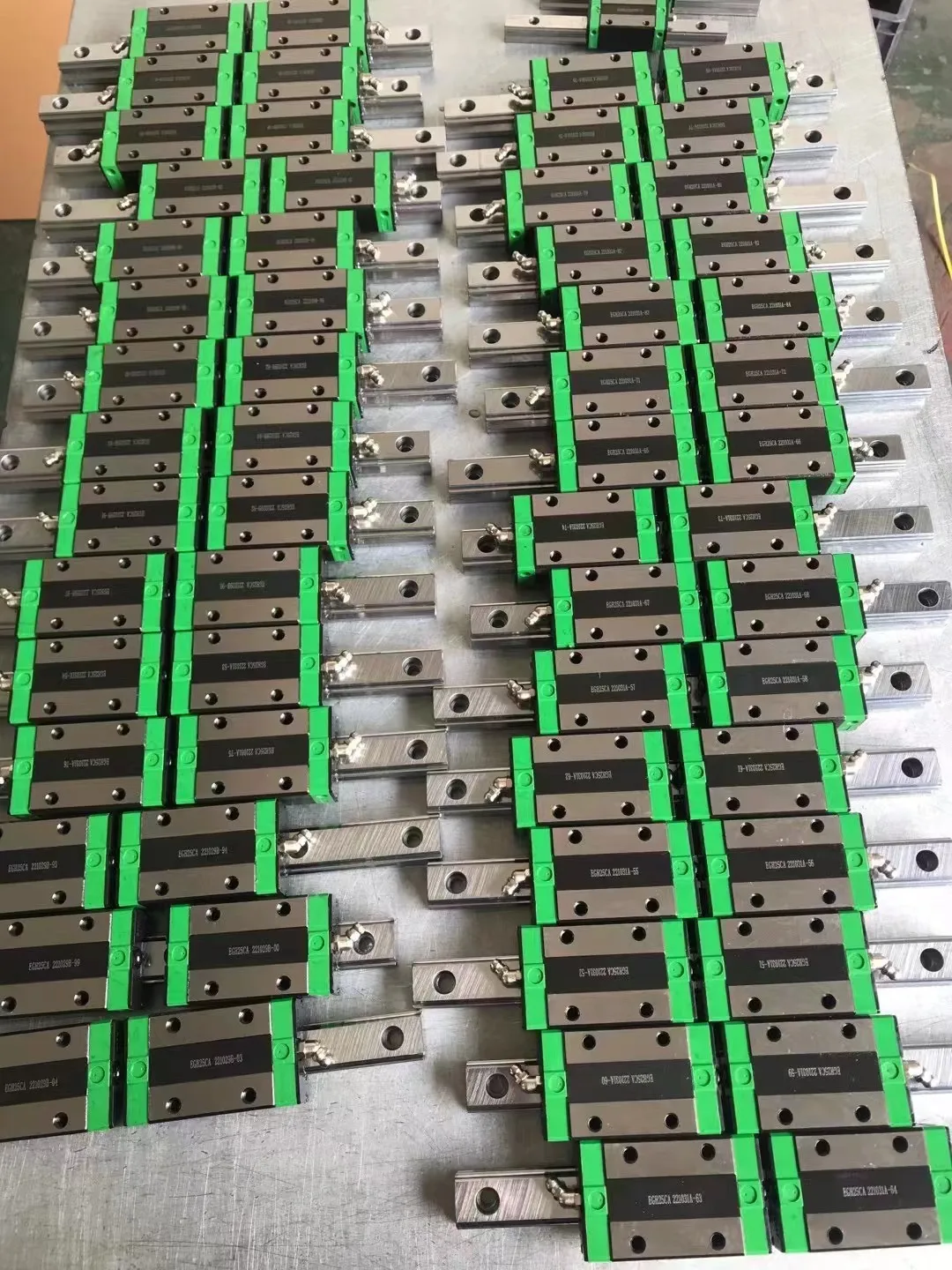

10 Pallets Delivery - JGYS
6 Pallets Delivery - JGYS
2 Pallets Delivery - JGYS
HG Series – Heavy Load Ball Type Linear Guideway | ||||||||
Square Type Block | Flange Type Block | Linear Guide Rail | ||||||
HGH15CA | HGH15HA | HGW15CC | HGW15HC | HGR15 | ||||
HGH20CA | HGH20HA | HGW20CC | HGW20HC | HGR20 | ||||
HGH25CA | HGH25HA | HGW25CC | HGW25HC | HGR25 | ||||
HGH30CA | HGH30HA | HGW30CC | HGW30HC | HGR30 | ||||
HGH35CA | HGH35HA | HGW35CC | HGW35HC | HGR35 | ||||
HGH45CA | HGH45HA | HGW45CC | HGW45HC | HGR45 | ||||
HGH55CA | HGH55HA | HGW55CC | HGW55HC | HGR55 | ||||
HGH65CA | HGH65HA | HGW65CC | HGW65HC | HGR65 | ||||
RG Series – High Rigidity Roller Type Linear Guideway | ||||||||
Square Block | Flange Block | Linear Guide Rail | ||||||
RGH20CA | RGH20HA | RGW20CA | RGW20HC | RGR20 | ||||
RGH25CA | RGH25HA | RGW25CA | RGW25HC | RGR25 | ||||
RGH30CA | RGH30HA | RGW30CA | RGW30HC | RGR30 | ||||
RGH35CA | RGH35HA | RGW35CA | RGW35HC | RGR35 | ||||
RGH45CA | RGH45HA | RGW45CA | RGW45HC | RGR45 | ||||
RGH55CA | RGH55HA | RGW55CA | RGW55HC | RGR55 | ||||
RGH65CA | RGH65HA | RGW65CA | RGW65HC | RGR65 | ||||
MGN-C Type Block | MGN-H Type Block | Linear Guide Rail | ||
MGN5C | MGN5H | MGNR5 | MGWR5 | |
MGN7C | MGN7H | MGNR7 | MGWR7 | |
MGN9C | MGN9H | MGNR9 | MGWR9 | |
MGN12C | MGN12H | MGNR12 | MGWR12 | |
MGN15C | MGN15H | MGNR15 | MGWR15 | |
EG Series – Low Profile Ball Type Linear Guideway | ||||||
Square Type Block | Flange Type Block | Linear Guide Rail | ||||
EGH15CA | EGW15CC | EGR15 | ||||
EGH20CA | EGW20CC | EGR20 | ||||
EGH25CA | EGW25CC | EGR25 | ||||
EGH30CA | EGW30CC | EGR30 | ||||
FAQ
1.How many is the MOQ of your company?
Our company MOQ is 1pcs.
2.Could you accept OEM and customize?
YES, OEM is accepted and we can customize for you according to sample or drawing.
3.How about the corner?
In stocks,some are white ,and some are black.
But we can process the white corner to black,also black to white.
4.Do you have stocks?
YES, we have most of the bearings showing on alibaba in stock,especialy big bearings.
5.Do you have only big bearings?
We have big,medium and small bearings in stock.But large bearing is the advantage of our products compared with other companies
Our company MOQ is 1pcs.
2.Could you accept OEM and customize?
YES, OEM is accepted and we can customize for you according to sample or drawing.
3.How about the corner?
In stocks,some are white ,and some are black.
But we can process the white corner to black,also black to white.
4.Do you have stocks?
YES, we have most of the bearings showing on alibaba in stock,especialy big bearings.
5.Do you have only big bearings?
We have big,medium and small bearings in stock.But large bearing is the advantage of our products compared with other companies
