fan water spray,nozzle sprayer v nozzle 11005
US $1.40-$1.54

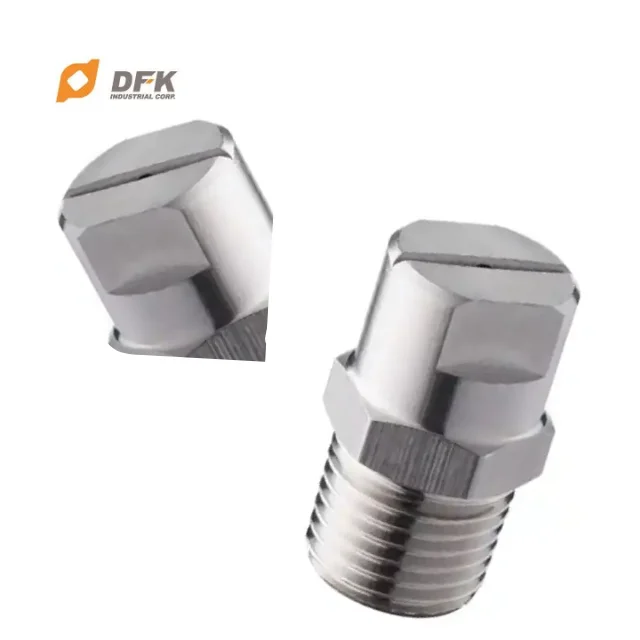

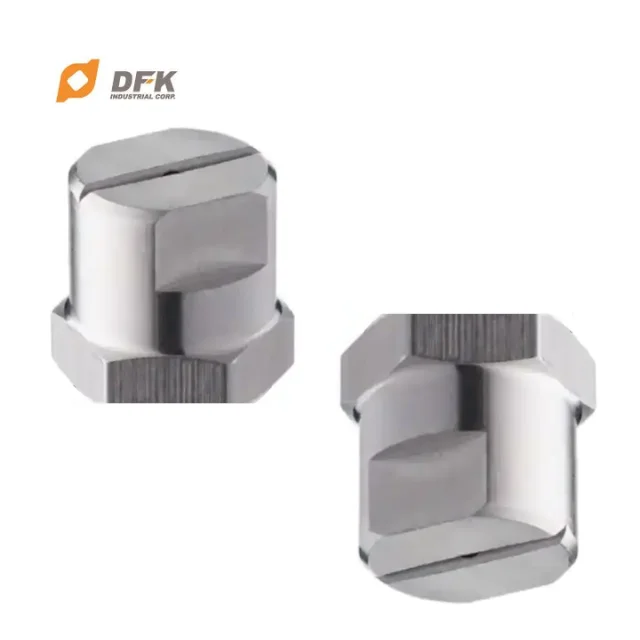

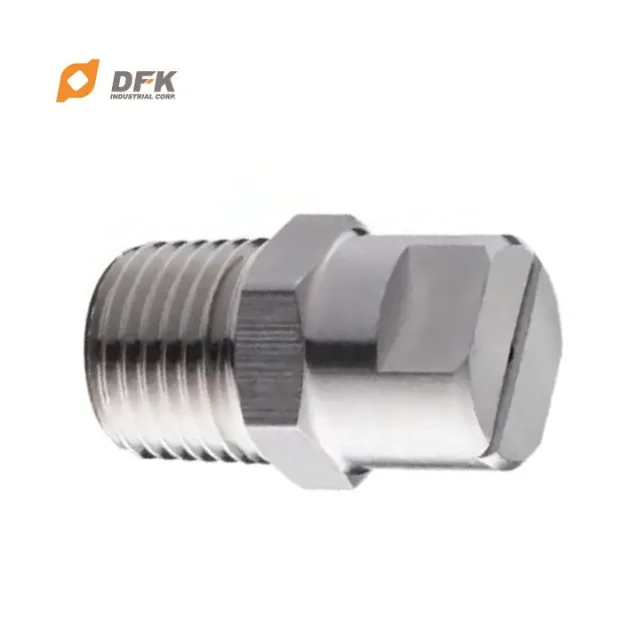

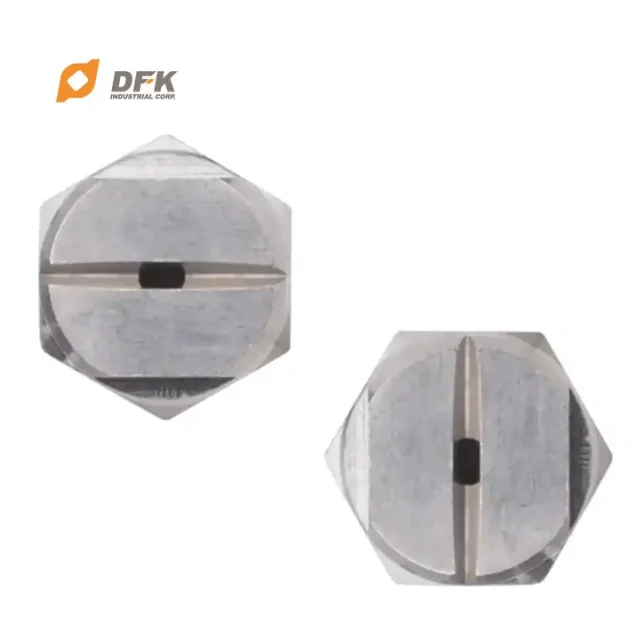

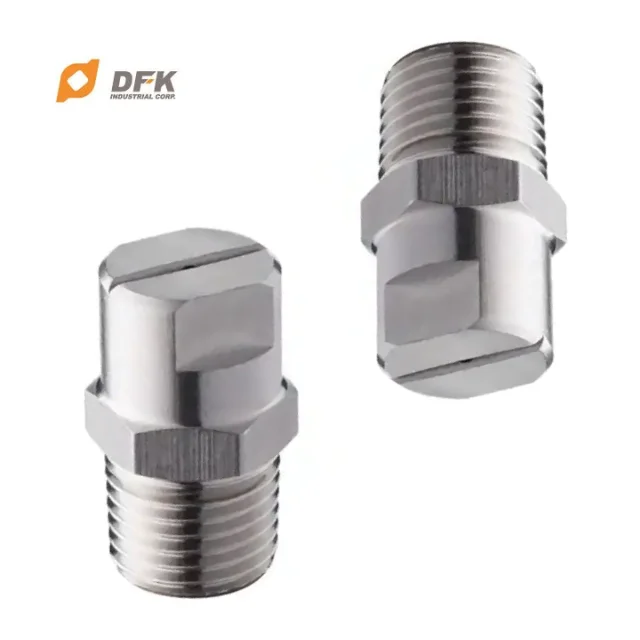

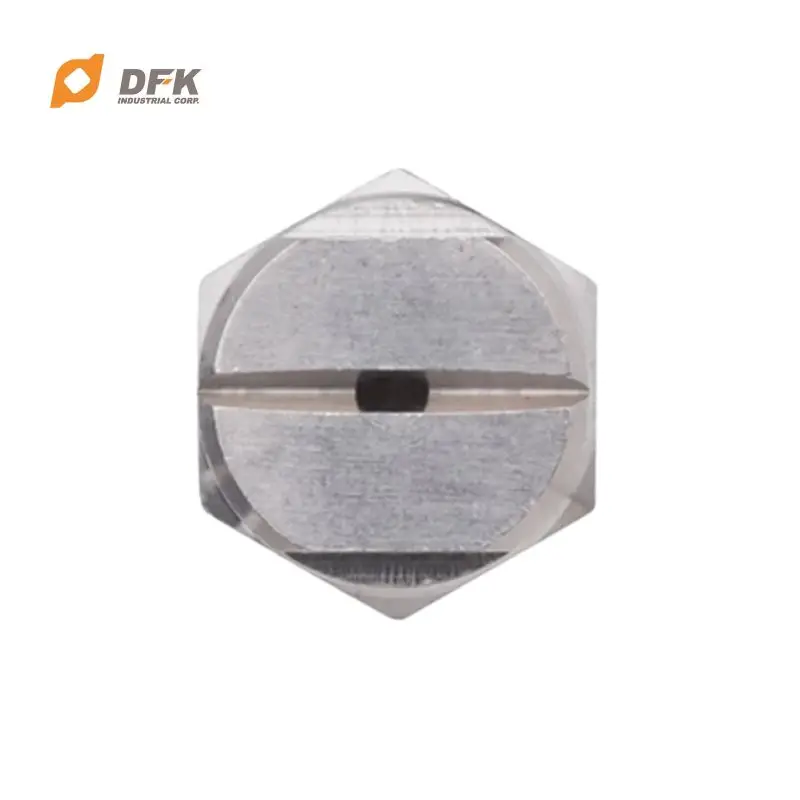

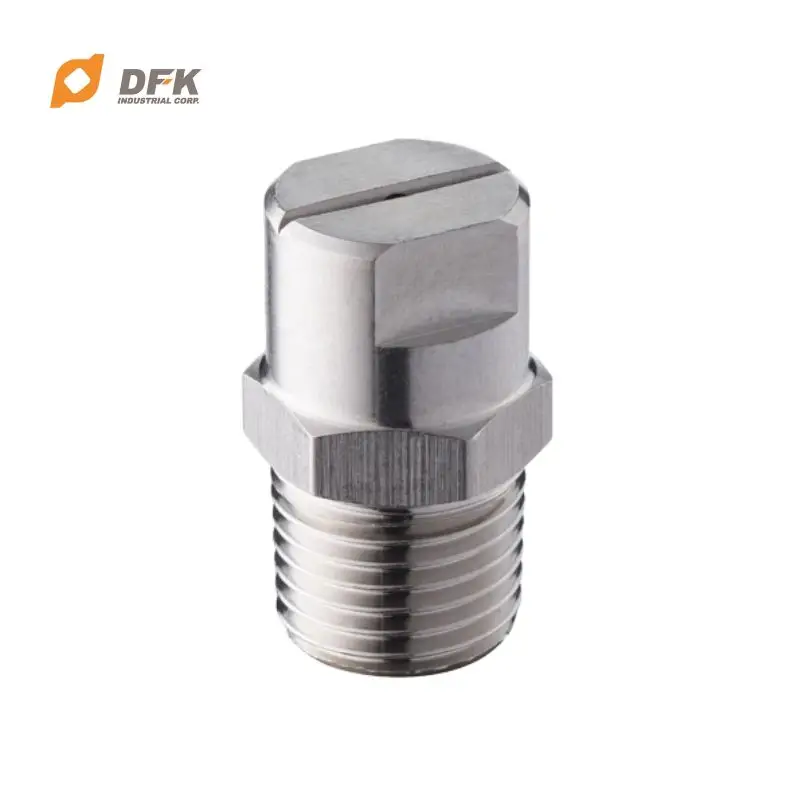

Easy Installed Stainless Steel Flat fan Spray Nozzle For Washing
- Category: >>>
- Supplier: DFK INDUSTRIAL CORP.
Share on (10000014309305):
Product Overview
Description
Easy Installed Stainless Steel Flat fan Spray Nozzle For Washing
PRODUCT DESCRIPTION
FEATURES
-The spraying type is fan type, and the spray shape is single line and two sides are tapered (tapered edge), which presents a bell curve shape flow field distribution with weaker ends compared to the middle.
-Single-piece design, if there is frequent maintenance or replacement requirements, it is recommended to use quick install with multiple pieces nozzles.
-Recommended working pressure: 3.0 kgf/cm²
-Jet angle tolerance: 3°
-Flowrate tolerance:
● PP Material: ± 10% @ 3.0 ± 0.1 kgf/cm²
● Other Material: ± 5% @ 3.0 ± 0.1 kgf/cm²
-Angle tolerance:
● PP Material: ± 10° @ 3.0 ± 0.1 kgf/cm²
● Other Material: ± 5° @ 3.0 ± 0.1 kgf/cm²
-Single-piece design, if there is frequent maintenance or replacement requirements, it is recommended to use quick install with multiple pieces nozzles.
-Recommended working pressure: 3.0 kgf/cm²
-Jet angle tolerance: 3°
-Flowrate tolerance:
● PP Material: ± 10% @ 3.0 ± 0.1 kgf/cm²
● Other Material: ± 5% @ 3.0 ± 0.1 kgf/cm²
-Angle tolerance:
● PP Material: ± 10° @ 3.0 ± 0.1 kgf/cm²
● Other Material: ± 5° @ 3.0 ± 0.1 kgf/cm²
-Fan nozzle angle can be 0°~110°, 0° spray angle spray type is straight column, spray Fog shape is a single point, providing the best impact in all nozzle types.
-When the fan nozzle is used in high pressure environment, choose HSS material (hardened stainless steel Steel), can operate under 200Kg/cm² pressure.
-When the fan nozzle is used in high pressure environment, choose HSS material (hardened stainless steel Steel), can operate under 200Kg/cm² pressure.
SPRAY PATTERN & FLOW DISTRIBUTION
TECHNICAL DATA
Thread (BSPT) | Size (mm) | Weight (g) | ||||||||||||
A | B | C | S303 | S316 | BRASS | HSS | PP | |||||||
1/8"Male (Metal) | 12 | 12 | 19 | 10.2 | - | - | - | - | ||||||
1/4"Male (Metal) | 14 | 15 | 26 | 20 | 21 | 5.4 | 5.4 | - | ||||||
3/8"Male (Metal) | 18 | 15 | 30 | - | - | - | - | - | ||||||
1/8"Male (PP) | 11.8 | 10.3 | 15 | - | - | - | - | - | ||||||
1/4"Male (PP) | 13.7 | 13.7 | 25 | - | - | - | - | - | ||||||
APPLICATION
● Cleaning: Vehicles, Containers, Filters, Dust, Gravel, Metals, Metal Parts, Machinery, Steel Plates, Various Containers, High Pressure Cleaning, Wet Processing Display Pane, machine tool cleaning, etc.
● Cooling: gas, tank, machinery, metal, roof etc.
● Dispersion: Humidifying, Chemicals (etching solution, lubricants, insect repellent, etc.), water screens (fire, dust, deodorization etc.).
● Cooling: gas, tank, machinery, metal, roof etc.
● Dispersion: Humidifying, Chemicals (etching solution, lubricants, insect repellent, etc.), water screens (fire, dust, deodorization etc.).
Our high standard quality system allows us to control and maintain strict quality requirements for all customers, especially
tofulfill the commitments required by ISO 9001.
Our quality system brings confidence to our customers. We document every quality inspection record for our internal evaluation and for traceability.
We have an in-house inspection line including precision hand inspection tools, gauges, micrometers, roughness tester,
heightgauges, pin gauges and more.
tofulfill the commitments required by ISO 9001.
Our quality system brings confidence to our customers. We document every quality inspection record for our internal evaluation and for traceability.
We have an in-house inspection line including precision hand inspection tools, gauges, micrometers, roughness tester,
heightgauges, pin gauges and more.
DFK is dedicated to achieving customer's most satisfaction.ISO standards make a positive difference to all of us, it's not only aquality standard for the operation, it also gives positive influences on our daily lives, and then extending to our society.
