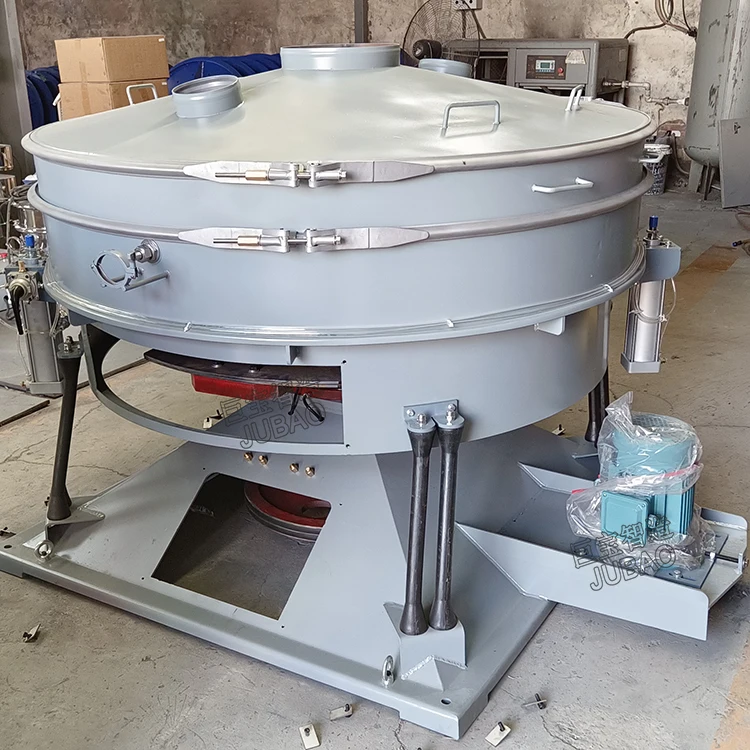

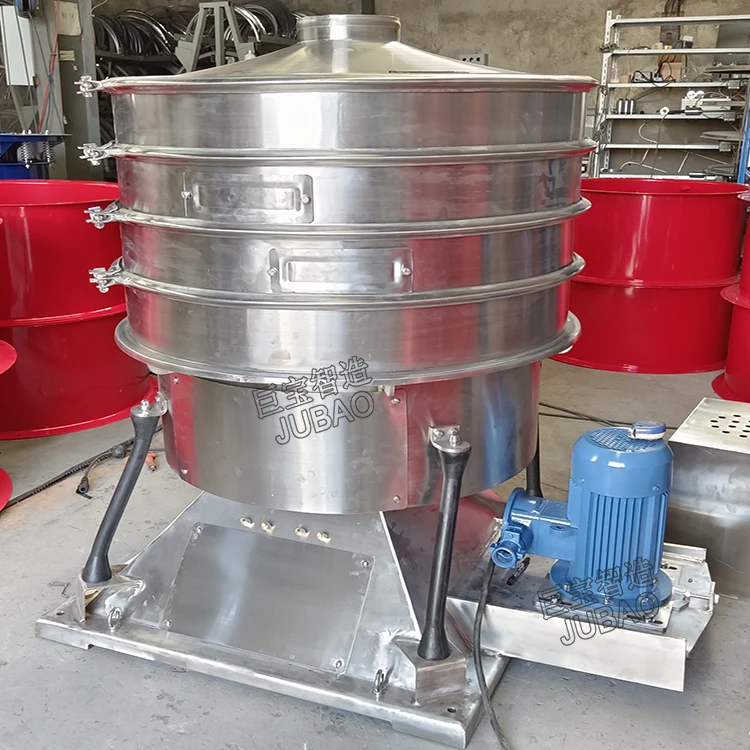

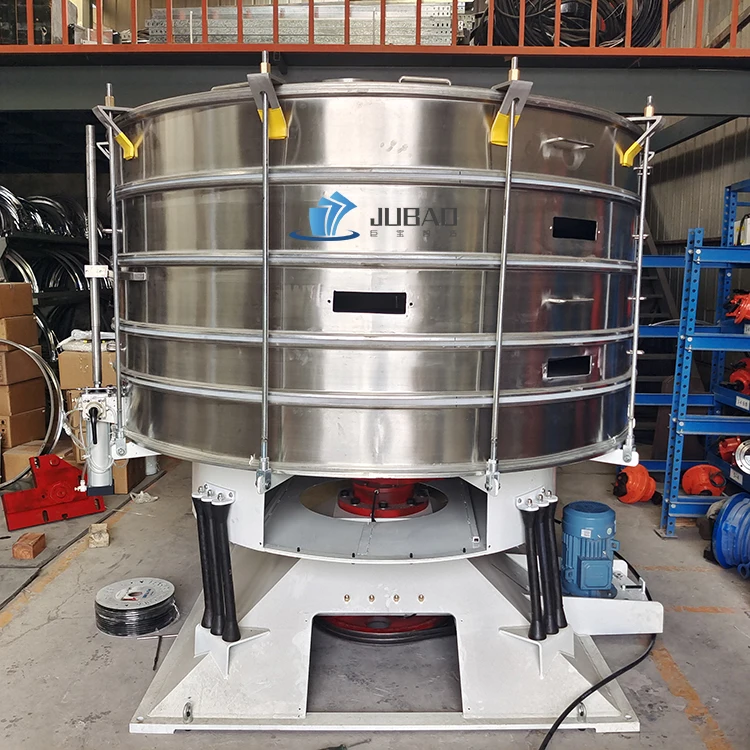

Precision And Mass Production Stainless Steel 304 / 316L Tumbler Screening Machines For Sieving Powder
- Category: >>>
- Supplier: Xinxiang Jubao Intelligent Manufacturing Co. Ltd.
Share on (10000014361323):
Product Overview
Description
Products Description

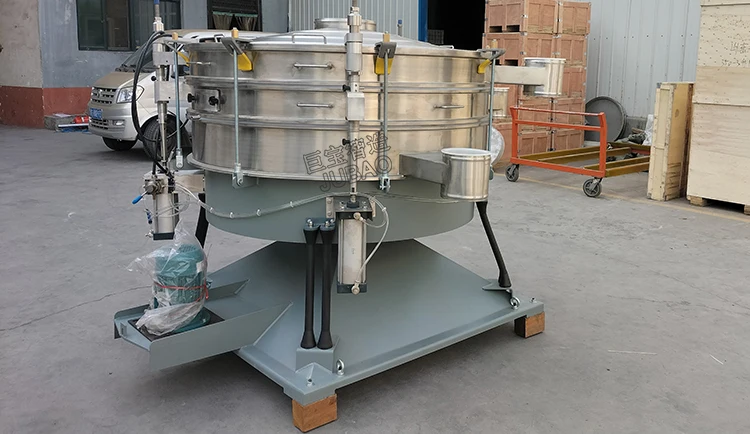

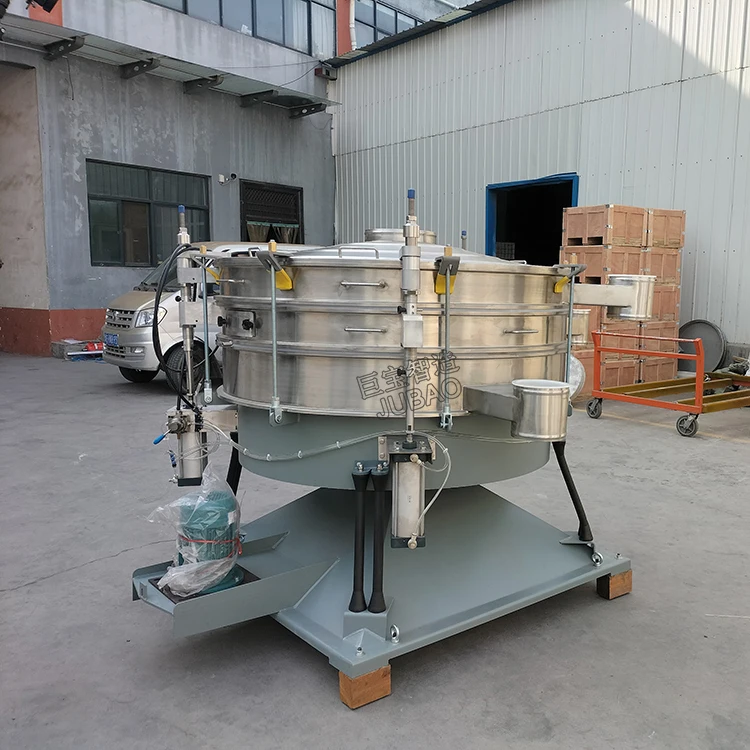

Precision And Mass Production Stainless Steel 304 / 316L
Tumbler Screening Machines For Sieving Powder
The Tumbler Screening Machine is a high-efficiency sieving machine specially designed for the use of food, chemical, pharmacy, mining, chemicals, food and spices, plastics, etc. It is made of stainless steel 304/316L and carbon steel, and can be designed with 1~5 layers to meet different production requirements. The tumbling screening machine is also called tumbler sieve separator or circular tumbler screening machine, and it operates with low noise. It is used for quick, efficient and gentle separation of large and small particles, and can also be applied for sifting, scalping, classifying, de-dusting and de-lumping of bulk materials. It is perfect for sieving, filtering and separating of all types of products from fine to coarse, and can be used for both dry and wet materials.

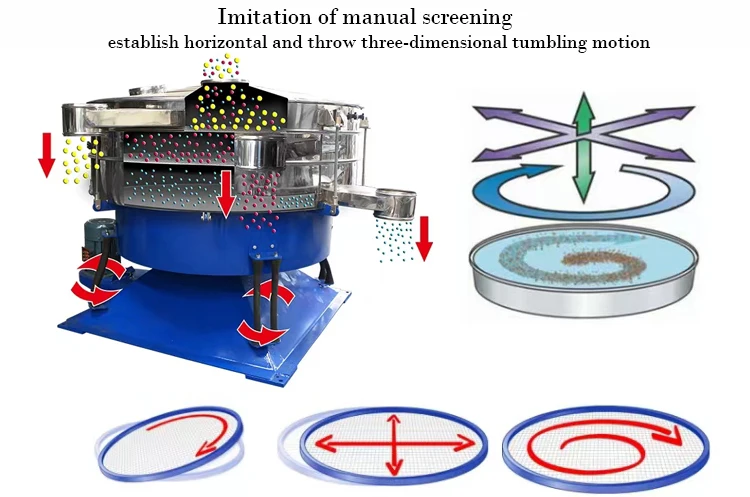

Tumbling Motion: The tumbler screening machine consists of a cylindrical drum or container that is set in a gentle, gyratory motion. The drum is inclined at a small angle and supported by springs or suspension systems. As the machine operates, the material inside the drum is subjected to a tumbling motion, moving in an elliptical path.
Dual Movement: The tumbler screening machine combines both radial and tangential movements. Radial movement refers to the horizontal motion of the material particles along the screen surface, while tangential movement refers to the vertical bouncing or jumping motion of the particles. This dual movement ensures thorough sieving and effective separation of the material.
Dual Movement: The tumbler screening machine combines both radial and tangential movements. Radial movement refers to the horizontal motion of the material particles along the screen surface, while tangential movement refers to the vertical bouncing or jumping motion of the particles. This dual movement ensures thorough sieving and effective separation of the material.
Model | Deck | Equipment diameter | Screen mesh Area(m2) | Frequency (r/min) | Screen slope （degree） | Sreen mesh | Amplitude (mm) | Power (kw) | ||||||||
EYBS-600 | 600mm | 0.28 | 220-280 | 0-10 | 20microns to 20 mm | 20-70 | 0.75 | |||||||||
EYBS-1000 | 1000mm | 0.66 | 220-280 | 0-10 | 20-70 | 1.5 | ||||||||||
EYBS-1200 | 1200mm | 0.98 | 220-280 | 0-10 | 20-70 | 2.2 | ||||||||||
EYBS-1500 | 1500mm | 1.67 | 220-280 | 0-10 | 20-70 | 3 | ||||||||||
EYBS-1800 | 1-4 | 1800mm | 2.37 | 220-280 | 0-10 | 20-70 | 4 | |||||||||
EYBS-2000 | 2000mm | 2.89 | 220-280 | 0-10 | 20-70 | 4 | ||||||||||
EYBS-2600 | 2600mm | 5.3 | 220-280 | 0-10 | 20-70 | 5.5 | ||||||||||
Machine can be customized based on your need | ||||||||||||||||
If you would like to know more about our products，contact us .

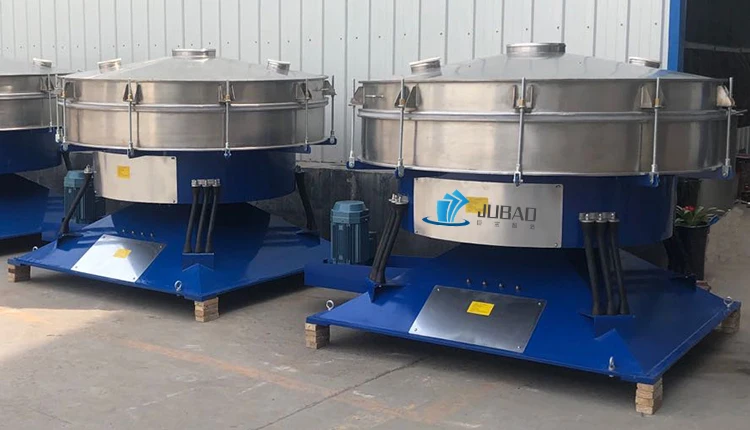

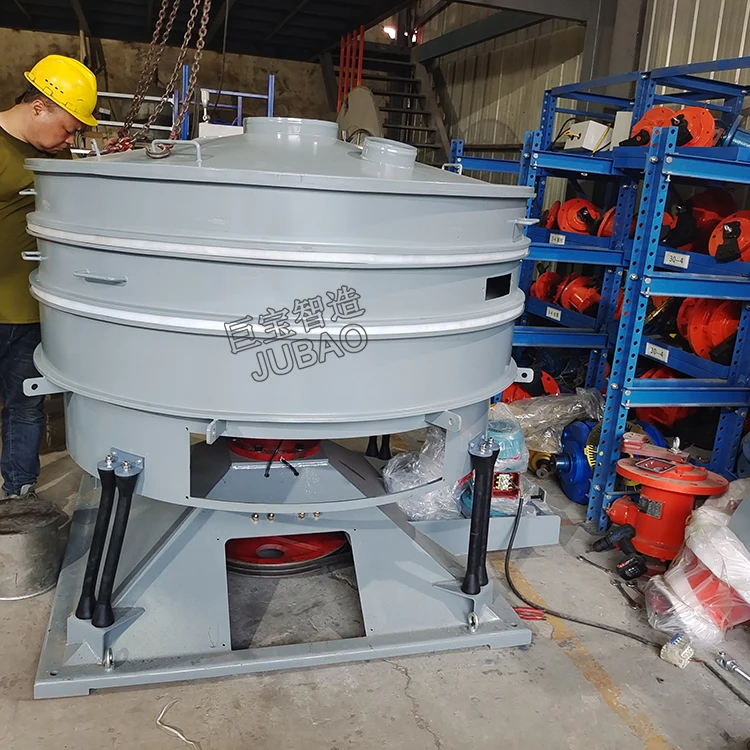

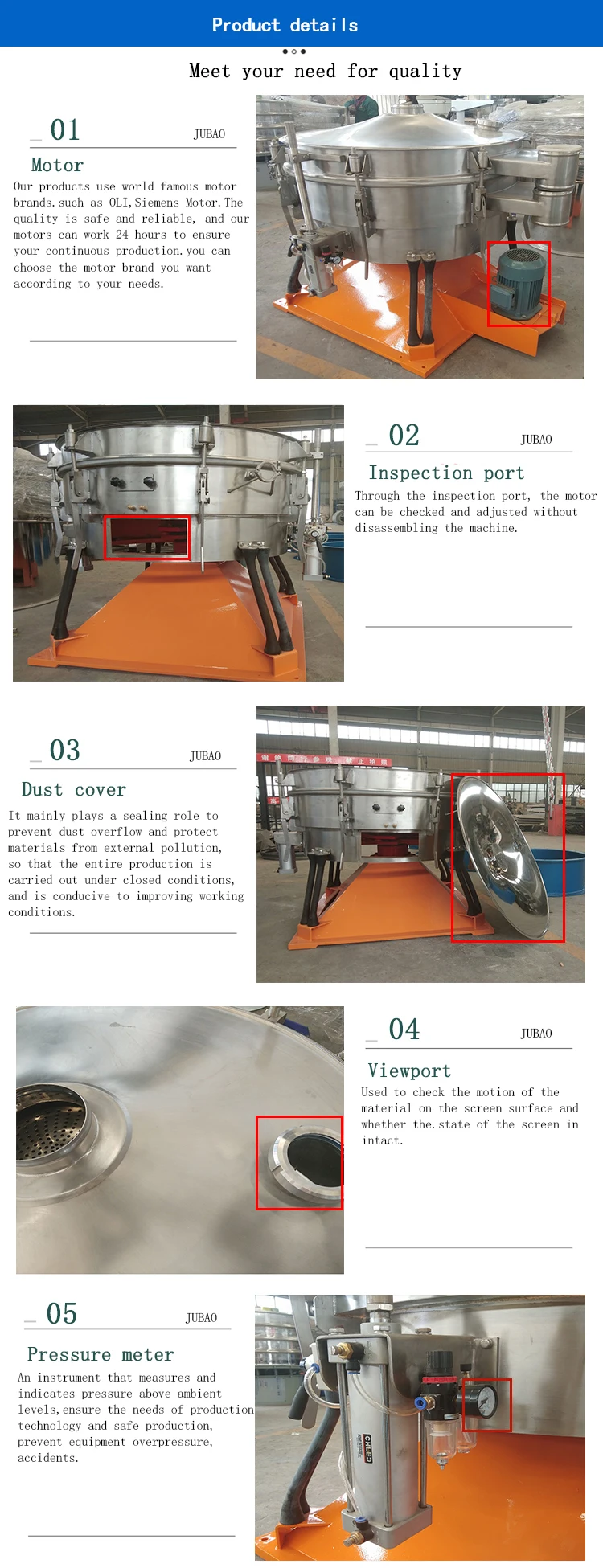

Detail display
Application

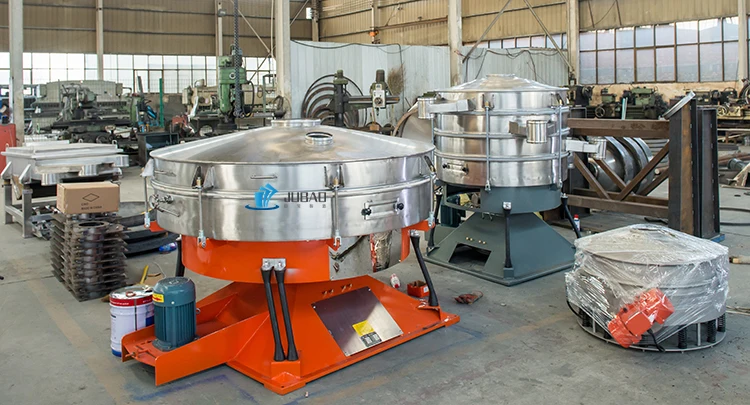

* The figure above shows some customer applications of our tumbler screen machine .Our products are widely used in various industries, suitable for spherical, cylindrical, sheet, and even irregular shape easily blocked mesh and need precision screening materials.If you want to know more about product application, or consult smart powder solutions, please contact us.
Company Profile
Located in China's vibration screening industry base (Xinxiang city), Jubao Intelligent Manufacturing Co., Ltd. has become a leading enterprise in screening industry after over 10 years’fast development. Every year, Jubao provides more than 2000 sets screening equipment and systems to hundreds of customers around the world,such as the United States, the United Kingdom, Germany, Russia, Greece, Singapore and other countries and regions.
Our equipment is widely used in chemical, abrasive, ceramics, ceramics, paper making, mining, paint, metallurgy, geology, national defense, electronics and other industries. Mass production, Fast delivery, Stable quality, Affordable price and Intimate service has become the labels of Jubao, Jubao intelligent manufacturing -your excellent option for sieving,dust-free conveying and intelligent integrated.
* Contact us for a free video tour of our factory.
Service and Ordering
Our service
1. 24 hours online chat
2. Customization Acceptable
3. CE & ISO9001 Certification
4. Complete sales & Service system
5. Fast delivery ,Strictly check
6. 12 months warranty
