ISUZU 4*2 crane Truck With 5 ton Knuckle Boom Cranes For Sale

Share on (10000014389735):


Price:

Quantity:


Product Overview

Description


CHENGLI SPECIAL AUTOMOBILE CO.,LTD


Good quality--High cost performance --Satisfied service


More than 20 years of manufacturing experience


More than 15 years of export trade experience


Top 500 Chinese Private Enterprises



ChengLi Special Automobile Co.,Ltd , which biggest special vehicle manufacturer in China.CHENGLI trucks occupy an important share in the domestic and international market.,.


Truck mounted crane, Crane Truck,mobile crane Truck,  truck crane, truck with crane.This kind of special truck is mainly used for transporting cargo.In order to Convenient transporting, it install the crane to lifting the cargo. crane style model foldable,telescope.Currently our company produce the Crane truck from 3 tons~40 tons .


My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of a large deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.


The application of the sub-arm, sub-winch and vice-hook provides a basis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.


We have export and OEM for many countries,and looking for more long term cooperation partners.








High stability ! Anti deformation ! More efficient !Easy operation !

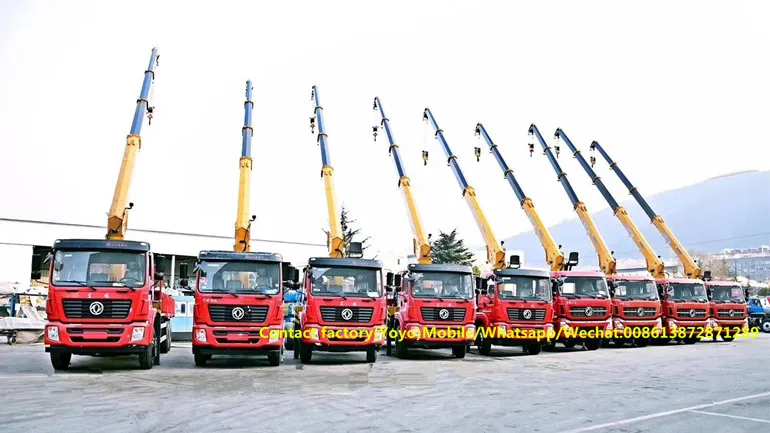

truck mounted crane.jpg









Product Description

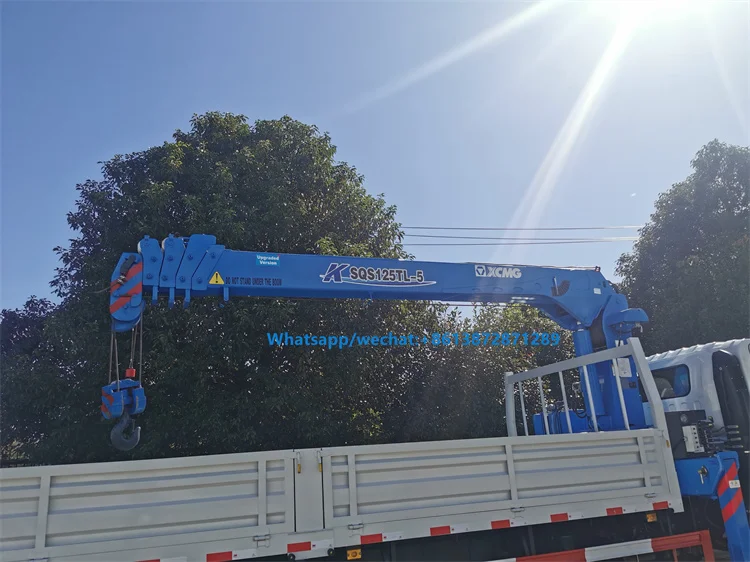

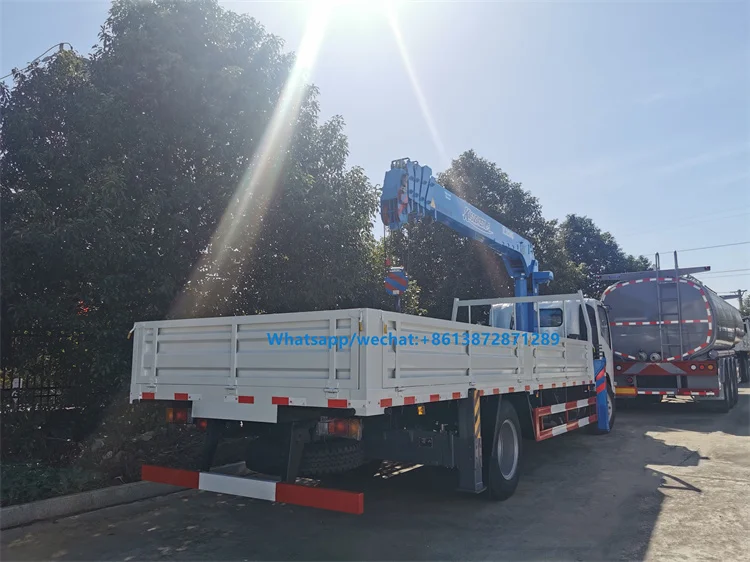

 ISUZU 4*2 crane Truck  With 5 ton Knuckle Boom Cranes For Sale


—— ISUZU chassis,  120HP engine

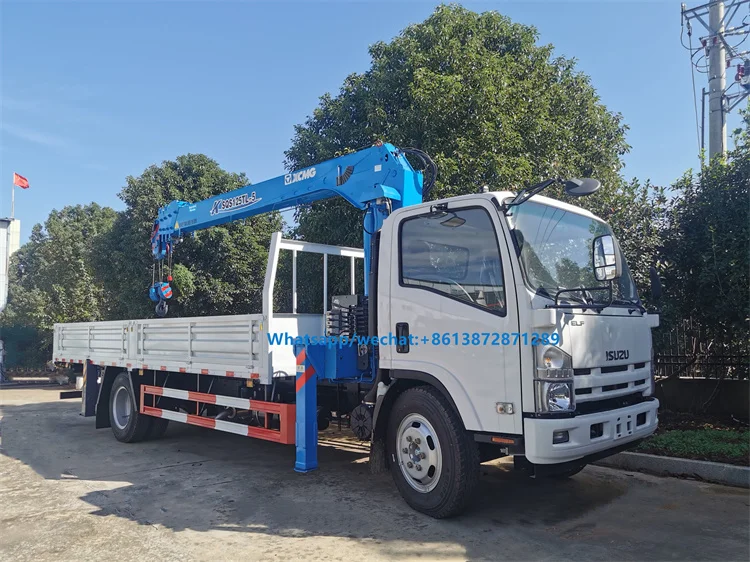

isuzu truck crane (6).jpg





  • ISUZU brand chassis truck cab, 120HP diesel engine, 700R16 tires

  • More efficient,multiple hydraulic cylinders form a jointed boom connection mechanism, faster to get work done

  • Narrow working environment ,More suitable for the factory warehouse & other relatively narrow working environment

  • Can be installed a variety of AIDS,high-altitude work platform,work bucket, fixture, hanging basket, plate fork, all kinds of high grip, auger, tire loadingmanipulator and pile extractor and other auxiliary equipment



Product Description







              Specifications of  ISUZU 4*2 crane Truck  With 5 ton Knuckle Boom Cranes For Sale
































































Chassis brand



ISUZU



Overall Dimension(L*W*H)(mm)



7200*2500*3300



Wheelbase(mm)



3815



Compartment Dimension(L*W*H)(mm)



4600*2400*600



F/ R suspension(mm)



1155/2145



Front/Rear tread(mm)



1726/1678



Number of Axles



2



Curb weight(kg)



7600



Approach/ departure angle (° )



20/11



Max Speed (km/h)



90



Gear Box


ISUZU MSB 5 speeds

Transmission type



Manual



Tire



700R16



Traction Type



4*2



Brake System



Air brake



Number of Tire



6 with a spare



Engine Model



4KH1-TCG4O



Power



120hp



Equipment & Performance



1 .Equipped with  telescopic  4 arms Crane


Work radius :11m, Max lift height:13m


2. Max lift quality5000kg, Max Lifting Moment:12.5(T.M)


3. Recommended power :20KW


4.Operate left or right, up or down, and 360° rotation ,reliable quality, long service life, work fast


5. Rated hydraulic pressure 20MPa


6.Oil tank capacity :100L






More details or special specification,please contact factory direcly ,whatsapp / wechat /phone:0086013872871289 Email:cltruck.yoyo‘@’hotmail.com





 Detail Picture

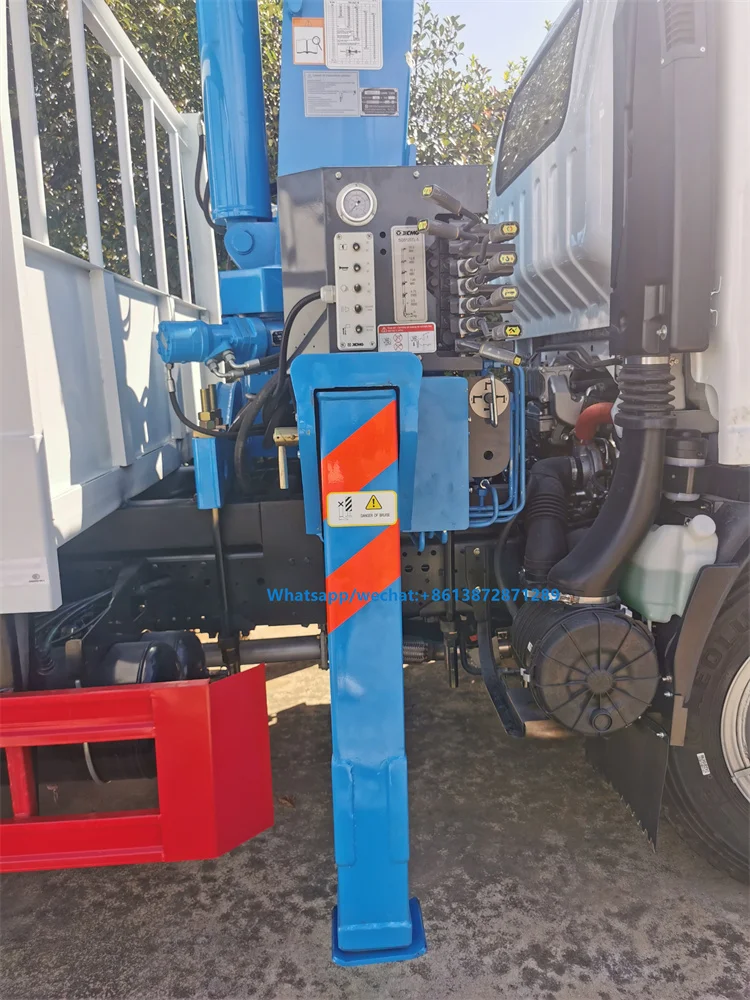

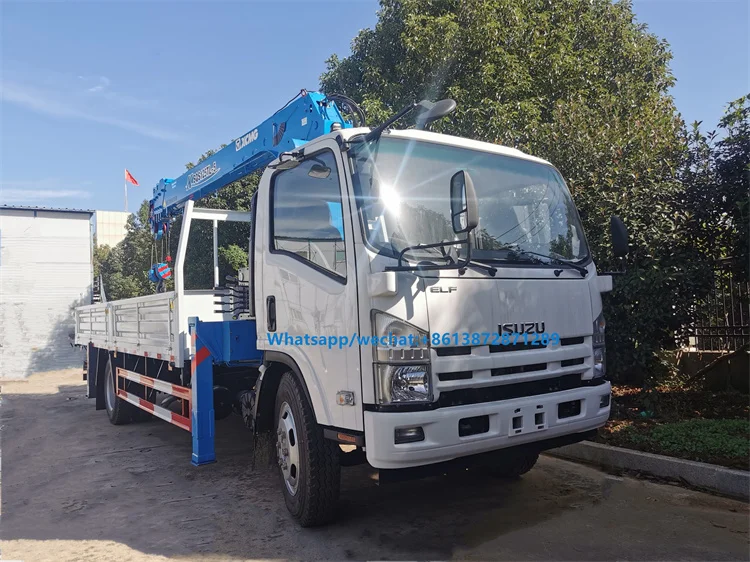

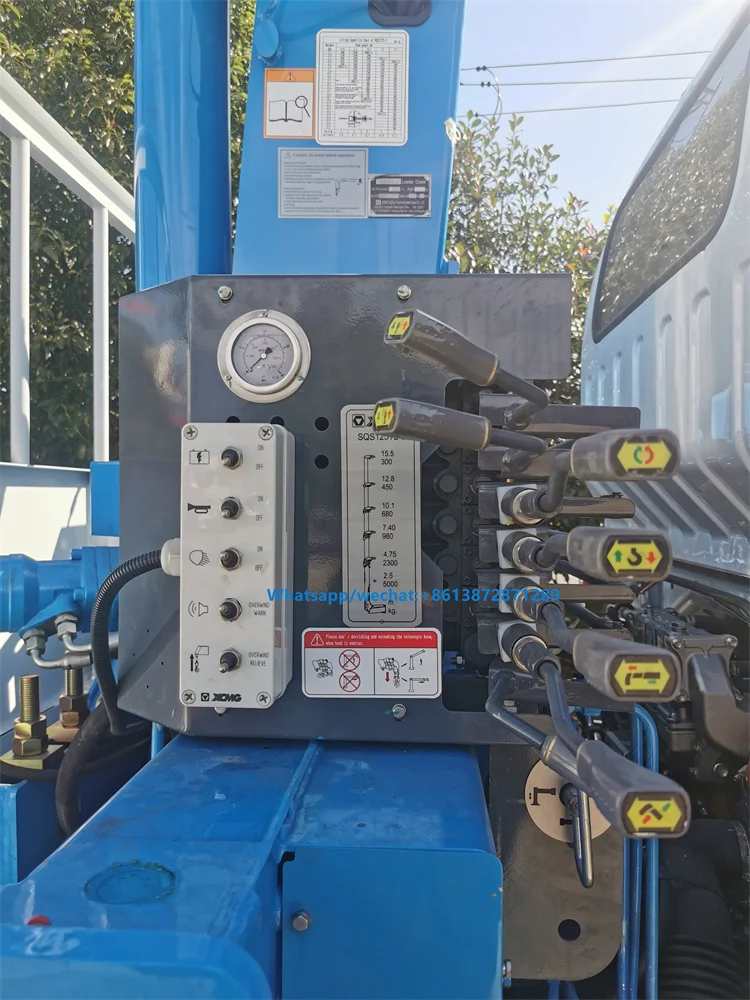

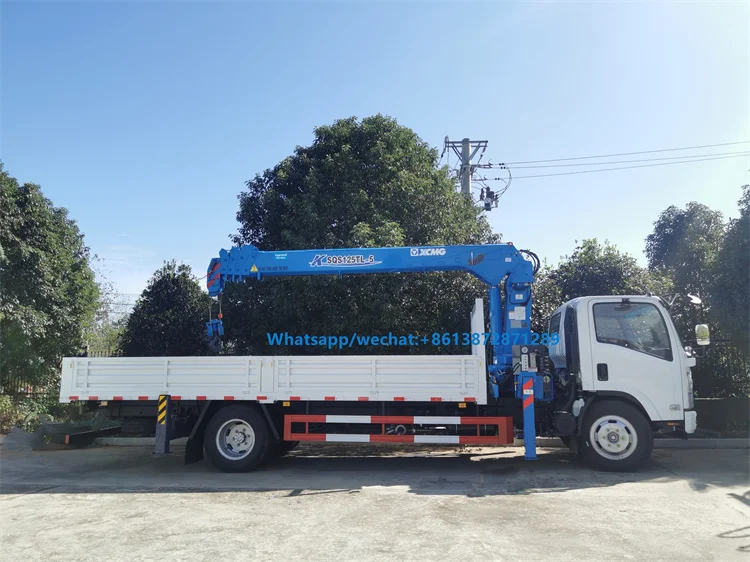

isuzu truck crane (7).jpgisuzu truck crane (4).jpgisuzu truck crane (3).jpgisuzu truck crane (2).jpgisuzu truck crane (8).jpgisuzu truck crane (9).jpg





crane to choose

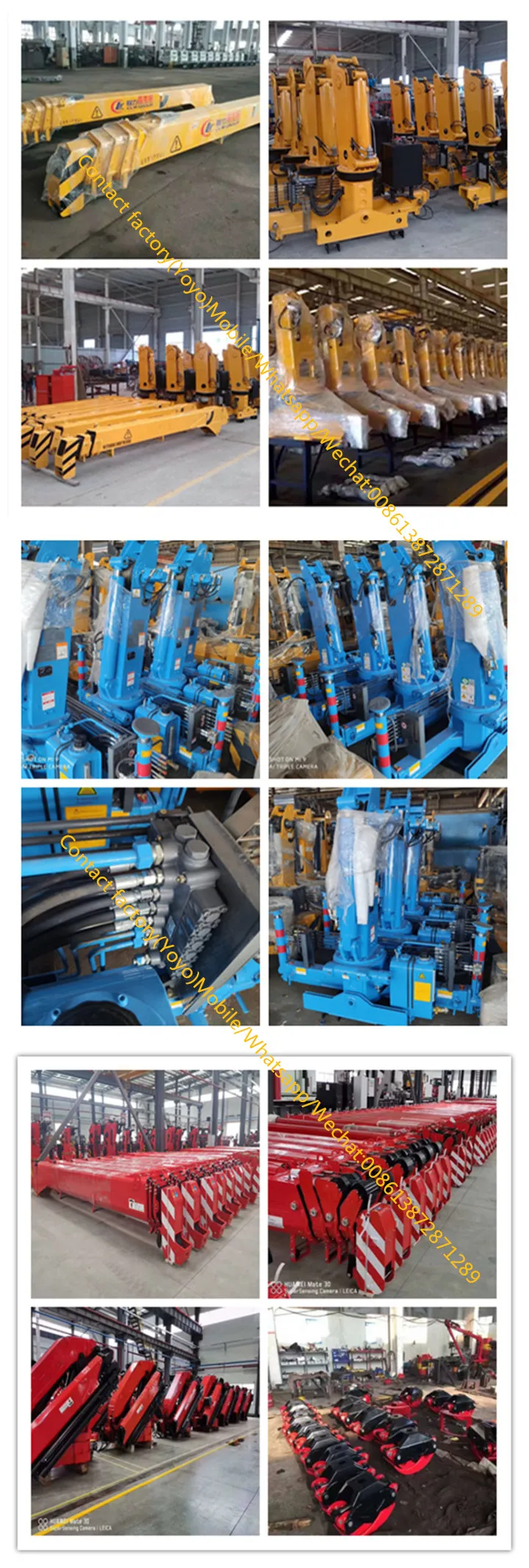

 CLW crane picture.jpg

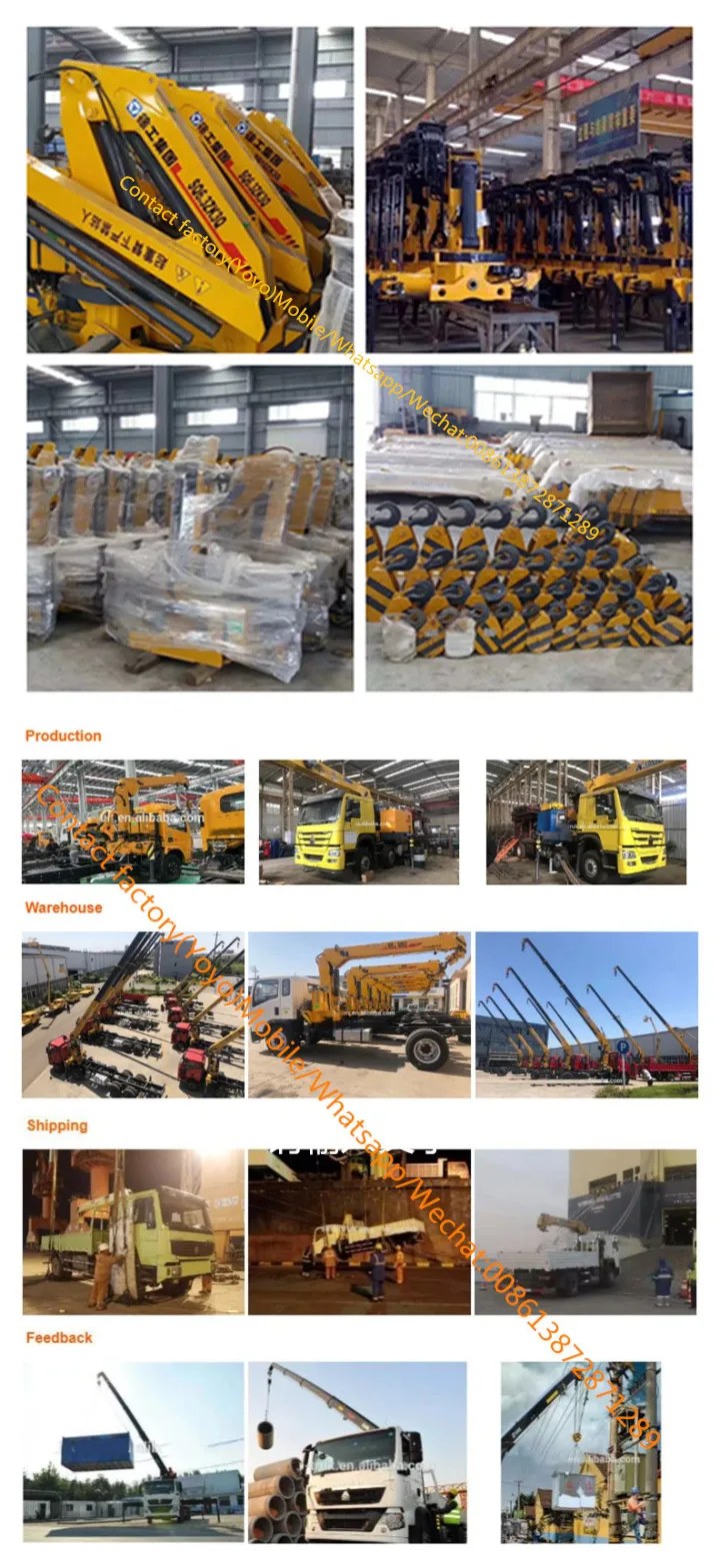

xcmg crane.jpg


Product series:


 The crane loading from 3 ton to 40 ton

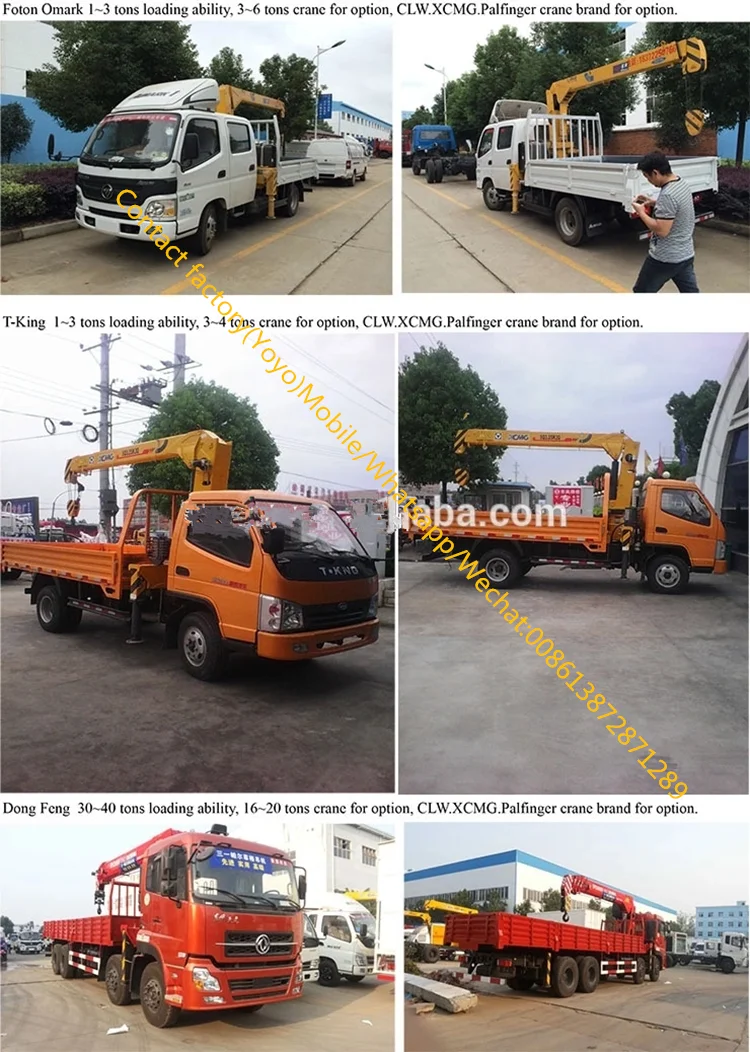

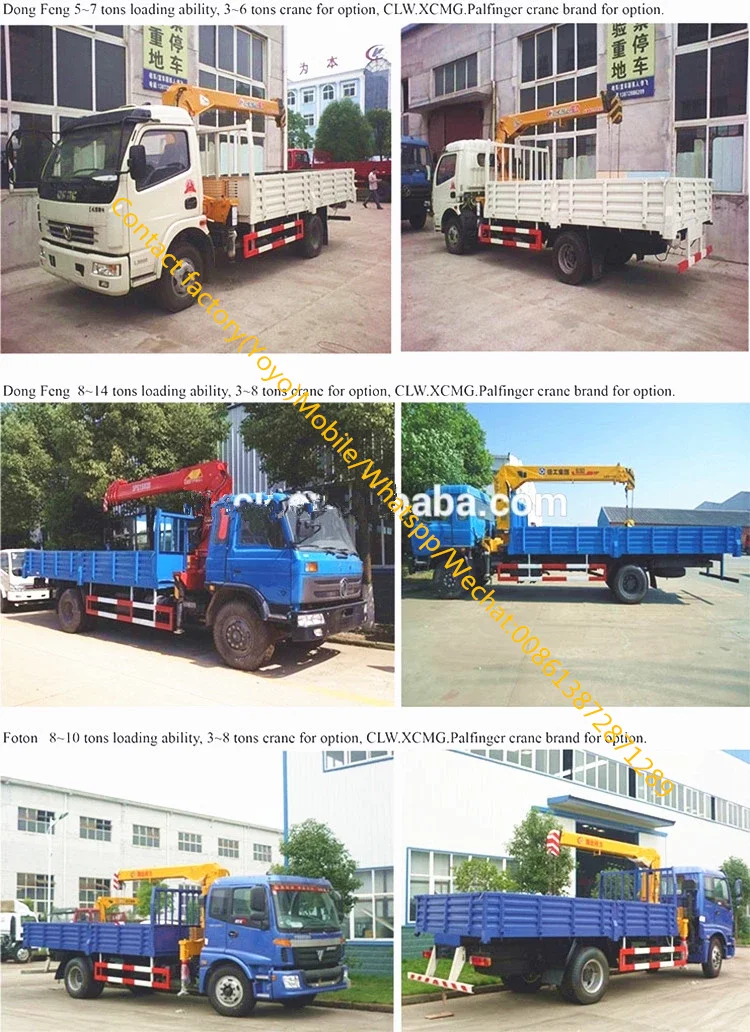

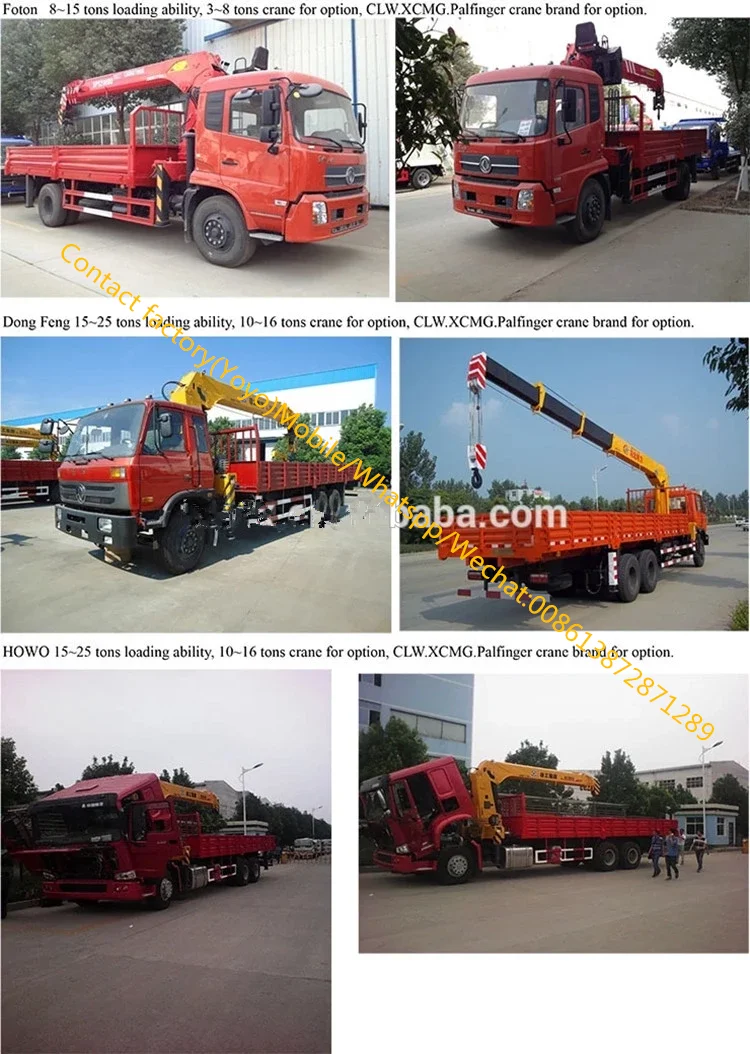

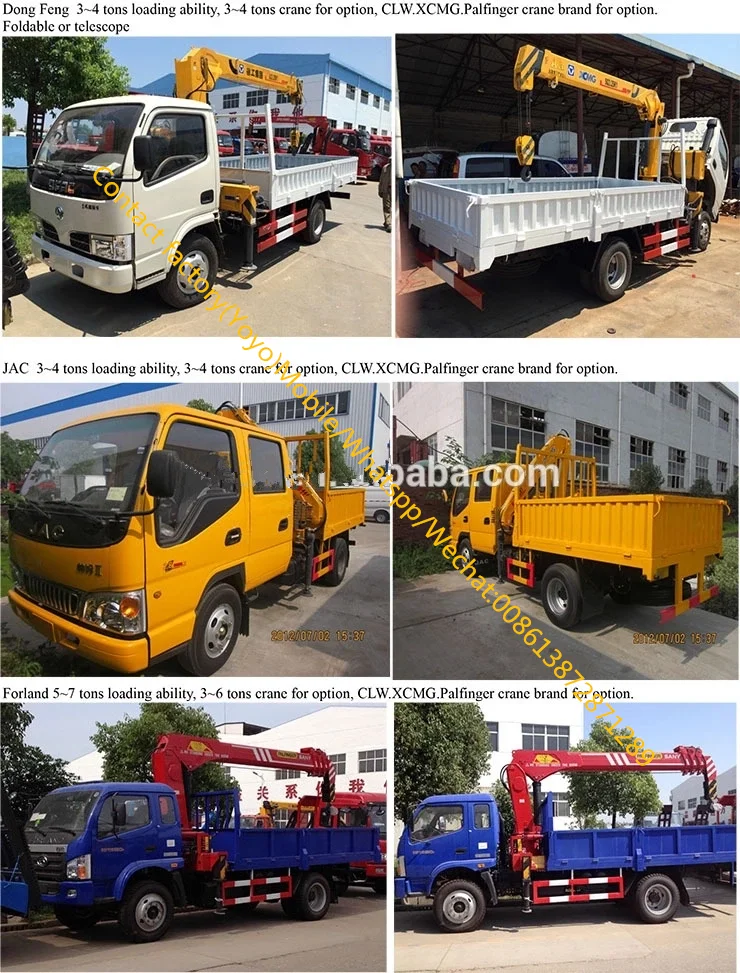

 crane (1)_.pngcrane (2)_.pngcrane (3)_.pngcrane (4)_.png








Advantage of CLW crane truck


1. More efficient
Multiple hydraulic cylinders form a jointed boom connection mechanism
So It's faster to get work done
2. Can be installed a variety of AIDS
high-altitude work platform,work bucket, fixture, hanging basket, plate fork, all kinds of high grip, auger, tire loading
manipulator and pile extractor and other auxiliary equipment
3. Narrow working environment
More suitable for the factory warehouse & other relatively narrow working environment
