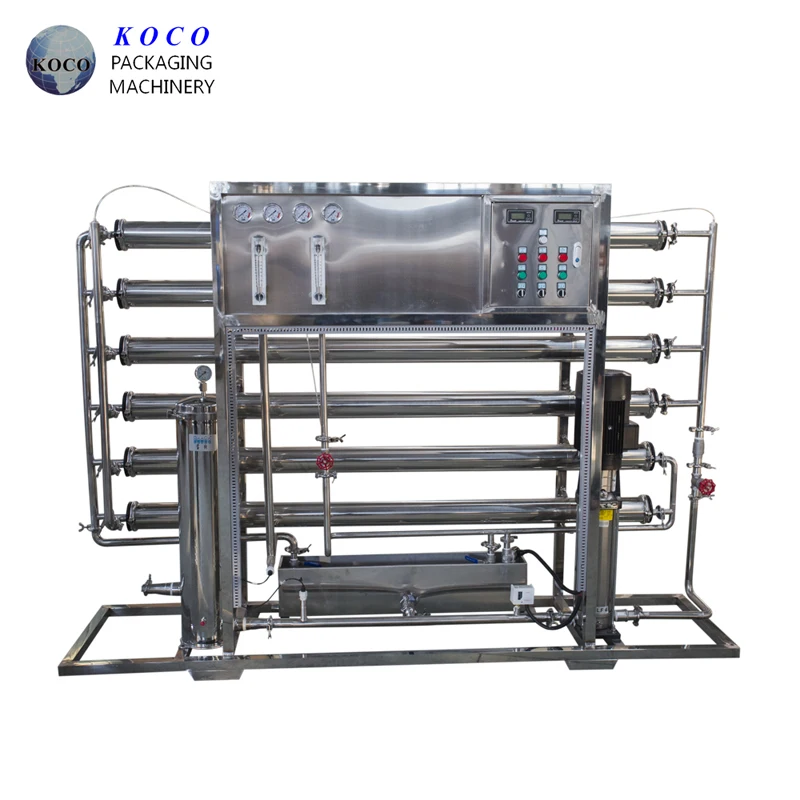

KOCO Water treatment machine 4000L reverse osmosis demineralized purifying filtration plant equipment
- Category: >>>
- Supplier: Koco Packaging Machinery Co. Ltd.
Share on (10000014394429):
Product Overview
Description
Technical parameter
MODEL | RO-4 |
POWER | 6.5KW |
VOLTAGE | 380V/50Hz |
Productivity | 4000L/H |
RECOVERY RATE | ≥50% |
WEIGHT | 1400KGS |
SIZE | 3700*900*1800MM |
KOCO 4000L/H Water treatment equipment
The multi-media filter is widely used in drinking water treatment to remove different types of particles, such as suspended solids (turbidity), colloidal compounds and etc, ensuring the filtered water's TDS is less than 5. This process will reduce the load on the back-end fine filters.
There is diffuser, installed in the filter. Their main function is to make the compressed air and the water distribute evenly during backwash and water distribution.
333
The active carbon filter is the key device, commonly used for removal of organic substance and heavy metal element, suspended solids, residual chlorine and etc. It can effectively reduce the level of COD and improve the taste of water.
The system is a pressure filter. In the filter, the quartz and Coconut shell activecarbon bed are employed. The activated carbon is equipped with vent valving at the highest point and adrain connection at the lowest point. The internal systems and components for each tank is constructed of frp material.
The security filter is most commonly used for treat water. The whole system adopts one set of stainless filter. There are 5 pieces of polypropylene in every 5μ Filter cartridges, filtering the vast majority of particles in the water, which eases the load of RO membrane. This process of filtration benefits to the filter cartridge and prolongs its lifetime in the system.
This apparatus contains filtration component and stainless support layers. The support layer is made of stainless steel 304, with the advantages of compact structure, beautiful shape, high flux, good filtration accuracy and etc. This apparatus is fitted with air drain valve and bottom air drain valve and side drain valve.

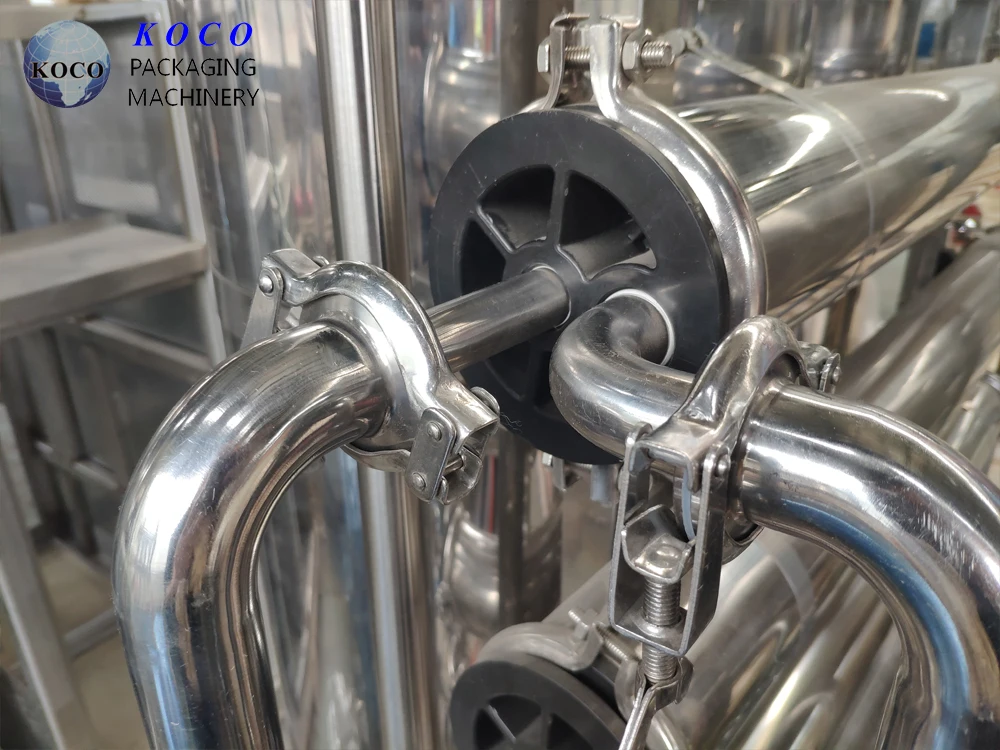

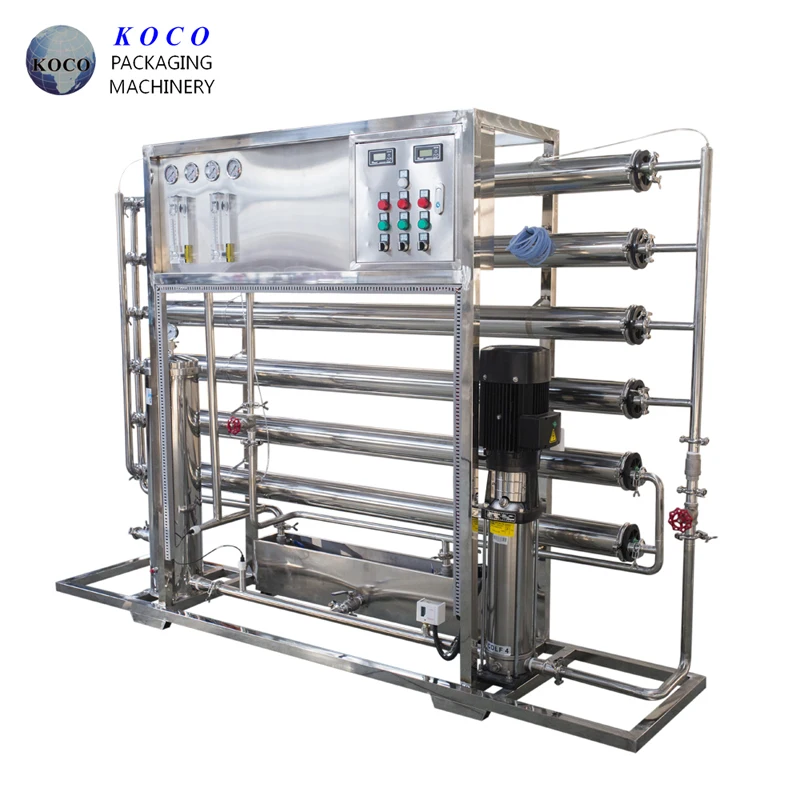

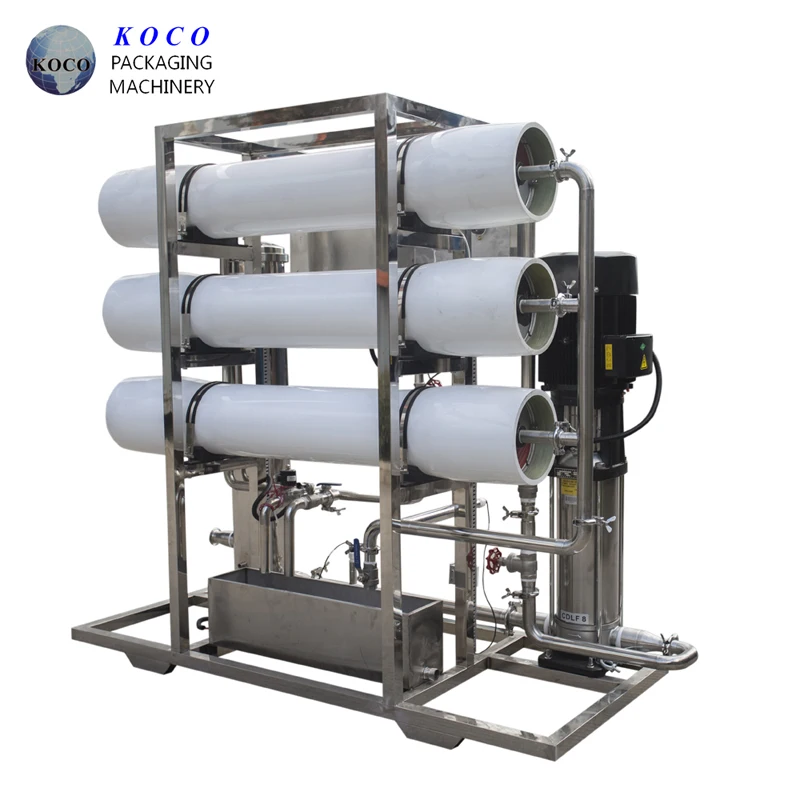

RO system is key part for the water treatment system, which is widely used to make the pure water and drinking water. RO membrane removes many types of large molecules and ions from solutions by applying pressure to the solution when it is on one side of a selective membrane. The result is that the solute such as iron, Virus, bacteria and solids is retained on the pressurized side of the membrane and the pure solvent is allowed to pass to the other side.
The pipe, valves and fittings (including tubing) ball valves, butterfly valves, piping used to the system is SS304. Reverse Osmosis Modules is equipped with sample valve for the convenience to check the product water.
Supporting consumables:
Reverse osmosis membrane
PP Filter element
Quartz sand
Activated carbon
Resin
Sample Room Display
Product packaging
Company Profile
FAQ
Q1:What is your Installation Services?
Installation Services are available with all new machine purchases.
We will provide the user manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Q2: How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.
Q3:Do you also offer the wrapping film?
Yes, we can offer you the plastic roll film, we have a long term cooperated supplier for roll film and the price is favorable.
Q4:If we have very special request for the production line,could you help me to do the design?
Experienced mechanical designer customized-design provided.
Q5: If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical department can help to analysis, design and test the new products you offered.
Installation Services are available with all new machine purchases.
We will provide the user manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Q2: How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.
Q3:Do you also offer the wrapping film?
Yes, we can offer you the plastic roll film, we have a long term cooperated supplier for roll film and the price is favorable.
Q4:If we have very special request for the production line,could you help me to do the design?
Experienced mechanical designer customized-design provided.
Q5: If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical department can help to analysis, design and test the new products you offered.
