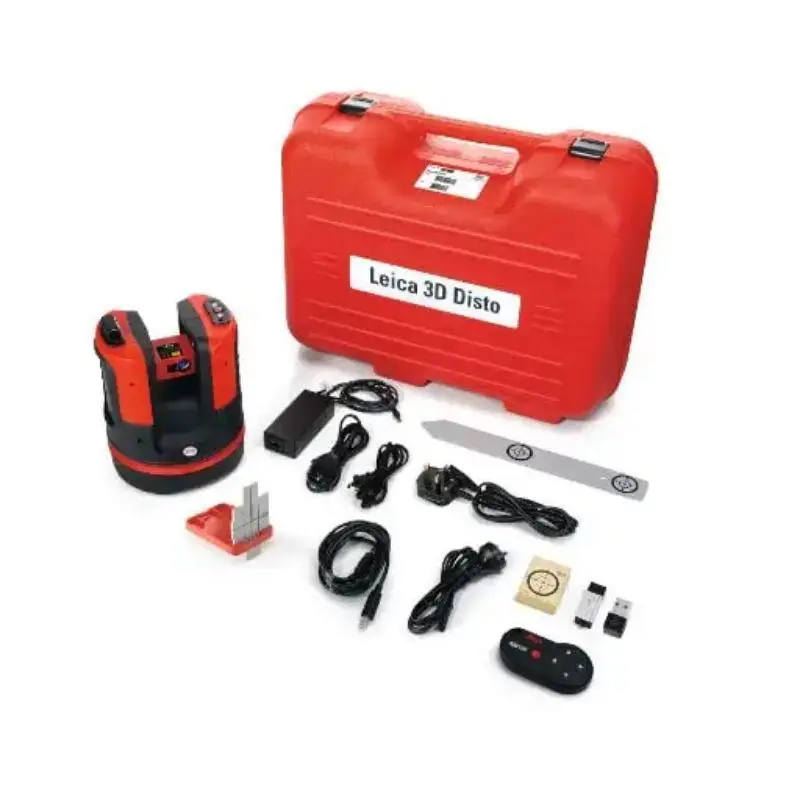

Leica 3D Disto fully automatic 3D building measuring instrument
- Category: >>>
- Supplier: Shenzhen HOBOY Technology Co. Ltd.
Share on (10000014397300):
Product Overview
Description
Product Description
Use this laser measurement system to capture and project accurate 3-D measurements. The system offers 360° horizontal and 250° vertical angle measurements.
With this Leica 3D Disto Geosystems Laser Measurement System, you can easily create and project precise 3-D measurements. The laser can adjust 360° horizontally and 250° vertically, while the Class 2 laser projects a visible red color. This system is great for creating CAD templates, visualizing and navigating points in 3-D, making as-built measurements and more.
Features
* Captures and projects accurate 3-D measurements
* Ideal for creating CAD templates, 3-D visualizations and navigation, capturing as-built measurements and creating Building Information Modeling (BIM)
* Motorized horizontal and vertical turning axes for accurate calibration and measurements
* Measures to 0.06" accuracy at 33' (1 mm at 10 m)
* Capture measurements and operate the unit with your Windows-enabled tablet (sold separately)
* Compatible with Cabinet Vision and ETemplate Measure Manager™ software (sold separately)
* Viewfinder offers 1, 2, 4 and 8x magnification
* Connect the unit to your PC or tablet with the USB and WLAN connections
* Store information on a memory card in the SD card slot
* Capable of importing DXF and CSV data formats
Features
* Captures and projects accurate 3-D measurements
* Ideal for creating CAD templates, 3-D visualizations and navigation, capturing as-built measurements and creating Building Information Modeling (BIM)
* Motorized horizontal and vertical turning axes for accurate calibration and measurements
* Measures to 0.06" accuracy at 33' (1 mm at 10 m)
* Capture measurements and operate the unit with your Windows-enabled tablet (sold separately)
* Compatible with Cabinet Vision and ETemplate Measure Manager™ software (sold separately)
* Viewfinder offers 1, 2, 4 and 8x magnification
* Connect the unit to your PC or tablet with the USB and WLAN connections
* Store information on a memory card in the SD card slot
* Capable of importing DXF and CSV data formats
Specification
Angle Measurement Range | 360° horizontal, 250° vertical |
Distance and Angle Measurement | 0.04" at 32.8' (1 mm at 10 m), 0.08" at 98.43' (2 mm at 30 m), 0.16" at 164.04' (4 mm at 50 m) |
Laser Distance Measurement System | 100 to 150 MHz |
Laser Meter Type | Coaxial, visible red laser |
Laser Range | 1.64 to 164.04' (0.5 to 50 m) |
Laser Type | Class 2 |
Self-Leveling Range | ±3° |
Viewfinder Magnification | 1x, 2x, 4x, 8x |
Viewfinder Field of View | 1x: 11.15 x 7.02' (3.4 x 2.14 m), 2x: 5.58 x 3.51' (1.7 x 1.07 m), 4x: 2.79 x 1.77' (0.85 x 0.54 m), 8x: 1.38 x 0.89' (0.42 x 0.27 m) |
Bubble Meter Sensitivity | 1°/mm |
Interface | USB micro-B to A, WLAN |
Memory Card | SD |
