Mobile stone crusher stone crushing machine jaw crusher 400x600 for mining quarrying recycling industries
- Category: >>>
- Supplier: Xinxiang Jubao Intelligent Manufacturing Co. Ltd.
Share on (10000014444530):
Product Overview
Description
Products Description

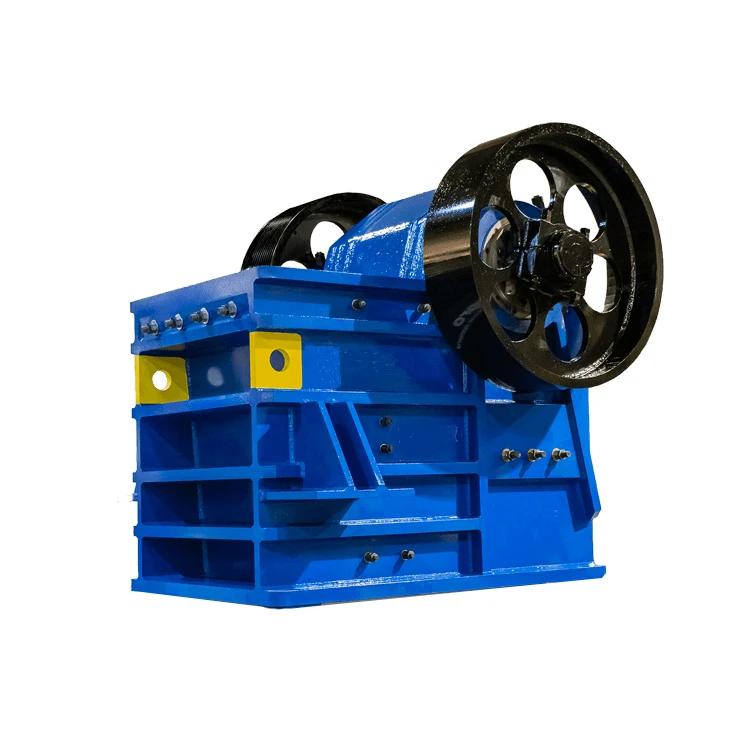

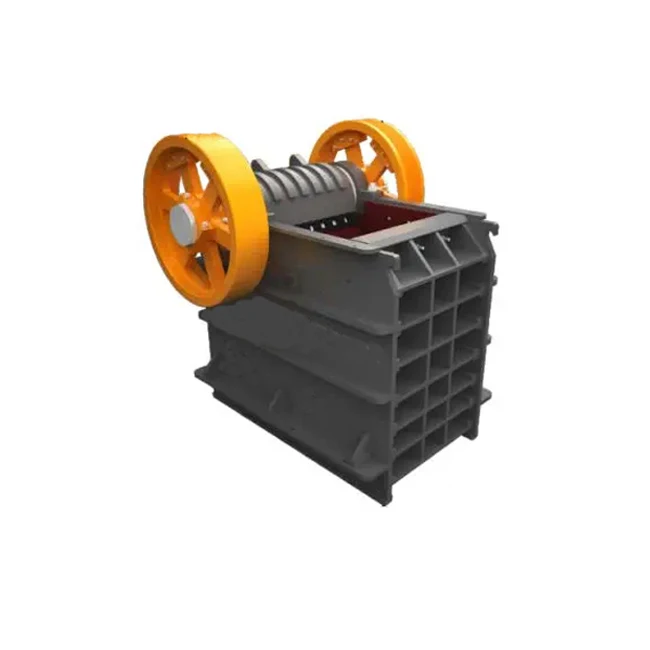

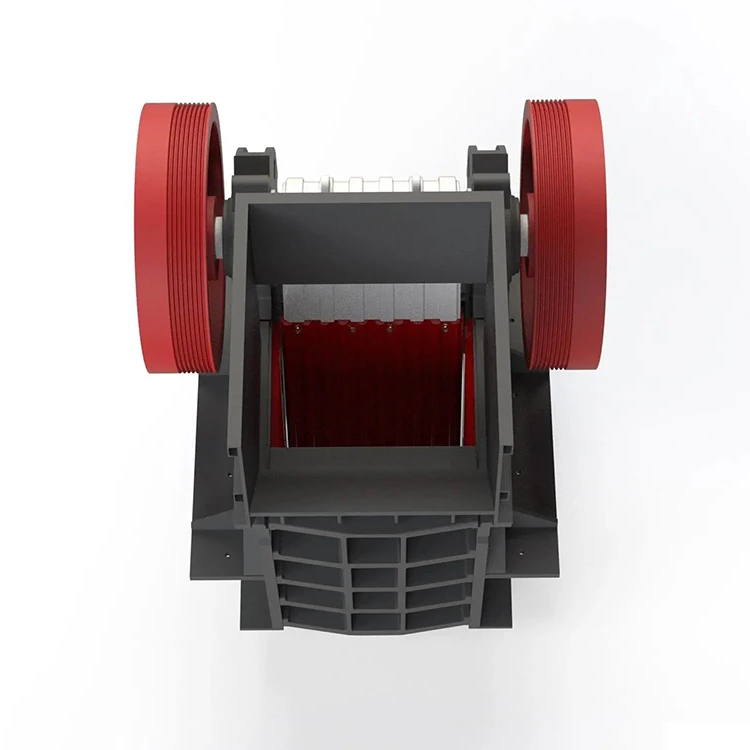

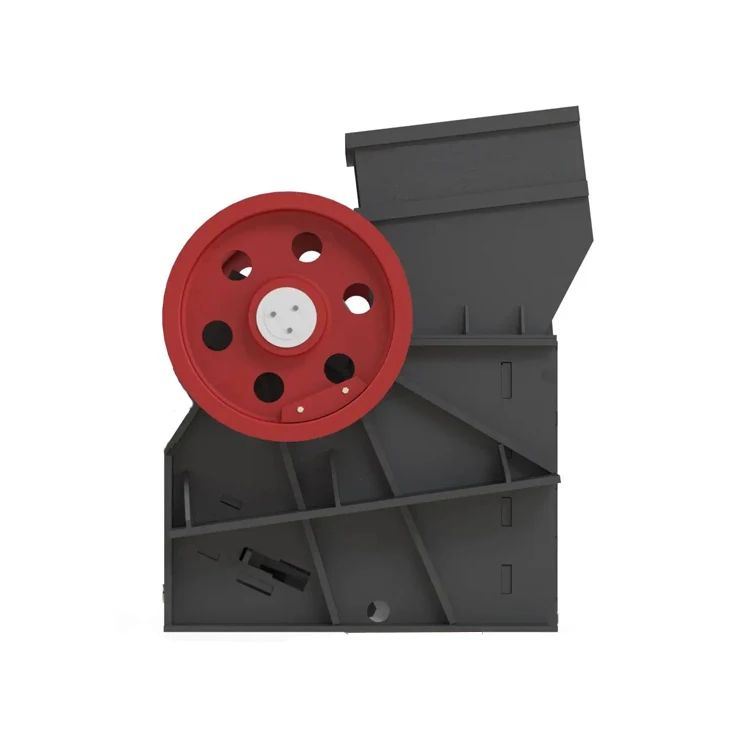

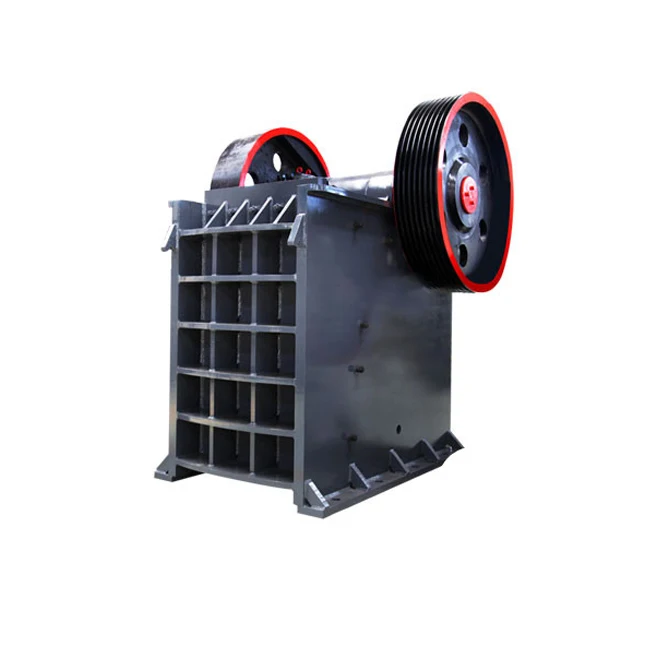

Mobile stone crusher stone crushing machine jaw crusher 400x600
Jaw crusher is mainly used in metallurgy, mining, chemical industry, cement, construction, refractory materials and ceramics and other industrial sectors for medium and fine crushing of all kinds of medium hard ore and rock. It is mainly composed of a frame, eccentric shaft, jaw plate, connecting rod, adjusting mechanism and locking spring. It has the characteristics of large crushing ratio, uniform product granularity, simple structure, reliable work, easy maintenance, economic operating costs and so on. Hubei crusher is widely used in mining, smelting, building materials, highway, railway, water conservancy and chemical industry and many other departments, crushing compressive strength is not more than 320 mpa of all kinds of materials.
Feature of Jaw crusher1. The crushing chamber is deep and has no dead zone, improving the feeding capacity and output.
2, its crushing ratio is large, the product particle size is uniform.
3, gasket type discharge port adjustment device, reliable and convenient, large adjustment range, increase the flexibility of the equipment.
4, the lubrication system is safe and reliable, easy to replace parts, equipment maintenance is simple.
5, simple structure, reliable work, low operating costs.
Device energy saving: The energy saving of a single machine is 15% ~ 30%, and the energy saving of the system is more than double.
6, discharge port adjustment range is large, can meet the requirements of different users.
7, low noise, less dust.
2, its crushing ratio is large, the product particle size is uniform.
3, gasket type discharge port adjustment device, reliable and convenient, large adjustment range, increase the flexibility of the equipment.
4, the lubrication system is safe and reliable, easy to replace parts, equipment maintenance is simple.
5, simple structure, reliable work, low operating costs.
Device energy saving: The energy saving of a single machine is 15% ~ 30%, and the energy saving of the system is more than double.
6, discharge port adjustment range is large, can meet the requirements of different users.
7, low noise, less dust.
Model | Feed port size(mm ) | Max. Feed Size( mm) | Discharge port adjustment range(mm) | Capacity（m/h） | Motor（Kw） | Weight（t） |
PE-250×400 | 250×400 | 210 | 20-60 | 3-13 | 15 | 2.8 |
PE-400×600 | 400×600 | 340 | 40-100 | 10-35 | 30 | 6.5 |
PE-500×750 | 500×750 | 425 | 50-100 | 25-60 | 55 | 10.6 |
PE-600×900 | 600×900 | 500 | 65-180 | 30-85 | 55-75 | 15.5 |
PE-750×1060 | 750×1060 | 630 | 80-180 | 72-150 | 90-110 | 28 |
PE-800×1060 | 800×1060 | 680 | 100-200 | 85-143 | 90-110 | 30 |
PE-870×1060 | 870×1060 | 750 | 170-270 | 145-235 | 90-110 | 30.5 |
PE-900×1060 | 900×1060 | 780 | 200-290 | 170-250 | 90-110 | 31 |
PE-900×1200 | 900×1200 | 780 | 95-255 | 100-240 | 110-132 | 49 |
PE-1000×1200 | 1000×1200 | 850 | 195-280 | 190-275 | 110-132 | 51 |
PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 250-500 | 160 | 100.9 |
PEX-150×750 | 150×750 | 120 | 18-48 | 5-16 | 15 | 3.5 |
PEX-250×750 | 250×750 | 210 | 25-60 | 8-22 | 22 | 4.9 |
PEX-250×1000 | 250×1000 | 210 | 25-60 | 10-32 | 30-37 | 6.5 |
PEX-250×1200 | 250×1200 | 210 | 25-60 | 13-38 | 37 | 7.7 |
PEX-300×1300 | 300×1300 | 250 | 20-90 | 10-65 | 75 | 11 |

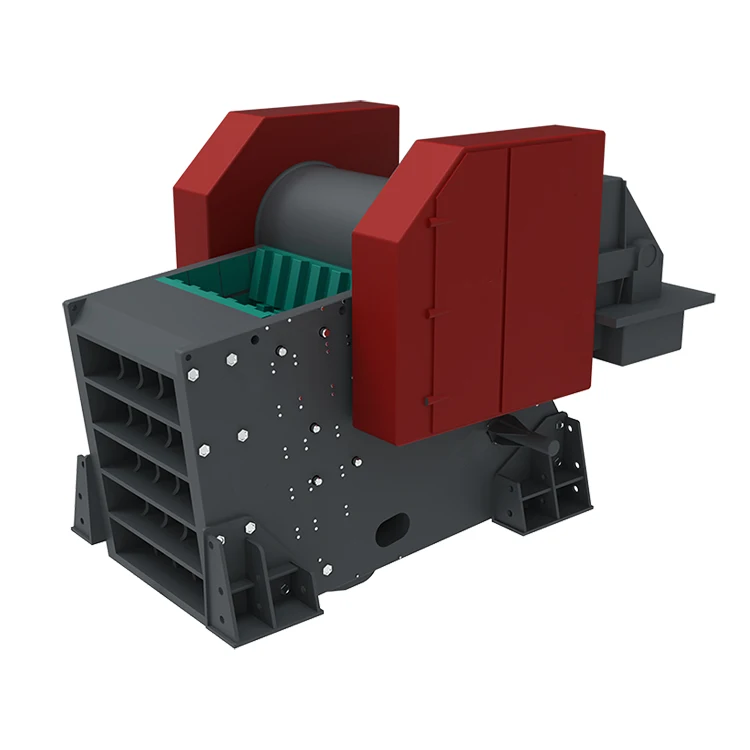

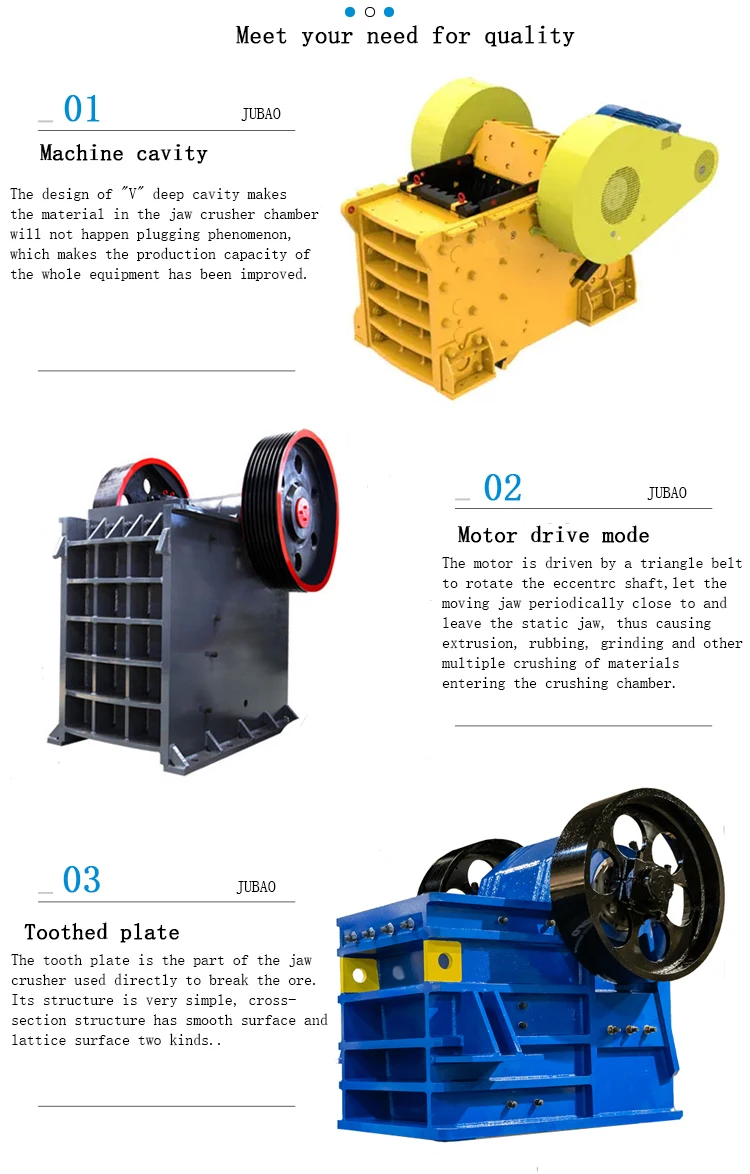

Detail display
* Each part of the machine can be customized based on your need.
Company Profile

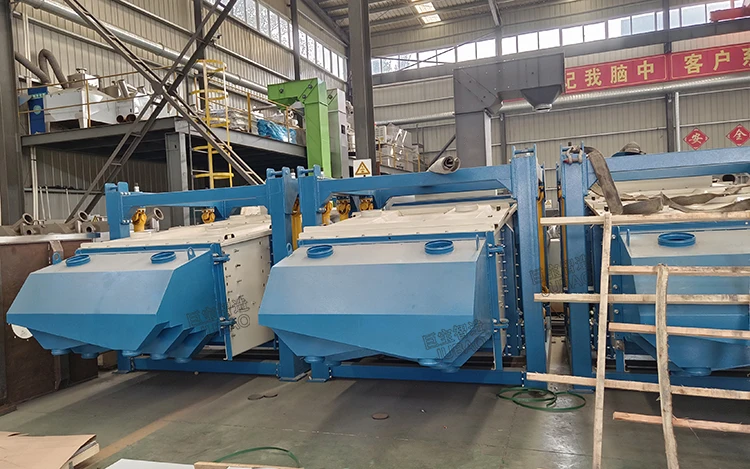

Located in China's vibration screening industry base (Xinxiang city), Jubao Intelligent Manufacturing Co., Ltd. has become a leading enterprise in screening industry after over 10 years’fast development. Every year, Jubao provides more than 2000 sets screening equipment and systems to hundreds of customers around the world,such as the United States, the United Kingdom, Germany, Russia, Greece, Singapore and other countries and regions.
Our equipment is widely used in chemical, abrasive, ceramics, ceramics, paper making, mining, paint, metallurgy, geology, national defense, electronics and other industries. Mass production, Fast delivery, Stable quality, Affordable price and Intimate service has become the labels of Jubao, Jubao intelligent manufacturing -your excellent option for sieving,dust-free conveying and intelligent integrated.

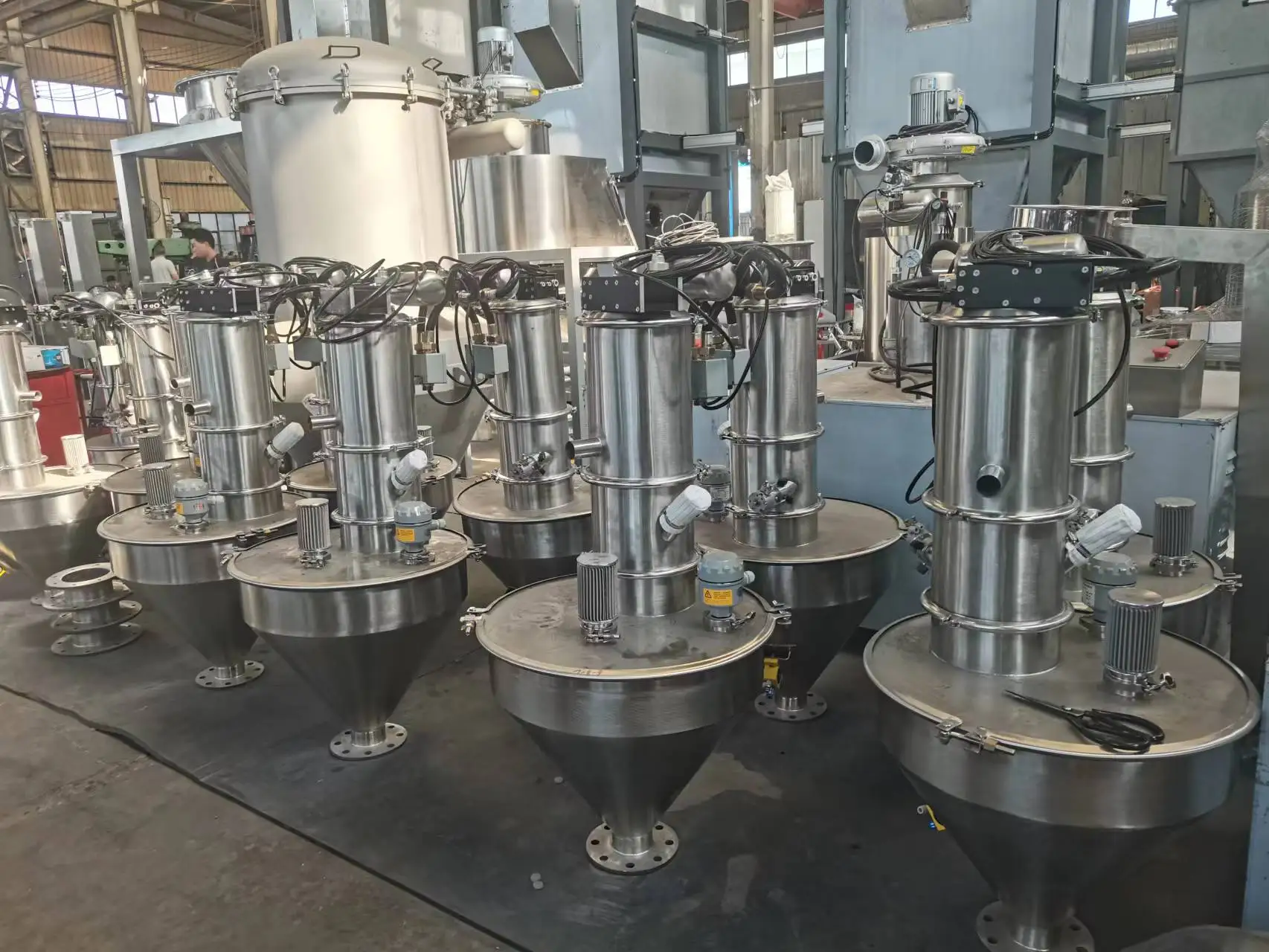

* Contact us for a free video tour of our factory
Service and Ordering
Our service
1. 24 hours online chat
2. Customization Acceptable
3. CE & ISO9001 Certification
4. Complete sales & Service system
5. Fast delivery ,Strictly check
6. 12 months warranty
