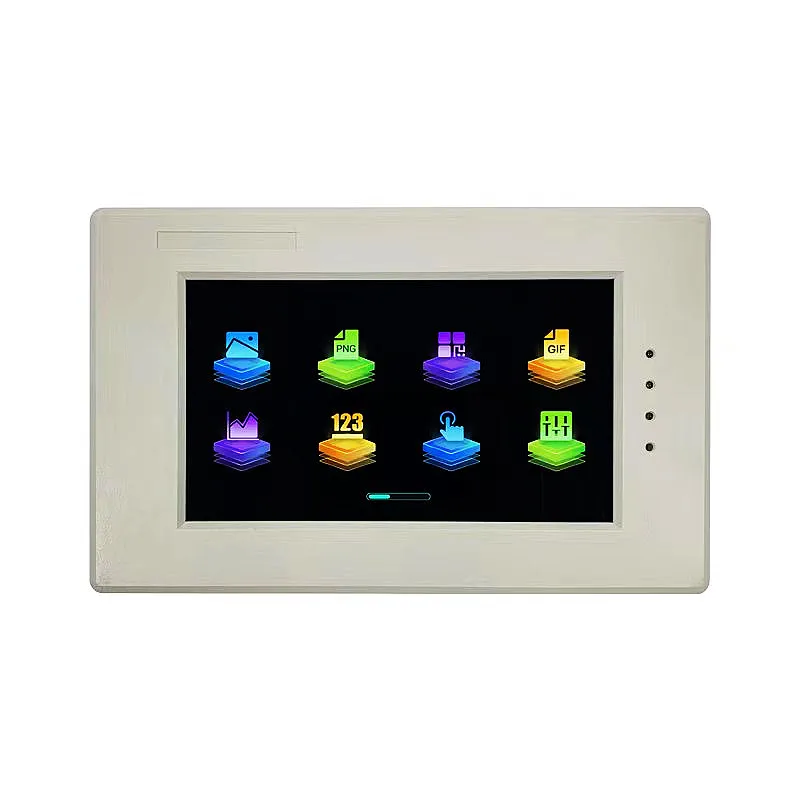

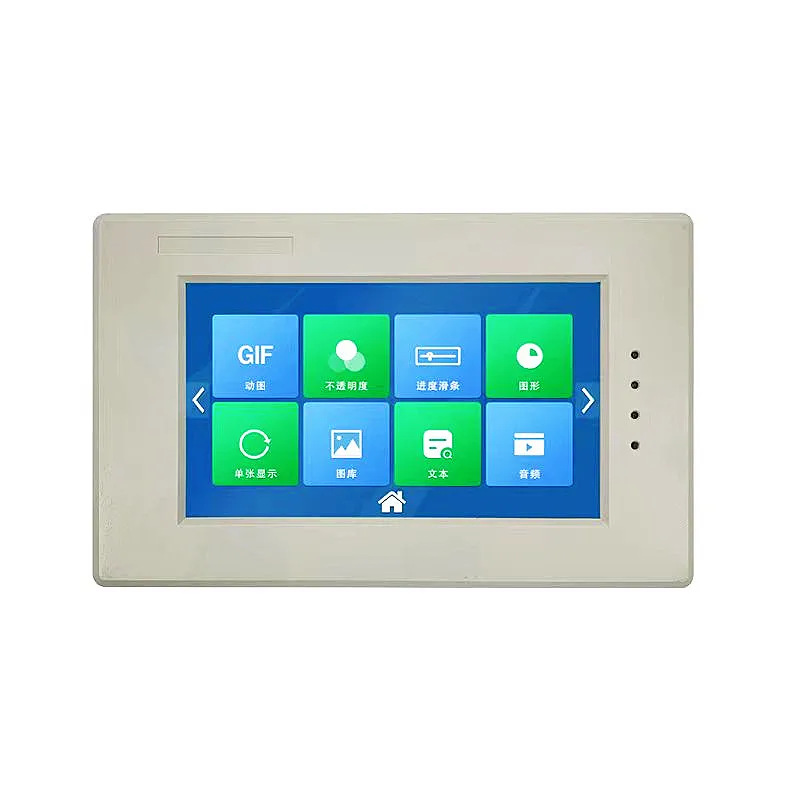

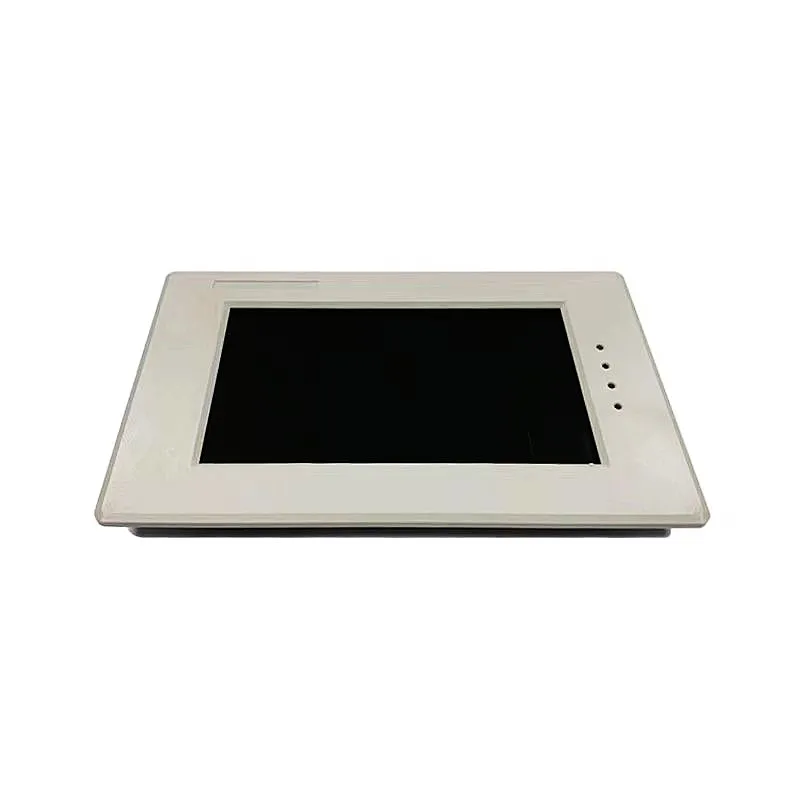

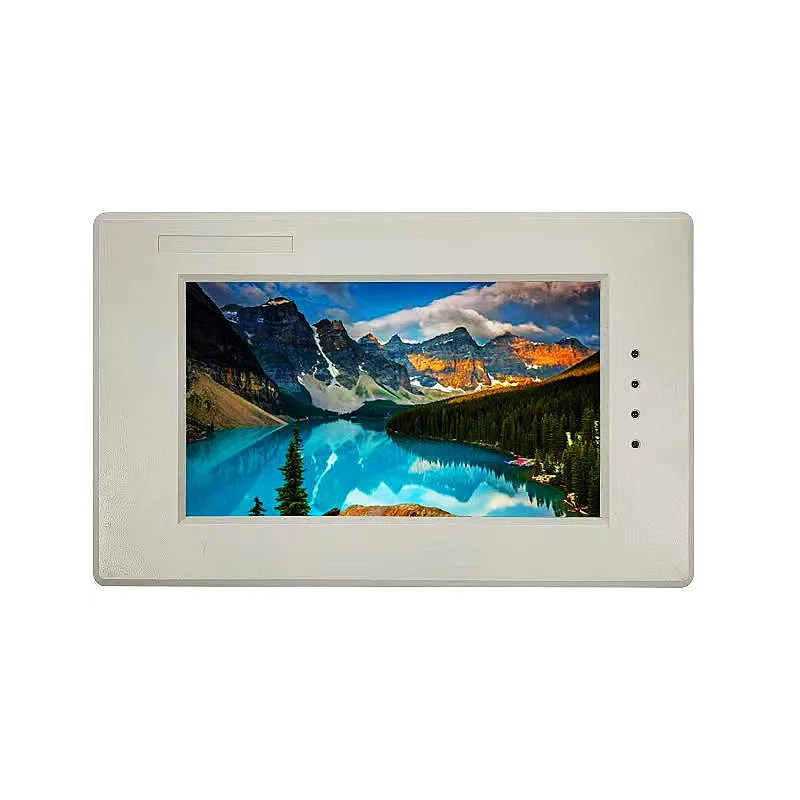

Factory Direct 7 Inch LCD Custom Screen Uart TFT LCD Display Monitor 800*480 PCBA Control Board
- Category: >>>
- Supplier: Shenzhen Yes-Display International Technology Co. Ltd.
Share on (10000014604549):
Product Overview
Description
Factory Direct 7 Inch LCD Custom Screen Uart TFT LCD Display Monitor 800*480 PCBA Control Board
Brief Introduction
the remote mainboard interface port (Uart) com mand, then based on the defined commands to show images or animations, remote moth
erboard MCU don't need to write complex applications for showing images.

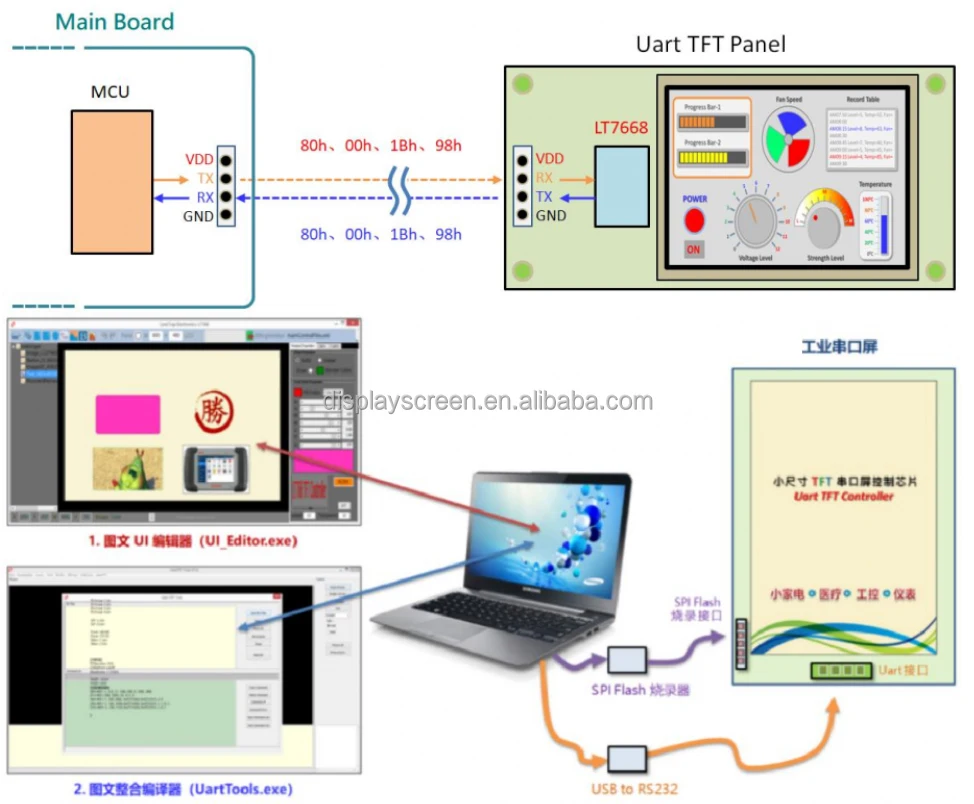

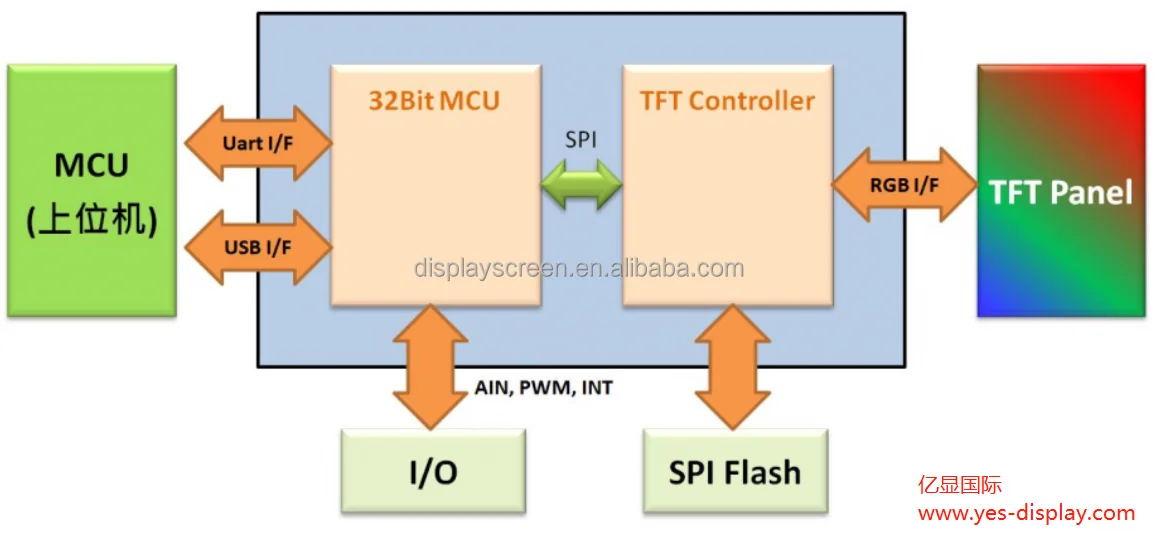

TFT Panel and remote MCU mainly communicate through RS232 or RS485 interface. If the distance between the remote MCU and TFT Panel
is very close (~30cm), the Uart output and input of the remote MCU can be directly connected to the TFT panel, as sho wn in the
following diagram:
is very close (~30cm), the Uart output and input of the remote MCU can be directly connected to the TFT panel, as sho wn in the
following diagram:
Product Parameters | ||||||||
MCU Chip-Set | 32 ARM MCU | |||||||
Protocol type | UART/TTL | |||||||
Size | 7.0 inch | |||||||
Resolution | 800*480 | |||||||
Storage Space | 16Mbit / 128Mbit | |||||||
Font library | Built-in vector font, edge anti-aliasing processing, including any size bitmap ASCII, GBK, GB2312 | |||||||
Photo storage | Support JPEG, PNG (half through/full through) compression, support arbitrary size image storage, support image rotation, zoom, zoom and other functions. The image compression ratio is different, this value will float up and down; | |||||||
Color | 65K，24Bit RGB | |||||||
Voltage | 5.0V /3.3V | |||||||
Power consumption | Back Light Power ON：3.5W； Back Light Power off：1.6W | |||||||
Communicatio n interface | RS232/TTL(Default TTL) | |||||||
Interface Specification | PH2.54-6P | |||||||
RTC | RTC | |||||||
LCD Display parameters | ||||||||
LCD type | 7.0 inch display | |||||||
Back light | LED | |||||||
brightness（cd/m²） | 300 | |||||||
Back light life time（h） | >30,000 | |||||||
Contrast | 400:1 | |||||||
View Angle（L/R/T/B） | 70/70/60/70 | |||||||
Touch Panel Parameters | ||||||||
Touch panel type | RTP / CTP | |||||||
Touch Way | Single, touch | |||||||
Light Transmittance | 80% | |||||||
Touch Times | 1,000,000 times | |||||||
Environmental testing and certification | ||||||||
Operating temperature | -20～+70℃ | |||||||
Storage temperature | 30～+80℃ | |||||||
Vibration test | 10 to 25Hz(X,Y,Z direction 2G 30) | |||||||
ESD Test | Air=±8KV，Contact=±4KV | |||||||
High and low temperature test | The experimental temperature:60℃±3℃ 72H/-10℃±3℃ 72H ； The humidity:50℃±3℃,90%±3% RH 72H | |||||||
Certification | ROHS 、 CE (EMI:EN55022 Class-B） | |||||||
Our Advantages
100,000 kind of TFT LCD Display Complete Solution Manufacturer
1.We are a professional designer manufacturer of LCD module,LCD display,UART display and capacitive touch module .
2.We have the IATF16949 certificate issued by TUV, which can produce automotive-grade LCD display modules that are higher in impact resistance, reliability, consistency, life and manufacturing standards than ordinary industrial products.
3.We are good at ODM and OEM, product specification,LOGO and packaging can be customized.
4.We are good at the development of display module in the industrial field and provide the total solution of capacitive screen.

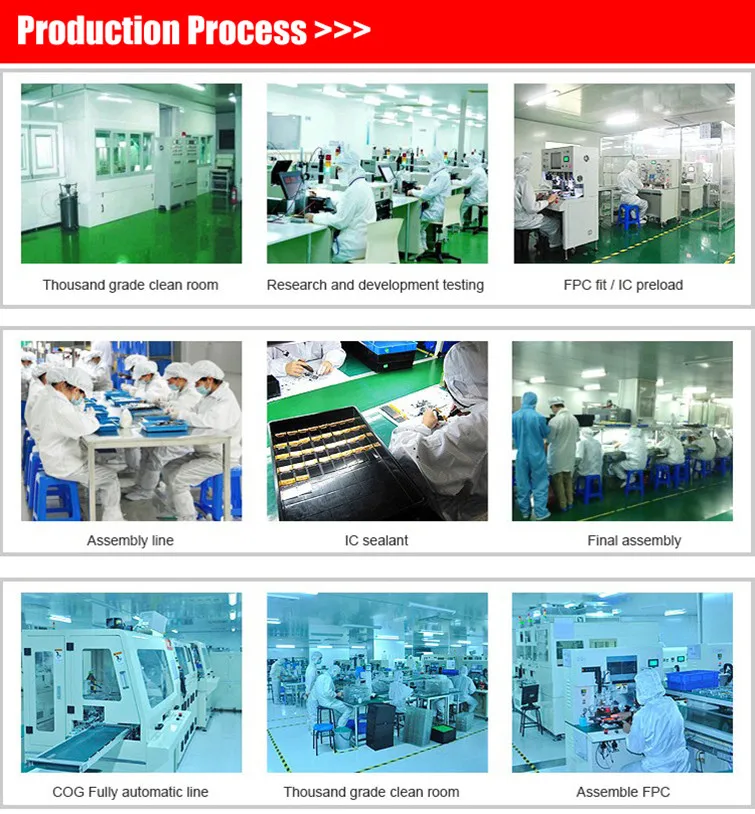

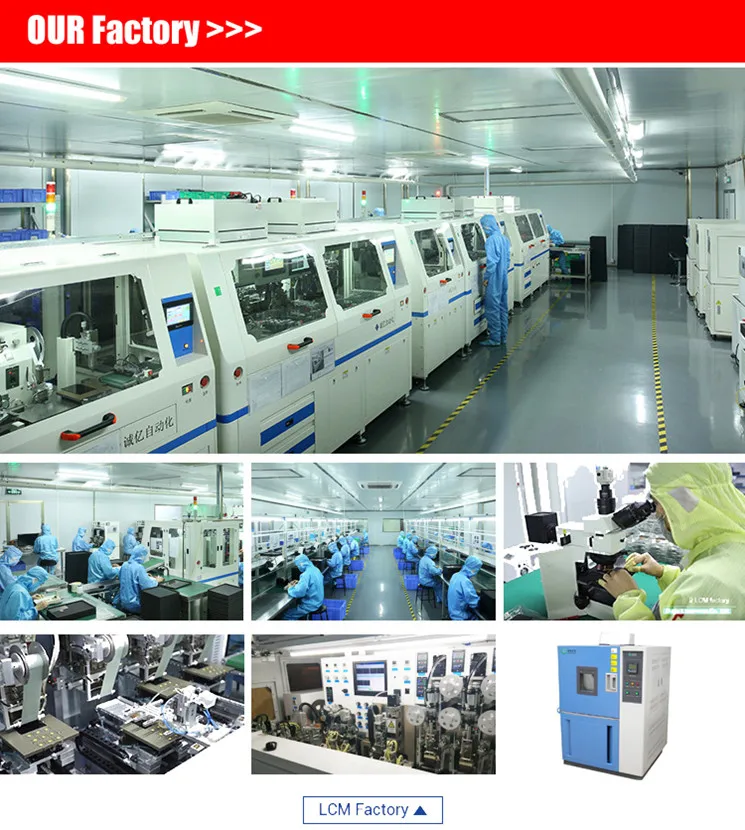

5.We have 3 production lines, with shipment of more than 3,000,000 pieces per year.
6.Our products can support long-term supply,Maximum supply cycle is 5-10 years.
7.We combine touch screen technology with LCD display module, which greatly saves your cost. Perfect after-sales service will be one of the reasons why you choose us.
1.We are a professional designer manufacturer of LCD module,LCD display,UART display and capacitive touch module .
2.We have the IATF16949 certificate issued by TUV, which can produce automotive-grade LCD display modules that are higher in impact resistance, reliability, consistency, life and manufacturing standards than ordinary industrial products.
3.We are good at ODM and OEM, product specification,LOGO and packaging can be customized.
4.We are good at the development of display module in the industrial field and provide the total solution of capacitive screen.
5.We have 3 production lines, with shipment of more than 3,000,000 pieces per year.
6.Our products can support long-term supply,Maximum supply cycle is 5-10 years.
7.We combine touch screen technology with LCD display module, which greatly saves your cost. Perfect after-sales service will be one of the reasons why you choose us.
ShenZhen Yes-Display international Technology CO.,LTD.
As a high-tech company, Shenzhen Yes-display International Technology Co., Ltd. mainly provides clients with the service of
designing liquid crystal display panels (LCD) and liquid crystal display modules (LCM). Our company is committed to the
customization service, R&D, sale and after-sales service of LCD and TFT display products.At present, our company has a team of
more than 100 employees. Our products include monochrome LCD (TN and STN), color LCD (CSTN and TFT) and LCD modules (both COG and
COB). Our products are widely used in PDA, Telecommunication terminals, medical equipment, meters and apparatus. We have an annual
turnover of hundreds of millions of Yuan.
designing liquid crystal display panels (LCD) and liquid crystal display modules (LCM). Our company is committed to the
customization service, R&D, sale and after-sales service of LCD and TFT display products.At present, our company has a team of
more than 100 employees. Our products include monochrome LCD (TN and STN), color LCD (CSTN and TFT) and LCD modules (both COG and
COB). Our products are widely used in PDA, Telecommunication terminals, medical equipment, meters and apparatus. We have an annual
turnover of hundreds of millions of Yuan.

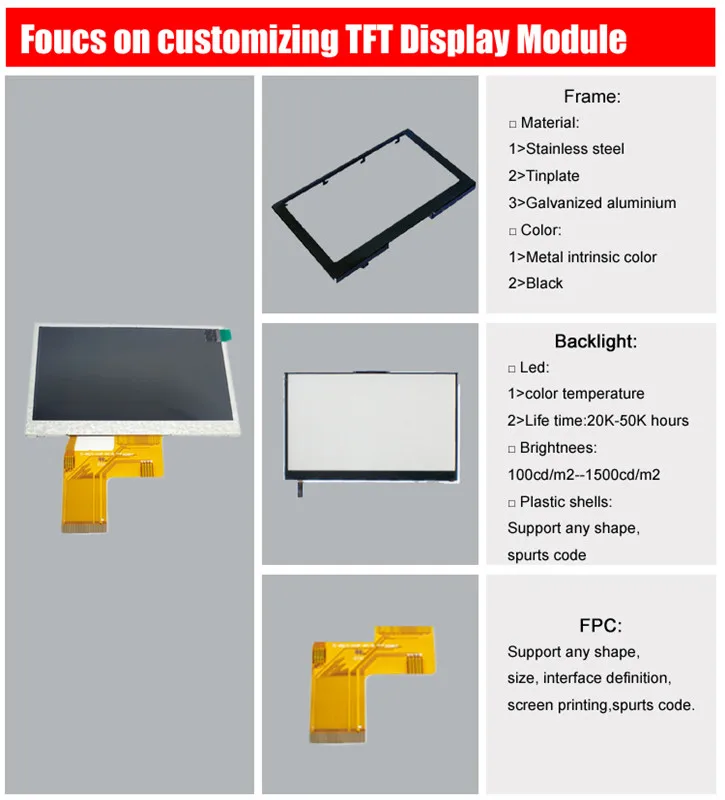

TFT LCD Display Module
We can according to your demand to customized your display.
Such as:
1.Customized the frame,、
2.Backlight brightness,
3.Backlightshape,
4.long-life led wick,
5.FPC shape and interface definition,
6.Silk-printing your Logo and so on.
1.Customized the frame,、
2.Backlight brightness,
3.Backlightshape,
4.long-life led wick,
5.FPC shape and interface definition,
6.Silk-printing your Logo and so on.

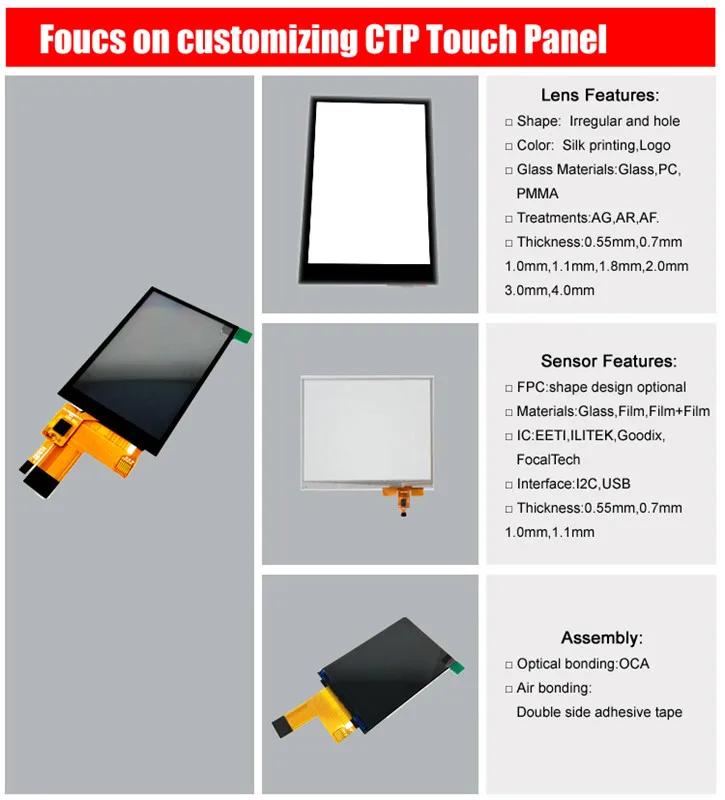

CTP Touch Panel Touch Screen
We can according to your demand to customized your touch screen.
Such as:
1.Customized cover glass's shape,
2.Silk-printing color,
3.Touch with water,
4.With salt water touch,
5.With gloves and so on.
1.Customized cover glass's shape,
2.Silk-printing color,
3.Touch with water,
4.With salt water touch,
5.With gloves and so on.
Lead Time | ||||
Samples (1-30 PCS ) | Immediately , most case | |||
31-100 PCS | 1 Week | |||
101- 500 PCS | 1-2 Weeks | |||
501-1000 PCS | 2-4 Weeks | |||
1001-5000 PCS+ | 4-6 Weeks | |||
FAQ
Q1: Are you a manufacturer?A1: Yes. Yes-display international is a 10 years experience manufacturerQ2: Do you have own technology team?
A2: Yes. We have own engineer team.
Q3: How about your product’s quality?
A3: Our customer satisfaction is 88%.The first passyield is 99.8%. The return rate less than 2.5%. Our energizer have passed CE
certificate, GB/T7946-2015,GA/T1032-2013 standard.
Q4: Can you offer customization service?
A4: Yes. OEM and ODM acceptable.
Q5: Could you give me a competitive price?
A5: Of curse. We looking forward to a long term relationship with you.
A2: Yes. We have own engineer team.
Q3: How about your product’s quality?
A3: Our customer satisfaction is 88%.The first passyield is 99.8%. The return rate less than 2.5%. Our energizer have passed CE
certificate, GB/T7946-2015,GA/T1032-2013 standard.
Q4: Can you offer customization service?
A4: Yes. OEM and ODM acceptable.
Q5: Could you give me a competitive price?
A5: Of curse. We looking forward to a long term relationship with you.
