Product Overview
Description
Specification
PLCC 2 1608 Yellow Green LED
AP1608T-20LEYG
Product Description
Applications
* Dimension: 1.60mm×0.80mm×0.55mm
* Top view LED Type PLCC 2 Package
* RoHS compliant lead-free soldering compatible
* JEDEC-MSL 3
* Top view LED Type PLCC 2 Package
* RoHS compliant lead-free soldering compatible
* JEDEC-MSL 3
*Back light for GPS
*Back light for automotive
*General use
*Back light for automotive
*General use

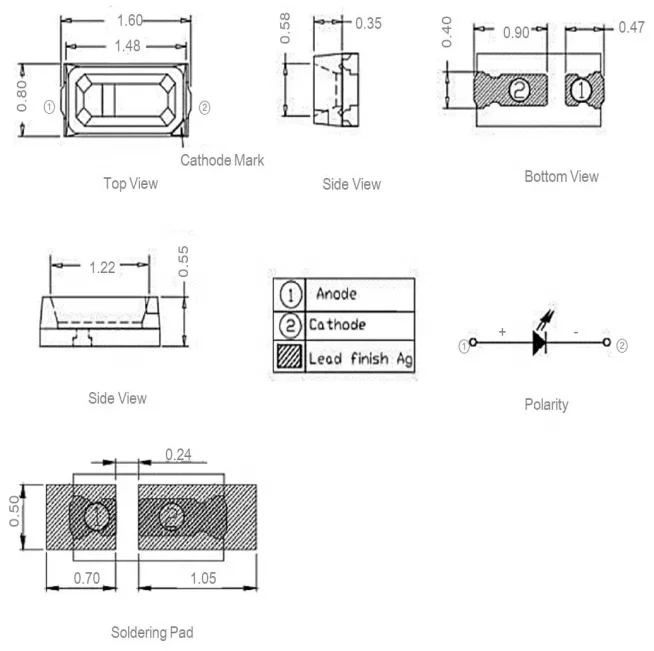

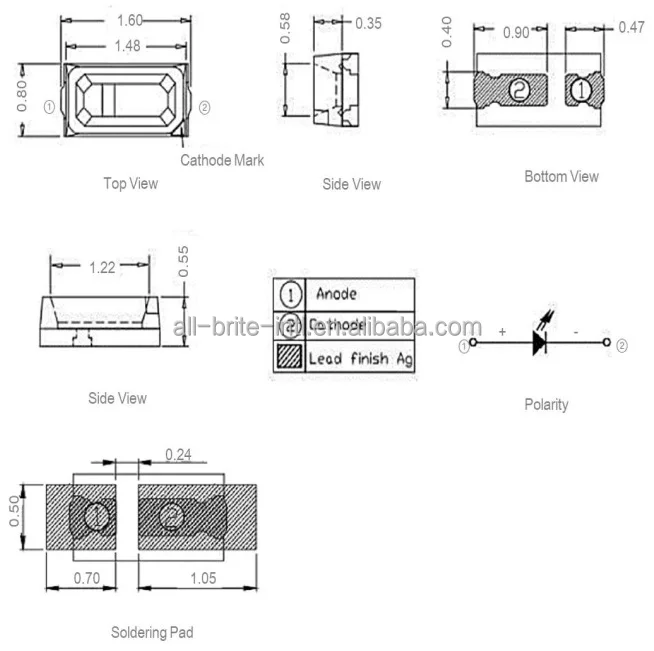

Package Outline Dimensions
Luminous Color
Absolute Maximum Ratings(Ta=25℃)
Parameter | Symbol | Rating | Unit | |
Power Dissipation | Pd | 58 | mW | |
Peak Forward Current | IFP | 60 | mA | |
DC Forward Current | IF | 20 | mA | |
Reverse Voltage | VR | 5 | V | |
Electrostatic Discharge(HBM) | ESD | 2000 | V | |
Operating Temperature Range | Topr | -40℃ ~ +85℃ | ||
Storage Temperature Range | Tstg | -40℃ ~ +105℃ | ||
Tsol | Reflow(hand) soldering : 260°C(300°C )For 10 (3)Seconds | |||

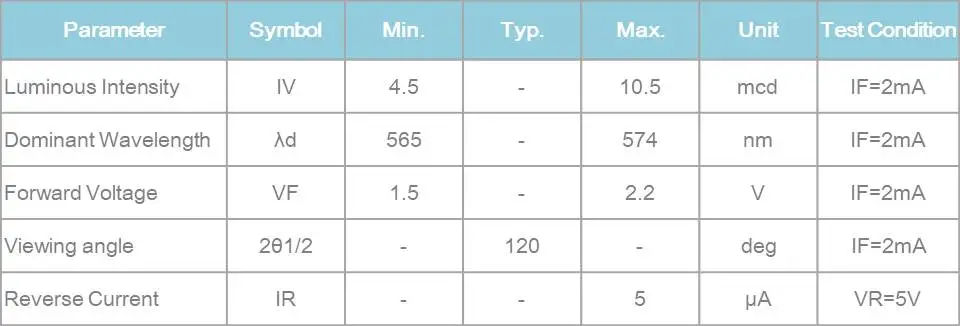

Electro-Optical Characteristics(Ta=25℃)
Application
