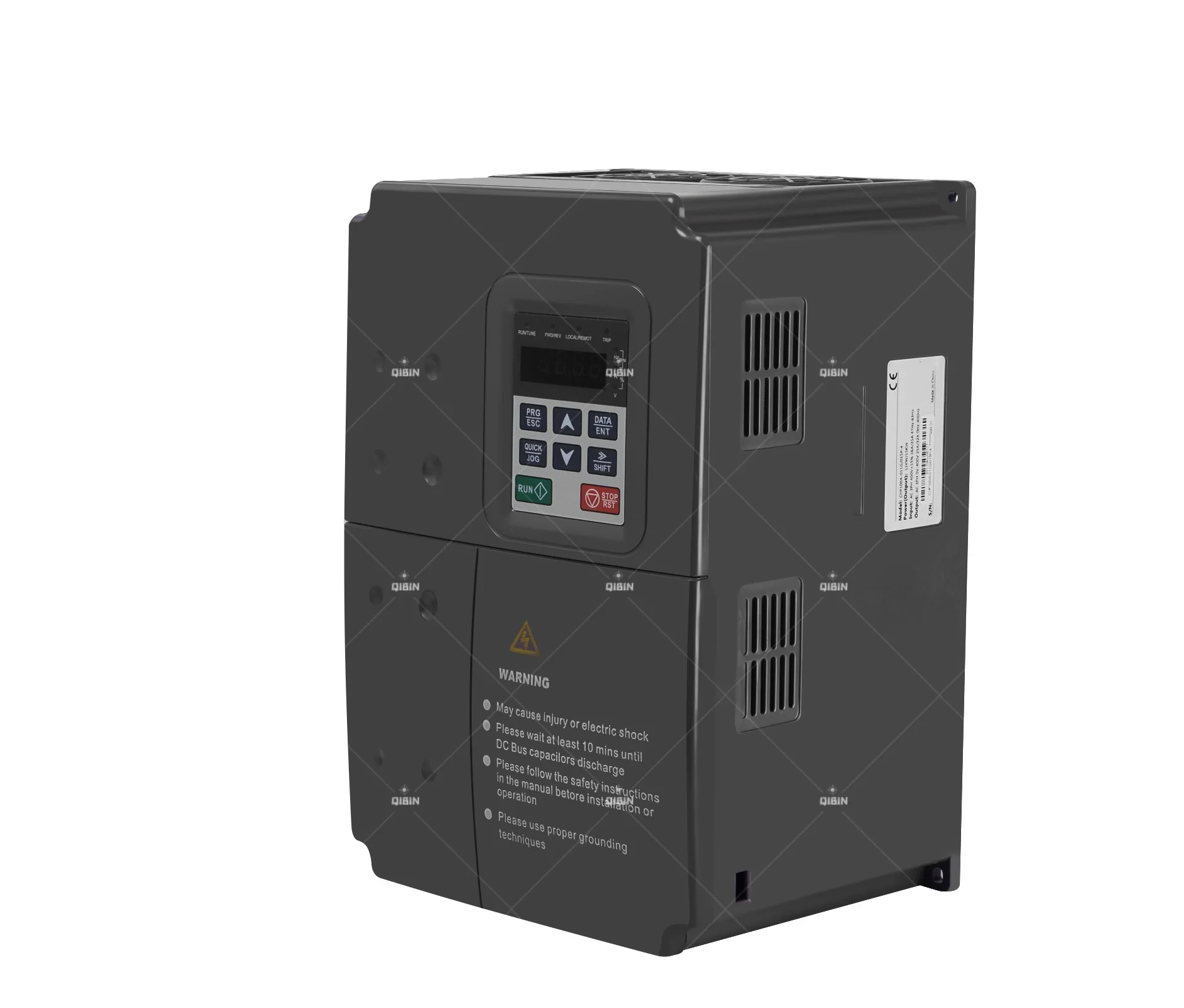

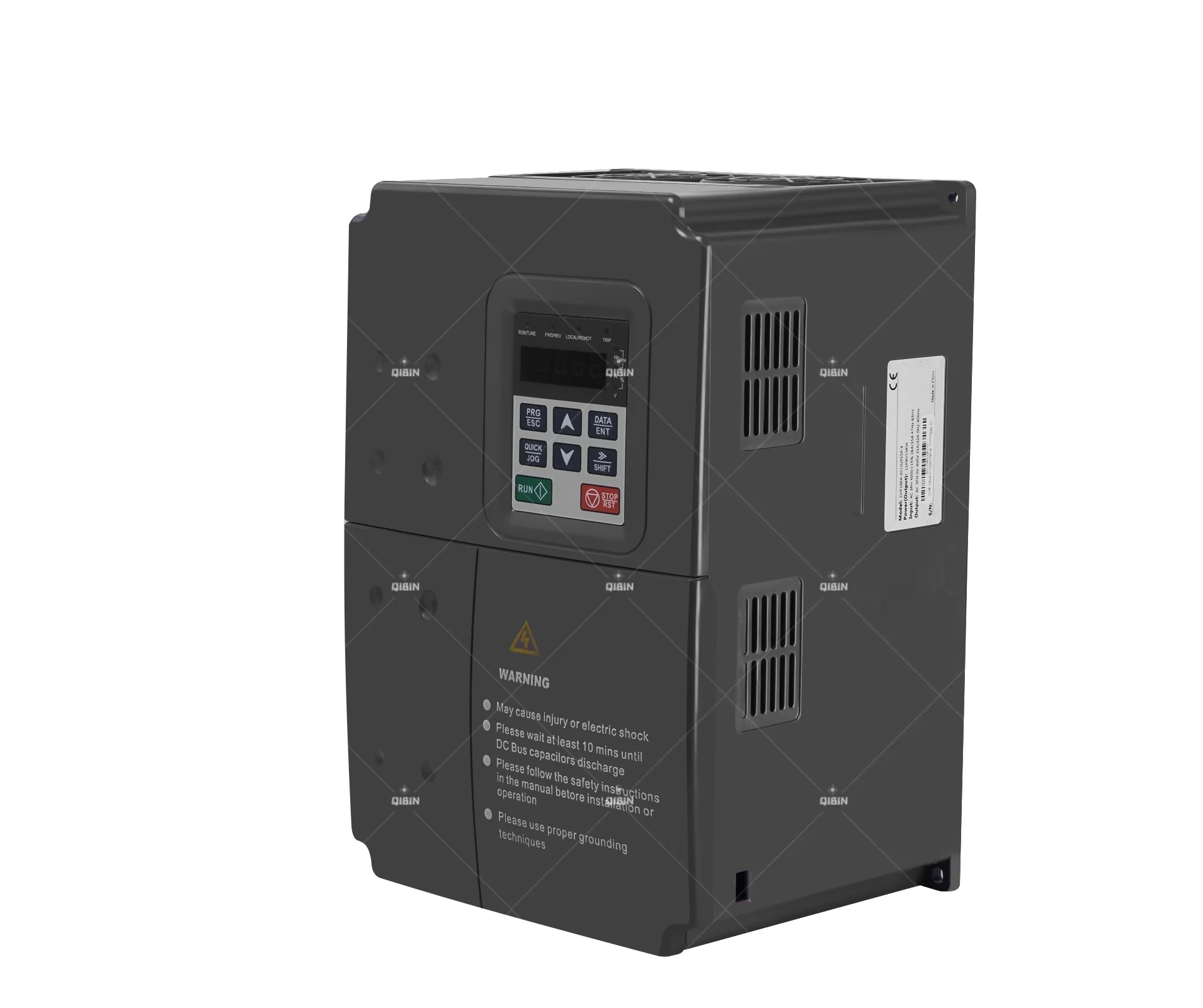

  • Solar Pool Pump Inverter MPPT 3 Phase 380V 75kW PV Pump Drive vsd for Water Storage and Supply
Solar Pool Pump Inverter MPPT 3 Phase 380V 75kW PV Pump Drive vsd for Water Storage and Supply
Solar Pool Pump Inverter MPPT 3 Phase 380V 75kW PV Pump Drive vsd for Water Storage and Supply
Solar Pool Pump Inverter MPPT 3 Phase 380V 75kW PV Pump Drive vsd for Water Storage and Supply
Solar Pool Pump Inverter MPPT 3 Phase 380V 75kW PV Pump Drive vsd for Water Storage and Supply
Solar Pool Pump Inverter MPPT 3 Phase 380V 75kW PV Pump Drive vsd for Water Storage and Supply
Solar Pool Pump Inverter MPPT 3 Phase 380V 75kW PV Pump Drive vsd for Water Storage and Supply
Solar Pool Pump Inverter MPPT 3 Phase 380V 75kW PV Pump Drive vsd for Water Storage and Supply

Solar Pool Pump Inverter MPPT 3 Phase 380V 75kW PV Pump Drive vsd for Water Storage and Supply

Share on (10000015012698):


Price:$795.00 - $805.00

Quantity:


Product Overview

Description



Product Description

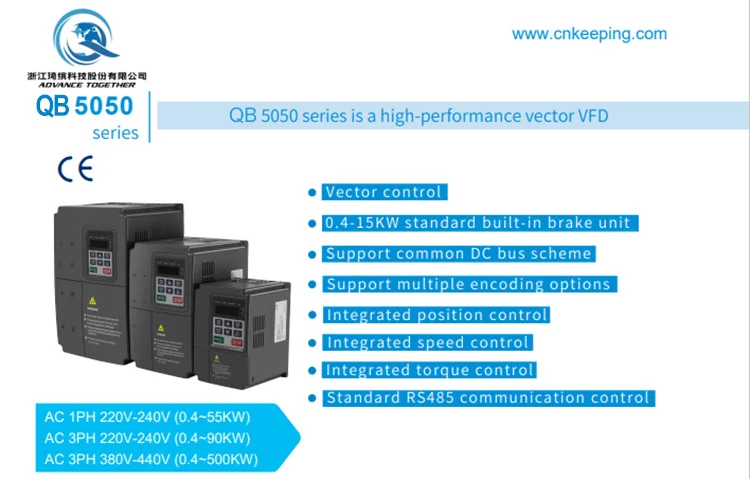

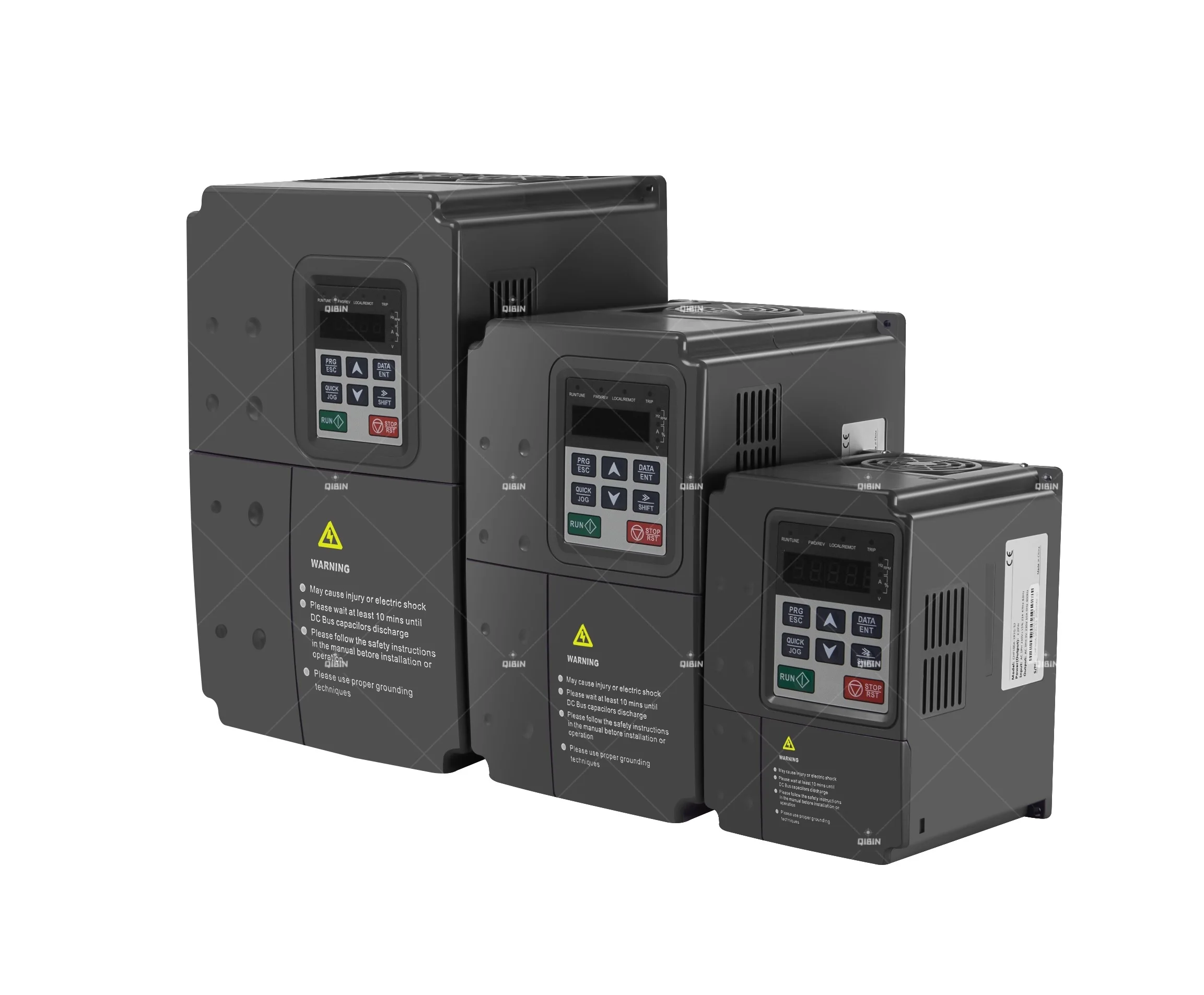

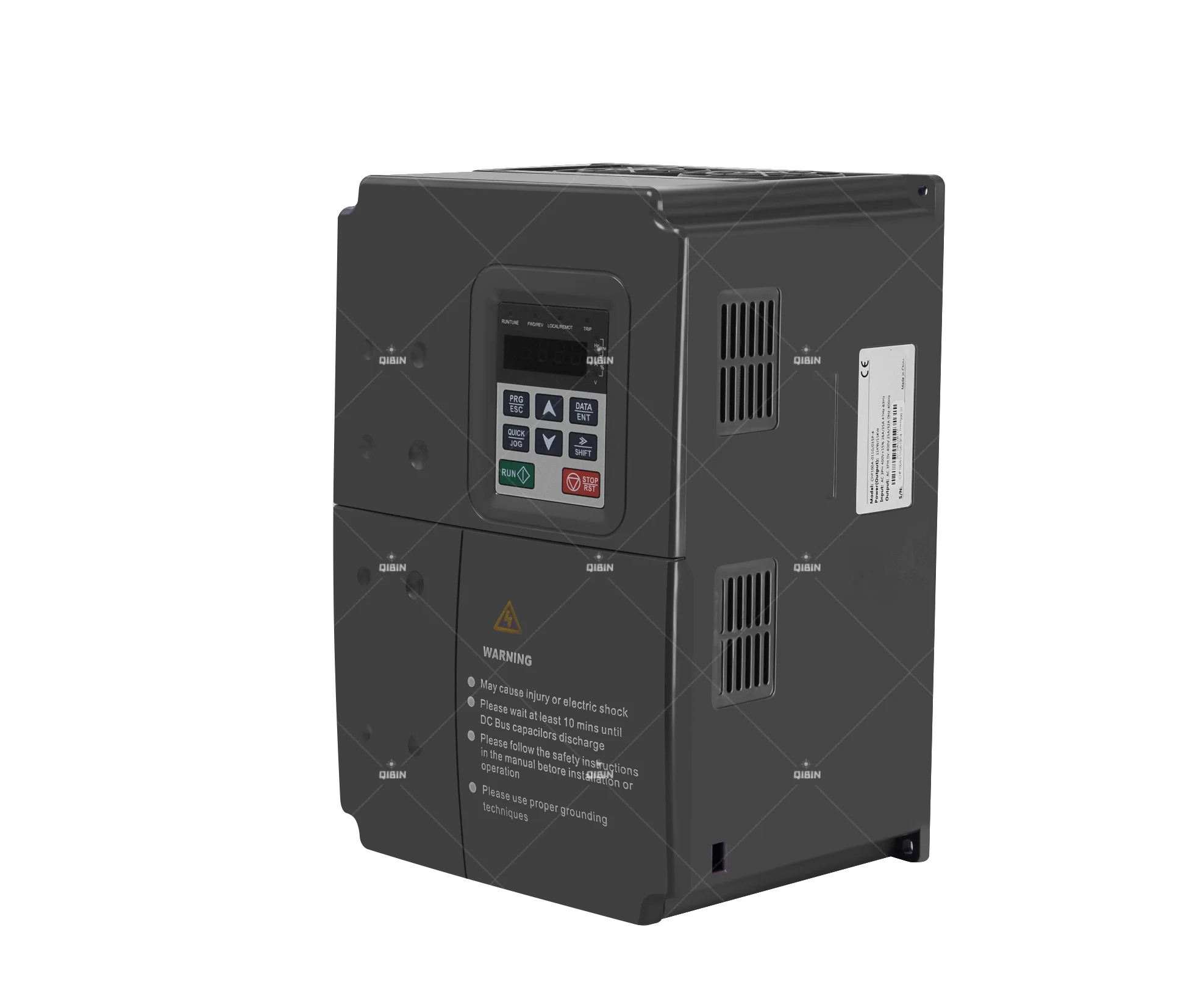

QB5050 Series AC drive/VFD
QB5050 Series inverters are high performance open loop vector inverters for controlling AC induction asynchronous motors. Advanced senseless vector control technology which follows the leading international technology and DSP control system are used. The inverters are reliable to environment adaptability, customized and industrialized design with more optimized functions, more flexible application and more stable performance.


Application








Specification


VFD Model
Input Voltage
Rated Output Power(KW)
Rated Input Current(A)
Rated Output Current(A)
Applicable Motor(KW)
QB5050-0R4G-SS2-PV







Single Phase 220V
0.4
6.5
4.2
0.4
QB5050-0R7G-SS2-PV
0.75
9.3
7.2
0.75
QB5050-1R5G-SS2-PV
1.5
15.7
10.2
1.5
QB5050-2R2G-SS2-PV
2.2
24
14
2.2
QB5050-0R4G-S2-PV
0.4
6.5
2.5
0.4
QB5050-0R7G-S2-PV
0.75
9.3
4.2
0.75
QB5050-1R5G-S2-PV
1.5
15.7
7.5
1.5
QB5050-2R2G-S2-PV
2.2
24
10
2.2
QB5050-1R5G-2-PV



Three Phase 220V
1.5
7.7
7.5
1.5
QB5050-2R2G-2-PV
2.2
11
10
2.2
QB5050-004G-2-PV
4.0
17
16
4.0
QB5050-5R5G-2PV
5.5
25
20
5.5
QB5050-7R5G-2-PV
7.5
33
30
7.5
QB5050-0R7G-4-PV













Three Phase 380V
0.75
3.4
2.5
0.75
QB5050-1R5G-4-PV
1.5
5.0
4.2
1.5
QB5050-2R2G-4-PV
2.2
5.8
5.5
2.2
QB5050-004G-4-PV
4.0
13.5
9.5
4.0
QB5050-5R5G-4-PV
5.5
19.5
14
5.5
QB5050-7R5G-4-PV
7.5
25
18.5
7.5
QB5050-011G-4-PV
11
32
25
11
QB5050-015G-4-PV
15
40
32
15
QB5050-018G-4-PV
18.5
47
38
18.5
QB5050-022G-4-PV
22
51
45
22
QB5050-030G-4-PV
30
70
60
30
QB5050-037G-4-PV
37
80
75
37
QB5050-045G-4-PV
45
94
92
45
QB5050-055G-4-PV
55
128
115
55
QB5050-075G-4-PV
75
160
150
75
QB5050-090G-4-PV
90
190
180
90
QB5050-110G-4-PV
110
225
215
300


Technical Specification


Function description
Specification indexes
Control nature
Control mode
Control Without PG Vector,V/F Control,Torque control
Start torque
0.5Hz 150%(SVC)
1.0Hz 150%(V/F)
Speed adjustable range
1:100(SVC)
Stable speed precision
±0.5%Max speed(SVC)
Product functions
Important function
RPM track,Torque limitation,Multi-step speed,automatic self-adjustment,Slip compensate,PID adjust,Sagged control,Current control,
Torque boost,Multifunctions input /output terminal
Frequency given way
Keyboard,upper computer,Analog AI1/AI2,Terminal pulse HDI,Multi-step speed and PLC,PID,The combination of multi-modes and the
switch between different modes can be realized.
Frequency Range
0.00-400.00Hz
Acc and Dec time
0.1-3600.0s
Dynamic braking
DC braking start frequency:0.00-400.00Hz;DC braking current:0.0-150%;DC braking time:0.0-50.0s;Noneed for DC braking start
waitting time,realize quickly braking
Special function
Multifunctions shortcut key
Multifunctions shortcutkey can be seted for these operation:JOG inching,REV and FWD,Clear UP/DOWN set,left shift key display the
status,Quickly debug mode
Multi menu mode
Basic menu mode,Fast menu mode
Common DC bus
Many frequency inverters Common DC bus,Energy automatic equilibrium
Swing frequency control
Multi pyramidal wave frequency control
Counting control
Counting function
Protection function
Overcurrent,Overvoltage,Undervolage,Over temp,Phase lack,Overload
Environment
Operation Place
Indoor,hide sunshine,No dust,Corrosive gas,combustible gas,Oil mist,Water vapor,salinity
Altitude
<1000m
Temperature
-10ºC~+40ºC(temperature at 40ºC~50ºC,Drop the forehead use)
Humidity
<95%RH,No droplet
Vibration
<5.9m/s2(0.6g)
Stock
-20ºC~+60ºC


Company Profile

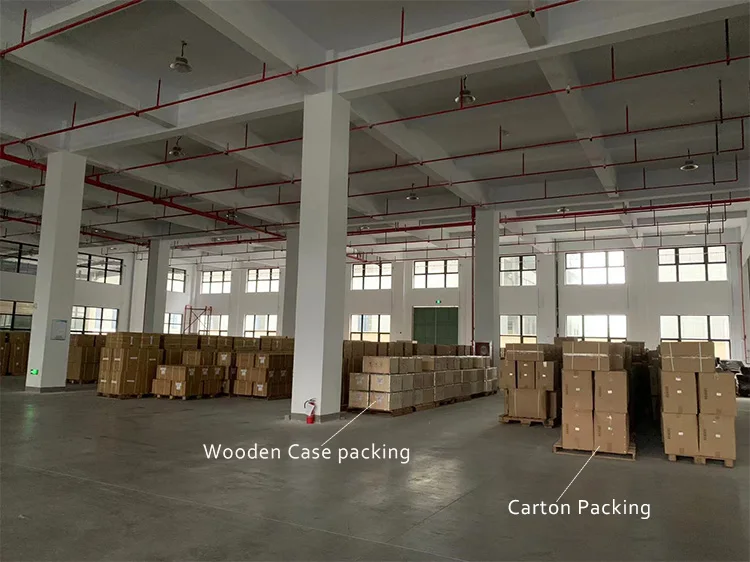

Packing & Delivery




To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.




FAQ


1. Who we are?
We are a professional manufacturer in Zhejiang, China, with 15 years' exporting experience.

2. How can we guarantee quality?
Our company has been audited and approved by ISO9001,CE.Quality is priority, we always attach the importance to quality control the quality from raw materials to the entire production.Every product will be fully assembled and carefully inspected before packing and shipping.

3. What you can buy from us?
Variable Frequency Inverters/drives, VFD/VSD, Genernal Purpose Inverters, Solar Water Pump Inverters, elevator inverters.

4. Why us?
We are a professinal inverters manufacturer, engaged in R&D, producing and sales. With good quality, competitive price and satisfactory after-sales service, our products are exported all over the world and used widely in solar system, elevator system and industrial machines.

5. What services we can provide?
Delivery Terms: FOB, EXW, DAP
Payment Currency: USD, EUR, CNY
Payment Terms: T/T, L/C
Language Spoken: Chinese, English.

6. What's the delivery time?
For samples: After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 5-7 days.
For others: When your products are in stock in our company, we can deliver the goods in about 3 days. lf your product needs to be customized, we will provide you with a delivery date according to your product model, quantity and other specific details.

7. Do you support OEM/ODM service?
Yes, OEM/ODM is available.There is MOQ for some items. For more detail, feel free to send us an inquiry.
