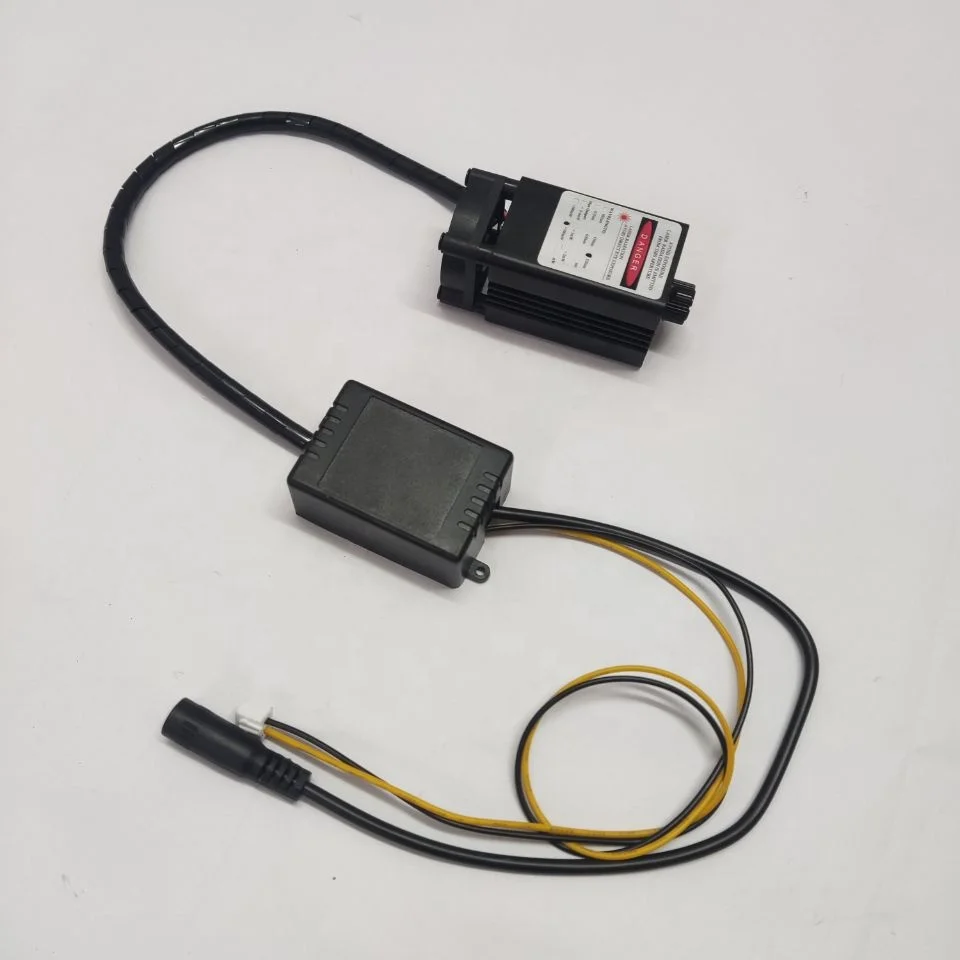

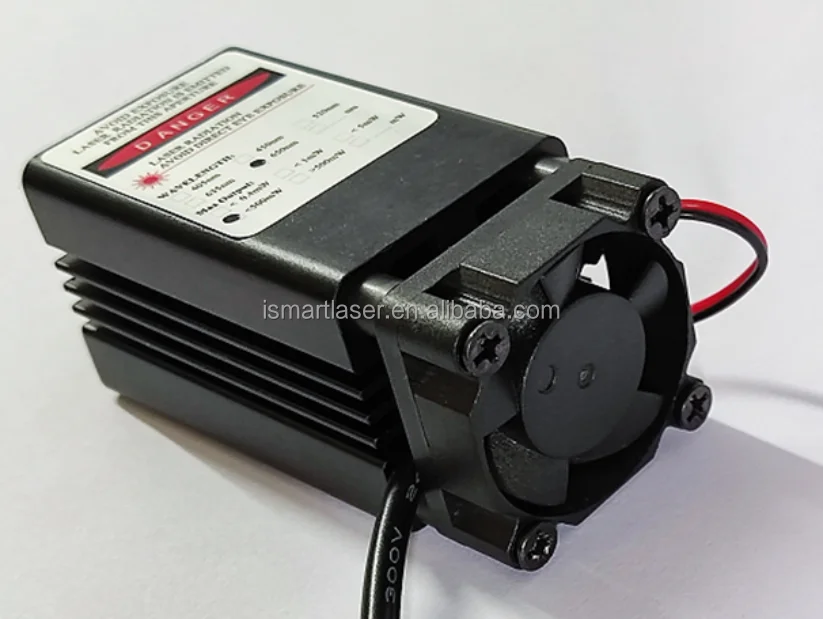

High power 1200mw 640nm red laser diode output 800mw focusable line laser for industry guiding

Product Overview

Description

Model: ISM-RL800-32(D)x65(L)x32(H)

Specification:



[Materials]             :Aluminum Anodize Black
[Wavelength]          :640nm/±10nm
[Output Power]       :<800mw +/-50mw

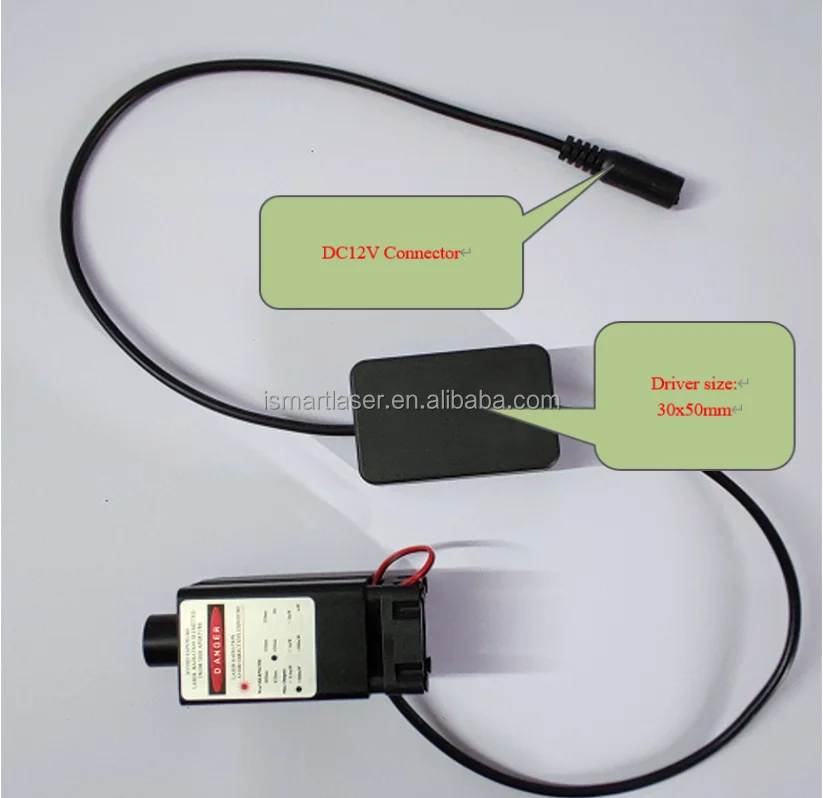

[Operation Voltage]    :DC=12V

[Working Current]      : <700mA at DC12V

[Projection Distance]  :>10M

[Beam Shape]           : thicker line

[Line Width]                :50mm at 10M (H)

[Line Length]            :  10M at 10M distance

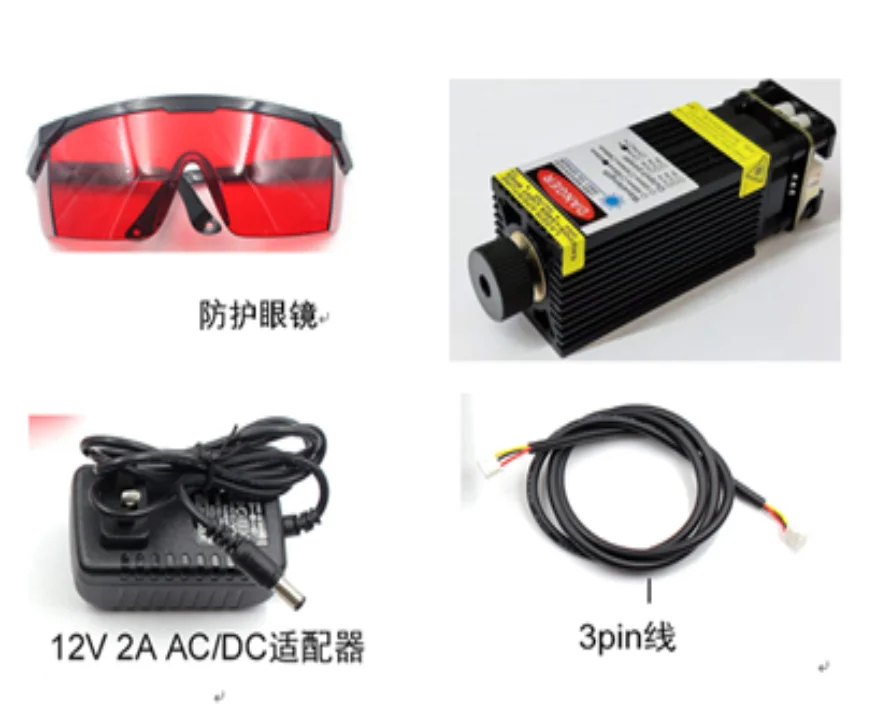

[accessories]            : protection Goggles , Power adaptor

[Working Temp.]        :-10℃~+60℃
[Storage Temp.]         :-40℃~+80℃
[Life time]              : >5000H

Warm up Time: <1 min.

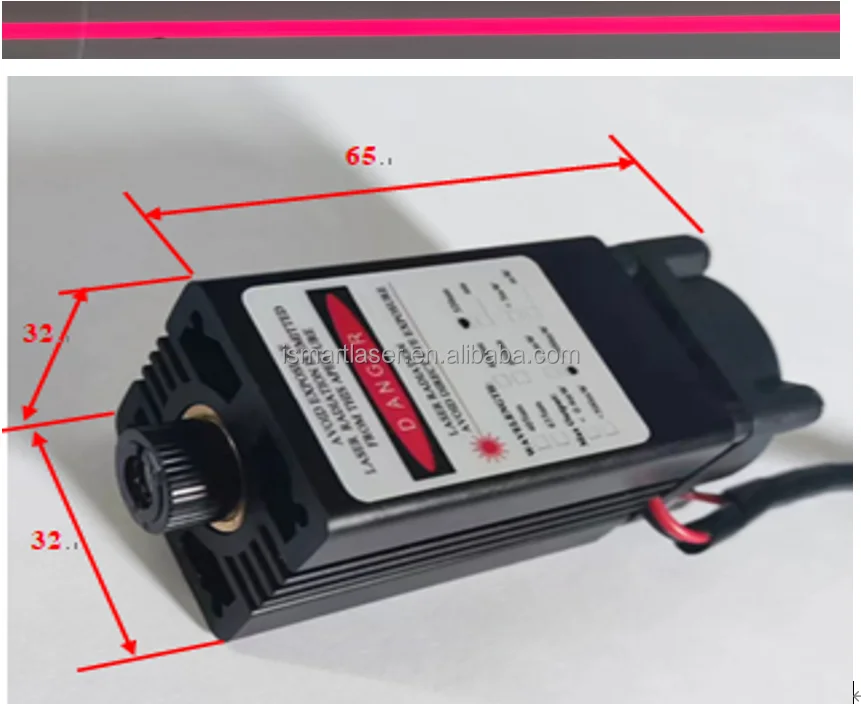

Size	32(D)*32(H)*65(L)mm
Wavelength	640nm
output Power	800mw
Beam Shape	Line
