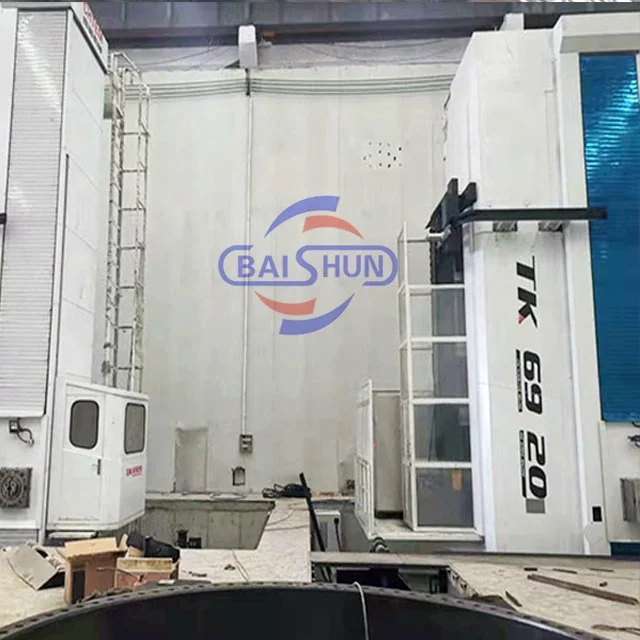

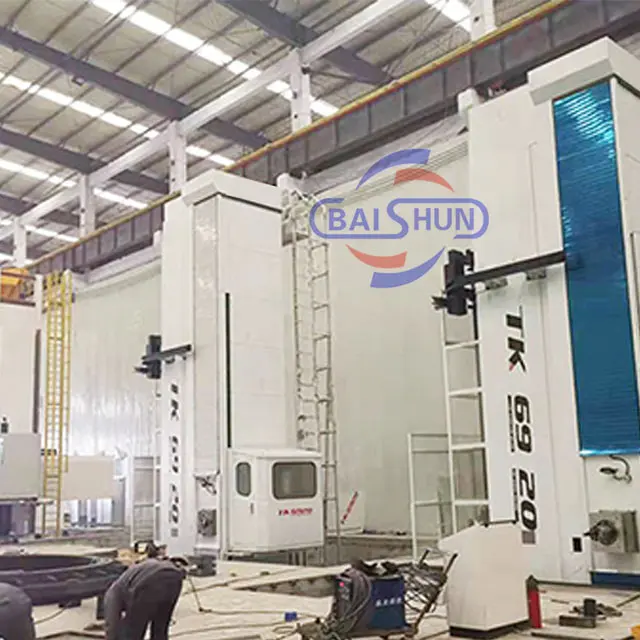

Tk6920 Floor Type Horizontal CNC Boring and Milling Machine Directional Boring Drilling Machine
- Category: >>>
- Supplier: Henan Baishun Machinery Equipment Co. Ltd.
Share on (10000015226905):
Product Overview
Description
Product Description
Professional Floor Type Horizontal Directional Boring Drilling Machine Professional High Quality CNC Boring Milling Machine
We have developed this series of machines with independent R&D force with reference to domestic and overseas high end technologies on the similar products.Floor type boring mills allow stepless change, and are equipped with high, medium and low shifts. They feature high transmission ratio, high torque, high resistance and high spindle speed.

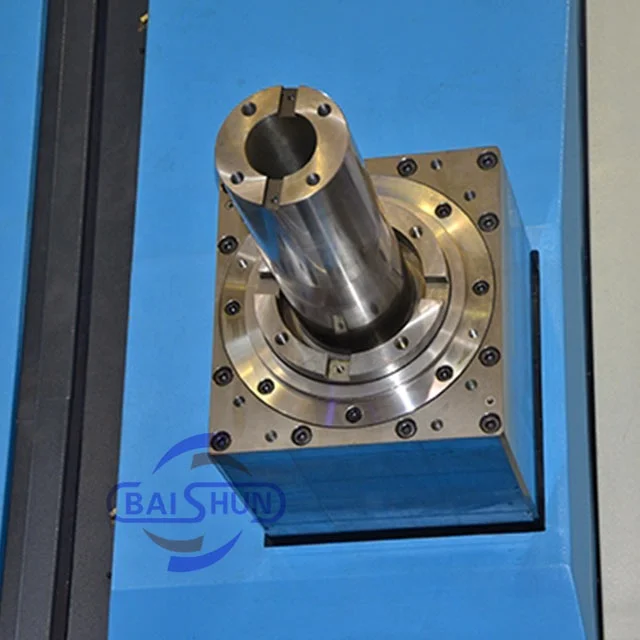

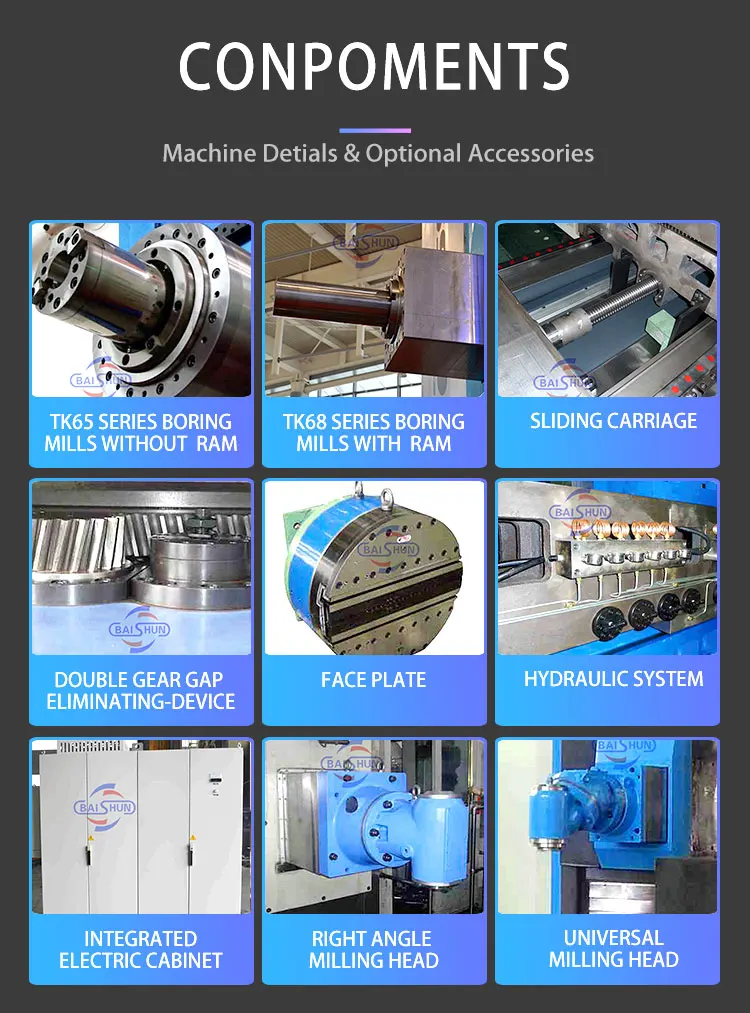

The CNC planer type boring and milling lathe are machines with large torque, high efficiency, high rigidity and advanced technologies. Per user’s requests, the machines can match with different controllers,different precision requirements, different sizes of tables to form different models of boring machines. This series of boring mills are suitable ‘or machining large, medium sized box shape, frame structure or mould parts, and can perform milling, boring, drilling, winching, tapping etc after one clamping. The machines controls 7 axes with 4 axes simultaneous and allows circular interpolation and 3-D curved surface machining. Equipped with milling head, face plates and other devices, the series of machines have enlarged machining capabilities. The spindle has cooling case to limit the head in spindle.

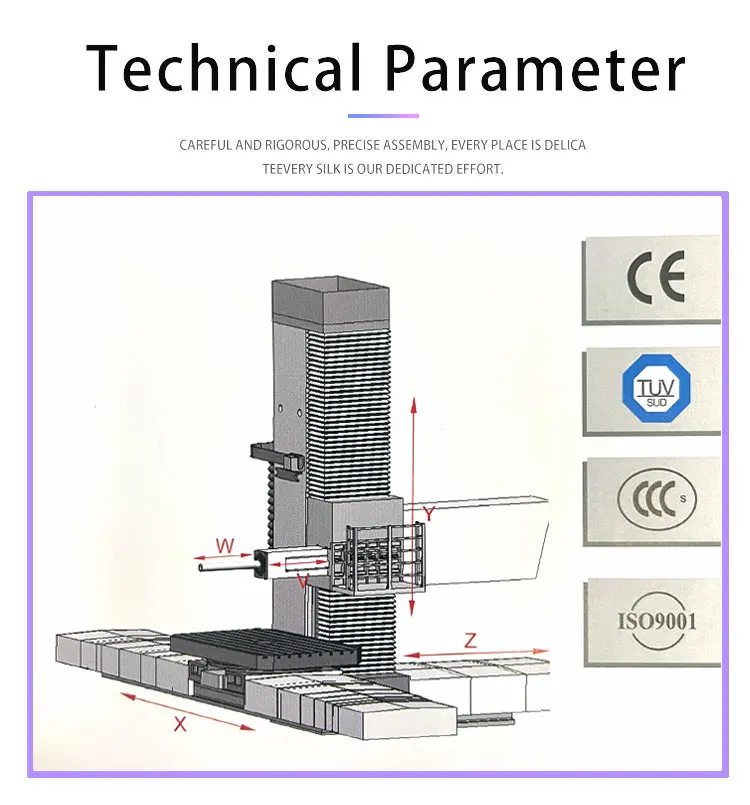

Specification
Item | Unit | TK6913 | TK6916 | TK6920 | TK6926 | |||
Spindle diameter | mm | 130 | 160 | 200 | 260 | |||
Spindle taper | ISO | 50 | 50 | 60 | 60 | |||
Max. spindle speed | rpm | 1500(Op:3000) | 1200(Op:2000) | 1000(Op:2000) | 1000O(op:1500) | |||
Motor power-Servo | KW | 30 | 55 | 75 | 110 | |||
Total travel of boring spindle and ram | mm | 1500 | 2400 | 2400 | 3200 | |||
Size of ram section | mm | 380*420 | 480*520 | 480*520 | 620*740 | |||
Travel of column -X axis | mm | 4000(op:5-15m) | 6000(op:7-20m) | 6000(op:7-20m) | 8000(op:9-20m) | |||
Vertical travel of spindle head-Y axis | mm | 2000(op: 3m) | 3000(op: 4m, 5m) | 3000(op: 4m, 5m) | 3000(op: 4m, 5m) | |||
Longitude travel of cloumn-Z axis | mm | 700 | 1200 | 1200 | 1600 | |||
Axial travel of boring spindle-W axis | mm | 800 | 1200 | 1200 | 1600 | |||
B axis totation degree | ° | 360 | ||||||
Tool magazine | pcs | 40/60 | 40/60 | 40/60 | 40/60 | |||
Worktable size | mm | 1200*1400, 1400*1600, 1600*1800, 1800*2000, 2000*2500, 2500*3000, 3000*3500, 3500*4000, 4000*4500, 4500*5000(can be customized) | ||||||
CNC System | SIEMENS / FANUC (can supply based on customers’ requirement) | |||||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1. Outside we will pack the product with plastic to prevent wet.
2. Outside of the machine will be packed by strong wooden pallet.
3. If there requirement of the package, we can customized based on the detail requirement.
3. If there requirement of the package, we can customized based on the detail requirement.
Company Profile
PROFESSIONAL SUPPLIER OF CNC LATHE MACHINE
Henan Baishun Machinery Equipment Co.,Ltd is a professional manufacturer, which especially work for Slotting machine,Vertical lathe machine, CNC Vertical lathe machine, CNC Horizontal lathe machine, Roll lathe machine, Gear hobbing machine, Pole erection machine, Shredder machine,etc. With more than 15 years experience for lathe machines, we have export our products to Peru, Brazil, Chile, Mexico, Italy, Indonesia, Sri Lanka, Russia, and Uzbekistan.
FAQ
1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you,too.You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 2 months - 4 months. You can send us a message or mail to check exact delivery time.Our manufactory is very high degree of modernization, brand positioning the global market,
3. Whether to provide quality assurance and complete after-sales support?
A : Yes!Our machine is guaranteed for 12 months and supports
on-site installation if necessary.Commissioning, technical guidance and after-sales maintenance support.
4. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you,too.You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 2 months - 4 months. You can send us a message or mail to check exact delivery time.Our manufactory is very high degree of modernization, brand positioning the global market,
3. Whether to provide quality assurance and complete after-sales support?
A : Yes!Our machine is guaranteed for 12 months and supports
on-site installation if necessary.Commissioning, technical guidance and after-sales maintenance support.
4. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency: USD
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English
5. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
6. How is the warranty?
A: Our machine is guaranteed for 12 months and supports
on-site installation if necessary.
Commissioning, technical guidance and after-sales maintenance support.
Accepted Payment Currency: USD
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English
5. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
6. How is the warranty?
A: Our machine is guaranteed for 12 months and supports
on-site installation if necessary.
Commissioning, technical guidance and after-sales maintenance support.
7. what services can we provide?
If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
A: Video technical support, online service, we can answer you in 24 hours.
