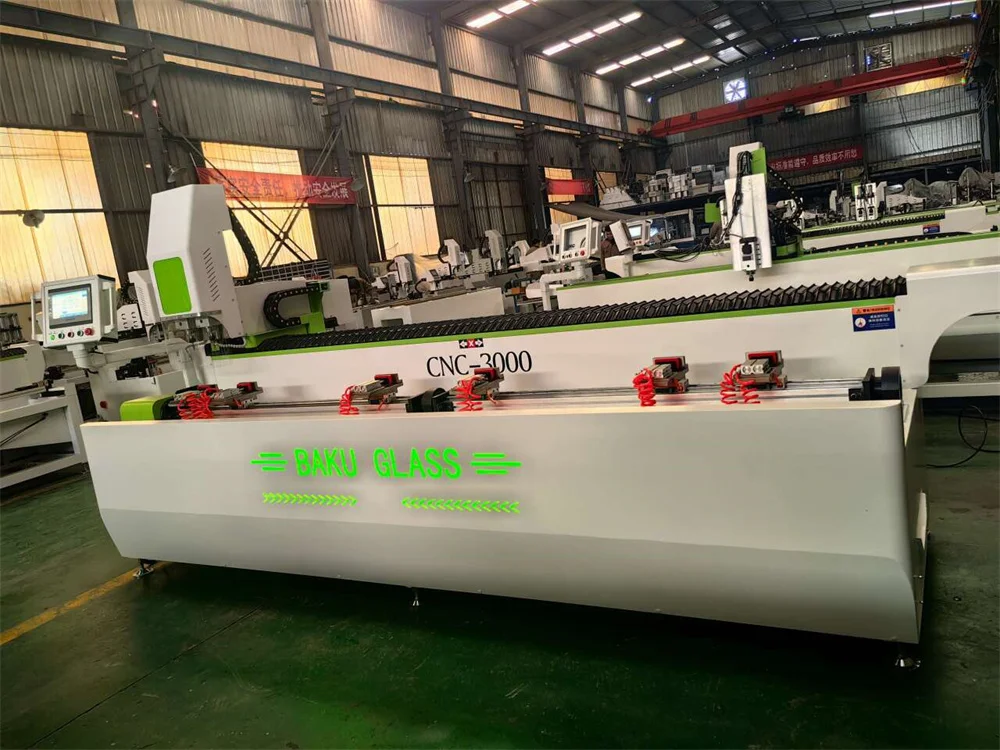

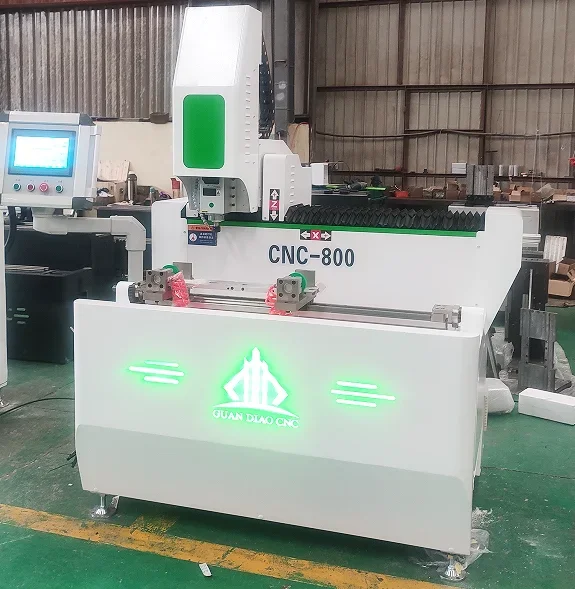

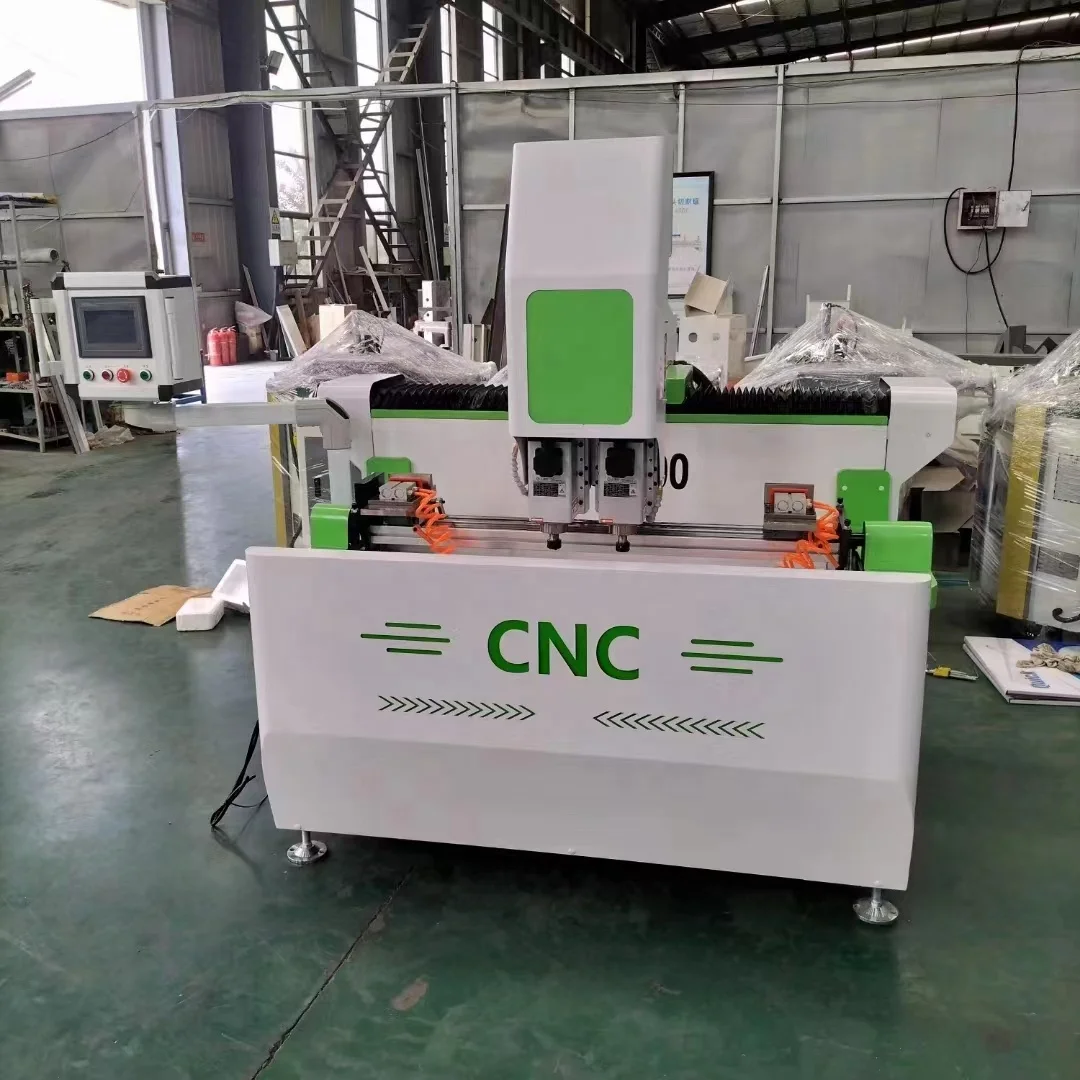

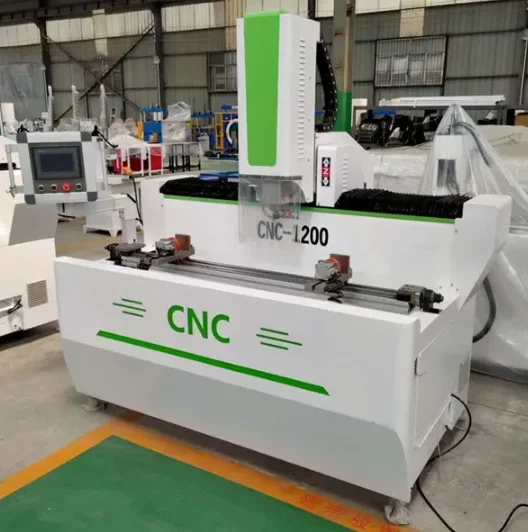

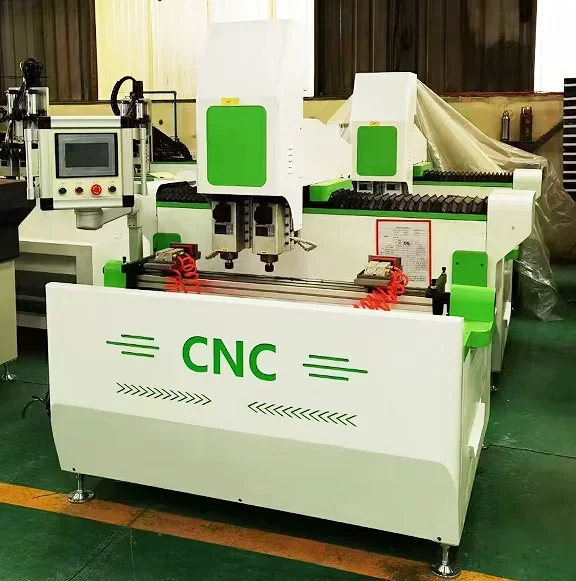

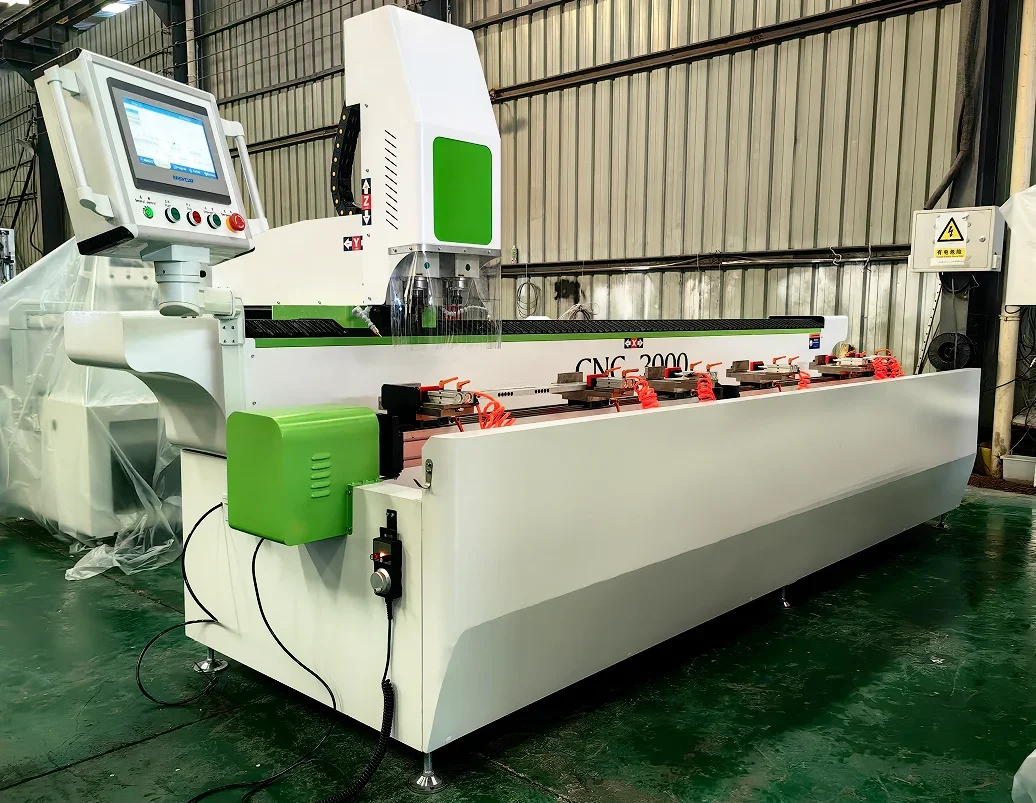

Aluminum Profile Drilling And Milling Machine Cnc Industry Aluminum Profile Milling Drilling Machine
- Category: >>>
- Supplier: Shandong Guandiao CNC Equipment Co. Ltd.
Share on (10000015228219):
Product Overview
Description
Products Introduction
1. Used for do all kinds holes like drilling holes, milling groove, circle, door lock hole etc.
2. Through Programming software auto conversion G code, you can drawing any holes on computer and conversion.

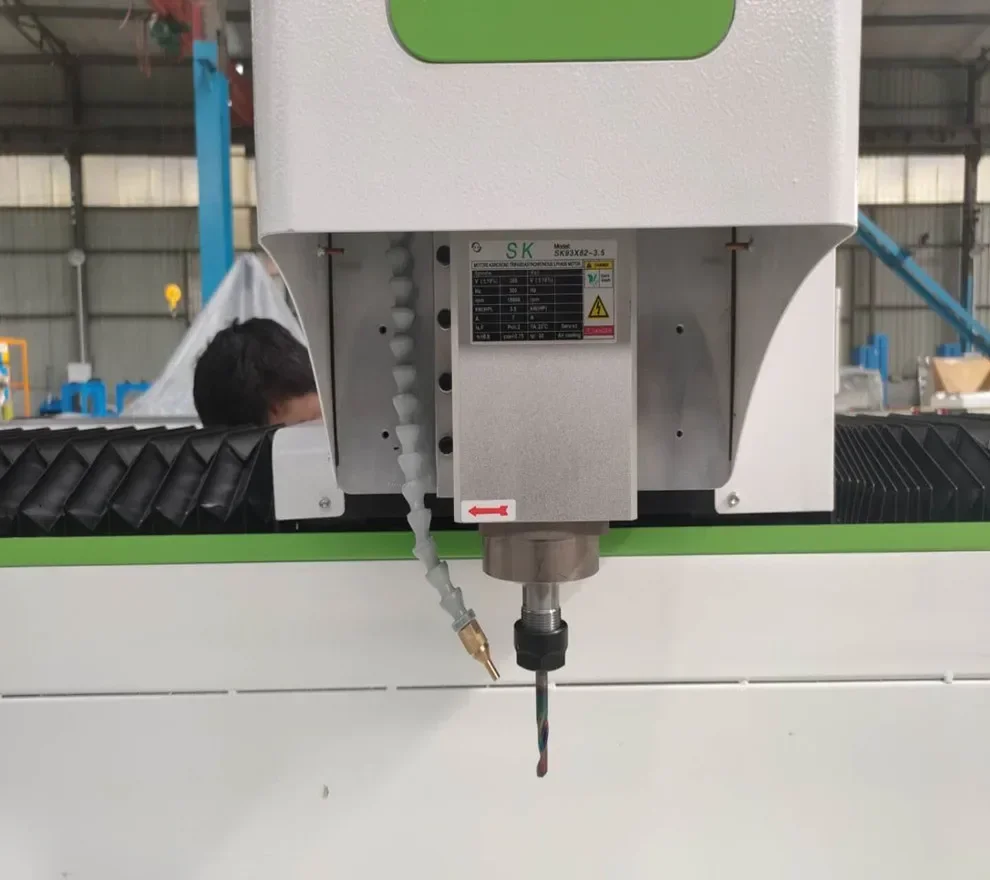

3. With 4.5KW air cooling spindle,

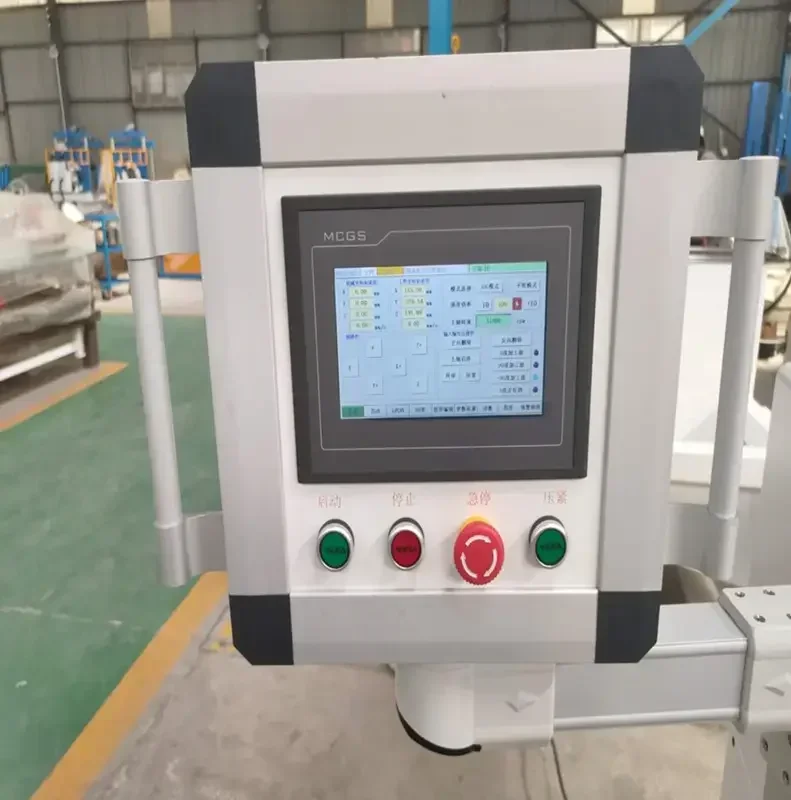

4. With CNC system make sure machine running smoothly.
5. Adopt with high precision electrical axis, keep working safety.
6. X axis adopt with high precision helical gear, while Y axis and Z axis adopt with high precision ball screw, thus keep
transmission smoothly.
7. With spraying cooling for bits.
8. Imported automatic tool change spindle, with 4-station tools magazine, can realize fast automatic tool change..
2. Through Programming software auto conversion G code, you can drawing any holes on computer and conversion.
3. With 4.5KW air cooling spindle,
4. With CNC system make sure machine running smoothly.
5. Adopt with high precision electrical axis, keep working safety.
6. X axis adopt with high precision helical gear, while Y axis and Z axis adopt with high precision ball screw, thus keep
transmission smoothly.
7. With spraying cooling for bits.
8. Imported automatic tool change spindle, with 4-station tools magazine, can realize fast automatic tool change..
Product Paramenters
Power supply | Made to order |
Spindle power | 4.5KW |
Total power | 7.5KW |
Rotary speed | 0-18000r/min |
Operation air pressure | 0.6~0.8Mpa |
Tools magazine | 4 tools |
Working range of X/Y/Z | X=3500mm,Y=300mm,Z=200mm 3850*200*200mm |
axis feeding speed of X/Y/Z/A | X=0-80m/min,Y=0-20 m/min, Z=0-20 m/min,A=18r/min |
Positioning/repositioning accuracy | ±0.15mm/±0.05mm |
Roughness | Ra6.3um |
Specification of tool magazine | ISO30 |
Dimension | 5100x1450x1750mm(LxWxH) |
Weight | 1400kg |
Drill hole carving machinery metal samples cutter woodworking machinery parts milling machine for easy operate Automatic conversion of processing codes through programming software, simple operation, High efficiency and low labor intensity 8. Turn the table 180°. -90 ~ 0 ° ~ + 90 °, the profile can be processed on three sides in one clamping, and deep through holes can be processed(Special hole), deep hole processing is realized by turning the worktable, with high efficiency and guaranteed accuracy...
1. The integral cast iron bed adopts the automatic anti-backlash ball screw as the transmission part, which has good rigidity and stable operation. The overall vibration of the machine tool is small; 2. Use high-speed driver, stepping motor, work efficiency...
3. The anti-dust and waterproof device makes it easier to clean, rust and maintain the mechanical transmission part.
4. It has various advanced advantages in the industry, as many as 10 power-off memory functions, which greatly reduces the phenomenon of waste workers and waste...

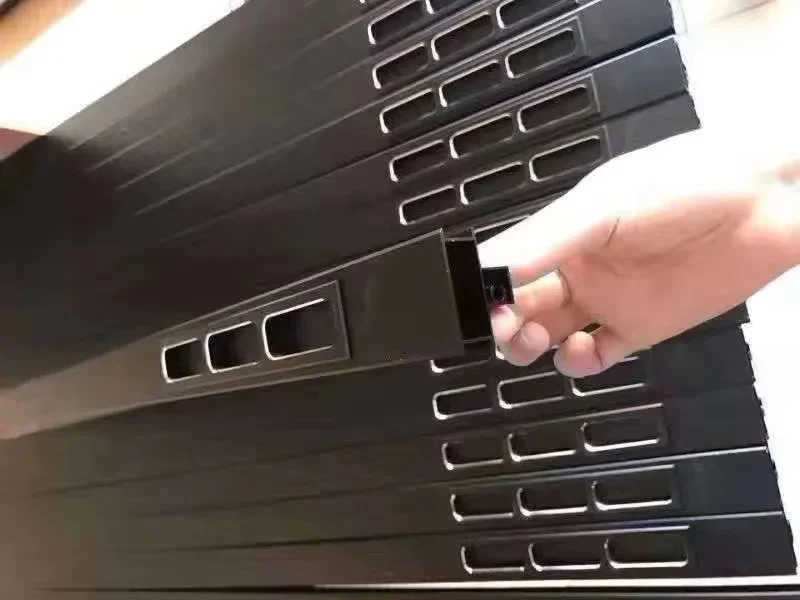

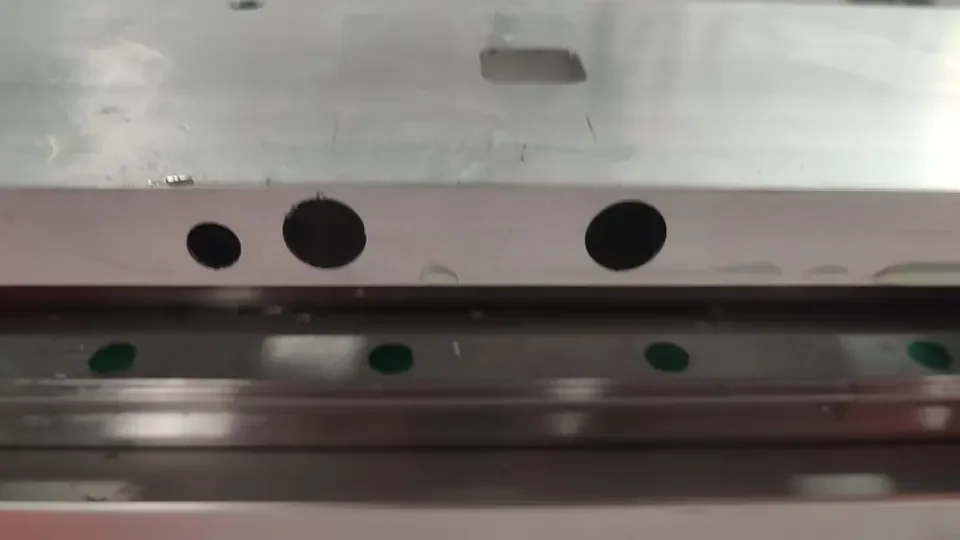

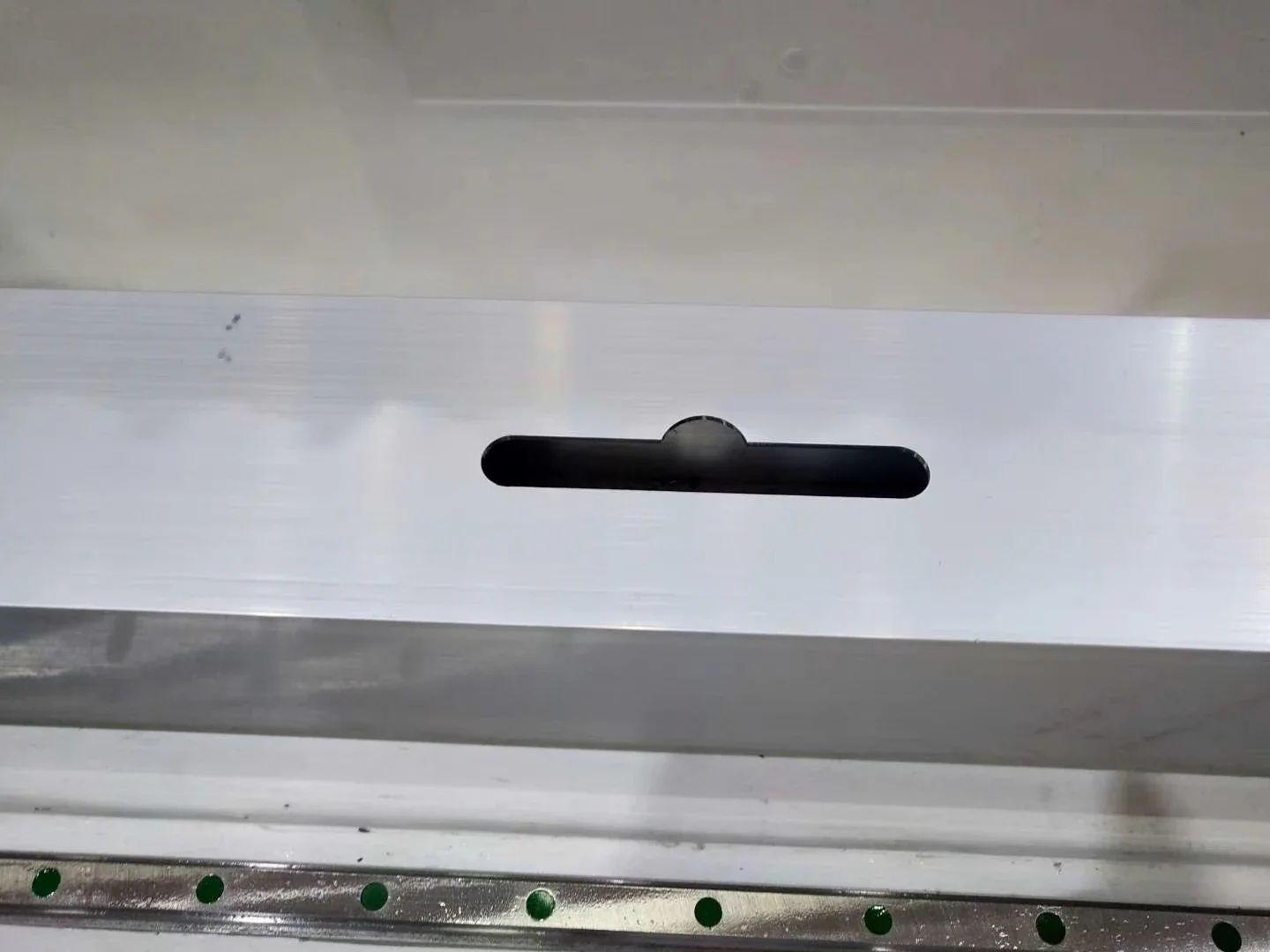

<Samples>
Excellent quality saw aluminum extrusions cutting CNC Drilling and milling machine
Used for drilling milling and cutting industry aluminum area and different shape aluminum profile, such as mould making, ship, rail traffic, car buffer beam, photovoltaic, aluminum window door and curtain wall industry, aluminum furniture, Sunroom making etc..
Used for drilling milling and cutting industry aluminum area and different shape aluminum profile, such as mould making, ship, rail traffic, car buffer beam, photovoltaic, aluminum window door and curtain wall industry, aluminum furniture, Sunroom making etc..
<Company Profile>
Shandong Guandiao CNC Equipment Co., Ltd is an innovative enterprise engaged in research and development, production, sales and good after- sales service. The company's main products include Panel furniture CNC cutting machine, Woodworking CNC Machining Center, CNC router, Multi-head cylinder CNC engraving machine, Styrofoam CNC router, 3D scanner, Vacuum membrane press machine.
We offer our customers best solutions, including product design,installation, training, aftersales service, etc. With the market development demand as the orientation, we stick to innovate and improve technology continuously, to the peak of CNC industry is our relentless drive...
FAQ
1. This is the first time I buy the machine, is it easy to operate?
A: We can provide the operation manual or video for guiding.If it is hard for you learning, we can also help you by "Team viewer" online, with telephone or Skype explain.
2. ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
3. Can I visit your factory?
A: Yes! We greatly welcome customers to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us
your port name. There will be best shipping freight and machine price send to you..
Any need please contact me thank you！！！.
A: We can provide the operation manual or video for guiding.If it is hard for you learning, we can also help you by "Team viewer" online, with telephone or Skype explain.
2. ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
3. Can I visit your factory?
A: Yes! We greatly welcome customers to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us
your port name. There will be best shipping freight and machine price send to you..
Any need please contact me thank you！！！.
