Product Overview
Description
Product Description
GLT HG-W Winding machine is the complementary equipment for automatic braiding machines, winding wire, stainless steel around bobbins evenly and orderly. The machine suit for steel wire braided hydraulic pressure stainless steel wire net sets factory.
Main Feature
* Automatically shut down when wire broken or empty.
* Automatically shut down when preset winding no., guarantee every bobbin has equal wire capacity.
* Control panel is fixed on the left of the machine. The bearing box and potention meter control the speed of winding wire.
* Automatically shut down when broken or empty, the machine have self-brake device.
* Press line disc pneumatic press tight, winding wire not quit wire, not release wire.
* Automatically shut down when preset winding no., guarantee every bobbin has equal wire capacity.
* Control panel is fixed on the left of the machine. The bearing box and potention meter control the speed of winding wire.
* Automatically shut down when broken or empty, the machine have self-brake device.
* Press line disc pneumatic press tight, winding wire not quit wire, not release wire.
Specification
BFBS-1A | BFBS-2A | BFBS-4A | BFBS-4B | BFHG-255A | BFHG-255C | ||||
Axis RPM | 1400rpm (Frequency conversion) | 1400rpm (Frequency conversion) | 1400rpm (Frequency conversion) | 1400rpm (Frequency conversion) | 1400rpm (Frequency conversion) | 1400rpm(Frequency conversion) | |||
Motor Power | 0.55kw/2 phase 220V | 0.75kw/2 phase 220V | 1.5kw/3 phase 380V | 1.1kw/3 phase 380V | 2.2kw/3 phase | 3kw/3 phase | |||
Voltage | 220V/50Hz | 220V/50Hz | 380V/220V/50Hz | 380V/220V/50Hz | 380V/220V/50Hz | 380V/220V/50Hz | |||
Moving Pitch | 0.05-5.5mm(Adopt adjustable pay off machine) | 0.8-6.0mm(Adopt adjustable pay off machine) | 0.2-8.0mm(Adopt adjustable pay off machine) | ||||||
Bobbin Size | Bobbin Diameter≤100mm Bobbbin Length≤280mm Customization is accepted | Bobbin Diameter≤100mm Bobbbin Length≤300mm Customization is accepted | Bobbin Diameter≤100mm Bobbbin Length≤300mm Customization is accepted | ||||||
Bobbin Qty | 1 | 2 | 4 | 4 | 1pcs | 1pcs | |||
Shaft No. on pay off | ≤9 | ≤18 | ≤36 | ≤36 | 12pcs | 12pcs | |||
Pay off bobbin size | φ≤200mm H≤280mm Customization is accepted | 0.4-0.7 Mpa | 0.4-0.7 Mpa | ||||||

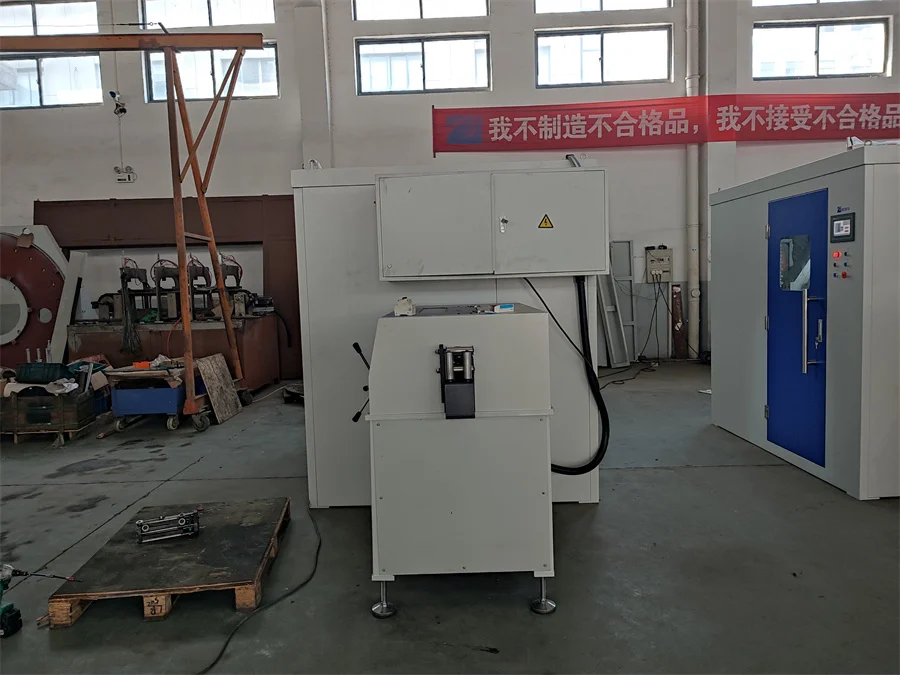

production line
Hot sale products
Click for more information：

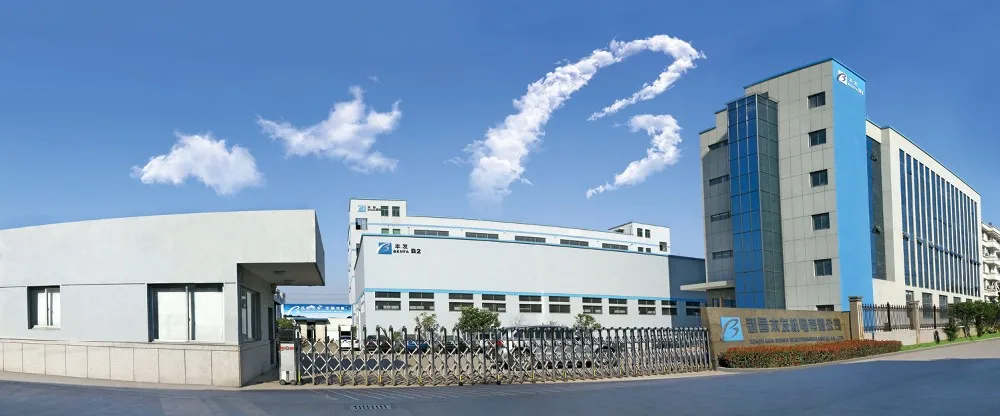

Company Profile
Greenland Technology provide one stop braiding solutions to our customer from Development, production, inspection and sales service.Our main products including combination double decks braiding machine, horizontal high speed double decks CNC braiding machine, flexible hose braiding machine, rope braiding machine, winding machine, crimp machine and flexible hose assemble machine.
