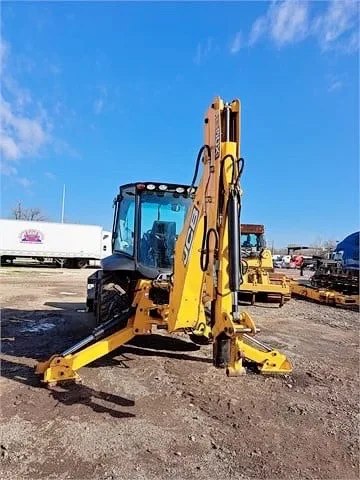

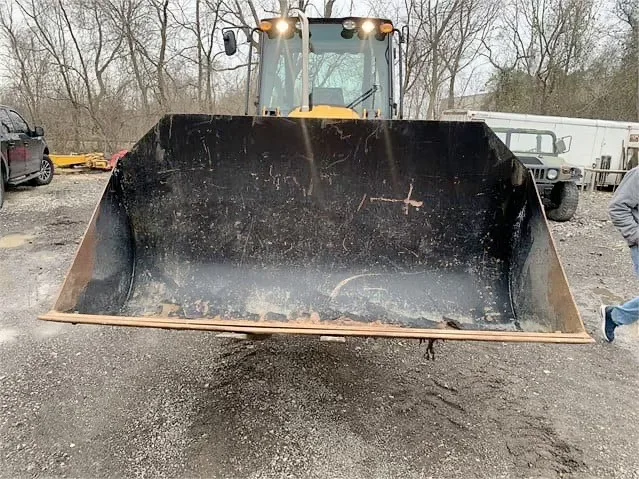

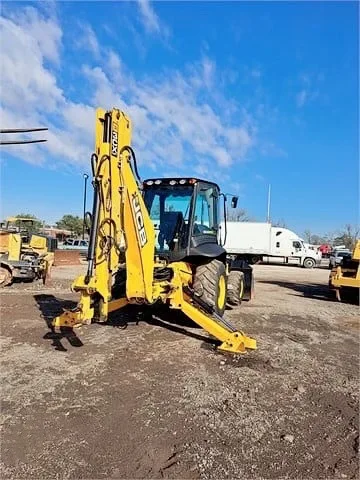

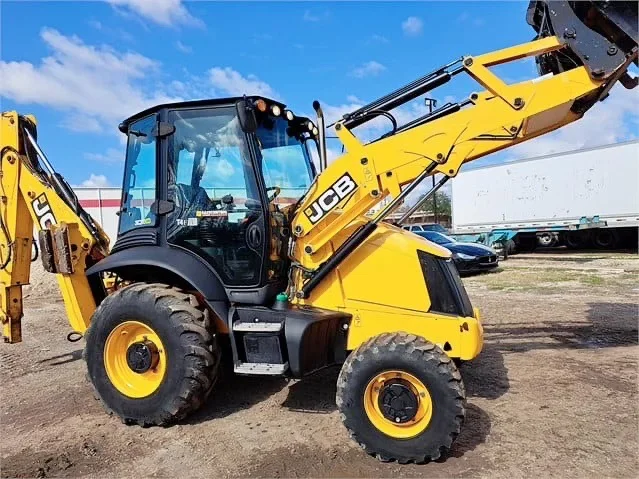

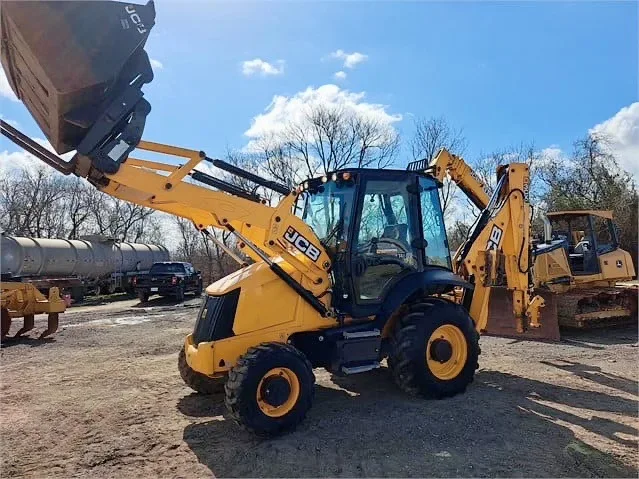

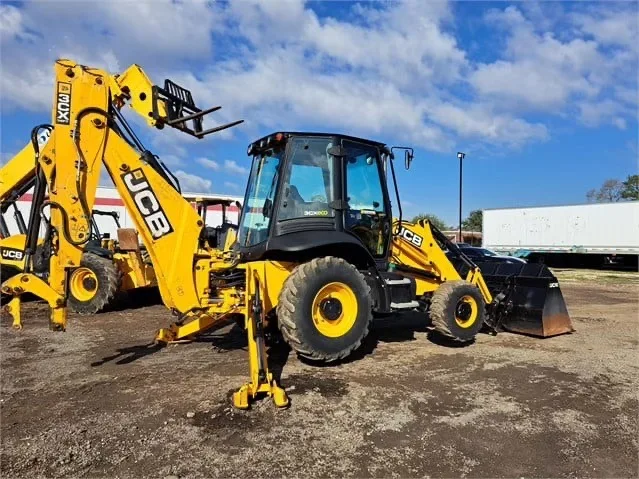

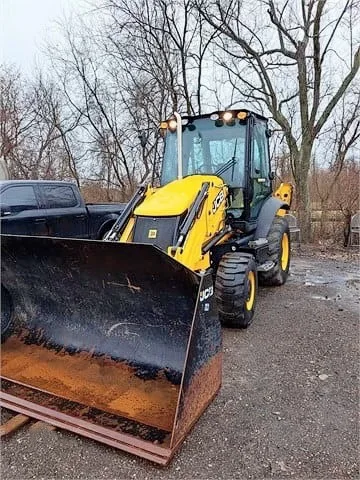

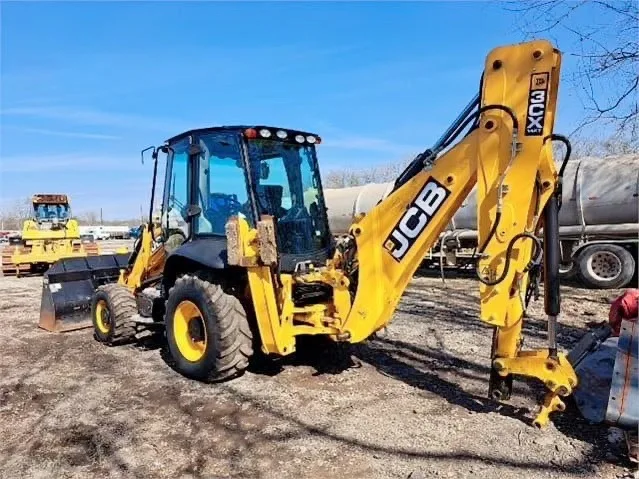

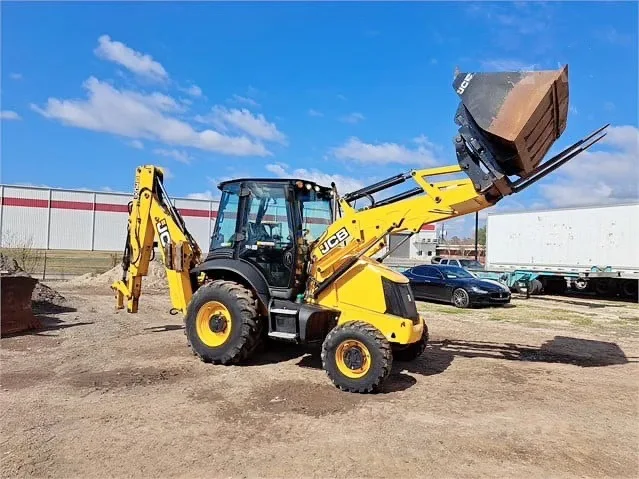

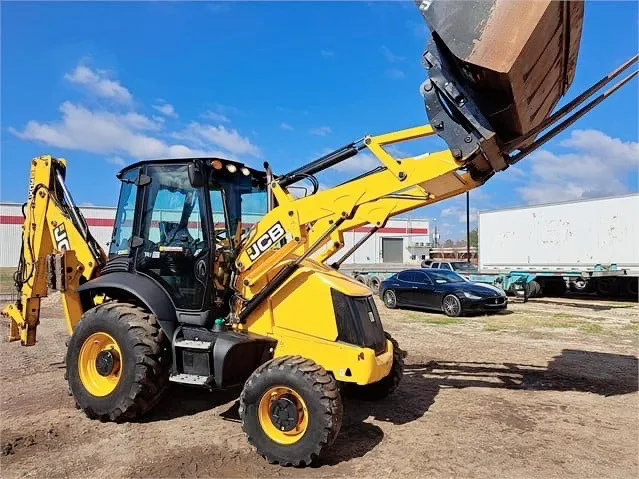

Low fuel consumption 2021 JCB 3CX14 Wholesale manufacturer digger CE/EPA/EURO 5 compact multi purpose backhoe loader for sale

Engine

Model

JCB EcoMax

Capacity

4.4 liters

Aspiration

Turbocharger & Intercooler

Cylinders

4

Gross hp – SAE J1995 (ISO 14396)

74 hp / 55 kW

Net HP – SAE J1349

71 hp / 53 kW

Max torque

295 lb / 400 ft (@ 1200 Nm)

Valves per cylinder

4

Breakout force

13730 lbf / 6228 kgf

Dipper tearout

8605 lbf / 3903 kgf

Lift capacity of bucket pivot at full reach

6027 lbf / 2733 kgf

Hydraulic System

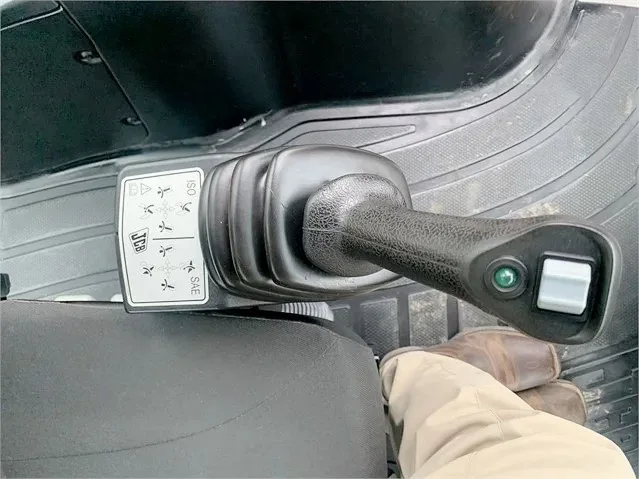

Control type Advanced

EasyControl

Pump type

Variable Flow

Circuit type

Closed Center

Pump output

44 gpm / 165 lpm

Relief pressure

3650 psi / 252 bar

Filter rating (Micron)

5/12

Service Capacities

Cooling system

4.9 gal / 19 l

Fuel tank

39.6 gal / 150 l

Engine oil with filter

4 gal / 15 l

Transmission with filter

4.2 gal / 16 l

Front axle

4.2 gal / 16 l

Rear axle

4.2 gal / 16 l

Drive hubs

0.4 gal / 2 l

Hydraulic system including tank

31 gal / 117 l

Electrical System

System voltage

12 Volts

Alternator output

95 Amps

Battery capacity (Amps)

110 (900 CCA) / 120 (1000 CCA)
