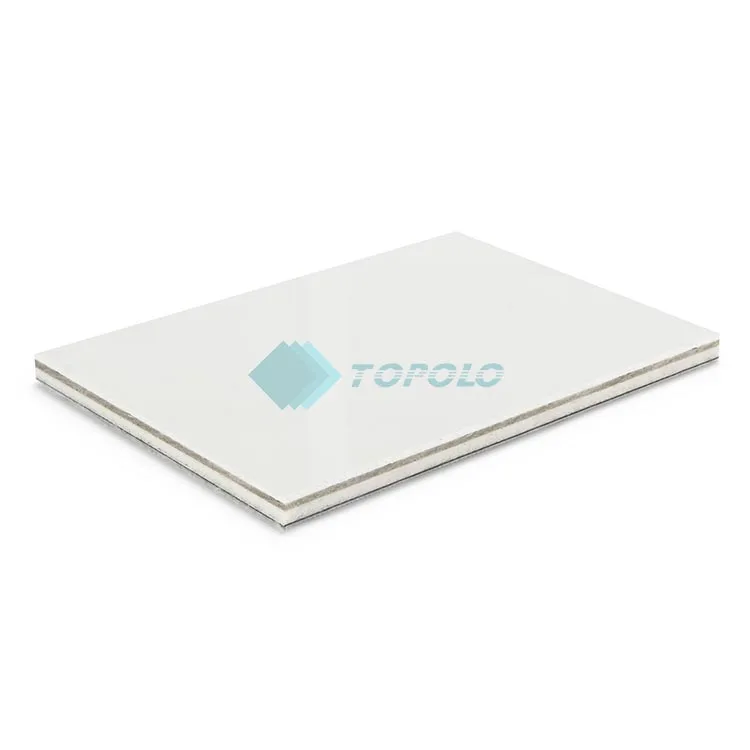

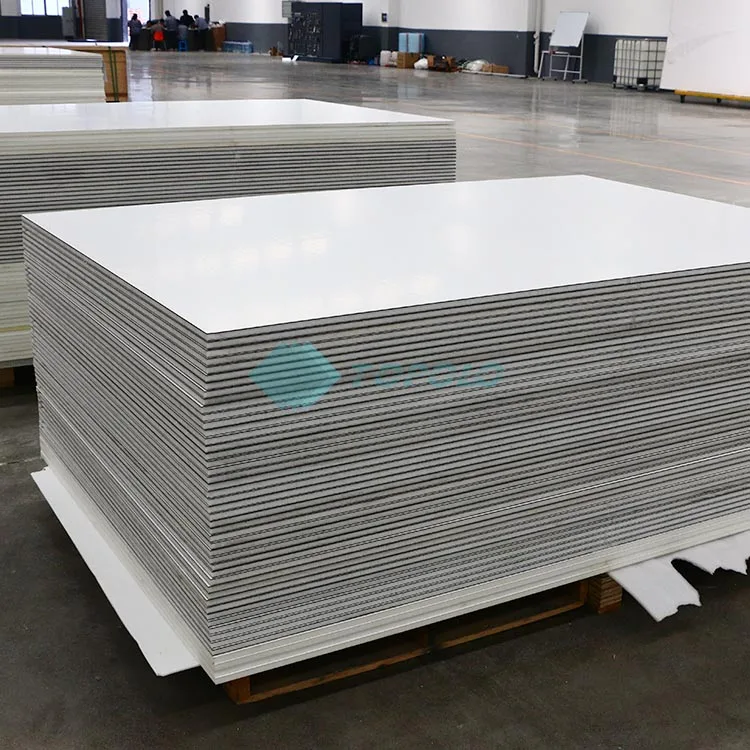

GRP Facing PET Foam Core Sandwich Panels for Dry Cargo Trucks
- Category: >>>
- Supplier: Shanghai Topolo New Materials Co. Ltd.
Share on (10000015358005):
Product Overview
Description
PET foam sandwich panel is a new type of composite material. TOPOLO creatively combines PET foam core with various skin materials, a revolutionary combination. The lightweight PET foam composite panel brings a fresh perspective to your business. Whether your industry is traditional constructions, vehicles, ships, or new energy, PET composite panels can be applied to your project.
Specifications
Core | PET (Polyethylene Terephthalate) Foam Board. (Density: 50~300 kg/m³.) |
Skin | FRP (Fiberglass Reinforced Plastic) Sheets; CFRT (Continuous Fiber Reinforced Thermoplastic) Sheets; Aluminum Sheets; Plywood Sheets;, Galvanized Steel Sheets; Stainless Steel Sheets; HPL Sheets;etc. |
Width | ≤3.2m. (Tolerance: ≤1.0mm.) |
Length | ≤12m. (Tolerance: ≤1.0mm.) |
Thickness | 3.0~120mm. (Tolerance: ≤0.1mm.) |

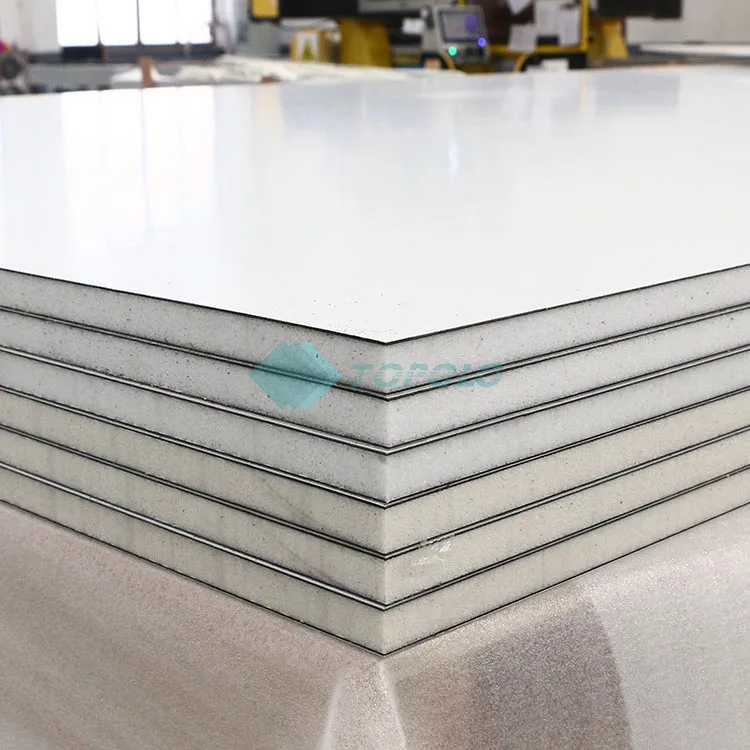

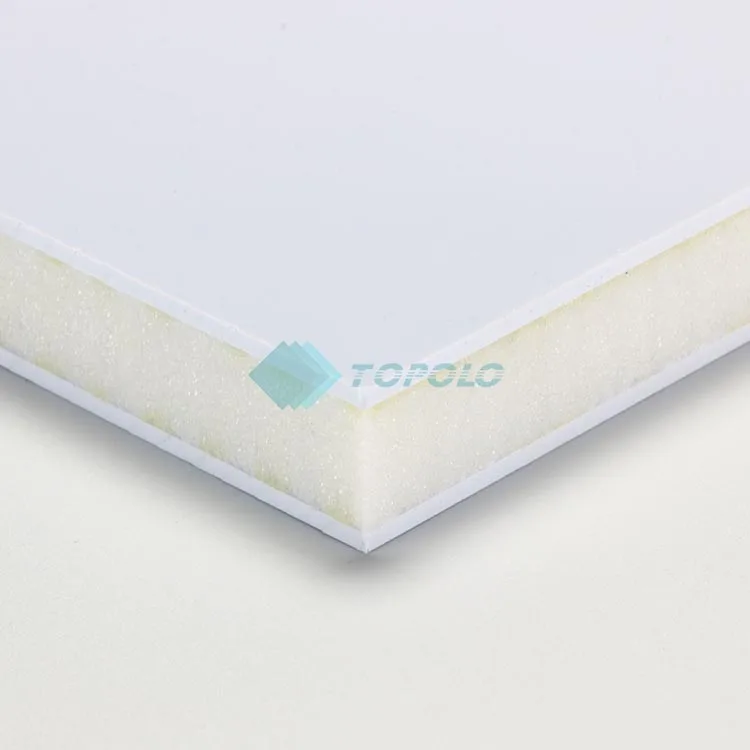

Structure Diagram of PET Sandwich Panels
• Surface Layer: PET foam can be tightly bonded with many material systems through glue, and maintain long-term performance stability, such as GRP, CFRT (continuous glass fiber reinforced thermoplastic), aluminum, stainless steel, GI, GL, plywood, etc.
• Foam Core: PET foam provides stable structural support.
• Reinforcement Layer: It increases the strength of the panel and also makes the surface of the panel more even.
Advantages of PET Foam Sandwich Panels
High Strength
The strength of PET foam is higher, and it is usually thinner than other boards, which reduces the weight relatively.
High-Temperature Resistance
PET foam board can withstand a temperature of about 150°C for a short time during processing, and can withstand a temperature of about 100°C for a long time during its service life.
Low Water Absorption
PET foam generally does not absorb water, which allows it to maintain good performance in some high humidity environments.
Recyclable
PET foam can be completely recycled and reused, which greatly protects the environment.
Easy to Cut
PET foam has a relatively higher shear modulus, which allows it to be cut without deformation.
Low Cost
Because of the higher hardness of PET foam, usually PET sandwich panels do not need to pre-embed reinforcement materials, so it is more economical.
PET Foam Sandwich Panel Series
PET foam is basically compatible with all skin material systems through glue, not limited to fiberglass, aluminum, steel, plywood, etc. Which material to choose as the skin material depends on your product requirements.
FRP Skin PET Sandwich Panels
Aluminum Skin PET Sandwich Panels
Aluminum Composite Skin PET Sandwich Panels
CFRT Skin PET Sandwich Panels
Galvanized Steel Skin PET Sandwich Panels
Plywood Skin PET Sandwich Panels
Applications
PET foam sandwich panels are widely used in vehicles, buildings, transportation, ships, furniture and other fields. In particular, fiberglass PET composite panels are lighter, stronger, longer-lasting and lower-cost than traditional metal or wooden material panels. This makes them widely used in wall panels, floors, partitions, roof panels, etc. in RV and box truck manufacturing.
Choose TOPOLO New Materials

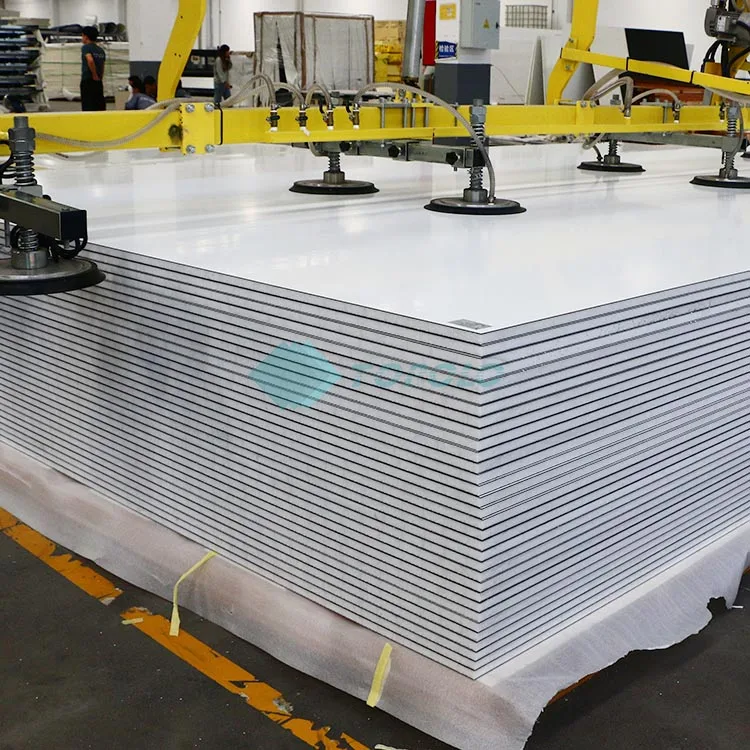

TOPOLO sandwich panel production line covers an area of 5,000 square meters. The production process is highly automated and can produce sandwich panels of various core materials and skins. We have internationally advanced production equipment that can meet large-volume and high-precision requirements.
Glue-bonded Sandwich Panel Production line
Thermoplastic Composite Production Line
TOPOLO Custom PET Foam Core Sandwich Panels for Your Projects
Production in Bulk
The daily production area of PET foam sandwich panels is 1000-2000 square meters. It can meet the production of products in large quantities and with relatively short delivery time.
CNC Machining Service
Cutting, drilling, and milling of the finished PET Panel, reducing the user's later reprocessing cost.
Packaging and Transportation Solutions
TOPOLO provides customers with last-mile service. We design a reasonable packaging and transportation plan based on the customer's existing equipment and loading tools.
Professional International Sales Team
Professional international sales team – English, French, Russian, Spanish, Portuguese, etc., make our communication unimpeded, from pre-sales product consultation to after-sales logistics services, to provide you with professional solutions.
Serve the Global Market
TOPOPO serves the global market. Currently, our RV composite panels have been exported to South America, North America, Europe, Africa, the Middle East, Southeast Asia, Central Asia, Oceania, South Asia and other markets.
