  • Premium PTC Carbon Heating Film BLACK DIAMOND Efficient Self regulating Floor Heating FELIX KOREA
Premium PTC Carbon Heating Film BLACK DIAMOND Efficient Self regulating Floor Heating FELIX KOREA
Premium PTC Carbon Heating Film BLACK DIAMOND Efficient Self-regulating Floor Heating FELIX KOREA
Premium PTC Carbon Heating Film BLACK DIAMOND Efficient Self-regulating Floor Heating FELIX KOREA

Premium PTC Carbon Heating Film BLACK DIAMOND Efficient Self regulating Floor Heating FELIX KOREA

Share on (10000015465622):


Price:$2.80 - $3.30

Quantity:


Product Overview

Description



Products Description

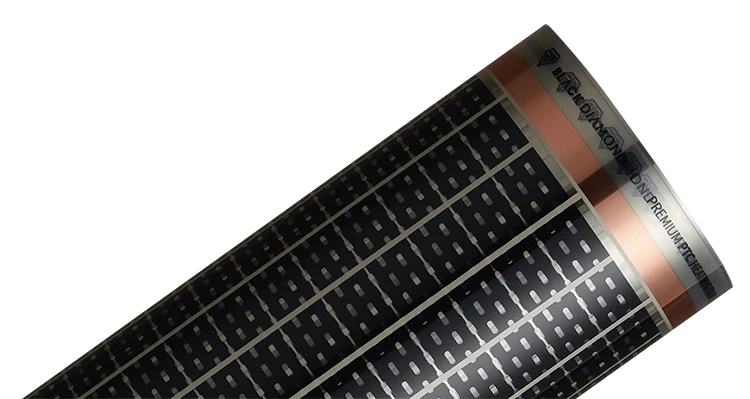

BLACK DIAMOND™ HEATING FILM
Premium PTC heating film, Feel the Next Level of safety and efficiency

FELIX's PTC heating film BLACK DIAMOND is a premium brand that further improves safety and energy efficiency by adding PTC function to its best-selling brand, EXCEL. By adding FELIX's premium PTC, which is an upgraded version of the existing general PTC function, FELIX is taking the lead in the era of smart heating that satisfies the world.






PTC stands for Positive Temperature Coefficient and refers to the characteristic of a heating element adjusting its own temperature. When our premium PTC heating film BLACK DIAMOND reaches a high temperature, it automatically regulates the temperature to prevent overheating, providing a safer operating environment for users. In addition, as the temperature goes up, power consumption decreases in inverse proportion, making it a futuristic type of heating that also satisfies energy efficiency.



Maximum Temperature Change over time
This is a graph showing the temperature change of the heating film over operating time. Compared to normal heating film, FELIX's premium PTC heating film maintains a stable temperature below 80 ℃ even during long-term operation, providing a safer usage environment.
Power Reduction Ratio over temperature
This graph shows the power reduction ratio of the heating films over temperature. Compared to normal heating film, Felix's premium PTC heating film has a significant increase in power reduction as the temperature rises, making it a satisfactory product in terms of energy efficiency as well.



For CustomersIt can be reborn as your own brand (OEM).
Voltage and power consumption can be adjusted to meet customer needs.

Experience safer and more efficient future smart heating
with FELIX's premium PTC heating film BLACK DIAMOND™.

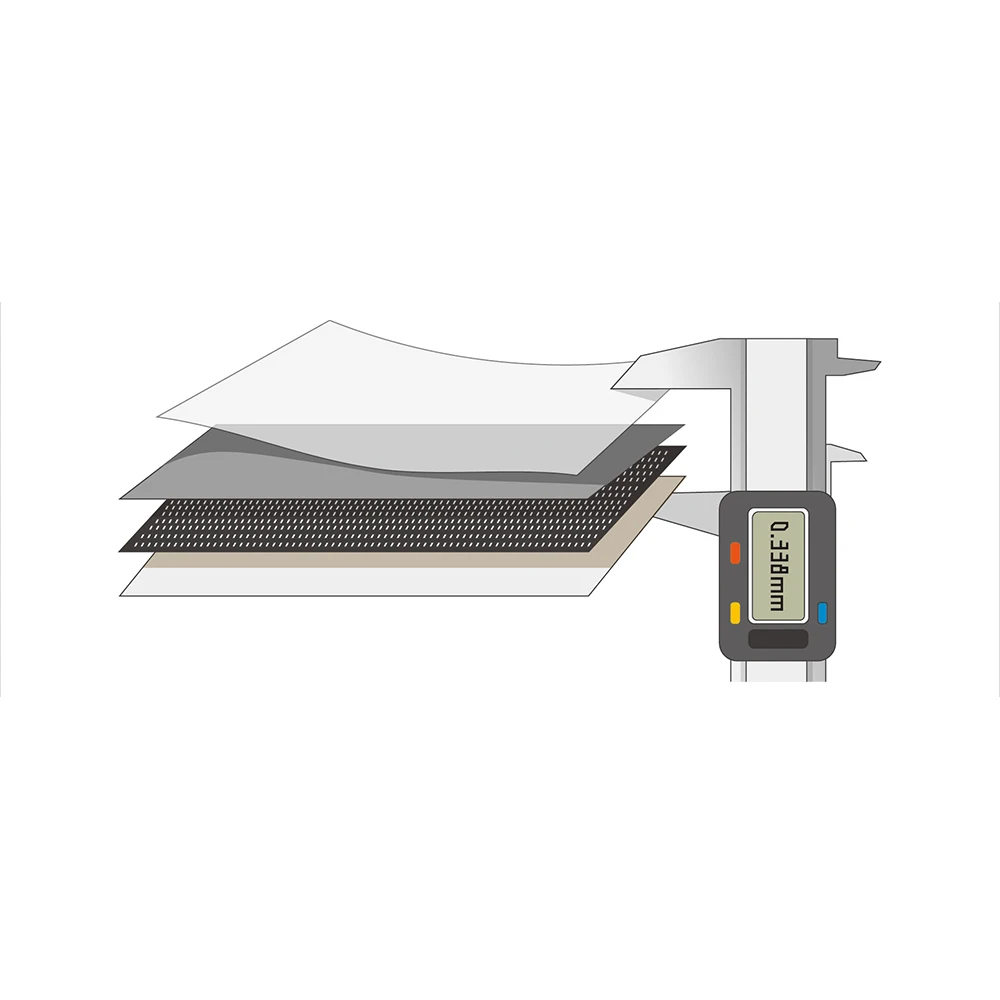

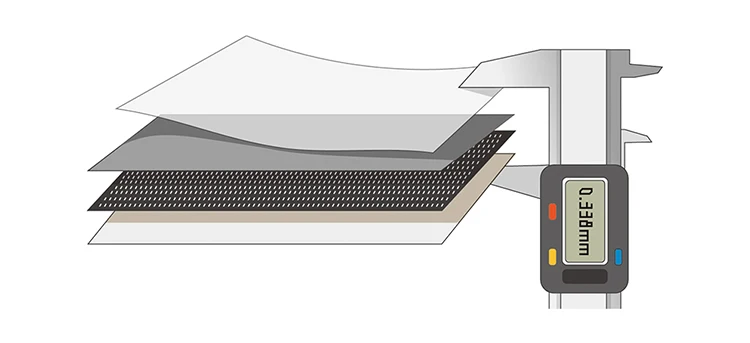

BLACK DIAMOND™ Structure




BLACK DIAMOND™ Specification


Width
(mm)
Thickness
(mm)
Voltage
Power Consumption

Pakcage
(M/Box)
Weight
(Kg)
Carbon Type
PTC
500_250
0.338
220
125/m
250/㎡
100
25.4
Always
in stock
500_300
0.338
220 or
230
150/m
300/㎡
100
25.4
Production
upon order
500_400
0.338
220 or
230
200/m
400/㎡
100
25.4

500_500
0.338
220 or
230
250/m
500/㎡
100
25.4



* Standard Spec is 250Watt/m2. Watt can be changed upon customer request.
* BLACK DIAMOND™ Heating Film enhances safety by increasing PTC efficiency.
