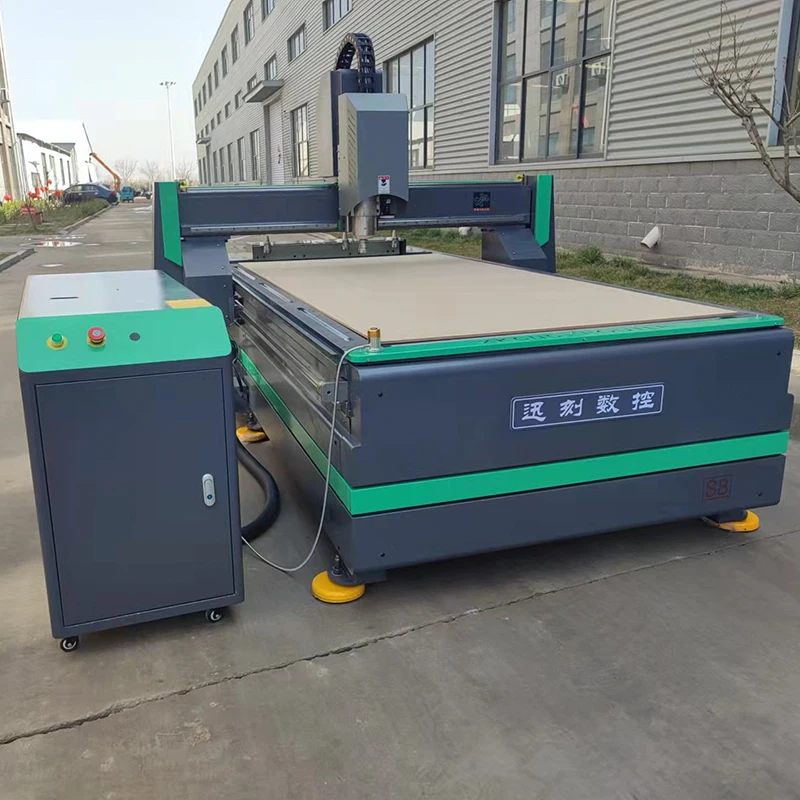

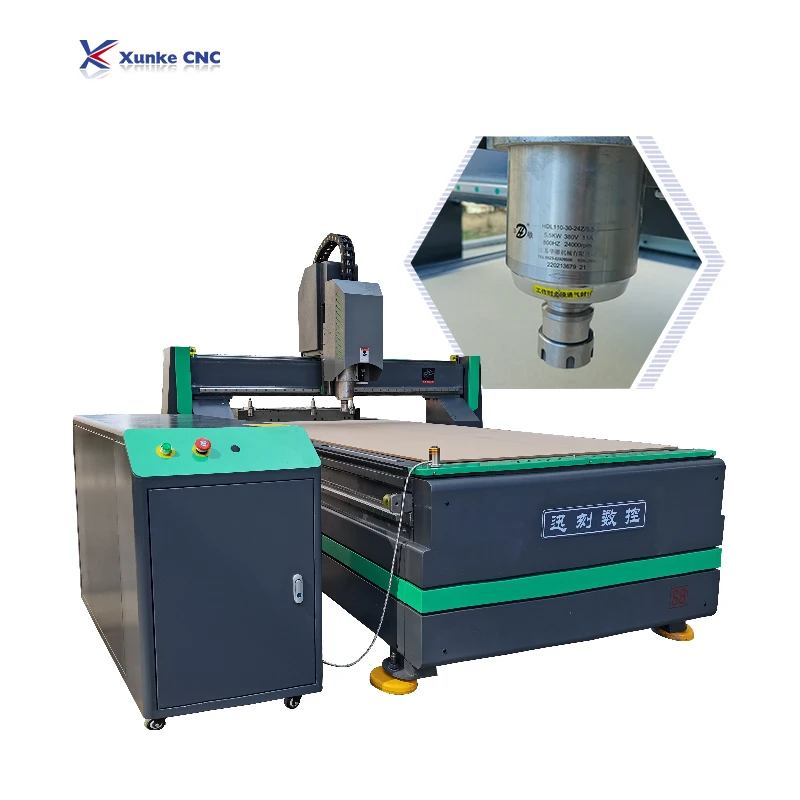

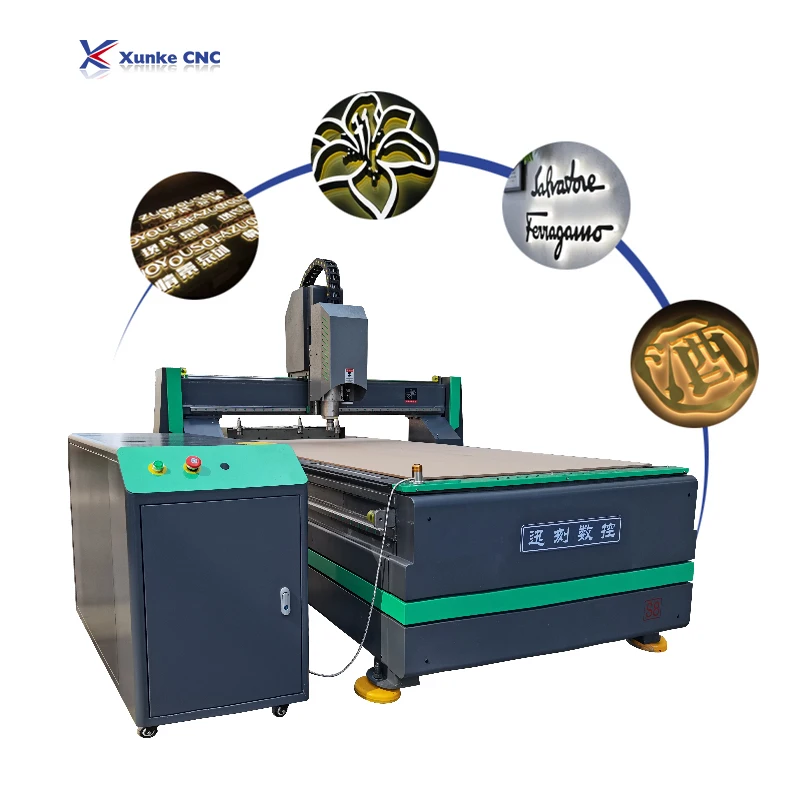

Xunke atc bt30 4 axis independent control cabinet Vacuum adsorption NC system cnc router machine
- Category: >>>
- Supplier: Shandong Xunke Cnc Machine Co. Ltd.
Share on (10000016017100):
Product Overview
Description
你们要记得把标题复制到这边，居中，加粗，字号20
Products Show

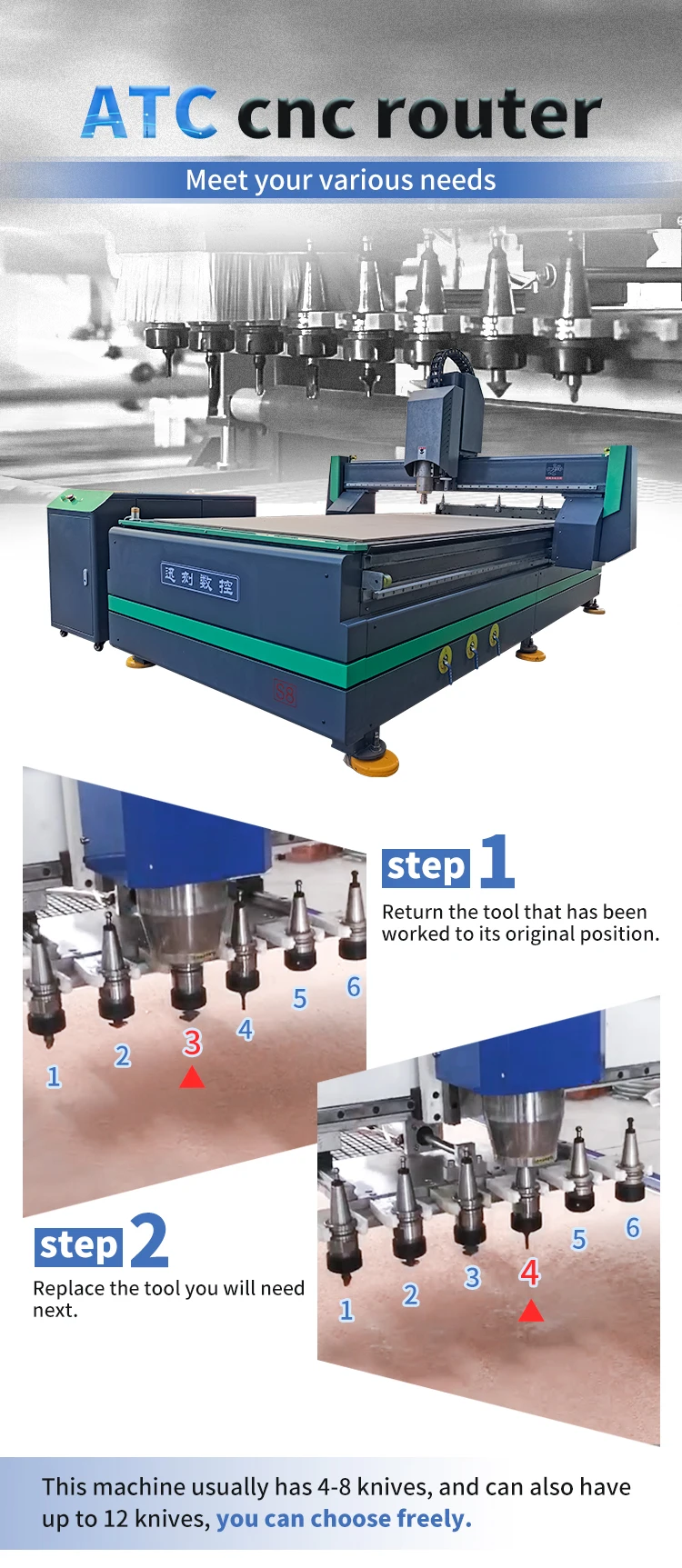

ATC CNC Router
This cnc router machine is mainly used for making advertising words, which will need more than one kinves, so in order to save time and improve working efficiency, we add tool changers, it usually has 4-8 knives, if you have needs of more than 8 knives, we can also add.
Machine body is made from thick square tube and processed by imported CNC processing center, so the machine have high precision and working stability.
Tool changer: 4-8 knives(can up to 12 knives)
Thicken gantry: it can guarantee the stable working of spindle and support the spindle always on the same line while moving from on end to another end.
High working speed: Equipped with full INNOVANCE servo motor and reducer
High precision Guide and Rail: Taiwan 25# guide and 2 mod rail.
Vacuum table: used to fix materials.

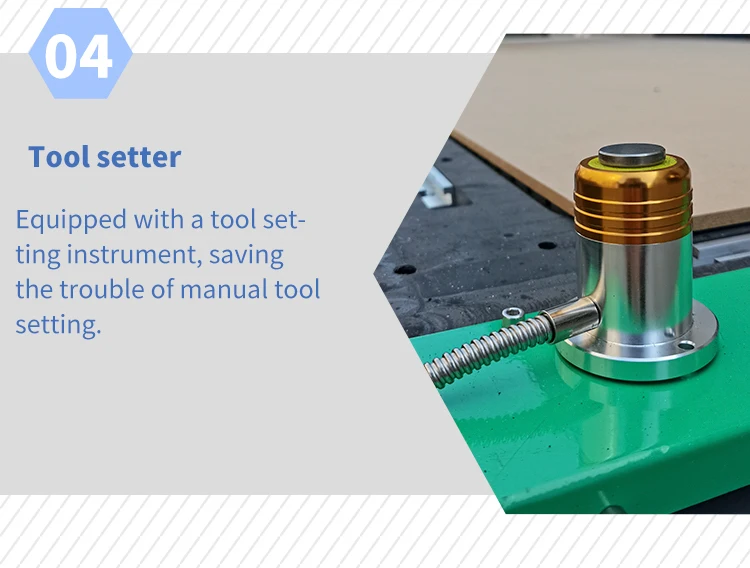

Tool setting gauge
Model | XKCNC-S8 | Inverter | Folinn inverter | ||
Machine size | 2200*3500*1500MM | Motor and drive | 750W servo motor and driver | ||
Working area | 1300*2500*200MM | Control system | DHTN tool changer control system | ||
Spindle | HDK 5.5KW | Table | Vacuum table+T-slot | ||
Speed | 6000-24000 rmp/min | Voltage | 380v/50HZ | ||
Guide and rail | 25mm guide and 2 mod rail | Precision | ±0.01 | ||
Warranty | 1 year | Command Code | G code | ||
compatible software | Window98/XP/7 CAD/CAM | ||||
Appication | Mini words, acrylic/PVC advertising words, advertising board | ||||
Configuration

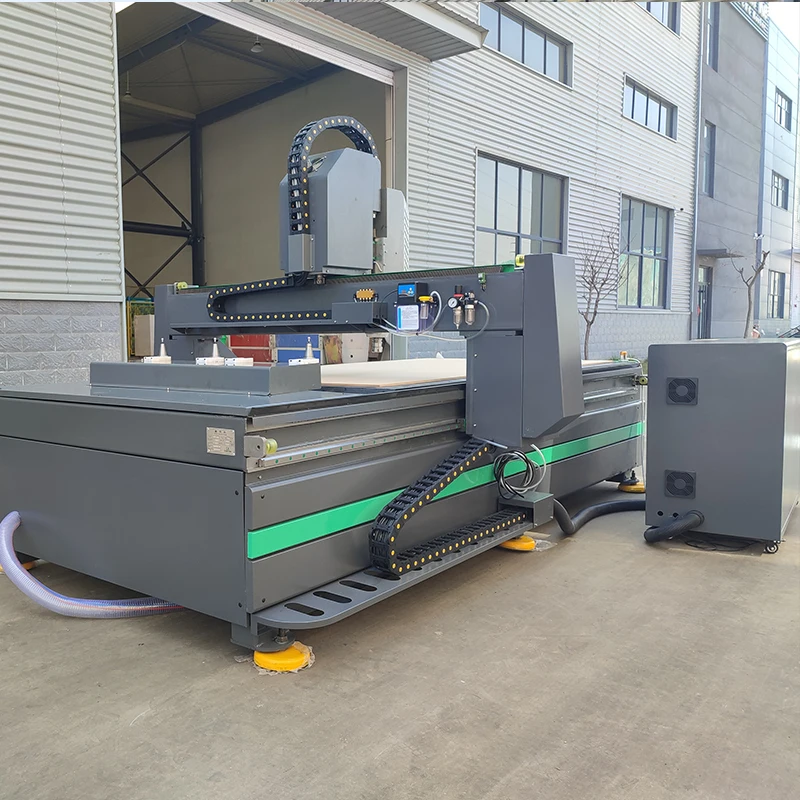

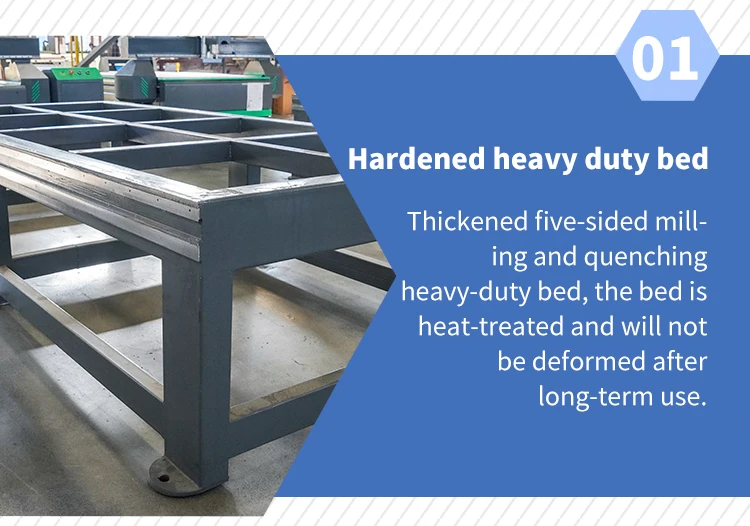

Heavy machine base
Made from thick square tube and processed by imported CNC processing center, so the machine have high precision and working stability. We can also do other sizes, we have high flexibility, so if you have requirements, we will definitely meet your needs.

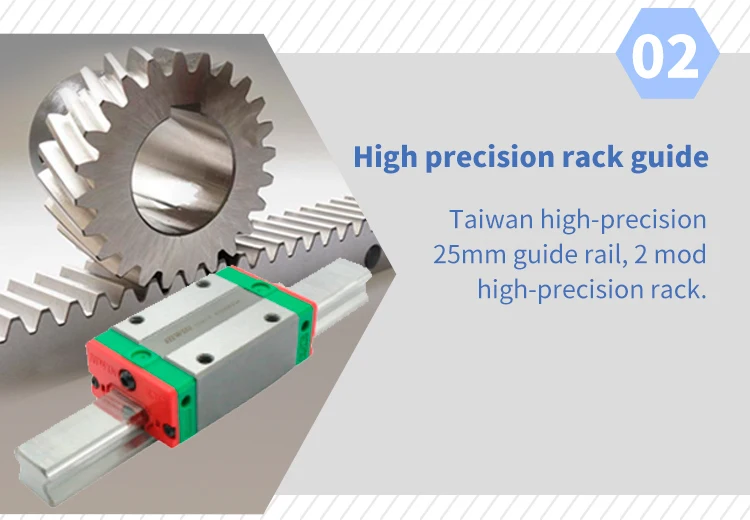

High precision guide and rail.
The wider the guide, the more stable the machine is. The bigger the rail mod, the more stable the machine is. S8 cnc router machine is equipped with 25mm guide rail and 2 mod rack, if you have other requirements, we can change based on the whole machine structure.

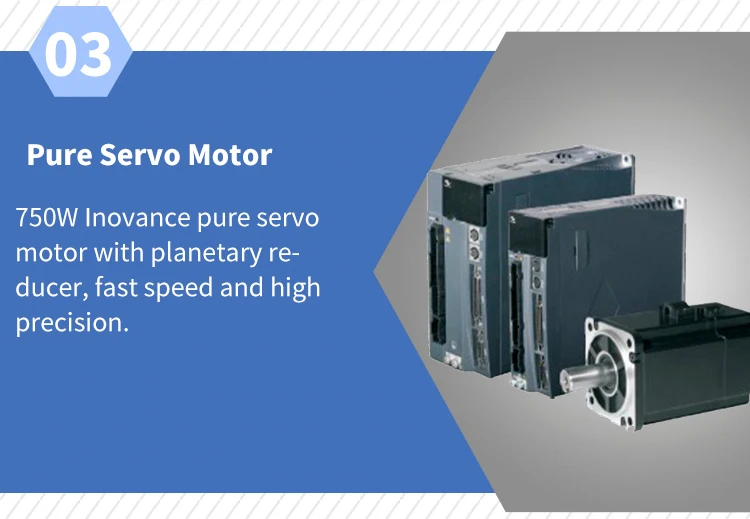

Servo motor and reducer
333
Samples
This machine is used widely in advertising industry, woodworking industry.
Cut PVC, MDF, ACRYLIC, ALUMINUM, etc

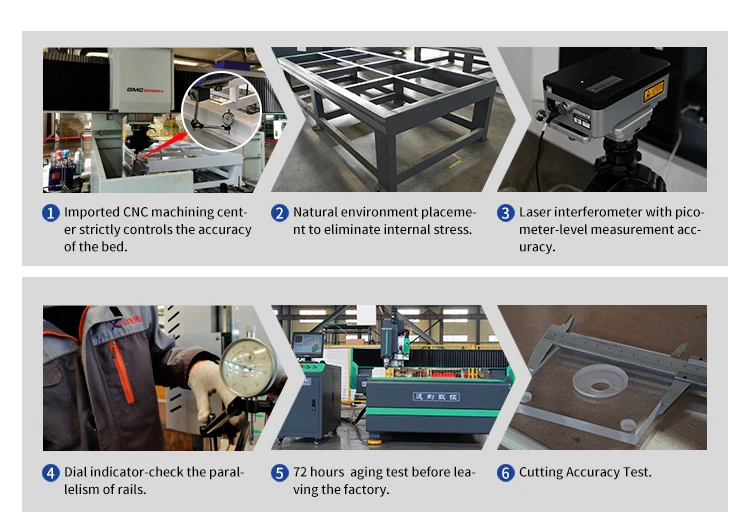

Quality control
Quality Control
Our company has six steps to guarantee the machine quality, from the start to the end. Machine base is made by imported CNC processing center, which is imported from Italy. Besides, we also use precise instrument to measure the precision of every part and finally, we will check the final products after cutting to make sure the the accuracy of machine cutting.
Exhibition
After-sales service
FAQ:
1. Q: How long is the delivery time?
A: Since the market is large, we have some stocks in factory, so if you need standard machines, we can ship the machine within 5 days, or you have special needs, we will ship the cnc router equipment to you from 10 to 20 days.
2. Q: Can you make customized router model?
A: Sure. We are manufacturers not trading company, we have our own R&D department, and cnc machine processing center for machine body making. We have some successful cases like machine with up-down table and special holding device. As long as you have specific requirements, we will definitely not let you down!
3. Q: I am the new comer, if I buy machine from you, will I get any help or support?
A: If you buy machines from us, we will sent manual and technical videos for you to know more about the machine firstly, after receiving the machine, we will provide one to one technical support online. Providing the best service is our aim.
4. Q: What’s the policy for the damaged parts?
A: We have one year warranty, if the parts break within the warranty, we will send replacement for free, but you need to take
charge of the freight.
5. Q: How can I do if cnc router machine goes wrong?
A: If any problems occur, please contact us as soon as possible instead of solving it by yourselves or other engineers.
A: Since the market is large, we have some stocks in factory, so if you need standard machines, we can ship the machine within 5 days, or you have special needs, we will ship the cnc router equipment to you from 10 to 20 days.
2. Q: Can you make customized router model?
A: Sure. We are manufacturers not trading company, we have our own R&D department, and cnc machine processing center for machine body making. We have some successful cases like machine with up-down table and special holding device. As long as you have specific requirements, we will definitely not let you down!
3. Q: I am the new comer, if I buy machine from you, will I get any help or support?
A: If you buy machines from us, we will sent manual and technical videos for you to know more about the machine firstly, after receiving the machine, we will provide one to one technical support online. Providing the best service is our aim.
4. Q: What’s the policy for the damaged parts?
A: We have one year warranty, if the parts break within the warranty, we will send replacement for free, but you need to take
charge of the freight.
5. Q: How can I do if cnc router machine goes wrong?
A: If any problems occur, please contact us as soon as possible instead of solving it by yourselves or other engineers.
