mass production induction heating Aluminum rod continuous casting and rolling line machine
- Category: >>>
- Supplier: Beijing Orient Pengsheng Tech. Co. Ltd.
Share on (10000016145696):
Product Overview
Description
Description of Production Line
This plant works to produce diameter 9.5mm or 12mm common aluminum rod. AL-Mg or AL-Mg-Si(6201,6101 series) alloy aluminum rod and eight series (8030) with high conductivity.
The plant is composed of 1 sets of four -wheel casting machine, drive unit, roller shears, straightener and multi-frequency induction heater, rolling mill, rolling mill lubrication system, rolling mill emulsion system, rod cooling systems ,coiler, and electrical control system.
Brief Process Flow:
Casting machine to get cast bar → roller shears → straightener → multi-frequency induction heater → feed-in unit → rolling mill → cooling unit to quench rod → winding unit to pre-shape rod → star coiler to lay rod into coil.
rolling shear & straightener

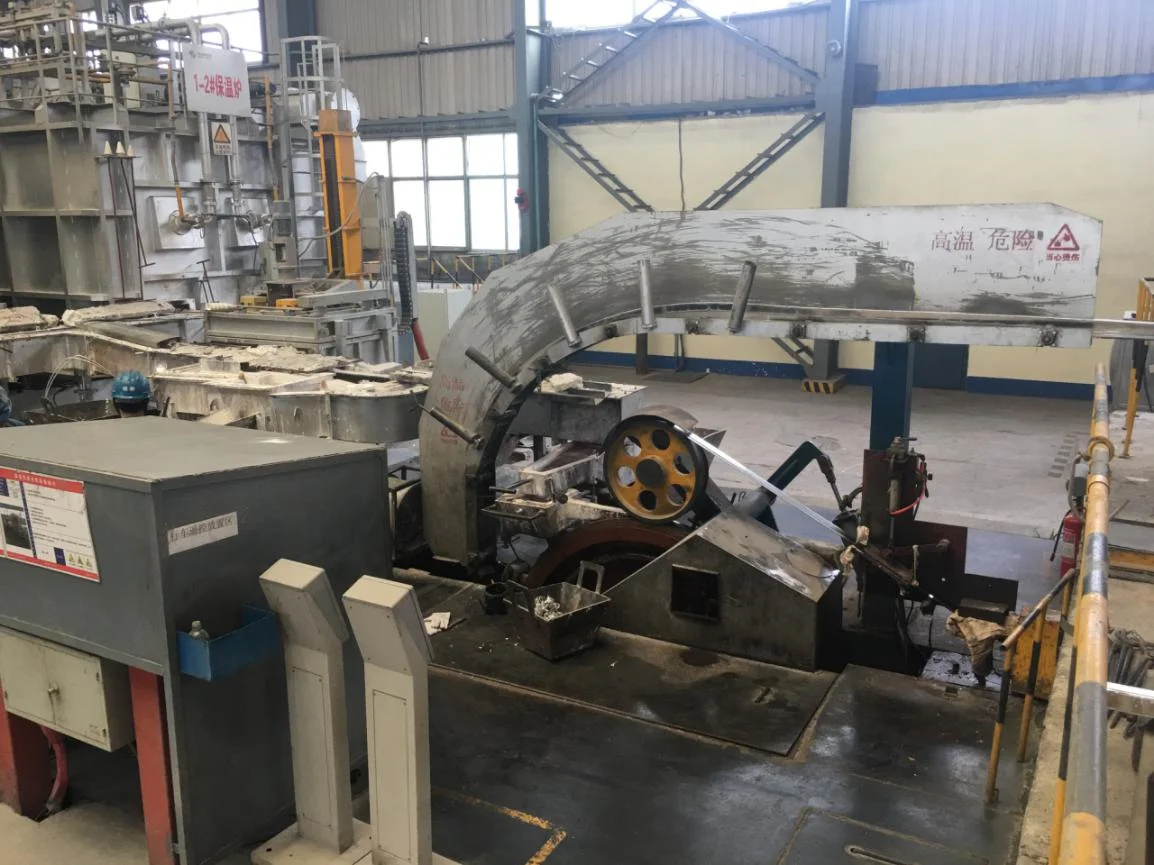

Casting wheel

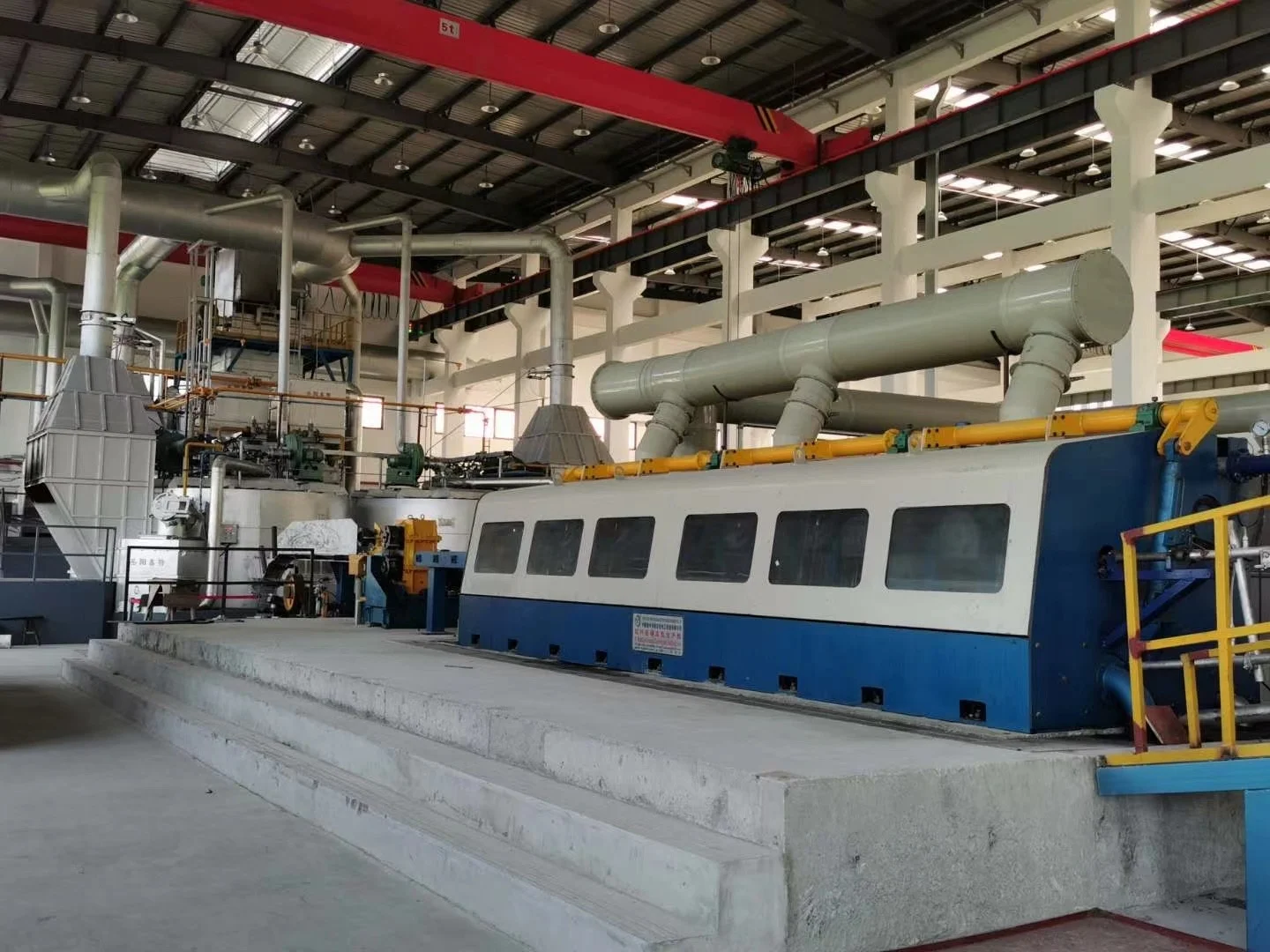

multi-frequency induction heater
PRODUCT SPECIFICATIONS
NO. | Item | Parameter |
1 | Material | Aluminum |
2 | Diameter of Rod | 9.5mm/12mm |
3 | Capacity | 2.5-5.0tons/hour |
4 | Weight of Coil | 3 tons |
5 | Caster wheel diameter | 1600mm |
6 | Cross sectional area of cast bar | 2400 sq/mm |
7 | Number of rollers | 15/13 |
8 | Main motor of the roller | 355KW |
9 | Final line speed of 8mm rod | 7m/s max. |
10 | Overall dimension of plant | 32.05×7.2×4.2m (not including melting furnace and cooling water circulation system) |
11 | Weight of plant | 65tons (not including melting furnace) |
12 | Total power of plant | 450KW (not including melting furnace) |
PRODUCT CONFIGURATION
Four-wheel Casting Machine
Roller Shears
multi-frequency induction heater

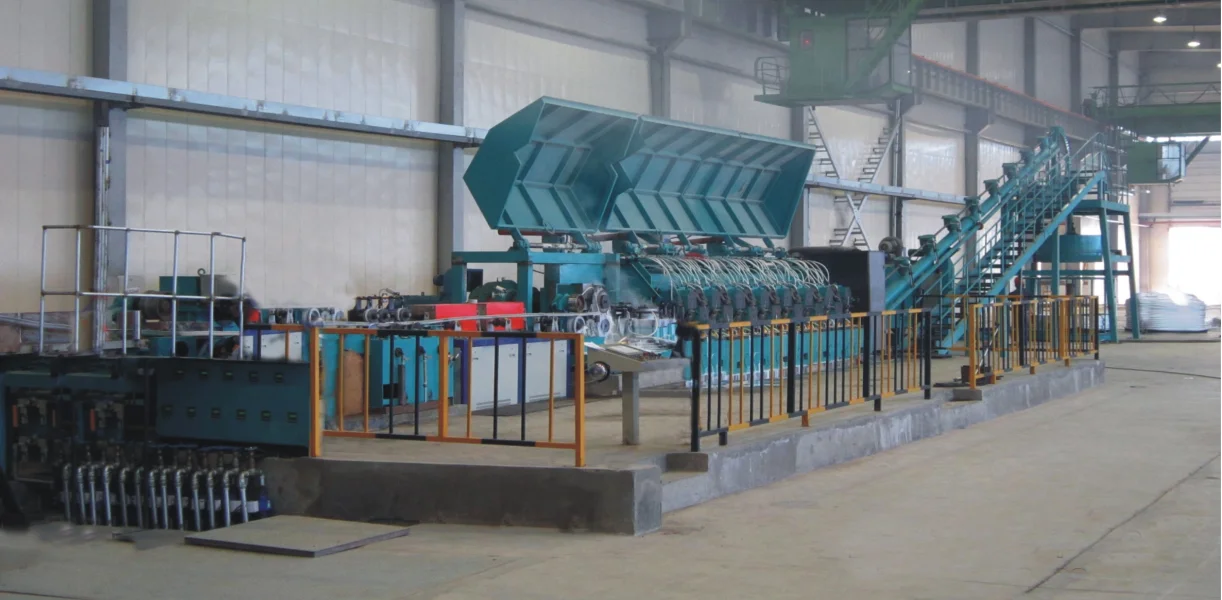

Continuous Rolling Mill
Oil Lubrication System
Coiler
Cooling and blower system
Alcoholic water supply system
Electrical Control System
Features
Main characteristics
Aluminum continuous casting and rolling line works to produce pure aluminum, 3000 series, 6000 series and 8000 series aluminum alloy rods in 9.5mm, 12mm and 15mm diameters.
The system is designed and supplied according to the processing material and related capacity.
The plant is composed of one set of four -wheel casting machine, drive unit, roller shearer, straightener and multi-frequency induction heater, rolling mill, rolling mill lubrication system, rolling mill emulsion system, rod cooling systems, coiler, and electrical control system.
Advantages
With years of machine improvement, our supplied machine is along with the service as:
-high energy saving furnace with controlled molten quality
-high productivity and efficiency
-easy operation and maintain
-consistent rod quality
-technical support from machine startup to daily machine running
Service
The technical service for this system is critical for the client. Besides the machine itself, we give technical service for the
machine installation, running, training and daily maintain support.
With years of experience, we are capable to run the machine well with our customers to have their best ecnomical benefit.
With years of machine improvement, our supplied machine is along with the service as:
-high energy saving furnace with controlled molten quality
-high productivity and efficiency
-easy operation and maintain
-consistent rod quality
-technical support from machine startup to daily machine running
Service
The technical service for this system is critical for the client. Besides the machine itself, we give technical service for the
machine installation, running, training and daily maintain support.
With years of experience, we are capable to run the machine well with our customers to have their best ecnomical benefit.
Exhibition
Why Choose Us
