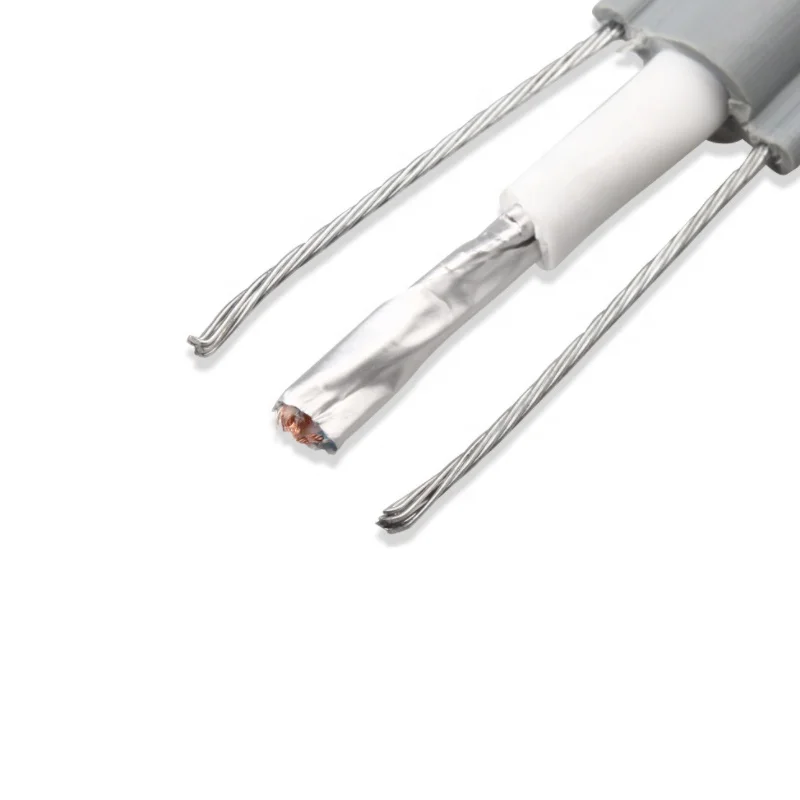

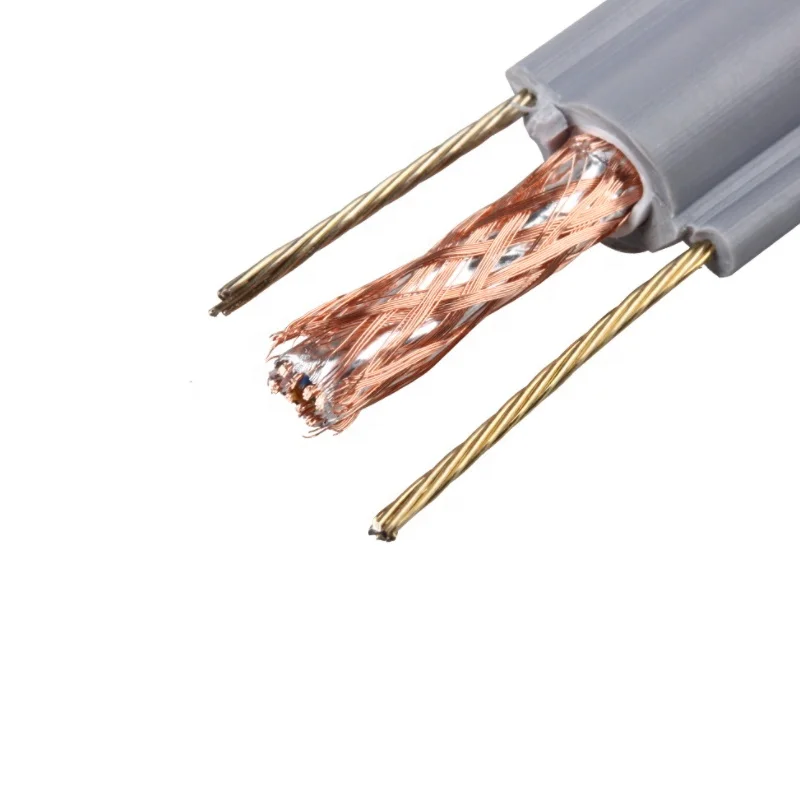

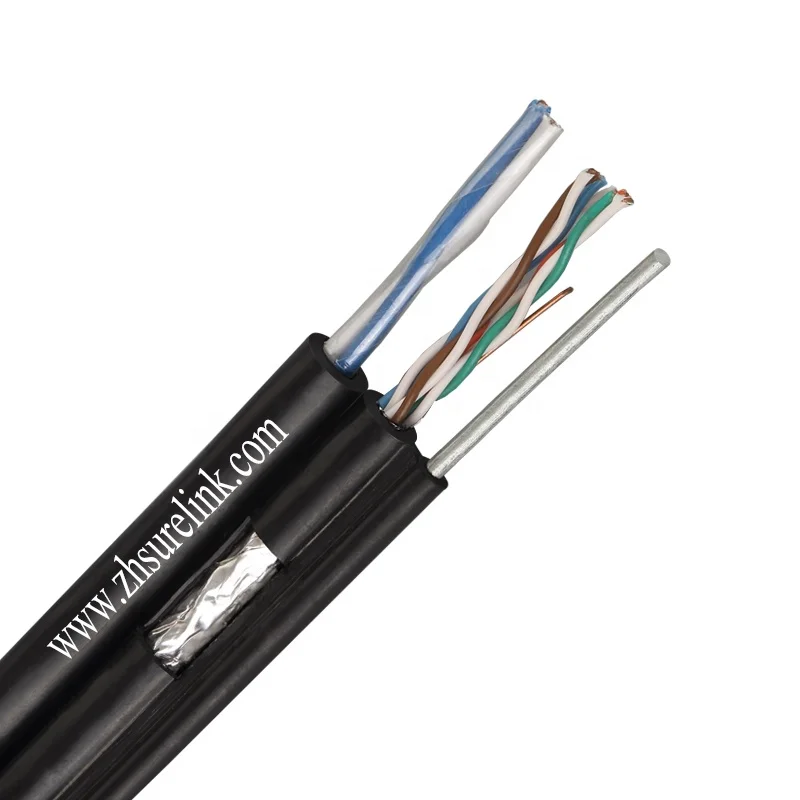

SURELINK high quality TVV or TVVB shield elevator cable PVC flexible cable cat6 round or flat lift cable






PRODUCT SPECIFICATIONS

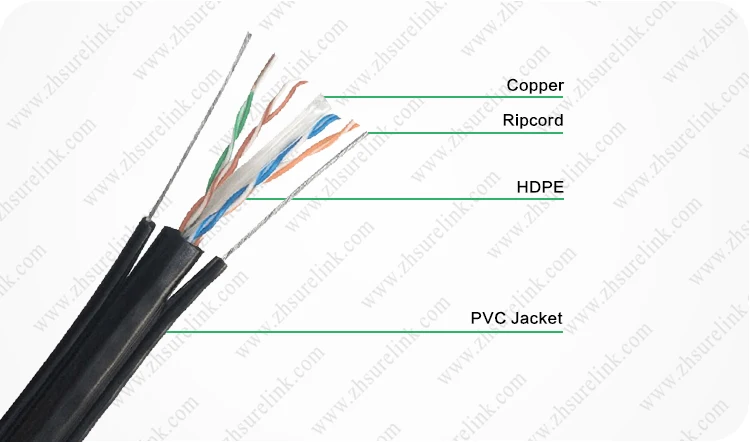

1.Product Structure




2.Technical specification


Item Name
UTP CAT6 Elevator Cable
TYPE
Cat6
Construction
UTP
Conductor
COPPER OR CCA/23AWG Solid Copper
Number of Conductors
8
Insulation Material
HDPE
Cross Material
PP
Application
Lan cable
Jacket
PVC/LSZH
Rip cord
Nylon
Operating temperature
-20 ° C - +60 ° C
Standard
EIA/TIA 568B.2 & ISO/IEC 11801/ ASTM / BS
Certificate
CE/ISO/RoHS Approved


Material Instruction
1.CCA or Soft Plain Copper.
2.Eco-friendly,pollution-free and new materials selected.Promise new material only.
3.Insulation: Solid HDPE.
4.Eco-friendly PVC Jacket , high-temperature resistance,long working life.

Physical Electrical Characteristics
Using standard twisted construction design, small crosstalk of signal transmission Upload and download in high speed transfer.
Bandwidth is standard 250 MHz.
Support 10-Gigabit Ethernet netword transmission requirements.

DC resistance (max): 4.8Ω/100m at 20°C;
Mutual capactitance (max): 5.6nF/100m;
Unbalanced capacitance (max): 330pF/100m;
Dielectric strength between conductors (min): 2.5kV/2s;
Impedance: 1-250MHz 100±15Ω;
Differential phase delay (max): 45ns/100m;
Operating temperature: -20~+60°C;
Permitted bend radius: 10 times diameter of the cable.

Standard / Certificate
Reference Standard:YD/T1019-2001,ISO/IEC11801,ANSI/TIA/EIA - 568B
Certificates ISO9001,14000, ROHS.


Frequency
MHz
Attenuation
Max
dB/100m
NEXT
Min.
dB/100m
PSNEXT
Min.
dB/100m
ELFEXT
Min.
db/100m
RL
Min.
dB
PHASE
VELOCITY
MIN(M/S)
PHASE
DELAY
MAX(ns/100m)
1
1.9
74
72
68
20
0.585c
570
4
3.7
65
63
56
23
---
552
10
5.9
59
57
48
25
0.611c
545
16
7.5
56
54
44
25
---
543
20
8.4
55
53
42
25
---
542
31.25
10.6
52
50
38
23.6
---
540
62.5
15.4
47
45
32
21.5
---
539
100
19.8
44
42
28
20.1
0.620c
538
200
29.0
40
38
22
18
537
250
32.8
38
36
20
17.3
0.622c
536


SIMILAR PRODUCTS

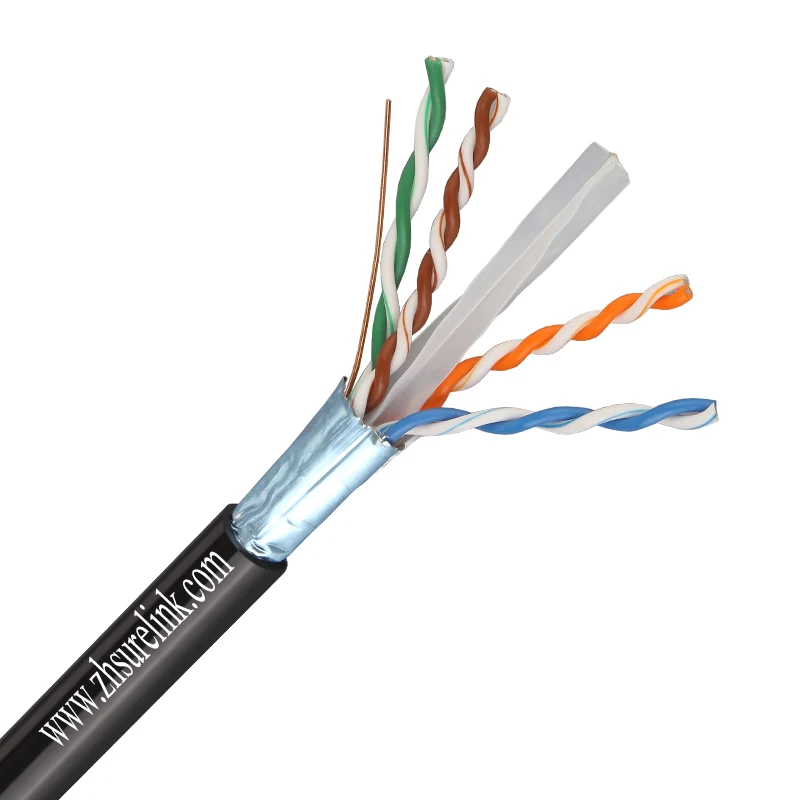

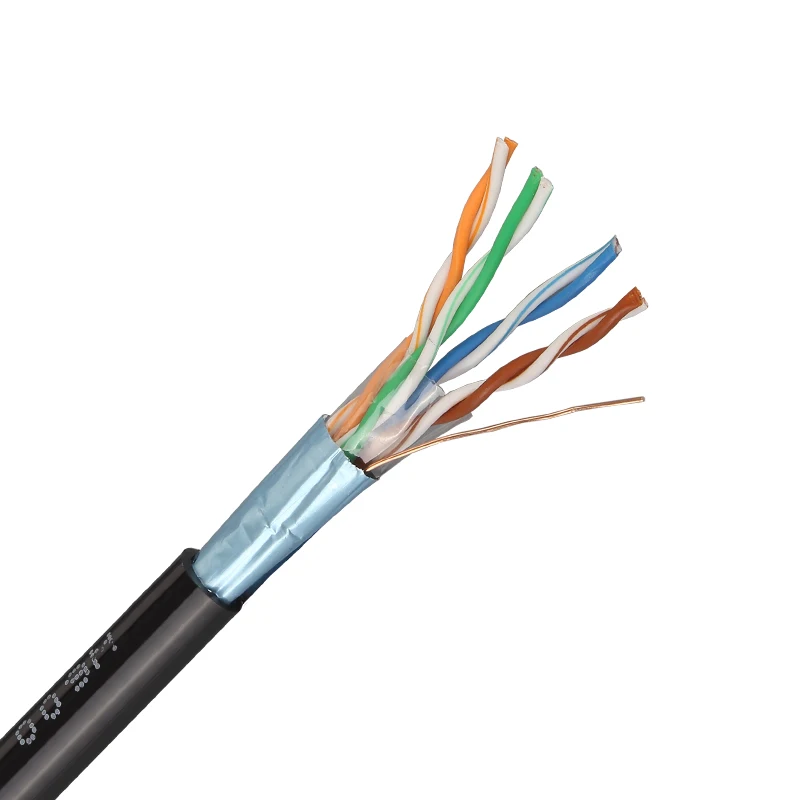

OUTDOOR FTP CAT6
OUTDOOR UTP CAT6 JELLY FILLED

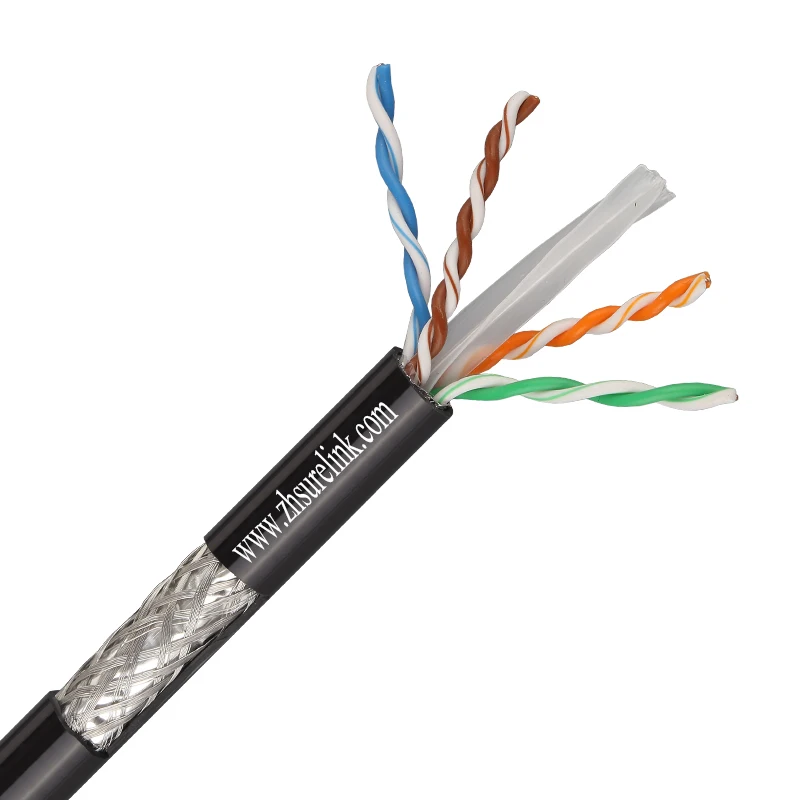

OUTDOOR SFTP CAT6

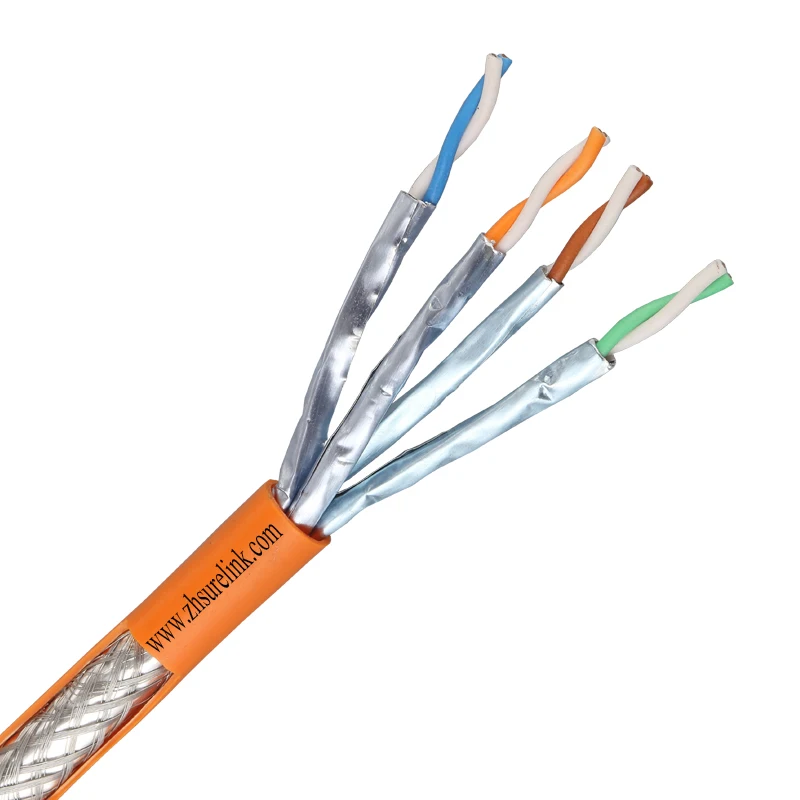

SFTP CAT6A
OUTDOOR FTP CAT5E

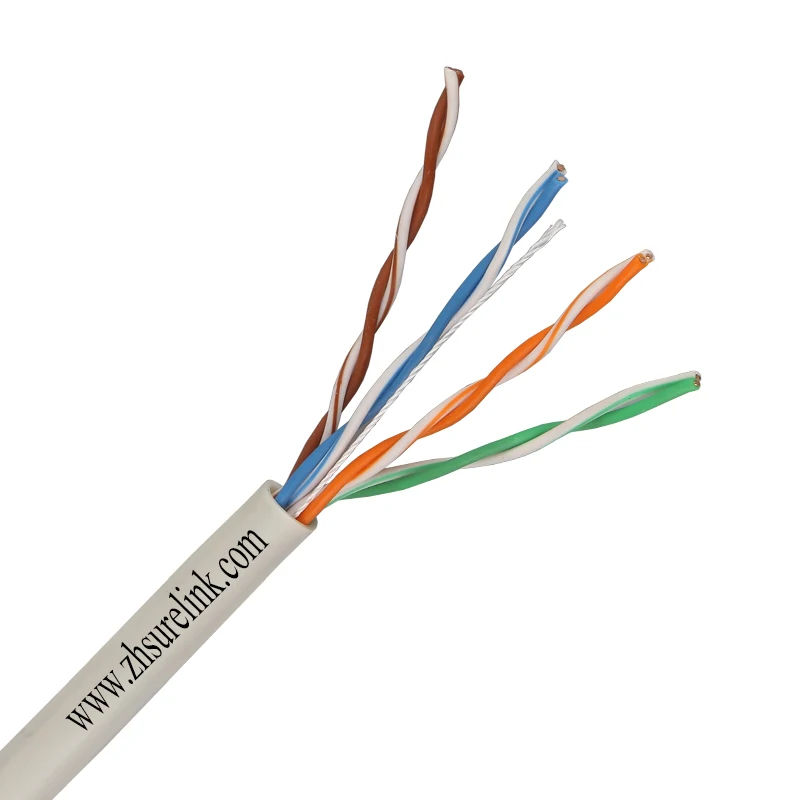

INDOOR UTP CAT5E


COMPANY PROFILE


Zhuhai Surelink Communication Cable Co.,Ltd is one of the leading manufacturer in the cables and telecom accessories. We have more than 20 years experience in this line.Our factory has over twenty production lines and 300 employees.

Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give best service to our clients and the quality guarantee in every order.

Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.

We have established a close relationship with many companies around the world and we sincerely look forward to woking with all clients from all over the world.

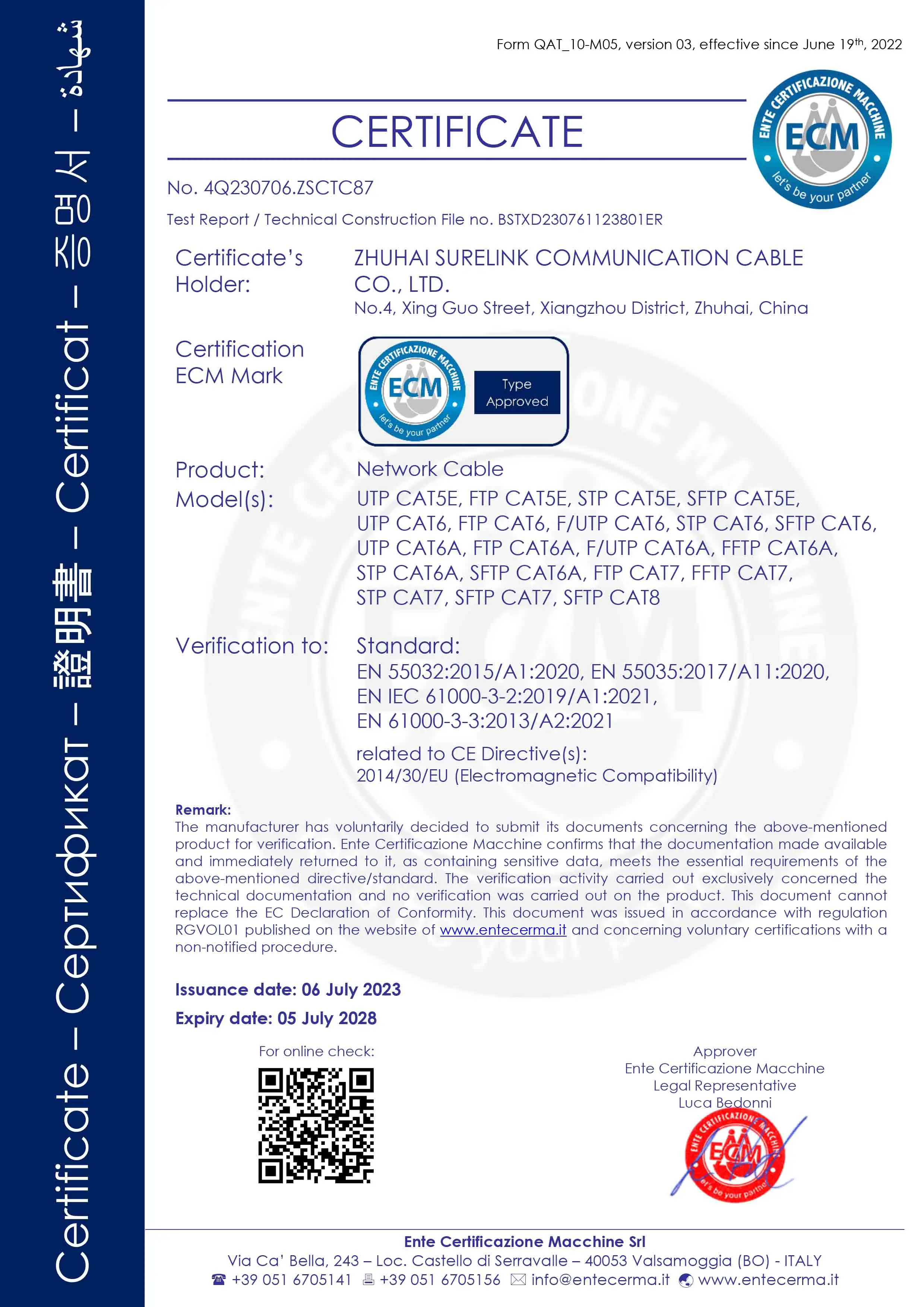

CERTIFICATE




MANUFACTURE

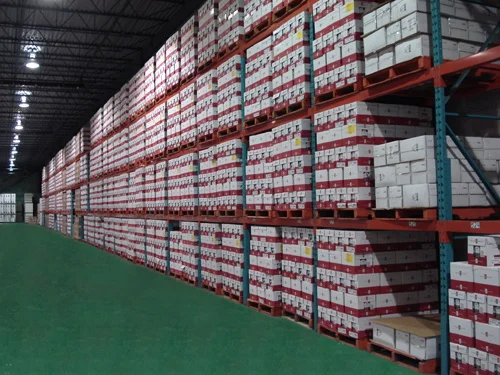

PRODUCT PACKAGE
