Submersible Agitate Mixer 50 60hz Horizontal Mixer for Industrial Water Treatment Water Tank
- Category: >>>
- Supplier: Qiankun Environmental Protection Joint Stock Co. Ltd.
Share on (10000016179221):
Product Overview
Description
Product Description
Mainly used for:
The purposes of mixing, agita-ting and making ring flows in the process of municipal and industrial sewage treatment;
Activated sludge tank, bioreactor tank, mixing tank, sludge silos, equalizing reservoir, sewage tank and etc.;
The maintenance equipment for the landscape water environment, improving the quality of the water body; Creating water flow, effectively preventing the sedimentation of the suspended substances.

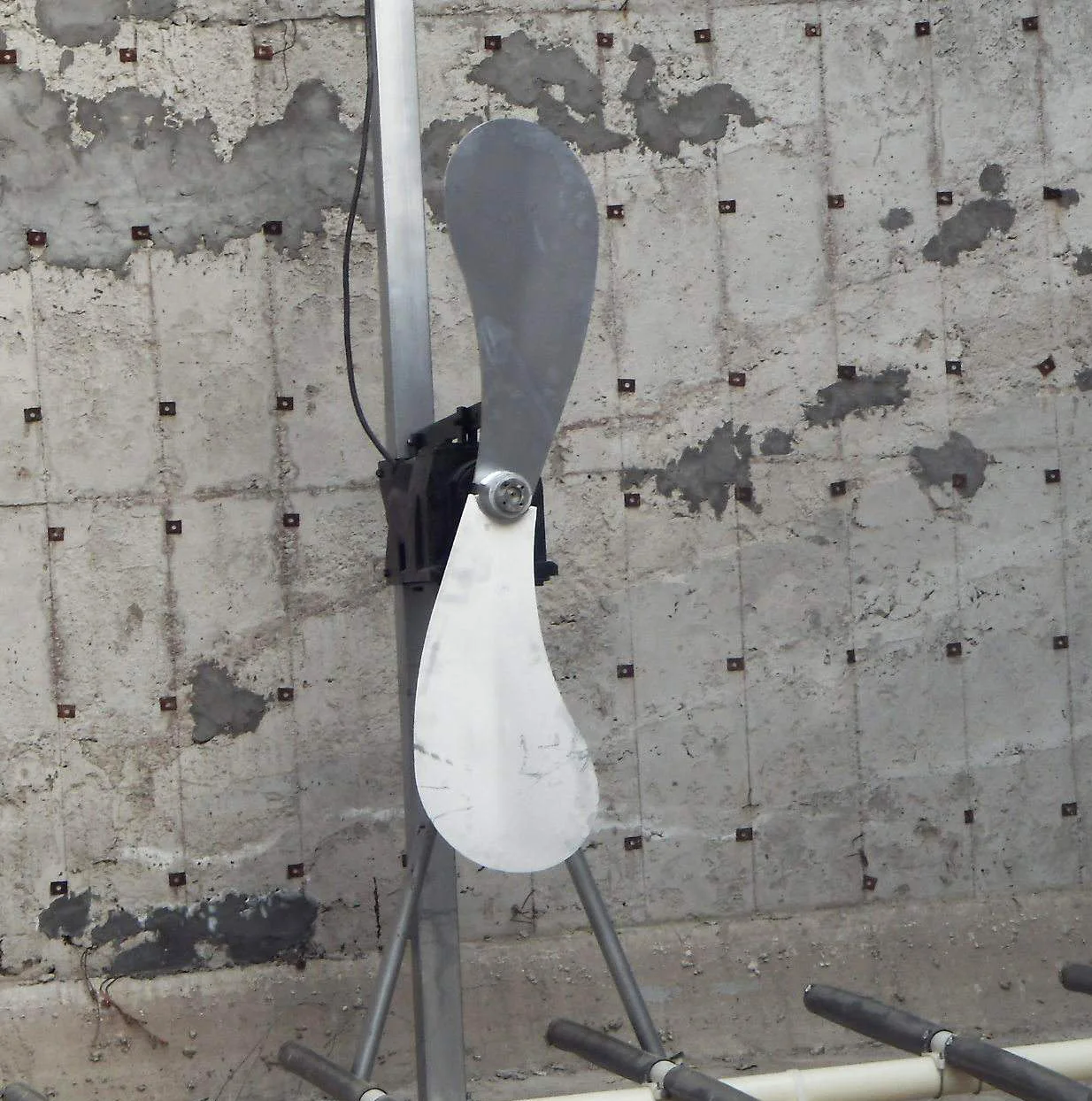

Low-speed flow propeller

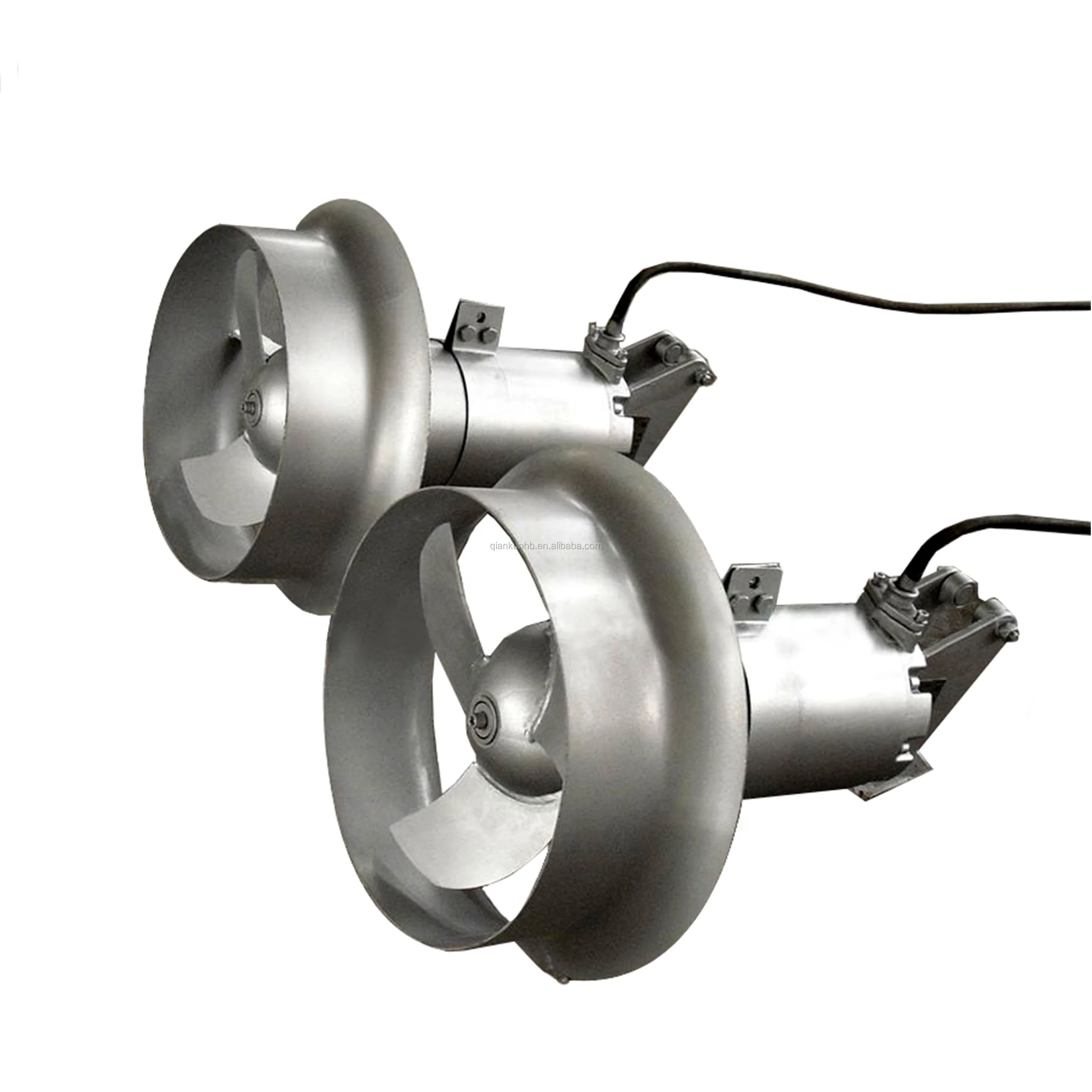

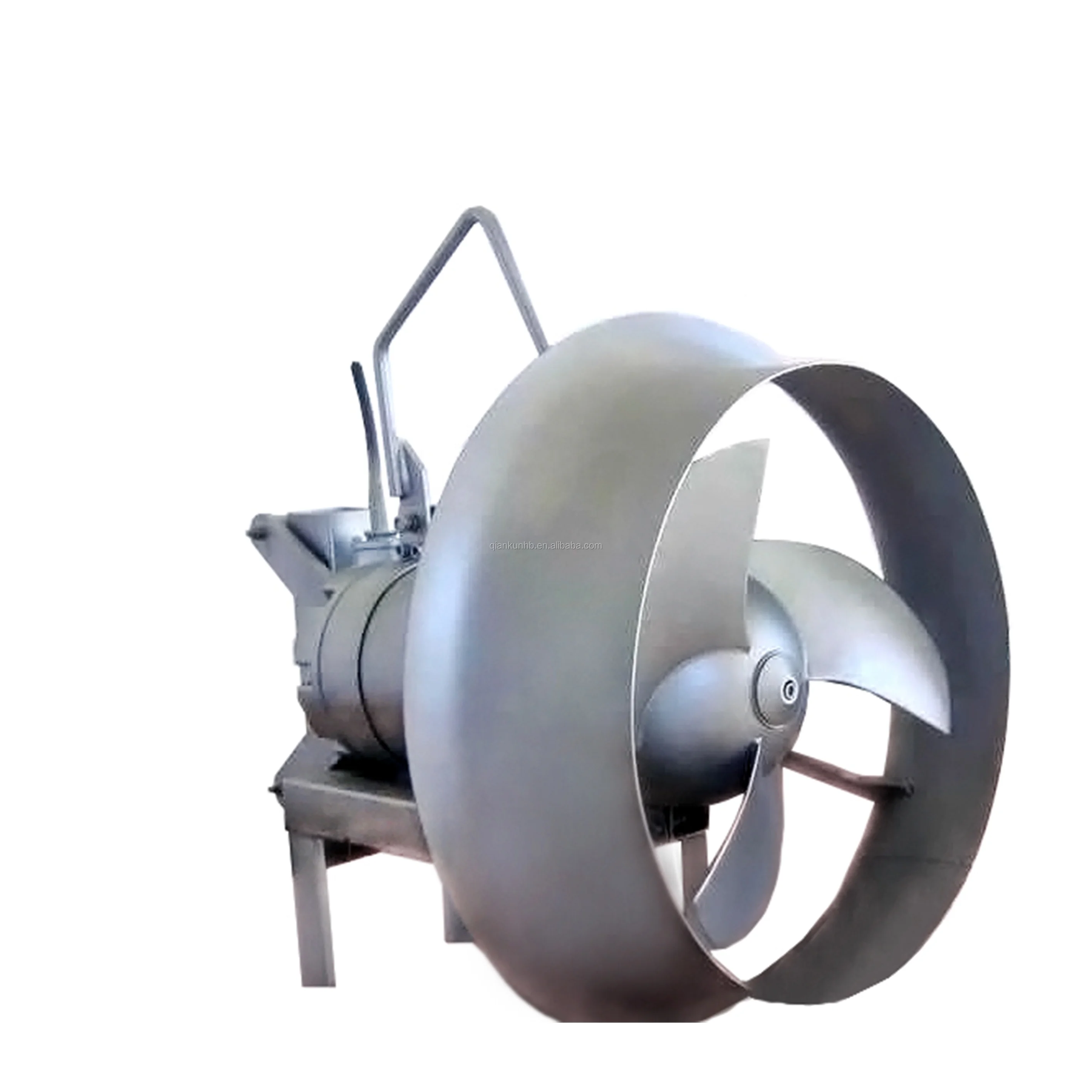

Mixing agitator (With dome)

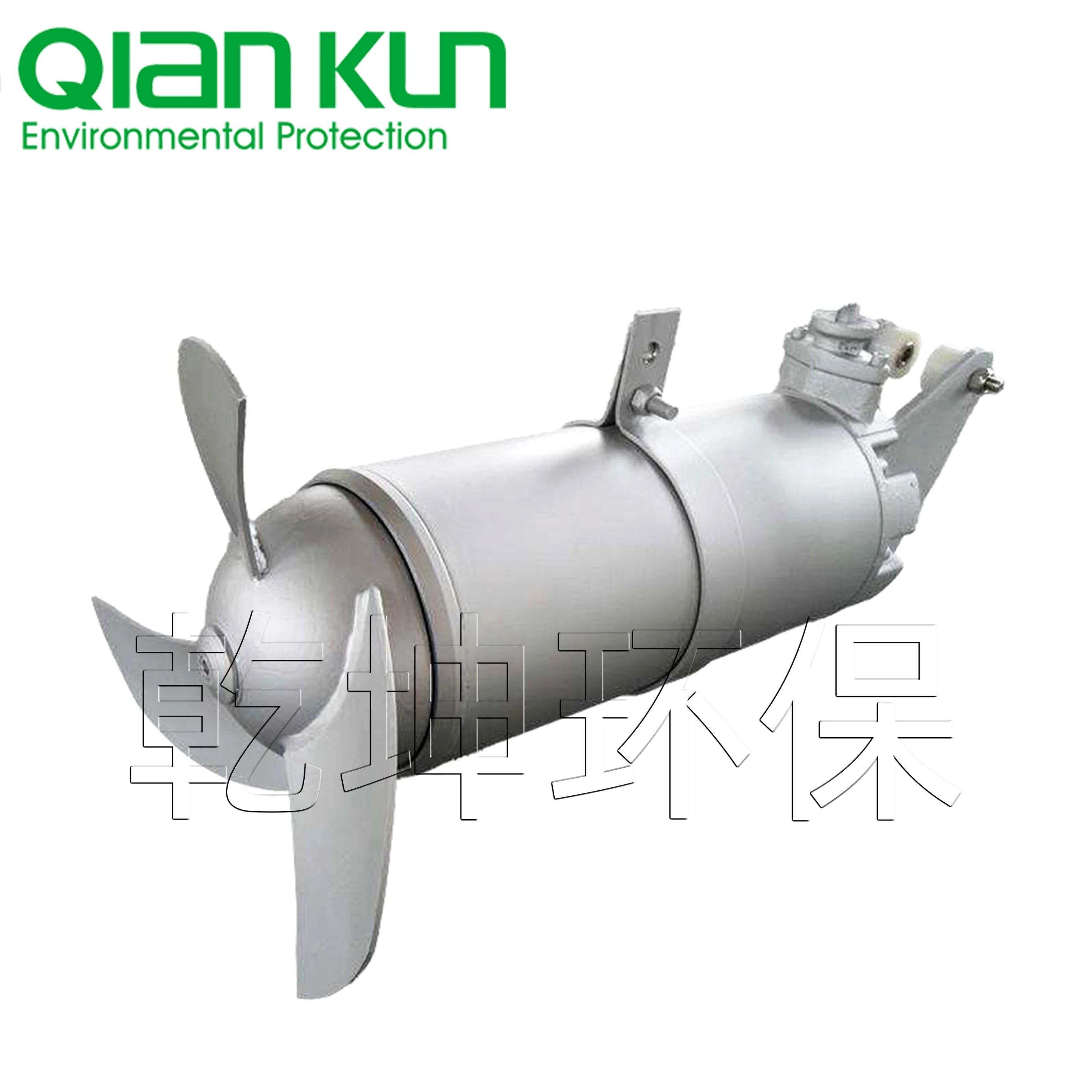

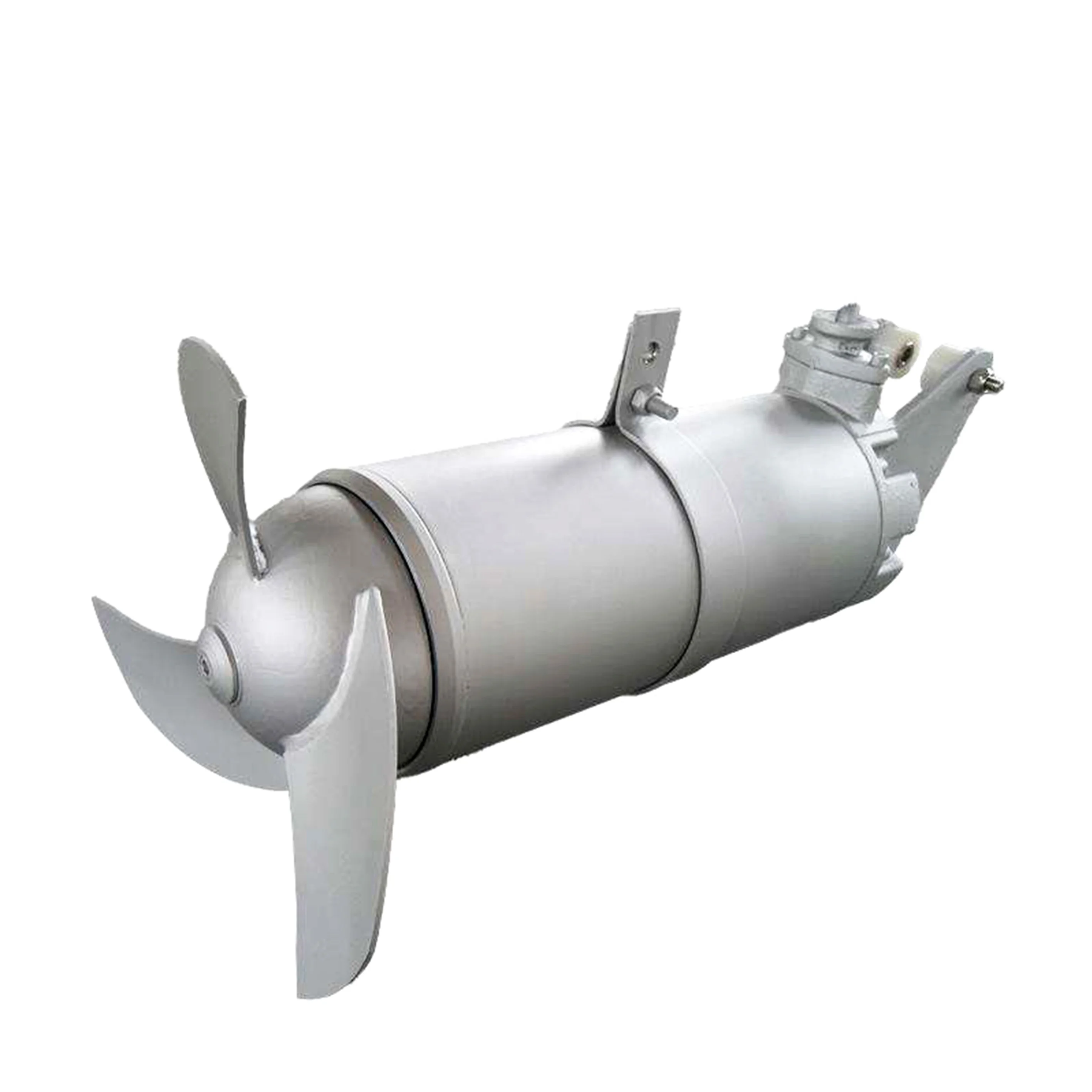

Mixing agitator
Product Features
1.
Two rows of independent mechanical sealing ensure the long-term and reliable operation of the submersible motor.
4.
Shaft of the motor employs the stainless steel, and the rotors are inspected with the use of dynamic balancing, leading to smooth rotation.
2.
International well-known high-quality bearings have longer service life, AND maintenance free.
5.
In-built leakage sensor and the device for the overtemperature protection for the windings of the stator( No leakage sensor
for MA0.37/6 or MA0.55/4).
for MA0.37/6 or MA0.55/4).
3.
Unique sealing design for the cables removes the hidden danger of water leakage for the cables.
6.
Mixer agitators have the stainless steel pressing impeller, which are of the sweptback shape through the optimized design, resulted in high efficiency and self-cleaning function.
7.
Vanes of the low- speed flow propeller are made of FRP, sweptback shape, have the selfcleaning function,
the smooth and streamlined propeller surface distributes the
propelling power equally.
8.
On the low-speed flow propeller, all the tightening pieces will contact media employ the stainless-steel material;
The decelerator employs helical gear speed reducer with high
safty coefficient.
The decelerator employs helical gear speed reducer with high
safty coefficient.

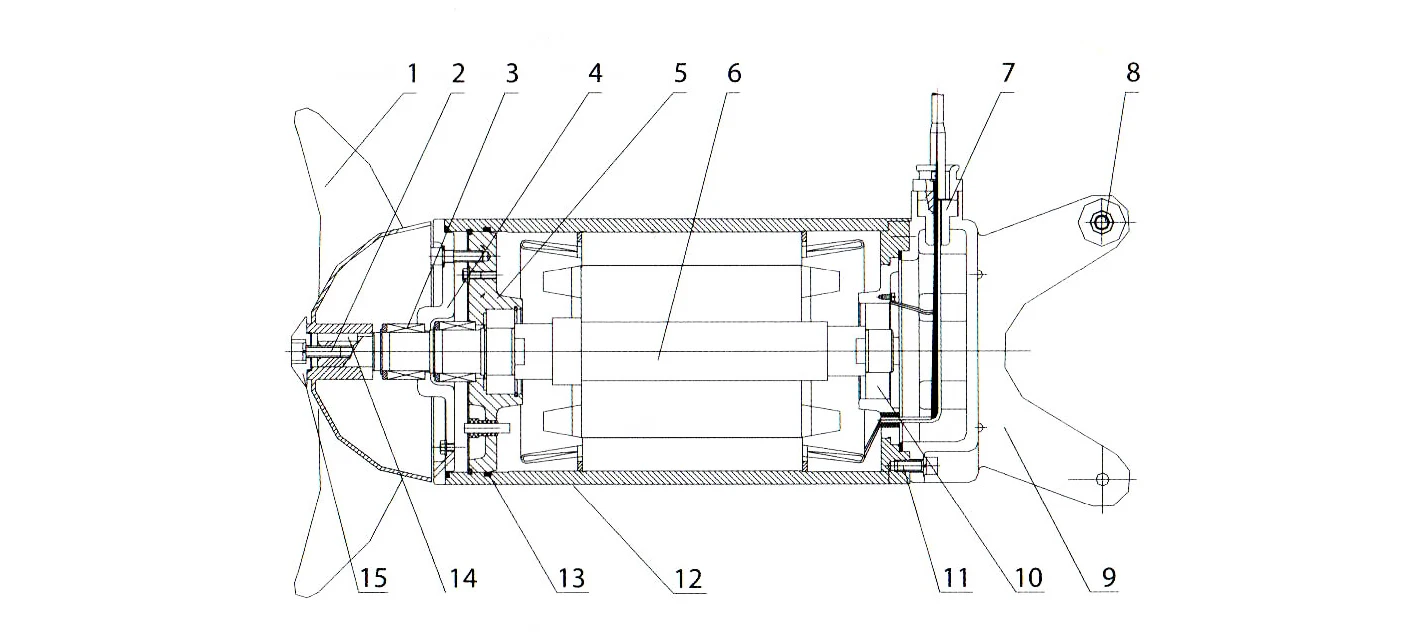

Structure Introduced
No. | Name | GB | JIS |
1 | Propeller | 0Cr19Ni10 | SUS304 |
2 | Lock nut | 0Cr19Ni10 | SUS304 |
3 | Mechanical seal | SiC- SiC | SiC- SiC |
4 | Mechanical seal stand | 0Cr19Ni10 | SUS304 |
5 | Front bearing support | HT200 | FC200 |
6 | Main shaft | 2Cr13 | SUS420J1 |
7 | Watertight head | 硫化橡胶 | VR |
8 | Roller | 0Cr19Ni10 | SUS304 |
9 | Junction box | 0Cr19Ni10 | SUS304 |
10 | Bearing | - | - |
11 | Inner hexagonal screw | 0Cr19Ni10 | SUS304 |
12 | Sheath | 0Cr19Ni10 | SUS304 |
13 | O-type sealant ring | 丁腈70/NBR-70 | NBR-70 |
14 | Flat key | 45 | S45C |
15 | Wheel clamp ring | 0Cr19Ni10 | SUS304 |
The table above is standard material for MA type. If other material needed, pls contact us.

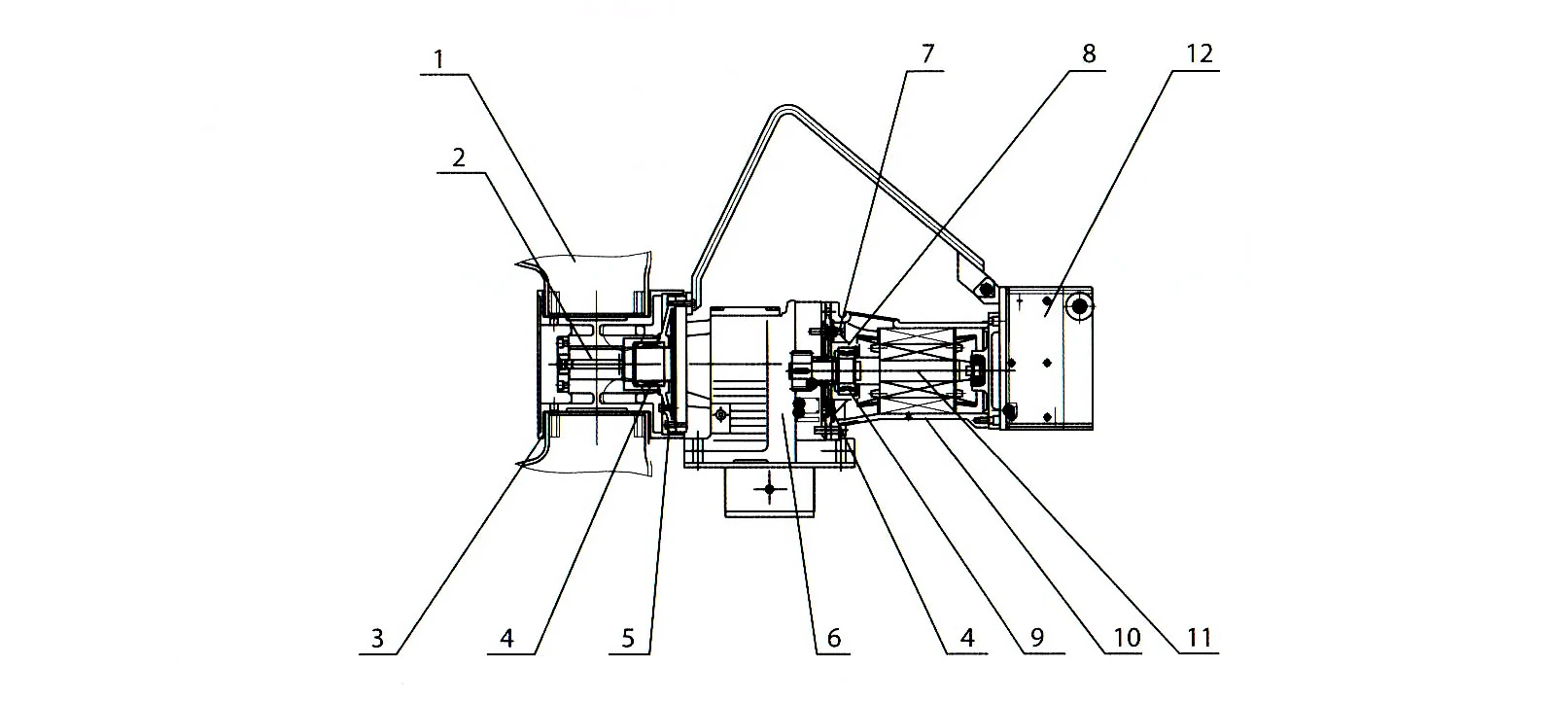

No. | Name | GB | JIS |
1 | Propeller | 玻璃钢 | FRP |
2 | Output shaft | 2Cr13 | SUS420J1 |
3 | Wheel boss | HT200 | FC200 |
4 | Mechanical seal | SiC-SiC | SiC-SiC |
5 | Mechanical seal stand | HT200 | FC200 |
6 | Decelerator | HT200 | FC200 |
7 | Leakage sensor | - | - |
8 | Bearing stand | HT200 | FC200 |
9 | Bearing | - | - |
10 | Sheath | HT200 | FC200 |
11 | Motor shaft | 2Cr13 | SUS420J1 |
12 | Slide sleeve | HT200 | FC200 |
low-speed flow propeller
Pump model | Motor power (kW) | rpm of propeller (r/min) | Diameter of propeller (mm) | Thrust (N) | Weight (kg) |
LFP2.2/4-1100-52 | 2.2 | 52 | 1100 | 1100 | 172 |
LFP3/4-1100-63 | 3 | 63 | 1100 | 1500 | 175 |
LFP4/4-1 100-85 | 4 | 85 | 1100 | 2600 | 212 |
LFP3/4- 1400-43 | 3 | 43 | 1400 | 1740 | 183 |
LFP4/4- 1400-52 | 4 | 52 | 1400 | 2950 | 186 |
LFP3/4- 1800-34 | 3 | 34 | 1800 | 2320 | 210 |
LFP4/4- 1800-43 | 4 | 43 | 1800 | 3200 | 212 |
LFP3/4-2500-34 | 3 | 34 | 2500 | 2500 | 220 |
LFP4/4-2500-43 | 4 | 43 | 2500 | 3080 | 230 |
LFP7.5/4-2500-52 | 7.5 | 52 | 2500 | 3940 | 319 |

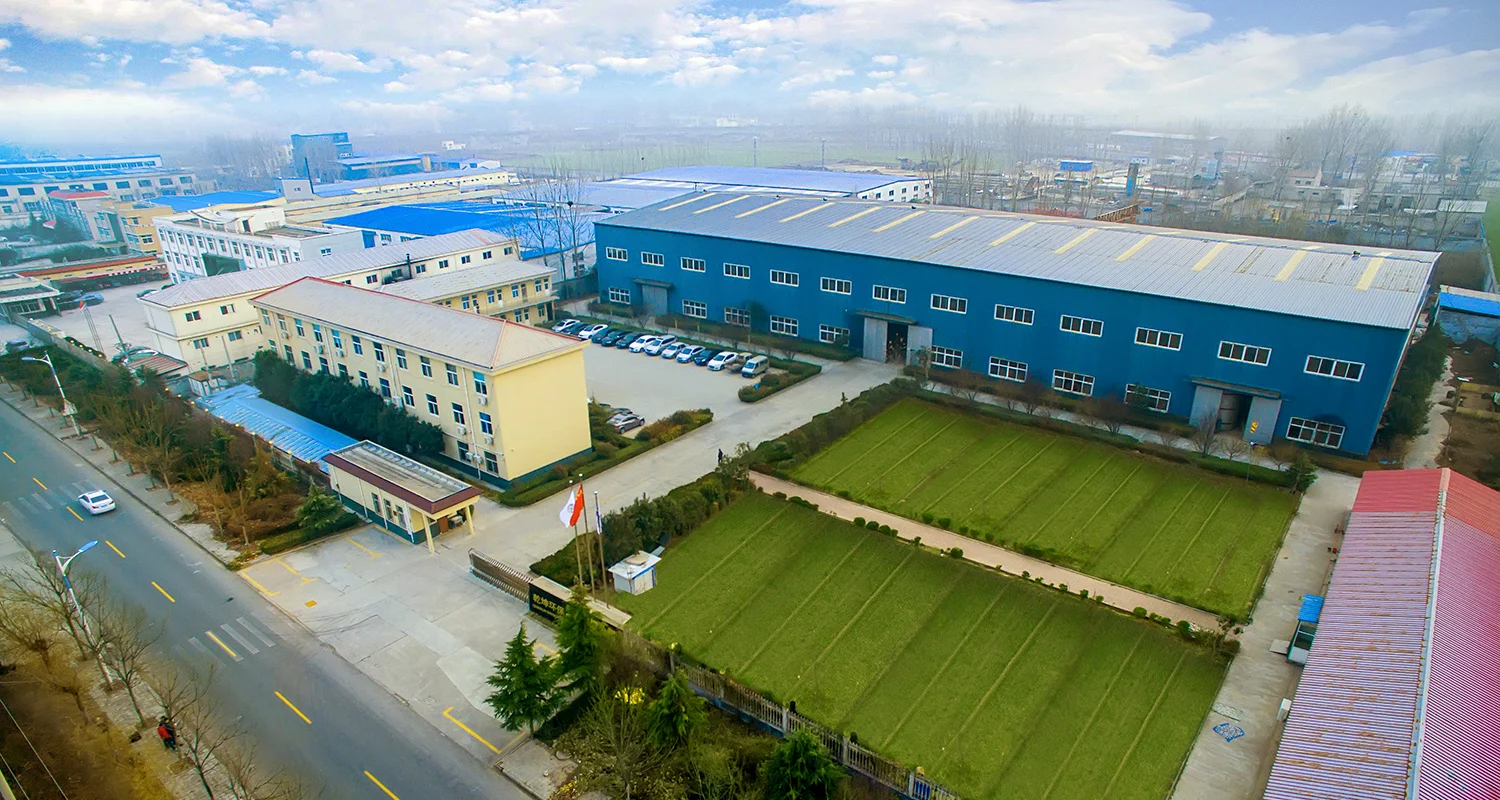

Company Introduction
