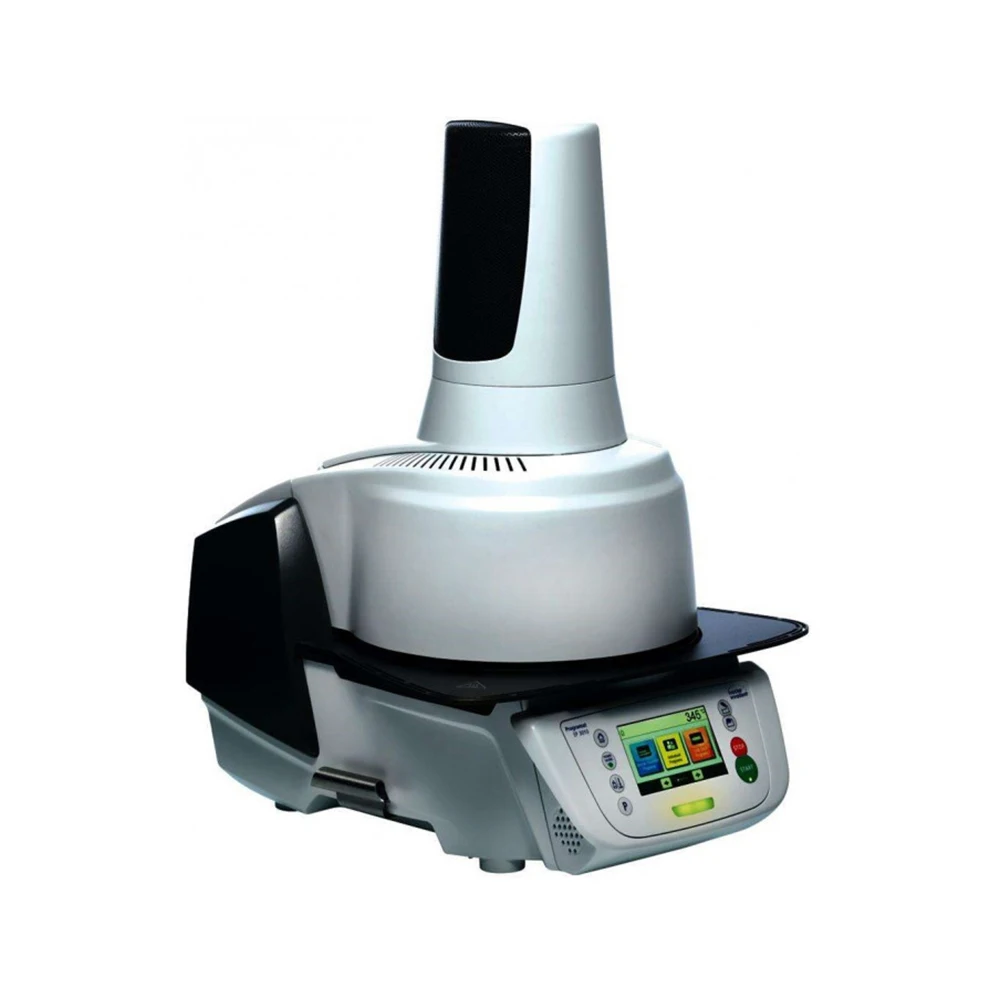

Programat EP 3010 Ivoclar Dental Ceramic Furnace And Vacuum Pump

item

value

Place of Origin

Italy

Technical Data:

Power supply 110 – 120 V / 50 – 60 Hz
200 – 240 V / 50 – 60 Hz
Admissible voltage fluctuations ±10%
Max. power consumption 12 A at 110 – 120 V
8.0 A at 200 – 240 V
Vacuum pump data Max. power consumption: 250 W
Final vacuum: < 50 mbar
Only tested pumps should be used.
Dimensions of Depth: 465 mm
closed furnace Width: 320 mm / 390 mm (with cooling tray)
Height: 550 mm
Dimensions of Diameter: 90 mm
firing chamber Height: 80 mm
Max. firing temperature 1,200 °C
Weight 18.3 kg
Safety information The furnace is built according to the
following standards:
– IEC 61010
– UL and CAN/CSA
Radio protection / EMC tested
Electromagnetic
compatibility

Features:

 * FPF function: Fully automatic Press Function for optimum press results.
* Programs are optimally coordinated with Ivoclar Vivadent materials.
* QTK2 muffle technology with SiC bottom reflector for homogeneous heat distribution.
* Colour touch screen and proven membrane-sealed keypad for easy operation.
* Electronic press drive with force sensor produces high-quality press results. No compressed air connection required.
* Crack Detection System detects cracks in the investment ring.
* Easy and automatic temperature calibration at two reference points (ATK2).
* Simple software update via USB flash drive.
* Remote diagnosis function via data file for optimum support by a service centre.
* Broad range of programs: 300 individual firing and 20 individual press programs.
* Power Saving Technology for power-saving operation.
