Crawler Solar Pile Driver Attachment Deep Hole Hammer Pile Driver Machine for Sale
$15,999.00-18,999.00

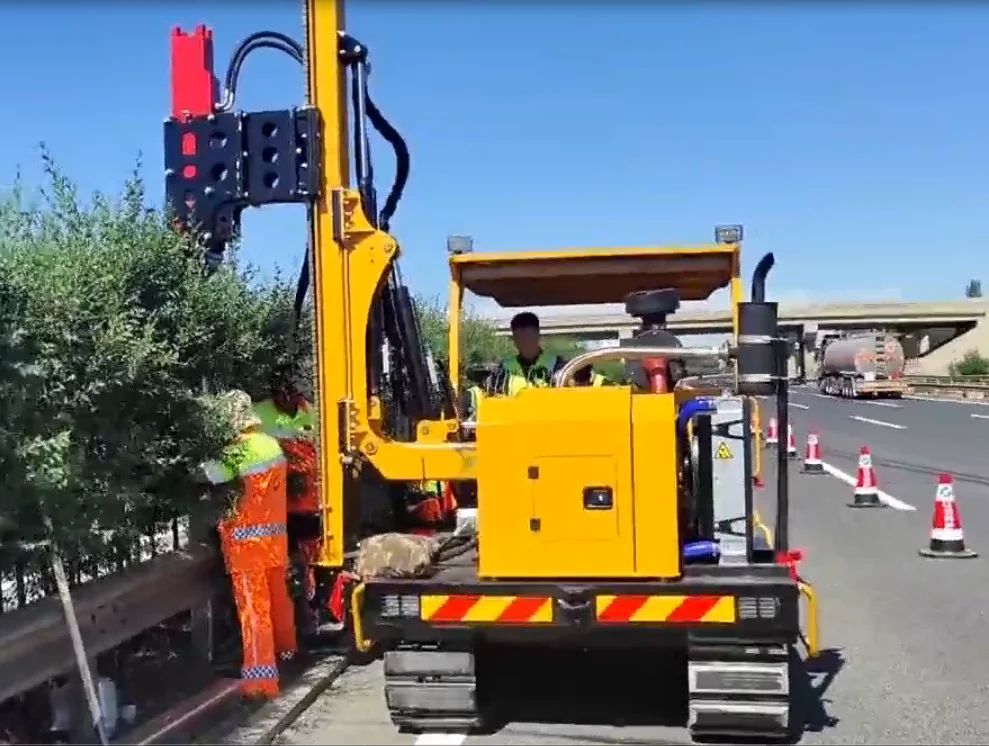

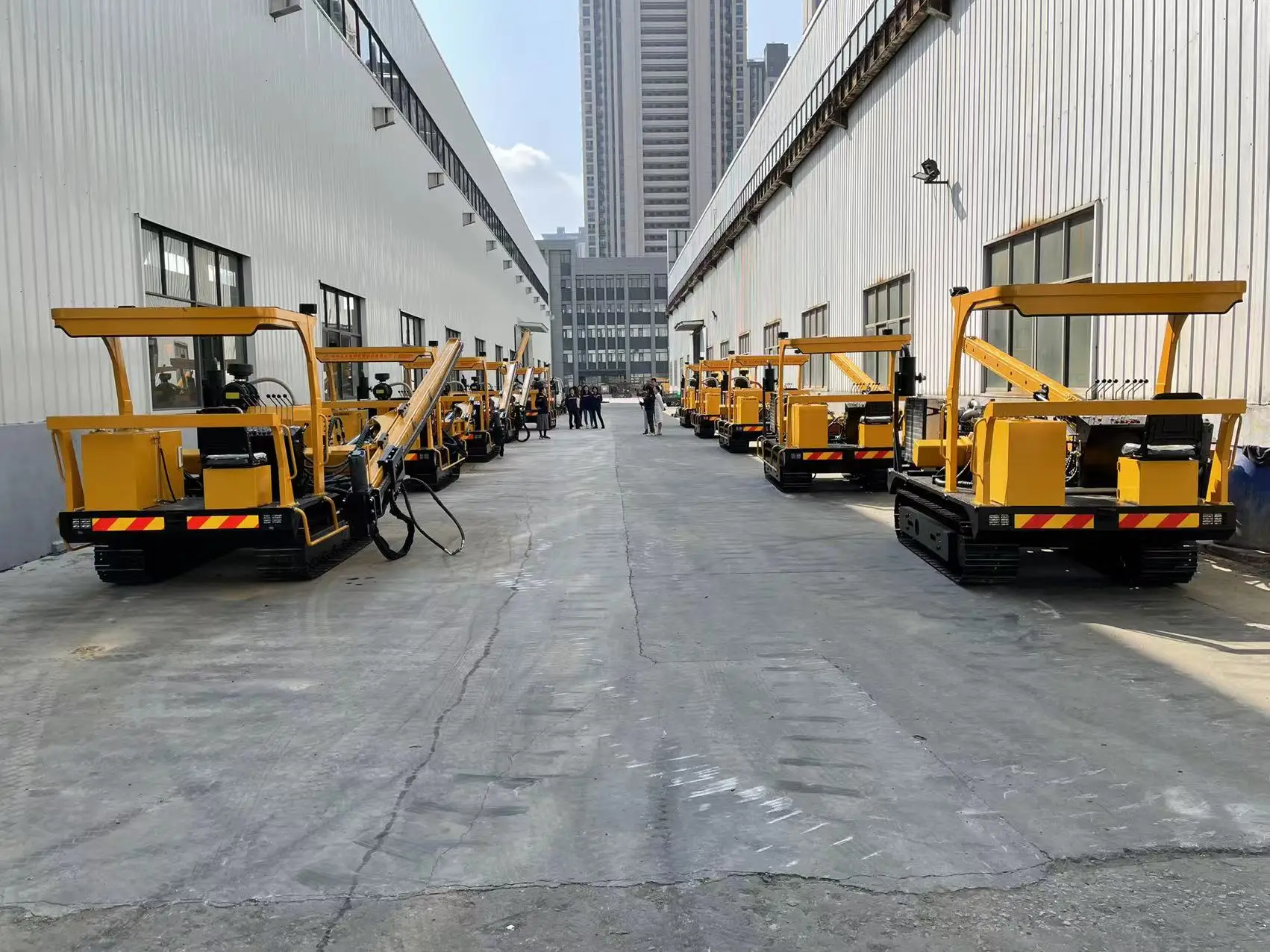

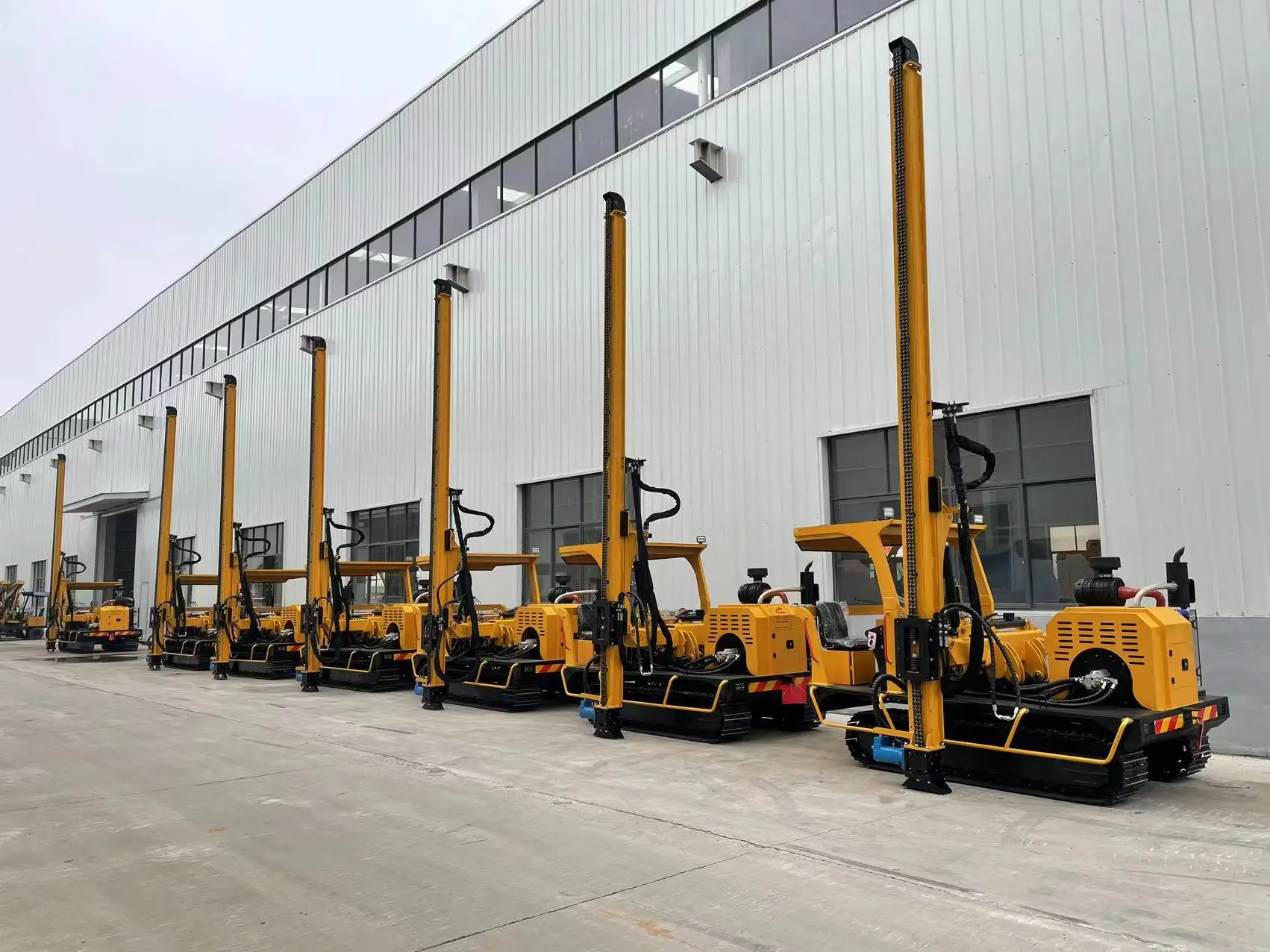

With 4 cylinders diesel engine for highway crash barrier installation, Hengxing HXR5 crawler pile driver ramming machine
- Category: >>>
- Supplier: Xuzhou Hengxing Jinqiao Machinery Technology Co. Ltd.
Share on (10000016206175):
Product Overview
Description
Xuzhou Hengxing Jinqiao Machinery Technology Co., Ltd
Xuzhou Hengxing Jinqiao Machinery Technology Co.. Ltd is a professional manufacturer of pile drive and kelly bars and drilling tools. located in Xuzhou city. established in 2005. covers an area of 40000 square meters. workshope 20000 square meters. more than 200 employees. passing ISO9001 standard and CE certificate. Our pile drivers includes HX26/36D, HXR526D/36D, truck mounted pile driver that is appliable for highway guardrail installation , solar/ photovoltaic (PV) power plant construction. Especially HXR5 series solar pile driver is popular and sold well in the world market. Our pile driver have been exported to Southeast, Middle East, Africa, Southeast and so on. We get compliment about our machine from client.
One of our company cultures is : Customer is first. we'll keep going forward to serve our client in all over the world.

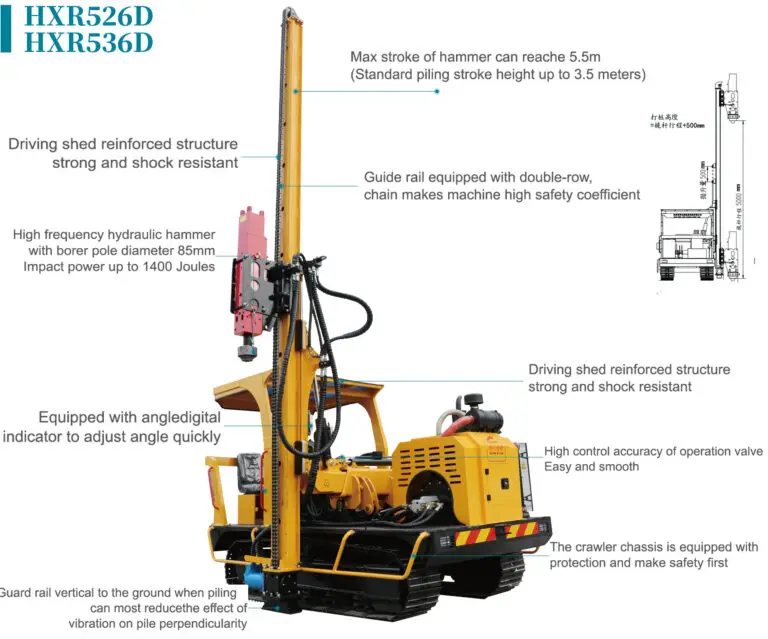

Advantages of Pile Driver
Technical Data of pile driver
No. | Item | Unit | Value |
1 | Transportation size (L*W*H) | MM | 6500*2200*2700 |
2 | Working Size (L*W*H) | MM | 3500*2200*7500 |
3 | Crawler Size | MM | 2550*1700*530 |
4 | Vehicle Weight | KG | 4500-5200 |
5 | Diesel Engine Rated Power | KW | 70 |
6 | Flow Rate of Hydraulic System | L/Min | 113.4 |
7 | Hydraulic Pressure(Max) | Mpa | 20 |
8 | Mast Strok | mm | 200-5500 |
9 | Hydraulic Hammer | / | YC360 (85MM borehole rod) |
10 | Piling efficiency | MM/Min | 3200 |
11 | Drilling Depth | MM | 3500 (Max) |
12 | Borehole Diameter | MM | 50-300 |
13 | Climbing Ability(Max) | Angle | 30 |
14 | Speed | KM/H | 3.8 |
15 | Left/Right Sliding Stroke | MM | 500(Max) |
16 | Max Inclination Angle of Sliding Guide Frame | Angle | Left 30/Right 8 |
17 | Front / Rear Adjusting angle of frame | Angle | Front 75/ Rear 15 |
18 | Min Ground Clearance | MM | 230 |
19 | Capacity of Hydraulic Oil Tank | L | 80 |
20 | Capacity of Diesel Tank | L | 80 |

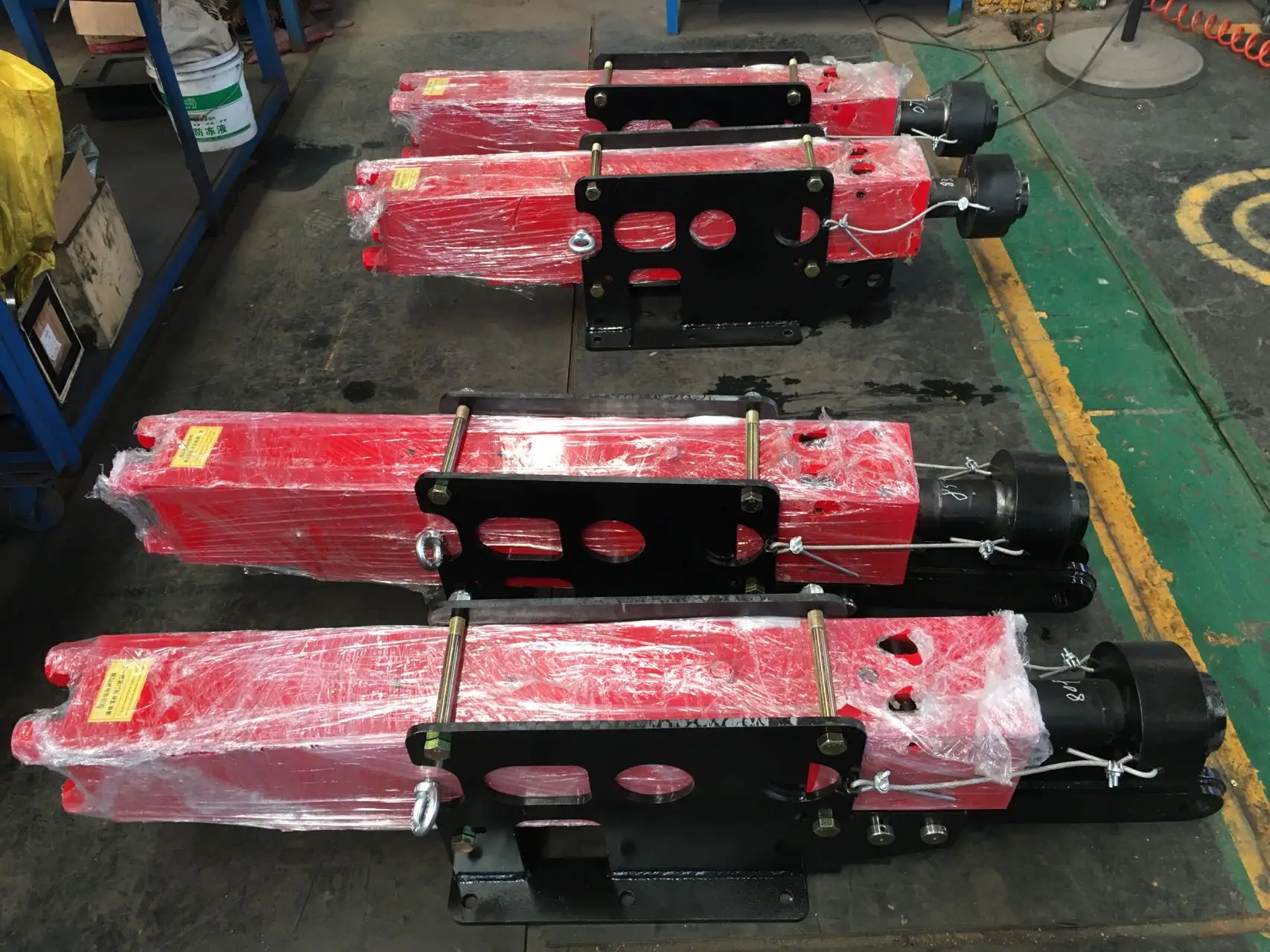

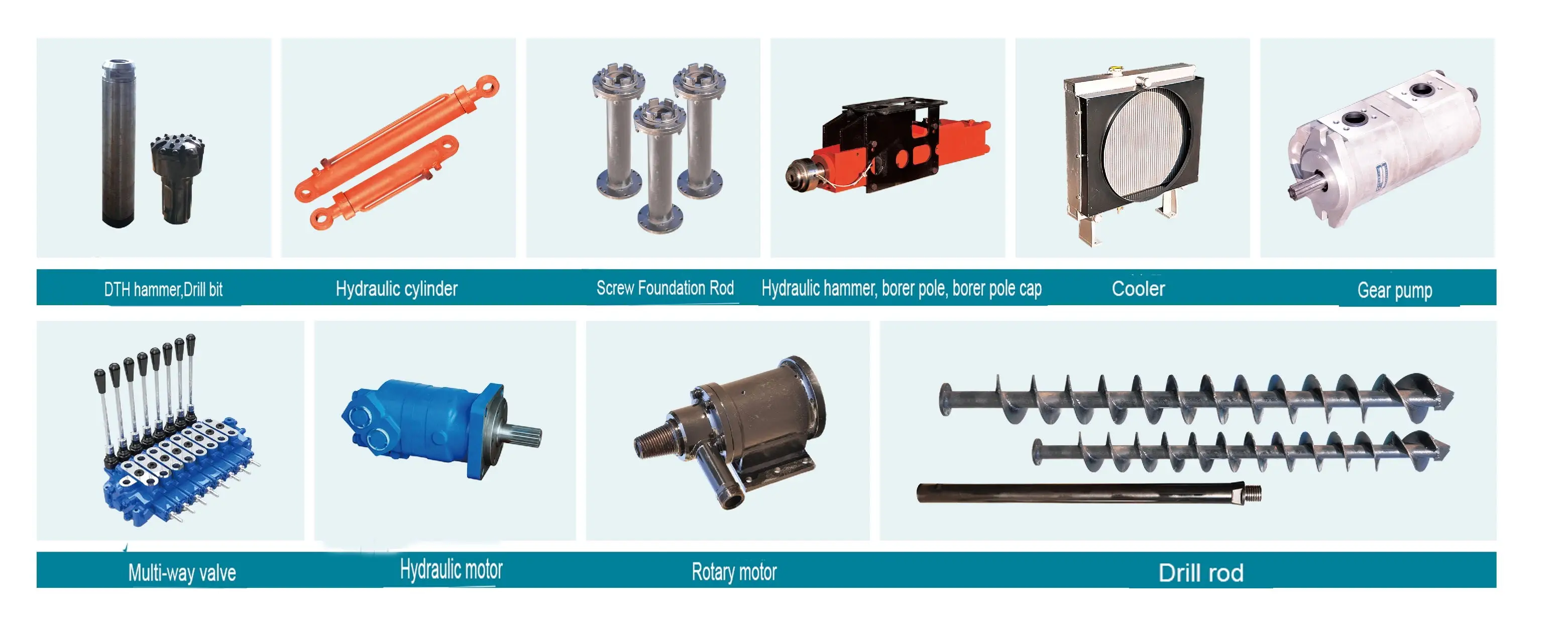

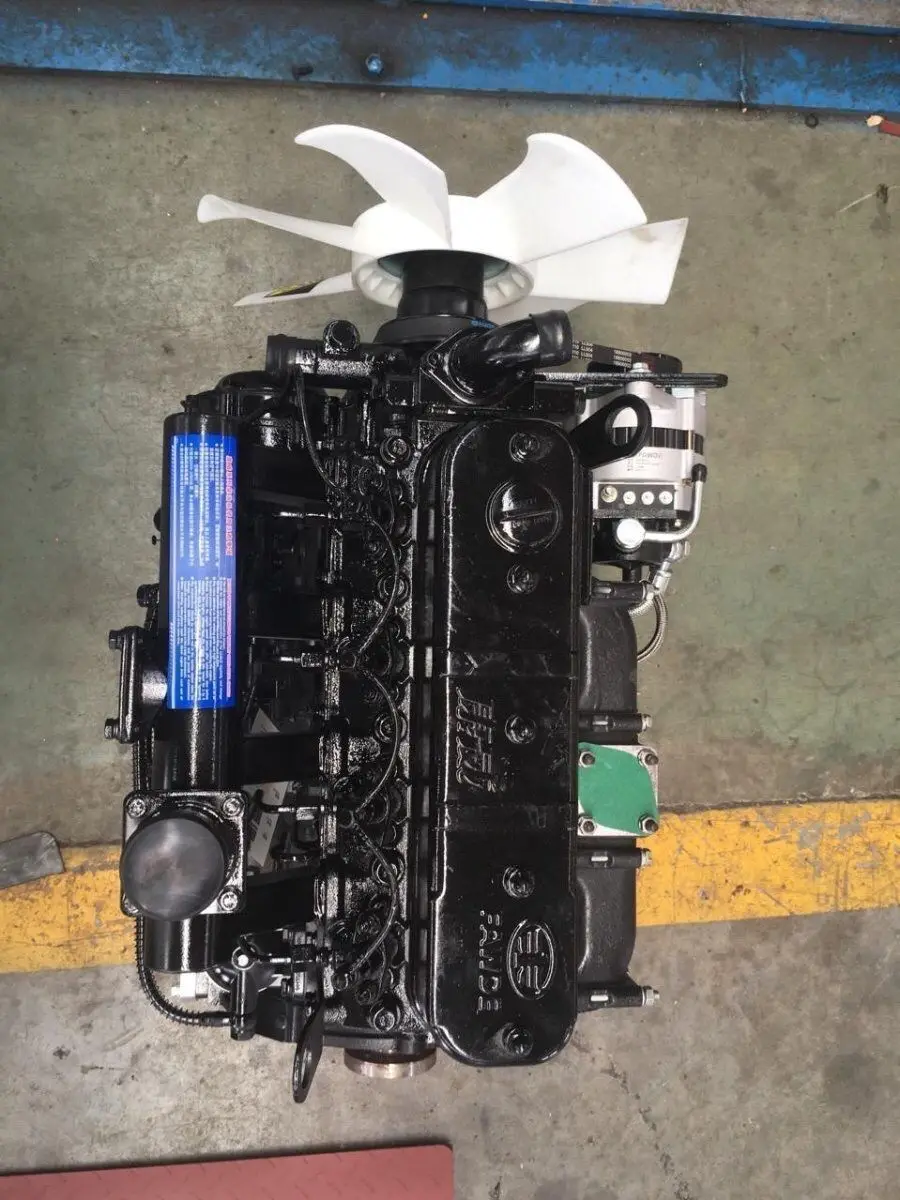

Spare Parts Of pile driver
Display of pile driver with different attachment

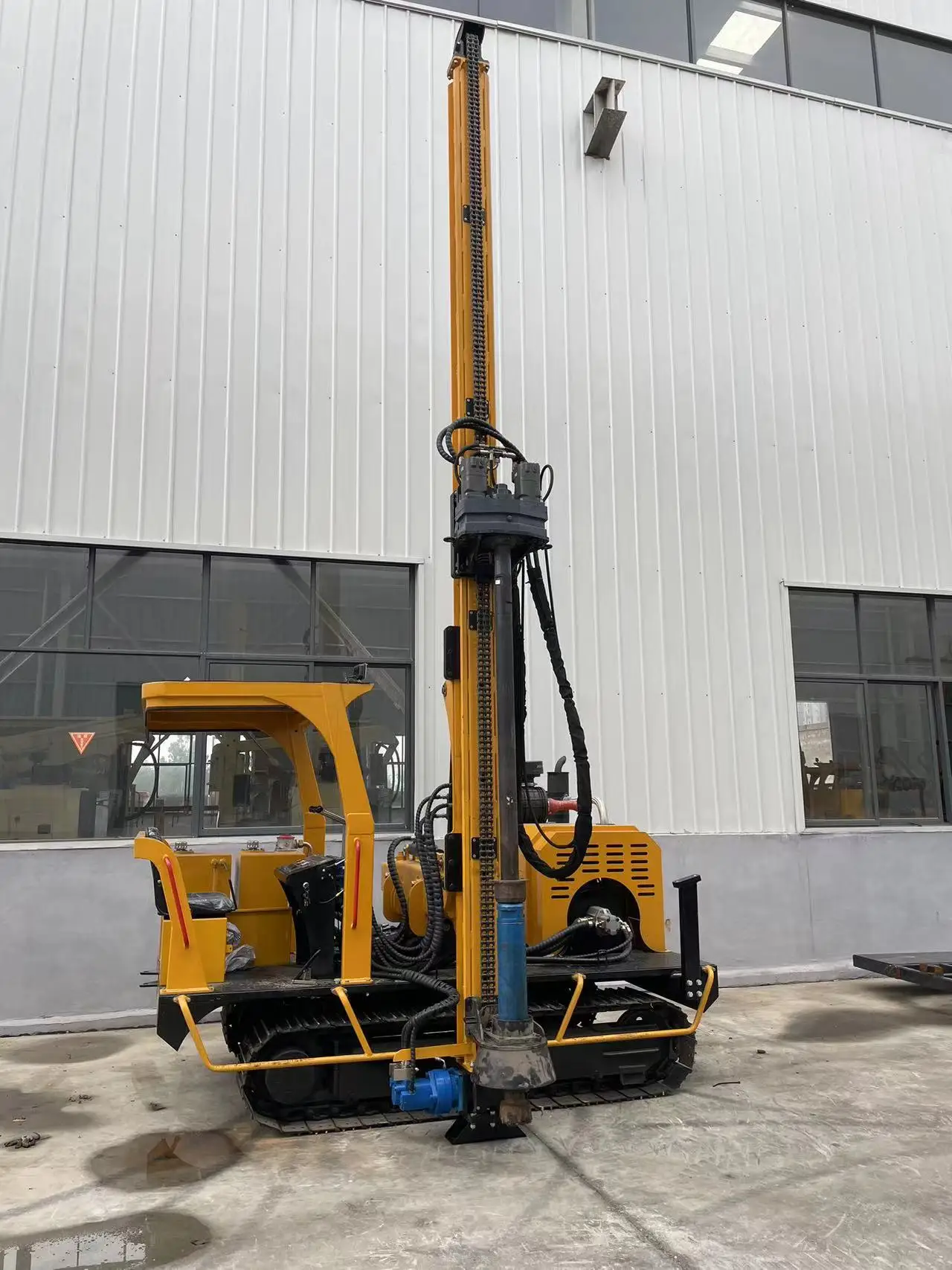

Pile driver with hydraulic hammer

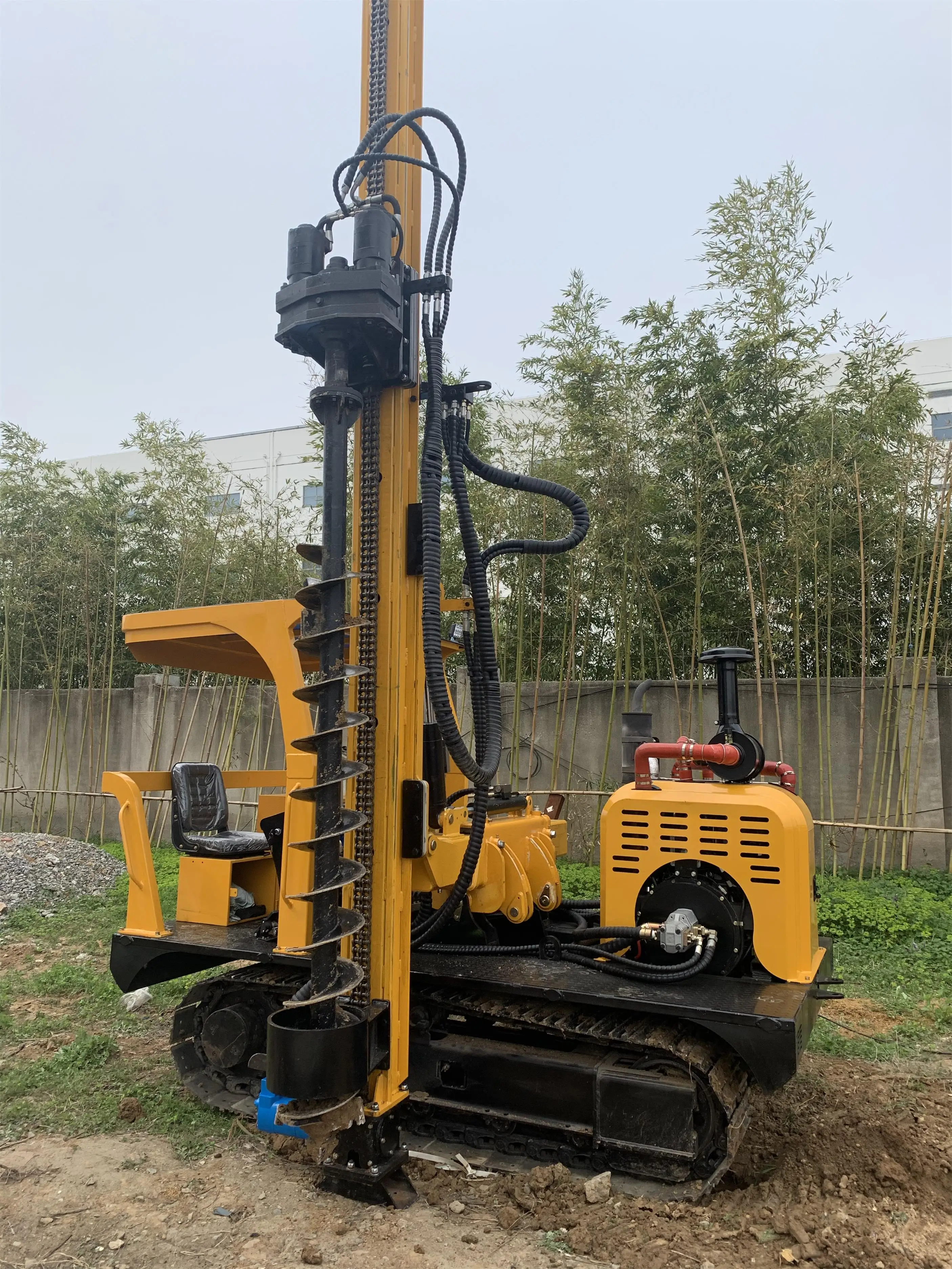

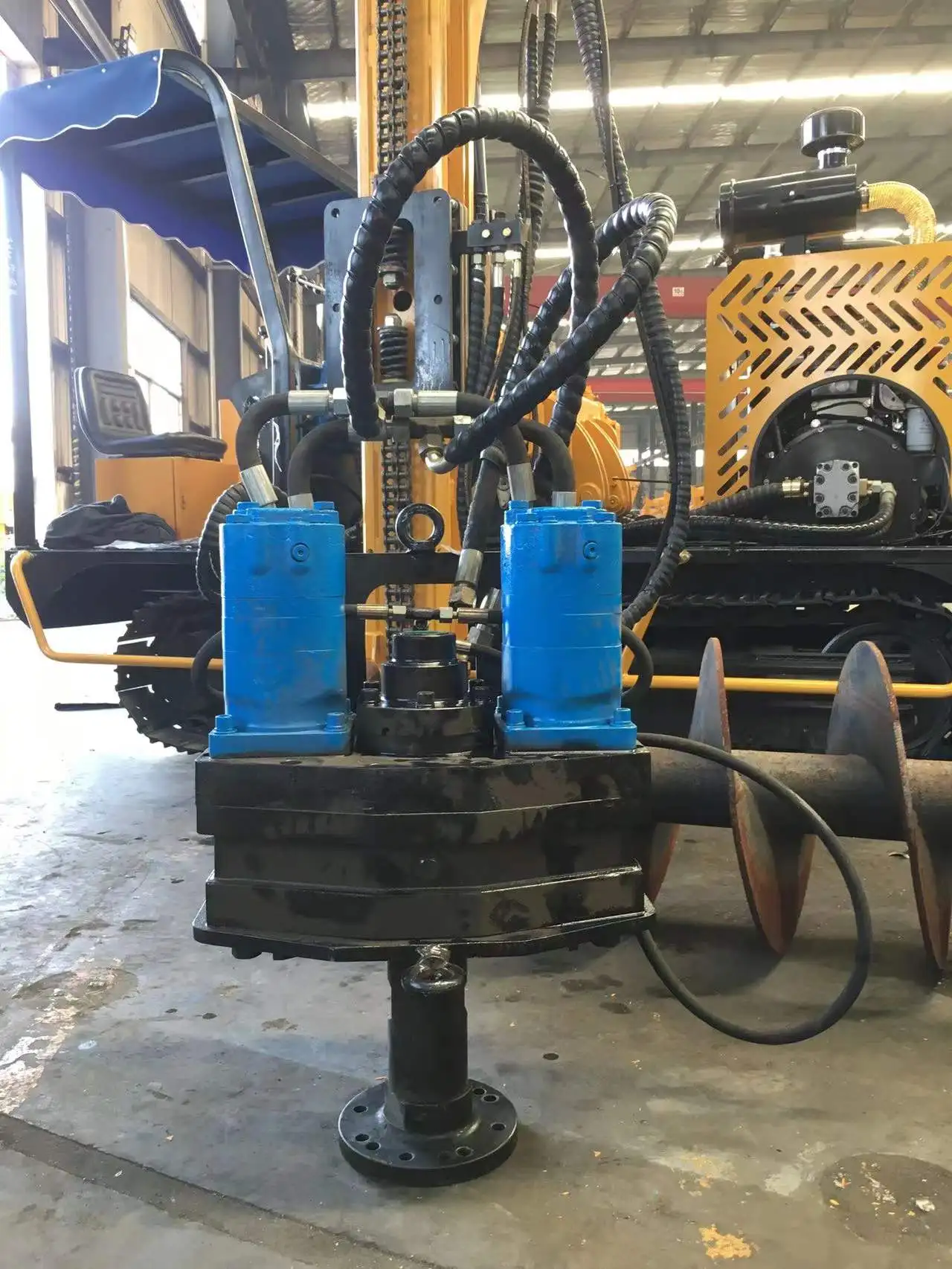

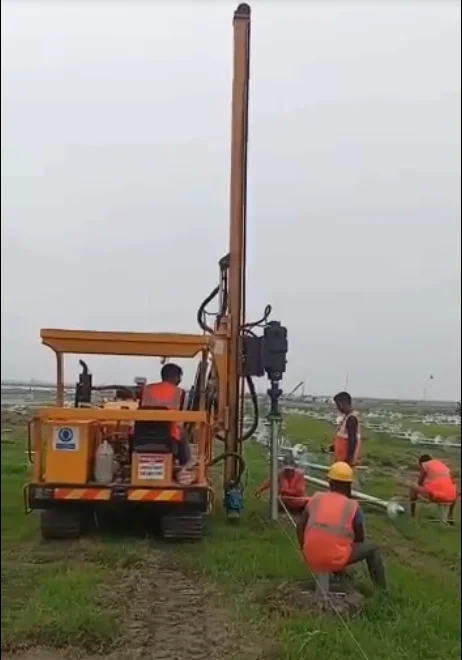

Pile driver with auger / helical pile / screw pile driving unit
Pile driver with DTH (Down-the-hole)
Display of pile driver function

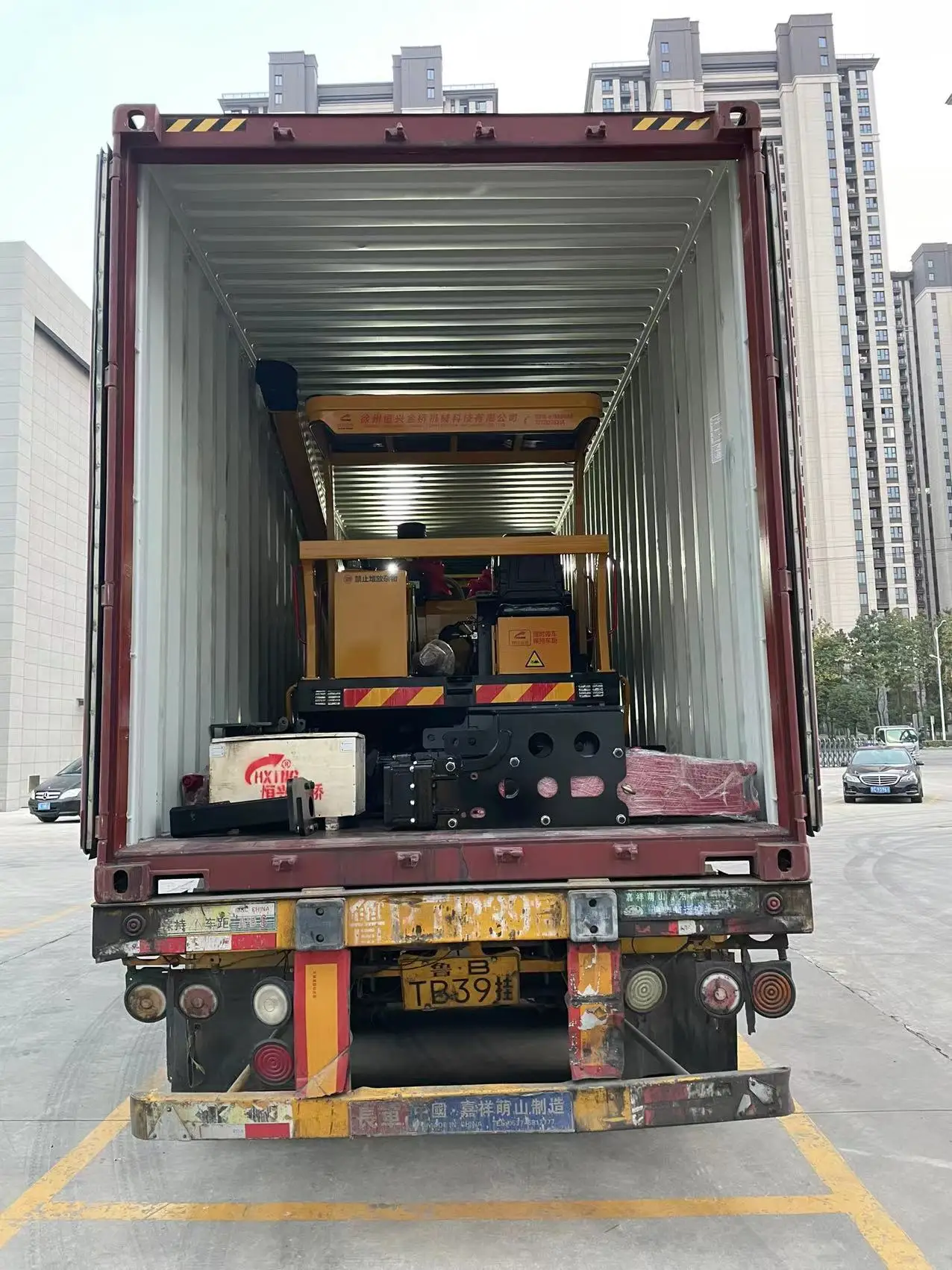

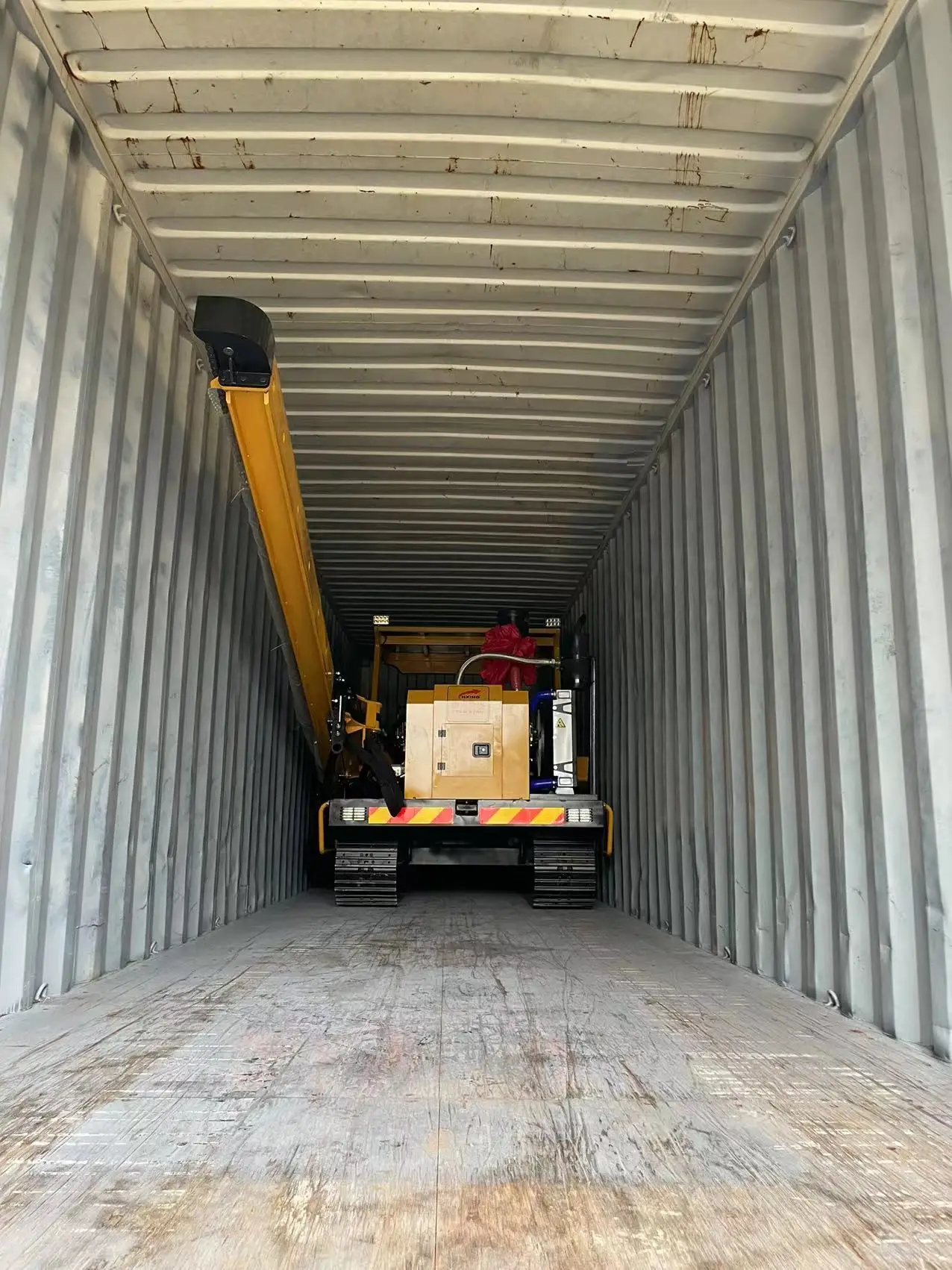

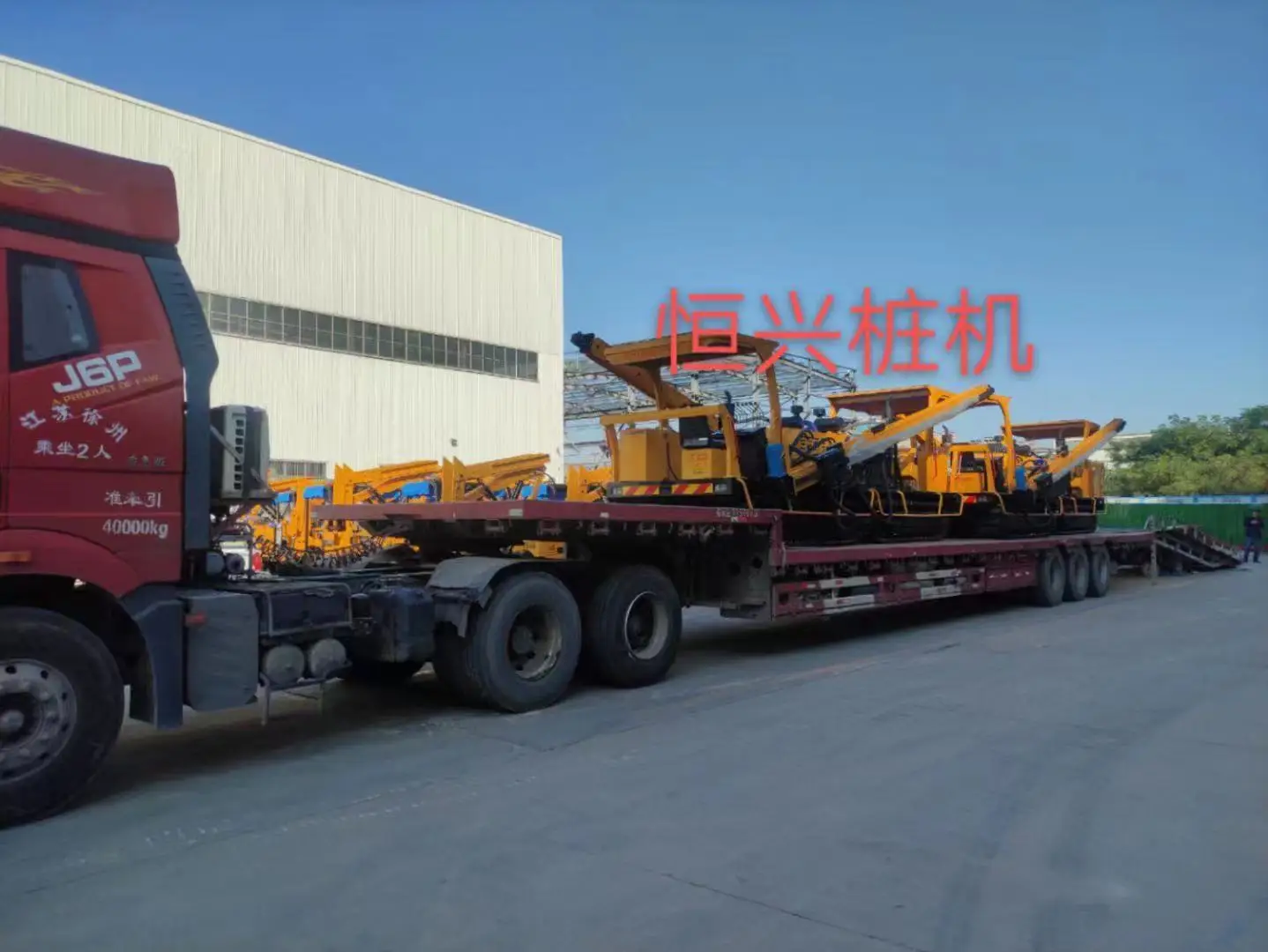

Package
Feedback from Client
Certificate & Exhibition

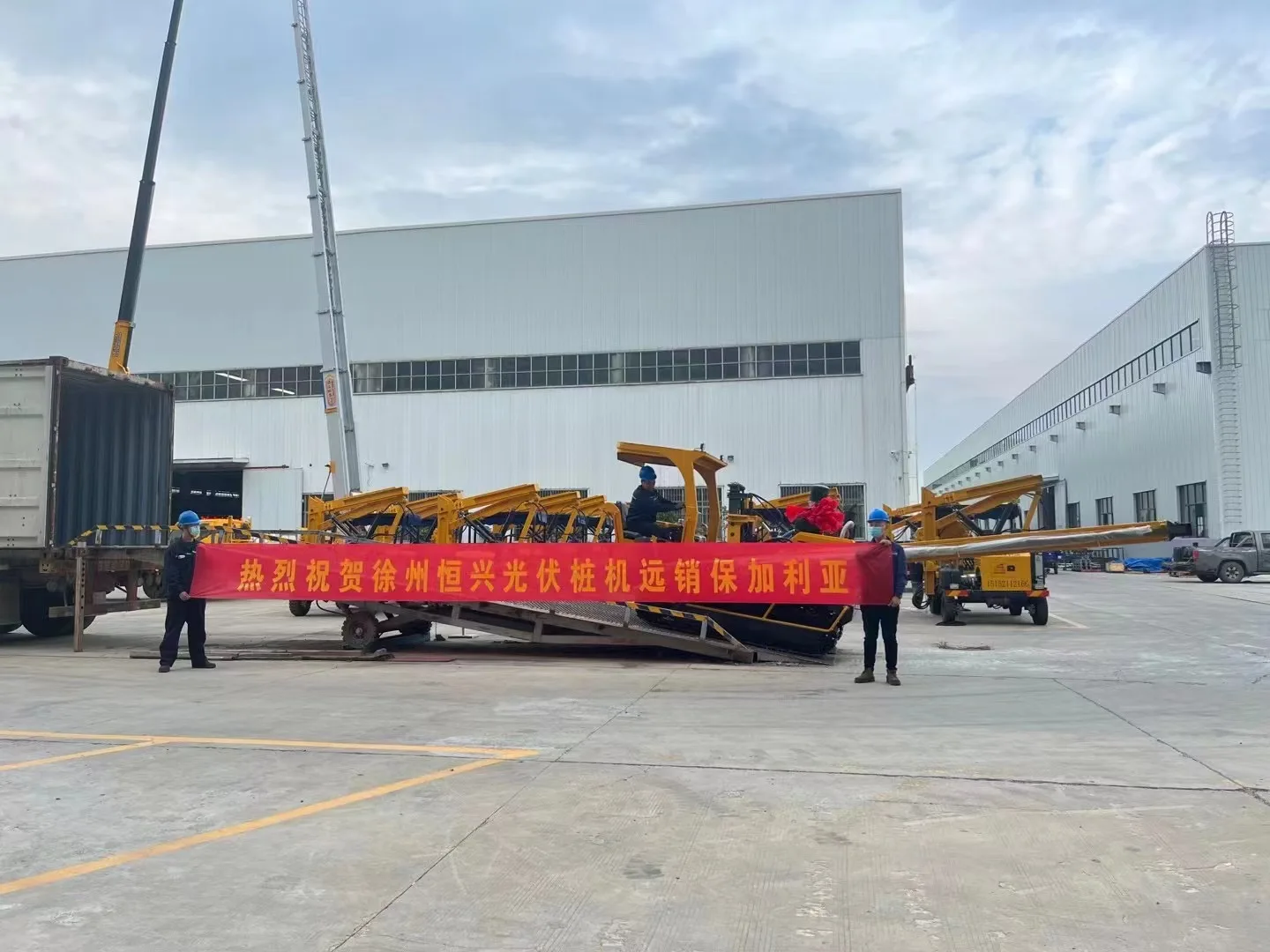

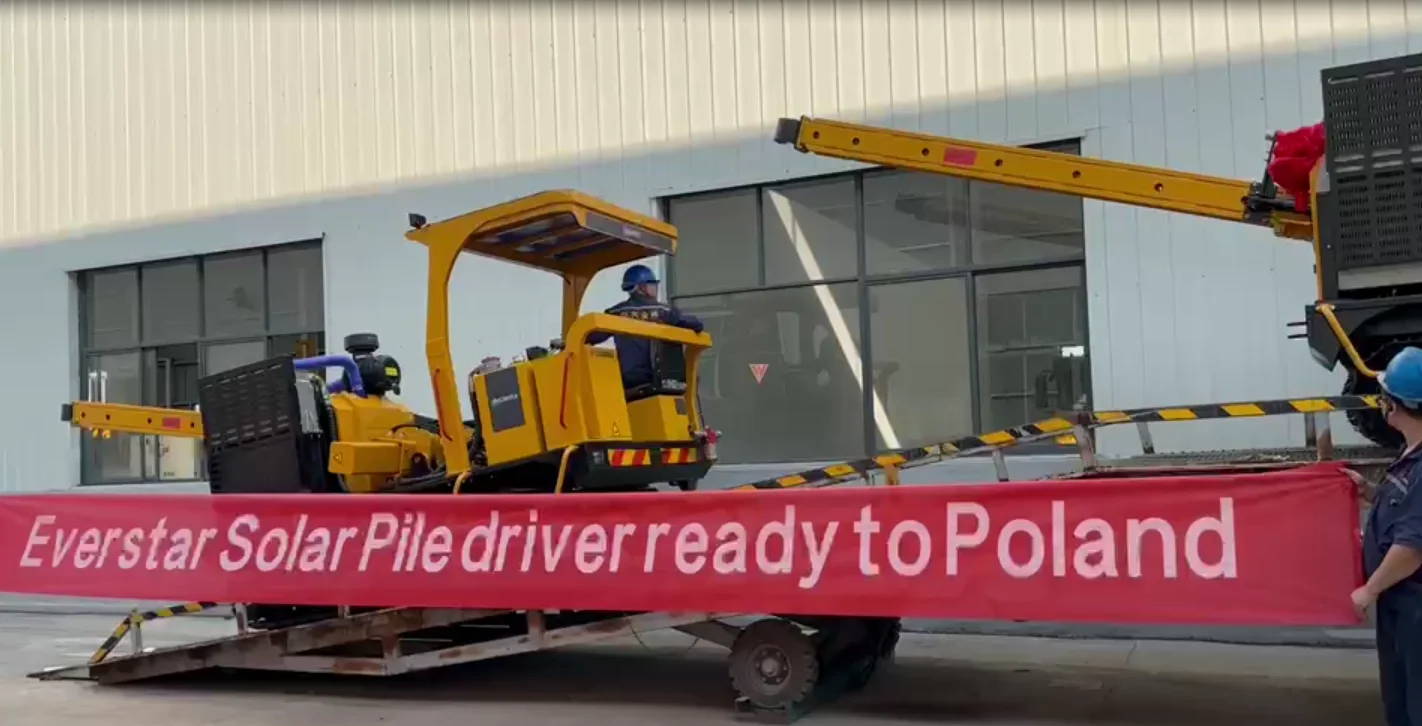

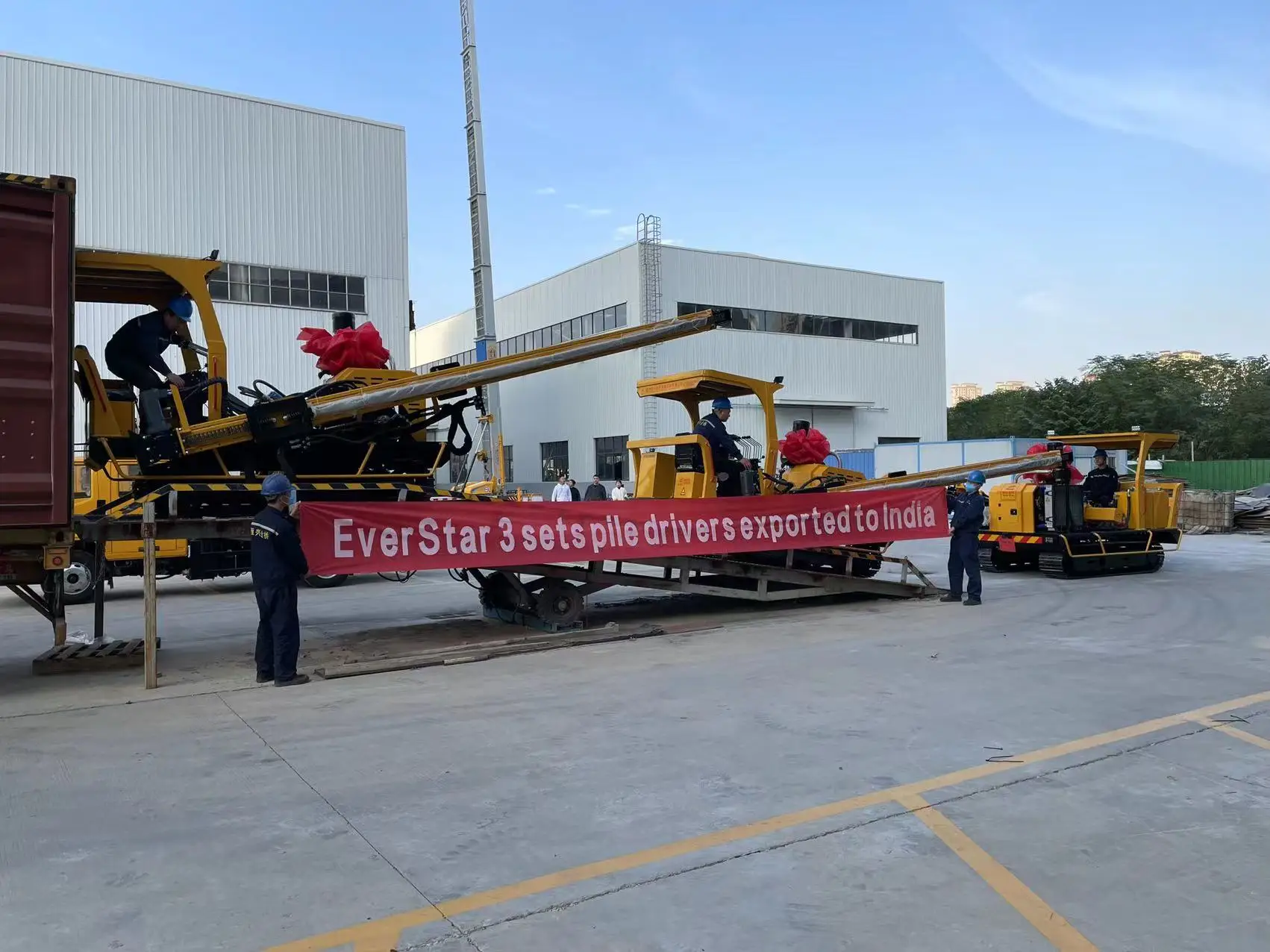

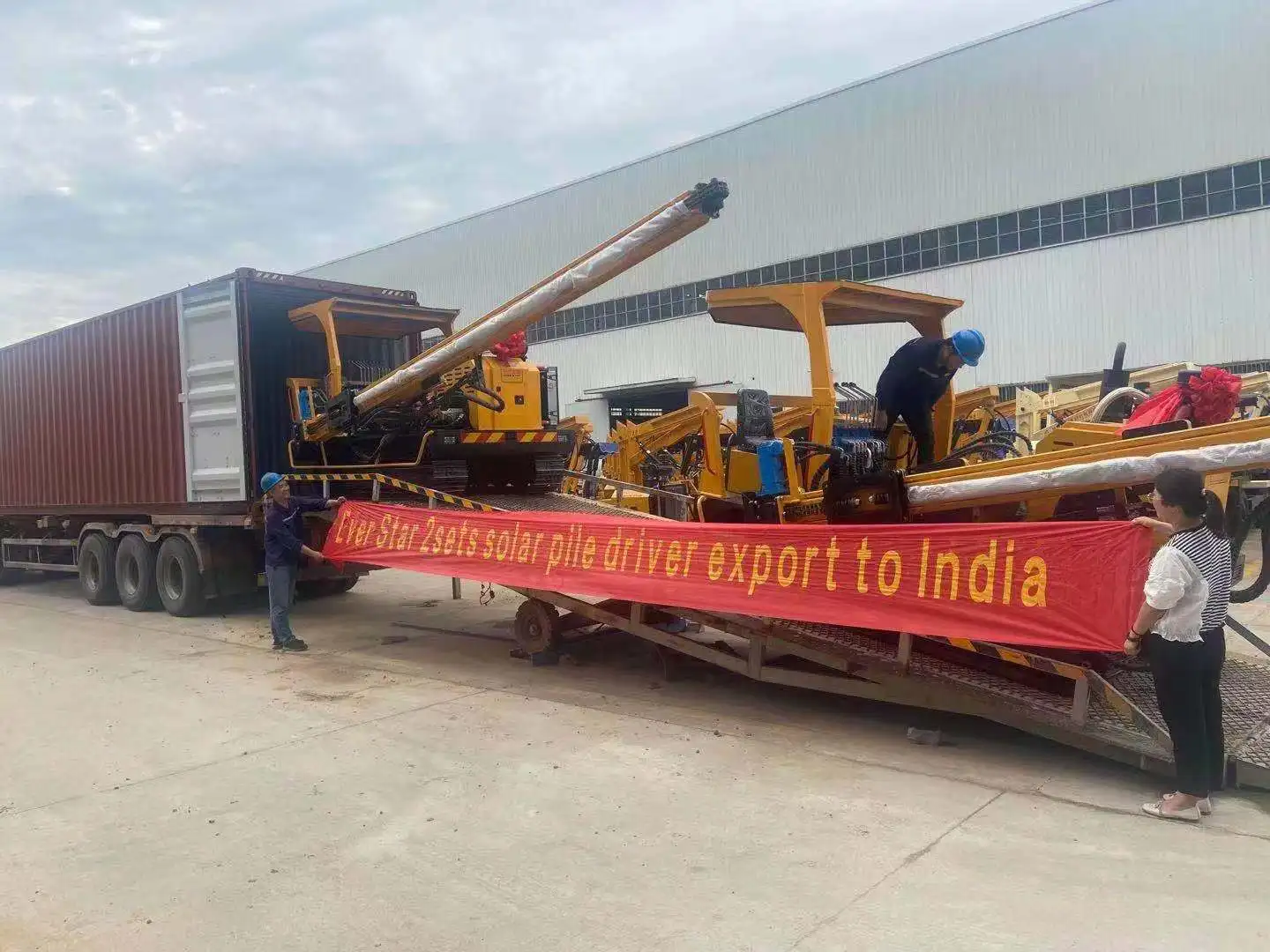

Exported Records
Sales Map
Certifications And Exhibition
About Us

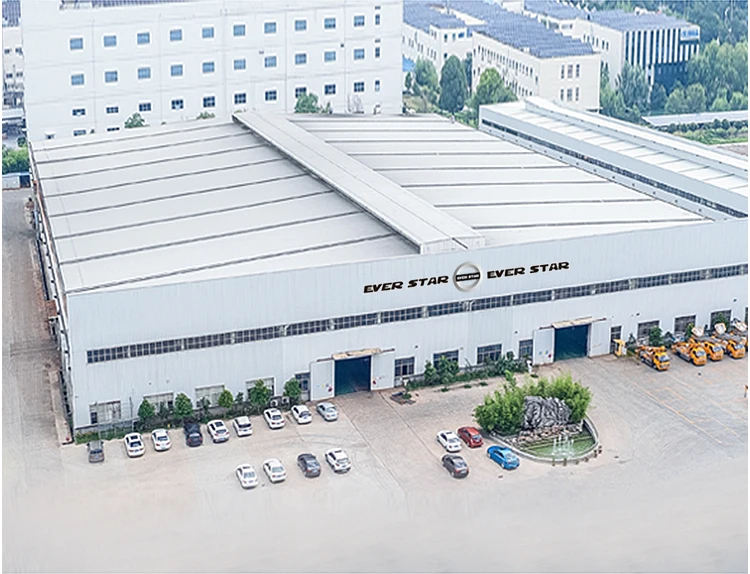

Xuzhou Hengxing Jinqiao Machinery Technology Co., Ltd covers an area of more than 50 acres and with factory area about 20000 square meter.We are the professional construction machinery manufacture for rotary drilling rig kelly bar, highway guardrail pile driver and PV post driver, with our own R&D and sales team.
Over the years we keep strengthening our independent research and development ability,meanwhile we actively join the China Construction Machinery Association to learn the latest news of this industrial. Also we continue to strengthen our cooperation relationship with China University of Mining and Technology and pursue of development and innovation of our techniques.
We have passed the international Quality Certification of ISO9001:2008,our engineers are skilled in using AUTO-CAD,PRO-E and UG to design products, for the development of new products, they strictly implement the APQP&PPAP program. We provide customized services and all products meet the ISO9001 standard,also we have filed many patents.
Our main product kelly bar absorbs a number of advanced technology from home and abroad , with special advantages of high wear resistance and high torque, now we are the nominated supplier of kelly bar for rotary drilling rig manufactures from both home and abroad, such as BAUER, SOILMEC, CMV, MAIT, IMT, XCMG,ZOOMLION,CSR,CHTC JOVE,OSAINT etc., in addition, our kelly bar enjoys a good market among the end-user customers for construction work such as high-speed railway, highway,urban viaduct,light rail,bridge,high-rise buildings and so on. We have enjoyed a good reputation among customers for many years based on our reliable
quality and perfect services.Other products include the multifunctional exchange highway guardrail post driver and the multifunctional hydraulic crawler PV post driver. Now our post driver has been widely used in construction fields such as highwayguardrail install, PV power station install, farm and orchard construction.
Over the years we keep strengthening our independent research and development ability,meanwhile we actively join the China Construction Machinery Association to learn the latest news of this industrial. Also we continue to strengthen our cooperation relationship with China University of Mining and Technology and pursue of development and innovation of our techniques.
We have passed the international Quality Certification of ISO9001:2008,our engineers are skilled in using AUTO-CAD,PRO-E and UG to design products, for the development of new products, they strictly implement the APQP&PPAP program. We provide customized services and all products meet the ISO9001 standard,also we have filed many patents.
Our main product kelly bar absorbs a number of advanced technology from home and abroad , with special advantages of high wear resistance and high torque, now we are the nominated supplier of kelly bar for rotary drilling rig manufactures from both home and abroad, such as BAUER, SOILMEC, CMV, MAIT, IMT, XCMG,ZOOMLION,CSR,CHTC JOVE,OSAINT etc., in addition, our kelly bar enjoys a good market among the end-user customers for construction work such as high-speed railway, highway,urban viaduct,light rail,bridge,high-rise buildings and so on. We have enjoyed a good reputation among customers for many years based on our reliable
quality and perfect services.Other products include the multifunctional exchange highway guardrail post driver and the multifunctional hydraulic crawler PV post driver. Now our post driver has been widely used in construction fields such as highwayguardrail install, PV power station install, farm and orchard construction.
we has always followed our survival principle that “strives for the survival by quality, development through reputation”, and our service tenet “your demand is our demand”. Through continuous technological innovation we try to build our global brand.
With our high quality products, perfect services and good reputation,we are willing to cooperate with customers and create a better future together! Welcome every friend to visit our factory!
With our high quality products, perfect services and good reputation,we are willing to cooperate with customers and create a better future together! Welcome every friend to visit our factory!
