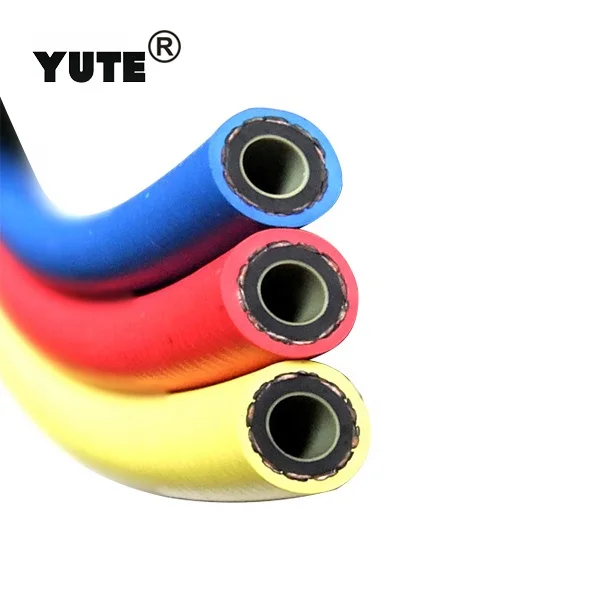

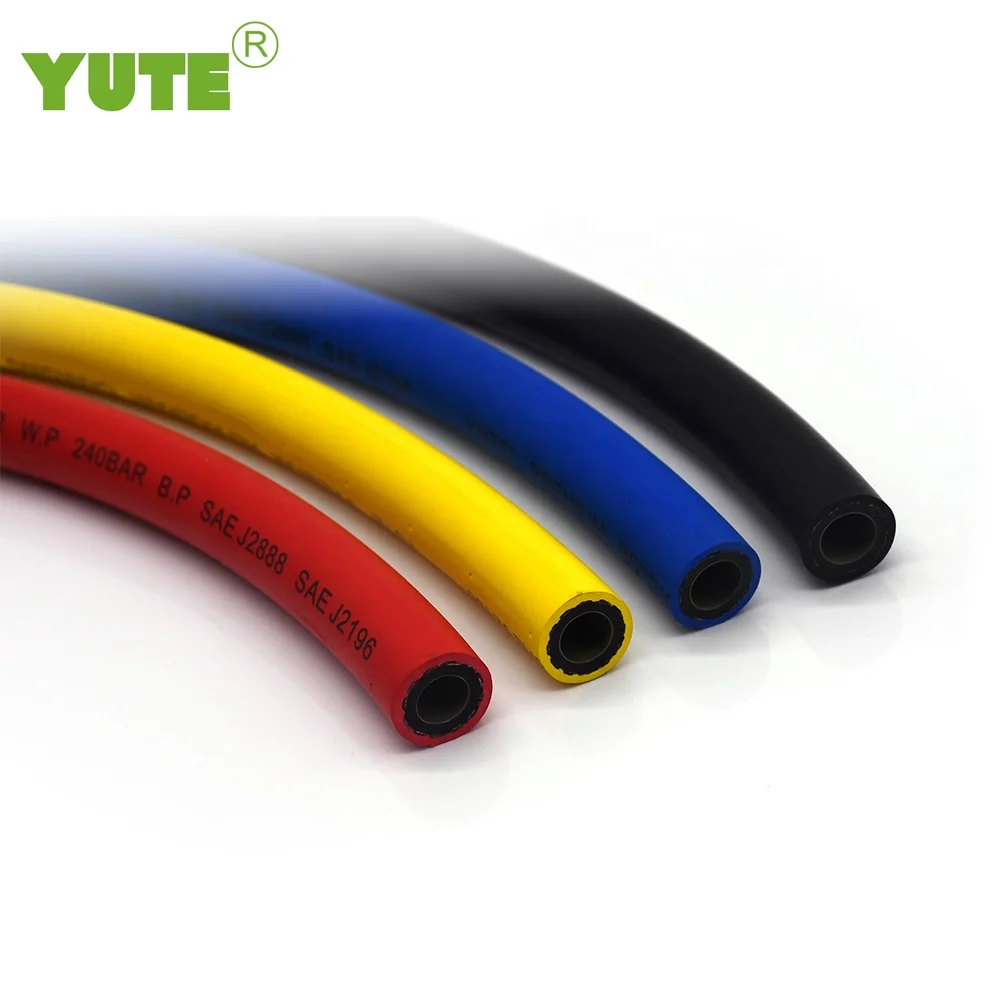

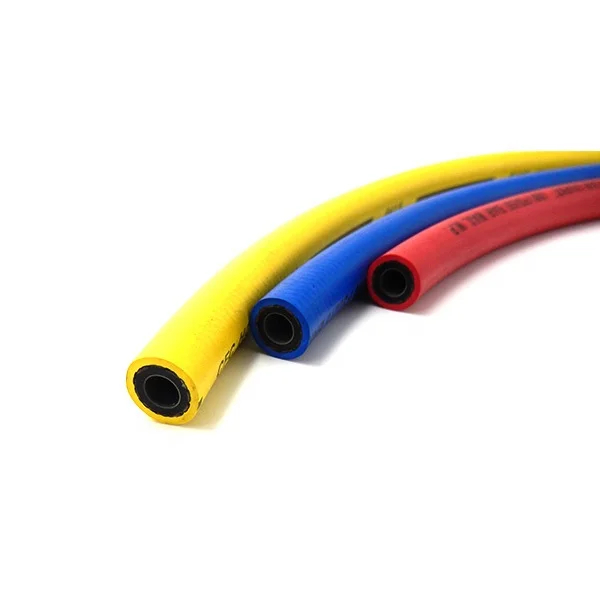

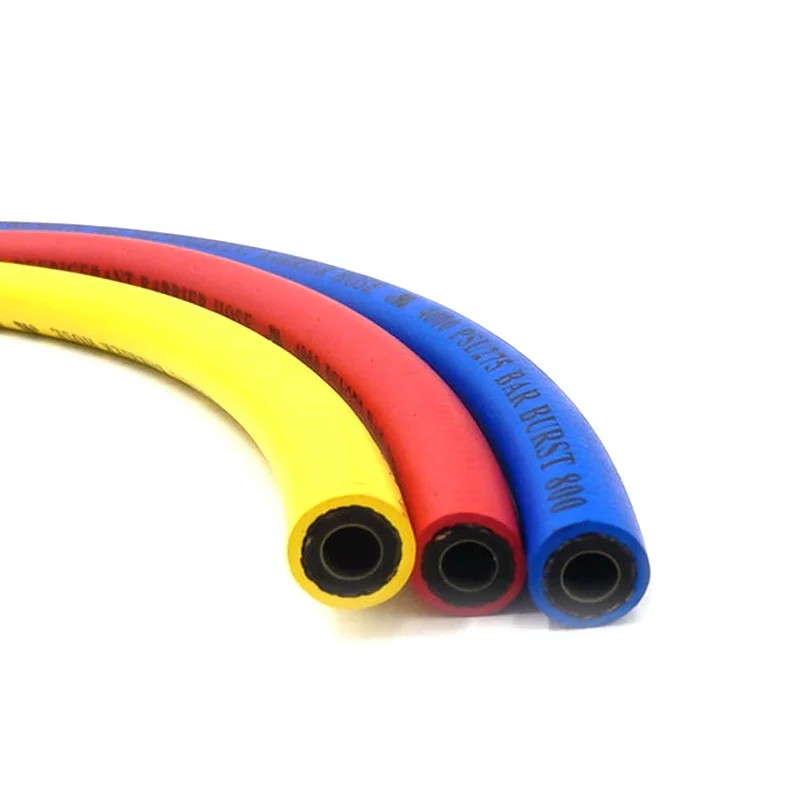

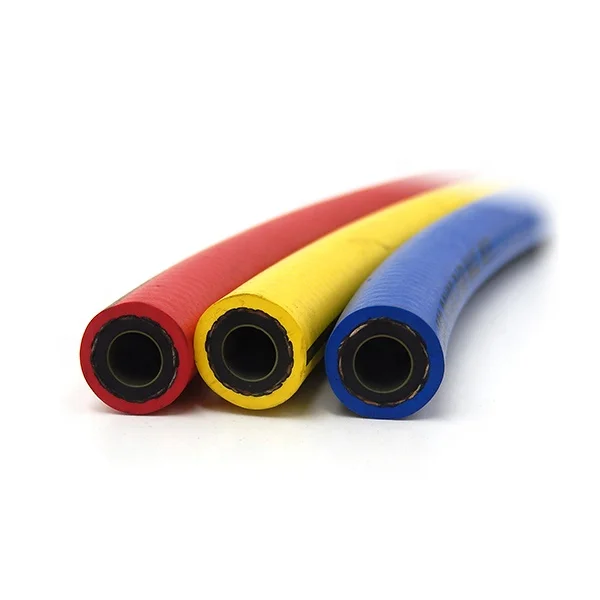

Yute UL1963 Approved Refrigerant Charging Hose
- Category: >>>
- Supplier: Ningbo Shijun Auto Parts Technology Co. Ltd.
Share on (10000016267527):
Product Overview
Description
YUTE UL1963 Approved Refrigerant Charging Hose
APPLICATIONS
Low permeability rubber hose for conveying gaseous refrigerant from refrigerant manifolds gauge to air conditioning system and recovering gaseous refrigerant from refrigerant vacuum pump to air conditioning system.
CONSTRUCTION
Barrier: Low temperature, aging-resistant with high performance nylon
Tube: Black,refrigerant-, oil-resisitant with high performance synthetic rubber
Reinforcement: High tensile braided fiber
Cover: Aging-,weather-resistant with high performance synthetic rubber
Color: Red, yellow, blue, black
Surface: Special matte or smooth surface
Temperature range:-30ºC~+95ºC
Standard:UL 1963
Certification:UL
Low permeability rubber hose for conveying gaseous refrigerant from refrigerant manifolds gauge to air conditioning system and recovering gaseous refrigerant from refrigerant vacuum pump to air conditioning system.
CONSTRUCTION
Barrier: Low temperature, aging-resistant with high performance nylon
Tube: Black,refrigerant-, oil-resisitant with high performance synthetic rubber
Reinforcement: High tensile braided fiber
Cover: Aging-,weather-resistant with high performance synthetic rubber
Color: Red, yellow, blue, black
Surface: Special matte or smooth surface
Temperature range:-30ºC~+95ºC
Standard:UL 1963
Certification:UL
| Part Number | ID (inch) | OD (inch) | Working Pressure (PSI) | Burst Pressure(PSI) | Bending radius (IN) | Length (FT) | Weight (lbs/ft) |
| 44330741 | 7/32 | 29/64 | 800 | 4000 | 2 | 656 | 0.77 |

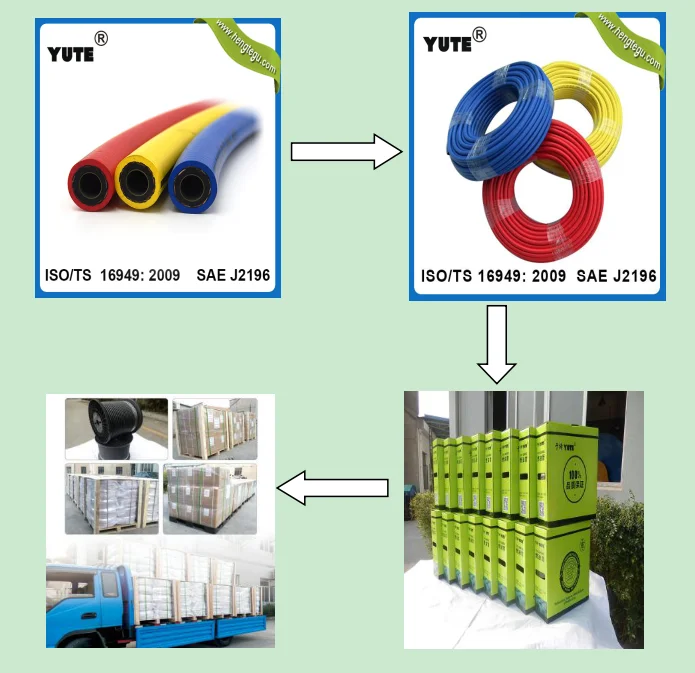

Packaging & Shipping
A pallet of data for your reference.
| Description of Goods | Q'ty | Q'ty | Packages | Case size cm | Meas. CBM | N.W KG | G.W KG | |||||||
| Q'ty (Roll) | Unit | Q'ty (Pallet) | Unit | QTY | Units | L | W | H | ||||||
| Black Colour ID:5.5 mm,OD:11.5mm W.P.:600 PSI, B.P.:3000 PSI | 200 | M | 4,000 | M | 1 | Pallet | 96 | 96 | 106 | 0.977 | 420.00 | 440.00 | ||
| Red Colour ID:5.5 mm,OD:11.5mm W.P.:600 PSI, B.P.:3000 PSI | 200 | M | 4,000 | M | 1 | Pallet | 96 | 96 | 106 | 0.977 | 420.00 | 440.00 | ||
| Yellow Colour ID:5.5 mm,OD:11.5mm W.P.:600 PSI, B.P.:3000 PSI | 200 | M | 4,000 | M | 1 | Pallet | 96 | 96 | 106 | 0.977 | 420.00 | 440.00 | ||
At last, please give us a second to introduce ourselves as the first step of building our mutual trust.
Your prompt attention would be of great help.
- We are a private-owned Ningbo-based company, specializing in the R&D and the manufacturing of rubber hose, including BRAKE HOSE, FUEL HOSE, HEATER HOSE, REFRIGERANT CHARGING HOSE and some INDUSTRIAL HOSES, etc.
- In the recent years, aiming at NA and EU markets, our export business has been proliferating quickly, accounting for 50.2% in our 2023 total sale. We now are one of the suppliers for AUTOZONE, providing fuel hose, heater hose, and vacuum hose. And our brand YUTE is gaining more and more influence in the overseas market.
- Thanks to our powerful R&D team, our HOSE is able to rival those from Conti-tech, always ready to fulfill your need for customization. There is also a lab in my own plant, and a Miami-based 3rd party lab called Element cooperating with us. Currently, our products have passed and succceeded RELATED SAE/DIN STANDARD. Certificates are available upon request.
- With advanced production line and a convenient plant location near Ningbo Port backing us up, our product enjoys a short lead-time and a rather competitive price.
- We also have a $5,000,000 product liability insurance for the parts shipping to the customers. Your name can be added as the additional insured party if it is requested, ensuring your interest if any problem should occur.
Your prompt attention would be of great help.
