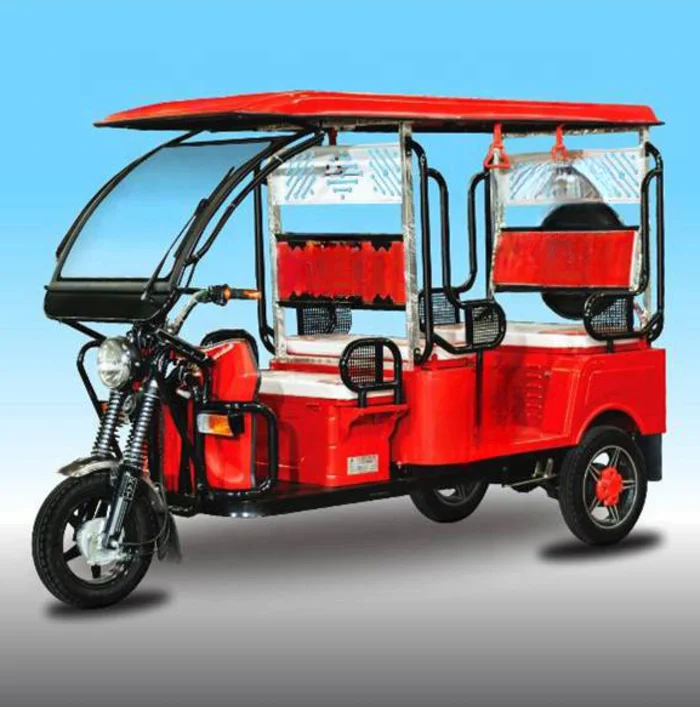

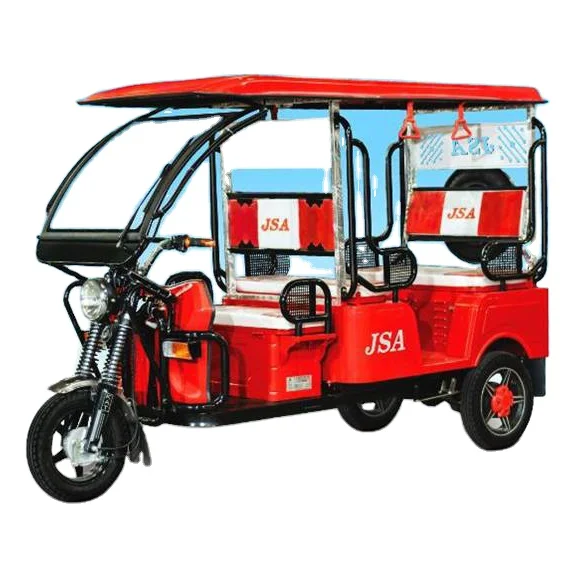

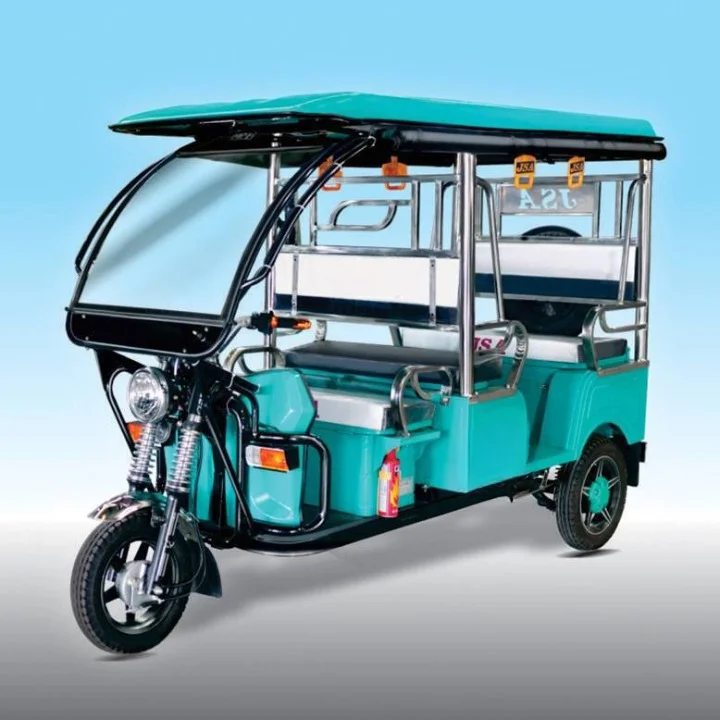

Star Electric Rickshaw for Passengers with Advanced Technology and Comfort Features
- Category: >>>
- Supplier: BIZCOVERINDIA.COM LLPBIZCOVERINDIA.COM LLP
Share on (10000016350623):
Product Overview
Description

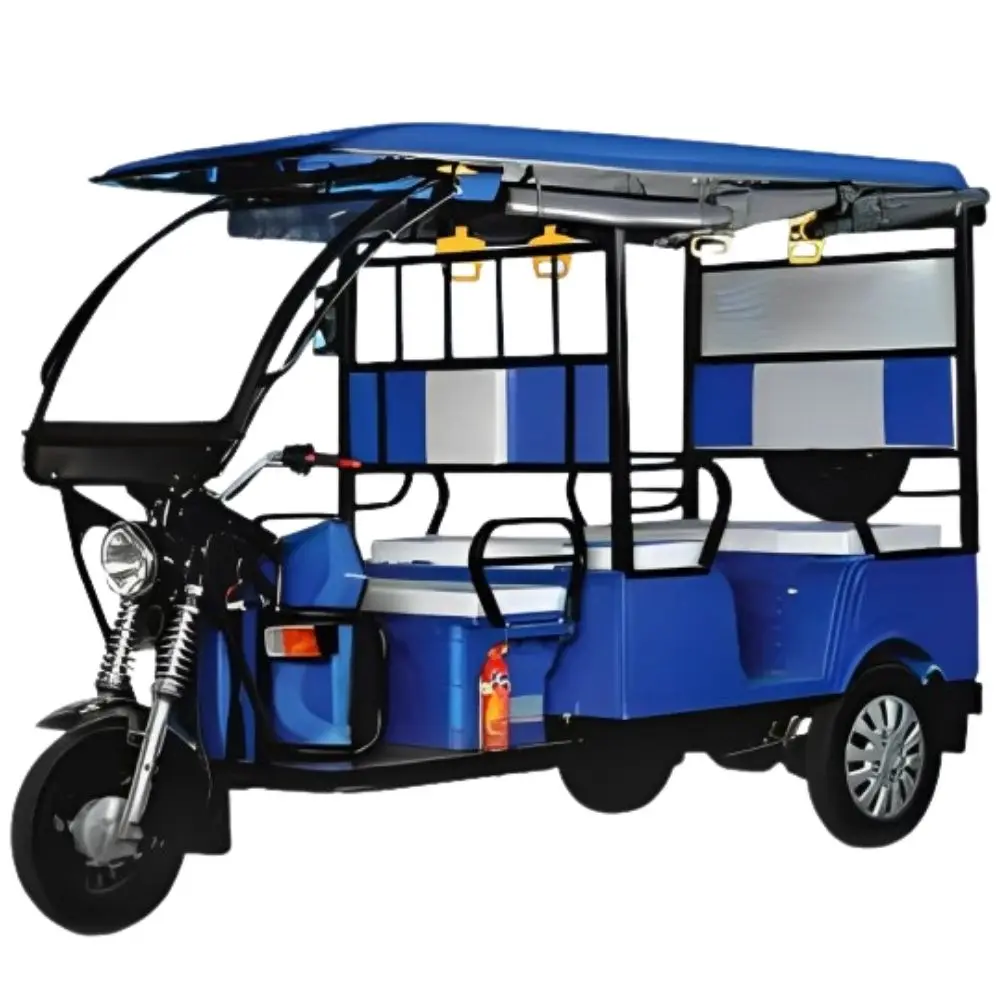

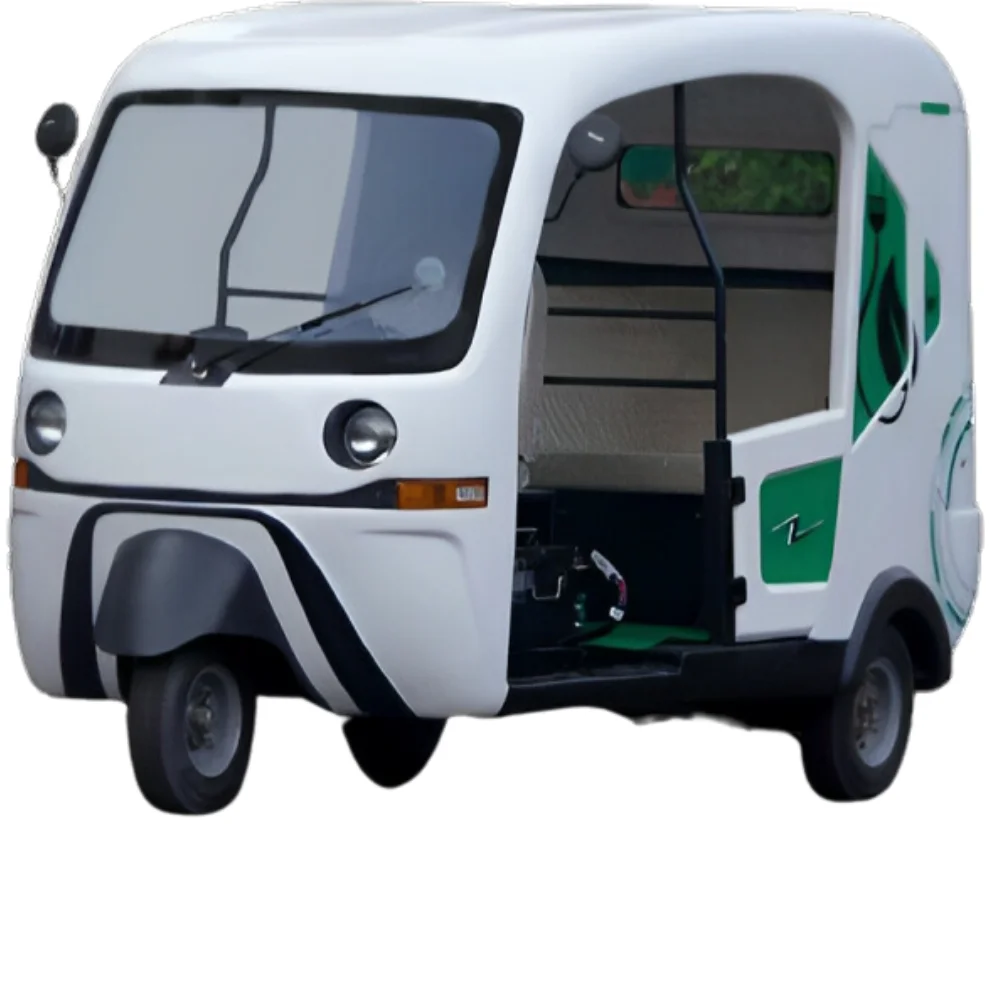

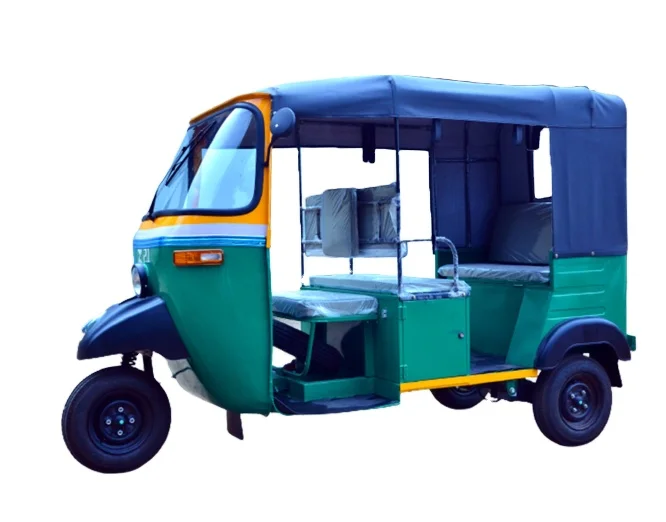

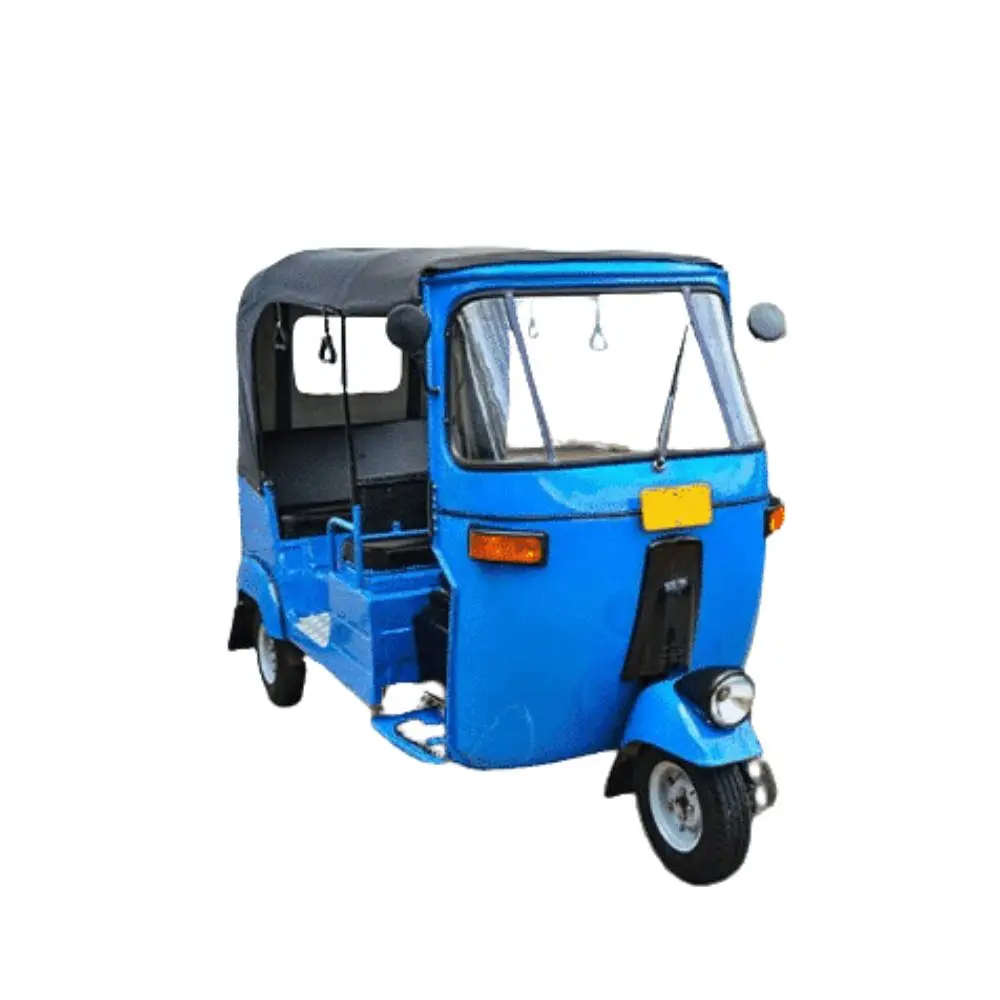

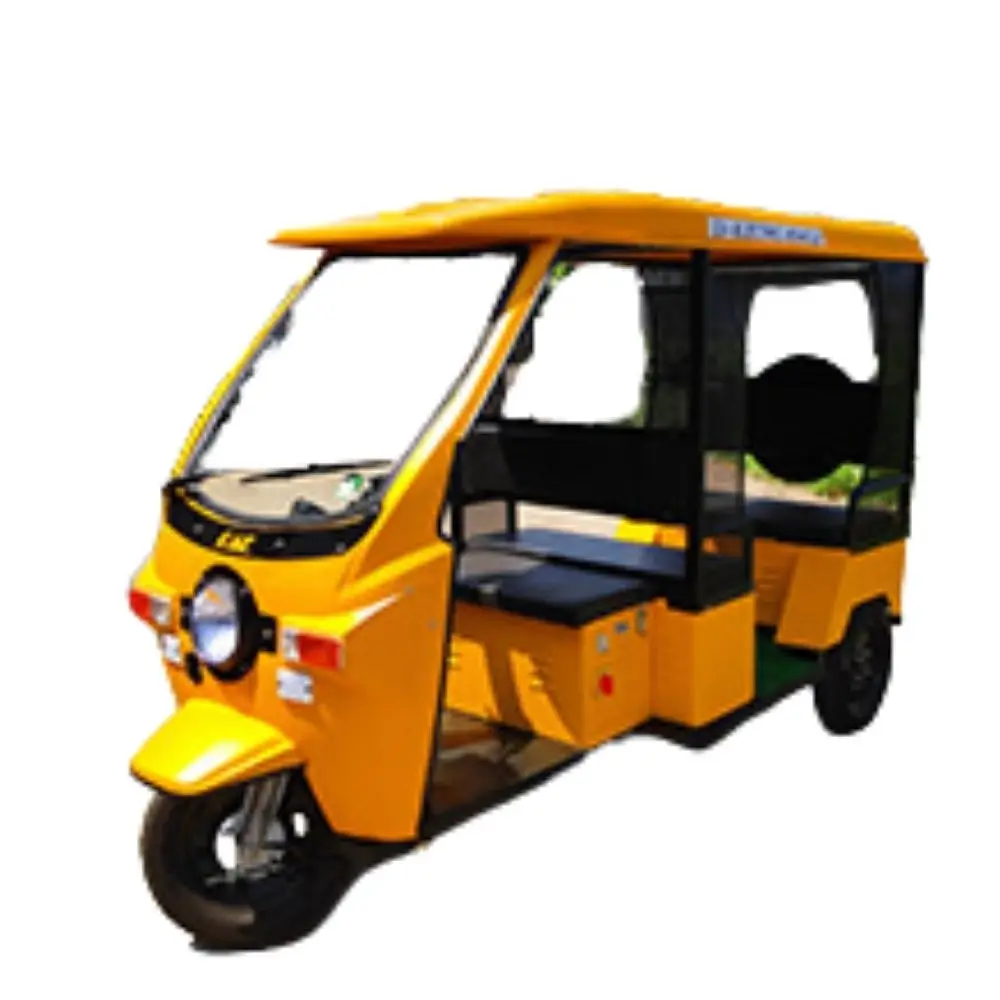

Specification | Passenger EV – Smart Mule | Passenger EV – Teer | Passenger EV – Rickshaw | Passenger EV – Atom Plus | Passenger EV – Rickshaw Star |
Motor | |||||
Category | L3 | L5 | L3 | L3 | L3 |
Motor Power | - | - | - | 48v/1000w | 1000 Watt |
Battery (Lead Acid) | - | - | - | ||
Capacity | - | - | - | 12v/100a (4nos) Or 12v/150a (Optional) | |
Charging Voltage | - | - | - | 220v 50hz | 220V/50 Hz |
Charging Time | - | - | - | 8-9 Hrs | - |
Battery (Lithium -Ion) | - | - | - | - | |
Capacity | - | - | - | 48v/80a Or 48v/100a Optional | - |
Charging Voltage | - | - | - | 220v 50hz | - |
Charging Time | - | - | - | 3-4 Hrs | - |
Colour | - | - | Yellow, Blue, Red, Green, Blue (Metallic Optional) | - | - |
Size | - | - | 2750 X 995 X 1750 mm | - | - |
Motor | - | - | 48 V 1000 W High Power | - | - |
Max Power Output | - | - | 2000 Watts | - | - |
Controller | - | - | 24 Tube Controller 50 amps, 24 Mosphets | 24 Tubes | - |
Differential | - | - | 33" Differential | - | - |
Tyres | - | - | 3.75 X 12 | - | - |
Front Suspensions | - | - | 43 Mm Telescopic Hydraulic With Spring | - | Telescopic Shock Absorber |
Rear Suspensions | - | - | 6 Plate Heavy Duty Leaf Spring | - | Leaf Spring 2 Nos |
Transmission Mode | - | - | - | - | Differential Type |
Brakes Front Rear | - | - | Lever Operated Drum Type Foot Paddle Operated Drum | - | - |
Parking Brake | - | - | Mechanical Hand Lever Operated | - | - |
Battery Type | - | - | - | Lead Acid & Lithium | |
Battery | - | - | 110 Ah | - | 100 Ah / 110Ah / 130Ah / 150Ah/Li |
Charging Time | - | - | 6-7 Hrs. | - | 8 Hours |
Brake Type | - | - | - | - | Drum (Mechanical) |
Roof Type | - | - | - | - | Metal |
Tyre Size | - | - | - | - | 3.75 x 12 |
Wheel base | - | - | - | - | 2030 mm |
Overall Length | - | - | - | - | 2740 mm |
Overall Width | - | - | - | - | 998 mm |
Overall Height | - | - | - | - | 1740 mm |
Wheel Rim | - | - | - | - | Alloy Rim / MS Rim |
Charger | - | - | 3 Pin Ac Plug, Input Voltage 170-300 Vac, 15 Amps | - | - |
Stepney | - | - | Tyre Size 3.75 X 12 Standard | - | - |
Tool Kit | - | - | Standard | - | - |
Milage | - | - | 80-100 km / Full Charge* | 80-90 Km (One Charge) | |
Front Glass | - | - | Laminate 6mm Windscreen Glass, ICAT Approved | - | - |
Additional Details | - | - | Chrome Exterior Rear View Mirror | - | - |
- | - | Day Time Running Lamps | - | - | |
- | - | Roof Borders & Internal Cabin Lights | - | - | |
- | - | Mobile Charger Points | - | - | |
- | - | Front & Back Strong Ms/Ss Make Crash Guards | - | - | |
- | - | Side & Partition Canopy | - | - | |
- | - | Mp3 Player With Speaker | - | - | |
- | - | Luggage Carrier With Taxi Light | - | - | |
- | - | First Aid Kit | - | - | |
- | - | Alloy Wheels Set (3 Pcs.) | - | - | |
Motor Type | BLDC | PMSM | Dc | DC Brush (48 V) | |
Max Speed | 25 kmph | 50 kmph | 25-30 Kmph | 23 Km/Hr | 25 Km/h |
Rated Power | 1.5 kW 48 V | 5.0 kW 48V | - | - | |
Peak Power | 2.0 kW 48 V | 7.2 Kw | - | - | |
Range/Per Charge(kms) | 95* with 100 Ah | 165* with 200 Ah | - | - | |
Gradient | 10 Deg | 15 Deg | - | - | |
Chassis | - | - | - | - | |
Suspension | Coil Spring | Coil Spring | - | - | |
Wheel size | 4.00 - 10 | 4.00 – 8 | - | - | |
Brake System | Hydraulic Drum | Hydraulic Drum | - | - | |
Seating | D+4 | D+3 | D+4 | 4+D | 4+D |
Tyre Size | - | - | - | 4.00-8,6pr | - |
Tyre Pressure(Front) | - | - | - | 2.1 Kg/Sq.Cm (30 Psi) | - |
Tyre Pressure (Rear) | - | - | - | 2.4 Kg/Sq Cm (34 Psi) | - |
Drive | - | - | - | Rear Wheel | - |
Brakes | - | - | - | Hydraulic Expanding Shoe Type For All Three Wheels | - |
Suspensions (Front) | - | - | - | Constant Rate Coil Spring & Double Acting Hydraulic Shock Absorber | - |
Suspensions (Rear) | - | - | - | Independently Spring Wheels By Trailing Arms With Helical Springs And Hydraulic Shock Absorber | - |
Electrical System | - | - | - | 12v Dc | - |
Head Lamp | - | - | - | Single 35w | - |
Horn | - | - | - | 12v Dc | - |
Dimensions (L*W*H) | - | - | - | - | - |
Overall | 2820*1000*1790 mm | 2030*1395*1760 mm | - | 2800 x 990 x 1720 mm | - |
Ground Clearance | 170 | 160 | - | - | - |
Loading Capacity | 350 kgs | 400 kgs | - | - | - |
Electrical | - | - | - | - | - |
Speedometer | Digital | Digital | - | - | - |
Charger Volt & Time | 58.4 V & 3-4 hrs (Approx.) | 58.4 V & 3-4 hrs (Approx.) | - | - | - |
Battery Chemistry | LFP | LFP | - | - | - |
Controller Volt | 42-58 V | 42-58 V | - | - | - |
Head light | LED | LED | - | - | - |

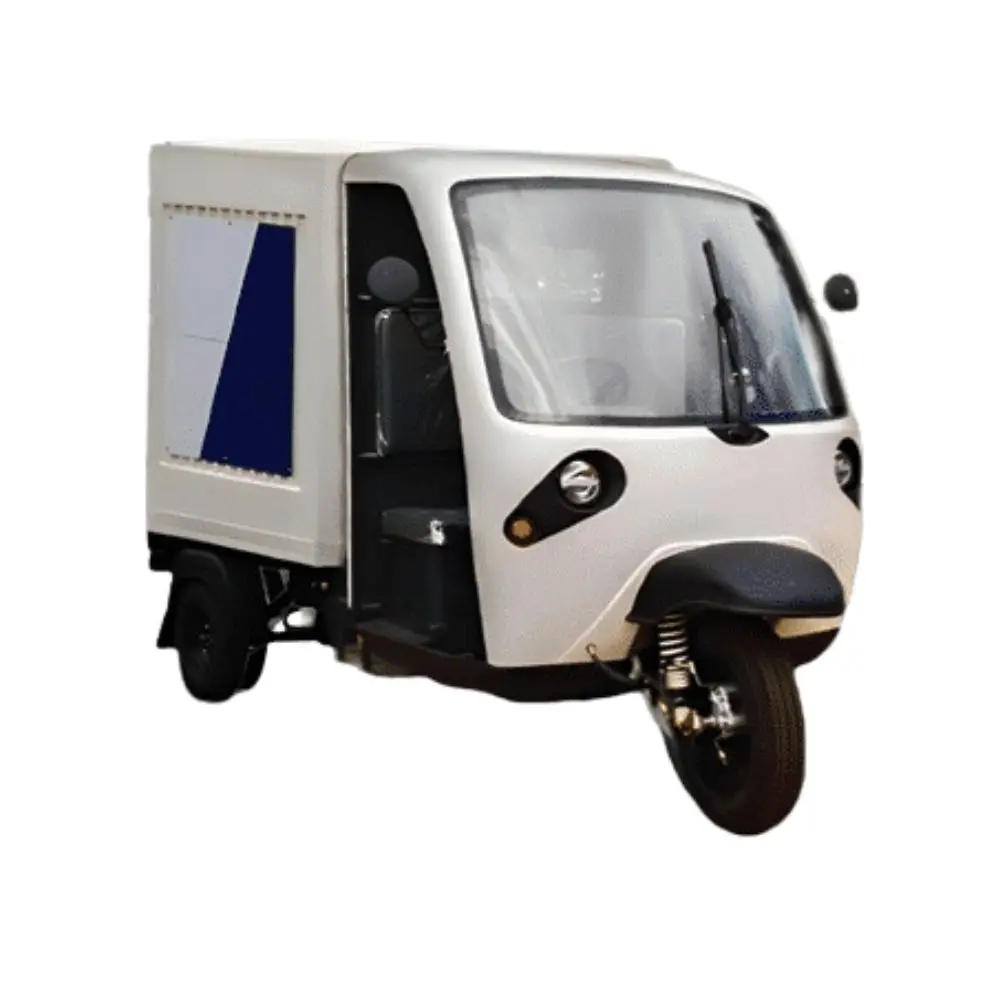

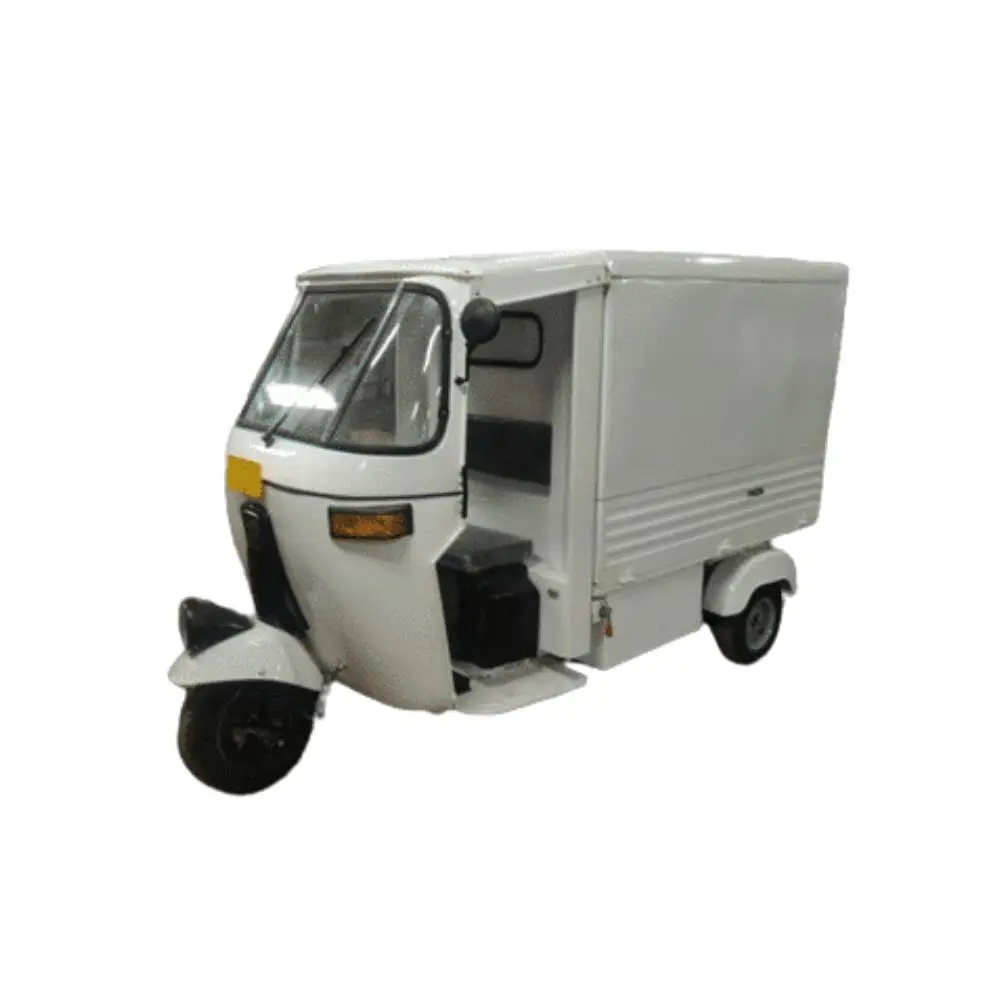

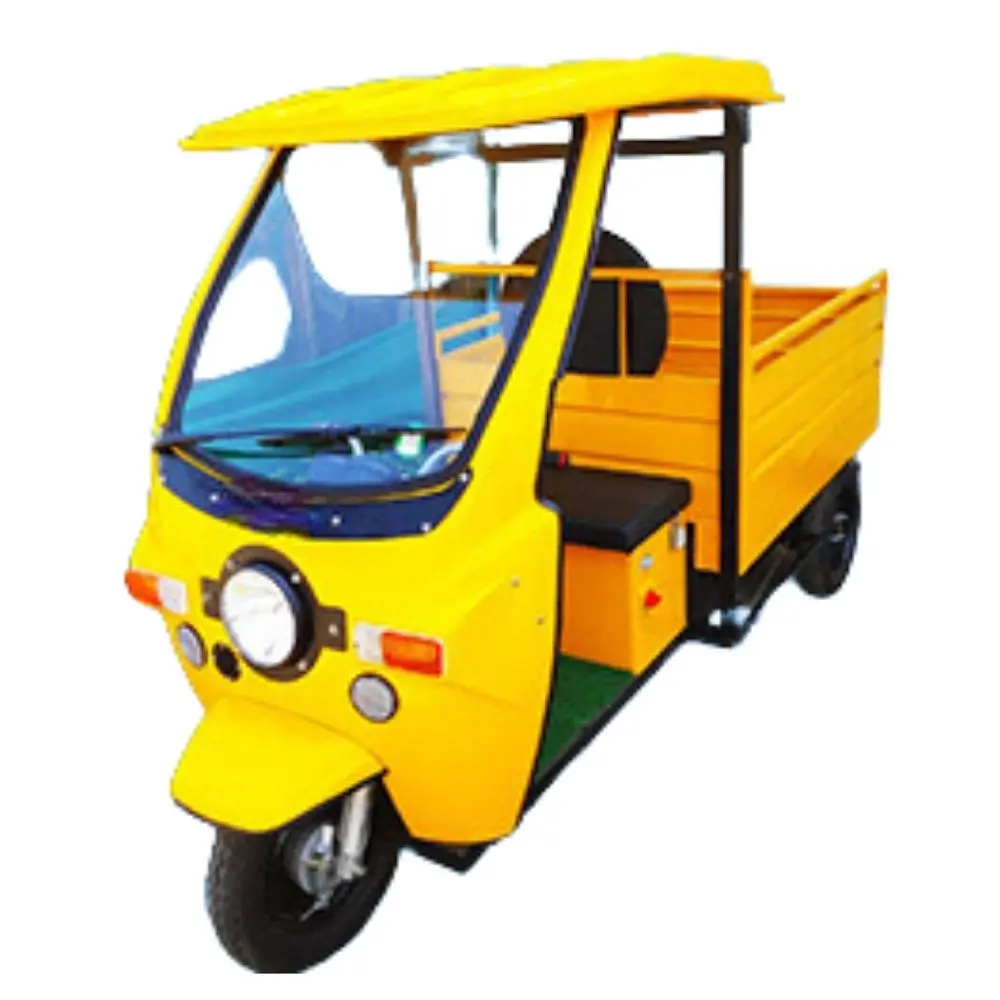

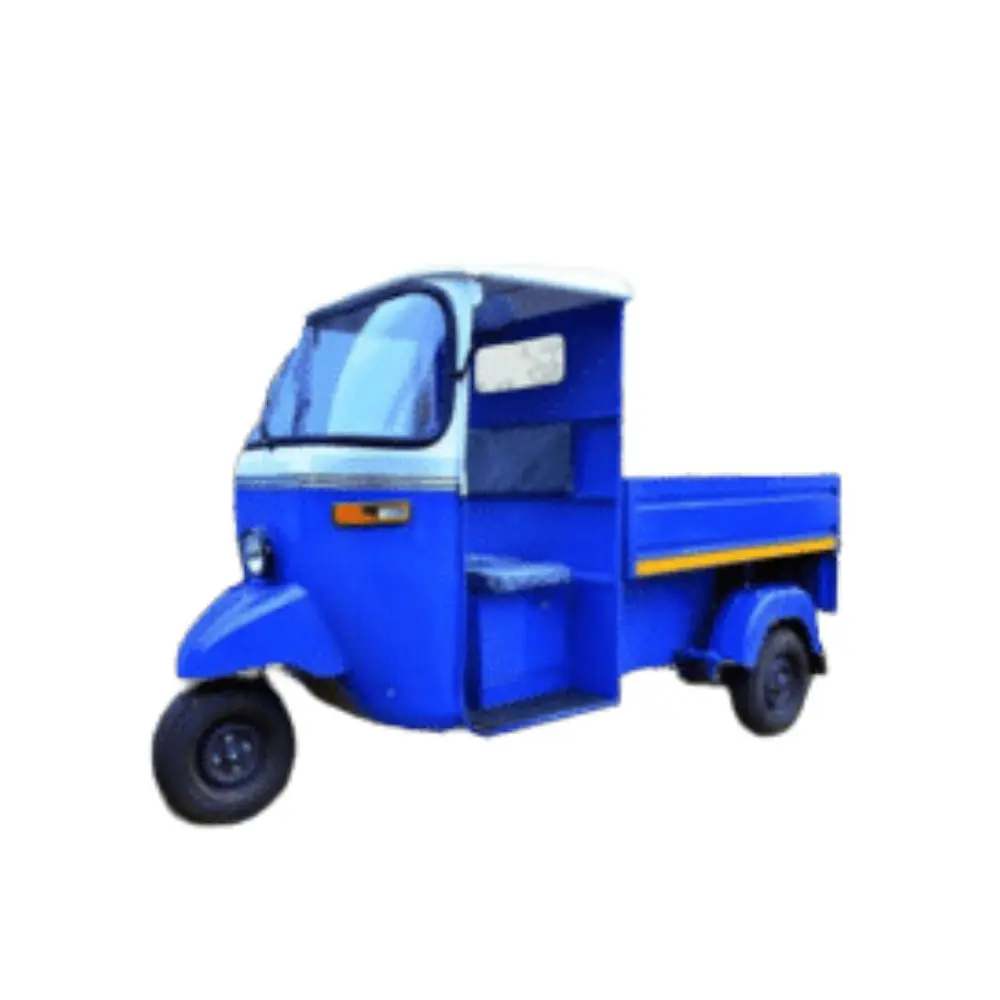

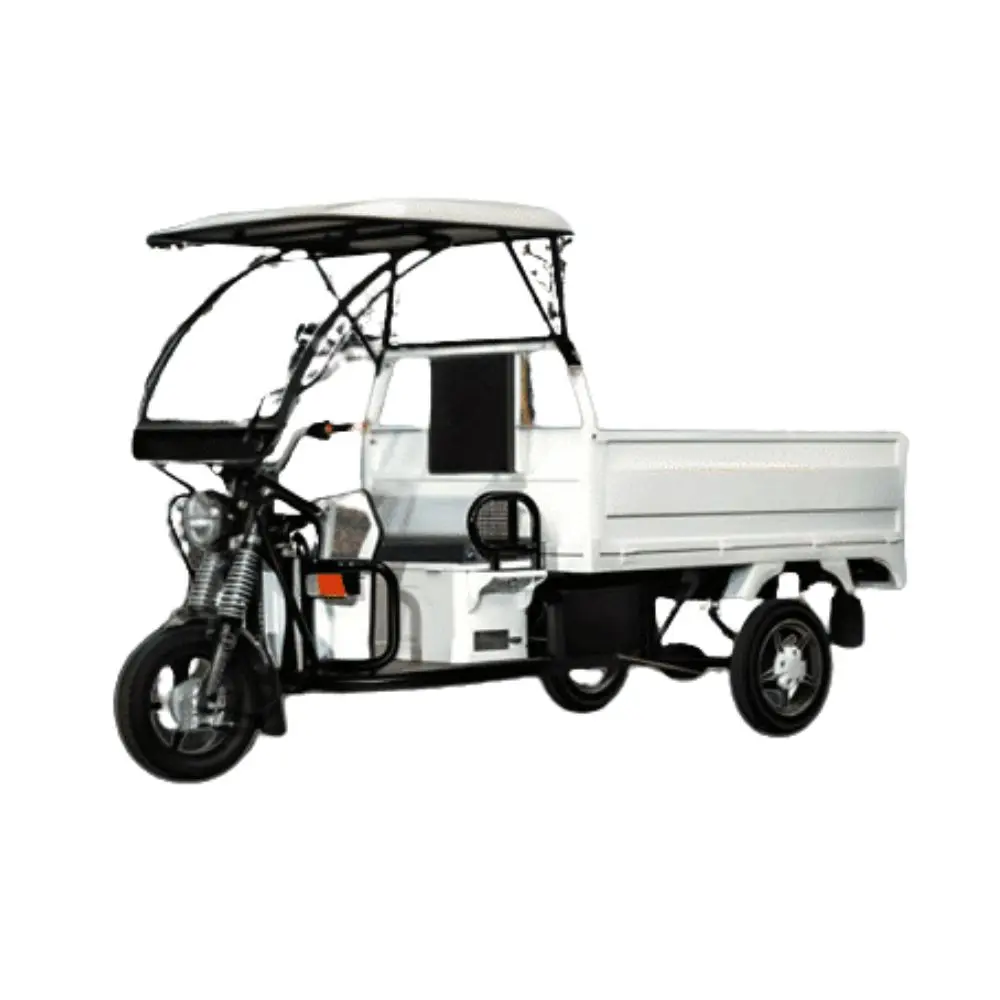

Specification | Cargo EV – Smart Mule X | Cargo EV – Smart Mule | Cargo EV – Cart Loader | Cargo EV - Atom Plus | Cargo EV – E Cart Loader |
Motor | |||||
Category | L5 | L3 | L3 | L3 | L3 |
Colour | Yellow, Blue, Red, Green, Blue (Metallic Optional) | ||||
Motor Power | - | - | - | 48v/1000w | 1000 Watt |
Battery (Lead Acid) | - | - | - | ||
Capacity | - | - | - | 12v/100a (4nos) Or 12v/150a (Optional) | |
Charging Voltage | - | - | - | 220v 50hz | 220V/50 Hz |
Charging Time | - | - | - | 8-9 Hrs | - |
Battery (Lithium -Ion) | - | - | - | - | |
Capacity | - | - | - | 48v/80a Or 48v/100a Optional | - |
Charging Voltage | - | - | - | 220v 50hz | 220V/50 Hz |
Charging Time | - | - | - | 3-4 Hrs | - |
Colour | - | - | Yellow, Blue, Red, Green, Blue (Metallic Optional) | - | - |
Size | - | - | 2750 X 995 X 1750 mm | - | - |
Motor | - | - | 48 V 1000 W High Power | - | - |
Max Power Output | - | - | 2000 Watts | - | - |
Controller | - | - | 24 Tube Controller 50 amps, 24 Mosphets | 24 Tubes | - |
Differential | - | - | 33" Differential | - | - |
Tyres | - | - | 3.75 X 12 | - | - |
Front Suspensions | - | - | 43 Mm Telescopic Hydraulic With Spring | - | Telescopic Shock Absorber |
Rear Suspensions | - | - | 6 Plate Heavy Duty Leaf Spring | - | Leaf Spring 2 Nos |
Transmission Mode | - | - | - | - | Differential Type |
Brakes Front Rear | - | - | Lever Operated Drum Type Foot Paddle Operated Drum | - | - |
Loading | Open body / Closed body option | ||||
Parking Brake | - | - | Mechanical Hand Lever Operated | - | - |
Battery Type | - | - | - | Lead Acid & Lithium | |
Battery | - | - | 110 Ah | - | 100 Ah / 110Ah / 130Ah / 150Ah/Li |
Charging Time | - | - | 6-7 Hrs. | - | 8 Hours |
Brake Type | - | - | - | - | Drum (Mechanical) |
Roof Type | - | - | - | - | Metal |
Tyre Size | - | - | - | - | 3.75 x 12 |
Wheel base | - | - | - | - | 2120 mm |
Overall Length | - | - | - | - | 2785 mm |
Overall Width | - | - | - | - | 998 mm |
Overall Height | - | - | - | - | 1270 mm |
Wheel Rim | - | - | - | - | Alloy Rim / MS Rim |
Charger | - | - | 3 Pin Ac Plug, Input Voltage 170-300 Vac, 15 Amps | - | - |
Stepney | - | - | Tyre Size 3.75 X 12 Standard | - | - |
Tool Kit | - | - | Standard | - | - |
Milage | - | - | 80-100 km / Full Charge* | 80-90 Km (One Charge) | |
Front Glass | - | - | Laminate 6mm Windscreen Glass, ICAT Approved | - | - |
Additional Details | - | - | Chrome Exterior Rear View Mirror | - | - |
- | - | Day Time Running Lamps | - | - | |
- | - | Roof Borders & Internal Cabin Lights | - | - | |
- | - | Mobile Charger Points | - | - | |
- | - | Front & Back Strong Ms/Ss Make Crash Guards | - | - | |
- | - | Side & Partition Canopy | - | - | |
- | - | Mp3 Player With Speaker | - | - | |
- | - | Luggage Carrier With Taxi Light | - | - | |
- | - | First Aid Kit | - | - | |
- | - | Alloy Wheels Set (3 Pcs.) | - | - | |
Motor Type | BLDC | BLDC | DC | DC Brush (48 V) | |
Motor Power | 48 v/1000 w | 1000 Watt | |||
Max Speed | 25 kmph | 25 Kmph | 25-30 Kmph | 23 Km/Hr | 25 Km/h |
Rated Power | 1.5 kW 48 V | 1.5 kW 48V | - | - | |
Peak Power | 2.0 kW 48 V | 2.0 kW 48V | - | - | |
Range/Per Charge(kms) | 95* with 100 Ah | 95* with 100 Ah | - | - | |
Gradient | 10 Deg | 10 Deg | - | - | |
Chassis | - | - | Heavy Duty Tubular Type Structure | - | - |
Suspension | Coil Spring | Coil Spring | - | - | |
Wheel size | 4.00 - 10 | 4.00 - 10 | - | - | |
Brake System | Hydraulic Drum | Hydraulic Drum | - | - | |
Tyre Size | - | - | - | 4.00-8,6pr | - |
Tyre Pressure(Front) | - | - | - | 2.1 Kg/Sq.Cm (30 Psi) | - |
Tyre Pressure (Rear) | - | - | - | 2.4 Kg/Sq Cm (34 Psi) | - |
Drive | - | - | - | Rear Wheel | - |
Brakes | - | - | - | Hydraulic Expanding Shoe Type For All Three Wheels | - |
Suspensions (Front) | - | - | - | Constant Rate Coil Spring & Double Acting Hydraulic Shock Absorber | - |
Suspensions (Rear) | - | - | - | Independently Spring Wheels By Trailing Arms With Helical Springs And Hydraulic Shock Absorber | - |
Electrical System | - | - | - | 12v Dc | - |
Head Lamp | - | - | - | Single 35w | - |
Horn | - | - | - | 12v Dc | - |
Dimensions (L*W*H) | - | - | - | - | - |
Overall | 2820*1000*1790 mm | 2820 * 1000 * 1790 mm | - | 2730 x 995 x 1650 mm | - |
Seating Capacity | 1 | ||||
Ground Clearance | 170 | 170 | - | - | - |
Loading Capacity | 350 kgs | 350 kgs | - | 300 kg | 322 Kg |
Rear trolley | can be lifted | ||||
Half Loader | 1425*997*330mm | ||||
Full Cargo Box | 1425*1000*1100 mm(55 CFT) | ||||
Electrical | - | - | - | - | - |
Speedometer | Digital | Digital | - | - | - |
Charger Volt & Time | 58.4 V & 3-4 hrs (Approx.) | 58.4 V & 3-4 hrs (Approx.) | - | - | - |
Battery Chemistry | LFP | LFP | - | - | - |
Controller Volt | 42-58 V | 42-58 V | - | - | - |
Head light | LED | LED | - | - | - |
