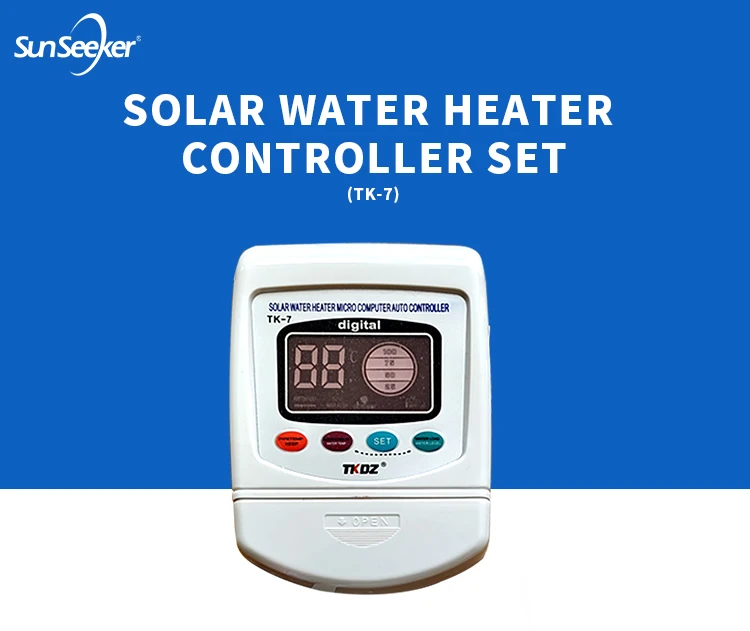

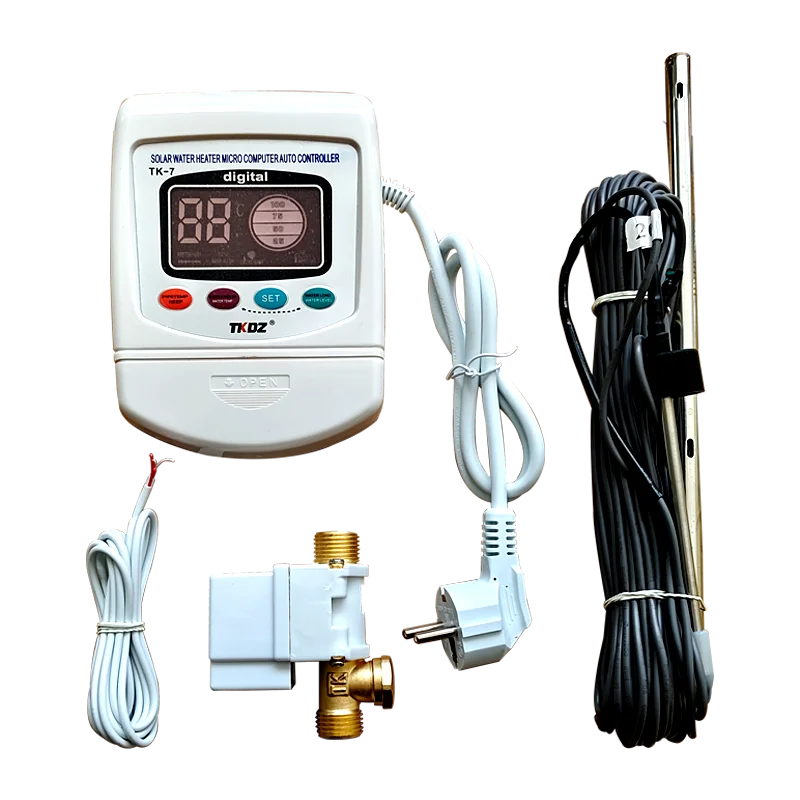

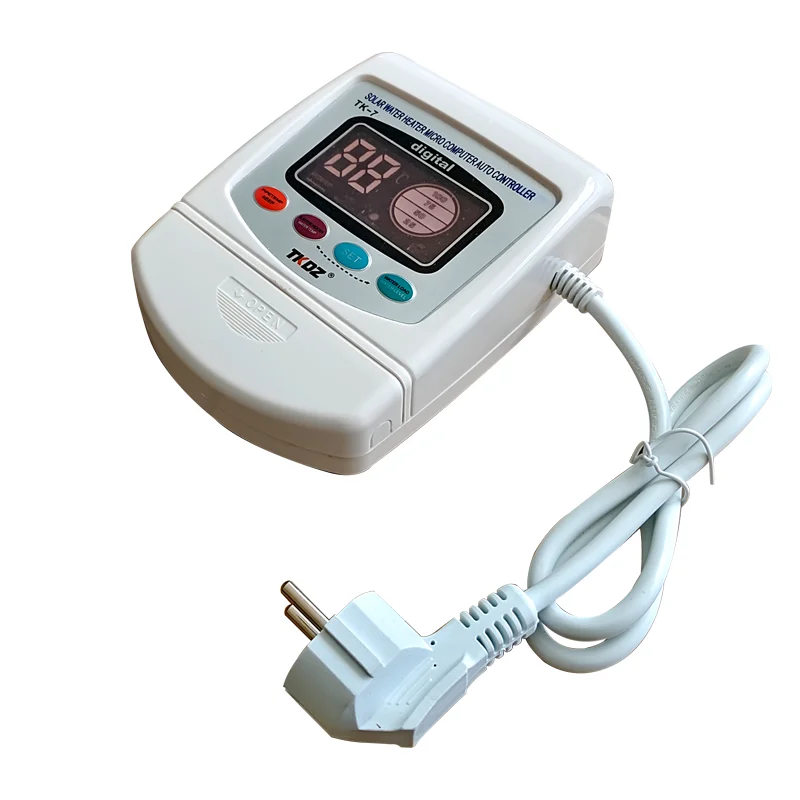

Solar Water Heater Controller Tk 7 Ac220v Automatic Switch Solar Controller
- Category: >>>
- Supplier: Hangzhou Zhongyi Solar Technology Co. Ltd.
Share on (10000016429786):
Product Overview
Description
A Solar thermal controller can be seen as the brains of a solar water heating system.
It control and regulates the transport of heat between the storage vessel (geyser) and the solar collector.
With the use of temperature sensors the controller knows what the temperatures are at different places
within the flow of the solar heating system. This enables the controller to allow or stop the circulation
between the solar collector and the storage vessel, giving you complete control over how the system will react.
It control and regulates the transport of heat between the storage vessel (geyser) and the solar collector.
With the use of temperature sensors the controller knows what the temperatures are at different places
within the flow of the solar heating system. This enables the controller to allow or stop the circulation
between the solar collector and the storage vessel, giving you complete control over how the system will react.
Dimension: 170 mm x 125mm x 50mm
Power supply: AC 220V/50Hz or 110V/60Hz
Power consumption: <3W
Range of temperature measuring: 0~99°C
Accuracy of temperature measuring: ±2°C
Segment of water level measuring: 4
Suitable power of electric heater: 1 heater,< 2000W
Leakage cut-off current: < 10 mA/0.1s
Suitable power of water pump ( if any ): ≤500W
Suitable power of electrical heating wire ( if any ): ≤500W

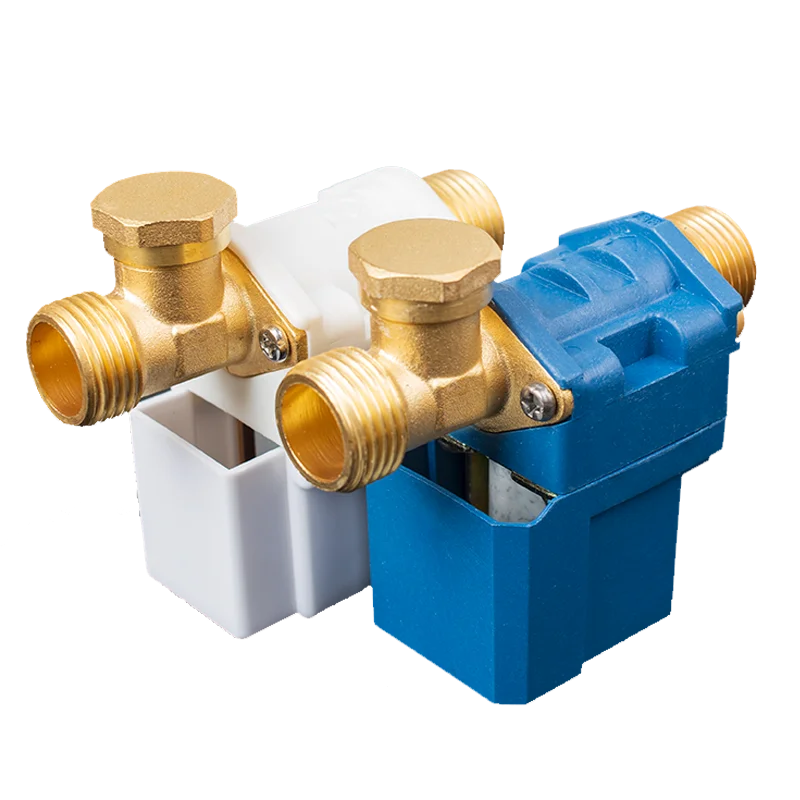

Electric magnetic valve: DC 12V, pressurized valve and un-pressurized valve are available for selection
Operation pressure of pressurized valve: 0.02~0.8 MPa, suitable for city water supply
Operation pressure of non-pressurized valve: 0 MPa, suitable for cold storage tank or low pressure water supply.
Power supply: AC 220V/50Hz or 110V/60Hz
Power consumption: <3W
Range of temperature measuring: 0~99°C
Accuracy of temperature measuring: ±2°C
Segment of water level measuring: 4
Suitable power of electric heater: 1 heater,< 2000W
Leakage cut-off current: < 10 mA/0.1s
Suitable power of water pump ( if any ): ≤500W
Suitable power of electrical heating wire ( if any ): ≤500W
Electric magnetic valve: DC 12V, pressurized valve and un-pressurized valve are available for selection
Operation pressure of pressurized valve: 0.02~0.8 MPa, suitable for city water supply
Operation pressure of non-pressurized valve: 0 MPa, suitable for cold storage tank or low pressure water supply.

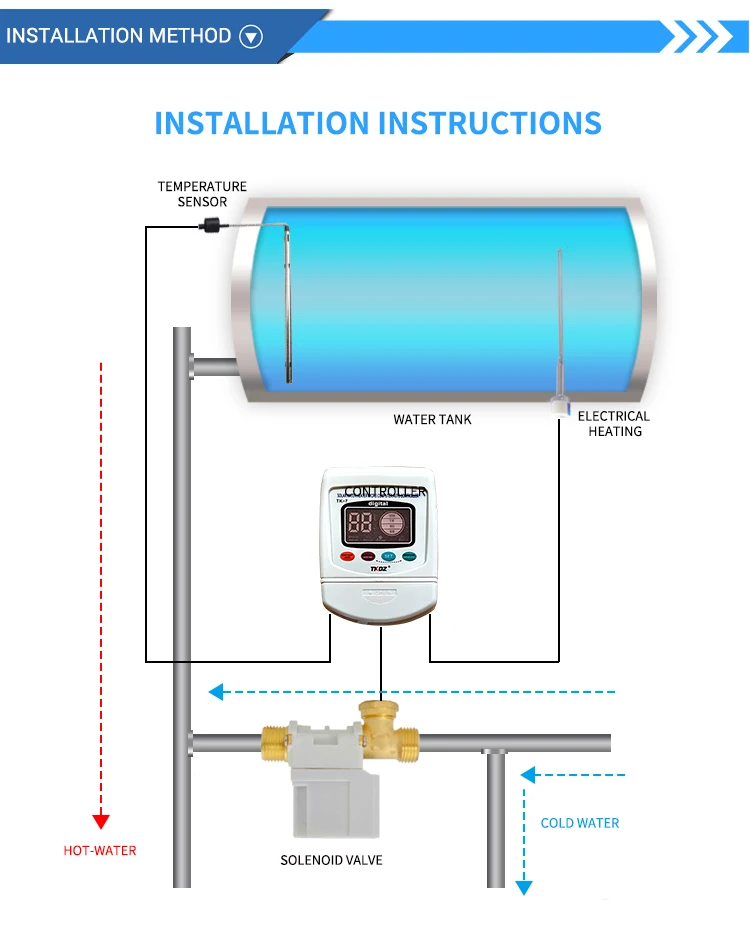

Installation Diagram

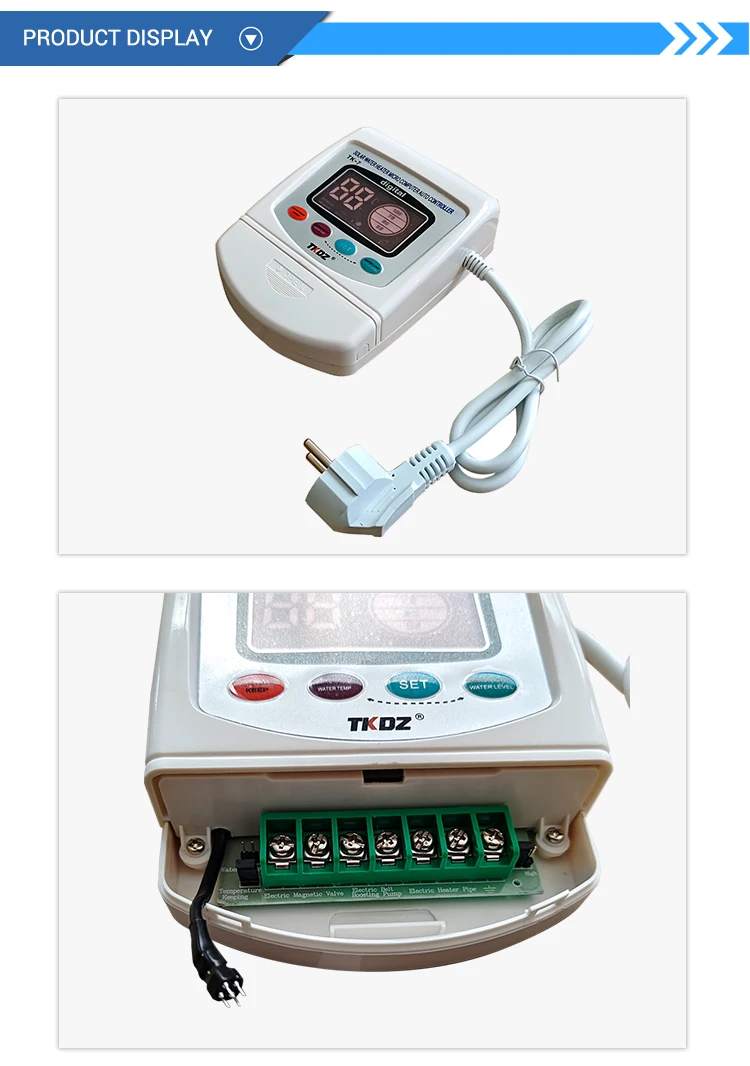

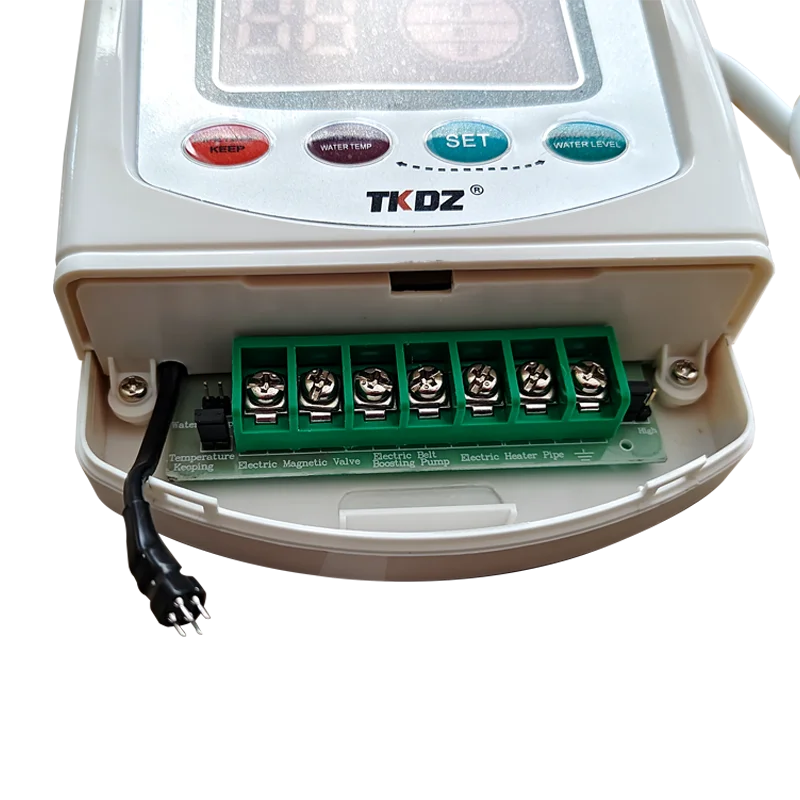

product display
Company Profile
Exhibition and Certifications
Customer reviews

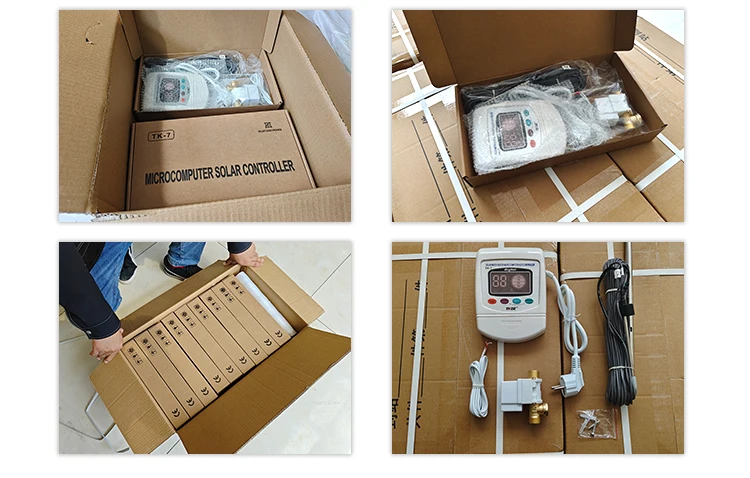

Packing and shipping
FAQ
Q: Are you a manufacture or trading company?
A: We are a manufacture special for solar Brushless DC pump;
Q: Which payment way you accept?
A: Paypal, Alipay, T/T, L/C ,D/P.
Q: What’s the MOQ?
A: For trail sample order, 1pcs is available.
Q.How can I get the solar pumps?
A: We can send the pump to customers by express like DHL, Fedex, or send by air and sea.
Q: What’s your delivery time?
A:1) We have stock for most of regular model and the sample can be sent to you within 2-3 days.
2) The quantity order can be shipped to you within 10-15 days after order confirmation.
Q: What about your product warranty& after sales service?
A: Three years warranty for all solar pump.
Q: Can you supply completely solar pump system?
A: Yes, we can supply whole solar pump system with solar panel, PV box, Panel structure and cable.

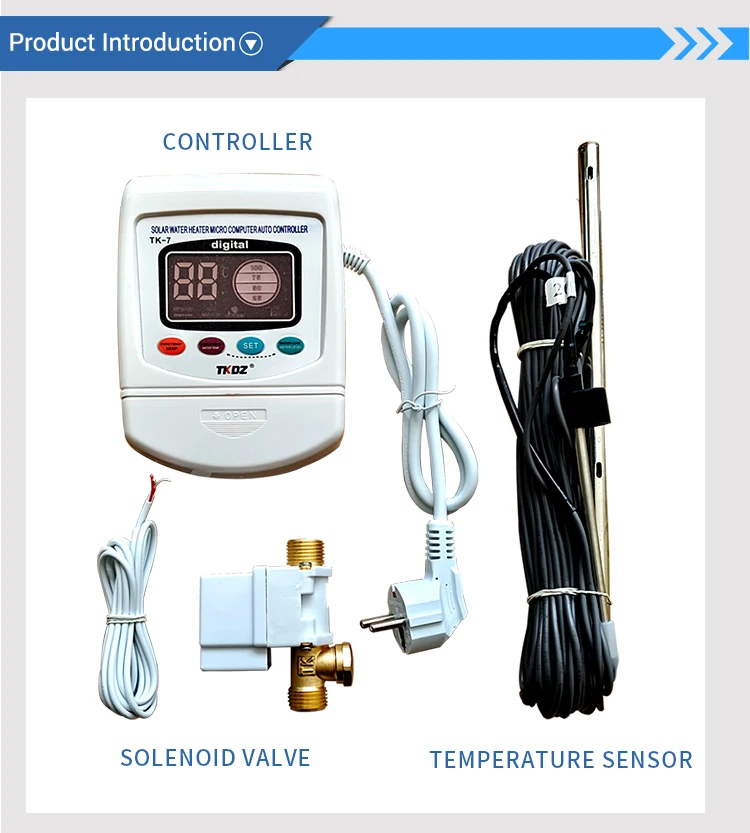

Product Introduction
