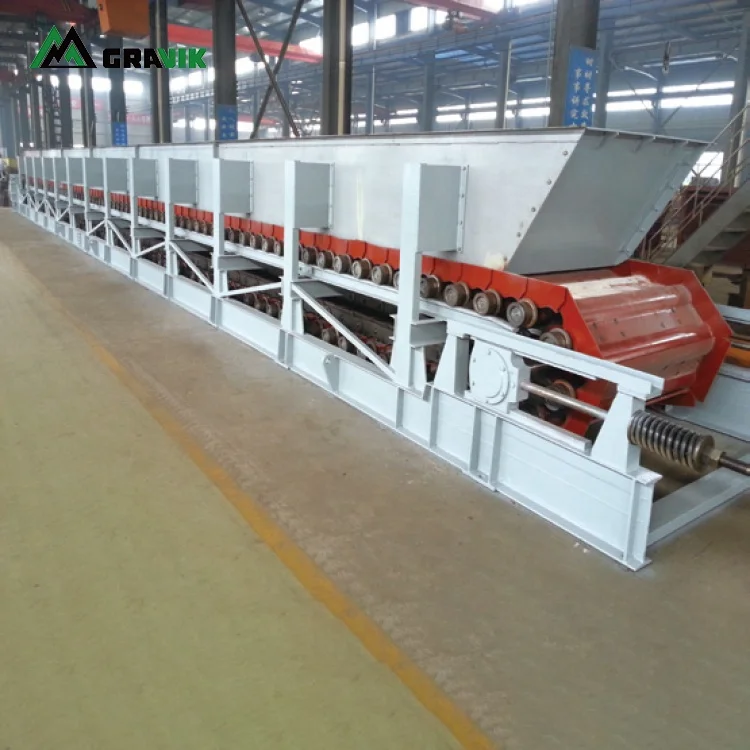

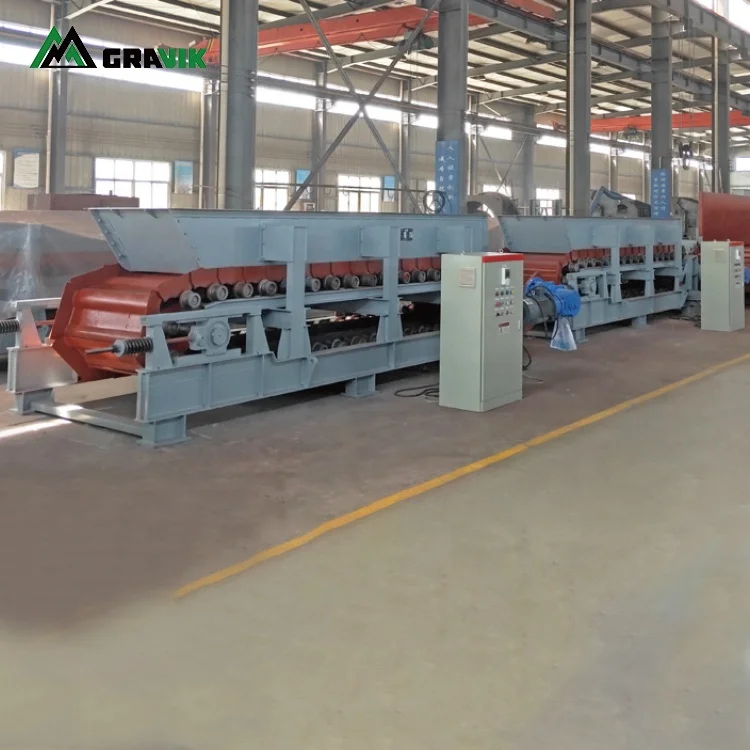

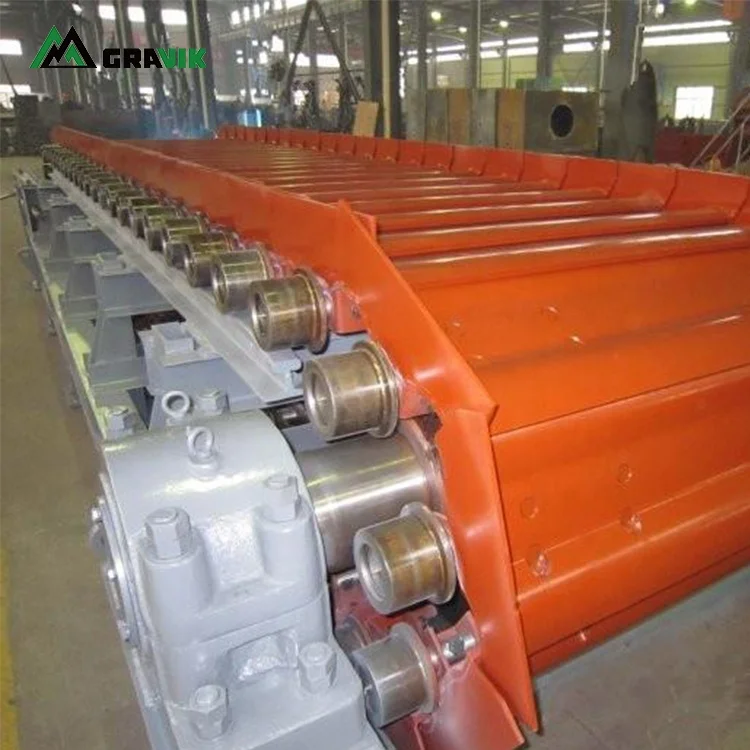

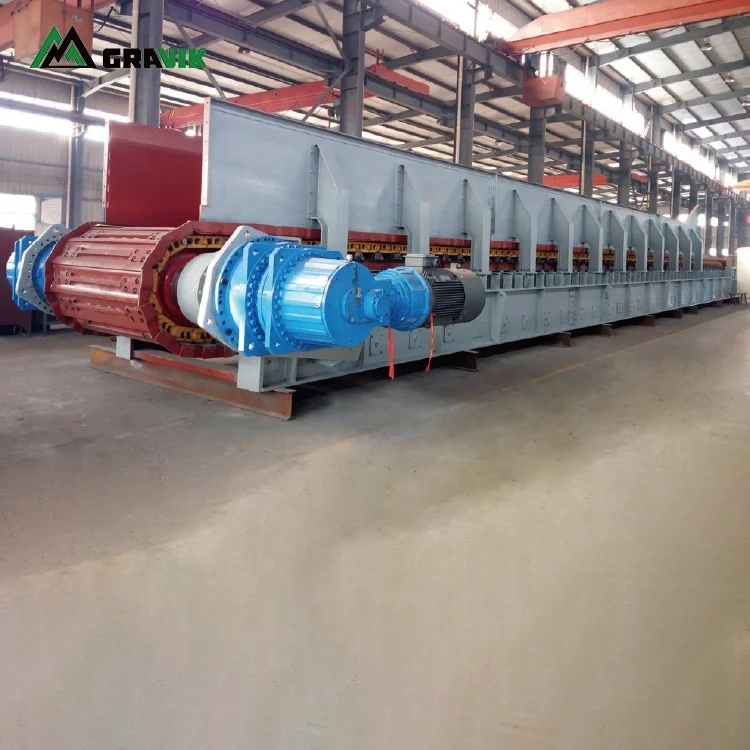

Good Price Big Capacity Mining Ore Automatic Feeding Machine Heavy duty WBZ1600 9 Apron Feeder
Good Price Big Capacity Mining Ore Automatic Feeding Machine Heavy-duty WBZ1600-9 Apron Feeder
Good Price Big Capacity Mining Ore Automatic Feeding Machine Heavy-duty WBZ1600-9 Apron Feeder
Good Price Big Capacity Mining Ore Automatic Feeding Machine Heavy-duty WBZ1600-9 Apron Feeder
Good Price Big Capacity Mining Ore Automatic Feeding Machine Heavy-duty WBZ1600-9 Apron Feeder
Good Price Big Capacity Mining Ore Automatic Feeding Machine Heavy-duty WBZ1600-9 Apron Feeder
Good Price Big Capacity Mining Ore Automatic Feeding Machine Heavy-duty WBZ1600-9 Apron Feeder

Good Price Big Capacity Mining Ore Automatic Feeding Machine Heavy duty WBZ1600 9 Apron Feeder

Share on (10000016604227):


Price:$88,000.00

Quantity:


Product Overview

Description

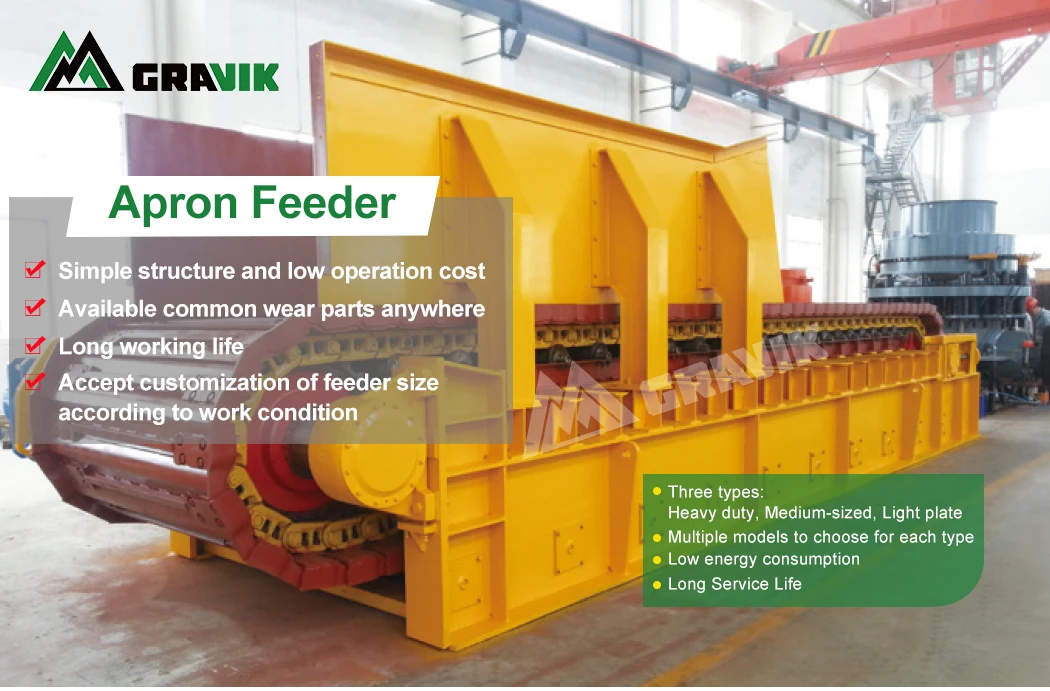

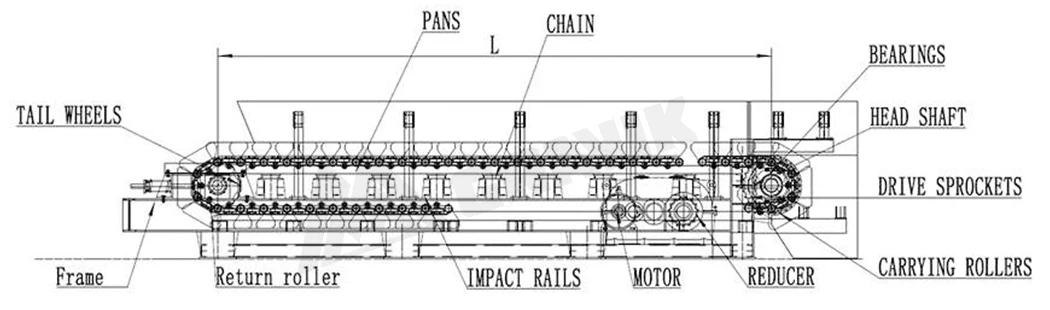

Apron feeders, also known as plate conveyor, are used to carry and continuously transport packaged materials. It is a reliable solution for extracting or feeding ores that are wet, sticky, dry or even frozen. Apron feeder's diversity can be found throughout the mineral processing circuit fitting different applications with robust designs and high up-time for a more efficient operation.

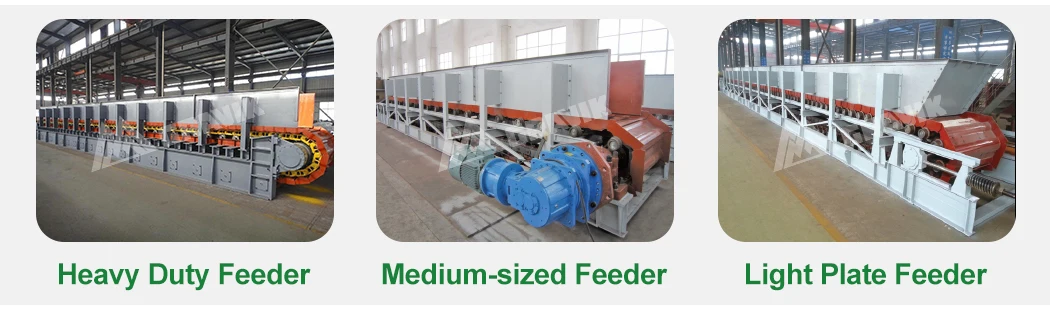

Type 1: heavy duty apron feeder main technical parameters
Model
Slot board width (mm)
Head and tail wheel center distance (mm)
Speed (m/s)
Max. Feed size (mm)
Capacity (tph)
Power (kW)
Overall dimensions (L*W*H)(mm)
WBZ1600-9
1600
9000
0.01-0.07
1000
27-270
30
11250*4153*2890
WBZ1800-8
1600
8000
0.01-0.07
1000
≤500
37
10250*4153*2890
WBZ1800-9
1800
9000
0.01-0.07
1000
≤500
37
11250*4553*2890
WBZ1800-9.8
1800
9800
0.01-0.07
1000
≤500
37
12000*4553*2890
WBZ1800-10
1800
10000
0.01-0.07
1000
≤500
37
12200*4553*2890
WBZ2000-9.8
2000
9800
0.01-0.07
1000
≤500
37
12000*4553*2890
WBZ2200-10
1800
10000
0.01-0.07
1000
≤700
45
12000*4753*2890
WBZ2300-10
2300
10000
0.01-0.07
1000
≤800
45
12000*4853*2890
WBZ2400-10
2400
10000
0.02-0.06
1000
≤850
2*37
12000*4953*2890
WBZ2500-11.5
2500
11460
0.01-0.07
1000
550-900
2*45
12000*5053*2890


Type 2: medium-sized apron feeder main technical parameters
Model
Slot board width (mm)
Head and tail wheel center distance (mm)
Speed (m/s)
Max. Feed size (mm)
Capacity (tph)
Power (kW)
Overall dimensions (L*W*H)(mm)
WBL1000-6
1000
6000
0.01-0.1
500
80-160
11
8620*4960*1600
WBL1200-4
1200
4000
0.014-0.08
600
45-150
11
5810*5160*1480
WBL1200-6
1200
6000
0.01-0.1
600
80-160
11
8620*5160*1600
WBL1250-4.5
1200
4500
0.054
650
150
15
7183*3616*2071
WBL1400-8
1400
8000
0.017-0.17
900
100-200
22
10350*5948*1840
WBL1500-5
1500
5000
0.014-0.08
700
85-288
15
7620*5440*1950
WBL1600-6
1600
6000
0.017-0.17
800
61-610
22
8354*6099*2100
WBL1800-8
1800
8000
0.022-0.046
800
100-1000
37
10300*4295*3650
WBL2200-10
2200
10000
0.018-0.055
1500
220-680
45
12650*4495*3350
WBL2400-10
2400
10000
0.018-0.055
1500
220-680
45
12650*4695*3350


Type 3: light plate apron feeder main technical parameters
Model
Chain plate width (mm)
Chain center distance (mm)
Capacity (m3/h)
Feeding speed (m/s)
Max. size of material (mm)
Power (kW)
WBQ500-2
7-88
500
2000
0.05-0.4
180
1.1-3
WBQ500-3
7-88
500
3000
0.05-0.4
180
1.1-3
WBQ630-3
11-175
630
3000
0.04-0.4
200
1.5-4
WBQ630-4.5
11-175
630
4500
0.04-0.4
200
1.5-4
WBQ800-3
19-308
800
3000
0.04-0.4
350
2.2-5.5
WBQ800-4.5
19-308
800
4500
0.04-0.4
350
2.2-5.5
WBQ1000-3
25-507
1000
3000
0.03-0.4
450
3-7.5
WBQ1000-4.5
25-507
1000
4500
0.03-0.4
450
3-7.5
WBQ1250-3
40-845
1250
3000
0.03-0.4
600
4-15
WBQ1250-4.5
40-845
1250
4500
0.03-0.4
600
4-15
