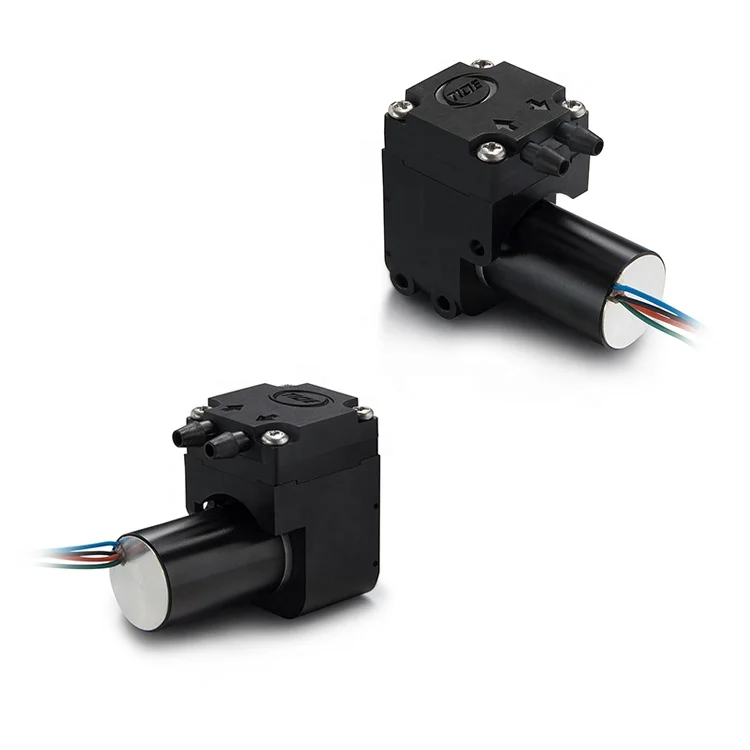

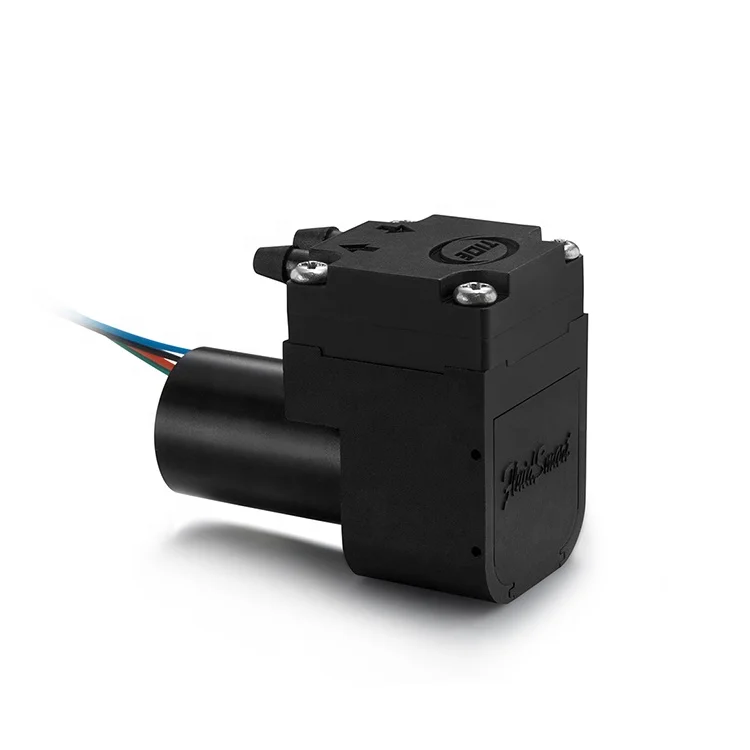

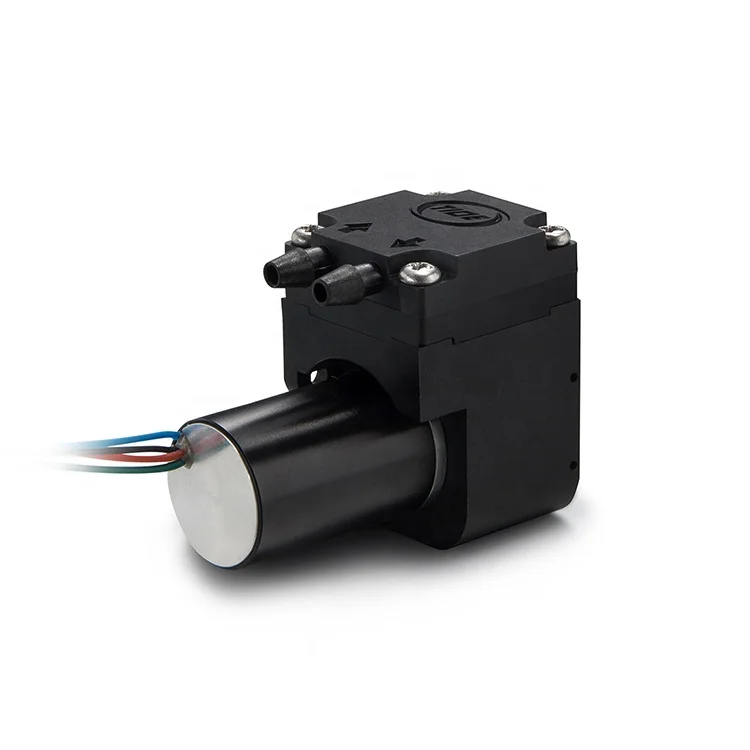

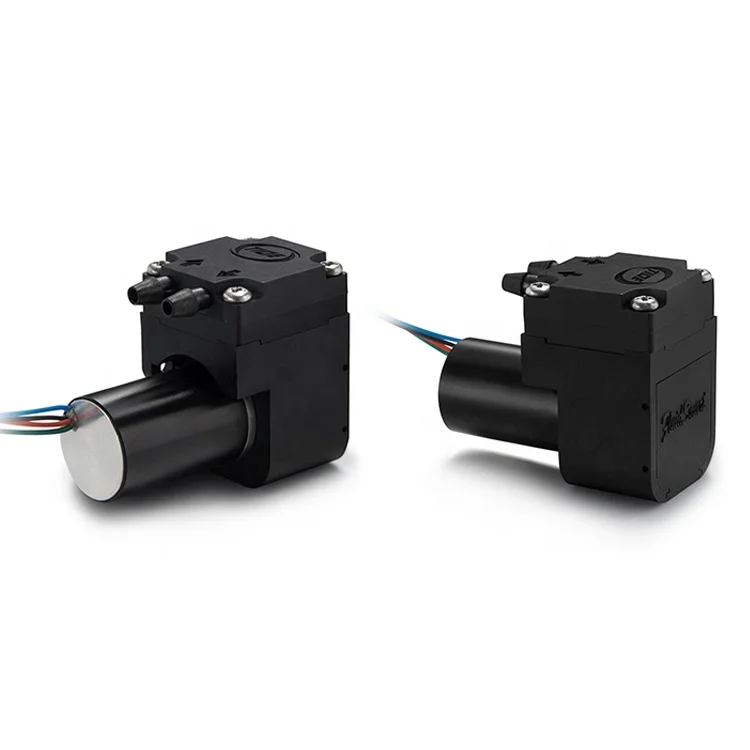

Silent 8000 hours long life micro brushless vacuum air pump electric oilless 5V dc mini air sampling pump for small machine
- Category: >>>
- Supplier: Tide Smart Technology (Shanghai) Co. Ltd
Share on (10000016804148):
Product Overview
Description
Features
Optimized pump body to ensure small volume, provide large flow and maintain relatively low power consumption.
The gas flow is stable and the motor runs in a wide range.
* Professional seal design ensures low leakage rate
* Pollution-free sample gas
* High quality imported EPDM and PTFE/FKM
rubber materials, withstand a variety of gas corrosion
* Long lifetime: 6000-8000hours
Products Description
Model: | AD1.5DC4 (common brushed) | AD1.5DM4/ AD1.5DM4EX-A (explosion-proof) | AD1.5DM4PV/ AD1.5DM4PVEX-A (explosion proof） | AD1.5DB5 |
Voltage range: | 1Vdc~4Vdc | 1Vdc~4Vdc | 1Vdc~4Vdc | 1Vdc~5Vdc |
Maximum flow(3.3v): | 1000ml/min | 1000ml/min | 2L/min | 1000ml/min |
Max. negative pressure: | -40Kpa | -40Kpa | -45Kpa(in parallel) | -40Kpa |
Max. positive pressure: | +50Kpa | +50Kpa | +50Kpa( in parallel) | +50Kpa |
Motor type: | Dc brush motor | coreless brush motor | coreless brush motor | brushless motor |
Max. power: | 0.4w | 0.4w | 0.8w | 0.4w |
Storage environment temp.: | -40℃~60℃ | -40℃~60℃ | -40℃~60℃ | -40℃~60℃ |
Working environment temp.: | -20℃~50℃ | -20℃~50℃ | -20℃~50℃ | -20℃~50℃ |
Pump head material: | PPS | PPS | PPS | PPS |
Pump diaphragm/valve material: | EPDM or customized FKM | EPDM or customized FKM | EPDM or customized FKM | EPDM or customized FKM |
Pump Body material: | PPS | PPS | PPS | PPS |

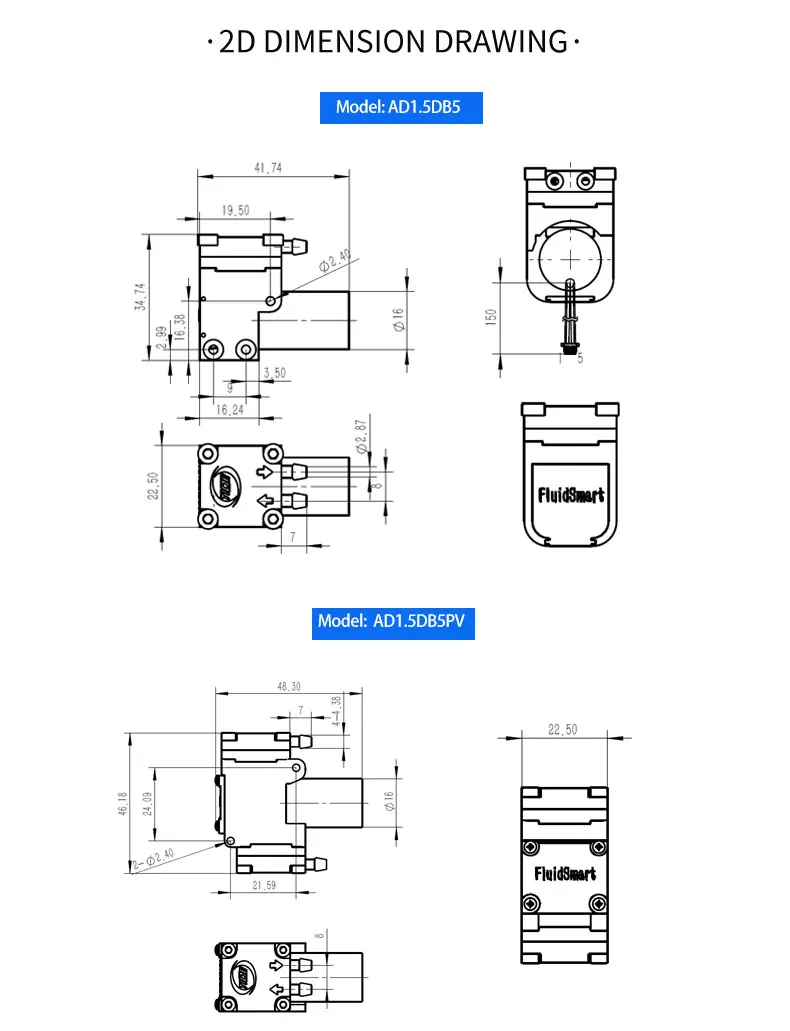

Dimensions(mm): | 43*34*23mm | 43*34*23mm | 47*47*23mm |
Company Profile
FAQ
Q:Do you have warranty for products?
A:Yes, every products have done reliability test, you can find product lifetime in the spcification, if any productsfailed in the set time,we can replace you new.
Q: How to choose a suitable pump for your application?
A: 1.Figure out what pumps do you need, for air or water? For possitive pressure or negative pressure?
2.Know the pump's voltage,pressure, flow rate,working pattern and lifetime.
3.Choose the right pump.
4.Tell us your application then we can give you some good suggestion.
Before Sale Service ：
1. Your inquiry will be promptly replied within 24 hours.
2.Well-trained and experienced
staffs will answer your questions in fluent English.
3.OEM&ODM welcomed.
4.Free design according to customer's demand.
For more product details, please click here to contact us, thank you!
Q: How to choose a suitable pump for your application?
A: 1.Figure out what pumps do you need, for air or water? For possitive pressure or negative pressure?
2.Know the pump's voltage,pressure, flow rate,working pattern and lifetime.
3.Choose the right pump.
4.Tell us your application then we can give you some good suggestion.
Before Sale Service ：
1. Your inquiry will be promptly replied within 24 hours.
2.Well-trained and experienced
staffs will answer your questions in fluent English.
3.OEM&ODM welcomed.
4.Free design according to customer's demand.
For more product details, please click here to contact us, thank you!
