CEEG 372kwh commercial 372kwh lfp battery energy storage container type fixed energy storage system
- Category: >>>
- Supplier: CEEG (Jiangsu) Tech Co. LtdCEEG Ltd
Share on (10000016893239):
Product Overview
Description
Product Description
Product Introduction

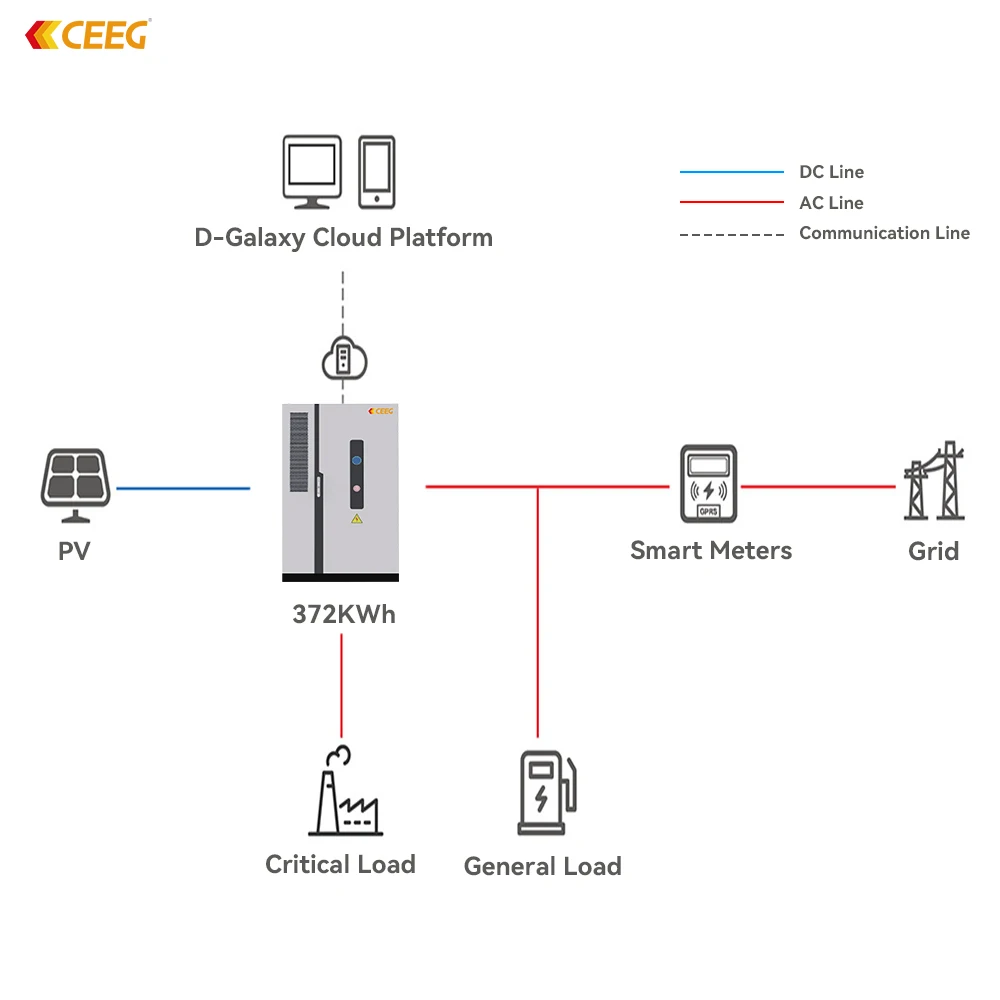

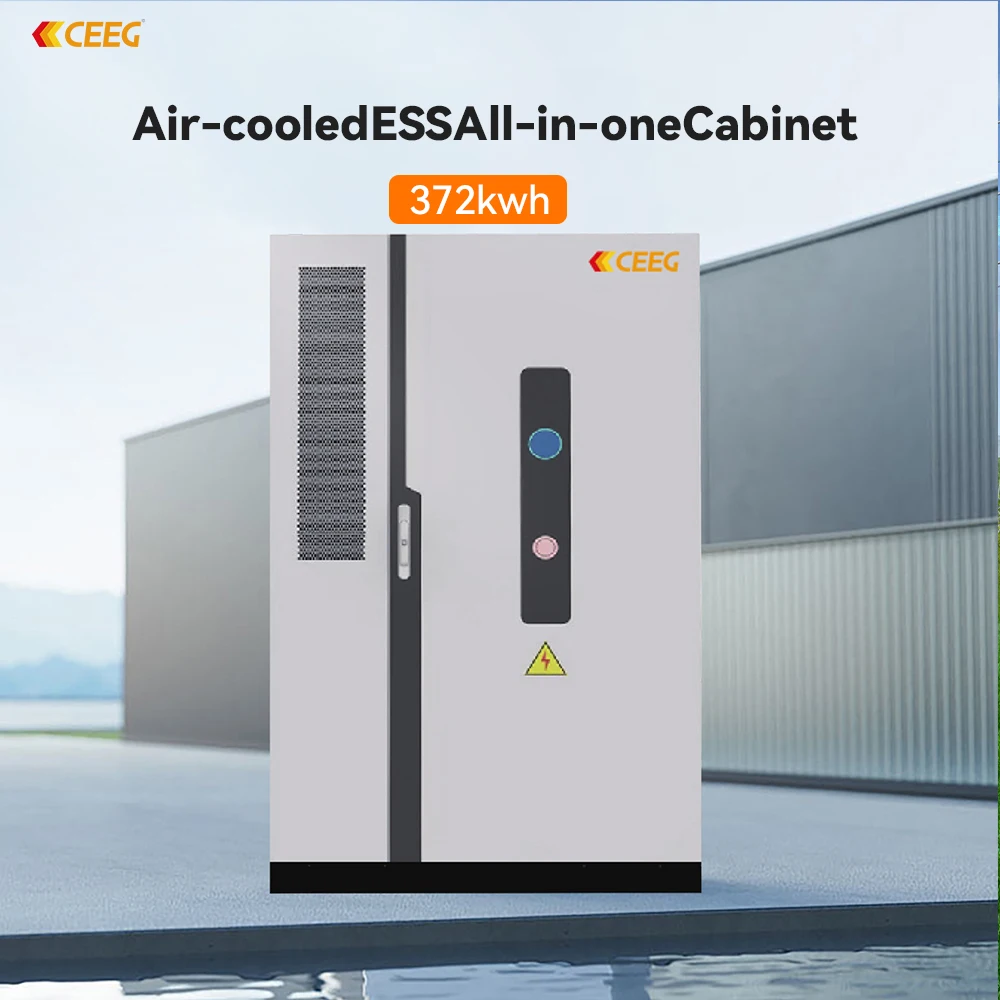

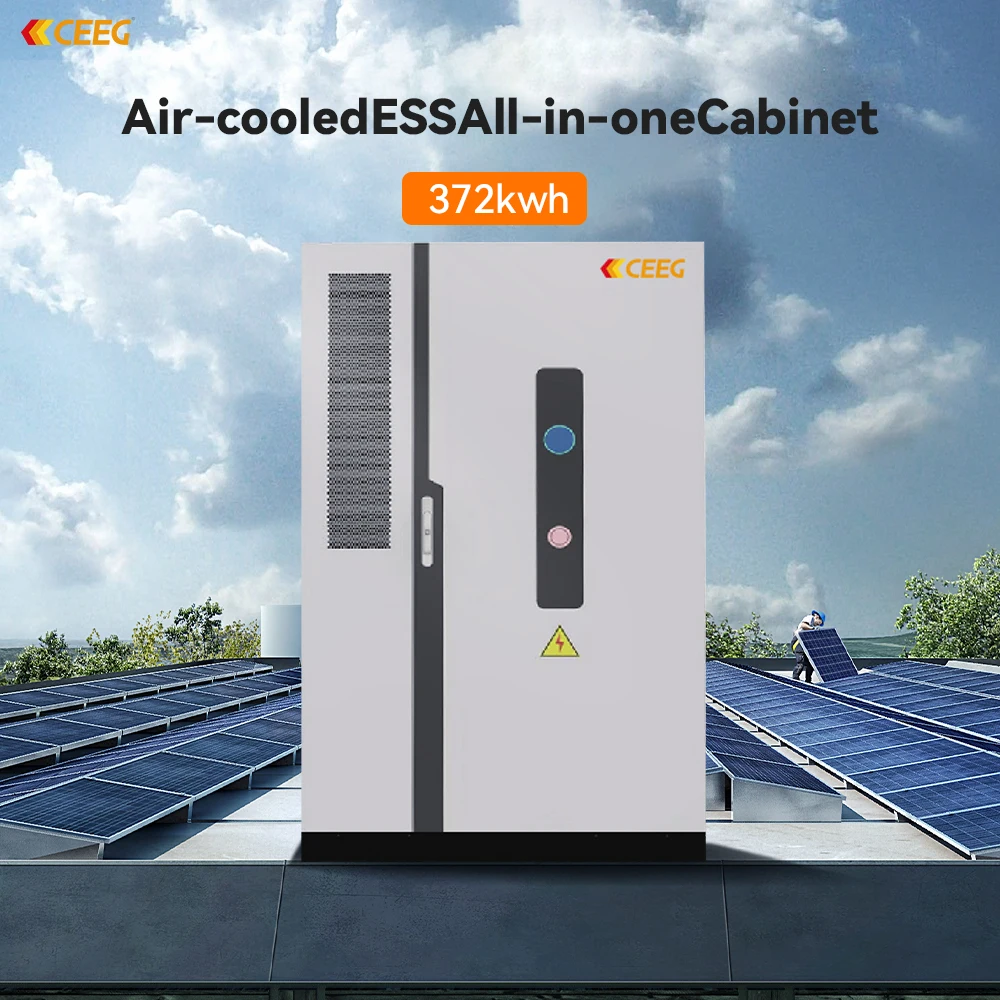

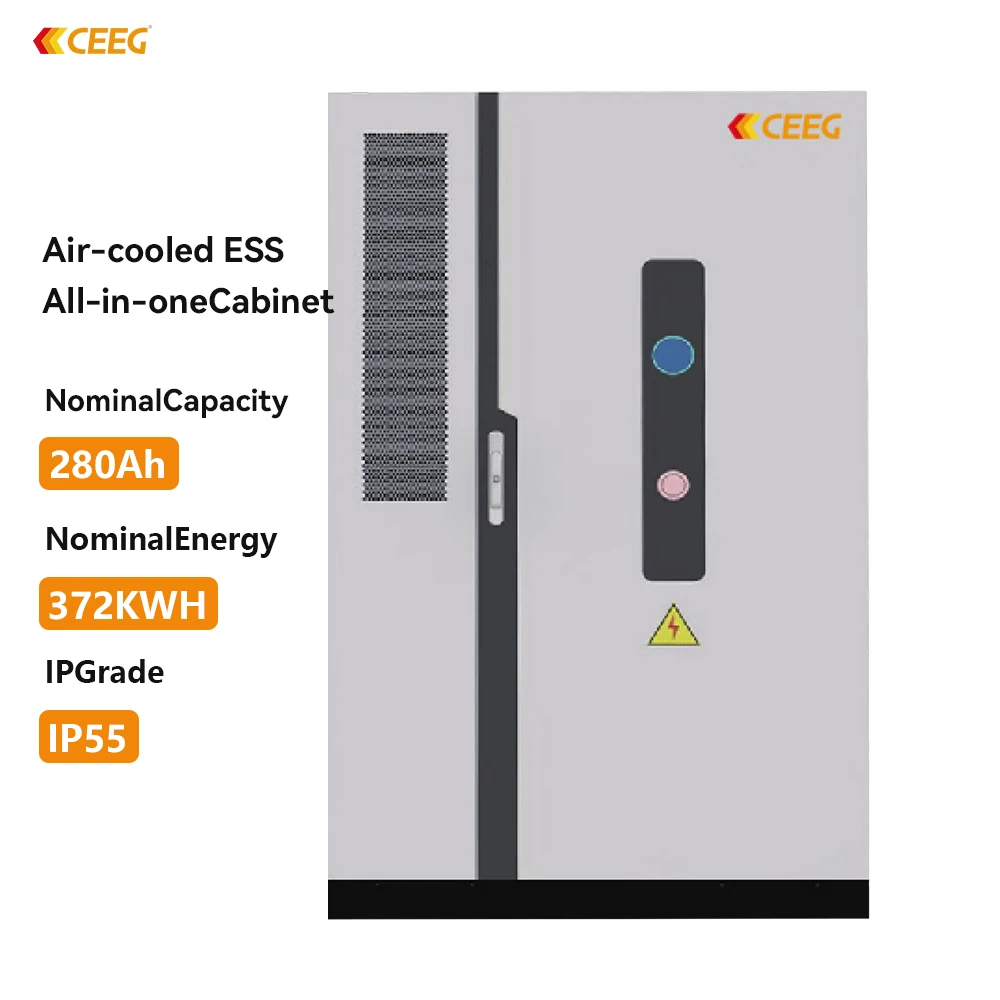

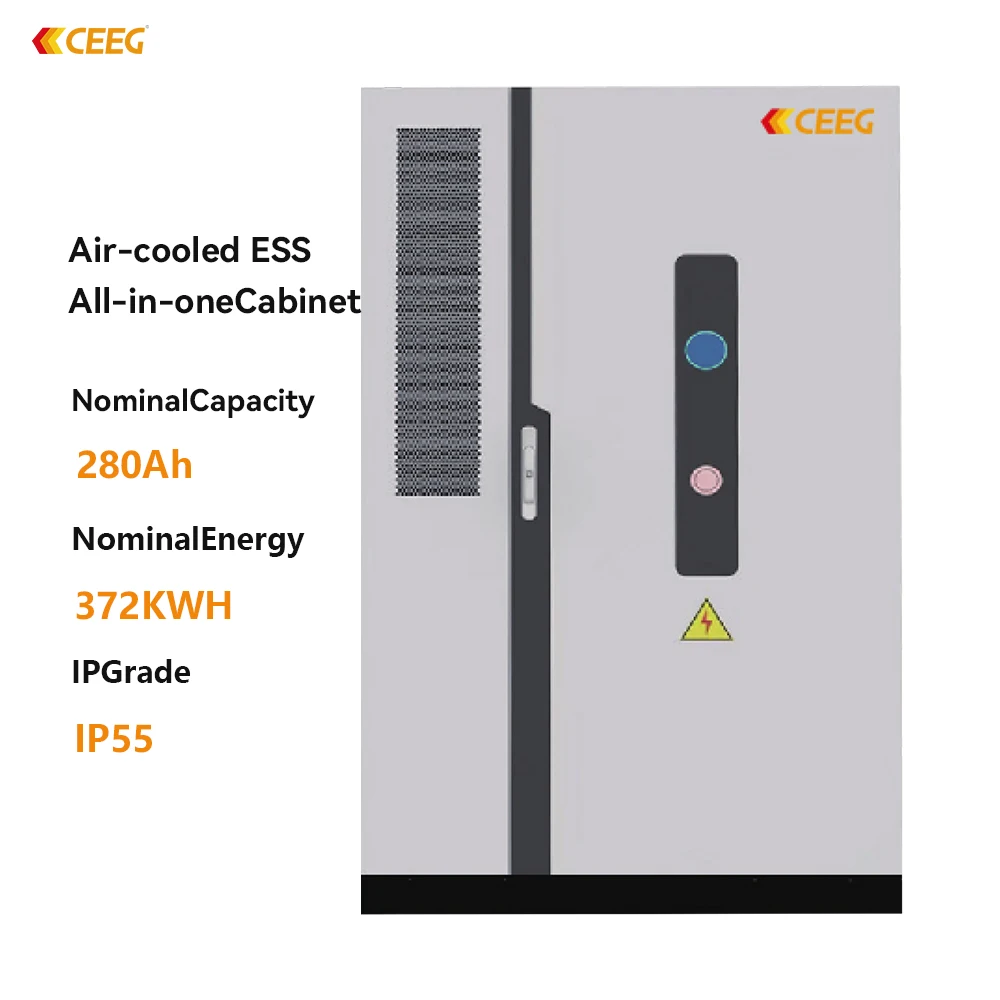

The 372kWh air-cooled energy storage system (Model: CEEG-BOX-H) internally inte.grates DcDC energy storage/photovoltaic-side voltage transformation, supporting connectionto photovoltaic systems. lt is capable of Real-time monitoring of smoke and temperaturealong with multiple-point real-time monitoring by BMS and EMS to ensure the system's safeand reliable operation. The EMS system enables the storage, transfer and exchange of energybetween the storage device, the photovoltaic system, the grid and the load, thus optimizingthe energy, improving the stability of the power supply system and the quality of the powersupply.
Specification
Battery Specification | |
Cell type | LFP |
Rated capacity | 280 Ah |
Serial-parallel type | 1P416S |
Rated capacity per-pack | 46.592 kWh |
Pack number | 8 |
System rated energy capacity | 372.763 kWh |
DC rated voltage | 1331.2 V |
DC voltage range | 1164.8 V~1497.6 V |
Rated DC current | 140 A |
Max. DC current | 160 A |
General Data | |
Dimension (W/D/H) | 1370×1330×2270 mm |
Degree of protection | IP55 (Battery room) |
Cooling concept | Liquid cooling |
Heating concept | Liquid heating |
Fire suppression system | aerosol |
Operating temperature range | -20℃~+55℃ |
Relative humidity | 5%~95% RH |
Display | APP/ Web/ LED |
COM interfaces | RS485/ Ethernet |
Weight | 3550±50 kg |
Safe & Reliable
Multiple intelligent satety systems, With over current.over voltage, over temperature,
overload and otherprotection.
Battery system with hierarchical management, real.time monitoring, and dual-layer thermalinsulationdesign.
Battery system with hierarchical management, real.time monitoring, and dual-layer thermalinsulationdesign.
Intelligent & Friendly
Intelligent EMS with multiple management strategies.Integrated components such as DC/Dc, supporting PVintegration.
Seamless switching between STS and off-grid operation.
Seamless switching between STS and off-grid operation.
Flexible Deployment
Modular design, flexible configuration, easy maintenance.
Support lifting and forklift transportation.
Support lifting and forklift transportation.
Economical & Efficient
Professional design and one-stop service,Supports demand-side response, virtual power plants,etc. for multiple benefits.
Advantages of the all in one solar energy storage system:
1.Energy saving and environmental protection: solar energy storage integrated machine is a kind of clean energy, no pollutants will be produced during use, no need to use fossil fuels, friendly to the environment, can effectively reduce energy consumption, reduce carbon emissions, and help protect the environment.
2.Economical: The solar energy storage integrated machine can convert solar energy into electrical energy for storage, which can save electricity bills and reduce the cost of electricity for households and businesses. In addition, the solar energy storage integrated machine can also sell excess electricity to the grid to generate income.
3.Reliability: The solar energy storage integrated machine has a high degree of reliability and stability, and can provide reliable backup power in the event of a power outage, ensuring that the power consumption of homes and businesses will not be affected, and at the same time improve the stability of power consumption.
2.Economical: The solar energy storage integrated machine can convert solar energy into electrical energy for storage, which can save electricity bills and reduce the cost of electricity for households and businesses. In addition, the solar energy storage integrated machine can also sell excess electricity to the grid to generate income.
3.Reliability: The solar energy storage integrated machine has a high degree of reliability and stability, and can provide reliable backup power in the event of a power outage, ensuring that the power consumption of homes and businesses will not be affected, and at the same time improve the stability of power consumption.
4.Flexibility: The solar energy storage integrated machine can realize automatic control, can start and stop control at any time according to actual needs, can adapt to different power loads, and improve the flexibility and adaptability of power consumption.
5.Scalability: The solar energy storage integrated machine can be expanded according to the demand, and the number of solar panels and battery packs can be gradually increased to meet the electricity demand of different scales.
5.Scalability: The solar energy storage integrated machine can be expanded according to the demand, and the number of solar panels and battery packs can be gradually increased to meet the electricity demand of different scales.

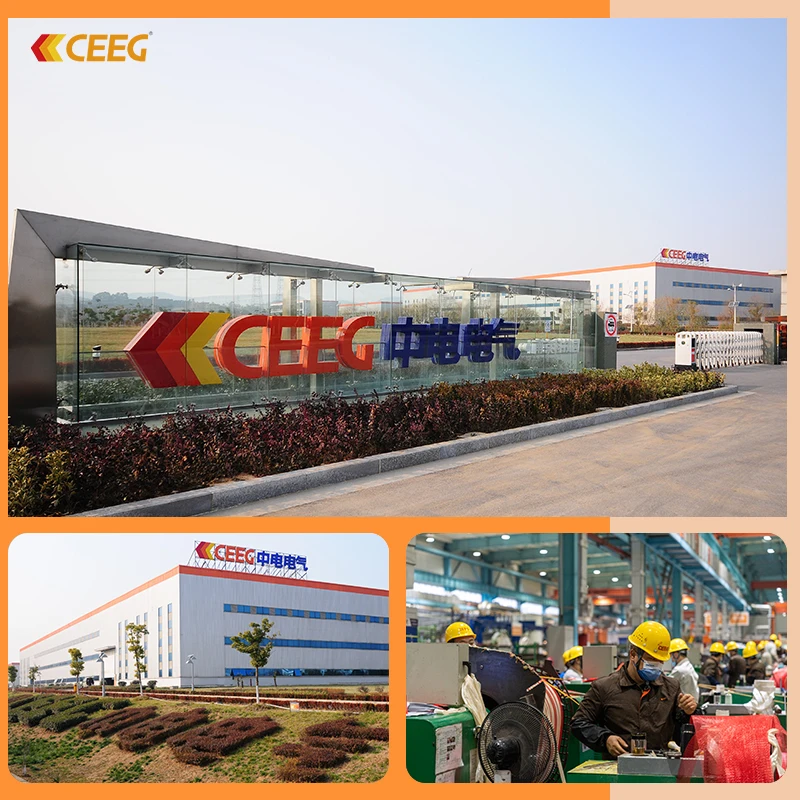

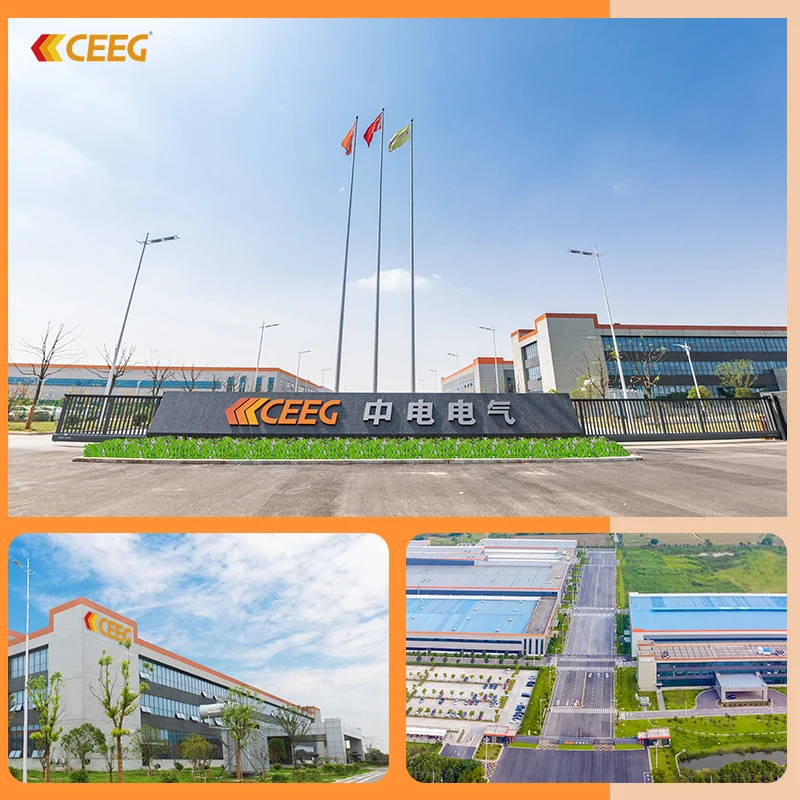

Company Profile
Packing & Delivery
Exhibition
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2017,sell to Northern Europe(59.00%),Africa(18.00%),South America(8.00%),Mid East(7.80%),South Asia(2.00%),North America(2.00%),Southeast Asia(1.90%),Central America(0.20%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
solar energy storage,solar energy panel,solar power inverter,solar hybrid inverter,solar battery
4. why should you buy from us not from other suppliers?
CEEG is a world-leading supplier of solar cells, modules and system solutions.
CEEG led Chinese PV companies to implement a feature project-"Whole Set of Key Technology Research and Demonstration Production
Line for the Industrialization of Low-Cost
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Jiangsu, China, start from 2017,sell to Northern Europe(59.00%),Africa(18.00%),South America(8.00%),Mid East(7.80%),South Asia(2.00%),North America(2.00%),Southeast Asia(1.90%),Central America(0.20%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
solar energy storage,solar energy panel,solar power inverter,solar hybrid inverter,solar battery
4. why should you buy from us not from other suppliers?
CEEG is a world-leading supplier of solar cells, modules and system solutions.
CEEG led Chinese PV companies to implement a feature project-"Whole Set of Key Technology Research and Demonstration Production
Line for the Industrialization of Low-Cost
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,Credit Card,PayPal,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
