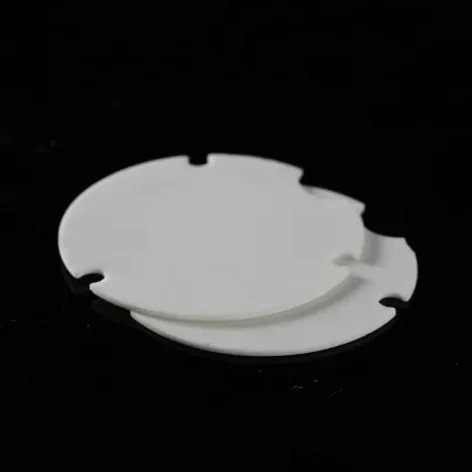

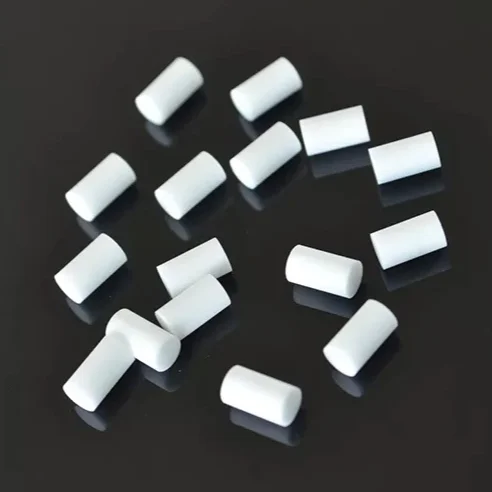

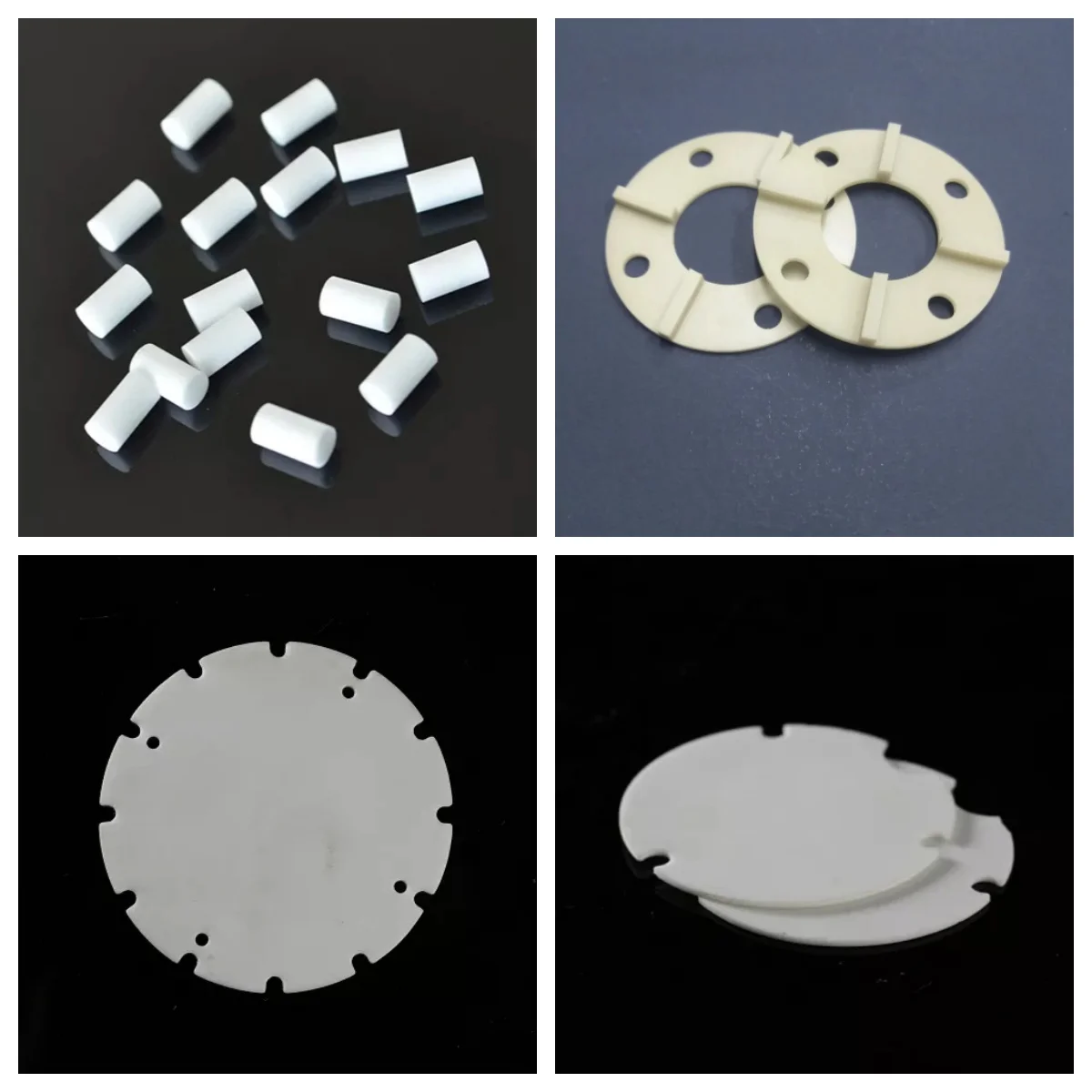

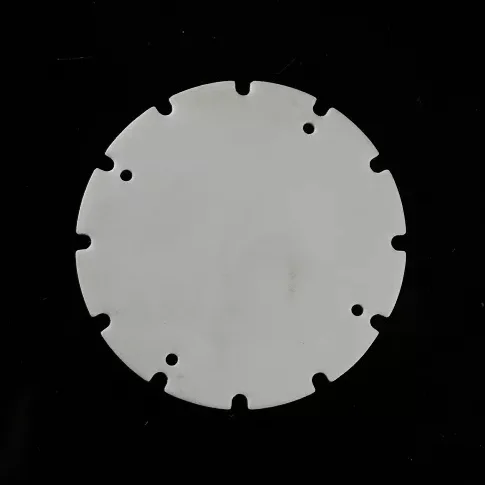

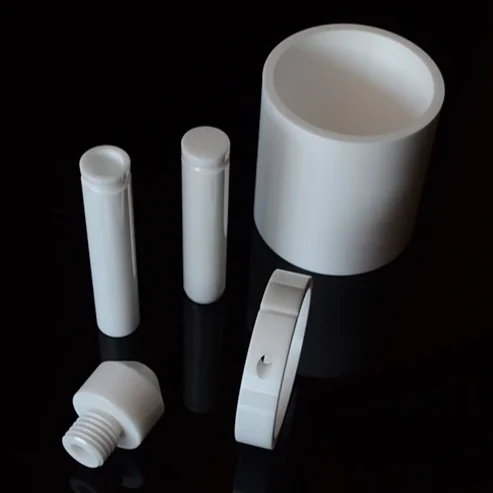

Customized White High Thermal Conductivity 99% Beo Substrate Beryllium Oxide Ceramic
- Category: >>>
- Supplier: ALB (Xiamen) Material Company Limited
Share on (10000016969428):
Product Overview
Description
Product Description

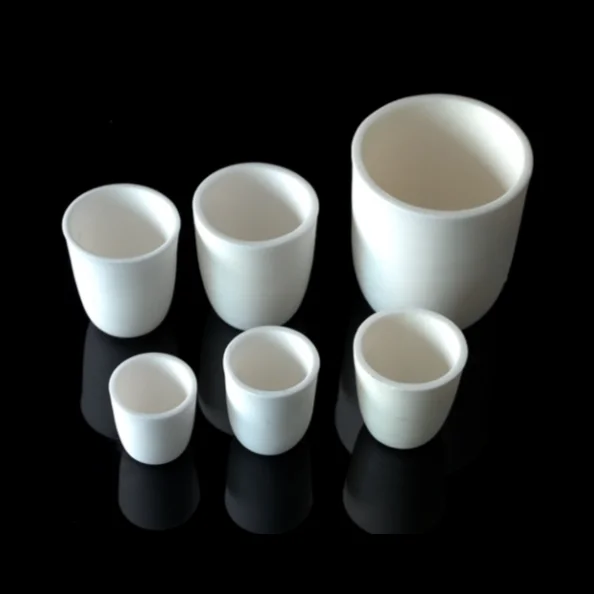

Beryllium Oxide Ceramic
Technique Data of Beryllium Oxide Ceramic
| Item | Test Conditions | Technical Index | Unit |
| B-99 | |||
| Dielectric Constant | 1MHz | 6.6 ± 0.1 | |
| 10GHz | 6.9 ± 0.1 | ||
| Dielectric Loss Tangent | 1MHz | ≤ 4 X 10-4 | |
| 10GHz | ≤ 6 X 10-4 | ||
| Volume Resistivity | 25ºC | ≥ 1014 | Ω.cm |
| 300ºC | ≥ 1011 | ||
| Breakdown Strength | D. C | ≥ 30 | kV/mm |
| CMORT | - | ≥ 190 | MPa |
| Average Linear Expansion Coefficient | 25ºC - 500ºC | (7.0-8.5) X 10-6 | I/K |
| Thermal Conductivity | 25ºC | ≥ 260 | W/m.K |
| 100ºC | ≥ 260 | ||
| Thermal Shock Resistance | 0ºC - 800ºC | No cracks | |
| Bulk Density | - | ≥ 2.88 | g/cm3 |
| Chemical Stability | 1 : 9HCL | ≤ 0.3 | mg/cm2 |
| 10% NaOH | ≤ 0.2 | ||
| Air Tightness | - | ≤ 10 X 10-11 | Pa. m3/s |
| Average Grain Size | - | ≥10-20 | μm |
More products
Application
The beryllium oxide (BeO) is a ceramic material with high conductivity and low dielectric constant, which makes it widely used in the field of electronic technology, such as special metallurgy, vacuum electronic technology, nuclear technology, microelectronics and photoelectron technology due to its high thermal conductivity, high insulation, low dielectric constant, low medium loss, and good process adaptability.
Advantages:
1.Superior Thermal Conductivity
2.More Consistent Heat Dissipation
3.Better Uniformity of Crystalline Structure
4.Easy and Effective Metallization
5.More Durable in Semiconductor Chamber Cleaning Environments
Packaging & Shipping
Company Information
We are gald to introduce our ALB group to be the TOP 3 professional manufacturer and supplier of the following Beryllium Copper Alloy Material and Finished parts ( UNS.C17000, UNS. C17200, UNS. C17300, UNS. C17500, UNS. C17510, CuCo1Ni1Be) here in China.
If you have your own design, we can produce according to your specification and drawing.
Our advantages :
A-Daily output=10,000kg, rush order only need 5-10 days.
B-Variety of models for your options, some of clients' design.
C-Small MOQ.
D-Qualify for ASTM, AMS, DIN Standards.

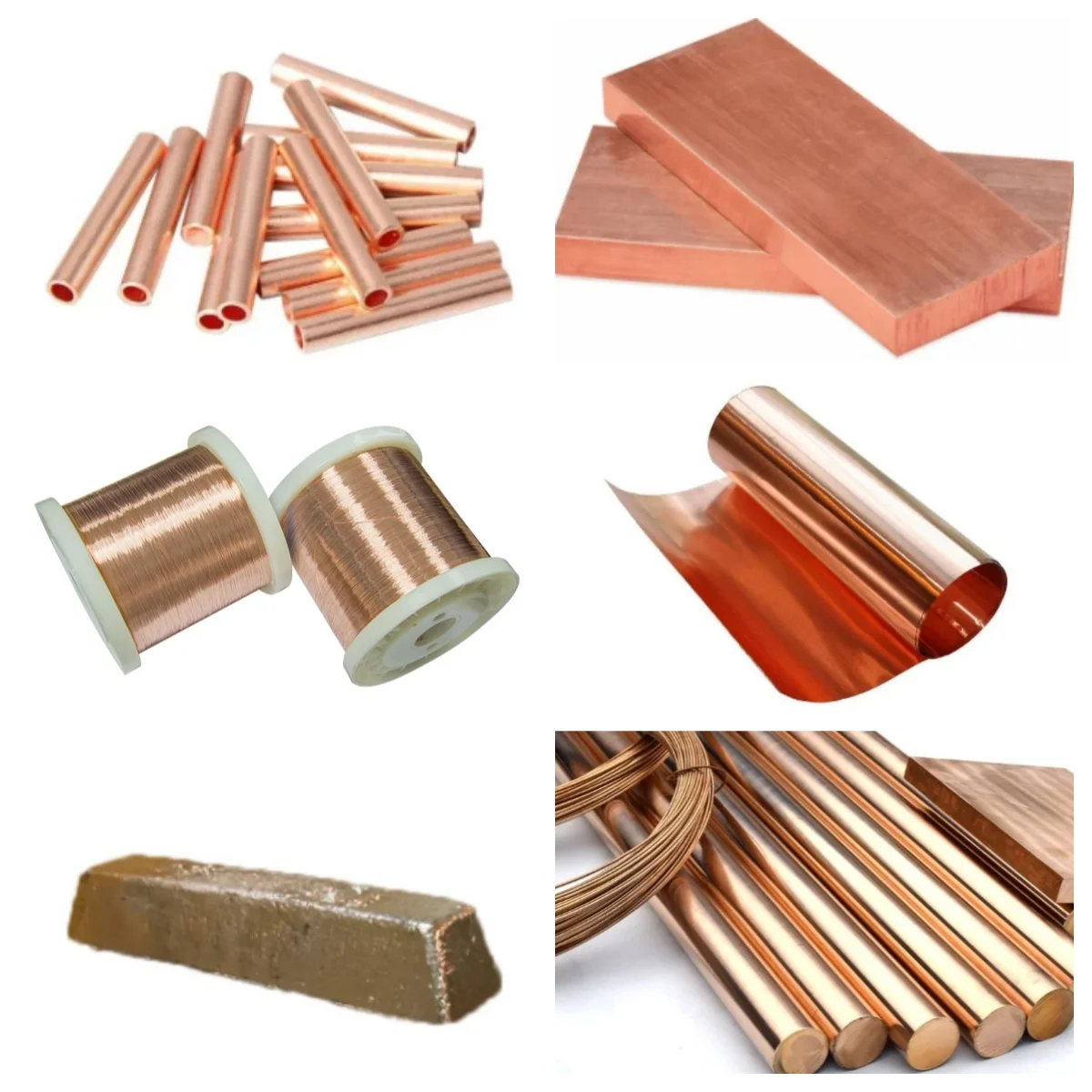

Copper lugs/BeCu/Beryllium Copper Series Alloy--- Qualify for ASTM Standards...
CuBe1.7-UNS.C17000
CuBe2--UNS. C17200, CDA 172 ( BeCu, Alloy 25)
CuBe2Pb-UNS.C17300, CDA173
CuCo2Be---UNS. C17500 (Alloy 10)
CuNi2Be--UNS. C17510 (Alloy 3)
CuCo1Ni1Be - DIN. CW103C
in the forms of Rod, bar, Tube, Pipes, Round Strips, Coils, Plates, flat bars, Square bars, Hexagonal bars, Sheets, etc...
Our leading Customers is located in USA, UK, Belgium, Germany,Italy, Singapore, UAE,etc....
FAQ
FAQ
Q1: What is your terms of payment ?
A: 30% T/T in advance, balance before shipment or based on BL copy or LC at sight.
Q2: Do you provide ODM services?
A: Yes, if you have your own design, we can produce according to your specification and drawing.
Q3: How long does your delivery time take?
A:In general, our delivery time is within 7-15 days, and may be longer if the quantity is extremely large or special circumstances occur.
Q4: How many countries you already exported to?
A:We have exported to America, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana, somalia and other African countries.Our export experience is rich, we familiar with different market demands, can help customers avoid a lot of trouble.
Q5: Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed and customers can appoint third parties to inspect the products before loading too.
Mores
We can provide special specification forms according to customers' requests.
We are also a manufacturer,so we can provide the products in conformity with your requirements.
Our company has rich technical force and advanced production equipment and coordinated advanced test equipment and method.
