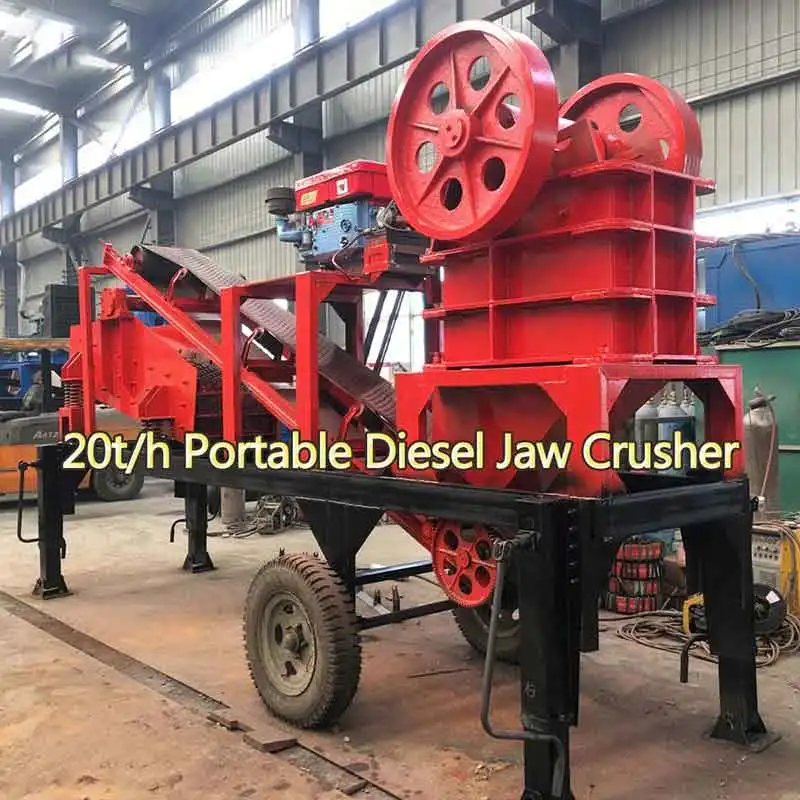

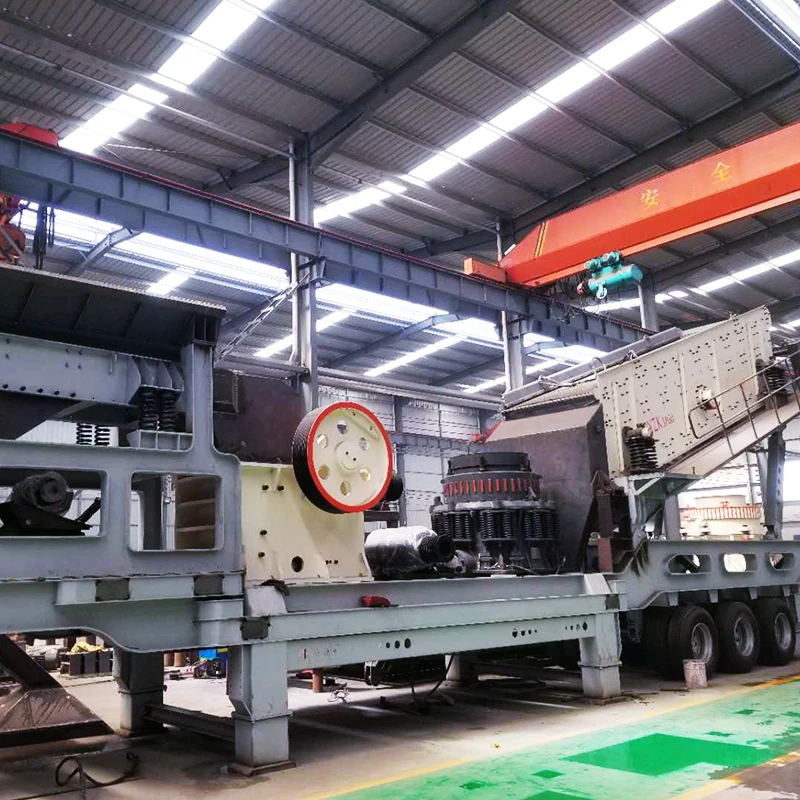

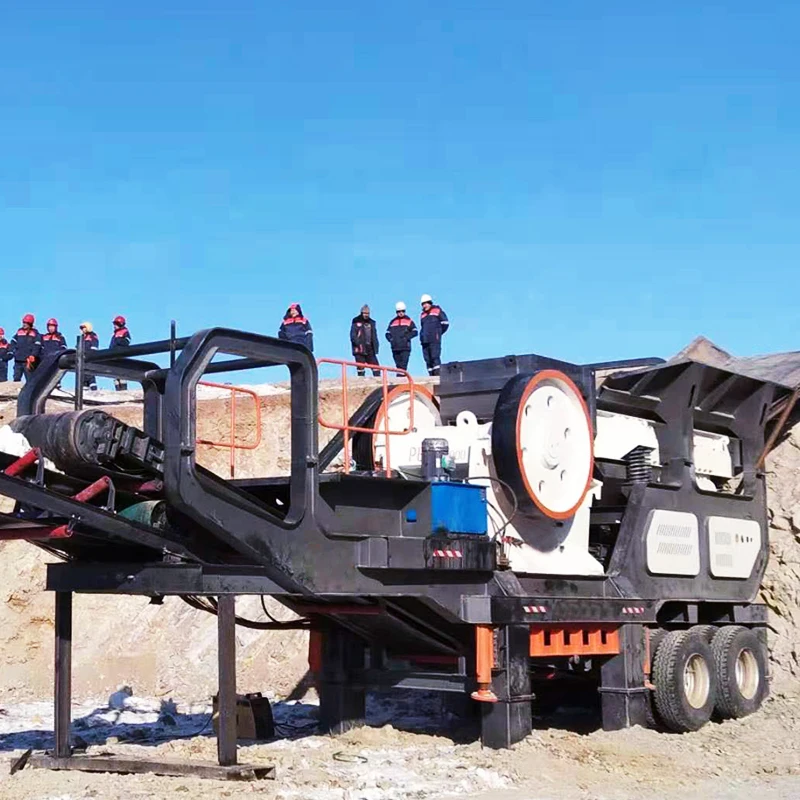

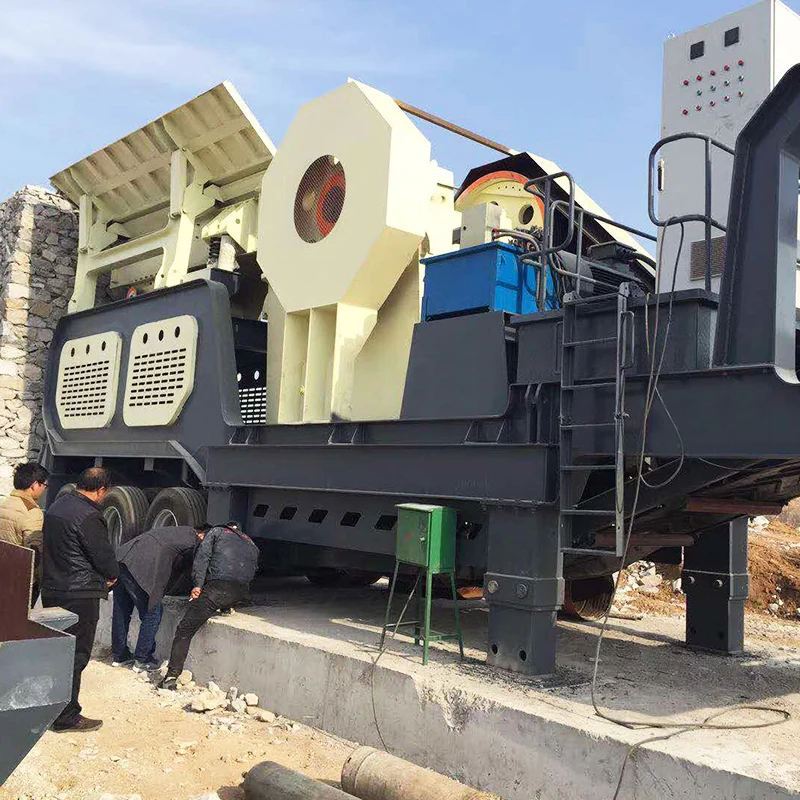

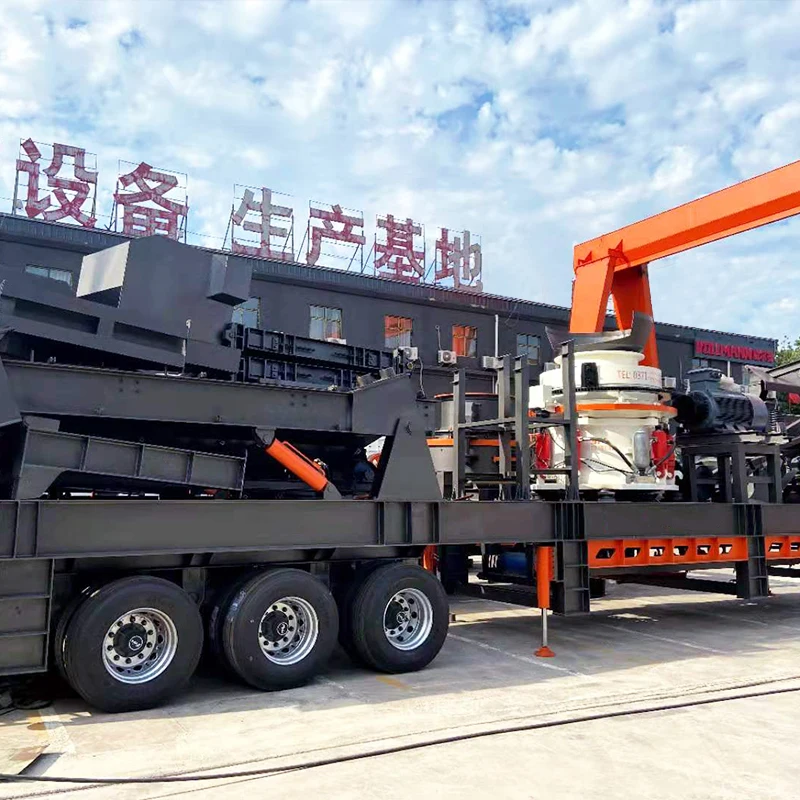

Diesel Engine Type Mini Mobile Jaw Crusher Mobile Stone Crusher Machine Portable Mobile Crushing Plant
- Category: >>>
- Supplier: Henan Zoomjo International Trade Co. Ltd.
Share on (10000017016271):
Product Overview
Description
Diesel Engine Type Mini Mobile Jaw Crusher Mobile Stone Crusher Machine Portable Mobile Crushing Plant
Product Description
Diesel Engine Jaw Crusher is a kind of stone crushing machine which is widely used as primary or secondary crusher. Zoomjo group manufactures coarse jaw crusher and fine jaw crusher in stationary type or mobile type. Jaw crushers are designed modular to save time and installation costs. minimizing on-site engineering and fabrication. We have small, medium and large pe jaw crusher for sale, used for primary secondary fine crushing, meeting different needs.
Our Advantages
1. Deep crushing cavity without dead zone, improve the feeding capacity and output.
2. Big ratio of reduction, even product size, low noise, and small dust.
3. The gaskets adjusting device of discharging opening, reliable and convenient, with large adjusting range, increases the flexibility of the equipment.
4. Safe and reliable lubricating system, easy to change the parts, small maintenance workload.
5. Simple structure, reliable operation, low operating lost.
6. energy saving 15%~30% for one machine, more than doubled for the system
7. Large adjustable scope of discharge opening can meet the requirements of different customers.
2. Big ratio of reduction, even product size, low noise, and small dust.
3. The gaskets adjusting device of discharging opening, reliable and convenient, with large adjusting range, increases the flexibility of the equipment.
4. Safe and reliable lubricating system, easy to change the parts, small maintenance workload.
5. Simple structure, reliable operation, low operating lost.
6. energy saving 15%~30% for one machine, more than doubled for the system
7. Large adjustable scope of discharge opening can meet the requirements of different customers.

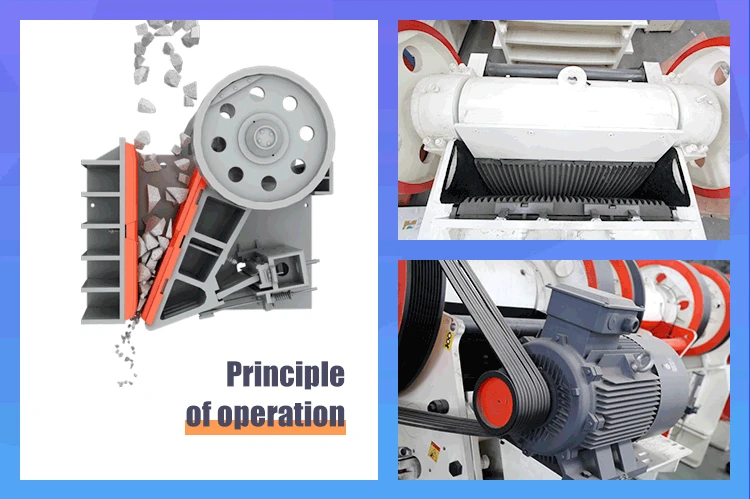

Working Flow
The working principle of the jaw crusher is mainly to crush materials by the periodic movement of the movable jaw. The electric motor drives the belt and pulley through the eccentric shaft to make the moving jaw plate move up and down. When the movable jaw rises, it pushes the movable jaw plate close to the fixed jaw plate.
Technical Parameter
Model | feeding size(mm) | output size (mm) | Capacity (t/h) | Motor Power (KW) | Motor Model | Dimension (mm) | Weight (t) |
PE250X400 | 210 | 20-80 | 4-14 | 15 | Y180L-6 | 1108*1090*1392 | 2.8 |
PE400X600 | 350 | 40-110 | 10-40 | 30 | Y250M-8 | 1663*1732*1586 | 6.7 |
PEF500X750 | 425 | 50-120 | 30-90 | 55 | Y315S-8 | 1930*2062*2246 | 11.5 |
PEF600X900 | 480 | 75-200 | 56-192 | 75 | Y315M-8 | 2600*3700*2400 | 17.6 |
PEF750X1060 | 630 | 80-210 | 72-300 | 110 | Y315L2-8 | 2531*2370*2783 | 26.8 |
PEF900X1200 | 750 | 100-220 | 150-330 | 132 | Y355L2-8 | 3135*2966*3220 | 49.8 |
PEX100X500 | 80 | 7-20 | 3-15 | 7.5 | Y132M-4 | 940*1120*870 | 1.5 |
PEX150X750 | 120 | 10-40 | 8-35 | 15 | Y180L-6 | 1215*1520*1030 | 2.9 |
PEX250X750 | 210 | 12-45 | 13-45 | 22 | Y225M-6 | 1400*1697*1412 | 4.8 |
PEX200X1000 | 210 | 13-50 | 15-50 | 30 | Y225M-6 | 1465*1800*1030 | 5.4 |
PEX250X1000 | 210 | 15-50 | 20-60 | 37 | Y250M-6 | 1530*1992*1380 | 6.8 |
PEX250X1200 | 210 | 15-60 | 25-70 | 45 | Y280S-6 | 1840*2192*1580 | 7.9 |
PEX300X1300 | 250 | 20-90 | 20-130 | 55 | Y315M-6 | 1850*2320*1724 | 12.6 |
Application

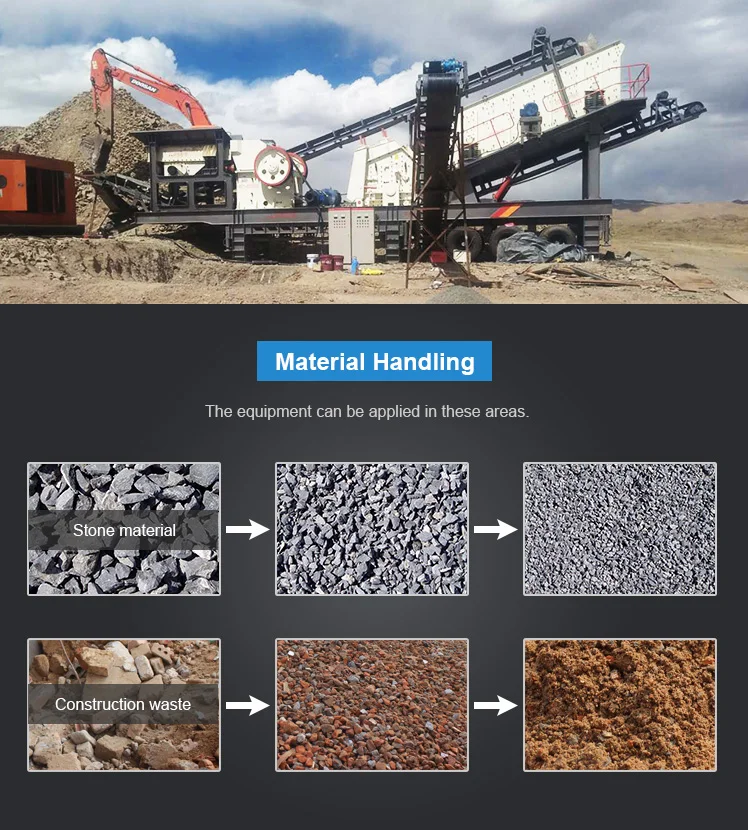

Diesel Engine Jaw Crusher is typically used as primary crusher or the first step in the process of reducing rock. They typically crush using compression. It is widely used in Mining, metallurgy, construction, highway, railroad, and water conservancy, etc.. It can process Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, minerals, quartz, diabase, etc...

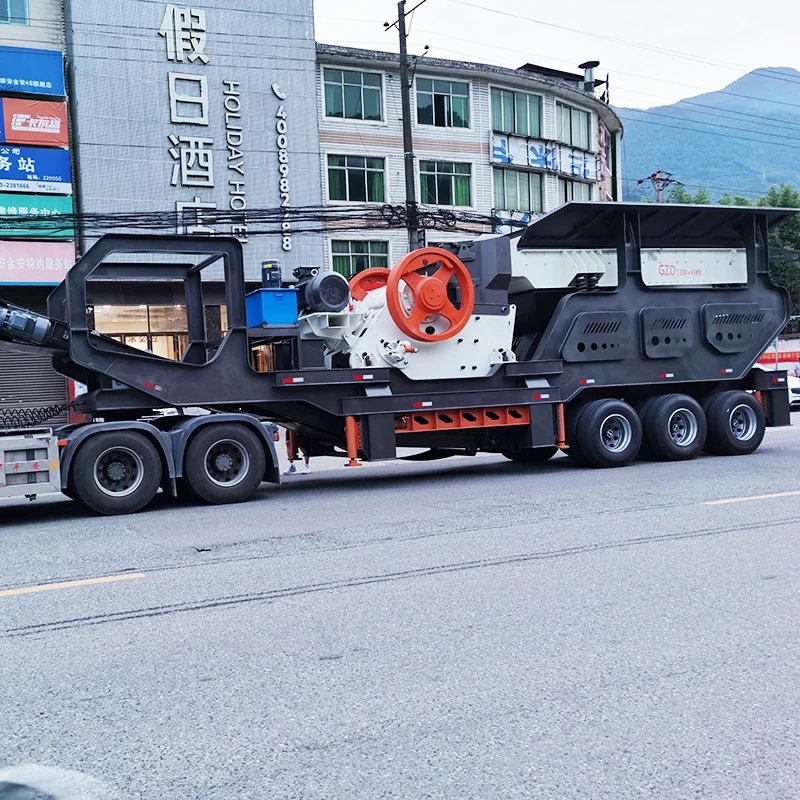

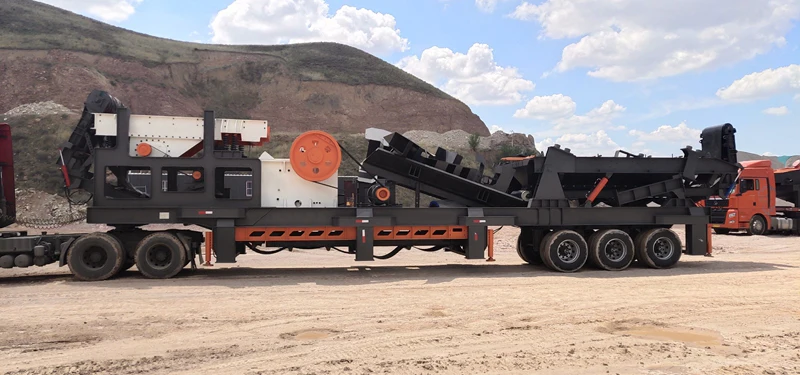

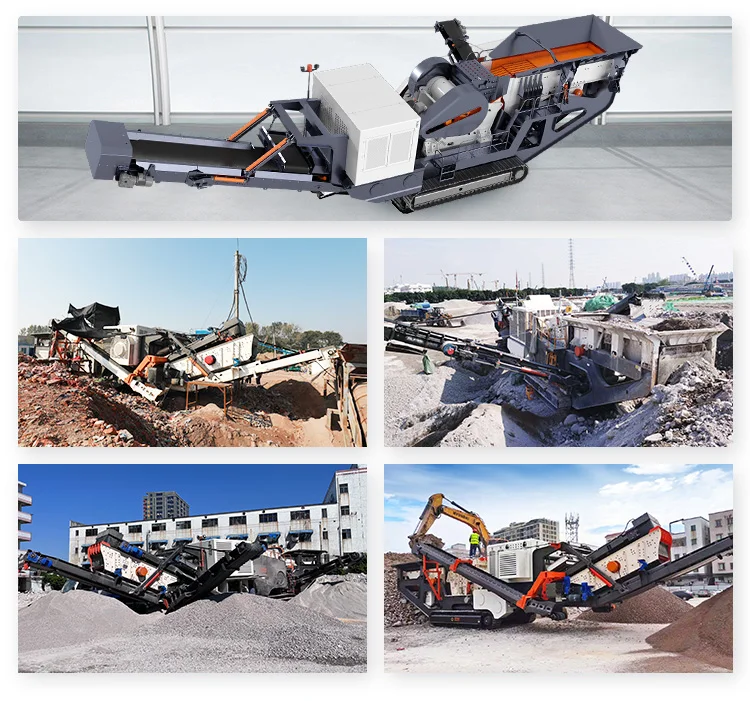

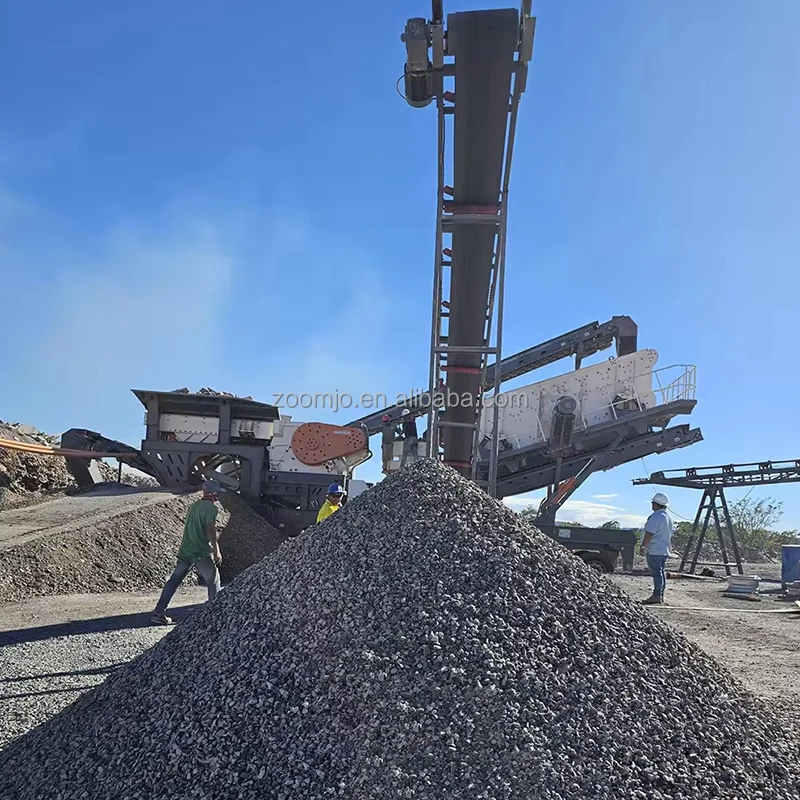

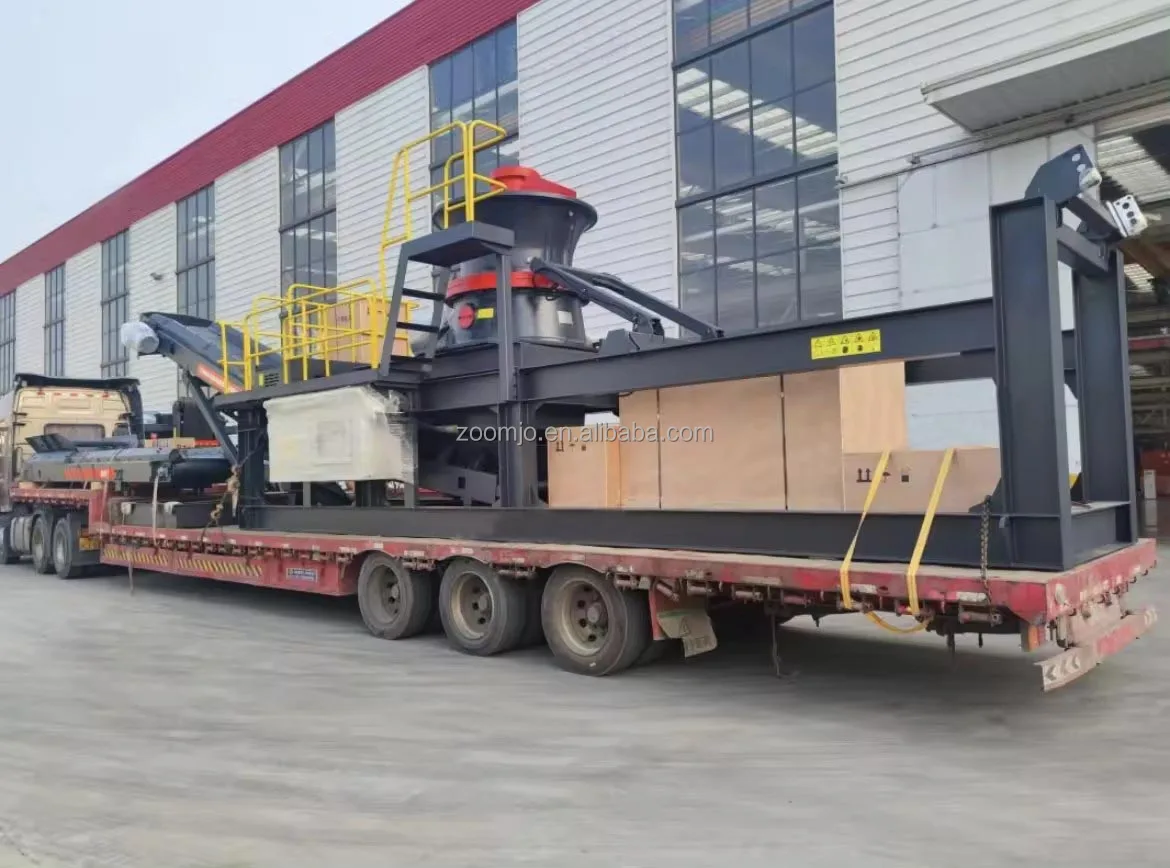

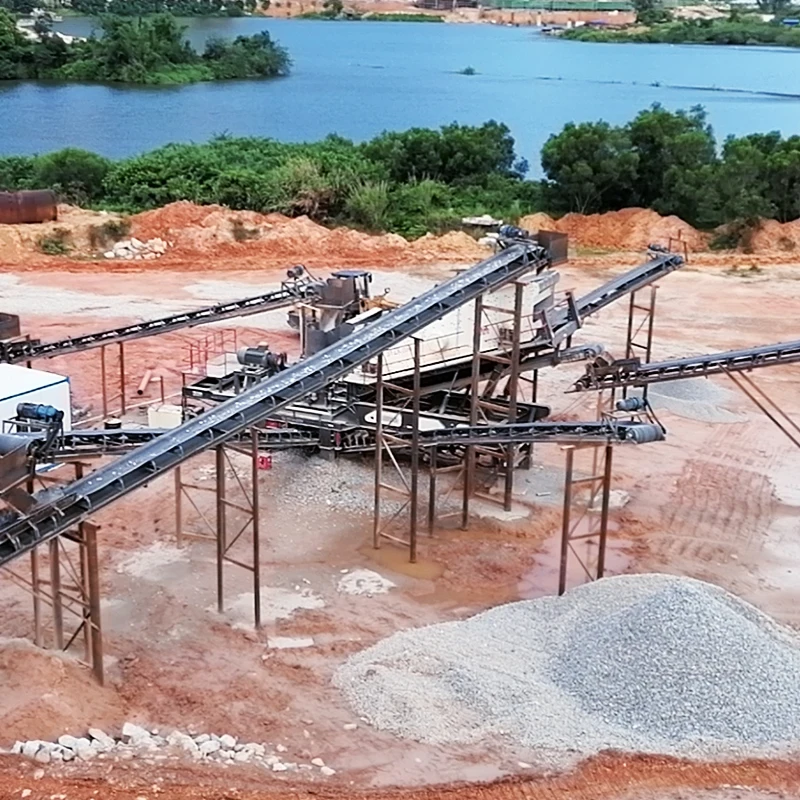

Delivery Site

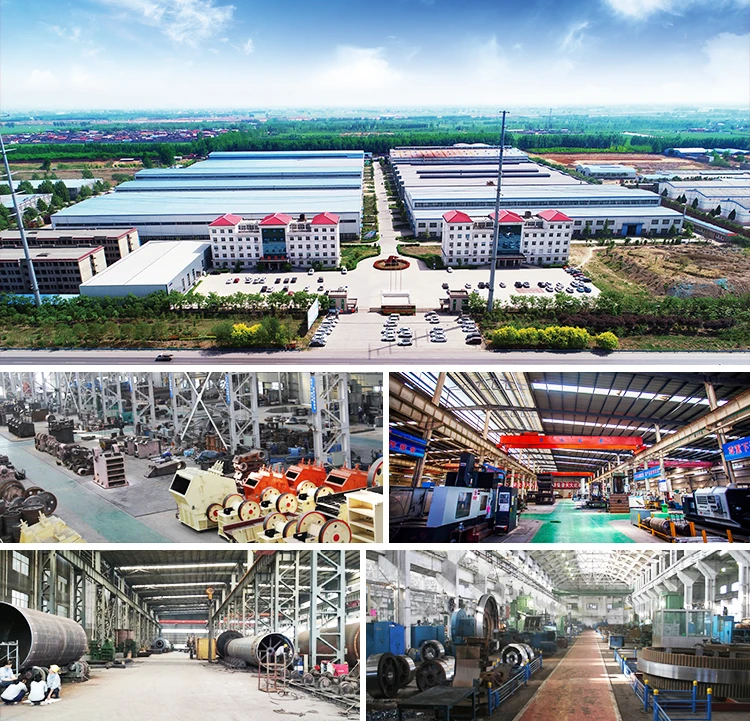

Company Profile
ZOOMJO is a large-scale enterprise that mainly produces heavy mining machinery and integrates scientific research, production and sales. It mainly produces various large and medium-sized crushing equipment, sand making equipment, drying and calcining equipment, mineral processing equipment and other series of products.
ZOOMJO has developed steadily from its establishment to the present with its technical strength, and has grown stronger day by day, and has gathered a large number of high-level management and scientific research personnel. Our company covers an area of 50,000 square meters, and another 10,000 square meters of modern office space, R&D center and sales center. The company has more than 500 employees, including more than 50 intermediate technicians. With strong technical strength, scientific management system and high product quality, ZOOMJO will rapidly grow into an important production and export base of mining machinery.
FAQ
1. How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
2. Is the price of products reliable?
Yes, we are manufacturer and we have the strength to give you the lowest price compared with other dealers. However, we have the policy that "According to the quantity order, we will offer the lowest price as possible with our utterly honest attitude towards business ".
3. Will you help with installation and staff training?
Yes, we can send our engineers to your place to guide the installation and train your workers if needed, but the buyer should bear our technician’s round tickets, accommodation, and food.
4. Service and Payment Terms?
a. We usually accept T/T, L/C, but other terms also workable.
b. We take pictures of finished products before delivery.
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
2. Is the price of products reliable?
Yes, we are manufacturer and we have the strength to give you the lowest price compared with other dealers. However, we have the policy that "According to the quantity order, we will offer the lowest price as possible with our utterly honest attitude towards business ".
3. Will you help with installation and staff training?
Yes, we can send our engineers to your place to guide the installation and train your workers if needed, but the buyer should bear our technician’s round tickets, accommodation, and food.
4. Service and Payment Terms?
a. We usually accept T/T, L/C, but other terms also workable.
b. We take pictures of finished products before delivery.
